基于位移信息融合的露天矿边坡动态预警方法

doi:10.16265/j.cnki.issn1003-3033.2022.03.016

摘要/Abstract

摘要：

为有效利用露天矿边坡安全预警监测中的多测点信息,考虑边坡通常以位移监测为主,且随开采进程测点布设时间不同及坡高的动态变化特性,提出基于位移信息融合的露天矿边坡动态预警方法。首先,以监测剖面为单元,采用数值模拟方法确定各监测剖面位移动态分级预警阈值;然后,采用联邦Kalman滤波融合同一监测剖面多测点位移监测信息,获得表达各监测剖面实时稳定状态的动态位移融合值;最后,通过比较监测剖面动态位移融合值和位移动态分级预警阈值,实时动态预警边坡各监测剖面的稳定性状态。重庆忠县某石灰岩露天矿边坡的监测预警应用表明:该预警方法不仅能充分利用多测点信息,实时分区安全预警边坡,而且可以预判边坡未来开挖过程的稳定性。

关键词: 信息融合, 露天矿边坡, 动态预警, 数值模拟, 位移监测

Abstract:

In order to effectively use information of multiple measurement points for early-warning and monitoring of slope safety in open-pit mines, considering the importance of displacement monitoring and its variation along with time of measuring points setting and slope height during mining, a dynamic warning method using integrated displacement information was proposed. Firstly, with monitoring profile as a unit, dynamic grading early warning threshold for displacement of each profile was determined through numerical simulation. Secondly, federated Kalman filter was used to integrate monitoring information of different measuring points from the same profile and obtain integrated displacement value representing timely stable state of each profile. Finally, by comparing integrated value with early warning threshold, real-time early-warning for steady state of each profile was realized. Application of the method in a limestone open-pit mine slope, located in Zhongxian county of Chongqing, shows that it can not only fully utilize information of multiple measurement points to send early warning in different regions in real-time, but also predict stability of slopes during mining process.

Key words: information integration, open-pit slope, dynamic warning, numerical simulation, displacement monitoring

冯巩, 夏元友, 王智德, 严敏嘉. 基于位移信息融合的露天矿边坡动态预警方法[J]. 中国安全科学学报, 2022, 32(3): 116-122.

FENG Gong, XIA Yuanyou, WANG Zhide, YAN Minjia. Dynamic early warning method of open-pit mine slopes based on integrated displacement information[J]. China Safety Science Journal, 2022, 32(3): 116-122.

图/表 9

表1

图1

表2

表3

图2

图3

表4

表5

表6

参考文献 24

[1]	代永新, 赵武鹍. 露天矿超高边坡灾变影响因素与防控关键技术研究综述[J]. 金属矿山, 2016(11): 1-9.
	DAI Yongxin, ZHAO Wukun. Overview about disaster factors and critical control technique for super high slope of open-pit mine[J]. Metal Mine, 2016(11): 1-9.
[2]	曹兰柱, 王珍, 王东, 等. 露天矿滑坡预警理论与方法研究[J]. 中国安全科学学报, 2017, 27(3): 163-168. doi: 10.16265/j.cnki.issn1003-3033.2017.03.029
	CAO Lanzhu, WANG Zhen, WANG Dong, et al. Research on theory and method of landslide early warning in open-pit mine[J]. China Safety Science Journal, 2017, 27(3):163-168. doi: 10.16265/j.cnki.issn1003-3033.2017.03.029
[3]	王东, 张禹, 曹兰柱, 等. 露天矿边坡稳定性的断面形态效应研究[J]. 中国安全科学学报, 2018, 28(1): 105-111. doi: 10.16265/j.cnki.issn1003-3033.2018.01.018
	WANG Dong, ZHANG Yu, CAO Lanzhu, et al. Study of section shape effect on stability of open-pit slope[J]. China Safety Science Journal, 2018, 28(1):105-111. doi: 10.16265/j.cnki.issn1003-3033.2018.01.018
[4]	吴孟龙, 叶义成, 胡南燕, 等. RAGA-PPC云模型在边坡稳定性评价中的应用[J]. 中国安全科学学报, 2019, 29(9): 57-63. doi: 10.16265/j.cnki.issn1003-3033.2019.09.009
	WU Menglong, YE Yicheng, HU Nanyan, et al. Application of RAGA-PPC cloud model in slope stability evaluation[J]. China Safety Science Journal, 2019, 29(9):57-63. doi: 10.16265/j.cnki.issn1003-3033.2019.09.009
[5]	王东, 姜聚宇, 刘帅, 等. 露天煤矿边坡相对稳定性判据研究与应用[J]. 中国安全科学学报, 2018, 28(7): 76-81. doi: 10.16265/j.cnki.issn1003-3033.2018.07.013
	WANG Dong, JIANG Juyu, LIU Shuai, et al. Research on slope relative stability criterion and its application in open-pit coal mine[J]. China Safety Science Journal, 2018, 28(7):76-81. doi: 10.16265/j.cnki.issn1003-3033.2018.07.013
[6]	黄维新, 贾明涛, 陈有燎, 等. 基于微震监测技术在矿山安全管理中的应用研究[J]. 中国安全科学学报, 2008, 18(1): 165-170.
	HUANG Weixin, JIA Mingtao, CHEN Youliao, et al. Study on the application of micro-seismic monitoring technique to mine safety management[J]. China Safety Science Journal, 2008, 18(1): 165-170.
[7]	张德辉, 卢晓辉, 李天龙. GNSS实时形变监测系统在岩质高边坡中的应用[J]. 勘察科学技术, 2018(1): 36-38.
	ZHANG Dehui, LU Xiaohui, LI Tianlong. Application of GNSS surface displacement monitoring system in high rock slope[J]. Site Investigation Science and Technology, 2018(1): 36-38.
[8]	许强, 董秀军, 李为乐. 基于天-空-地一体化的重大地质灾害隐患早期识别与监测预警[J]. 武汉大学学报:信息科学版, 2019, 44(7): 957-966.
	XU Qiang, DONG Xiujun, LI Weile. Integrated Space-Air-Ground early detection, monitoring and warning system for potential catastrophic geoharzards[J]. Geomatics and Information Science of Wuhan University, 2019, 44(7): 957-966.
[9]	KARUNATHILAKE A, ZOU Lilong, KIKUTA K, et al. Implementation and configuration of GB-SAR for landslide monitoring: case study in Minami-Aso, Kumamoto[J]. Exploration Geophysics, 2019, 50(2): 210-220. doi: 10.1080/08123985.2019.1588069
[10]	DU Yuan, HUANG Guanwen, ZHANG Qin. Asynchronous RTK method for detecting the stability of the reference station in GNSS deformation monitoring[J]. Sensors, 2020, 20(5): DOI:10.3390/s20051320.
[11]	贺可强, 陈为公, 张朋. 蠕滑型边坡动态稳定性系数实时监测及其位移预警判据研究[J]. 岩石力学与工程学报, 2016, 35(7): 1377-1385.
	HE Keqiang, CHEN Weigong, ZHANG Peng. Real-time monitoring of dynamic stability coefficient and displacement criterion of the creep slope[J]. Chinese Journal of Rock Mechanics and Engineering, 2016, 35(7): 1377-1385.
[12]	许强, 曾裕平. 具有蠕变特点滑坡的加速度变化特征及临滑预警指标研究[J]. 岩石力学与工程学报, 2009, 28(6): 1099-1106.
	XU Qiang, ZENG Yuping. Research on acceleration variation characteristics of creep landslide and early-warning prediction indicator of critical sliding[J]. Chinese Journal of Rock Mechanics and Engineering, 2009, 28(6): 1099-1106.
[13]	许强, 曾裕平, 钱江澎, 等. 一种改进的切线角及对应的滑坡预警判据[J]. 地质通报, 2009, 28(4): 501-505.
	XU Qiang, ZENG Yuping, QIAN Jiangpeng. Study on a improved tangential angle and the corresponding landslide pre-warning criteria[J]. Geological Bulletin of China, 2009, 28(4): 501-505.
[14]	TAN Qulin, WANG Pin, HU Jun, et al. The application of multi-sensor target and fusion technology to the comprehensive early warning information extraction of landslide multi-point monitoring data[J]. Measurement, 2020, 166(6): DOI: 10.1016/j.measurement.2020.108044. doi: 10.1016/j.measurement.2020.108044
[15]	张凌凡, 陈忠辉, 周天白, 等. 基于梯度提升决策树的露天矿边坡多源信息融合与稳定性预测[J]. 煤炭学报, 2020, 45(增1): 173-180.
	ZHANG Lingfan, CHEN Zhonghui, ZHOU Tianbai, et al. Multi-source information fusion and stability prediction of slope based on gradient boosting decision tree[J]. Journal of China Coal Society, 2020, 45(S1): 173-180.
[16]	杨宗佶, 王礼勇, 石莉莉, 等. 降雨滑坡多指标监测预警方法研究[J]. 岩石力学与工程学报, 2020, 39(2): 272-285.
	YANG Zongji, WANG Liyong, SHI Lili, et al. Research of monitoring and early warning methods for rainfall-induced landslides based on multivariate thresholds[J]. Chinese Journal of Rock Mechanics and Engineering, 2020, 39(2): 272-285.
[17]	朱万成, 任敏, 代风, 等. 现场监测与数值模拟相结合的矿山灾害预测预警方法[J]. 金属矿山, 2020(1):151-162.
	ZHU Wancheng, REN Min, DAI Feng, et al. Prediction and early warning of mining-induced disasters based on combined in-situ monitoring and numerical simulation[J]. Metal Mine, 2020(1): 151-162.
[18]	李聪, 姜清辉, 周创兵, 等. 基于实例推理系统的滑坡预警判据研究[J]. 岩土力学, 2011, 32(4): 1069-1076.
	LI Cong, JIANG Qinghui, ZHOU Chuangbing, et al. Research on early warning criterion of landslides using case-based reasoning[J]. Rock and Soil Mechanics, 2011, 32(4): 1069-1076.
[19]	魏上杰. 攀田高速三家村滑坡稳定性分析与监测预警研究[D]. 成都: 成都理工大学, 2017.
	WEI Shangjie. Study on stability analysis and monitoring and early warning of landslide in Sanjia villages of Pantian express-way[D]. Chengdu: Chengdu University of Technology, 2017.
[20]	蔡泽宏. 基于监测数据的台风暴雨型土质滑坡预警判据研究[D]. 福州: 福州大学, 2015.
	CAI Zehong. Research on early earning criterion of soil landslides using monitoring data[D]. Fuzhou: Fuzhou University, 2015.
[21]	赵杭州. 基于联邦卡尔曼滤波的多传感器组合导航故障诊断研究[D]. 北京: 北京理工大学, 2017.
	ZHAO Hangzhou. Fault diagnosis of multiple-sensor integrated navigation based on Federal Kalman filter[D]. Beijing: Beijing Institute of Technology, 2017.
[22]	孙波, 李计钢, 罗文强. 基于联邦kalman技术综合提取滑坡监测信息[J]. 长江科学院院报, 2012, 29(9): 39-41.
	SUN Bo, LI Jigang, LUO Wenqiang. Comprehensive extraction of landslide monitoring information based on Federal Kalman technology[J]. Journal of Yangtze River Scientific Research Institute, 2012, 29(9): 39-41.
[23]	杜时贵. 大型露天矿山边坡稳定性等精度评价方法[J]. 岩石力学与工程学报, 2018, 37(6): 1301-1331.
	DU Shigui. Method of equal accuracy assessment for the stability analysis of large open-pit mine slopes[J]. Chinese Journal of Rock Mechanics and Engineering, 2018, 37(6): 1301-1331.
[24]	孙波. 多传感器融合估计算法的研究及在滑坡中的应用[D]. 武汉: 中国地质大学, 2012.
	SUN Bo. Method Research on comprehensive treatment and data fusion of multiple monitoring data[D]. Wuhan: China University of Geosciences, 2012.

监测坡面	GNSS自动化监测点号			最终坡高/m	合计
17-17'	17-1066	17-1123	—	304	2
18-18'	18-1066	18-1093	18-1138	331	3
19-19'	19-1060	19-1090	—	273	2
II-II'	II-1030	—	—	279	1
III-III'	III-1075	—	—	275	1
A-A'	A-1090	—	—	274	1
F-F'	F-1057	F-1105	—	300	2
合计	—	—	—	—	12

岩性	结构面抗剪参数		结构面刚度/(MPa·m^-1)
岩性	c/MPa	φ/(°)	抗剪刚度	法向刚度
灰岩	0.463	26	25 600	10 000

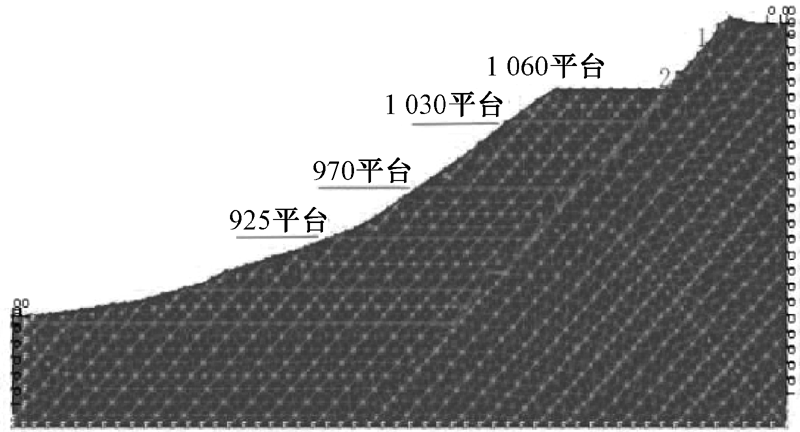

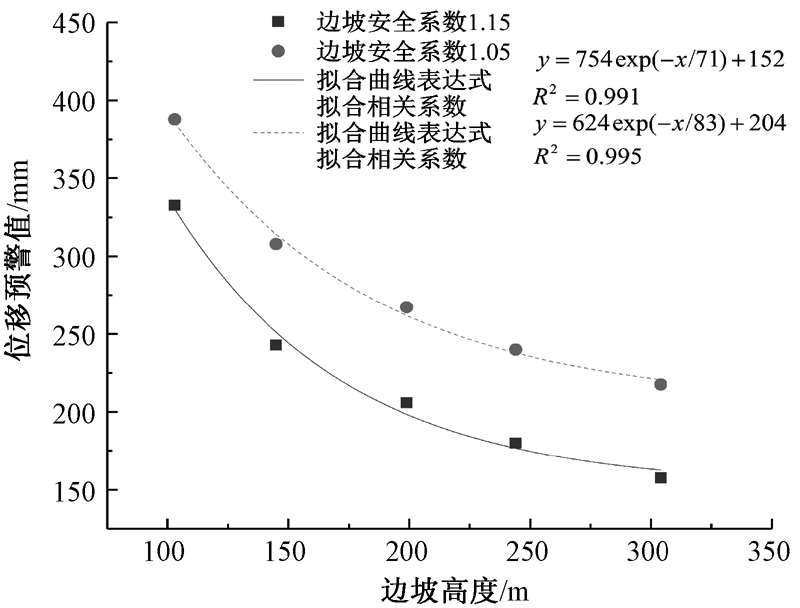

监测剖面	边坡安全系数1.15		边坡安全系数1.05
监测剖面	拟合曲线表达式	拟合相关系数R²	拟合曲线表达式	拟合相关系数R²
17-17'	y=754exp(-x/71)+152	0.991	y=624exp(-x/83)+204	0.995
18-18'	y=572exp(-x/283)-22	0.985	y=844exp(-x/250)-45	0.979
19-19'	y=409exp(-x/225)+52	0.996	y=492exp(-x/239)+84	0.996
II-II'	y=495exp(-x/134)+146	0.990	y=570exp(-x/150)+152	0.981
III-III'	y=383exp(-x/100)+182	0.992	y=448exp(-x/146)+164	0.998
A-A'	y=319exp(-x/153)+178	0.999	y=439exp(-x/304)+80	0.991
F-F'	y=623exp(-x/97)+114	0.985	y=610exp(-x/112)+114	0.998

测点编号	时间
测点编号	2020-02-28	2020-03-28	2020-04-28	2020-05-28	2020-06-28	2020-07-28	2020-08-28	2020-09-28	2020-10-28
18-1093	40.8	51.4	69.5	92.1	98.1	104.4	123.4	127.3	177.5
18-1138	11.7	15.1	55.1	56.9	76.8	83.2	93.2	115.7	163.3
18-1066	159.5	162.8	170.9	181.4	206.7	213.1	223.1	246.8	294.2
17-1066	34.3	44.4	55.1	56.9	76.8	83.2	87.2	115.7	163.3
17-1123	6.0	8.6	12.9	15.4	43.9	45.9	50.6	78.5	136.5
19-1060	12.4	17.8	24.3	29.0	53.4	54.8	56.7	91.4	122.8
19-1090	4.4	11.5	12.3	22.3	44.7	45.4	46.1	78.4	130.3
II-1030	25.2	30.0	36.1	43.3	50.6	50.6	64.2	82.4	139.7
III-1060	26.6	29.5	35.1	41.7	56.6	62.1	65.0	88.4	144.2
A-1090	9.6	15.8	25.2	29.5	39.3	39.3	44.7	80.3	114.7
F-1057	20.8	31.5	35.8	37.0	41.1	43.9	43.9	82.3	100.9
F-1105	18.4	29.7	33.2	41.1	43.2	43.2	47.5	80.0	131.3

时间	边坡高度/m	位移融合值/mm	一级预警值/mm	二级预警值/mm	预警状态
2020-04-28	112	31.6	307.7	365.8	安全
2020-05-28	112	34.3	307.7	365.8	安全
2020-06-28	124	59.2	283.5	344.1	安全
2020-07-28	124	61.6	283.5	344.1	安全
2020-08-28	124	65.7	283.5	344.1	安全
2020-09-28	135	93.2	264.6	326.7	安全
2020-10-28	144	145.5	251.2	314.1	安全
