海底金属矿围岩裂隙倾角、开度对渗流特性的影响

doi:10.16265/j.cnki.issn1003-3033.2023.09.1311

中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (9): 164-172.doi: 10.16265/j.cnki.issn1003-3033.2023.09.1311

海底金属矿围岩裂隙倾角、开度对渗流特性的影响

付翠翠¹(), 张永亮¹^,^**(), 曲敏¹, 殷诗理¹, 刘云飞¹, 王明斌²

¹ 青岛理工大学安全科学与工程系,山东青岛 266520
² 山东黄金矿业(莱州)有限公司三山岛金矿,山东烟台 264010

收稿日期:2023-03-11 修回日期:2023-06-12 出版日期:2023-09-28
通讯作者:
**张永亮(1979—),男,河北唐山人,博士,教授,主要从事矿山深井灾害预防与治理方面的研究。E-mail:zhyoliang@163.com。
作者简介:
付翠翠 (1996—),女,山东青岛人,硕士,主要从事深部矿井湿热治理及灾害防治方面的工作。E-mail:fucc0825@163.com。
基金资助:
国家自然科学基金资助(51874187); 山东省高等学校优秀青年创新团队(2019KJH008)

Effects of fracture dip and aperture of submarine metal mine surrounding rock on seepage characteristics

FU Cuicui¹(), ZHANG Yongliang¹^,^**(), QU Min¹, YIN Shili¹, LIU Yunfei¹, WANG Mingbin²

¹ Department of Safety Science and Engineering, Qingdao University of Technology, Qingdao Shandong 266520, China
² Sanshandao Gold Mine, Shandong Gold Mining (Laizhou) Co., Ltd., Yantai Shandong 261442, China

Received:2023-03-11 Revised:2023-06-12 Published:2023-09-28

摘要/Abstract

摘要：

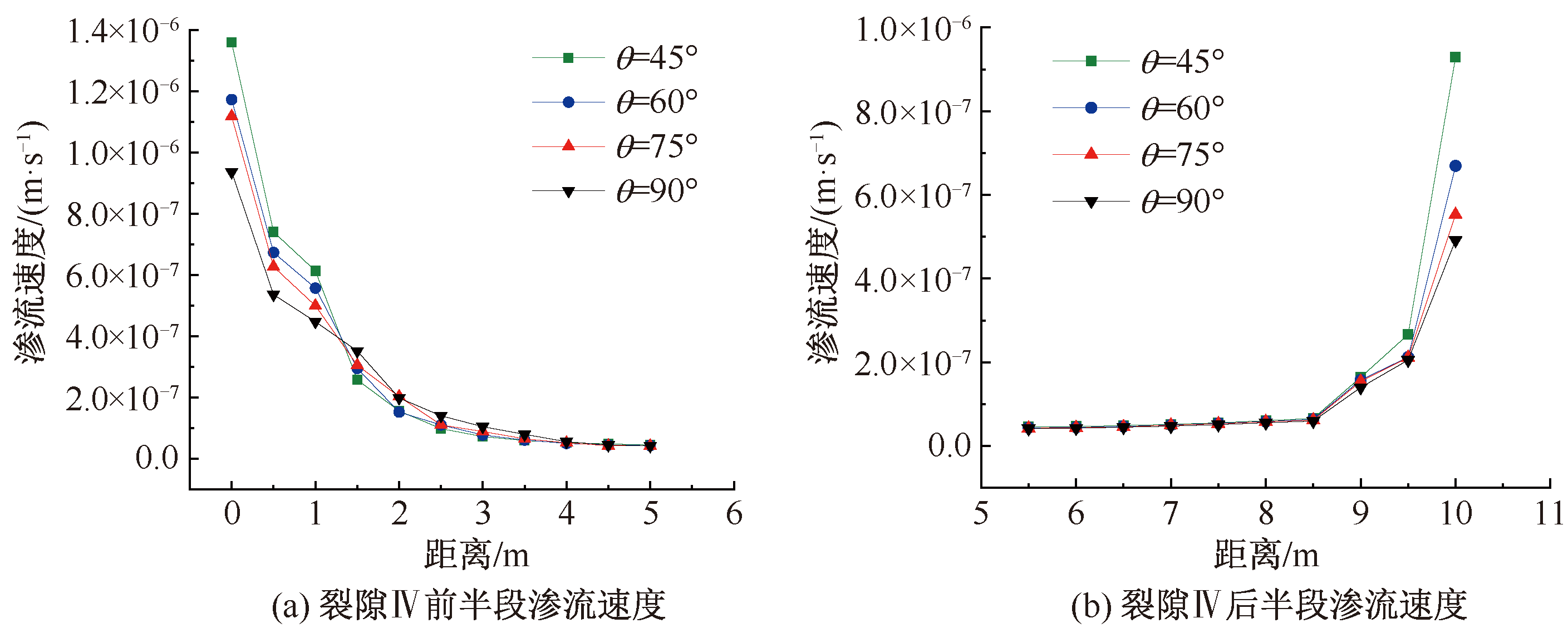

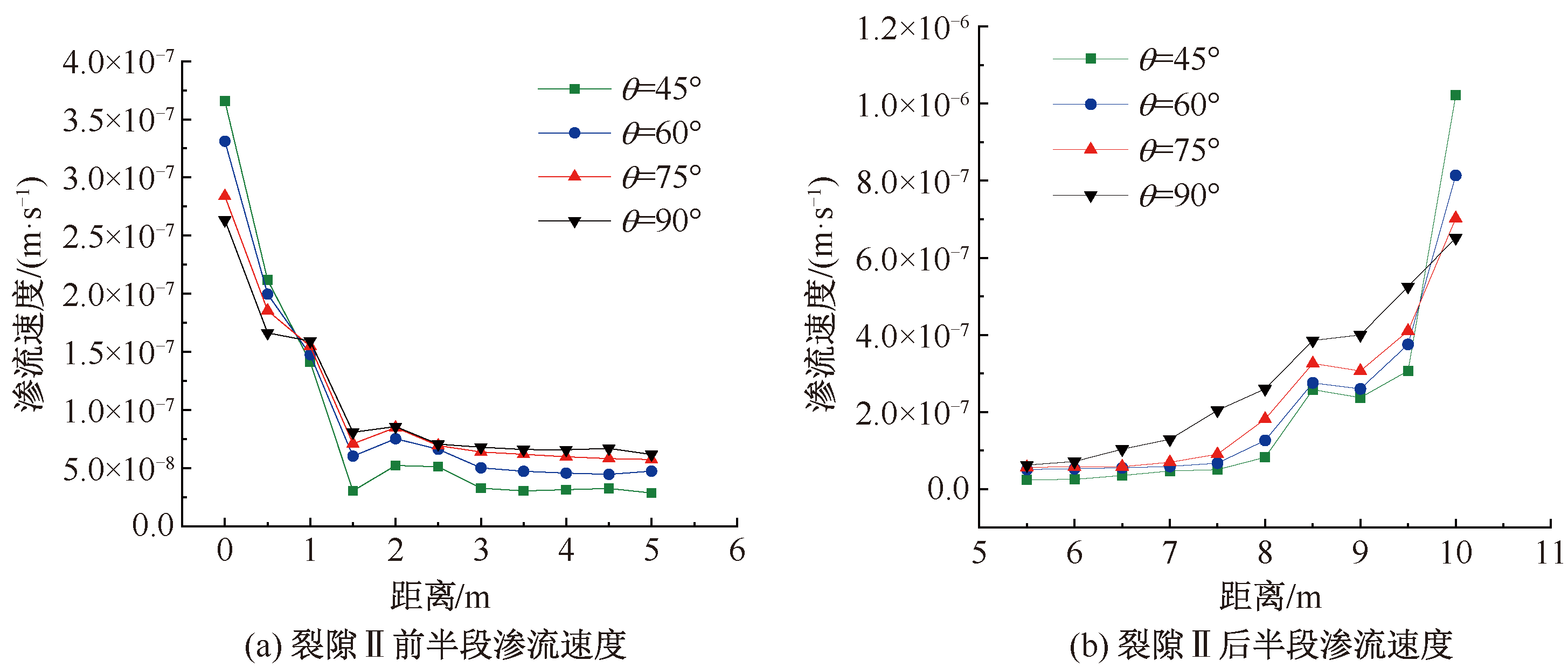

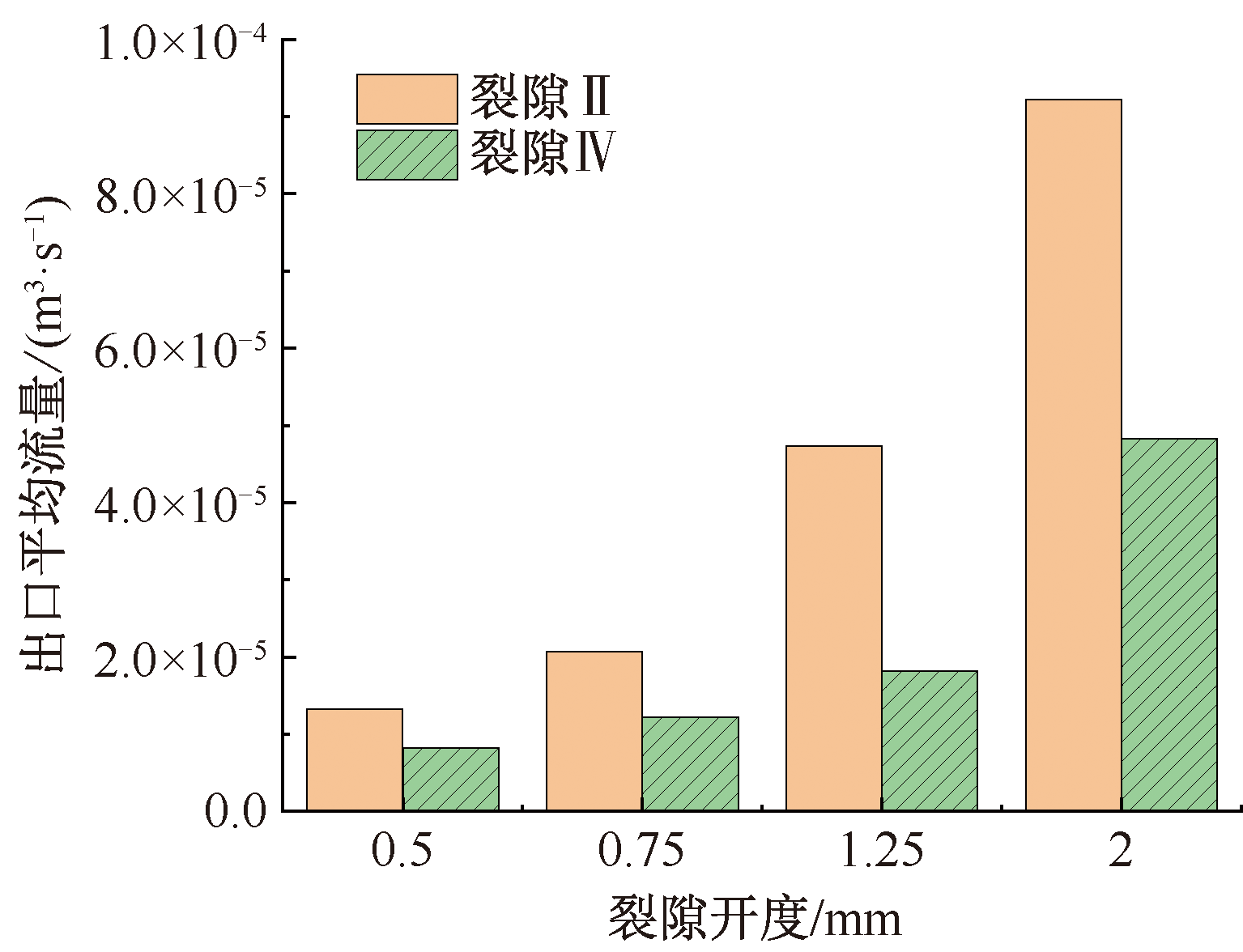

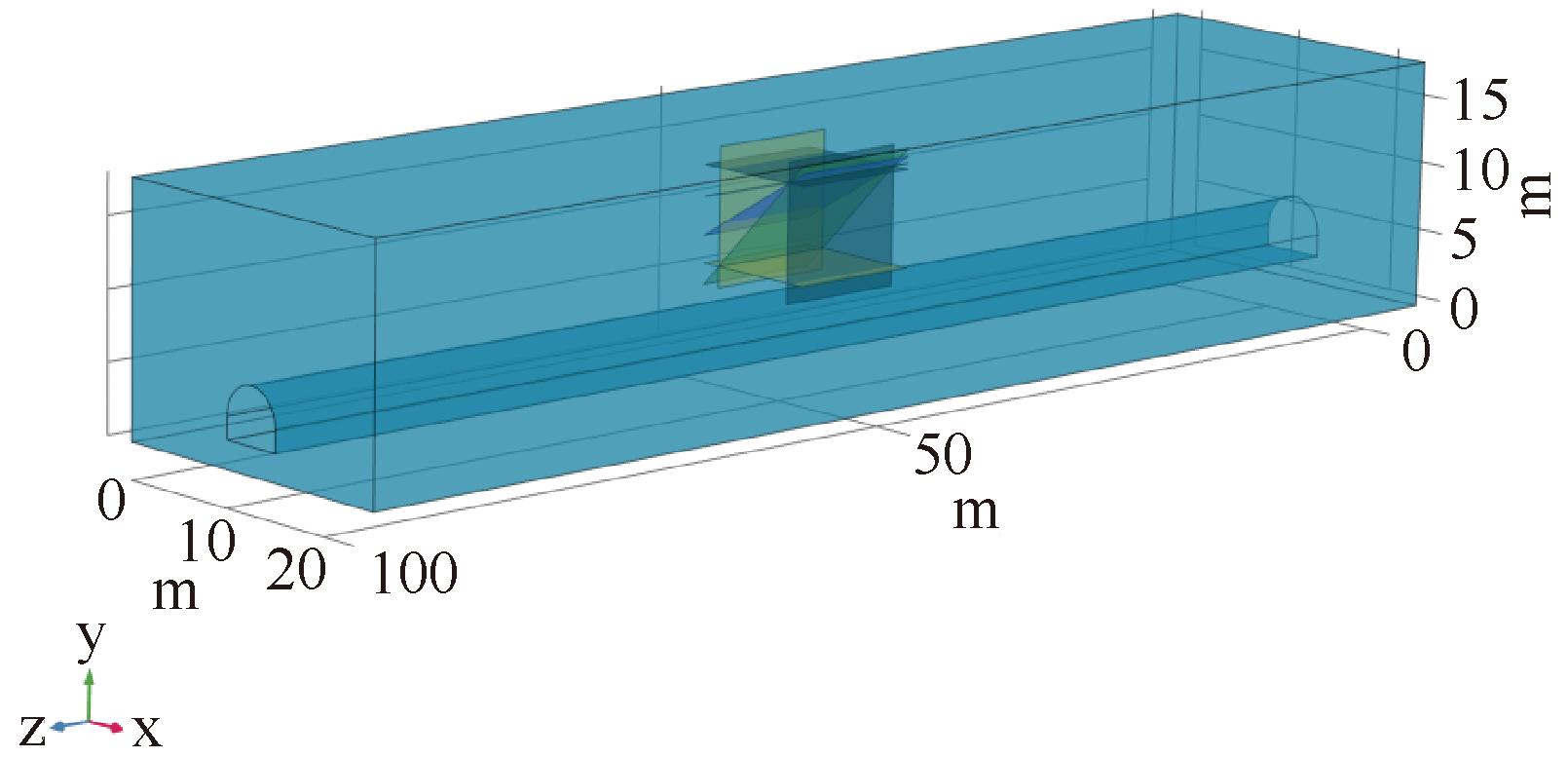

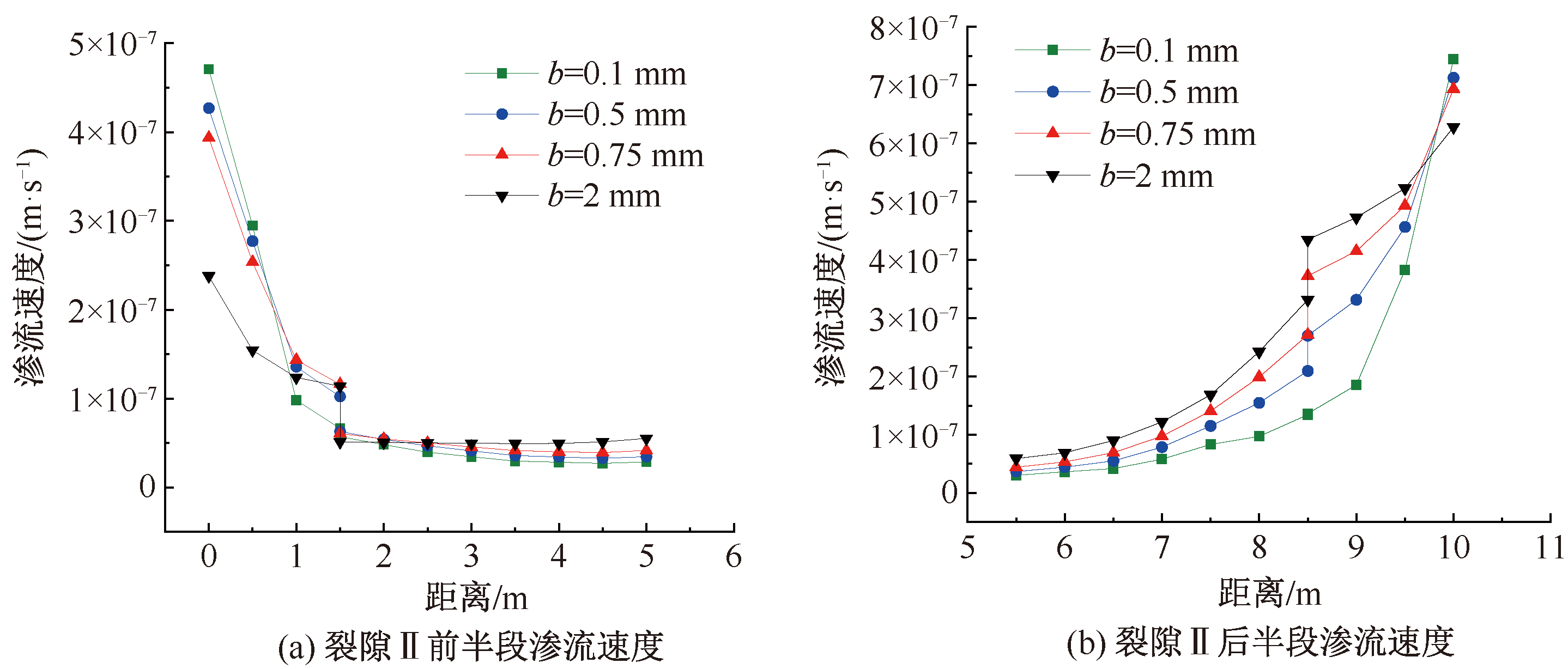

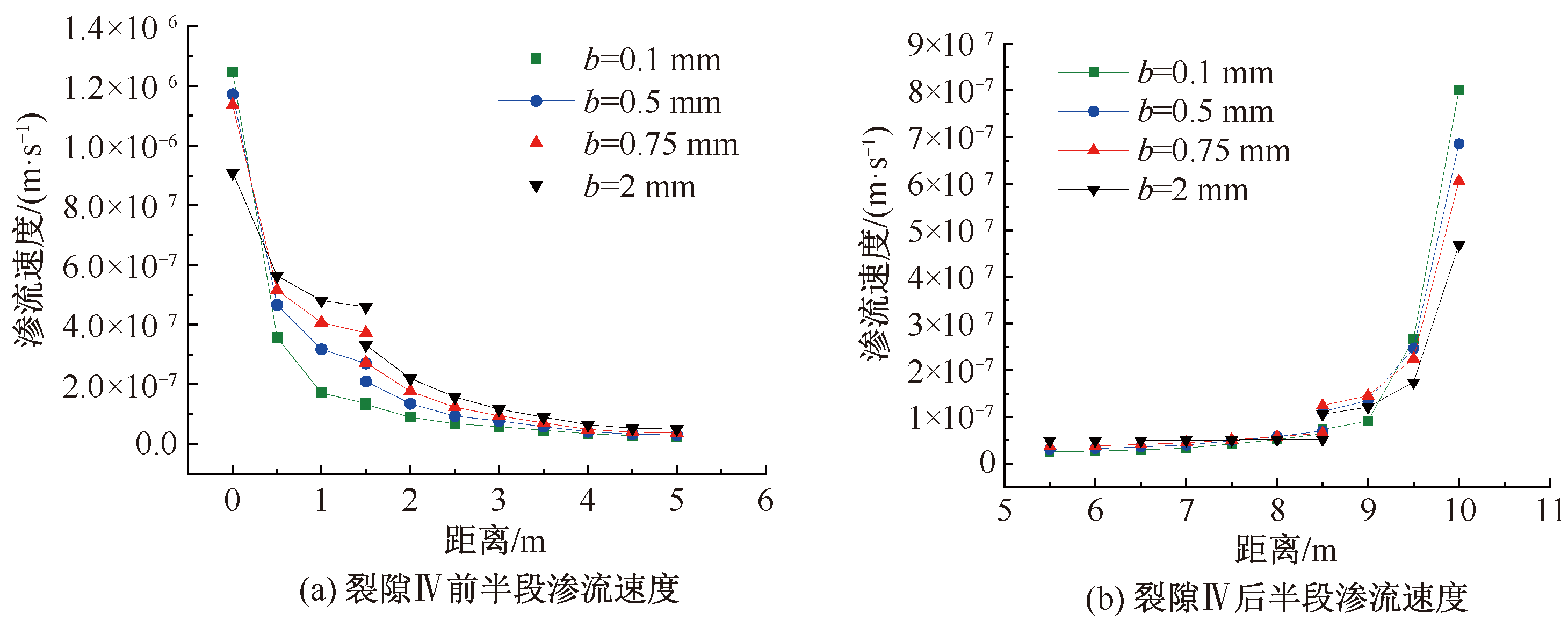

为探究海底金属矿高承压围岩裂隙倾角、开度对渗流特性的影响,揭示海底金属矿高承压围岩裂隙倾角及开度对渗流速度、出口流量的影响特征,以海底金属矿三山岛新立矿区为工程背景,基于裂隙状态与渗流速度耦合理论建立围岩多裂隙渗流模型,应用COMSOL Multiphysics数值模拟软件,通过改变裂隙倾角和开度得到地下水在深井围岩裂隙中渗流速度、出口流量的变化情况。结果表明:裂隙倾角会对地下水渗流速度产生重要影响,多裂隙相交使地下水渗流速度发生突变,在模拟倾角范围内,裂隙倾斜角度越大,地下水出口渗流速度越小,出口流量越小,裂隙相交处渗流速度突变越明显。当裂隙开度处于0.5~2 mm时,裂隙相交处渗流速度发生明显突变,裂隙开度大小对渗流量影响显著。

关键词: 海底金属矿, 裂隙倾角, 裂隙开度, 渗流速度, 渗流特性

Abstract:

In order to study the influence of fracture inclination and opening degree of high pressure surrounding rock of undersea metal mine on seepage characteristics and reveal the influence law of fracture inclination and opening degree of high pressure surrounding rock of undersea metal mine on seepage velocity and outlet flow, a multi-fracture seepage model of surrounding rock was established based on the coupling theory of fracture state and seepage velocity in Xinli mining area of Sanshandao, an undersea metal mine. The numerical simulation software COMSOL Multiphysics was applied to obtain the change of seepage velocity and outlet flow of groundwater in the crack of surrounding rock of a deep well by changing the crack dip Angle and crack opening. The results show that the Angle of fracture inclination has an important influence on the seepage velocity of groundwater, and the intersection of multiple fractures causes sudden changes in the seepage velocity of the groundwater. In the range of simulated inclination Angle, the larger the Angle of fracture inclination, the smaller the seepage velocity of groundwater outlet, the smaller the outlet discharge, and the more obvious the seepage velocity change at the intersection of cracks. When the crack opening is between 0.5 and 2 mm, the seepage velocity at the intersection of the crack changes obviously, and the crack opening has a significant effect on the seepage flow.

Key words: subsea metal mine, fracture dip, fracture aperture, seepage velocity, outlet flow

付翠翠, 张永亮, 曲敏, 殷诗理, 刘云飞, 王明斌. 海底金属矿围岩裂隙倾角、开度对渗流特性的影响[J]. 中国安全科学学报, 2023, 33(9): 164-172.

FU Cuicui, ZHANG Yongliang, QU Min, YIN Shili, LIU Yunfei, WANG Mingbin. Effects of fracture dip and aperture of submarine metal mine surrounding rock on seepage characteristics[J]. China Safety Science Journal, 2023, 33(9): 164-172.

图/表 13

图1

图2

图3

表1

表2

图4

图5

图6

图7

图8

图9

图10

图11

参考文献 21

[1]	YU Haitao, ZHU Shuyun, WANG Xianhui. Research on groundwater seepage through fault zones in coal mines[J]. Hydrogeology Journal, 2021, 29(4):1647-1656. doi: 10.1007/s10040-021-02336-w
[2]	戴世伟, 刘鑫鑫, 万飞. 软岩隧道大变形事故致灾因素耦合分析[J]. 中国安全科学学报, 2021, 31(8) :119-124. doi: 10.16265/j.cnki.issn1003-3033.2021.08.017
	DAI Shiwei, LIU Xinxin, WAN Fei. Coupling analysis on disaster-inducing factors for large deformation accidents in soft rock tunnels[J]. China Safety Science Journal, 2021, 31(8):119-124. doi: 10.16265/j.cnki.issn1003-3033.2021.08.017
[3]	盛建龙, 韩云飞, 黄涛. 粗糙裂隙开度及粗糙度渗流特性实验研究[J]. 化工矿物与加工, 2020, 49(11):35-38,47.
	SHENG Jianlong, HAN Yunfei, HUANG Tao. Experimental study on the effect of opening and roughness on seepage characteristics of rough fracture[J]. Industrial Minerals & Processing, 2020, 49(11):35-38,47.
[4]	黄萍, 张永亮. 地热水在矿山深部岩体单一裂隙中的渗流规律分析[J]. 安全与环境学报, 2017, 17(5):1820-1822.
	HUANG Ping, ZHANG Yongliang. Analysis of the flow regularity of the geothermal water seepage under the mining conditions of the singularity fracture of the deep rock mass[J]. Journal of Safety and Environment, 2017, 17(5):1820-1822.
[5]	SHI Shaoshuai, BU Lin, LI Shucai, et al. Application of comprehensive prediction method of water inrush hazards induced by unfavourable geological body in high risk karst tunnel: a case study[J]. Geomatics, Natural Hazards and Risk, 2017, 8(2):1407-1423. doi: 10.1080/19475705.2017.1337656
[6]	张永亮, 翟雪峰, 卢守青, 等. 金属矿长距离掘进巷道分段降温数值模拟研究[J]. 中国安全科学学报, 2020, 30(9):73-79.
	ZHANG Yongliang, ZHAI Xuefeng, LU Shouqing, et al. Numerical simulation study on sectional cooling of long-distance excavation roadway in metal mine[J]. China Safety Science Journal, 2020, 30(9):73-79.
[7]	YE Zuyang, JIANG Qinghui, ZHOU Chuangbing, et al. Numerical analysis of unsaturated seepage flow in two-dimensional fracture networks[J]. International Journal of Geomechanics, 2017, 17(5): DOI: 10.1061/(ASCE)GM.1943-5622.0000826.
[8]	王年香, 任国峰, 顾行文. 离心模型试验中土的渗透相似性研究[J]. 岩土工程学报, 2022, 44(增2):66-70.
	WANG Nianxiang, REN Guofeng, GU Xingwen. Permeability similarity of soils in centrifugal model tests[J]. Chinese Journal of Geotechnical Engineering, 2022, 44(S1):66-70.
[9]	FAN Gangwei, ZHANG Dongsheng, ZHANG Shuai, et al. Influence of stress and crack patterns on the sensitive characteristics of fissure sandstone permeability under hydromechanical coupling[J]. Applied Sciences, 2019, 9(4): DOI: 10.3390/app9040641.
[10]	ZHU Jianting. Non-linear flow reduction factor and effective permeability of fractal fracture network[J]. Journal of Natural Gas Science and Engineering, 2019, 66:138-147. doi: 10.1016/j.jngse.2019.03.029
[11]	GAO B, PAN D D, XU Z H, et al. Effect of density, trace length, aperture, and direction angle on permeability performance of fracture networks[J]. International Journal of Geomechanics, 2020, 20(8): DOI: 10.1061/(ASCE)GM.1943-5622.0001718.
[12]	XIONG Feng, JIANG Qinghui, YE Zuyang, et al. Nonlinear flow behavior through rough-walled rock fractures: the effect of contact area[J]. Computers and Geotechnics, 2018, 102:179-195. doi: 10.1016/j.compgeo.2018.06.006
[13]	王来贵, 张阳, 刘向峰, 等. 单裂隙砂岩渗流特性实验研究[J]. 硅酸盐通报, 2018, 37(5):1804-1812.
	WANG Laigui, ZHANG Yang, LIU Xiangfeng, et al. Experimental research on seepage characteristics of sandstone with single fracture[J]. Bulletin of the Chinese Ceramic Society, 2018, 37(5):1804-1812.
[14]	黄帆, 姚池, 周创兵, 等. 考虑裂隙迹长和开度相关性的随机裂隙网络数值模拟及渗流分析[J]. 水利水运工程学报, 2018(2):35-42.
	HUANG Fan, YAO Chi, ZHOU Chuangbing, et al. Numerical simulation and seepage analysis of stochastic fracture network considering correlation between fracture tracelength and aperture[J]. Hydro-Science and Engineering, 2018(2):35-42.
[15]	肖维民, 夏才初, 王伟, 等. 考虑接触面积影响的粗糙节理渗流分析[J]. 岩土力学, 2013, 34(7):1913-1922.
	XIAO Weimin, XIA Caichu, WANG Wei, et al. Analysis of fluid flow through a rough joint considering effect of contact area[J]. Rock and Soil Mechanics, 2013, 34(7):1913-1922.
[16]	张永亮, 逄桦鹏, 李涛, 等. 不同裂缝倾角下三维应力对岩体裂缝张开度的影响分析[J]. 工业安全与环保, 2015, 41(8):4-6,38.
	ZHANG Yongliang, PANG Huapeng, LI Tao, et al. Analysis on the effects of three-dimensional stress under different fracture dip on rock crack opening degree[J]. Industrial Safety and Environmental Protection, 2015, 41(8):4-6,38.
[17]	CHEN Liu, LI Jiangbo, ZHANG Yu, et al. Study on coupled heat transfer and seepage in large sparsely fractured surrounding rocks in deep underground spaces[J]. Applied Thermal Engineering, 2019, 162: DOI: 10.1016/j.applthermaleng.2019.114277.
[18]	张瑜. 矿井巷道围岩渗流-传热耦合数值模拟研究[D]. 西安: 西安科技大学, 2018.
	ZHANG Yu. Numerical simulation study on seepage-heat transfer coupling of surrounding rock in mine roadway[D]. Xi'an: Xi'an University of Science and Technology, 2018.
[19]	MIAO Tongjun, YU Boming, DUAN Yonggang, et al. A fractal analysis of permeability for fractured rocks[J]. International Journal of Heat and Mass Transfer, 2015, 81:75-80. doi: 10.1016/j.ijheatmasstransfer.2014.10.010
[20]	PARSONS R W. Permeability of idealized fractured rock[J]. Society of Petroleum Engineers Journal, 1966, 6(2):126-136. doi: 10.2118/1289-PA
[21]	周汉国, 郭建春, 李静, 等. 裂隙特征对岩石渗流特性的影响规律研究[J]. 地质力学学报, 2017, 23(4):531-539.
	ZHOU Hanguo, GUO Jianchun, LI Jing, et al. A study on the influence rule of the fracture characteristics on rock seepagecharacteristics[J]. Journal of Geomechanics, 2017, 23 (4):531-539.

工况	裂隙Ⅱ 倾角/(°)	裂隙开度/mm	研究目的
1	45, 60, 75, 90	1	裂隙Ⅱ倾角对裂隙Ⅱ中地下水渗流特性的影响
1	45, 60, 75, 90	1	裂隙Ⅱ倾角对裂隙Ⅳ中地下水渗流特性的影响
2	90	0.1, 0.5, 0.75,1.25, 2	裂隙开度对裂隙Ⅱ中地下水渗流特性的影响
2	90	0.1, 0.5, 0.75,1.25, 2	裂隙开度对裂隙Ⅳ中地下水渗流特性的影响

流体(水)		围岩		裂隙
密度/ (kg·m^-3)	动力黏度/ (Pa·s)	孔隙率/%	渗透率/μm²	孔隙率/%	渗透率/μm²
1 000	0.001	0.1	9.81	0.3	2.06×10⁴
