真三轴应力条件下破断煤体力学响应及渗流特性试验研究

doi:10.16265/j.cnki.issn1003-3033.2023.06.1428

中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (6): 105-113.doi: 10.16265/j.cnki.issn1003-3033.2023.06.1428

真三轴应力条件下破断煤体力学响应及渗流特性试验研究

刘玉冰¹^,²(), 王恩元¹^,², 张东明³, 李铭辉⁴

1 中国矿业大学煤矿瓦斯与火灾防治教育部重点实验室,江苏徐州 221116
2 中国矿业大学安全工程学院,江苏徐州 221116
3 重庆大学煤矿灾害动力学与控制国家重点实验室,重庆 400044
4 深圳大学深地科学与绿色能源研究院,广东深圳 518060

收稿日期:2023-01-14 修回日期:2023-04-07 出版日期:2023-08-07
作者简介:
刘玉冰 (1992—),男,黑龙江佳木斯人,博士,讲师,主要从事安全科学与工程、矿山岩石力学等方面的教学与研究工作。E-mail:liuyubing@cumt.edu.cn。
基金资助:
国家自然科学基金青年基金资助(52104231); 中国博士后科学基金面上项目资助(2020M681775); 中央高校基本科研业务费专项资金资助(2021QN1088)

Experimental study on mechanical response and seepage characteristics of broken coal under true triaxial stress conditions

LIU Yubing¹^,²(), WANG Enyuan¹^,², ZHANG Dongming³, LI Minghui⁴

1 Key Laboratory of Gas and Fire Control for Coal Mines, Ministry of Education, China University of Mining and Technology, Xuzhou Jiangsu 221116, China
2 School of Safety Engineering, China University of Mining and Technology, Xuzhou Jiangsu 221116, China
3 State Key Laboratory of Coal Mine Disaster Dynamics and Control, Chongqing University, Chongqing 400044, China
4 Institute of Deep Earth Sciences and Green Energy, Shenzhen University, Shenzhen Guangdong 518060, China

Received:2023-01-14 Revised:2023-04-07 Published:2023-08-07

摘要/Abstract

摘要：

为探究煤炭深部开采过程中破断区域煤体的力学及渗流特性,利用多功能真三轴流固耦合试验系统,结合计算机断层扫描(CT)技术分析破断煤体破坏后的内部裂隙分布情况,获得不同中间主应力下破断煤体的强度特征、渗透率演化及破坏模式。研究结果表明:真三轴应力条件下破断煤体呈现出脆-延性破坏特征,随着中间主应力的增大,峰值强度呈现先增大后减小的变化趋势;破断煤体的渗透率在临近破坏前并未出现大幅增长,在进入峰后阶段总体呈下降趋势,且在峰前阶段变化更为明显;破断煤体破坏后的裂隙形式以剪切裂隙为主,宏观剪切破裂面呈现非对称分布特征。应根据现场煤层破断区域构造应力和裂隙结构的变化,调整煤层破断区域瓦斯抽采或破碎煤岩巷道注浆加固方案,保障深部煤炭安全开采。

关键词: 真三轴应力, 破断煤体, 力学响应, 渗流特性

Abstract:

In order to investigate the mechanical response and seepage characteristics of coal in broken areas during deep underground coal mining, the multi-functional true triaxial fluid-solid coupling apparatus was used. The distribution of internal fractures of broken coal after failure was detected and analyzed by using the computed tomography (CT) scanning system. The strength characteristics, permeability evolution, and failure modes of broken coal under different intermediate principal stresses were obtained. The research results show that broken coal presents brittle-ductile failure characteristics under true triaxial stress conditions, and the peak strength shows an ascending-then-descending trend with the increase of intermediate principal stresses. The permeability of the broken coal body does not increase significantly before failure and continues to decrease at the post-peak stage. Furthermore, the permeability varies more at the pre-peak stage. The macro-fracture forms of broken coal after failure are mainly shear fractures, and the macro-shear failure plane presents asymmetrical distribution characteristics. In order to ensure the safe mining of deep coal, attention should be paid to the change of tectonic stress and fracture structure in the broken coal seam area on site, and the gas drainage in the broken coal seam area or the grouting reinforcement scheme for the broken coal rock roadway should be adjusted.

Key words: true triaxial stress, broken coal, mechanical response, seepage characteristic

刘玉冰, 王恩元, 张东明, 李铭辉. 真三轴应力条件下破断煤体力学响应及渗流特性试验研究[J]. 中国安全科学学报, 2023, 33(6): 105-113.

LIU Yubing, WANG Enyuan, ZHANG Dongming, LI Minghui. Experimental study on mechanical response and seepage characteristics of broken coal under true triaxial stress conditions[J]. China Safety Science Journal, 2023, 33(6): 105-113.

图/表 12

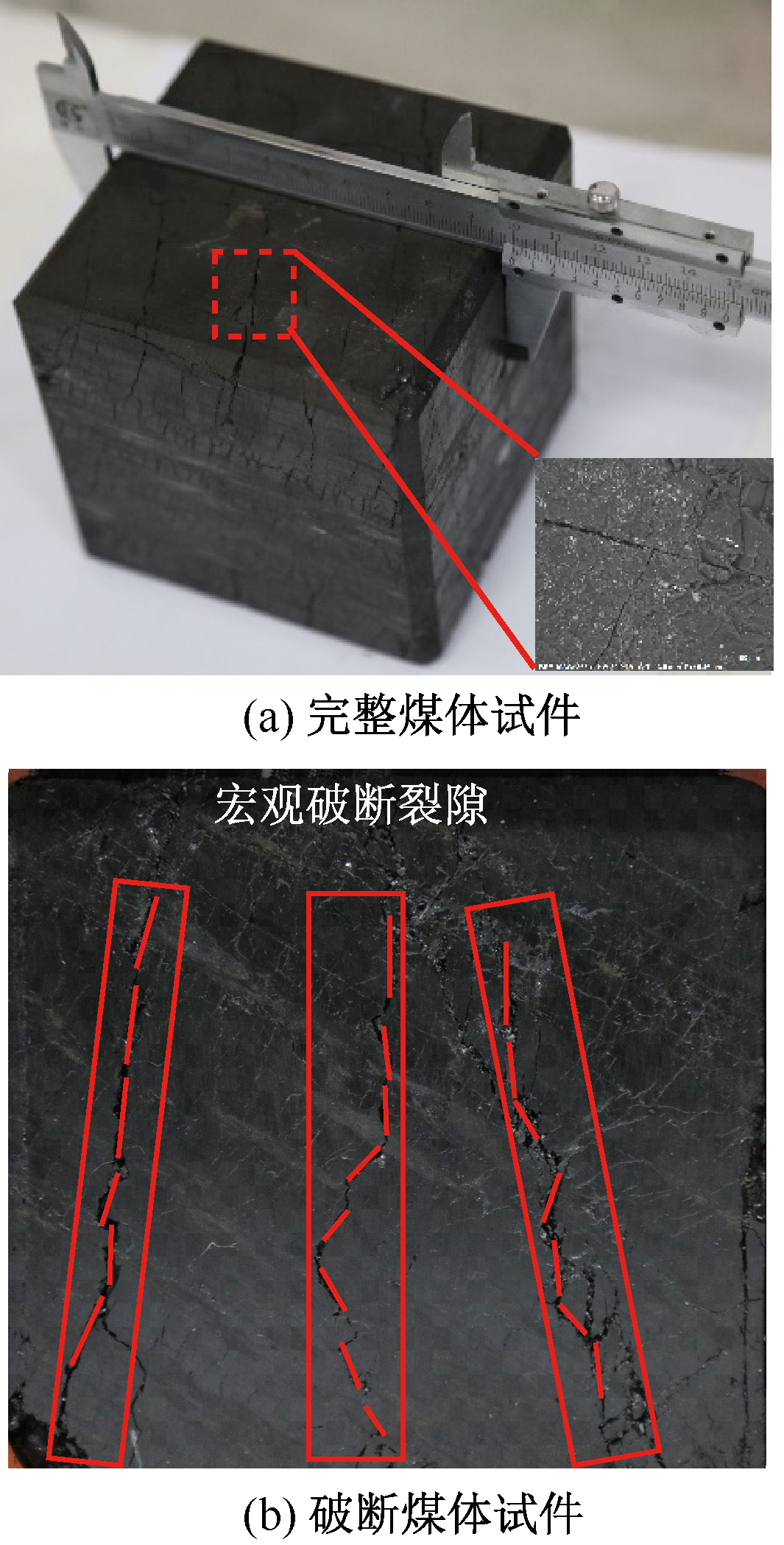

图1

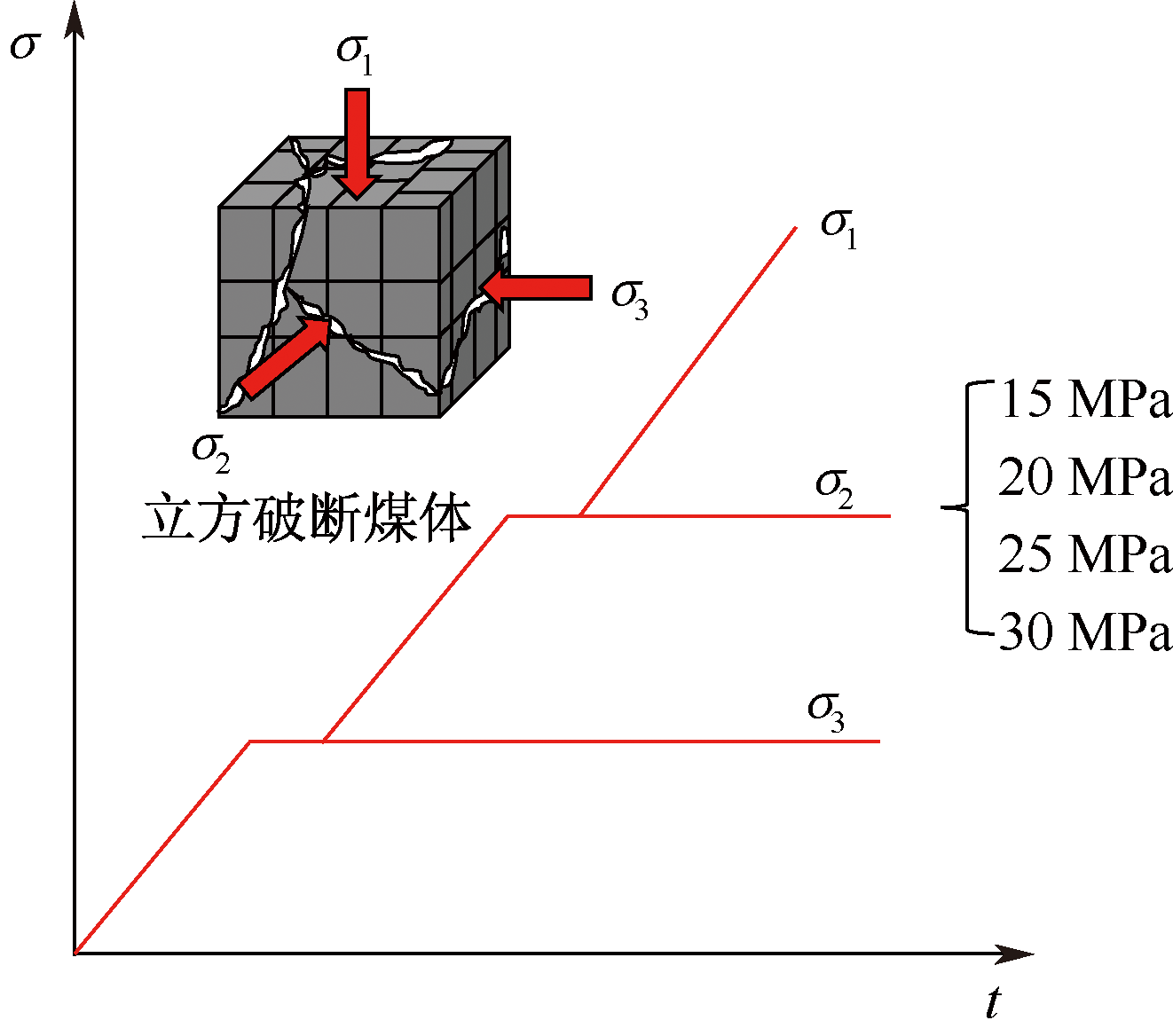

图2

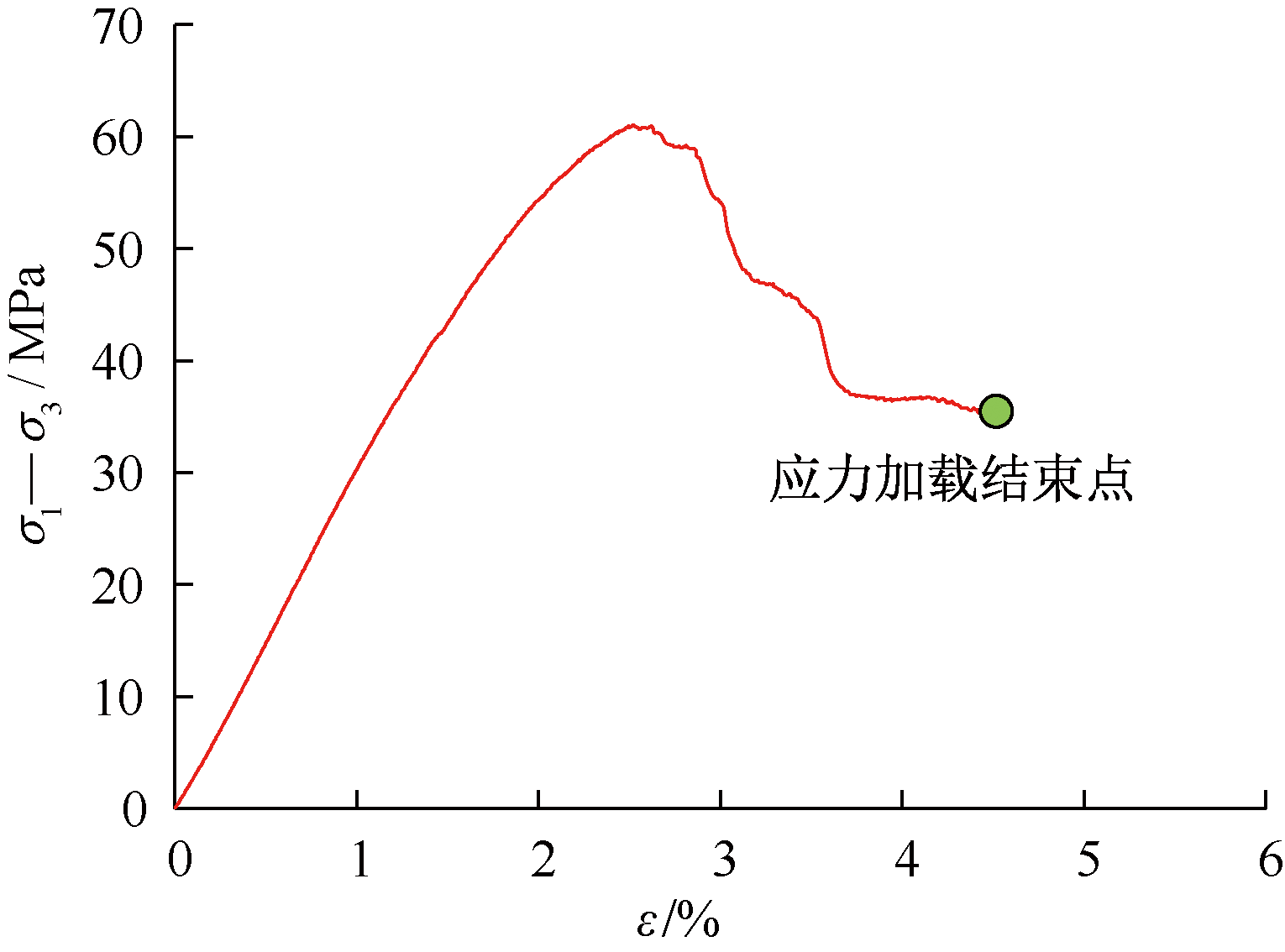

图3

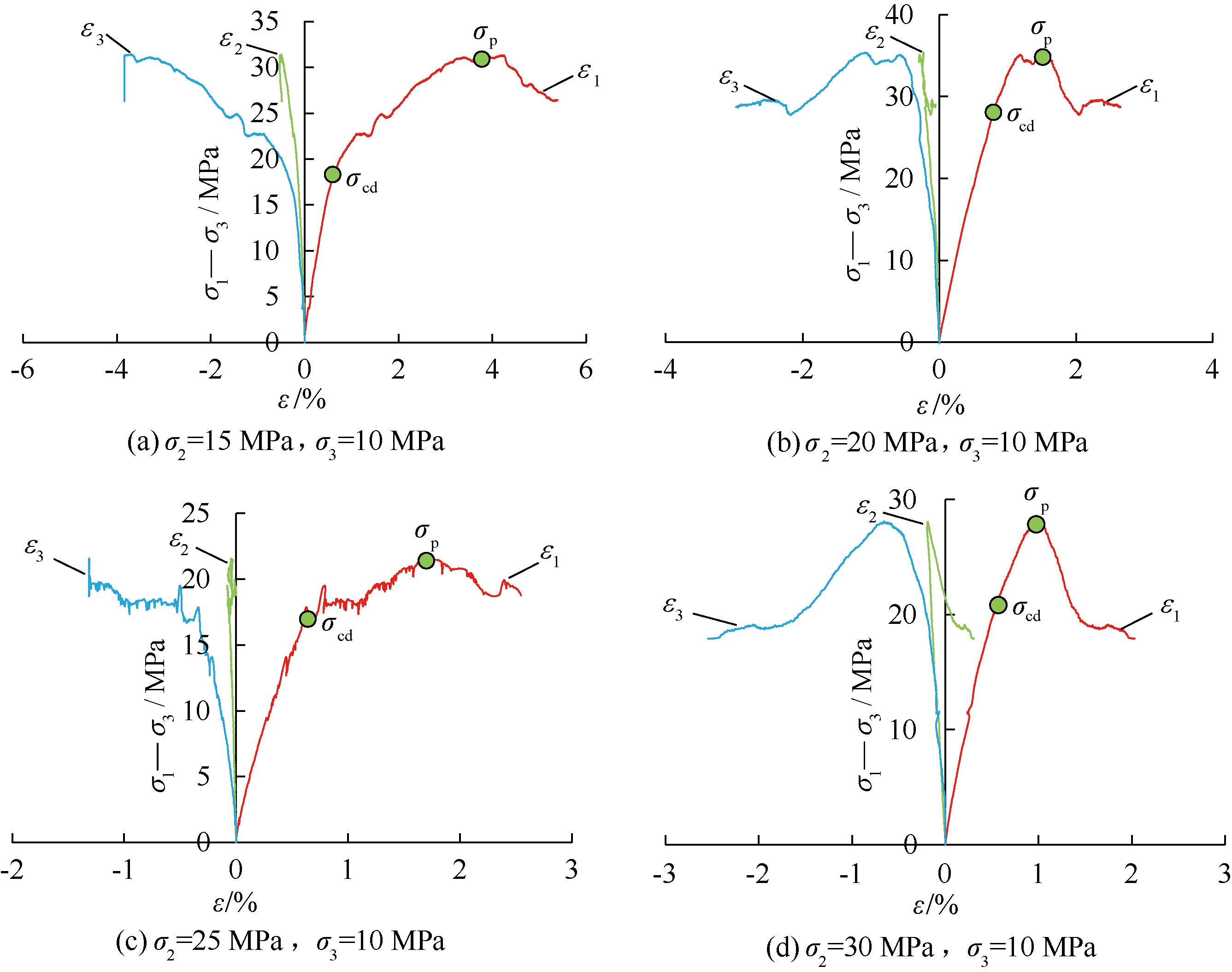

图4

图5

图6

表1

图7

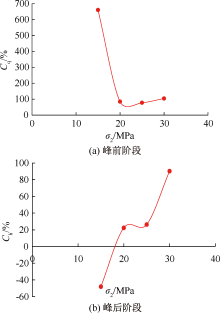

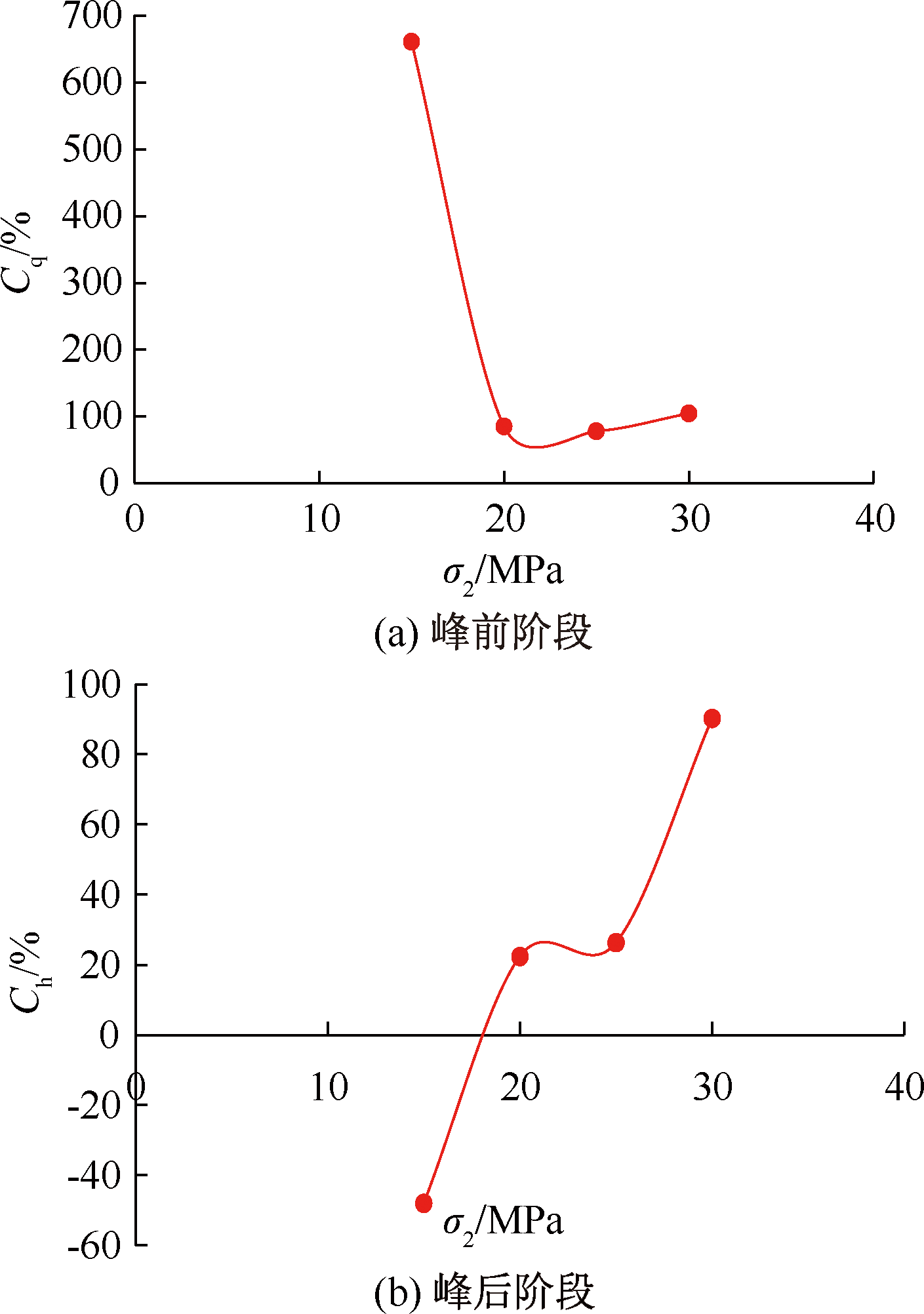

图8

表2

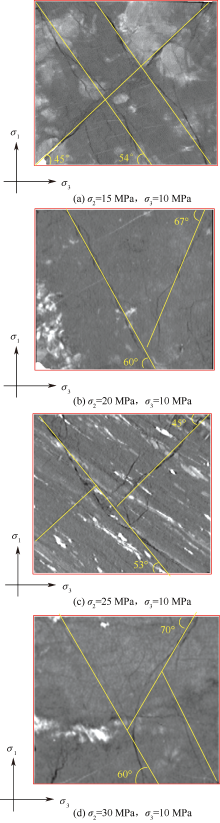

图9

表3

参考文献 16

[1]	KANG Hongpu. Support technologies for deep and complex roadways in underground coal mines: a review[J]. International Journal of Coal Science & Technology, 2014, 1: 261-277.
[2]	李文洲, 康红普, 姜志云, 等. 深部裂隙煤岩体变形破坏机理及高压注浆改性强化试验研究[J]. 煤炭学报, 2021, 46(3):912-923.
	LI Wenzhou, KANG Hongpu, JIANG Zhiyun, et al. Deformation failure mechanism of fractured deep coal-rock mass and high-pressure grouting modification strengthening testing[J]. Journal of China Coal Society, 2021, 46(3):912-923.
[3]	ZHANG Anlin, XIE Heping, ZHANG Ru, et al. Mechanical properties and energy characteristics of coal at different depths under cyclic triaxial loading and unloading[J]. International Journal of Rock Mechanics and Mining Sciences, 2023, 161: DOI: 10.1016/j.ijrmms.2022.105271. doi: 10.1016/j.ijrmms.2022.105271
[4]	李波波, 吴学海, 任崇鸿, 等. 瓦斯气体劣化-荷载作用下煤岩损伤本构模型[J]. 中国安全科学学报, 2021, 31(7):76-81. doi: 10.16265/j.cnki.issn 1003-3033.2021.07.011
	LI Bobo, WU Xuehai, REN Chonghong, et al. Constitutive model of coal damage under gas degradation and load[J]. China Safety Science Journal, 2021, 31(7):76-81. doi: 10.16265/j.cnki.issn 1003-3033.2021.07.011
[5]	李波波, 张尧, 任崇鸿, 等. 三轴应力下煤岩损伤-能量演化特征研究[J]. 中国安全科学学报, 2019, 29(10):98-104. doi: 10.16265/j.cnki.issn1003-3033.2019.10.015
	LI Bobo, ZHANG Yao, REN Chonghong, et al. Study on damage-energy evolution characteristics of coal under triaxial stress[J]. China Safety Science Journal, 2019, 29(10):98-104. doi: 10.16265/j.cnki.issn1003-3033.2019.10.015
[6]	CHEN Haidong, CHENG Yuanping, ZHOU Hongxing, et al. Damage and permeability development in coal during unloading[J]. Rock Mechanics and Rock Engineering, 2013, 46(6):1377-1390. doi: 10.1007/s00603-013-0370-2
[7]	LIU Yubing, LI Minghui, YIN Guangzhi, et al. Permeability evolution of anthracite coal considering true triaxial stress conditions and structural anisotropy[J]. Journal of Natural Gas Science and Engineering, 2018, 52: 492-506. doi: 10.1016/j.jngse.2018.02.014
[8]	LIU Yubing, YIN Guangzhi, LI Minghui, et al. Anisotropic mechanical properties and the permeability evolution of cubic coal under true triaxial stress paths[J]. Rock Mechanics and Rock Engineering, 2019, 52(8):2505-2521. doi: 10.1007/s00603-019-01748-1
[9]	彭永伟, 齐庆新, 汪有刚, 等. 煤体采动裂隙现场实测及其应用研究[J]. 岩石力学与工程学报, 2010, 29(增2):4188-4193.
	PENG Yongwei, QI Qingxin, WANG Yougang, et al. Study of field measurement of mining-induced coal fracture field and its application[J]. Journal of China Coal Society, 2010, 29(S2):4188-4193.
[10]	谢璨, 李树忱, 平洋, 等. 峰后裂隙岩石非线性损伤特性与数值模拟研究[J]. 岩土力学, 2017, 38(7):2128-2136.
	XIE Can, LI Shuchen, PING Yang, et al. Study of nonlinear damage characteristics and numerical simulation of post-peak fractured rock mass[J]. Rock and Soil Mechanics, 2017, 38(7):2128-2136.
[11]	夏祖昊, 张小波, 姚池, 等. 峰后破裂岩石加、卸载围压过程渗流特性的试验[J]. 煤炭学报, 2019, 44(11):3379-3387.
	XIA Zuhao, ZHANG Xiaobo, YAO Chi, et al. Experimental studies on seepage characteristics during the loading and unloading confining pressure of post-peak fractured rock[J]. Journal of China Coal Society, 2019, 44(11):3379-3387.
[12]	张俊文, 宋治祥, 范文兵, 等. 真三轴条件下砂岩渐进破坏力学行为试验研究[J]. 煤炭学报, 2019, 44(9):2700-2709.
	ZHANG Junwen, SONG Zhixiang, FAN Wenbing, et al. Experimental investigation on progressive damage mechanical behavior of sandstone under true triaxial condition[J]. Journal of China Coal Society, 2019, 44(9):2700-2709.
[13]	WANG Shugang, ELSWORTH D, LIU Jishan. Permeability evolution during progressive deformation of intact coal and implications for instability in underground coal seams[J]. International Journal of Rock Mechanics and Mining Sciences, 2013, 58:34-45. doi: 10.1016/j.ijrmms.2012.09.005
[14]	SAMPATH K, PERERA M S A, RANJITH P G, et al. CO₂ interaction induced mechanical characteristics alterations in coal: a review[J]. International Journal of Coal Geology, 2019, 204:113-129. doi: 10.1016/j.coal.2019.02.004
[15]	朱建明, 徐秉业, 岑章志. 岩石类材料峰后滑移剪膨变形特征研究[J]. 力学与实践, 2001, 23(5):19-22.
	ZHU Jianming, XU Bingye, CEN Zhangzhi. Study on the deformation mechanisms of sliding dilation of post-failure rocks[J]. Mechanics in Engineering, 2001, 23(5):19-22.
[16]	王登科, 曾凡超, 王建国, 等. 显微工业CT的受载煤样裂隙动态演化特征与分形规律研究[J]. 岩石力学与工程学报, 2020, 39(6):1165-1174.
	WANG Dengke, ZENG Fanchao, WANG Jianguo, et al. Dynamic evolution characteristics and fractal law of loaded coal fractures by micro industrial CT[J]. Chinese Journal of Rock Mechanics and Engineering, 2020, 39(6):1165-1174.

σ₂ / MPa	k₀ / (×10^-2 μm²)	峰值强度渗透率 k_p/(×10^-2μm²)	残余强度渗透率 k_r//(×10^-2μm²)
15	4.11	0.54	1.04
20	12.44	6.74	5.51
25	3.50	1.97	1.56
30	5.94	2.91	1.53

σ₂/MPa	D	R²
15	1.34	0.94
20	1.57	0.92
25	1.42	0.93
30	1.33	0.90
