含矸煤层煤壁稳定性夹矸厚度效应研究

doi:10.16265/j.cnki.issn1003-3033.2023.10.1713

中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (10): 183-191.doi: 10.16265/j.cnki.issn1003-3033.2023.10.1713

含矸煤层煤壁稳定性夹矸厚度效应研究

李国盛¹(), 李振华¹^,²^,³^,^**(), 杜锋¹^,²^,³, 王文强¹, 徐杰¹

¹ 河南理工大学能源科学与工程学院,河南焦作 454003
² 煤炭安全生产与清洁高效利用省部共建协同创新中心,河南焦作 454003
³ 河南理工大学河南省矿井水害防控及水资源利用工程技术研究中心,河南焦作 454003

收稿日期:2023-04-19 修回日期:2023-07-20 出版日期:2023-10-28
通讯作者:
**李振华(1979—),男,山东金乡人,博士,教授,主要从事矿山压力与岩层控制、矿山安全与水害防治方面的研究。E-mail:jzlizhenh@163.com。
作者简介:
李国盛 (1992—),男,河南商丘人,博士研究生,主要从事矿山压力与岩层控制等方面的研究。E-mail:liguosheng@home.hpu.edu.cn。
李振华教授
杜锋副教授
基金资助:
国家自然科学基金资助(52174073); 国家自然科学基金资助(52274079); 河南省自然科学基金杰出青年项目资助(222300420007)

Study on effect of gangue thickness on stability of coal wall of working face gangue-bearing coal seam

LI Guosheng¹(), LI Zhenhua¹^,²^,³^,^**(), DU Feng¹^,²^,³, WANG Wenqiang¹, XU Jie¹

¹ School of Energy Science and Engineering, Henan Polytechnic University, Jiaozuo Henan 454003, China
² Collaborative Innovation Center of Coal Work Safety and Clean High Efficiency Utilization, Jiaozuo Henan 454003, China
³ Henan Mine Water Disaster Prevention and Control and Water Resources Utilization Engineering Technology Research Center, Henan Polytechnic University, Jiaozuo Henan 454003, China

Received:2023-04-19 Revised:2023-07-20 Published:2023-10-28

摘要/Abstract

摘要：

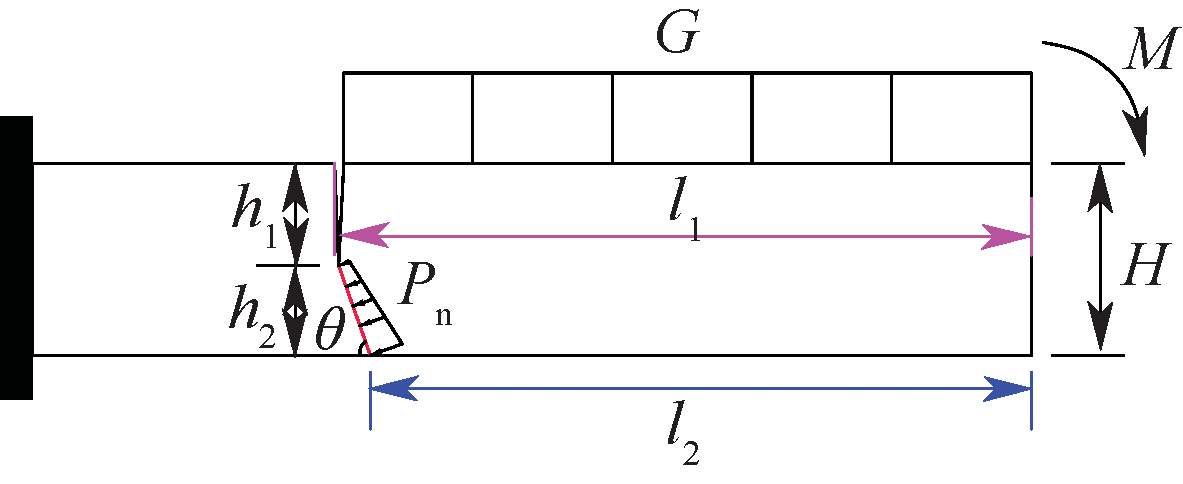

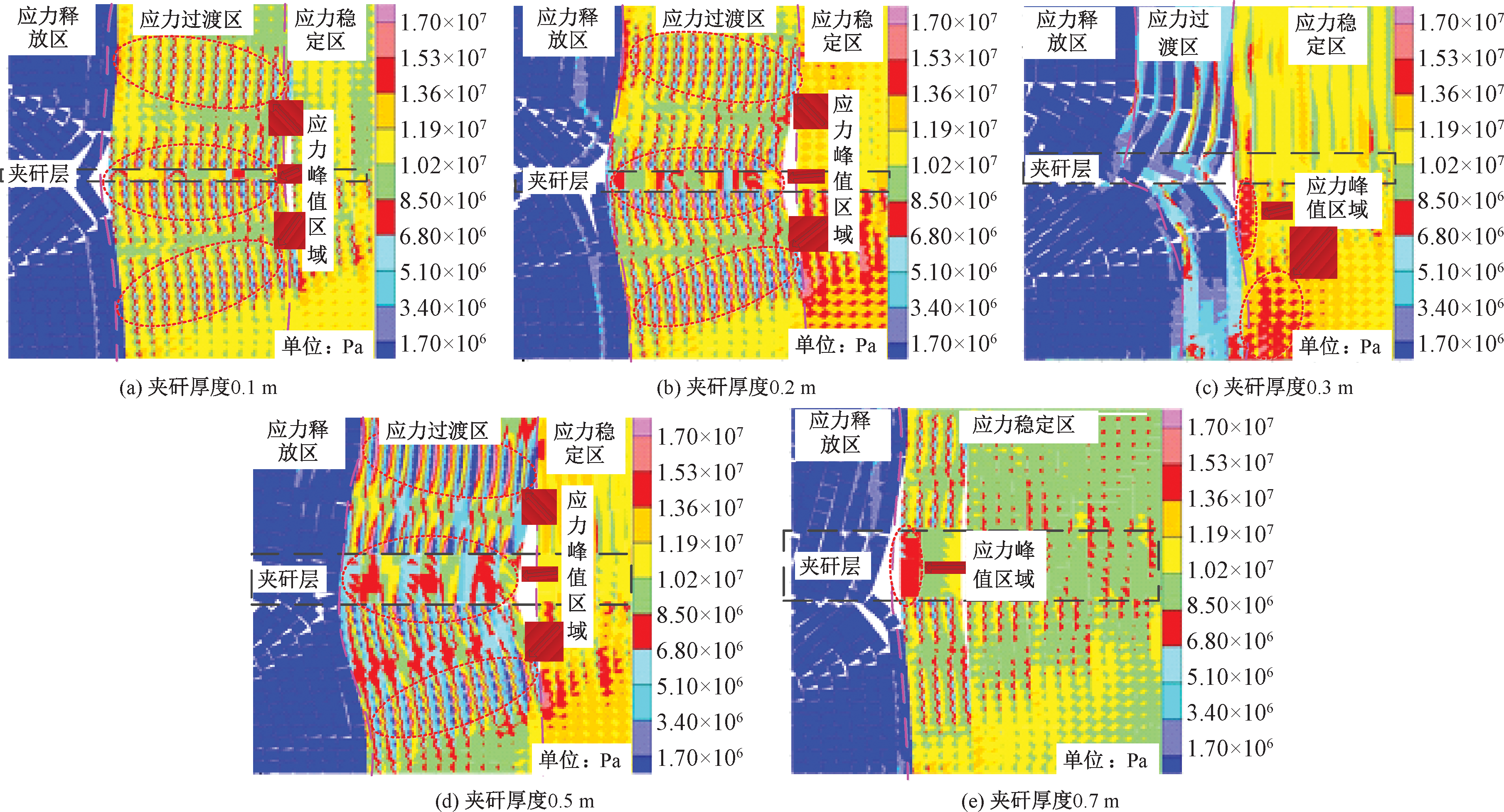

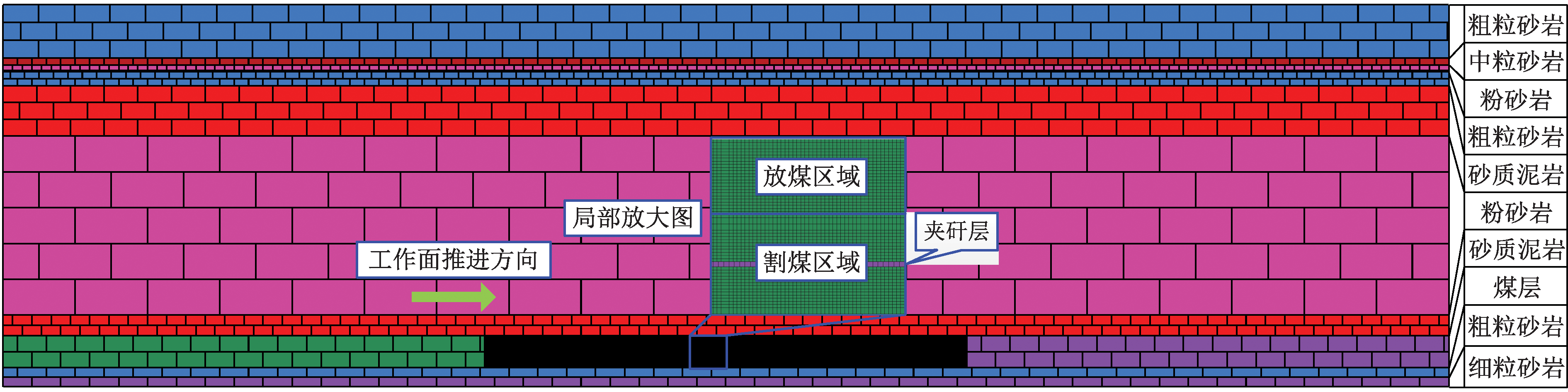

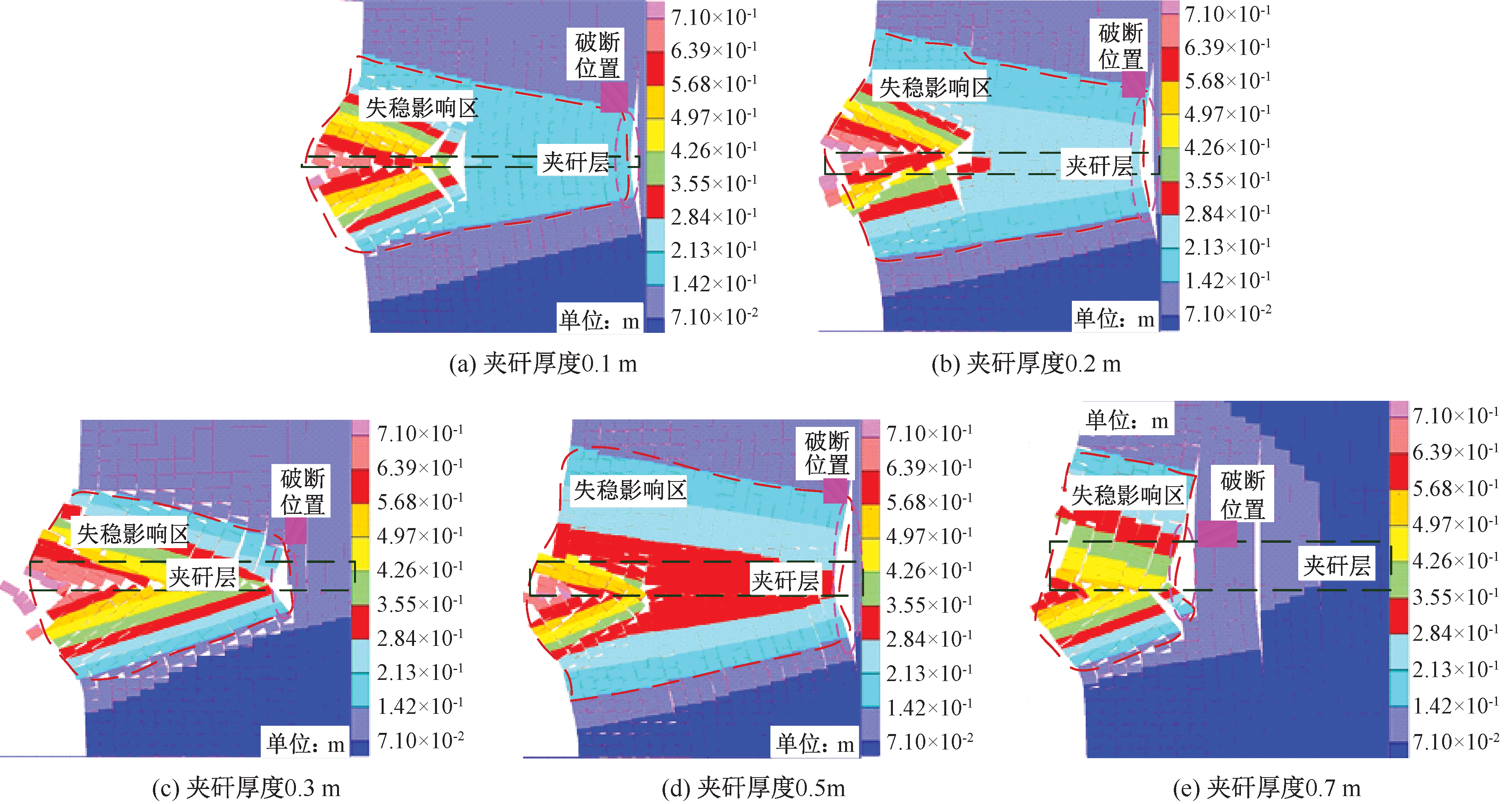

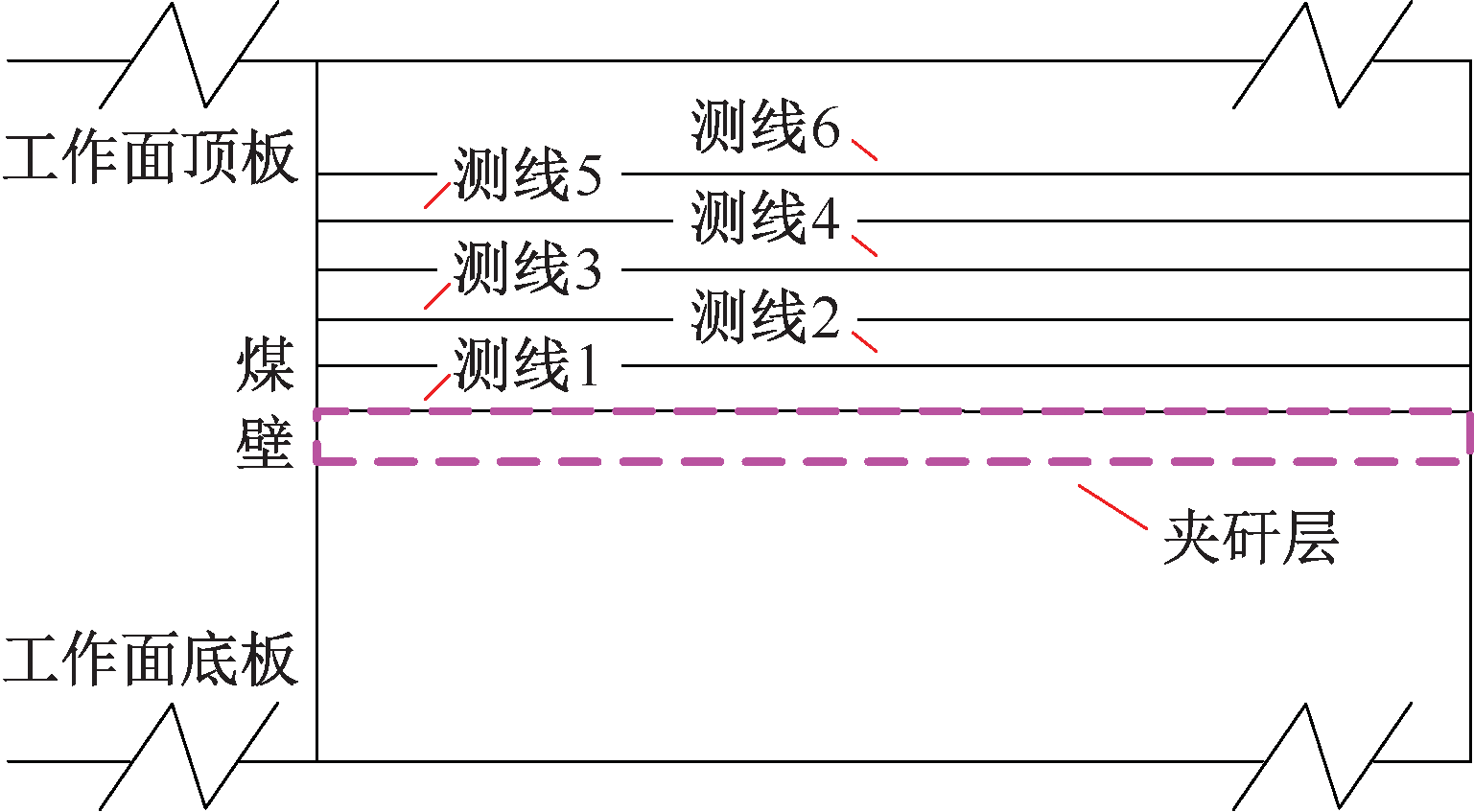

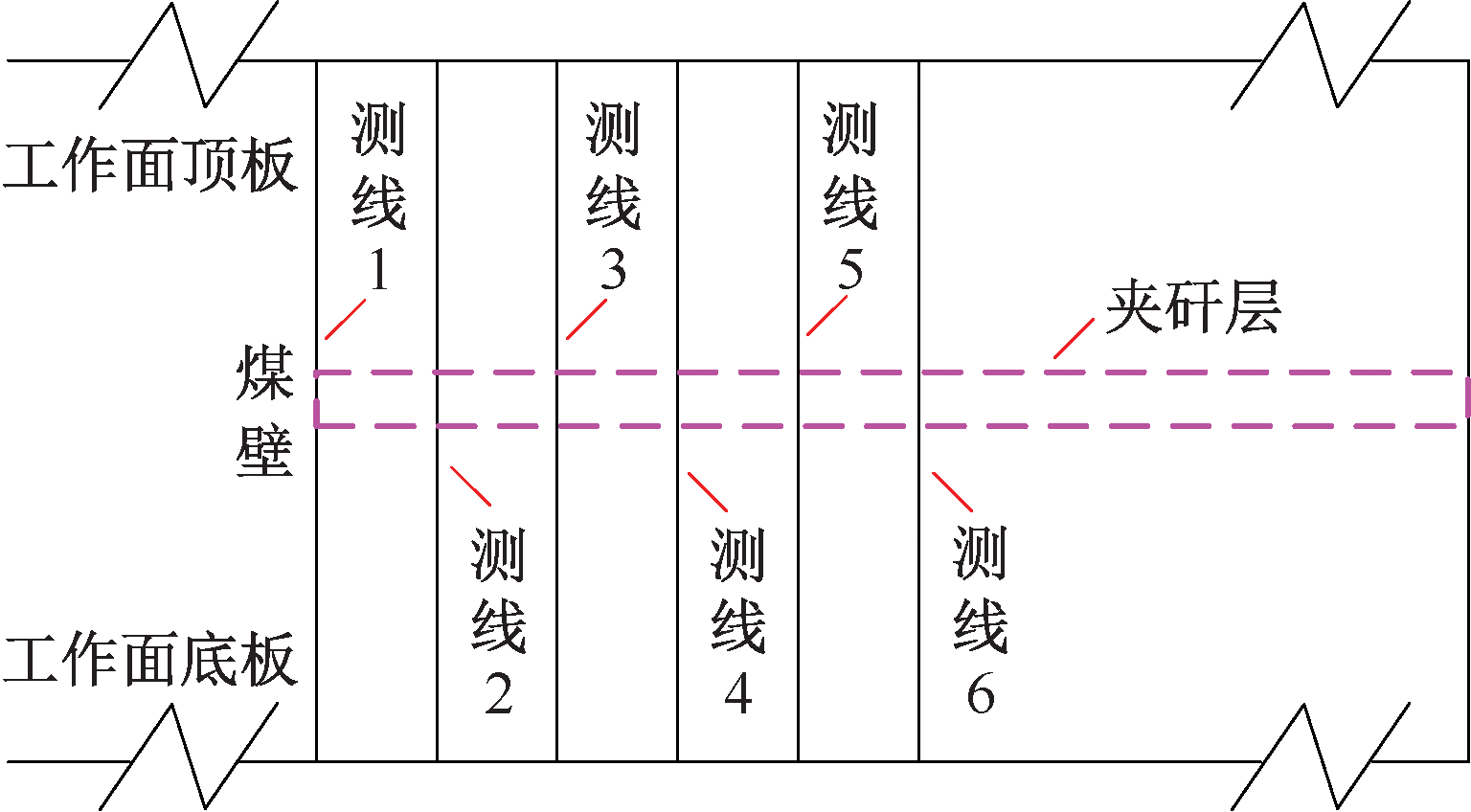

为了解夹矸厚度对含矸煤层煤壁稳定性的影响,采用理论分析与数值模拟相结合的方法,推导出夹矸层剪切破坏力学模型,进而建立含矸煤层煤壁稳定性数值模型,分析不同夹矸厚度下的煤壁前方水平位移、垂直应力的空间分布特征。结果表明:煤壁前方产生失稳影响区主要位于夹矸层周围,形成以夹矸层为中心的凸出区域;夹矸厚度较小时,夹矸层呈现出多块体联合破坏形态,而夹矸厚度较大时,夹矸层出现单块体逐个破断现象;力学分析得知:夹矸层破坏面发生剪切破坏的危险系数随着夹矸厚度的增大而逐渐减小,数值模拟结果与理论分析一致。

关键词: 含矸煤层, 煤壁稳定性, 夹矸厚度, 危险系数, 剪切破坏

Abstract:

In order to recognize the influence of gangue thickness on the stability of the coal wall of gangue-bearing coal seam, theoretical analyses were used to derive a mechanical model for the shear damage of the entrapped gangue layer, numerical modeling of coal wall stability in gangue-bearing coal beds was developed, spatial distribution characteristics of horizontal displacement and vertical stress in front of coal wall under different thickness of gangue were analyzed. The results show that the front of the coal wall produced instability impact area is mainly located around the gangue layer, with the formation of the gangue layer as the center of the protruding area. When gangue thickness is small, the gangue layer presents a multi-block body joint damage, and when gangue thickness is larger, the gangue layer appears to be a single block body broken one by one. Mechanical analysis shows that the risk factor of damage to the gangue layer gradually decreases with the increase of gangue thickness, and the numerical simulation results are consistent with the theoretical analysis.

Key words: gangue-bearing coal seam, coal wall stability, gangue thickness, risk factor, shear failure

李国盛, 李振华, 杜锋, 王文强, 徐杰. 含矸煤层煤壁稳定性夹矸厚度效应研究[J]. 中国安全科学学报, 2023, 33(10): 183-191.

LI Guosheng, LI Zhenhua, DU Feng, WANG Wenqiang, XU Jie. Study on effect of gangue thickness on stability of coal wall of working face gangue-bearing coal seam[J]. China Safety Science Journal, 2023, 33(10): 183-191.

图/表 10

图1

图2

图3

表1

图4

图5

图6

图7

图8

图9

参考文献 23

[1]	王国法, 庞义辉. 特厚煤层大采高综采综放适应性评价和技术原理[J]. 煤炭学报, 2018, 43(1):33-42.
	WANG Guofa, PANG Yihui. Full-mechanized coal mining and caving mining method evaluation and key technology for thick coal seam[J]. Journal of China Coal Society, 2018, 43(1):33-42.
[2]	宋高峰, 潘卫东, 杨敬虎, 等. 基于模糊层次分析法的厚煤层采煤方法选择研究[J]. 采矿与安全工程学报, 2015, 32(1):35-41.
	SONG Gaofeng, PAN Weidong, YANG Jinghu, et al. Mining methods selection in thick coal seam based on fuzzy analytic hierarchy process[J]. Journal of Mining & Safety Engineering, 2015, 32(1):35-41.
[3]	李国盛, 张辉, 蒋帅旗. 频繁采动影响巷道围岩强化支护技术及其应用[J]. 中国安全科学学报, 2018, 28(7):142-147. doi: 10.16265/j.cnki.issn1003-3033.2018.07.023
	LI Guosheng, ZHANG Hui, JIANG Shuaiqi. Technology for enhancing supporting roadway surrounding rock influenced by frequent mining and its application[J]. China Safety Science Journal, 2018, 28(7):142-147. doi: 10.16265/j.cnki.issn1003-3033.2018.07.023
[4]	TEWARI S, KUSHWAHA A, BHATTACHARJEE R, et al. Crown pillar design in highly dipping coal seam[J]. International Journal of Rock Mechanics and Mining Sciences, 2018, 103: 12-19. doi: 10.1016/j.ijrmms.2018.01.012
[5]	MENG Zhaosheng, ZENG Qingliang, GAO Kuidong, et al. Failure analysis of super-large mining height powered support[J]. Engineering Failure Analysis, 2018, 92:378-391. doi: 10.1016/j.engfailanal.2018.04.011
[6]	李琛, 曹建云, 李杰. 8.8 m超大采高工作面煤壁片帮机理及控制技术研究[J]. 煤炭科学技术, 2019, 47(增2):170-172.
	LI Chen, CAO Jianyun, LI Jie. Principle and control technology of the coal wall for the 8.8 m super-large mining height working face[J]. Coal Science and Technology, 2019, 47(S2):170-172.
[7]	LI Shaobo, WANG Lei, ZHU Chuanqi, et al. Research on mechanism and control technology of rib spalling in soft coal seam of deep coal mine[J]. Advances in Materials Science and Engineering,2021:DOI: 10.1155/2021/2833210.
[8]	GUO Weibin, LIU Changyou, DONG Guowei, et al. Analytical study to estimate rib spalling extent and support requirements in thick seam mining[J]. Arabian Journal of Geosciences, 2019, 12(8):DOl: 10.1007/s12517-019-4443-8.
[9]	熊钰, 孔德中, 杨胜利, 等. 大倾角工作面煤壁稳定性的云模型综合辨识[J]. 中国安全科学学报, 2022, 32(3): 144-151. doi: 10.16265/j.cnki.issn1003-3033.2022.03.020
	XIONG Yu, KONG Dezhong, YANG Shengli, et al. Cloud model identification of coal face stability in steeply inclined working faces[J]. China Safety Science Journal, 2022, 32(3):144-151. doi: 10.16265/j.cnki.issn1003-3033.2022.03.020
[10]	许永祥, 王国法, 李明忠, 等. 超大采高综放开采煤壁板裂化片帮机理研究[J]. 采矿与安全工程学报, 2021, 38(1):19-30.
	XU Yongxiang, WANG Guofa, LI Mingzhong, et al. Mechanism of slabbed spalling failure of the coal face infully mechanized caving face with super large cutting height[J]. Journal of Mining & Safety Engineering, 2021, 38(1):19-30.
[11]	马兆瑞. 大采高工作面煤壁片帮拉-剪破坏共存机制研究[J]. 煤炭科学技术, 2020, 48 (12):81-87.
	MA Zhaorui. Study on co-existence mechanism of tensile-shear failure of rib spalling in large mining height working face[J]. Coal Science and Technology, 2020, 48 (12):81-87.
[12]	罗生虎, 伍永平, 刘孔智, 等. 大倾角大采高综采工作面煤壁非对称受载失稳特征[J]. 煤炭学报, 2018, 43(7):1829-1836.
	LUO Shenghu, WU Yongping, LIU Kongzhi, et al. Asymmetric load and instability characteristics of coal wall at large mining height fully-mechanized face in steeply dipping seam[J]. Journal of China Coal Society, 2018, 43(7):1829-1836.
[13]	杨敬轩, 刘长友, 吴锋锋, 等. 煤层硬夹矸对大采高工作面煤壁稳定性影响机理研究[J]. 采矿与安全工程学报, 2013, 30(6):856-862.
	YANG Jingxuan, LIU Changyou, WU Fengfeng, et al. The research on the coal wall stability mechanism in larger height coal seam with a stratum of gangue[J]. Journal of Mining & Safety Engineering, 2013, 30(6):856-862.
[14]	常聚才, 谢广祥, 张学会. 特厚煤层大采高综放工作面煤壁片帮机制分析[J]. 岩土力学, 2015, 36(3):803-808.
	CHANG Jucai, XIE Guangxiang, ZHANG Xuehui. Analysis of rib spalling mechanism of fully-mechanized top-coal caving face with great mining height in extra-thick coal seam[J]. Rock and Soil Mechanics, 2015, 36(3):803-808.
[15]	王新丰, 何毅, 陆明远, 等. 开挖卸荷扰动深部巷道围岩变形破坏特征研究[J]. 中国安全科学学报, 2021, 31(8):83-90. doi: 10.16265/j.cnki.issn1003-3033.2021.08.012
	WANG Xinfeng, HE Yi, LU Mingyuan, et al. Study on deformation and failure characteristics of deep roadway surrounding rock under excavation unloading disturbance[J]. China Safety Science Journal, 2021, 31(8):83-90. doi: 10.16265/j.cnki.issn1003-3033.2021.08.012
[16]	宁宇. 大采高综采煤壁片帮冒顶机理与控制技术[J]. 煤炭学报, 2009, 34(1):50-52.
	NING Yu. Mechanism and control technique of the rib spalling in fully mechanized mining face with great mining height[J]. Journal of China Coal Society, 2009, 34(1):50-52.
[17]	杨培举, 刘长友, 吴锋锋. 厚煤层大采高采场煤壁的破坏规律与失稳机理[J]. 中国矿业大学学报, 2012, 41(3):371-377.
	YANG Peiju, LIU Changyou, WU Fengfeng. Breakage and falling of a high coal wall in a thick mined seam[J]. Journal of China University of Mining & Technology, 2012, 41(3):371-377.
[18]	BAI Qingsheng, TU Shihao, CHEN Min, et al. Numerical modeling of coal wall spall in a longwall face[J]. International Journal of Rock Mechanics & Mining Sciences, 2016, 88:242-253.
[19]	BAI Qingsheng, TU Shihao, ZHANG Xiaogang, et al. Numerical modeling on brittle failure of coal wall in longwall face-a case study[J]. Arabian Journal of Geosciences, 2014, 7(12):5067-5080. doi: 10.1007/s12517-013-1181-1
[20]	YAO Qiangling, LI Xuehua, SUN Boyang, et al. Numerical investigation of the effects of coal seam dip angle on coal wall Stability[J]. International Journal of Rock Mechanics and Mining Sciences, 2017, 100:298-309. doi: 10.1016/j.ijrmms.2017.10.002
[21]	BEHERA B, YADAV A, SINGH G S P, et al. A numerical modeling approach for evaluation of spalling associated face instability in longwall workings under massive sandstone roof[J]. Engineering Failure Analysis, 2020, 117:DOI:10.1016/j.engfailanal.2020.104927.
[22]	BEHERA B, YADAV A, SINGH G S P, et al. Assessment of excavation damage and spalling potential at a mechanized longwall face: a numerical modeling study[J]. Geomechanics and Geophysics for Geo-energy and Geo-resources, 2021, 7(4): DOI:10.1007/ s40948-021-00299-6.
[23]	王延平, 许强. 基于二次抛物线型Mohr准则的悬臂式崩塌破坏机制及失稳判据研究[J]. 岩土力学, 2020, 41(12):3968-3978,3 995.
	WANG Yanping, XU Qiang. Study of failure mechanism and instability criterion of cantilever collapse based on Mohr criterion of quadratic parabola[J]. Rock and Soil Mechanics, 2020, 41(12):3968-3978,3 995.

岩性	厚度/ m	密度/ (g·cm^-3)	抗拉强度/MPa	黏聚力/ MPa	内摩擦角/(°)
粗粒砂岩	17.63	2 342.37	1.33	14.19	33
中粒砂岩	1.39	2 233.19	3.56	5.25	37
粉砂岩	1.15	2 343.27	3.92	13.98	30
粗粒砂岩	2.91	2 377.43	1.45	8.65	28
砂质泥岩	10.92	2 321.29	4.32	18.89	30
粉砂岩	37.09	2 324.93	4.89	22.43	27
砂质泥岩	4.31	2 403.26	6.66	27.79	26
夹矸	—	1 150.16	0.97	1.16	25
煤	6.56	1 274.31	1.38	2.51	30
粗粒砂岩	1.98	2 231.86	2.04	8.65	28
细粒砂岩	1.99	2 301.25	5.61	30.91	20
