全氟丁基甲醚灭火性能及机制

doi:10.16265/j.cnki.issn1003-3033.2023.12.0775

摘要/Abstract

摘要：

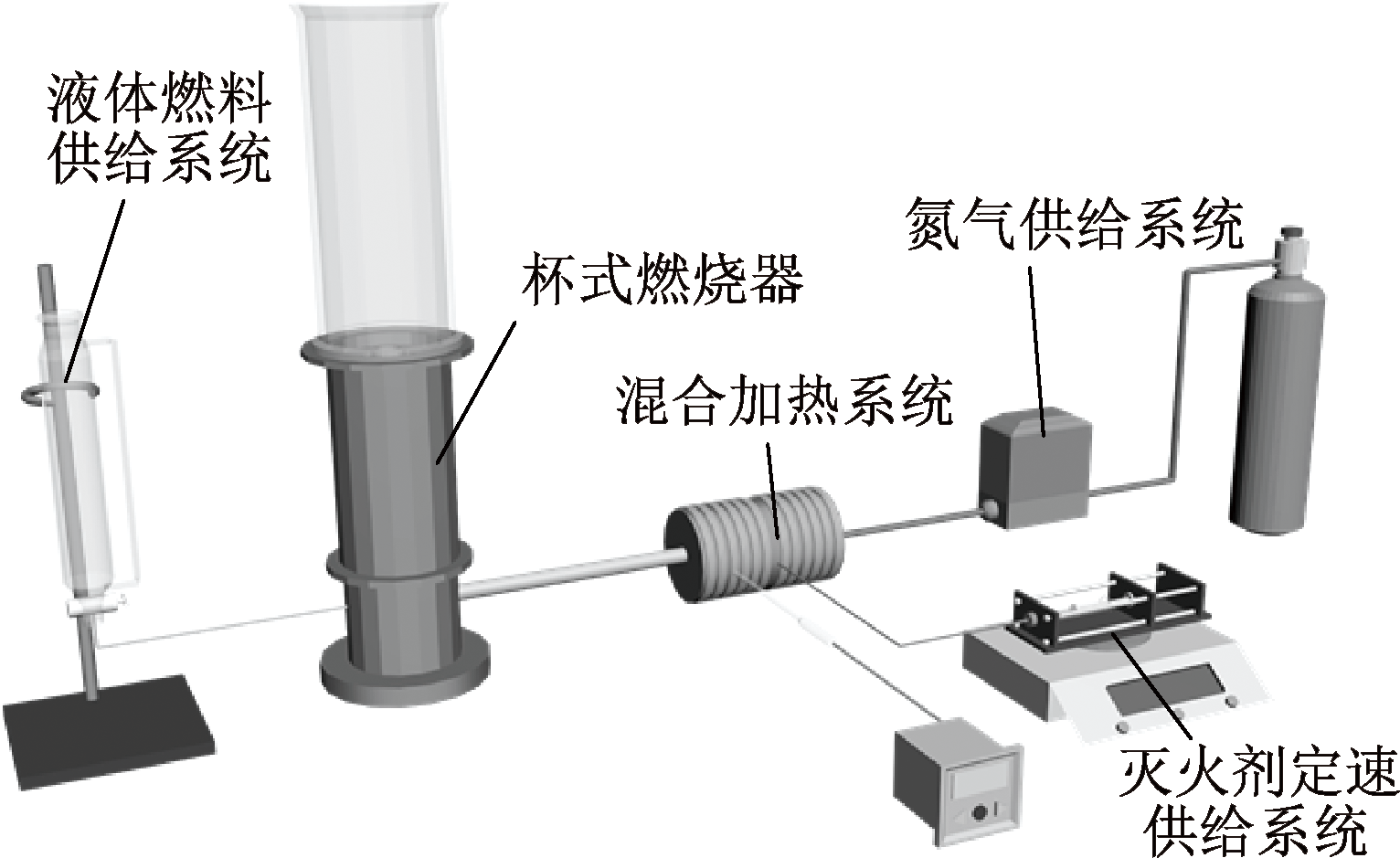

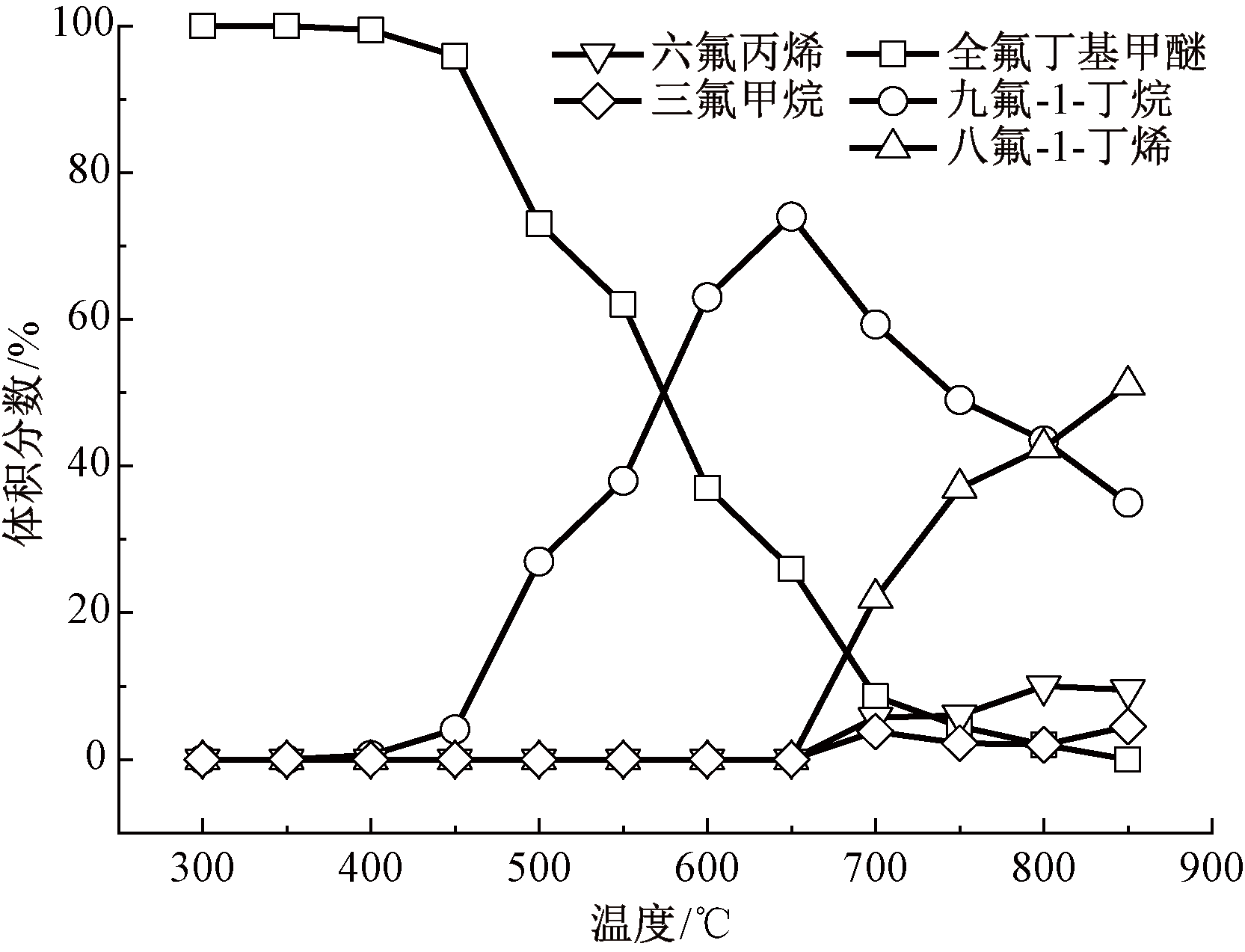

为全面揭示全氟丁基甲醚的灭火反应路径,采用试验与理论相结合的方法,研究全氟丁基甲醚的灭火性能与灭火机制。首先通过杯式燃烧试验,评估全氟丁基甲醚的灭火性能;然后利用气体高温热解机制分析平台,模拟其高温热分解过程,并借助气相色谱-质谱联用仪分析不同温度作用下的热解产物。研究发现,全氟丁基甲醚的临界灭火体积分数约为5.90%,灭火性能良好;其初始热分解温度为400 ℃,热解产物包括九氟-1-丁烷、八氟-1-丁烯、六氟丙烷和三氟甲烷。试验结果说明:全氟丁基甲醚可成为哈龙灭火剂的替代物。

关键词: 全氟丁基甲醚, 灭火性能, 灭火机制, 热分解, 气体灭火剂

Abstract:

In order to comprehensively reveal the fire-extinguishing reaction path of perfluorobutyl methyl ether, its fire extinguishing performance and fire extinguishing mechanism were investigated by combining experimental and theoretical methods. The fire extinguishing performance of perfluorobutyl methyl ether was evaluated by cup combustion test, and its high-temperature thermal decomposition process was simulated by a gas high-temperature pyrolysis mechanism analysis platform, and the pyrolysis products at different temperatures were analyzed by gas chromatography-mass spectrometry. It was found that the critical fire extinguishing volume fraction of perfluorobutyl methyl ether was about 5.90%, and the fire extinguishing performance was good. The initial thermal decomposition temperature of perfluorobutyl methyl ether was 400 ℃, and the pyrolysis products include nonafluoro-1-butane, octafluoro-1-butene, hexafluoropropane and trifluoromethane. The test results revealed the fire-extinguishing mechanism of perfluorobutyl methyl ether, indicating its potential to become a substitute for halon fire-extinguishing agents.

Key words: perfluorobutyl methyl ether, fire extinguishing performance, fire extinguishing mechanism, thermal decomposition, gas fire extinguishing agent

王凯, 王德政, 周彪, 李雪瑶. 全氟丁基甲醚灭火性能及机制[J]. 中国安全科学学报, 2023, 33(12): 47-52.

WANG Kai, WANG Dezheng, ZHOU Biao, LI Xueyao. Fire extinguishing performance and fire extinguishing mechanism of perfluorobutyl methyl ether[J]. China Safety Science Journal, 2023, 33(12): 47-52.

图/表 9

图1

图2

表1

图3

图4

表2

表3

图5

图6

参考文献 21

[1]	HEATH E A. Amendment to the Montreal protocol on substances that deplete the ozone layer (Kigali amendment)[J]. International Legal Materials, 2017, 56(1): 193-205. doi: 10.1017/ilm.2016.2
[2]	罗振敏, 王欣, 王涛, 等. 细水雾-惰性气体协同灭火性能试验研究[J]. 中国安全科学学报, 2022, 32(10): 63-68. doi: 10.16265/j.cnki.issn1003-3033.2022.10.2237
	LUO Zhenmin, WANG Xin, WANG Tao, et al. Experimental study on synergetic fire extinguishing performance of water mist and inert gas[J]. China Safety Science Journal, 2022, 32(10): 63-68. doi: 10.16265/j.cnki.issn1003-3033.2022.10.2237
[3]	黄强, 陶风波, 刘洋, 等. 气液灭火剂对磷酸铁锂电池模组灭火能效研究[J]. 中国安全科学学报, 2020, 30(3): 53-59. doi: 10.16265/j.cnki.issn1003-3033.2020.03.009
	HUANG Qiang, TAO Fengbo, LIU Yang, et al. Study on performance of gas-liquid extinguishing agent for lithium iron phosphate battery modules[J]. China Safety Science Journal, 2020, 30(3): 53-59. doi: 10.16265/j.cnki.issn1003-3033.2020.03.009
[4]	邓飞云, 杨满江, 谢承利. 新型洁净高效气体灭火剂 CFA 的性能研究[J]. 船海工程, 2016, 45(2): 61-64.
	DENG Feiyun, YANG Manjiang, XIE Chengli. Performance research of new clean and efficient gas fire extinguishing agent CFA[J]. Ship and Ocean Engineering, 2016, 45(2): 61-64.
[5]	李云龙, 杜建科, 牛世栋. 含氟灭火剂受热释放 HF 及抑制技术研究进展[J]. 武警学院学报, 2015, 31(2): 18-20.
	LI Yunlong, DU Jianke, NIU Shidong. Research progress of fluorine-containing fire extinguishing agents releasing HF when heated and suppression technology[J]. Journal of The Armed Police Academy, 2015, 31(2): 18-20.
[6]	XING Haoran, LU Song, YANG Hui, et al. Review on research progress of C₆F₁₂O as a fire extinguishing agent[J]. Fire, 2022, 5(2): DOI:10.3390/fire5020050.
[7]	WANG Yawei, ZOU Gaowan, LIU Conglin, et al. Comparison of fire extinguishing performance of four Halon substitutes and Halon 1301[J]. Journal of Fire Sciences, 2021, 39(5): 370-399. doi: 10.1177/07349041211030188
[8]	LEI Baiwei, HE Binbin, XIAO Bowen, et al. Comparative study of single inert gas in confined space inhibiting open flame coal combustion[J]. Fuel, 2020, 265: DOI:10.1016/j.fuel.2019.116976.
[9]	TAPSCOTT R E, SHEINSON R S, BABUSHOK V, et al. Alternative fire suppressant chemicals: a research review with recommendations[R]. National Institute of Standard and Technical, 2001.
[10]	WANG Ting, ZHANG Pin, PAN Renming. Research on the pyrolysis of hexafluoropropane (HFC-236fa) fire extinguishing agent and decomposition mechanism[J]. Journal of Thermal Analysis and Calorimetry, 2022, 147(20): 11 591-11 599.
[11]	崔凤霞, 覃况, 石磊, 等. 全氟己酮灭火剂高温热裂解性能研究[J]. 爆破器材, 2015, 44(6): 5-8.
	CUI Fengxia, QIN Kuang, SHI Lei, et al. Study on high temperature pyrolysis performance of perfluorohexanone fire extinguishing agent[J]. Explosive Materials, 2015, 44(6): 5-8.
[12]	ZHANG Haijun, MENG Xuefang, YANG Qi, et al. Toward better Halon substitutes: theoretical and experimental studies on the pyrolysis mechanism and fire-suppressing performance of C₅F₁₀O (perfluoro-3-methyl-2-butanone)[J]. ACS Sustainable Chemistry & Engineering, 2021, 9(3): 1272-1285.
[13]	LI Haoyang, HAO Jinyuan, DU Zhiming. Study on the minimum fire-extinguishing concentration of several commonly used extinguishing agents to suppress pyrolysis gas of red pine wood[J]. ACS Omega, 2023, 8(8): 7757-7766. doi: 10.1021/acsomega.2c07424 pmid: 36873029
[14]	INABA H, KOMATSU F, HORIBE A, et al. Heat and mass transfer characteristics of organic sorbent coated on heat transfer surface of a heat exchanger[J]. Heat and Mass Transfer, 2008, 44: 1305-1313. doi: 10.1007/s00231-008-0371-y
[15]	AVIYENTE V, INEL Y. Analysis of the kinetics of the thermal decomposition of pentafluoroethane[J]. Canadian Journal of Chemistry, 1990, 68(8): 1332-1337. doi: 10.1139/v90-205
[16]	YANG Qi, ZHANG Jiaqi, GAO Yu, et al. Toward better Halon substitutes: effects of H content on pyrolytic and fire-suppressing mechanisms of ozone-friendly fluorinated alkanes[J]. Journal of Molecular Structure, 2023, 1285: DOI:10.1016/j.molstruc.2023.135506.
[17]	刘德智. 全氟己酮和全氟三乙胺灭火效果及其化学动力学灭火机理研究[D]. 郑州: 郑州大学, 2020.
	LIU Dezhi. Study on the fire extinguishing effect and chemical kinetic fire extinguishing mechanism of perfluorohexanone and perfluorotrietriamine[D]. Zhengzhou: Zhengzhou University, 2020.
[18]	卢大勇, 陈涛, 周晓猛. 7FA 临界灭火浓度的测定及 7FA/BTP 协同灭火作用研究[J]. 安全与环境学报, 2015, 15(4): 117-121.
	LU Dayong, CHEN Tao, ZHOU Xiaomeng. On the determination of critical fire-stamping concentration of 7FA and the synergetic effect between 7FA and BTP in fire-suppression[J]. Journal of Safety and Environment, 2015, 15(4): 117-121.
[19]	曹丽英, 张品, 张永丰, 等. 七氟丙烷灭火剂热解规律研究[J]. 消防科学与技术, 2014, 33(12): 1426-1428.
	CAO Liying, ZHANG Pin, ZHANG Yongfeng, et al. Study on pyrolysis law of heptafluoropropane fire extinguishing agent[J]. Fire Science and Technology, 2014, 33(12): 1426-1428.
[20]	冒爱琴, 杨明君, 俞海云, 等. 五氟乙烷灭火剂高温热解机理研究[J]. 山东大学学报:理学版, 2013, 48(1): 51-55.
	MAO Aiqin, YANG Mingjun, YU Haiyun, et al. Study on thermal decomposition mechanism of pentafluoroethane fire extinguishing agent[J]. Journal of Shandong University:Natural Science, 2013, 48(1): 51-55.
[21]	谢卓衡, 王子阳, 张刚, 等. 全氟己酮及细水雾灭火装置对大容量三元锂离子电池的灭火实验[J]. 储能科学与技术, 2022, 11(2): 652-659. doi: 10.19799/j.cnki.2095-4239.2021.0402
	XIE Zhuoheng, WANG Ziyang, ZHANG Gang, et al. Experimental study on fire extinguishing of large-capacity ternary lithium-ion battery by perfluorohexanone and water mist fire extinguishing device[J]. Energy Storage Science and Technology, 2022, 11(2): 652-659. doi: 10.19799/j.cnki.2095-4239.2021.0402

空气体积流量/ (L·min^-1)	灭火剂质量流量/ (g·min^-1)	灭火剂体积流量/ (L·min^-1)	燃烧器内混合气体温度/℃	临界灭火体积分数/%
15.10	8.272	1.013	36	6.29
28.83	15.642	1.916	37	6.23
41.19	21.206	2.597	35.5	5.93
54.92	28.125	3.445	36	5.90

序号	质荷比	对应物质
1	CF+(31); CHF₂+(51); CF₃+(69)	三氟甲烷
2	CF+(31); C₂F+(43); CF₂+(50); CF₃+(69); C₂F₃+(81); C₃F₃+(93); C₂F₄+(100); C₃F₄+(112); C₃F₅+(131)	六氟丙烯
3	CF+(31); CF₂+(50); CF₃+(69); C₂F₃+(81); C₃F₃+(93); C₂F₅+(119); C₃F₅+(131); C₃F₆+(150); C₄F6+(162); C₄F₇+(181); C₅F₇+(200)	八氟-1- 丁烯
4	CF+(31); CF₂+(50); CHF₂+(51); CF₃+(69); C₂F₄+(100); C₂F₅+(119); C₃F₅+(131); C₃F₆+(150); C₃F₇+(169); C₄F₇+(181); C₄F₉+(219)	九氟-1- 丁烷
5	CH₃O+(31); CF₂+(50); CF₃+(69); C₂F₄+(100); C₂F₅+(119); C₃F₆+(150); C₃F₇+(169); C₄F₉+(219); C₄F₉O+(235)	全氟丁基甲醚
