细水雾-惰性气体协同灭火性能试验研究

doi:10.16265/j.cnki.issn1003-3033.2022.10.2237

中国安全科学学报 ›› 2022, Vol. 32 ›› Issue (10): 63-68.doi: 10.16265/j.cnki.issn1003-3033.2022.10.2237

细水雾-惰性气体协同灭火性能试验研究

罗振敏¹^,²^,³(), 王欣¹^,², 王涛¹^,²^,³, 孟子骐¹^,², 王子谨¹^,²

¹ 西安科技大学安全科学与工程学院,陕西西安 710054
² 陕西省工业过程安全与应急救援工程技术研究中心,陕西西安 710054
³ 陕西省煤火灾害防治重点实验室,陕西西安 710054

收稿日期:2022-04-22 修回日期:2022-08-18 出版日期:2022-10-28 发布日期:2023-04-28
作者简介:
罗振敏 (1976—),女,山东济宁人,博士,教授,博士生导师,主要从事可燃性气体粉尘爆炸防控理论及技术研究。E-mail:zmluo@xust.edu.cn。
基金资助:
陕西省创新能力支撑计划(2020TD-021)

Experimental study on synergetic fire extinguishing performance of water mist and inert gas

LUO Zhenmin¹^,²^,³(), WANG Xin¹^,², WANG Tao¹^,²^,³, MENG Ziqi¹^,², WANG Zijin¹^,²

¹ School of Safety Science and Engineering, Xi'an University of Science and Technology, Xi'an Shaanxi 710054, China
² Shaanxi Engineering Research Center for Industrial Process Safety & Emergency Rescue, Xi'an Shaanxi 710054, China
³ Shaanxi Key Laboratory of Prevention and Control of Coal Fire, Xi'an Shaanxi 710054, China

Received:2022-04-22 Revised:2022-08-18 Online:2022-10-28 Published:2023-04-28

摘要/Abstract

摘要：

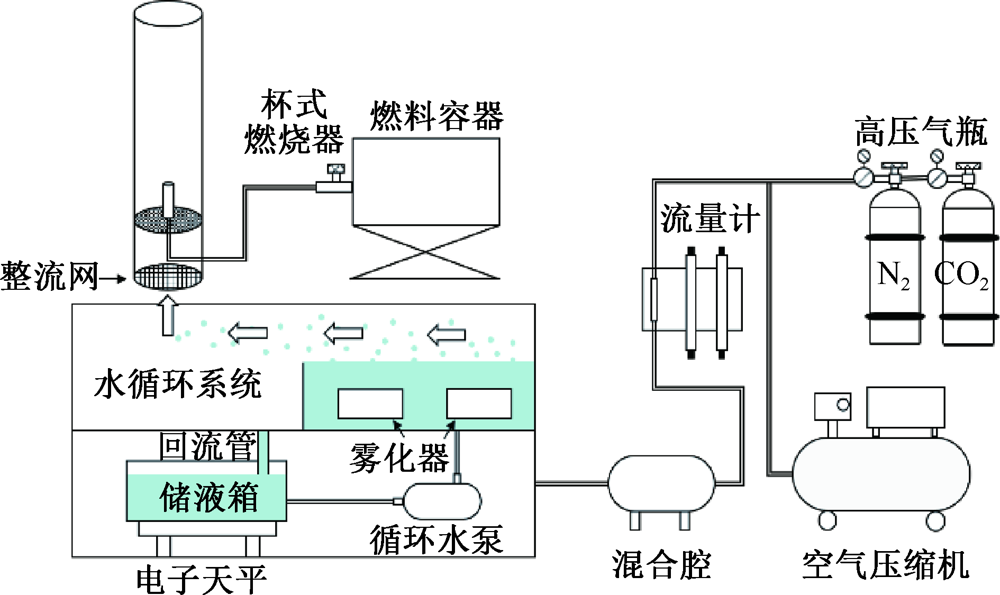

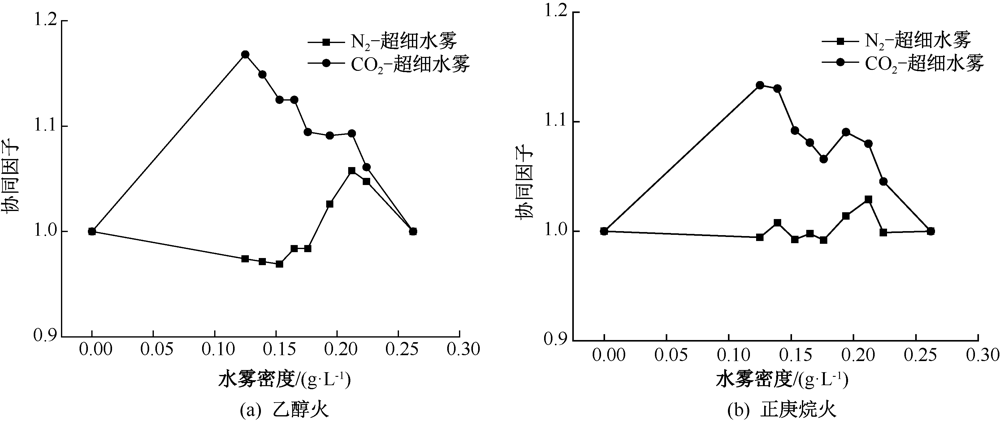

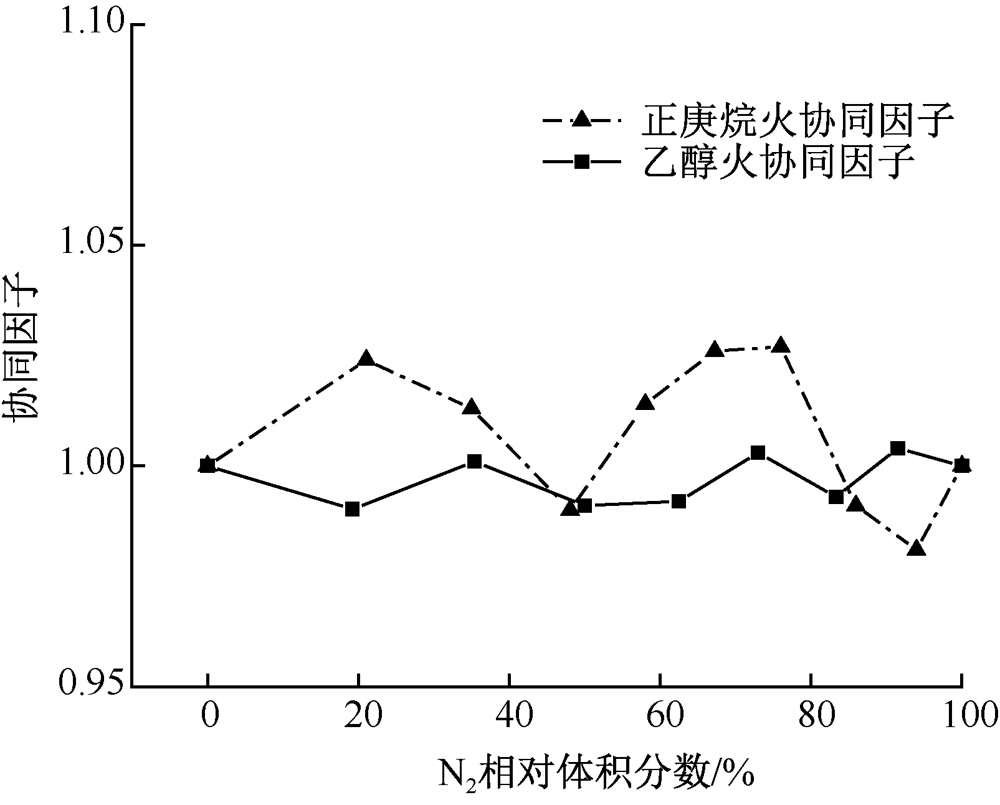

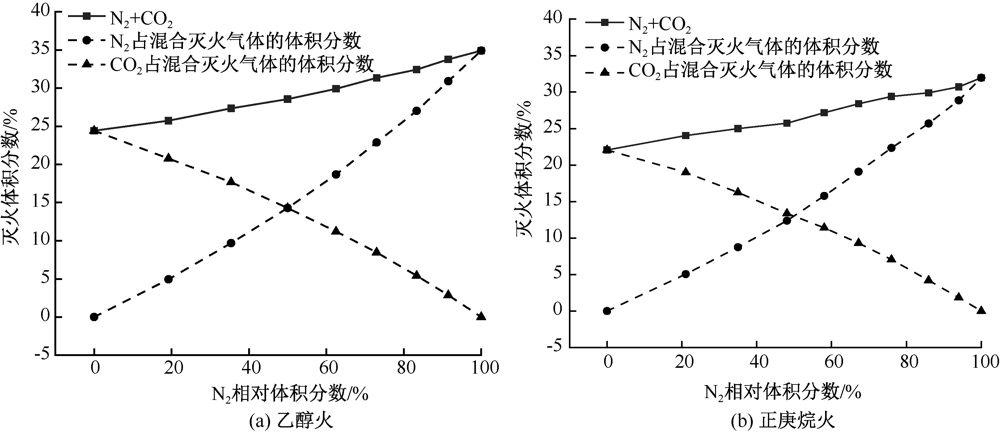

为提高细水雾灭火效率,利用试验研究和数学模型分析,研究细水雾和惰性气体氮气(N₂)和二氧化碳(CO₂)的灭火性能及协同灭火效应。通过自主设计搭建的杯式燃烧器试验装置测试细水雾和惰性气体的单一及复合灭火效果,建立适用于细水雾和惰性气体的协同因子数学模型。结果表明:N₂灭乙醇火和庚烷火的最小体积分数分别为34.92%和31.97%,CO₂灭乙醇火和正庚烷火的最小体积分数分别为24.37%和 22.15%;从协同效应来看,细水雾与N₂存在正协同灭火效应,而与CO₂协同灭火效应不明显,N₂与CO₂之间没有表现出协同灭火效应。

关键词: 细水雾, 惰性气体, 协同灭火, 灭火性能, 杯式燃烧器

Abstract:

In order to improve the fire extinguishing efficiency of water mist, the fire extinguishing performance and synergistic fire extinguishing effect of water mist, inert gas nitrogen (N₂) and carbon dioxide (CO₂) were studied by experimental study and mathematical model analysis. The single and compound fire extinguishing effects of water mist and inert gas were tested by a self-designed cup burner test device, and a mathematical model of synergy factor suitable for water mist and inert gas was established. The results show that the minimum volume fractions of N₂ ethanol-extinguishing fire and heptane-extinguishing fire were 34.92% and 31.97%, respectively, and that of CO₂ ethanol-extinguishing fire and heptane-extinguishing fire were 24.37% and 22.15%, respectively. From the perspective of synergistic effect, there is a positive synergistic fire extinguishing effect between water mist and N₂, but the synergistic fire extinguishing effect with CO₂ is not obvious, and there is no synergistic fire extinguishing effect between N₂ and CO₂.

Key words: water mist, inert gas, collaborative fire extinguishing, fire extinguishing performance, cup burner

罗振敏, 王欣, 王涛, 孟子骐, 王子谨. 细水雾-惰性气体协同灭火性能试验研究[J]. 中国安全科学学报, 2022, 32(10): 63-68.

LUO Zhenmin, WANG Xin, WANG Tao, MENG Ziqi, WANG Zijin. Experimental study on synergetic fire extinguishing performance of water mist and inert gas[J]. China Safety Science Journal, 2022, 32(10): 63-68.

图/表 8

图1

表1

表2

图2

图3

图4

图5

图6

参考文献 15

[1]	吴海涛, 柳华, 李志强, 等. 哈龙替代灭火剂环保及毒性研究进展[J]. 航空维修与工程, 2020(7):37-40.
	WU Haitao, LIU Hua, LI Zhiqiang, et al. Study on the environmental protection and toxic assessment of Halon replacement[J]. Aviation Maintenance and Engineering, 2020(7):37-40.
[2]	刘皓, 商靠定. K₂C₂O₄溶液抑制甲烷-空气扩散火焰试验研究[J]. 中国安全科学学报, 2016, 26(8):46-51.
	LIU Hao, SHANG Kaoding. Experimental research on suppression of methane-air diffusion flame by water mist with potassium oxalate[J]. China Safety Science Journal, 2016, 26(8):46-51.
[3]	PARK W Y, SHAH N, VINE E, et al. Ensuring the climate benefits of the Montreal Protocol: global governance architecture for cooling efficiency and alternative refrigerants[J]. Energy Research & Social Science, 2021:DOI: 10.1016/j.erss.2021.102068. doi: 10.1016/j.erss.2021.102068
[4]	LIANG Tianshui, LO S, WANG Xishi, et al. A numerical study of the fire-extinguishing performance of water mist in an opening machinery space[J]. Procedia Engineering, 2012, 31: 734-738. doi: 10.1016/j.proeng.2012.01.1094
[5]	LIANG Tianshui, LIU Mengjie, WEI Xinli, et al. An experimental study on the interaction of water mist with vertical/horizontal spray flame[J]. Procedia Engineering, 2014, 84: 543-552. doi: 10.1016/j.proeng.2014.10.466
[6]	FENG Minghui, LI Quanwei, QIN Jun. Extinguishment of hydrogen diffusion flames by ultrafine water mist in a cup burner apparatus a numerical study[J]. International Journal of Hydrogen Energy, 2018:DOI: 10.1002/fam.2644. doi: 10.1002/fam.2644
[7]	LIU Zhigang, ANDREW K. A review of water mist fire suppression systems:fundamental studies[J]. Journal of Fire Protection Engineering, 1999, 10(3):32-50.
[8]	廖光煊, 丛北华, 况凯骞. 铁基添加剂增强细水雾灭火性能的实验研究[J]. 工程热物理学报, 2005, 26(增1): 273-276.
	LIAO Guangxuan, CONG Beihua, KUANG Kaiqian. Experimental study on the fire suppression effectiveness of water mist with iron compounds additives[J]. Journal of Engineering Thermophysics, 2005, 26(S1): 273-276.
[9]	余明高, 郝强, 段玉龙, 等. 含氯化钴添加剂细水雾灭火有效性的试验研究[J]. 火灾科学, 2007, 16(2): 81-85.
	YU Minggao, HAO Qiang, DUAN Yulong, et al. Experimental study on fire suppression effectiveness of water mist with cobalt chloride additives[J]. Fire Safety Science, 2007, 16(2): 81-85.
[10]	周彪, 周晓猛, 赵智, 等. 一溴三氟丙烯-氮气复合灭火介质灭火性能研究[J]. 安全与环境学报, 2010, 10(3): 162-166.
	ZHOU Biao, ZHOU Xiaomeng, ZHAO Zhi, et al. Research on fire-extinguishing performance for binary blended agents consisted of 1-bromo-3,3-trifluoropropene and nitrogen[J]. Journal of Safety and Environment, 2010, 10(3): 162-166.
[11]	卢大勇, 陈涛, 周晓猛. 7FA临界灭火浓度的测定及7FA/BTP协同灭火作用研究[J]. 安全与环境学报, 2015, 15(4): 117-121.
	LU Dayong, CHEN Tao, ZHOU Xiaomeng. Determination of 7FA critical fire extinguishing concentration and study on 7FA/BTP synergistic fire extinguishing effect[J]. Journal of Safety and Environment, 2015, 15(4): 117-121.
[12]	梁天水, 刘德智, 王永锦. DMMP对惰性气体及全氟己酮临界灭火浓度的影响[J]. 安全与环境工程, 2021, 28(1):44-48.
	LIANG Tianshui, LIU Dezhi, WANG Yongjin. Effect of DMMP on the minimum extinguishing concentration of typical fire extinguishing agents[J]. Safety and Environmental Engineering, 2021, 28(1):44-48.
[13]	李诗涵. 全氟己酮灭火浓度测试技术研究[D]. 南京: 南京理工大学, 2018.
	LI Shihan. Study on the measurement of perfluorohexanone extinguishing concentration[D]. Nanjing: Nanjing University of Science and Technology, 2018.
[14]	GB/T 20702—2006, 气体灭火剂灭火性能测试方法[S].
	GB/T 20702-2006, Test method for extinguishing property of gasous extinguishing agent[S].
[15]	LOTT J L, CHRISTIAN S D, SLIEPCEVICH C M, et al. Synergism between chemical and physical fire-suppressant agents[J]. Fire Technology, 1996, 32(3): 260-271. doi: 10.1007/BF01040218

燃料	U/(g·L^-1)
正庚烷	0.251
乙醇	0.263

细水雾-惰性气体协同灭火性能试验研究

Experimental study on synergetic fire extinguishing performance of water mist and inert gas

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 8

参考文献 15

相关文章 15

编辑推荐

Metrics

本文评价

燃料	惰性气体种类	C/%
正庚烷	N₂	31.91
正庚烷	CO₂	22.15
乙醇	N₂	34.92
乙醇	CO₂	24.37
