基于改进灰狼优化算法的自移机尾控制方法

doi:10.16265/j.cnki.issn1003-3033.2023.S2.0013

摘要/Abstract

摘要：

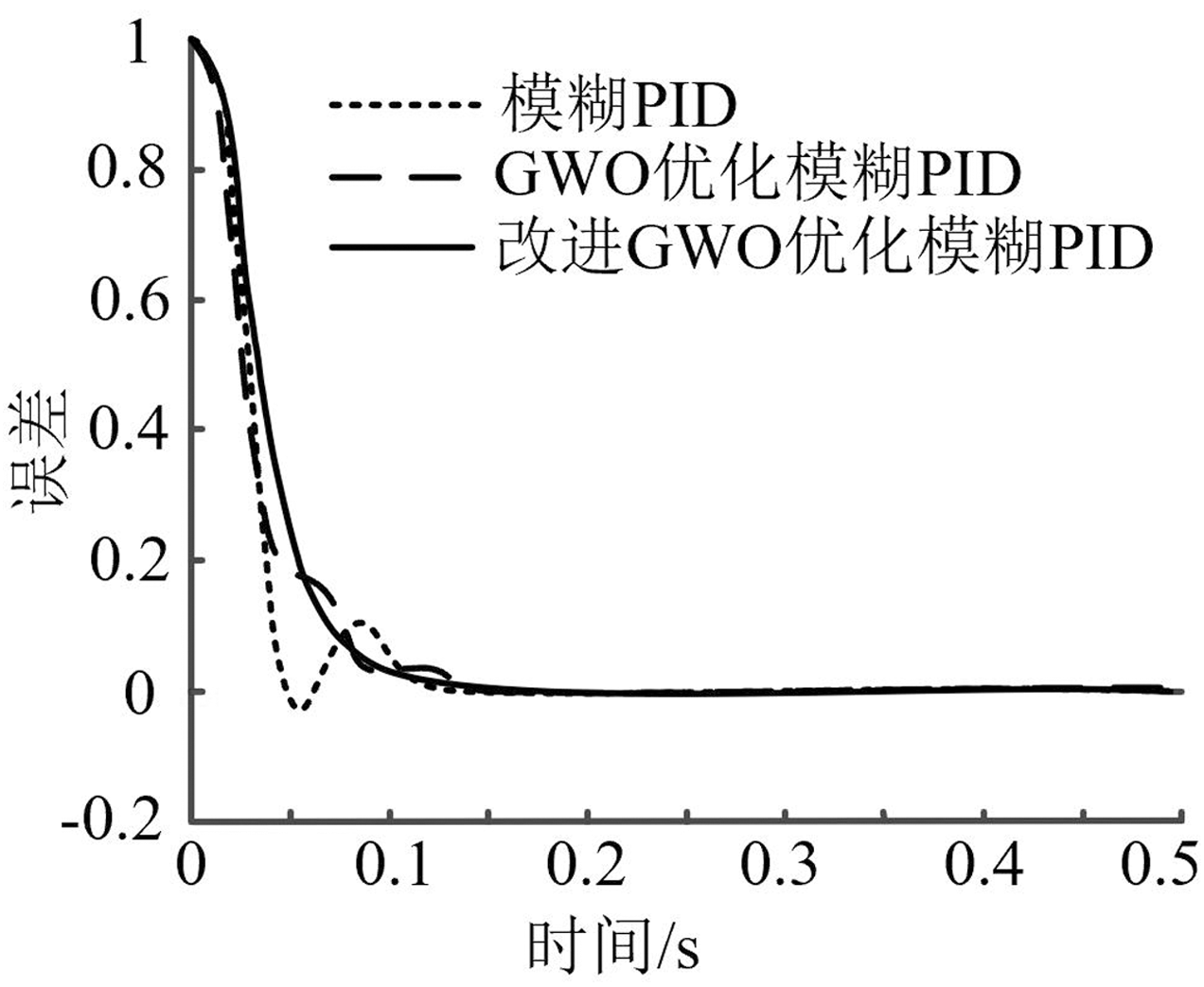

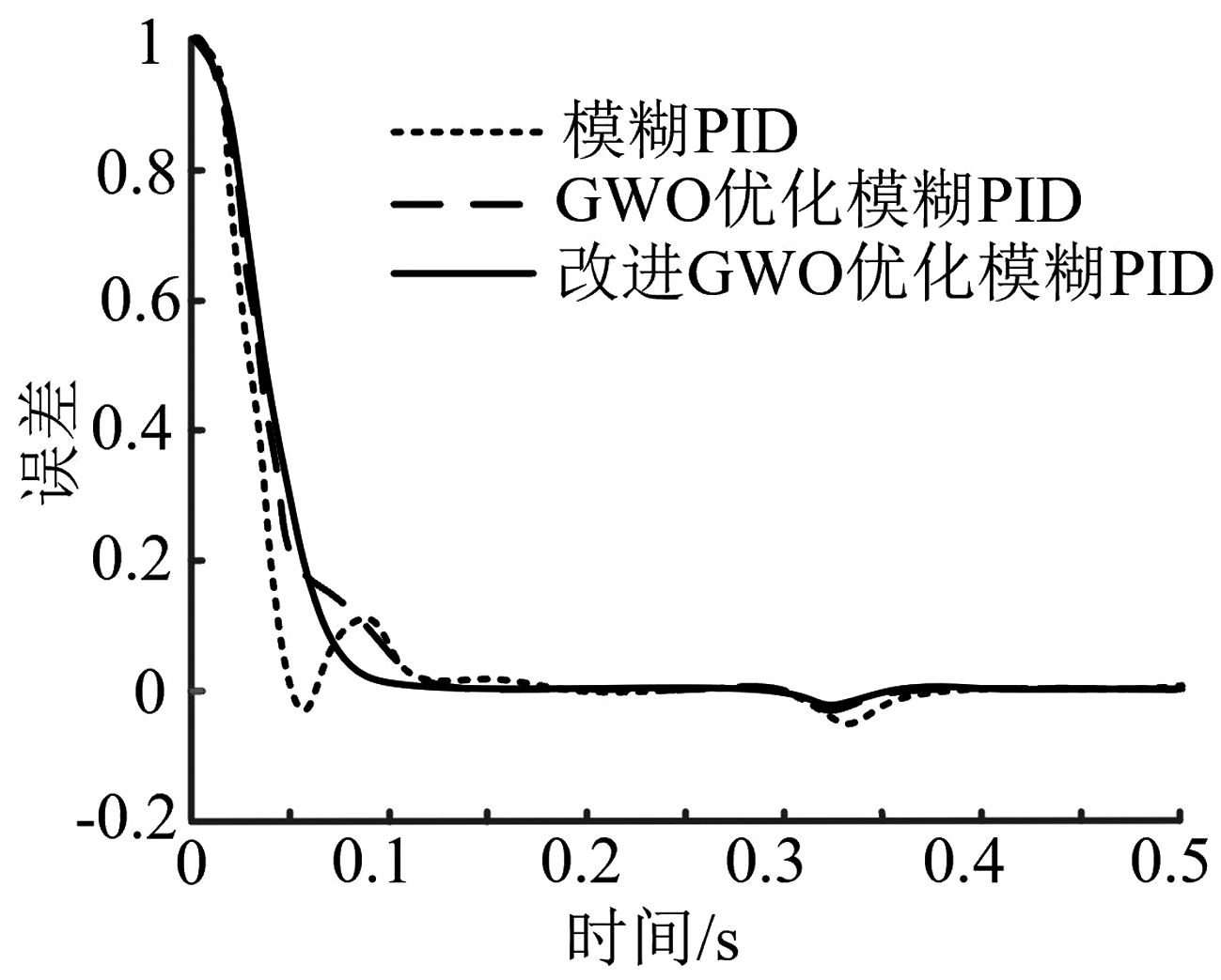

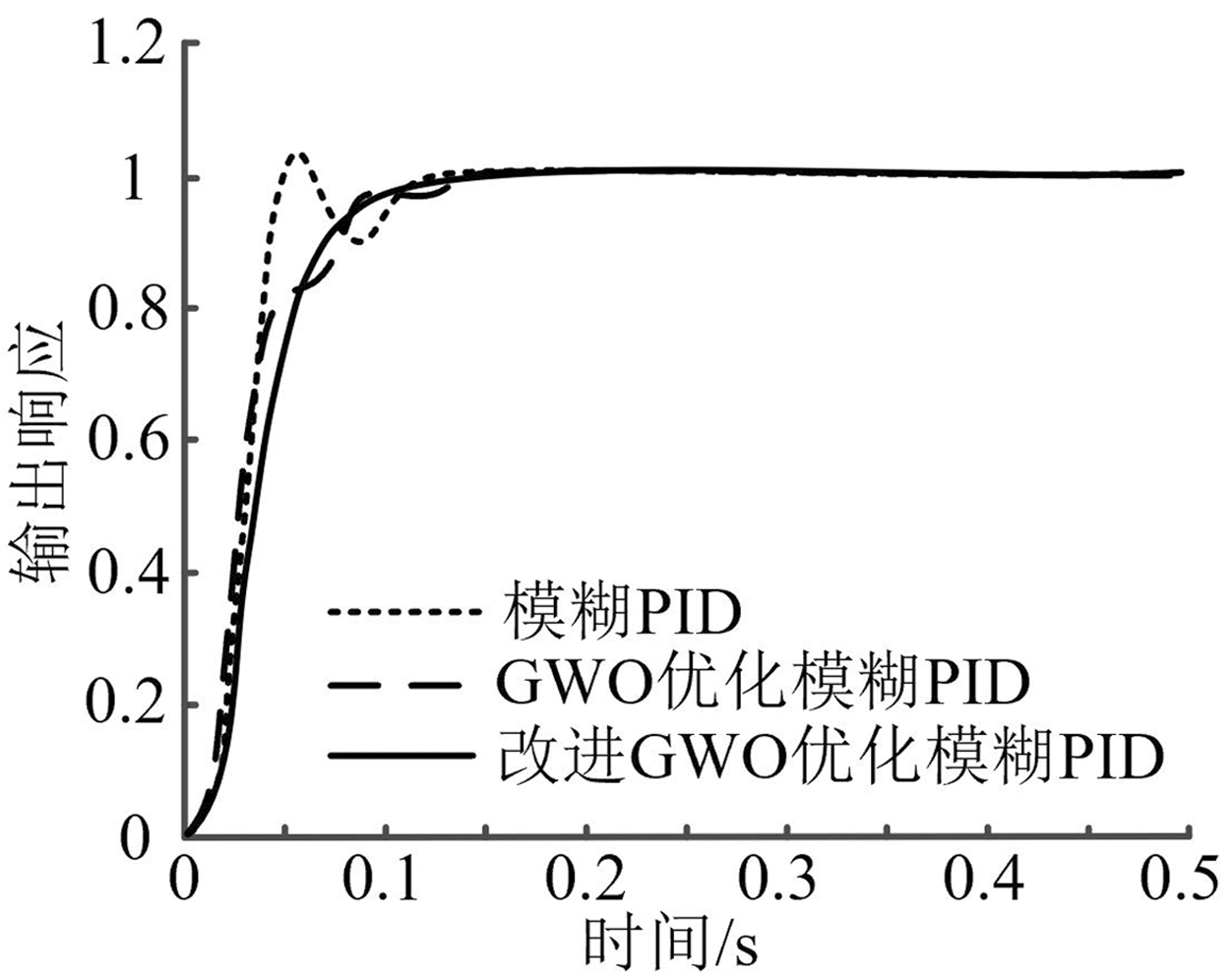

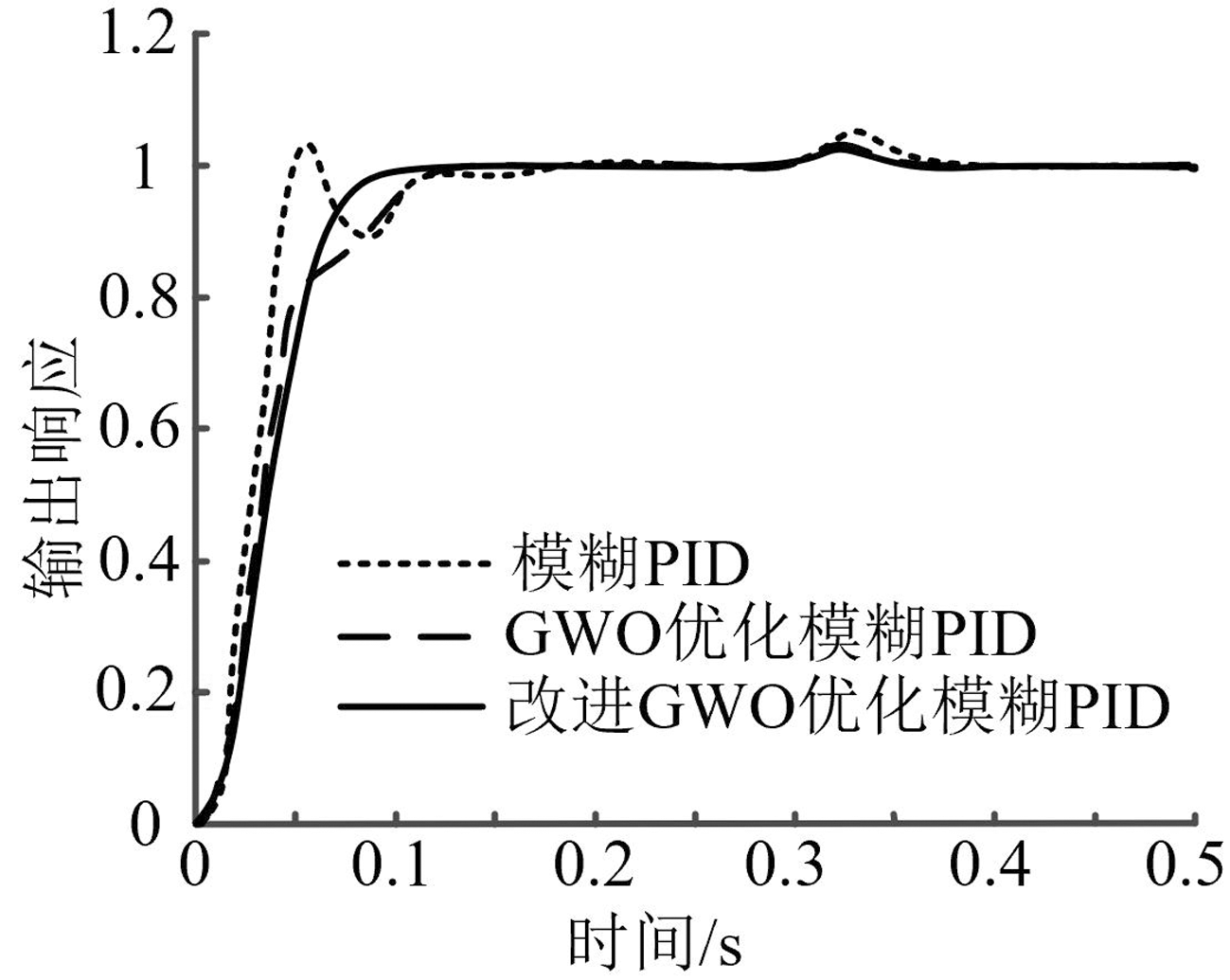

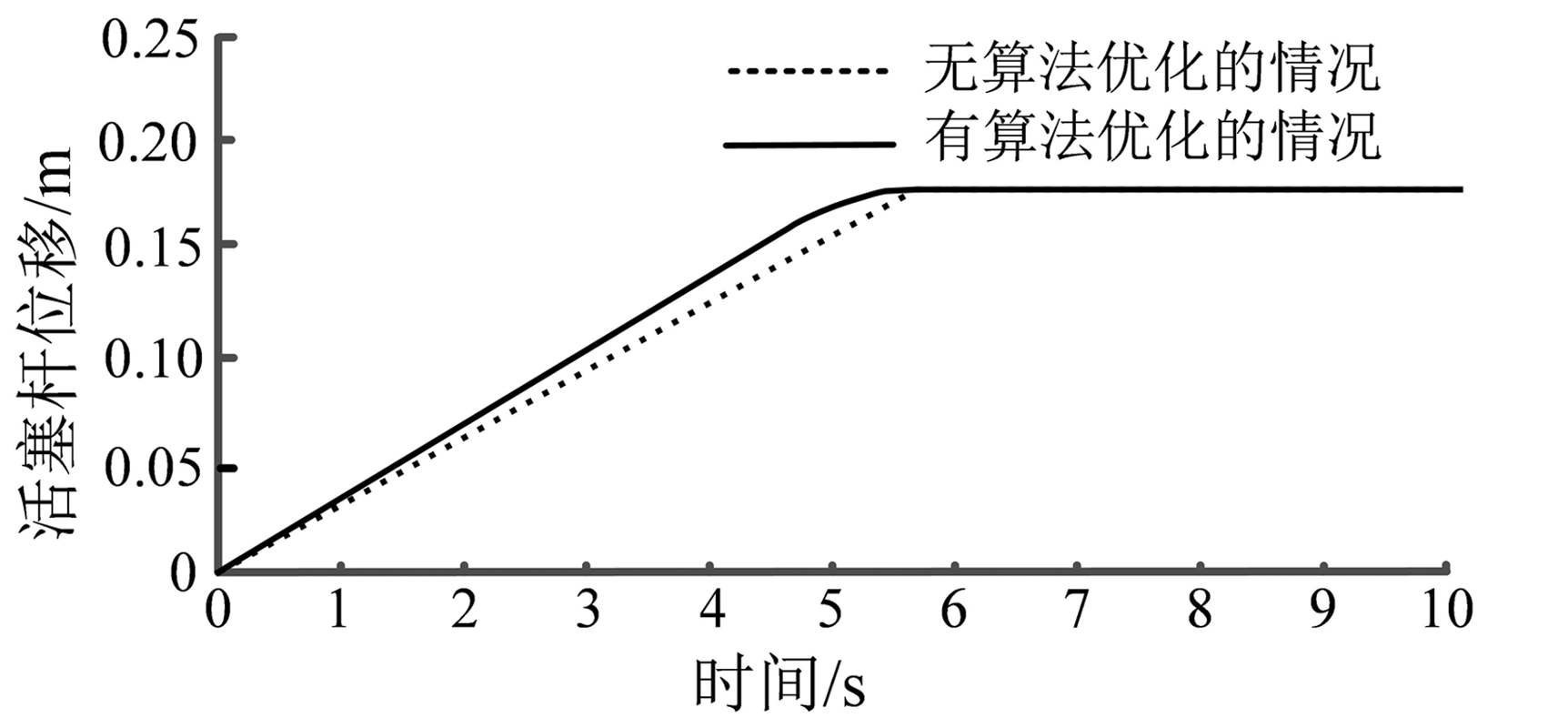

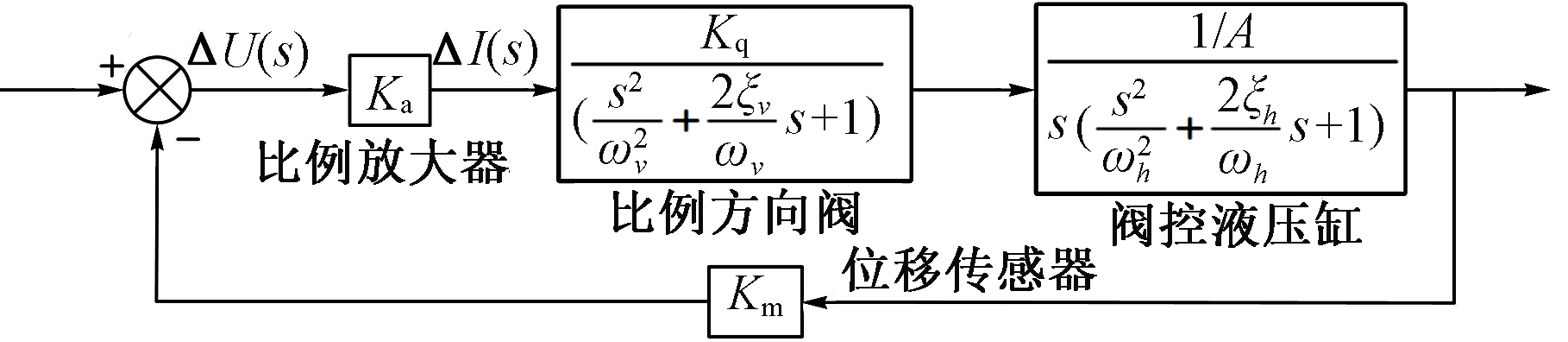

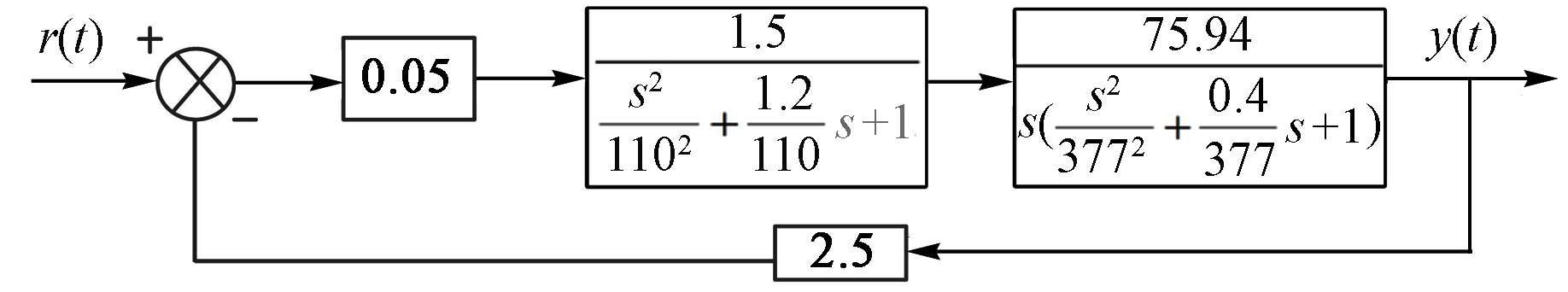

为更好地解决自移机尾的姿态控制问题,将改进后的灰狼算法(GWO)融入到比例积分微分控制器PID控制器中,设计模糊控制器,提出改进的GWO优化模糊PID控制系统架构,实现自移机尾的迈步自移、同步举升、侧移校正的安全控制动作。建立带式输送机自移机尾液压控制系统数学模型,设计自移机尾侧移动作控制仿真与自移机尾多液压缸同步举升控制仿真,通过仿真分析的方法分别对比未加算法的PID控制效果,以及改进前后的灰狼算法所优化的模糊PID控制效果。结果表明:采用PID模糊控制器并融合改进后的灰狼优化算法,可以使自移机尾安全控制系统性能更稳定、控制效率更高。

关键词: 自移机尾, 液压系统, 模糊PID控制器, PID控制, 灰狼优化算法(GWO)

Abstract:

In order to better control the attitude of a self-moving tail, the improved GWO algorithm was integrated into the PID controller, and a fuzzy controller was designed. An optimized fuzzy PID control system architecture based on improved GWO was proposed to realize the safety control actions of the tail including self-moving, synchronous lifting, and side-moving correction. The mathematical model of the hydraulic control system of the self-moving tail of the belt conveyor was established, and the simulation of the side-moving control of the self-moving tail and the synchronous lifting control of the multi-hydraulic cylinders of the self-moving tail was designed. The results of PID control without algorithm and fuzzy PID control optimized by GWO algorithm before and after improvement were compared by simulation analysis. The results show that the fuzzy PID controller and the improved GWO algorithm can make the safety control system of the self-moving tail more stable and more efficient.

Key words: self-moving tail, hydraulic system, fuzzy proportion integration differentiation (PID) controller, proportion integration differentiation (PID) control, grey wolf optimization (GWO) algorithm

中图分类号:

X948

鞠兴军, 魏德志. 基于改进灰狼优化算法的自移机尾控制方法[J]. 中国安全科学学报, 2023, 33(S2): 23-27.

JU Xingjun, WEI Dezhi. A self-moving tail control method based on improved GWO algorithm[J]. China Safety Science Journal, 2023, 33(S2): 23-27.

图/表 11

图1

图2

图3

图4

图5

图6

图7

图8

图9

表1

图10

参考文献 17

[1]	蒋向明. “双碳”背景下煤炭行业与地热产业双重发展机遇[J]. 中国煤炭地质, 2022, 34(增1):1-6.
	JIANG Xiangming. Double development opportunities for coal industry and geothermal industry under carbon peaking and carbon neutrality background[J]. Coal Geology of China, 2022, 34(S1):1-6.
[2]	高宏杰. 煤炭行业发展现状和供需形势分析[J]. 中国煤炭工业, 2022(3):75-77.
[3]	王国法. 《智能化示范煤矿验收管理办法(试行)》:从编写组视角进行解读[J]. 智能矿山, 2022, 3(6):2-10.
[4]	孔祥利, 王建行, 杨春学, 等. 可伸缩带式输送机自移机尾改造设计与应用[J]. 煤矿机械, 2022, 43(9):141-143.
	KONG Xiangli, WANG Jianhang, YANG Chunxue, et al. Retrofit design and application of self-moving tail of retractable belt conveyor[J]. Coal Mine Machinery, 2022, 43 (9): 141-143.
[5]	冯国庭. 智能薄煤层等高综采工作面关键技术与装备[J]. 煤炭科学技术, 2022, 50(增1):264-268.
	FENG Guoting. Key technologie and equipment for intelligent fully-mechanized working face with equal height in thin coal seam[J]. Coal Science and Technology, 2022, 50(S1):264-268.
[6]	刘志明. 基于CAN总线的带式输送机自移机尾电液控制系统设计研究[J]. 煤, 2021, 30(5):77-79.
	LIU Zhiming. Design and research on electro-hydraulic control system of belt conveyor self-moving tail based on CAN bus[J]. Coal, 2021, 30(5):77-79.
[7]	刘震, 李洋, 闫建伟. 皮带自移机尾电液控制系统设计[J]. 机械工程与自动化, 2022(4):176-177.
	LIU Zhen, LI Yang, YAN Jianwei. Design of electro-hydraulic control system for belt self-moving tail[J]. Mechanical Engineering and Automation, 2022(4):176-177.
[8]	宋康, 聂永朝, 兰春森. 顺槽带式输送机智能化机尾的研究[J]. 煤矿机械, 2022, 43(9):122-124.
	SONG Kang, NIE Yongchao, LAN Chunsen. Research on intelligent tail of through belt conveyor[J]. Coal Mine Machinery, 2022, 43(9):122-124.
[9]	任乐乐, 张幸福, 李春鹏. 缓冲阀控制系统在输送带自移机尾上的应用及性能研究[J]. 煤矿机械, 2022, 43(10):156-158.
	REN Lele, ZHANG Xingfu, LI Chunpeng. Application and performance research on buffer valve control system on self-advancing tail piece of conveyor[J]. Coal Mining Machinery, 2022, 43(10):156-158.
[10]	卢飞, 陈昊南. 基于PID的陆区航路纵向碰撞风险控制[J]. 中国安全科学学报, 2023, 33(9):86-93. doi: 10.16265/j.cnki.issn1003-3033.2023.09.1126
	LU Fei, CHEN Haonan. Longitudinal collision risk control in land route based on PID[J]. China Safety Science Journal, 2023, 33(9):86-93. doi: 10.16265/j.cnki.issn1003-3033.2023.09.1126
[11]	门飞, 蒋欣. 求解露天矿低碳运输调度问题的改进灰狼优化算法[J]. 工矿自动化, 2020, 46(12):90-94.
	MEN Fei, JIANG Xin. Improved gray wolf optimization algorithm for solving low-carbon transportation scheduling problem in open-pit mines[J]. Journal of Mine Automation, 2020, 46(12):90-94.
[12]	李敬明. 萤火虫群智能优化算法及其应用研究[D]. 合肥: 合肥工业大学, 2018.
	LI Jingming. Reasearch on swarm intelligent optimization algorithm of glowworm and its application[D]. Hefei: Hefei University of Technology, 2018.
[13]	孟团兴. 基于双引导机制灰狼优化算法的研究与应用[D]. 南宁: 广西大学, 2022.
	MENG Tuanxing. Research and application of gray wolf optimization algorithm based on dual guidance mechanism[D]. Nanning: Guangxi University, 2022.
[14]	李星. 灰狼优化算法的改进及应用研究[D]. 北京: 北京建筑大学, 2022.
	LI Xing. Research on the improvement and application of gray wolf optimization algorithm[D]. Beijing: Beijing University of Civil Engineering and Architecture, 2022.
[15]	杨婷婷. 基于神经网络与灰狼优化算法的物种分布模型的研究与应用[D]. 兰州: 西北民族大学, 2022.
	YANG Tingting. Research and application of species distribution model based on neural network and gray wolf optimization algorithm[D]. Lanzhou: Northwest Minzu University, 2022.
[16]	李龙. 基于机电液联合仿真的2000 kN五轴模锻液压机同步特性研究[D]. 重庆: 重庆大学, 2014.
	LI Long. Study on the synchronization characteristics of 2000 kN five-axis die forging hydraulic press based on electromechanical and hydraulic co-simulation[D]. Chongqing: Chongqing University, 2014.
[17]	张道兵, 朱川曲, 刘泽, 等. 基于Matlab优化工具箱的煤巷顶板锚杆支护结构可靠性分析[J]. 中国安全科学学报, 2007(9):131-134,179.
	ZHANG Daobing, ZHU Chuanqu, LIU Ze, et al. Reliability analysis on bolt support structure of coal roadway roof based on matlab's optimization toolbox[J]. China Safety Science Journal, 2007(9):131-134,179.

参数	数值	参数	数值
低压小流量泵驱动电机转速/(r·min^-1)	1 450	节流阀等效孔口直径/mm	2.8
高压大流量泵驱动电机转速/(r·min^-1)	1 500	举升液压缸缸径/mm	125
供油压力/MPa	31.5	举升液压缸杆径/mm	80
回油压力/MPa	20	举升液压缸行程/mm	200
系统溢流阀设定压力/Pa	31.5	推移液压缸缸径/mm	160
侧移液压缸缸径/mm	100	推移液压缸杆径/mm	110
侧移液压缸杆径/mm	70	推移液压缸行程/mm	2 700
侧移液压缸行程/mm	80	减压阀设定值/MPa	90
侧移液压缸外负载力/N	29 325	系统溢流阀设定压力/MPa	100
举升液压缸外负载力/N	97 750	推移液压缸外负载力/N	130 333.34
