滚装船载运的锂电池汽车仿真模拟研究

doi:10.16265/j.cnki.issn1003-3033.2024.09.1864

摘要/Abstract

摘要：

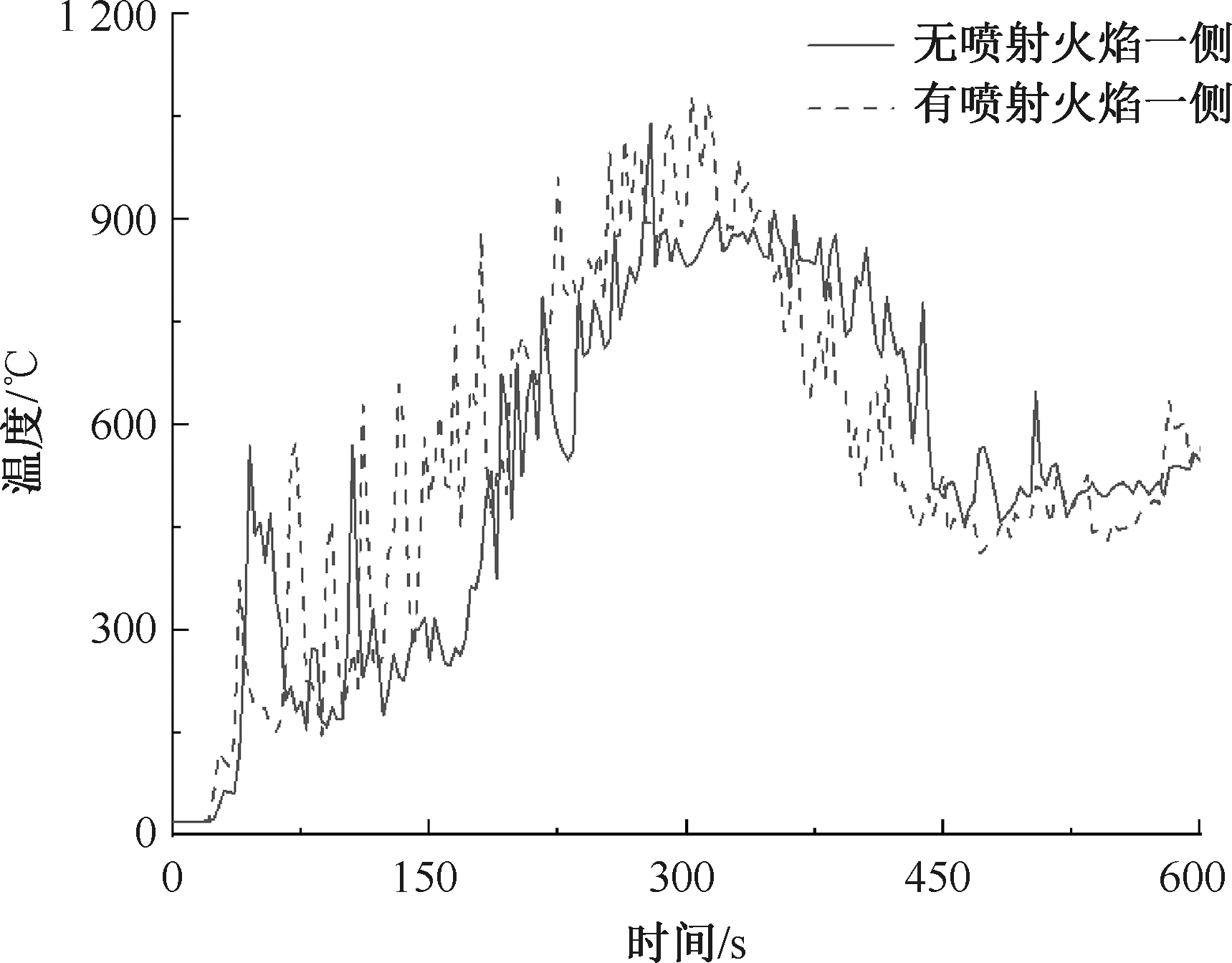

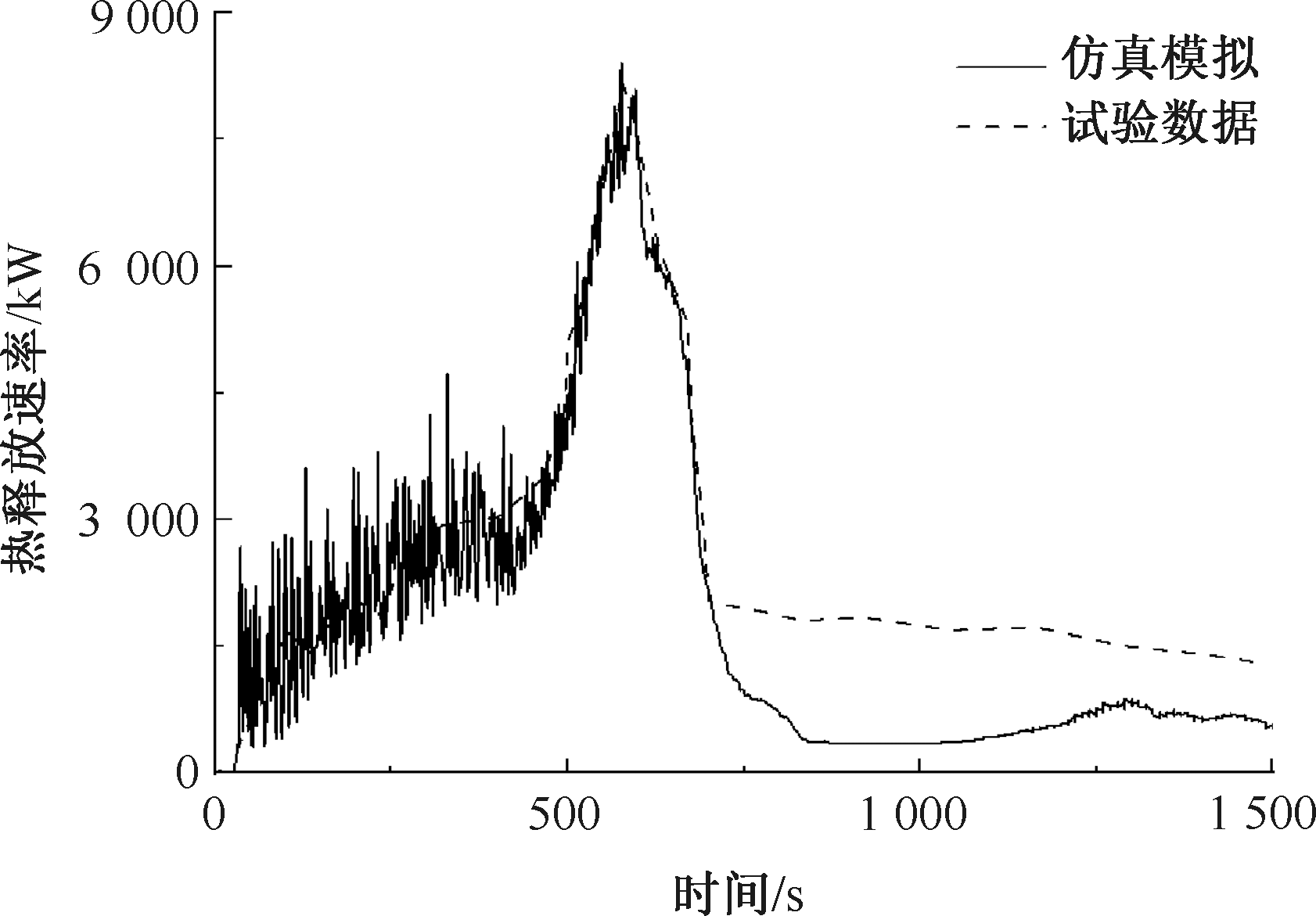

为应对船舶运输中锂电池汽车火灾带来的严重后果,构建滚装船甲板上的锂电池汽车火灾仿真模型。首先,利用锂电池汽车全尺寸火灾试验数据,验证单辆和双辆锂电池汽车火灾仿真模型准确性。随后,应用经验证的仿真模型对滚装船甲板上的锂电池汽车火灾模拟仿真,分析不同车辆间距下火灾热释放速率、温度和辐射热等变化特征。结果表明:在锂电池汽车火灾初期,火焰会先蔓延至并排停放的车辆,特别是受到喷射火影响的一侧车辆,然后再扩展至前后两侧的车辆,且前方车辆遭受的火灾损毁程度明显大于后方车辆。同时,喷射火会加剧锂电池汽车火灾的蔓延和发展,有喷射火区域的温度显著高于无喷射火区域,而受到喷射火影响的邻近车辆则最先被引燃。通过数值仿真手段可有效模拟船舶载运锂电池汽车火灾发展及蔓延过程。

关键词: 滚装船, 锂电池汽车, 汽车火灾, 仿真模型, 喷射火

Abstract:

In order to address the severe consequences of lithium battery vehicle fires during ship transportation, a vehicle fire simulation model of a ro-ro ship deck lithium battery was constructed. Firstly, the accuracy of the fire simulation model of single and dual lithium battery vehicles was verified by using the full-scale fire experiment data of lithium battery vehicles. Then, the verified simulation model was applied to simulate the fire of a lithium battery vehicle on the deck of a ro-ro ship, and the variation rules of fire heat release rate, temperature and radiant heat under different vehicle spacing were analyzed. The results show that in the initial stage of the lithium battery vehicle fire, the flame first spreads to the side-parked vehicles, especially the side of the vehicle affected by the jet fire, and then expands to the front and rear vehicles. The front vehicle suffers significantly more fire damage than the rear vehicle. At the same time, jet fire aggravates the spread and development of lithium battery vehicle fires. The temperature of the area with jet fire is significantly higher than that of the area without jet fire, and the adjacent vehicles affected by jet fire are ignited first. The numerical simulation method can effectively simulate the fire development and spreading process of the vehicle carrying lithium battery on a ship.

Key words: roll-on/roll-off ships, lithium battery vehicles, vehicle fire, simulation model, jet flame

中图分类号:

X932爆炸安全与防火、防爆

王彦富, 张浩然, 乔健, 熊梓迅, 邹丽. 滚装船载运的锂电池汽车仿真模拟研究[J]. 中国安全科学学报, 2024, 34(9): 107-113.

WANG Yanfu, ZHANG Haoran, QIAO Jian, XIONG Zixun, ZOU Li. Simulation study on lithium battery vehicles transported by roll on/roll off ships[J]. China Safety Science Journal, 2024, 34(9): 107-113.

图/表 21

表1

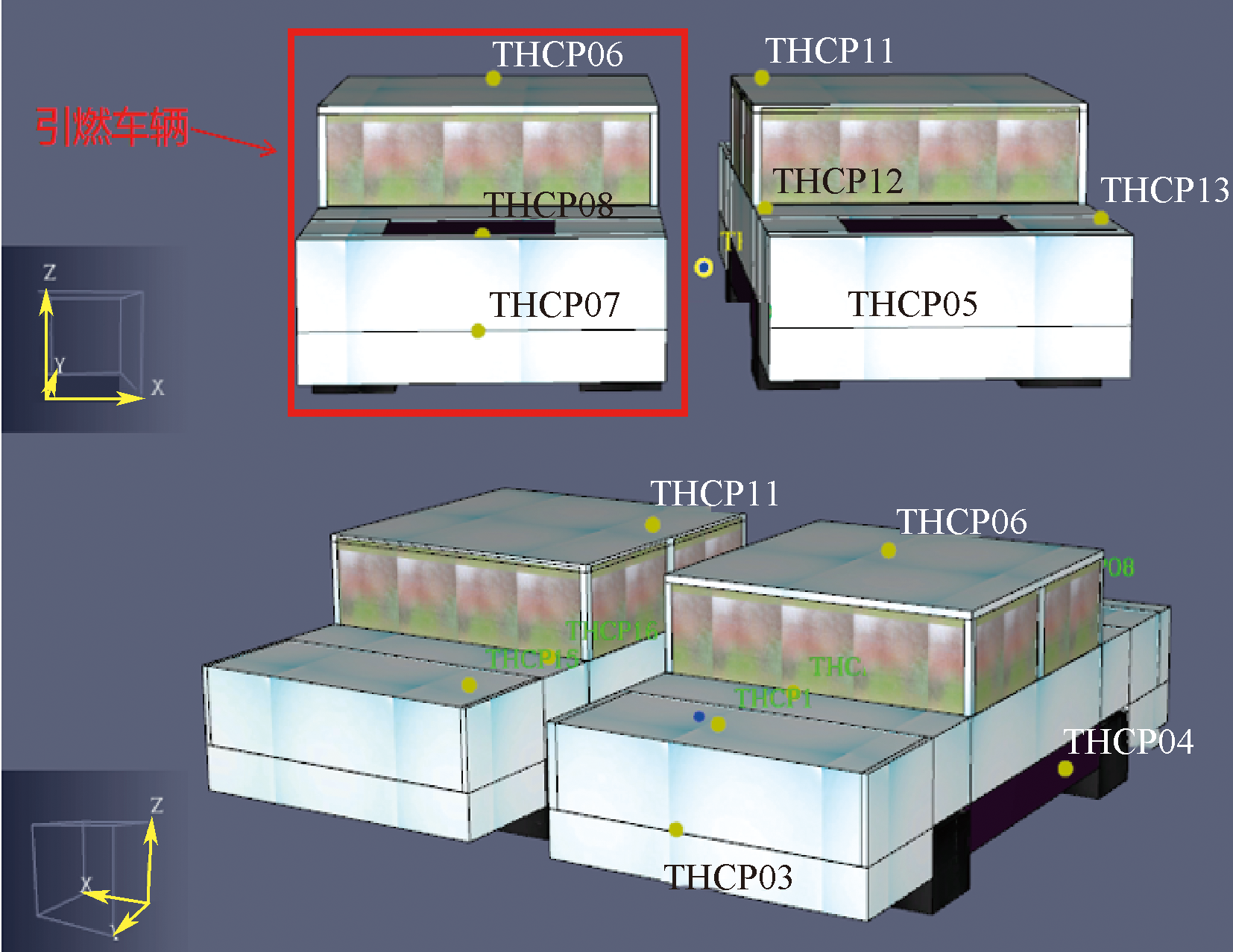

图1

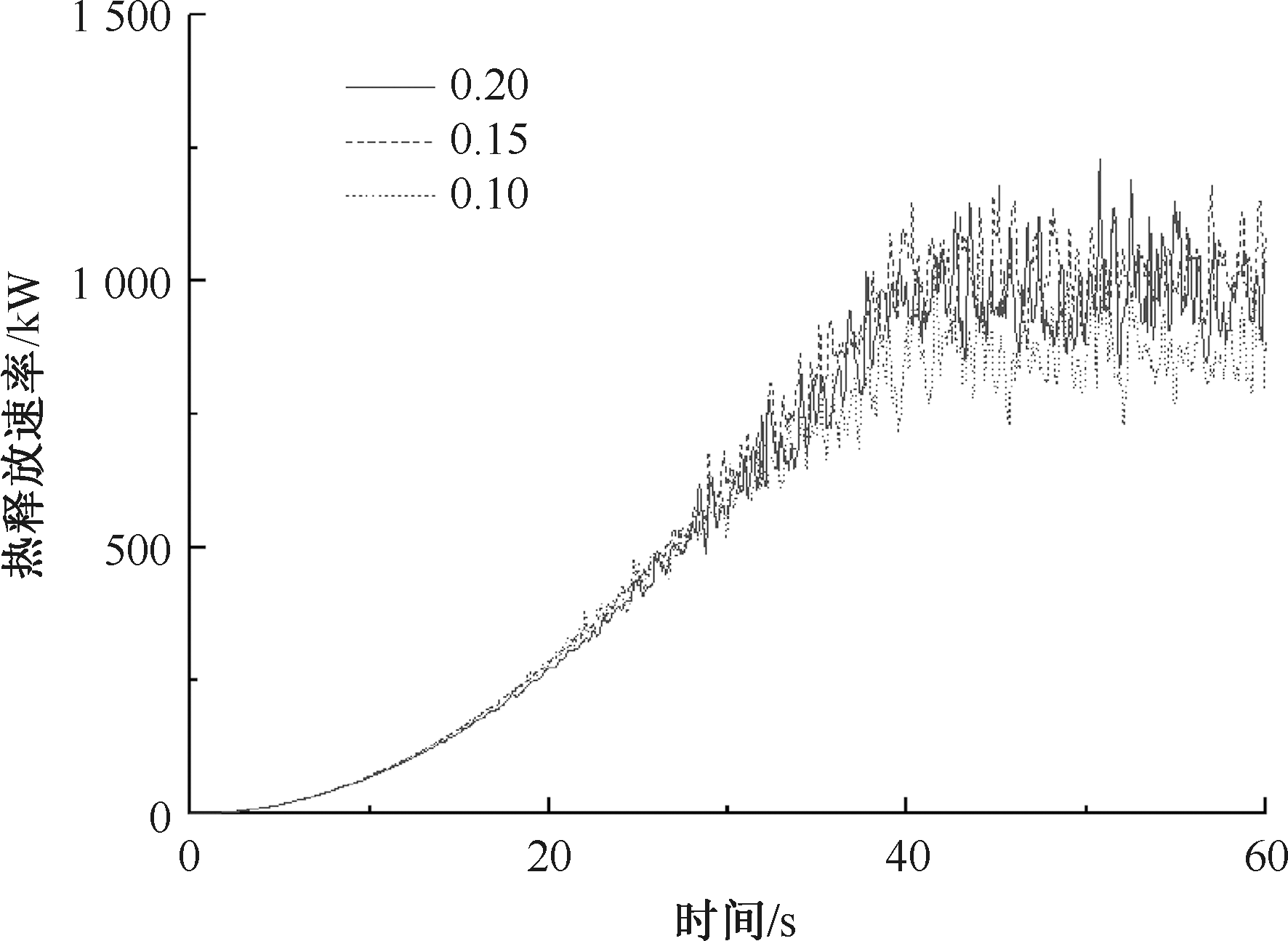

图2

图3

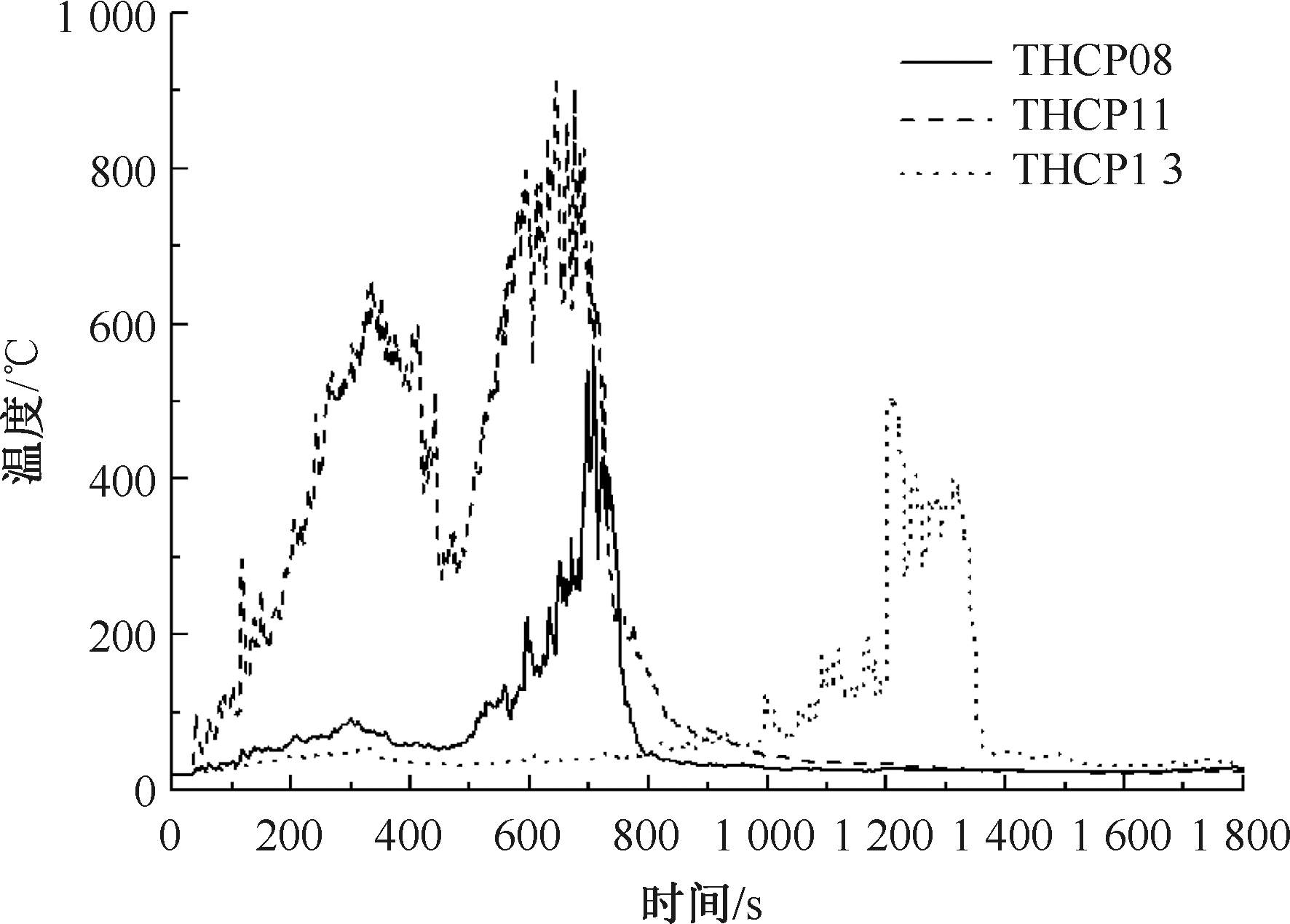

图4

图5

表2

表3

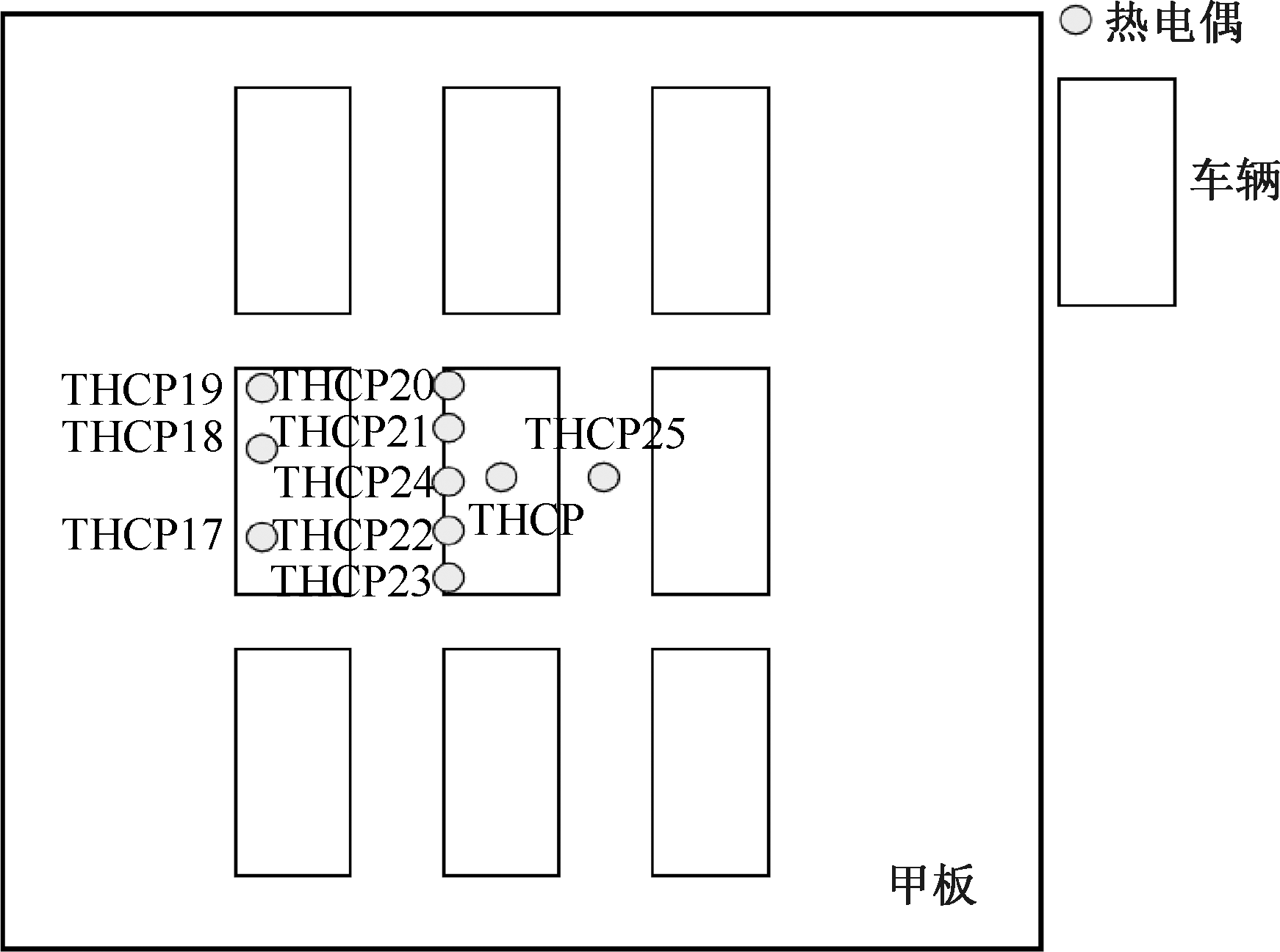

图6

图7

表4

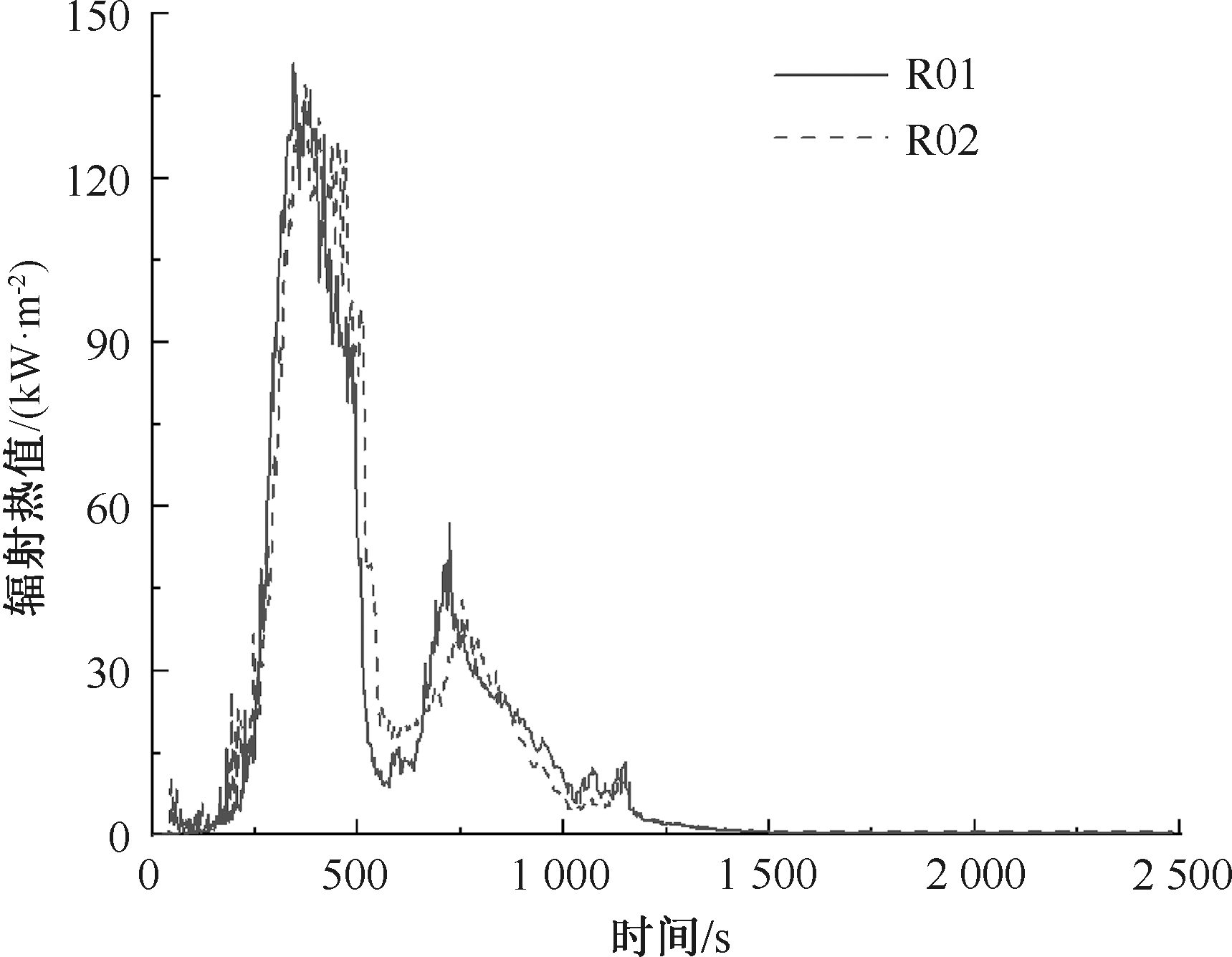

图8

图9

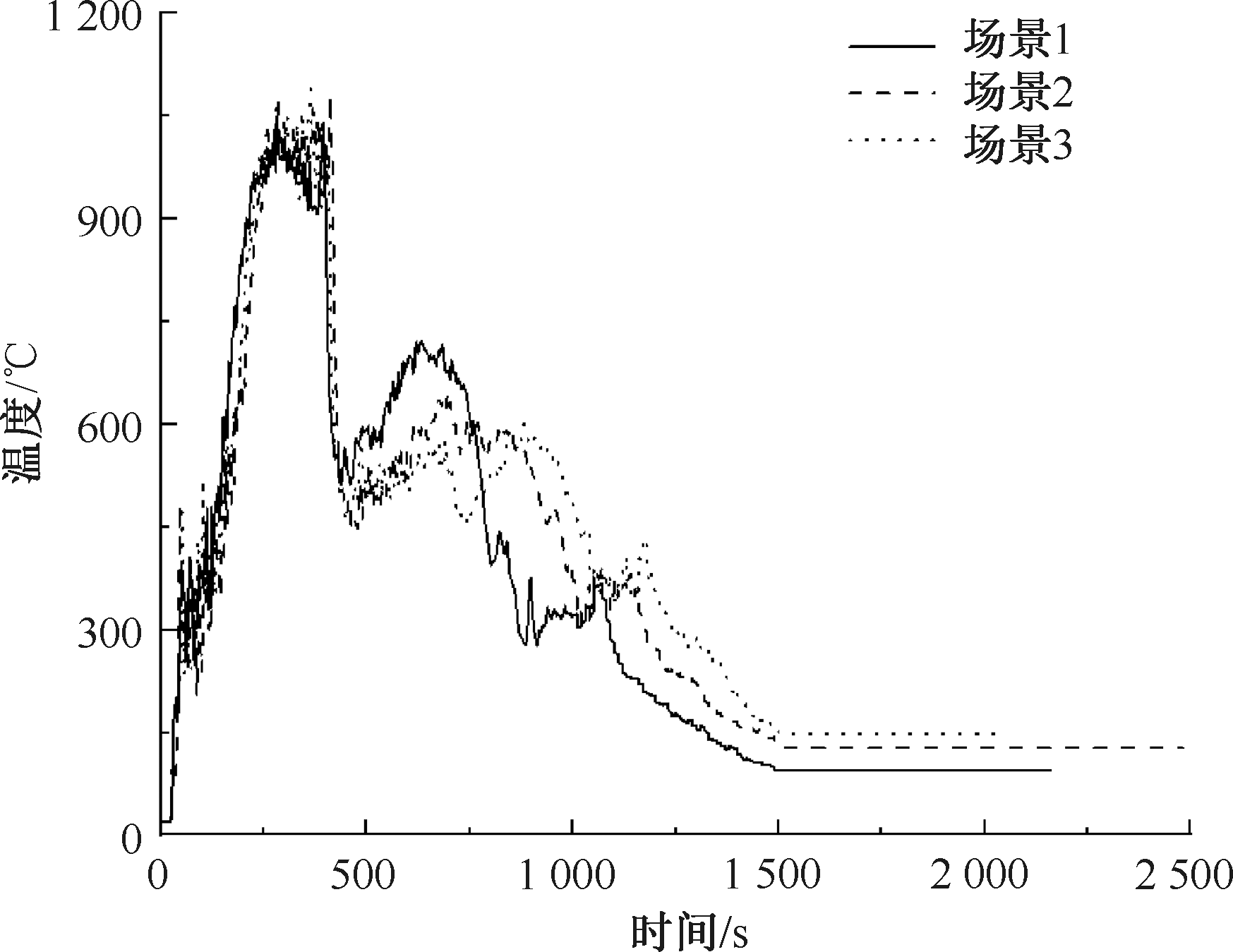

图10

图11

图12

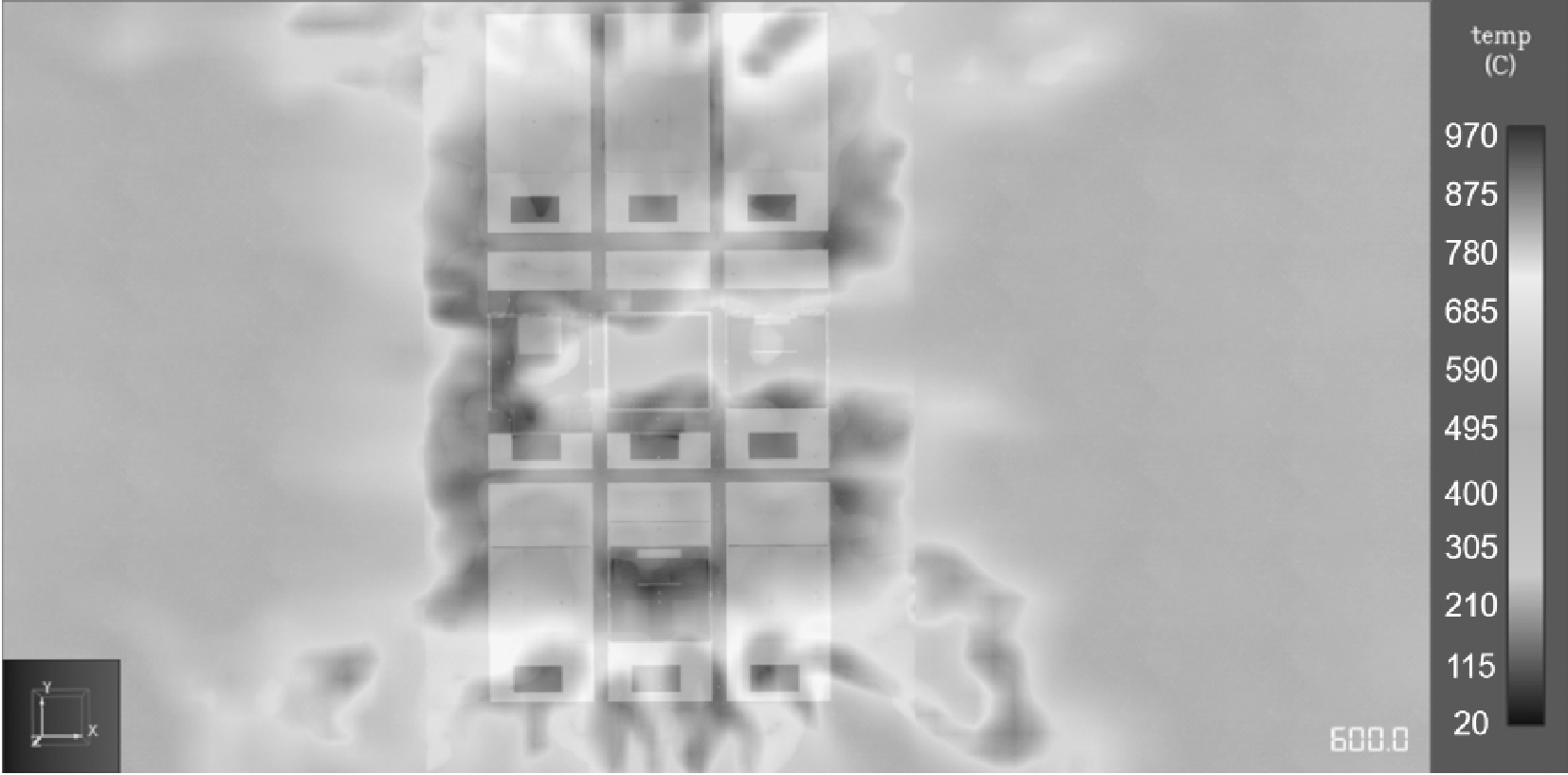

图13

图14

图15

图16

图17

参考文献 13

[1]	邓康, 张英, 徐伯乐, 等. 磷酸铁锂电池组燃烧特性研究[J]. 中国安全科学学报, 2019, 29(11):83-88. doi: 10.16265/j.cnki.issn1003-3033.2019.11.014
	DENG Kang, ZHANG Ying, XU Bole, et al. Study on combustion characteristics of lithium iron phosphate battery pack[J]. China Safety Science Journal, 2019, 29(11): 83-88. doi: 10.16265/j.cnki.issn1003-3033.2019.11.014
[2]	KAPTAN M. Analysis of accidents during vehicle stowage on RO-RO vessels by using fuzzy Bayesian networks[J]. Ocean Engineering, 2022, 260: DOI: 10.1016/j.oceaneng111997.
[3]	PETER S, PATRIK F, DANIEL F, et al. Fire tests with lithium-ion battery electric vehicles in road tunnels[J]. Fire Safety Journal, 2022, 134: DOI: 10.1016/j.firesaf.103695.
[4]	SUN Peiyi, HUANG Xinyan, NIU Huichang. A review of battery fires in electric vehicles[J]. Fire Technology, 2020, 6: 1361-1410.
[5]	SUNGWOOK K, MINJAE K, JOUNG Y C, et al. Full-scale fire testing of battery electric vehicles[J]. Applied Energy, 2023, 32: DOI: 10.1016/j.apenergy.2022.120497.
[6]	LI Huang, PENG Wen, YANG Xulai, et al. Full-scale experimental study on the combustion behavior of lithium ion battery pack used for electric vehicle[J]. Fire Technology, 2020, 56(6): 1-20.
[7]	CUI Yan, LIU Hongjiang, CONG Beihua, et al. Characterization and assessment of fire evolution process of electric vehicles placed in parallel[J]. Process Safety and Environmental Protection, 2022, 166: 524-534.
[8]	李田成. 船舶密闭舱火场温度与烟气规律的模拟研究[D]. 广州: 华南理工大学, 2017.
	LI Tiancheng. Simulation study on temperature and smoke patterns in ship sealed cabin fire scene[D]. Guangzhou: South China University of Technology, 2017.
[9]	刘志强, 谢仲淇, 孙仁仲, 等. 基于船舶火灾仿真的火灾蔓延态势风险模糊评价方法[J]. 船舶工程, 2021, 43(10): 69-75.
	LIU Zhiqiang, Xie Zhongqi, SUN Renzhong, et al. Fuzzy evaluation method for fire spread risk based on ship fire simulation[J] Ship Engineering, 2021, 43(10): 69-75.
[10]	李显, 陈晓晓, 王欢, 等. 万吨级客船汽车甲板车辆火灾烟气参数的模拟分析[J]. 水上消防, 2018(3): 36-40.
	LI Xian, CHEN Xiaoxiao, WANG Huan, et al. Simulation analysis of fire smoke parameters of 10,000-ton passenger ship automobile deck vehicle[J]. Marine Fire, 2018(3): 36-40.
[11]	MCGRATTAN K, MCDERMOTT R, HOSTIKKA S, et al. Fire dynamics simulator version 5[M]. Washington: National Institute of Standards and Technology Special Publication, 2010: 222.
[12]	潘鸣宇, 及洪泉, 邱明泉, 等. 电动汽车锂离子电池组火灾数值模拟研究[J]. 中国安全生产科学技术, 2020, 16(6): 104-109.
	PAN Mingyu, JI Hongquan, QIU Mingquan, et al. Numerical simulation study on fire of lithium-ion battery pack for electric vehicles[J]. Journal of Safety Science and Technology, 2020, 16(6): 104-109.
[13]	孙强, 贾井运, 王海斌, 等. 常压及低压下锂电池热失控随数量变化特性[J]. 中国安全科学学报, 2022, 32(2): 145-151. doi: 10.16265/j.cnki.issn1003-3033.2022.02.020
	SUN Qiang, JIA Jingyun, WANG Haibin, et al. Thermal runaway characteristics of lithium batteries under normal pressure and low pressure as a function of quantity[J]. China Safety Science Journal, 2022, 32(2): 145-151. doi: 10.16265/j.cnki.issn1003-3033.2022.02.020

名称	主要物质	密度/ (kg·m^-3)	导热系数/ (W·m^-1·K^-1)	比热容/ (kJ·kg^-1·K^-1)	材质燃点/℃	热值/ (MJ·kg^-1)
车辆轮胎	天然橡胶	1 200.00	0.15	2.01	360.00	44.71
车辆外壳	ABS树脂	1 100.00	0.25	1.47	300.00	35.25
车辆玻璃	二氧化硅	2 500.00	0.76	0.84	不可燃	无
电动机	铝合金	2 630.00	238.00	0.90	不可燃	无
车辆底盘	钢	7 850.00	1.70	0.05	不可燃	无
车辆内饰	塑料泡沫	28.00	12.03	1.02	默认参数	默认参数
锂电池	锰酸锂	3 900.00	0.46	45.80	130.00	42.99

蔓延时间	试验时间	模拟时间	时间差
邻车被点燃	179	198	19
初始车全车起火	574	585	11
邻车全车起火	1 207	1 200	7

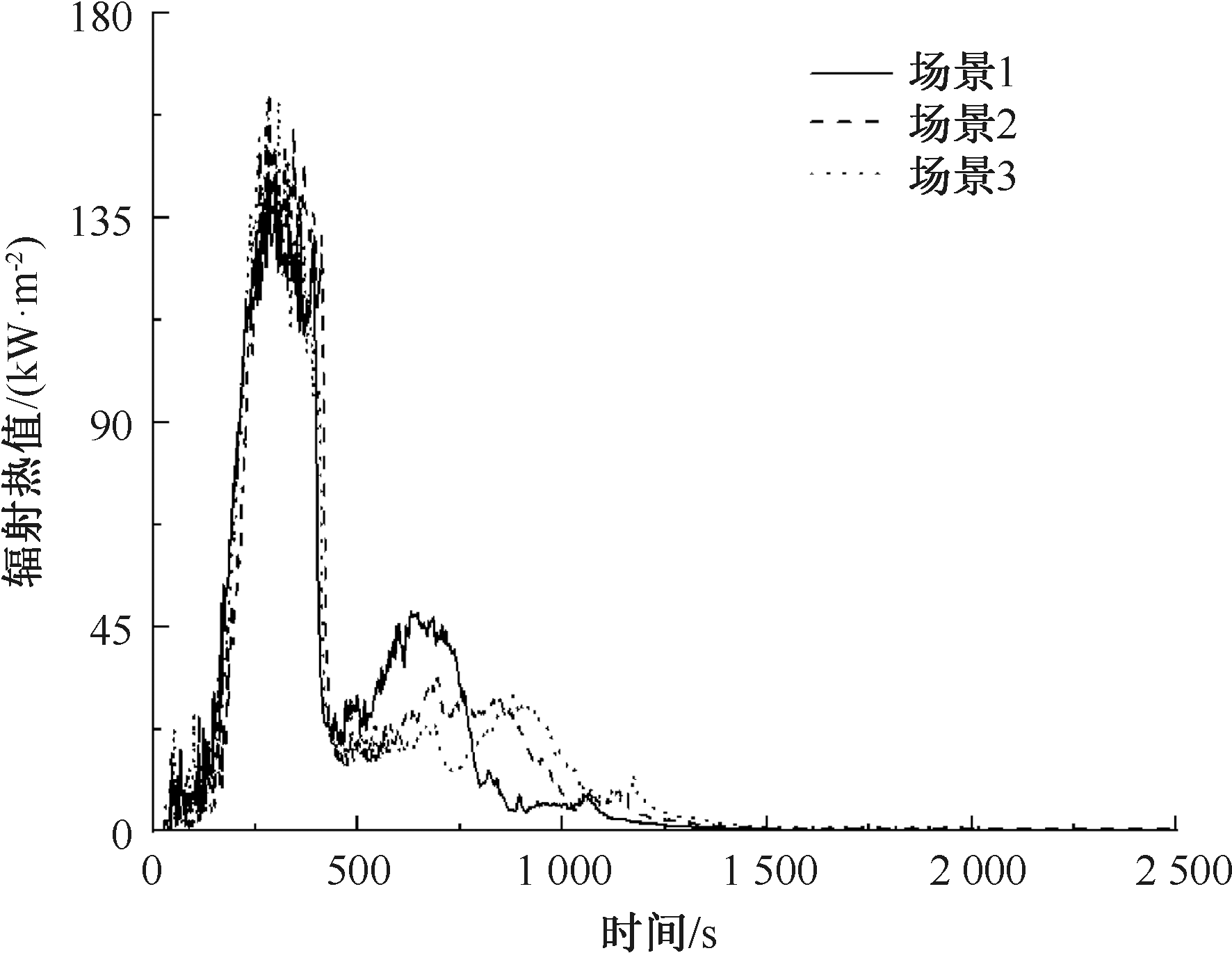

火灾场景	车辆左右间距	车辆前后间距
场景1	0.3	0.3
场景2	0.5	0.5
场景3	0.5	0.7

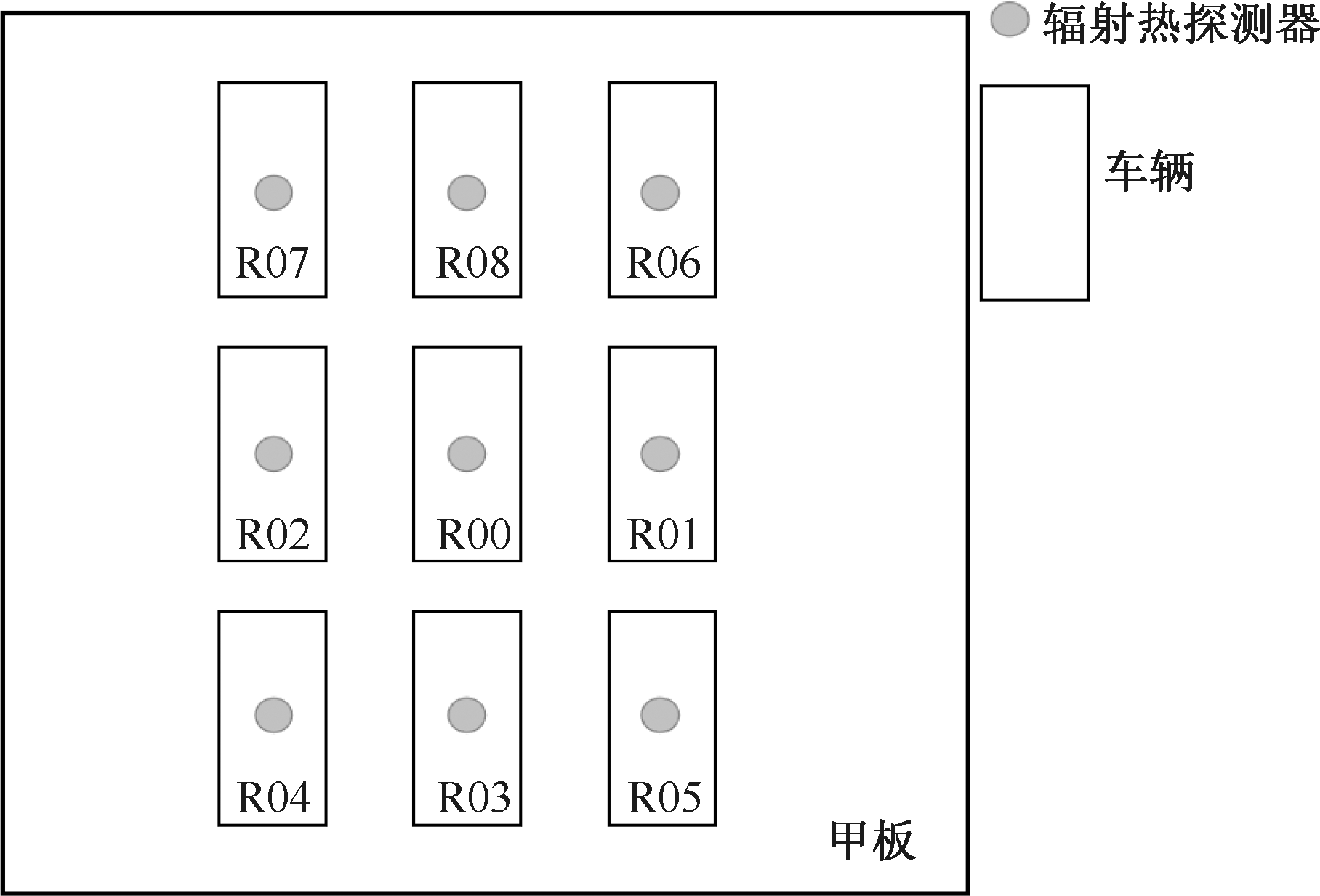

场景	辐射热探测器名称	被引燃时间/ s
场景1	R00	147
	R01	204
	R02	171
	R03	417
	R04	444
	R05	435
	R06	480
	R07	471
	R08	453
场景2	R00	135
	R01	251
	R02	225
	R03	446
	R04	477
	R05	540
	R06	546
	R07	552
	R08	506
场景3	R00	126
	R01	285
	R02	258
	R03	501
	R04	567
	R05	602
	R06	579
	R07	603
	R08	538
