基于蒙特卡罗法的立式圆柱形储罐壳体屈曲失效机制

doi:10.16265/j.cnki.issn1003-3033.2025.02.1655

摘要/Abstract

摘要：

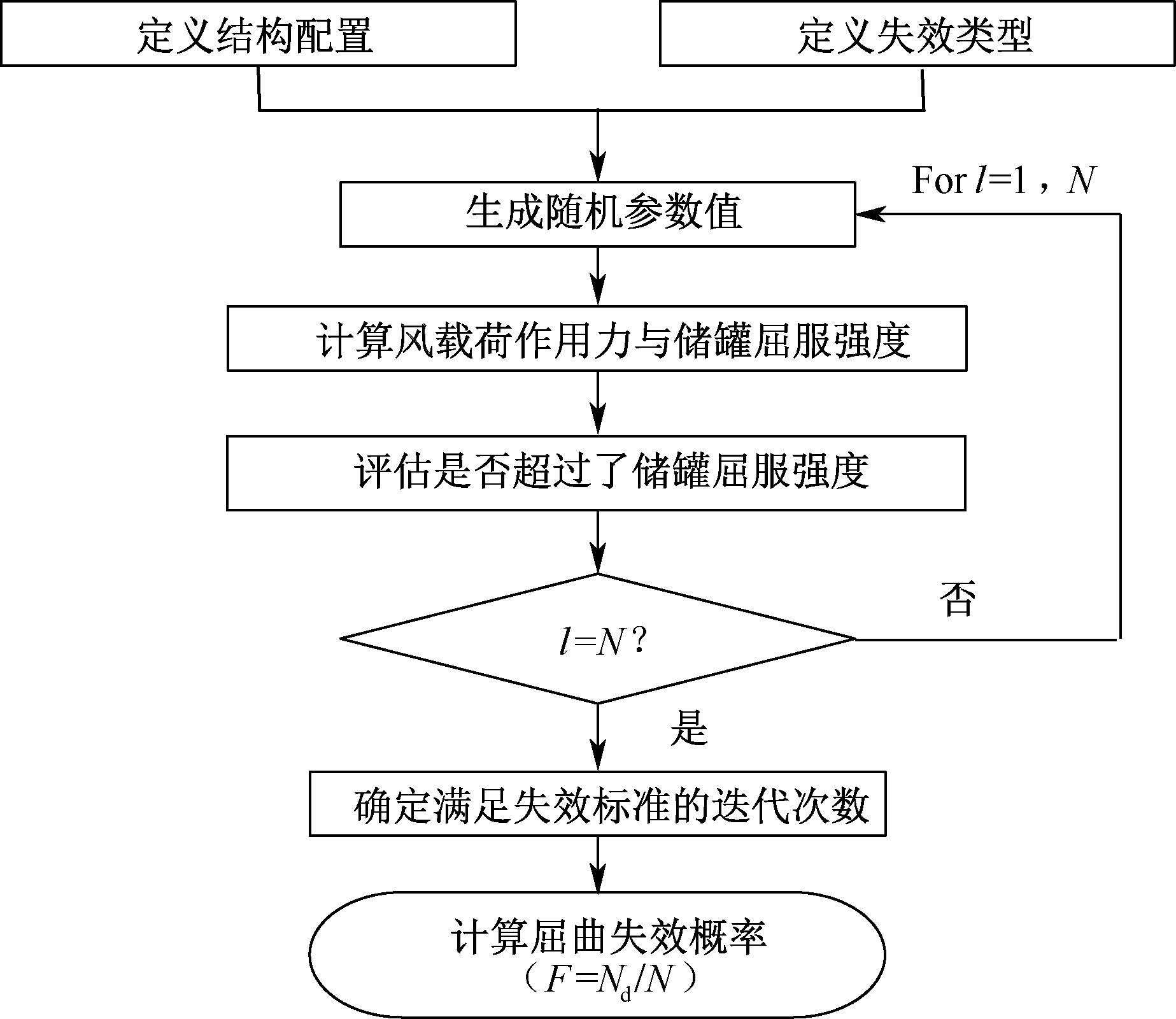

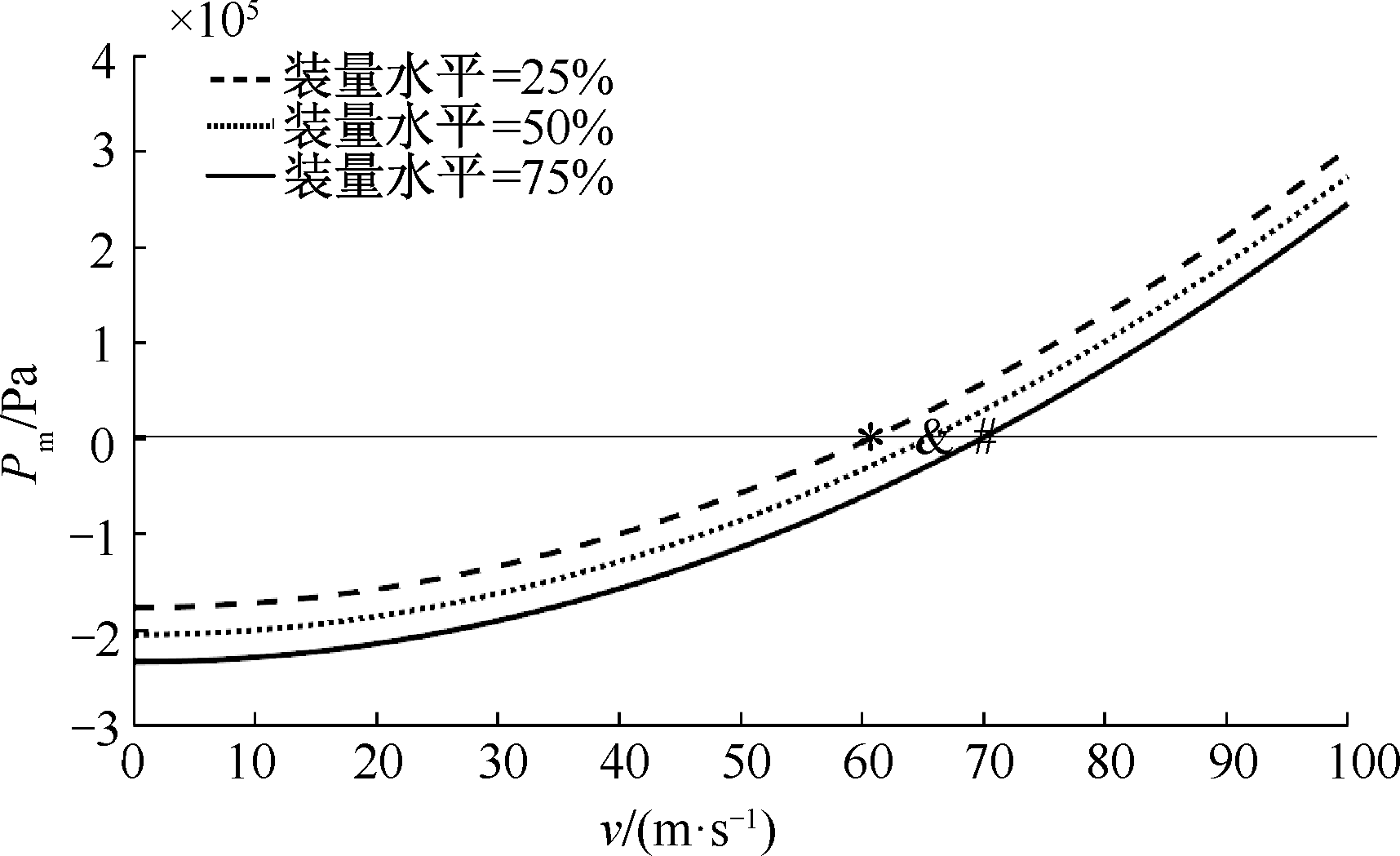

为了降低飓风作用下沿海地区石油化工储罐的失效风险,基于强度-应力干涉理论,建立立式圆柱形储罐在风载荷作用下的静态失效模型,通过某原油储罐实例确定其屈曲失效的临界风速,并针对风速等参数不同随机分布情况,应用蒙特卡罗法进一步绘制壳体屈曲失效概率曲线,探究其静态条件下的屈曲失效机制,并确定不同装量水平下的失效概率。结果表明:针对立式圆柱形储罐,在相同风载荷作用下,装量水平为25%、50%、75%时,导致储罐壳体屈曲失效的临界风速分别为60.67、65.38、69.79 m/s;根据屈曲失效概率曲线,储罐装量水平对储罐抵抗风载荷的影响较大,装量水平为25%的失效概率远大于装量水平为50%的失效概率。因此,立式圆柱形储罐壳体屈曲失效机制为:装量水平过低,在风载荷作用下易导致储罐发生壳体屈曲失效,装量水平越高立式圆柱形储罐可抵抗风载荷的能力越强。沿海等化工企业可以采取适当增加装量水平等保护措施以抵抗强风载荷。

关键词: 蒙特卡罗法, 风载荷, 立式圆柱形储罐, 储罐壳体, 屈曲失效, 临界风速

Abstract:

In order to reduce the failure risk of petrochemical storage tanks in coastal areas under the influence of hurricanes, the failure model for vertical cylindrical tanks under wind load was established based on the strength stress interference theory. The critical wind speed for the buckling failure was determined by an example of a crude oil storage tank. For different random distributions of parameters, such as wind speed, the Monte Carlo method was also used to plot the probability curve of shell buckling failure. The buckling failure mechanism under static conditions was investigated, and the failure probability at different loading levels was determined under static conditions. The results show that the critical wind speeds are 60.67, 65.38 and 69.79 m/s respectively when the loading levels are 25%, 50% and 75% under the same wind load. According to the failure probability curve, the failure probability of the loading level of 25% is significant greater than that at 50%. Therefore, it can be seen that the buckling failure mechanism of the vertical cylindrical storage tank shell is as follows: the loading level is too low, which can easily lead to buckling failure of the storage tank under wind load. The higher the loading level, and the stronger the wind load resistance of the vertical cylindrical storage tank. Appropriate measures can be taken to increase the loading level to resist strong wind loads in the coastal chemical industries.

Key words: Monte Carlo method, wind load, vertical cylindrical tank, tank shell, buckling failure, critical wind speed

中图分类号:

X937

潘科, 牛颖承. 基于蒙特卡罗法的立式圆柱形储罐壳体屈曲失效机制[J]. 中国安全科学学报, 2025, 35(2): 89-94.

PAN Ke, NIU Yingcheng. Buckling failure mechanism of vertical cylindrical tank shell based on Monte Carlo method[J]. China Safety Science Journal, 2025, 35(2): 89-94.

图/表 8

图1

表1

表2

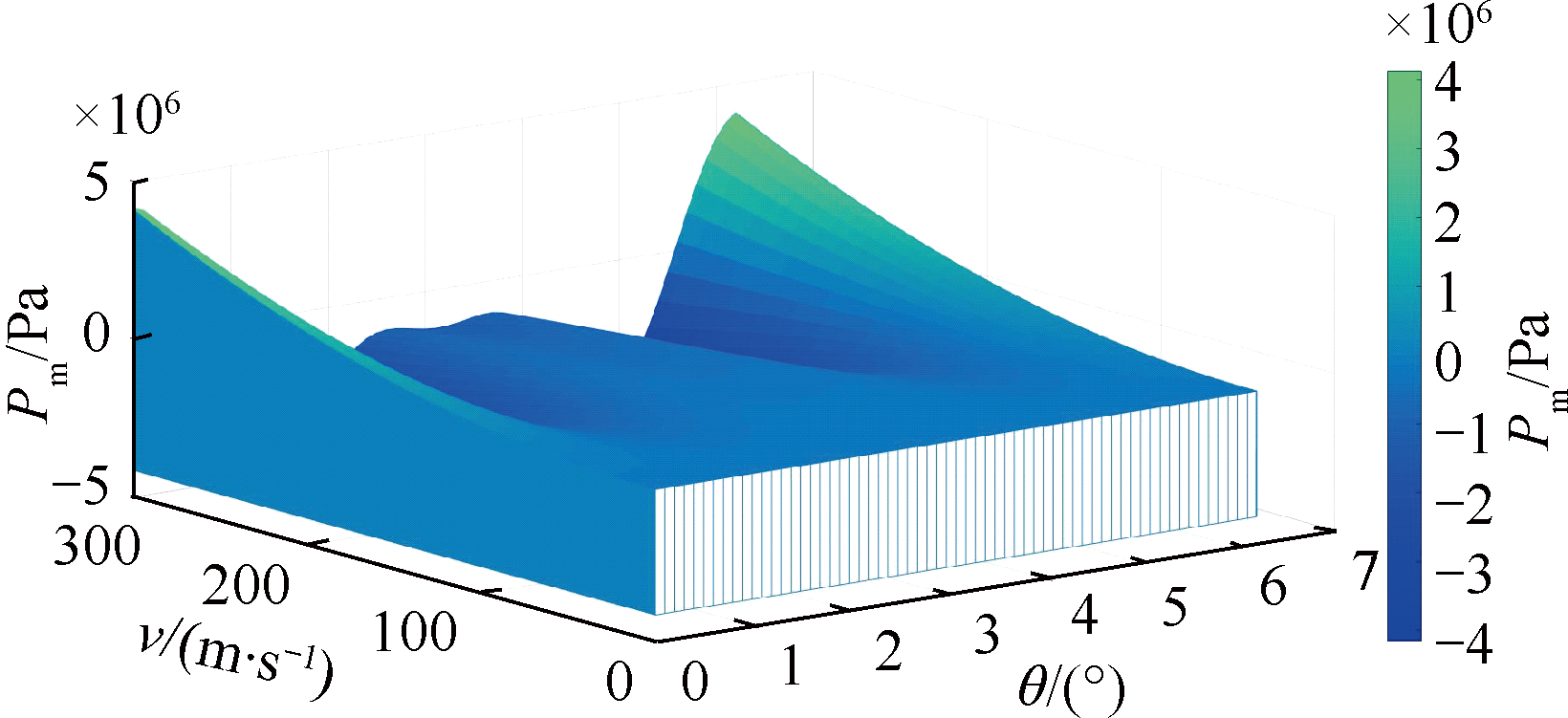

图2

图3

图4

表3

图5

参考文献 13

[1]	杨震, 梁峻铭, 郭梨, 等. 基于混合因果逻辑的化工园区雷击储罐风险评估[J]. 中国安全科学学报, 2024, 34(9): 174-182. doi: 10.16265/j.cnki.issn1003-3033.2024.09.0090
	YANG Zhen, LIANG Junming, GUO Li, et al. Risk assessment of chemical industrial park storage tanks struck by lightning based on hybrid causal logic methodology[J]. China Safety Science Journal, 2024, 34(9): 174-182. doi: 10.16265/j.cnki.issn1003-3033.2024.09.0090
[2]	QIN Rongshui, ZHU Jiping, KHAKZAD N. Multi-hazard failure assessment of atmospheric storage tanks during hurricanes[J]. Journal of Loss Prevention in the Process Industries, 2020,68: DOI: 10.1016/j.jlp.2020.104325.
[3]	OLIVAR O J R, MAYORGA S Z, GIRALDO F M, et al. The effects of extreme winds on atmospheric storage tanks[J]. Reliability Engineering & System Safety, 2020,195: DOI: 10.1016/j.ress.2019.106686.
[4]	KAMESHWAR S, PADGETT J E. Stiffening ring design for prevention of storm-surge buckling in aboveground storage tanks[J]. Journal of Structural Engineering, 2019, 145(3): DOI: 10.1061/(ASCE)ST.1943-541X.0002275.
[5]	MAYORGA S Z, SÁNCHEZ-SILVA M, OLIVAR O J R, et al. Development of parametric fragility curves for storage tanks:aNatech approach[J]. Reliability Engineering & System Safety, 2019, 189: 1-10.
[6]	刘明, 郑亚明, 多依丽, 等. 风载荷作用下立式低温储罐动力可靠性分析[J]. 中国安全科学学报, 2020, 30(1):48-52. doi: 10.16265/j.cnki.issn1003-3033.2020.01.008
	LIU Ming, ZHENG Yaming, DUO Yili, et al. Dynamic reliability analysis of vertical low-temperature storage tanks under wind load[J]. China Safety Science Journal, 2020, 30 (1): 48-52. doi: 10.16265/j.cnki.issn1003-3033.2020.01.008
[7]	XU Dayong, ZHANG Jie, ZHANG Lijing, et al. Minimum safety liquid levels for cylindrical storage tanks to prevent buckling under fluctuating wind loads[J]. Journal of Loss Prevention in the Process Industries, 2023,81: DOI: 10.1016/j.jlp.2022.104948.
[8]	HUANG Min, CHEN Guohua, YANG Peng, et al. Multi-hazard coupling vulnerability analysis for buckling failure of vertical storage tank: floods and hurricanes[J]. Process Safety and Environmental Protection, 2022,161: DOI: 0.1016/j.psep.2022.03.037.
[9]	OLIVAR O J R, MAYORGA S Z, GIRALDO F M, et al. The effects of extreme winds on industrial equipment[J]. Chemical Engineering Transactions, 2018, 67: 871-876.
[10]	杜艳洋. 洪水冲击下化工园区储罐失效概率及风险研究[D]. 北京: 首都经济贸易大学, 2018.
	DU Yanyang. Research on the failure probability and risk of storage tank in chemical park under flood impact[D]. Beijing: Capital University of Economics and Business, 2018.
[11]	TIMOSHENKO S P, GERE J M. Theory of elastic stability[M]. New York: Dover Publications, 2009:220-221.
[12]	张炜, 金涛. 风载作用下大型原油储罐稳定性分析[J]. 装备制造技术, 2014 (9): 53-56.
	ZHANG Wei, JIN Tao. Stability analysis of large crude oil storage tank under wind load[J]. Equipment Manufacturing Technology, 2014 (9): 53-56.
[13]	陈国初, 杨维, 张延迟, 等. 风电场风速概率分布参数计算新方法[J]. 电力系统及其自动化学报, 2011, 23(1):46-51.
	CHEN Guochu, YANG Wei, ZHANG Yanchi, et al. A new method for calculating the probability distribution parameters of wind speed in wind farms[J]. Journal of Power Systems and Automation, 2011, 23 (1): 46-51.

风载荷	飓风等级	中心最低风压/ kPa	最高持续风速/ (m·s^-1)	对建筑物和设施的潜在伤害
低	1	98.0	33~42	对建筑物没有实际伤害,但对未固定的设施会造成伤害
中	2	96.5~97.9	43~49	部分房顶材质、门和窗受损,植被可能受损
高	3	94.5~96.4	50~58	某些小屋和大楼会受损,某些甚至完全被摧毁
高	4	92.0~94.4	59~69	小建筑的屋顶被彻底地完全摧毁
超高	5	<92.0	≥70	大部分建筑物和独立房屋屋顶被完全摧毁

参数	值
D/m	30.48
H/m	12.91
t/mm	8.92
装量水平/%	25,50,75
E/Pa	2.06×10¹¹
γ	0.3

随机参数		分布类型
ρ_f/(kg·m^-3)		对数正态
K_z		指数
K_t	Weibull
K_d	伽马
v/(m·s^-1)	Weibull
