受载煤岩随钻参数测定试验装置及耦合关系分析

doi:10.16265/j.cnki.issn1003-3033.2025.08.1440

摘要/Abstract

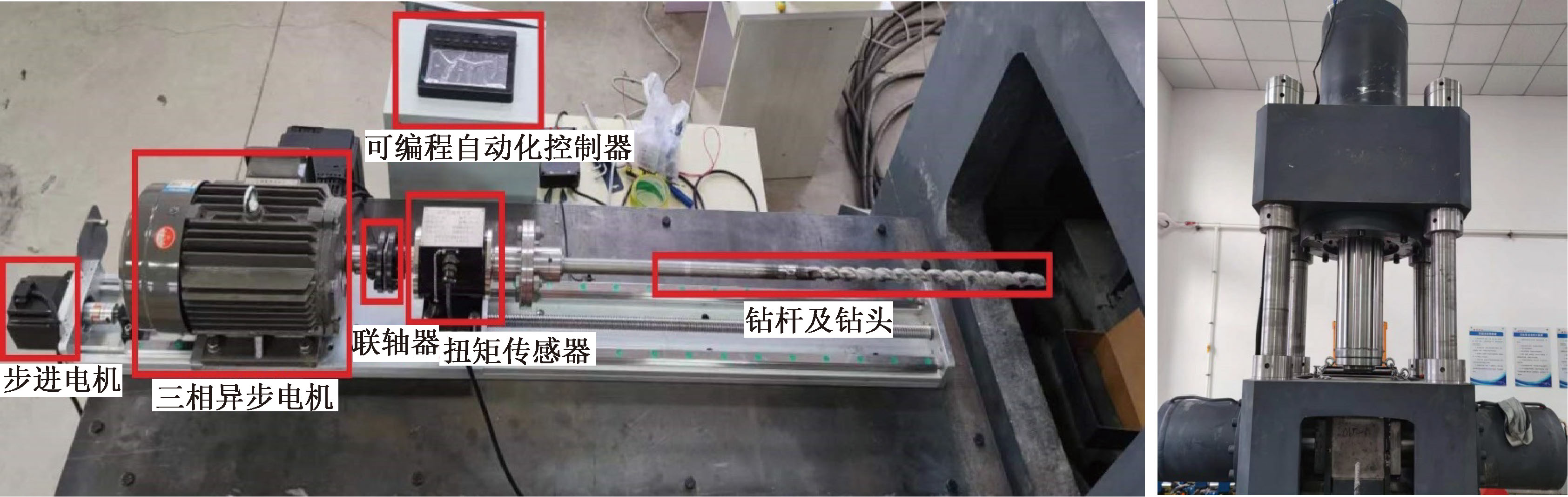

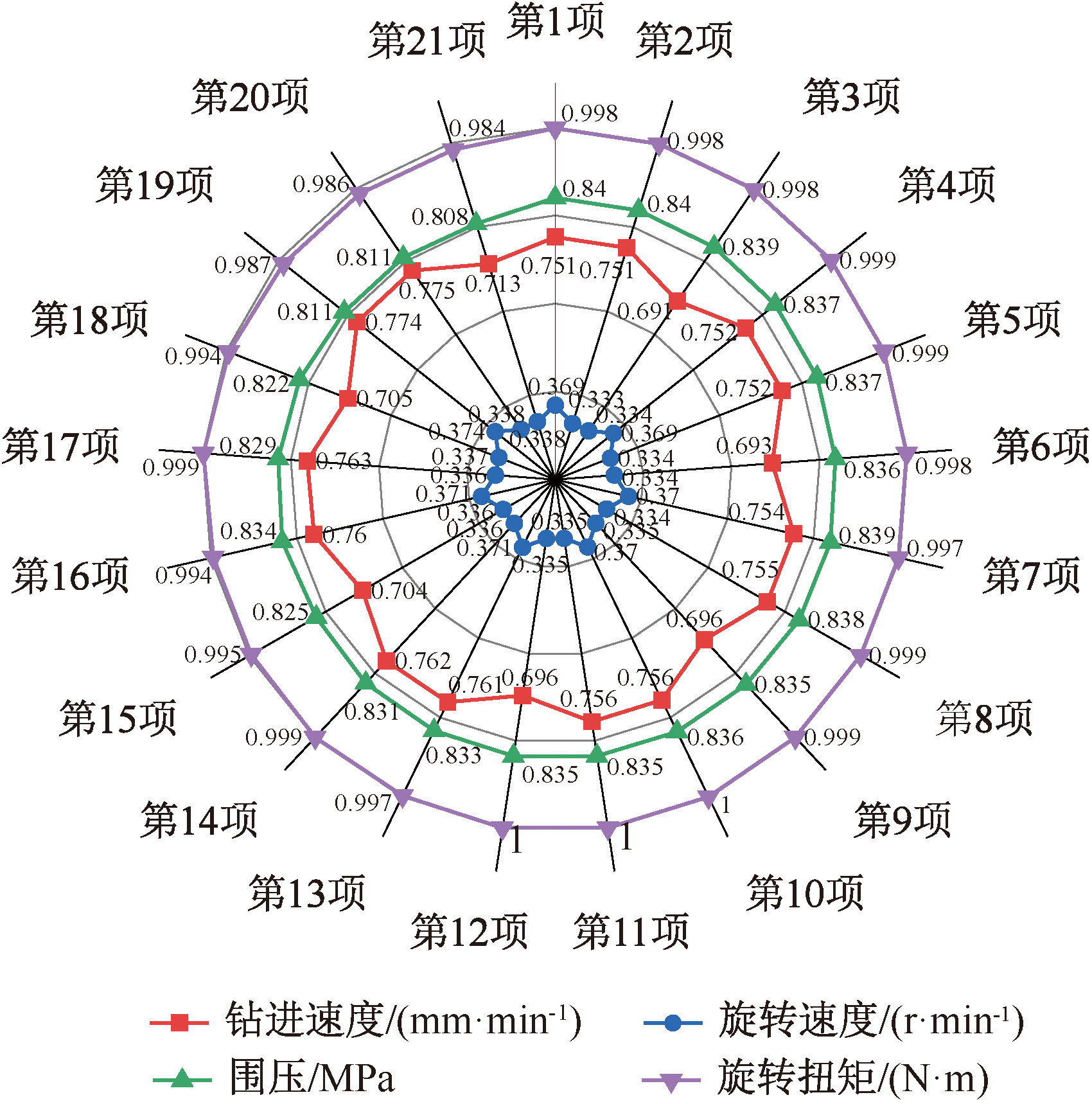

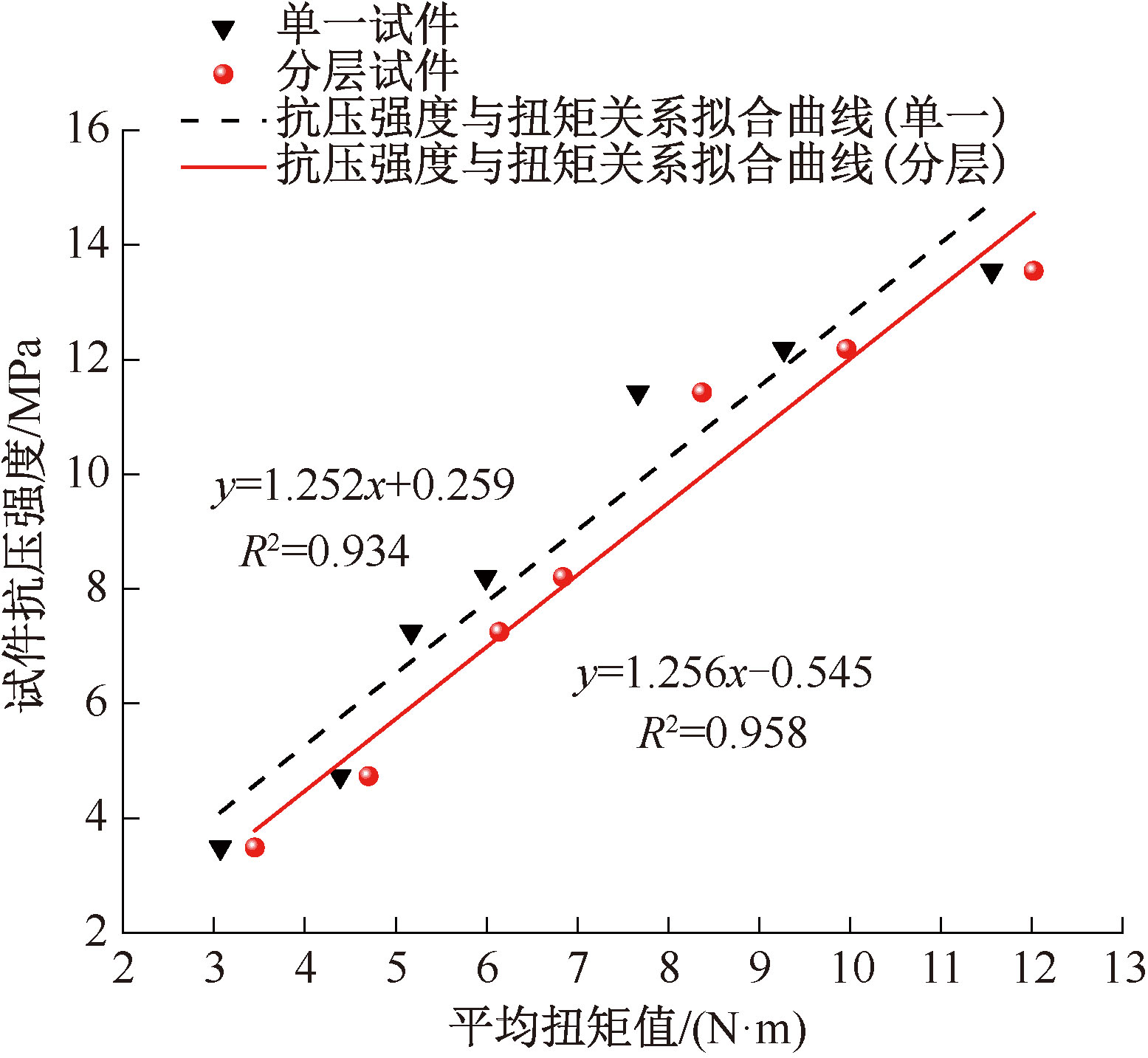

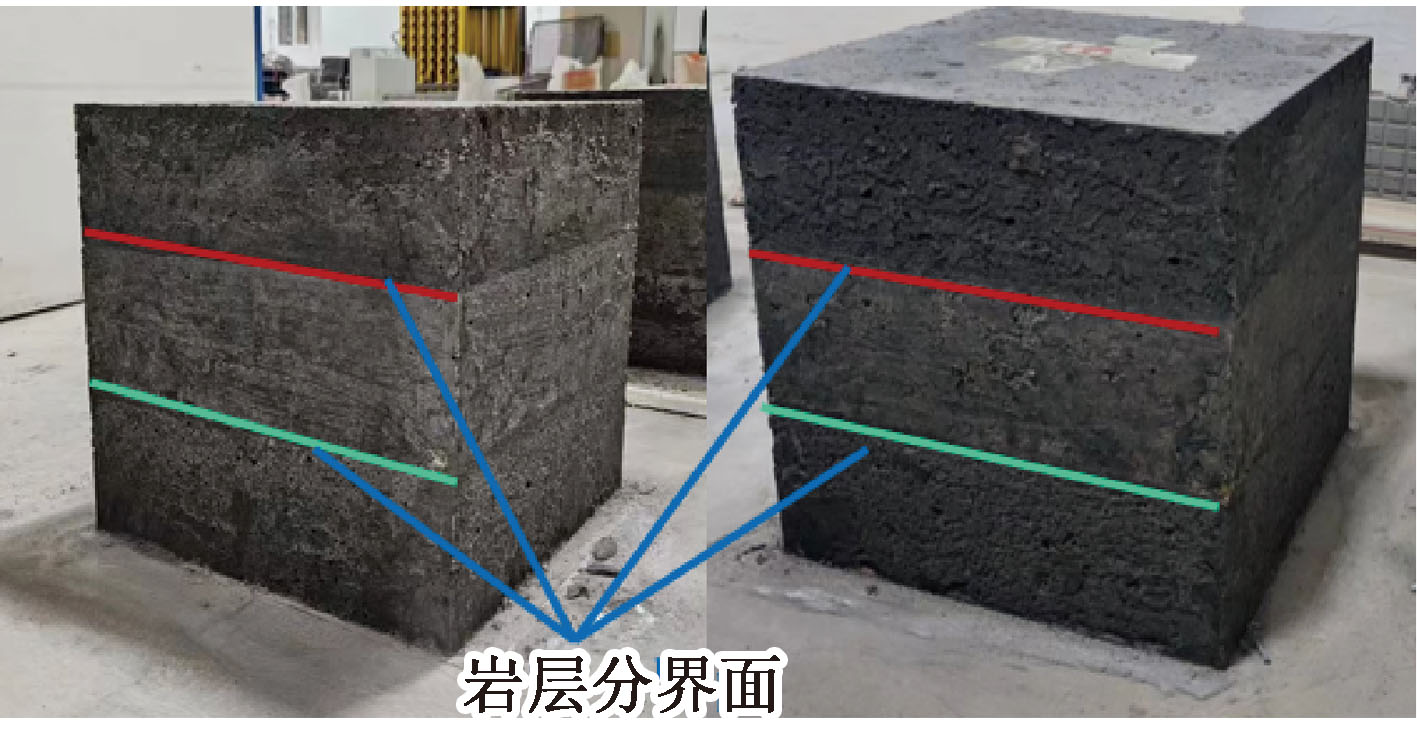

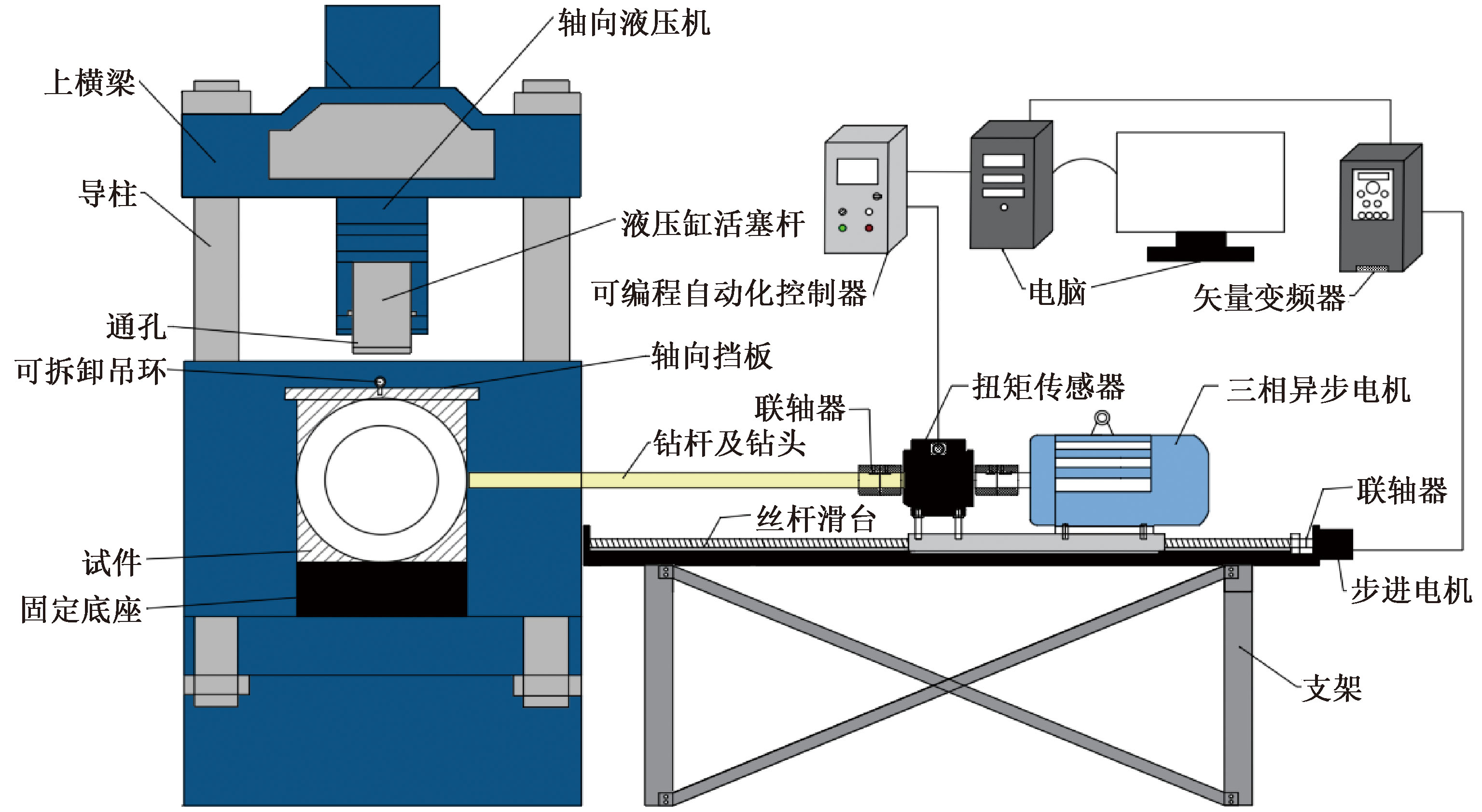

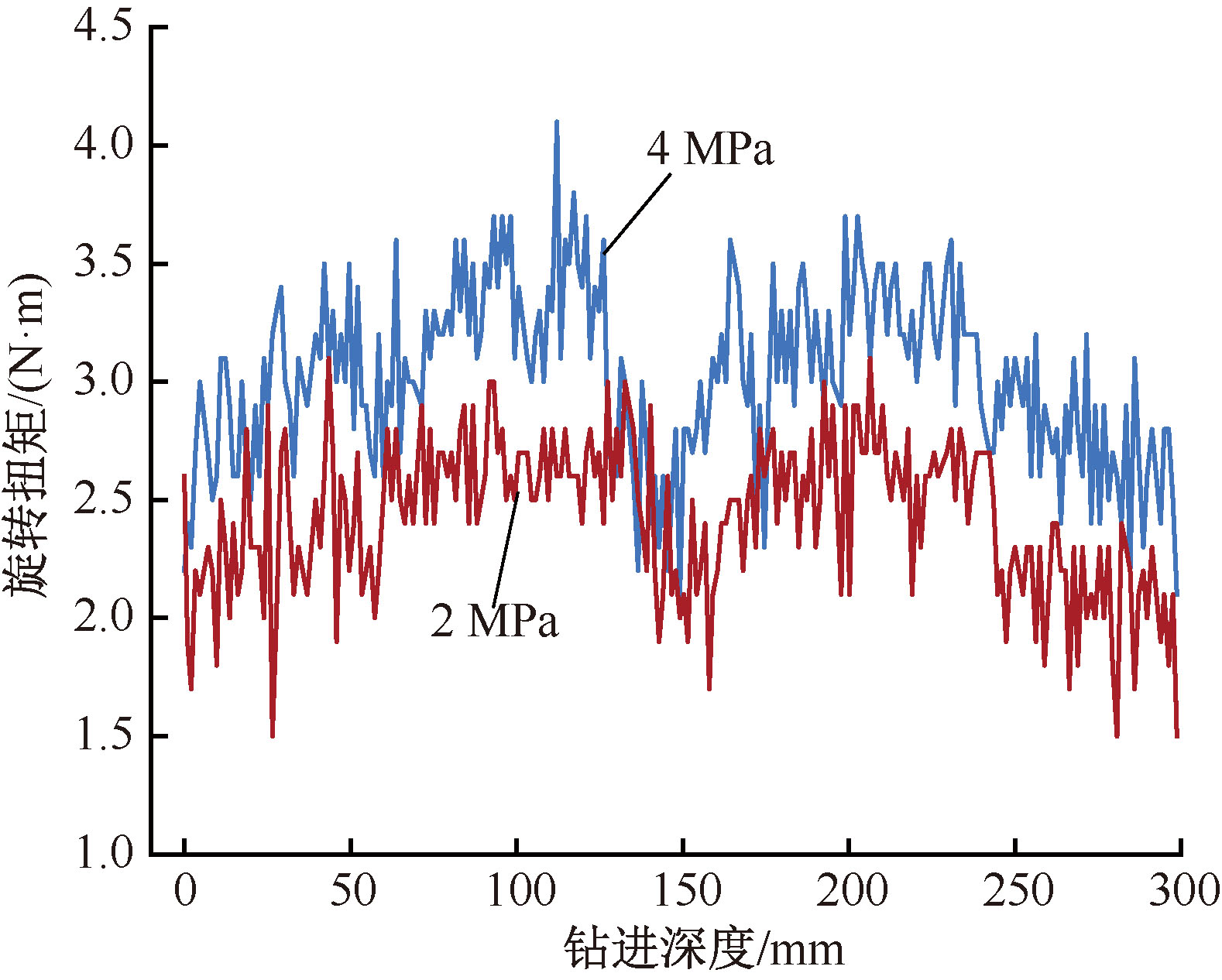

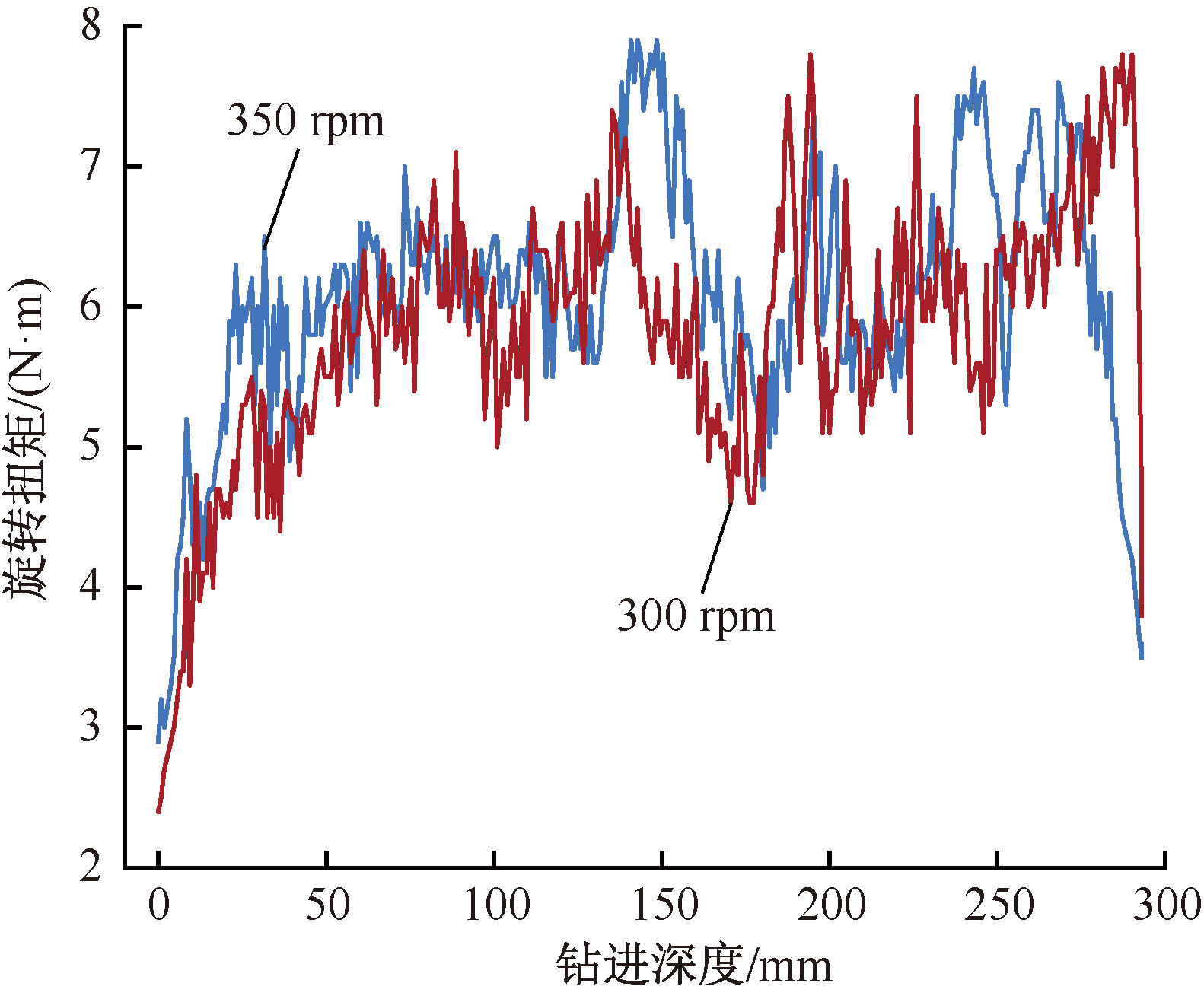

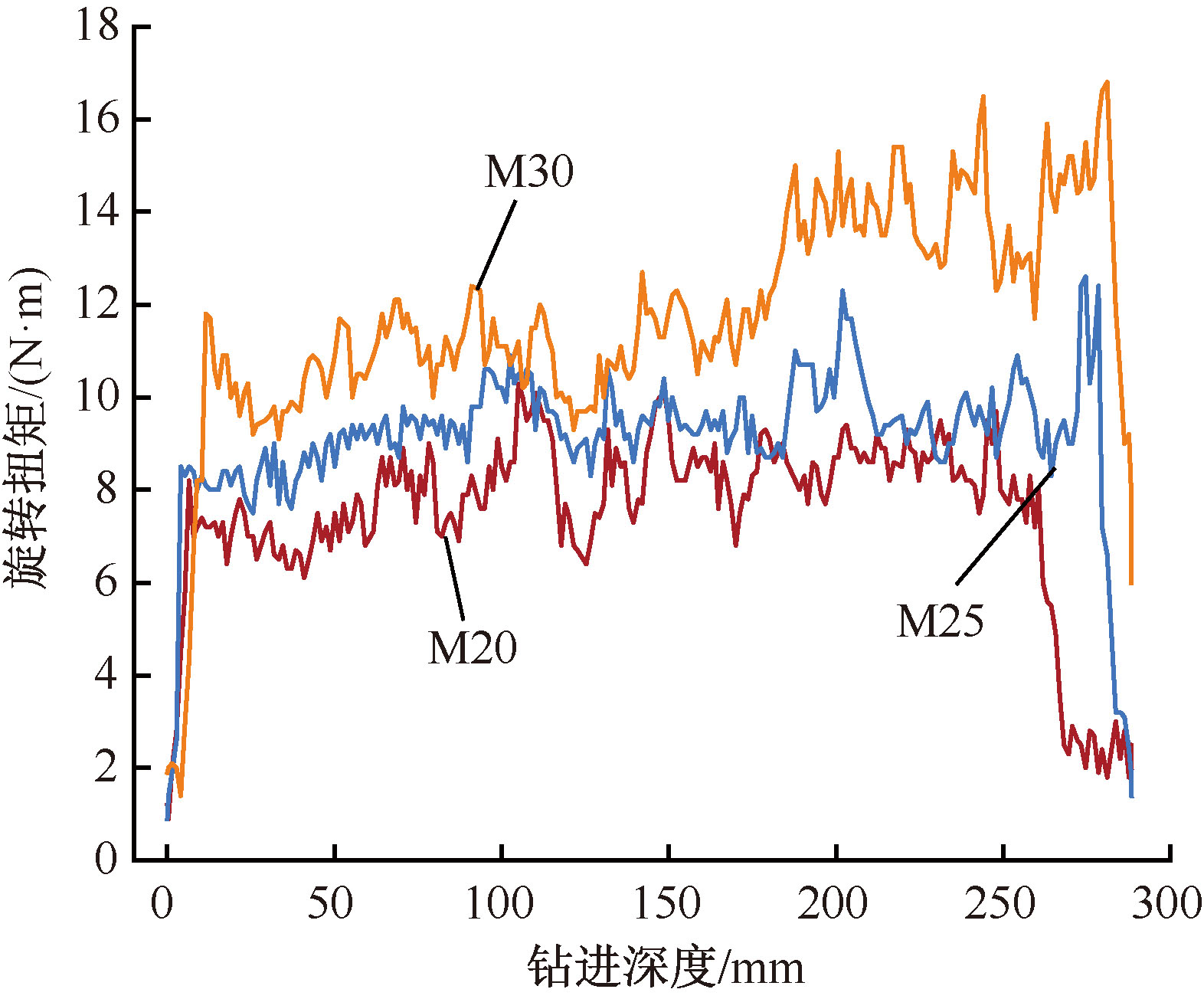

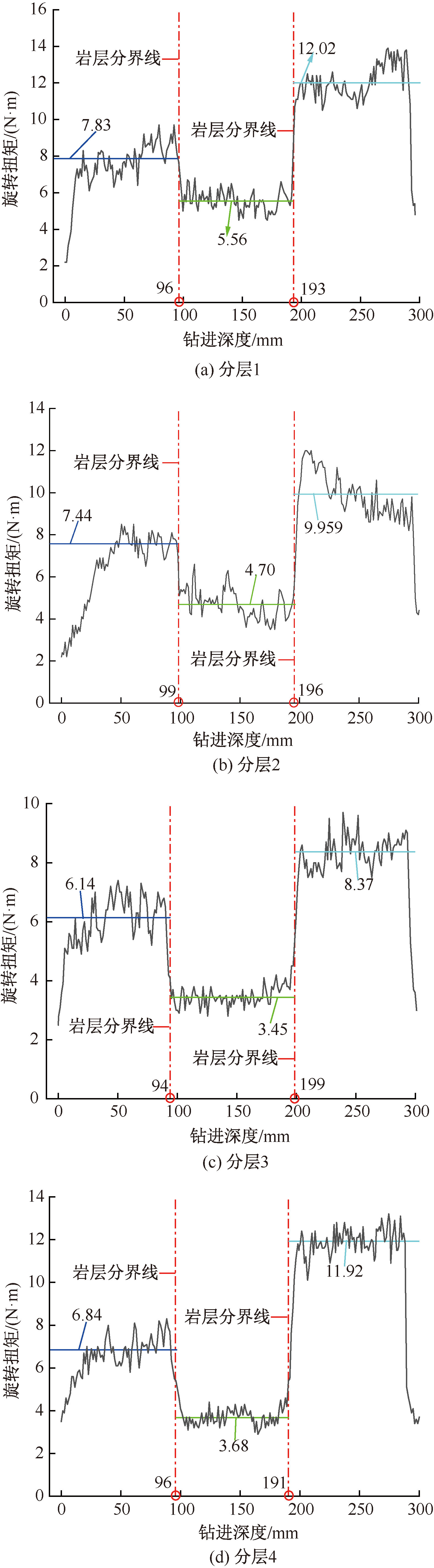

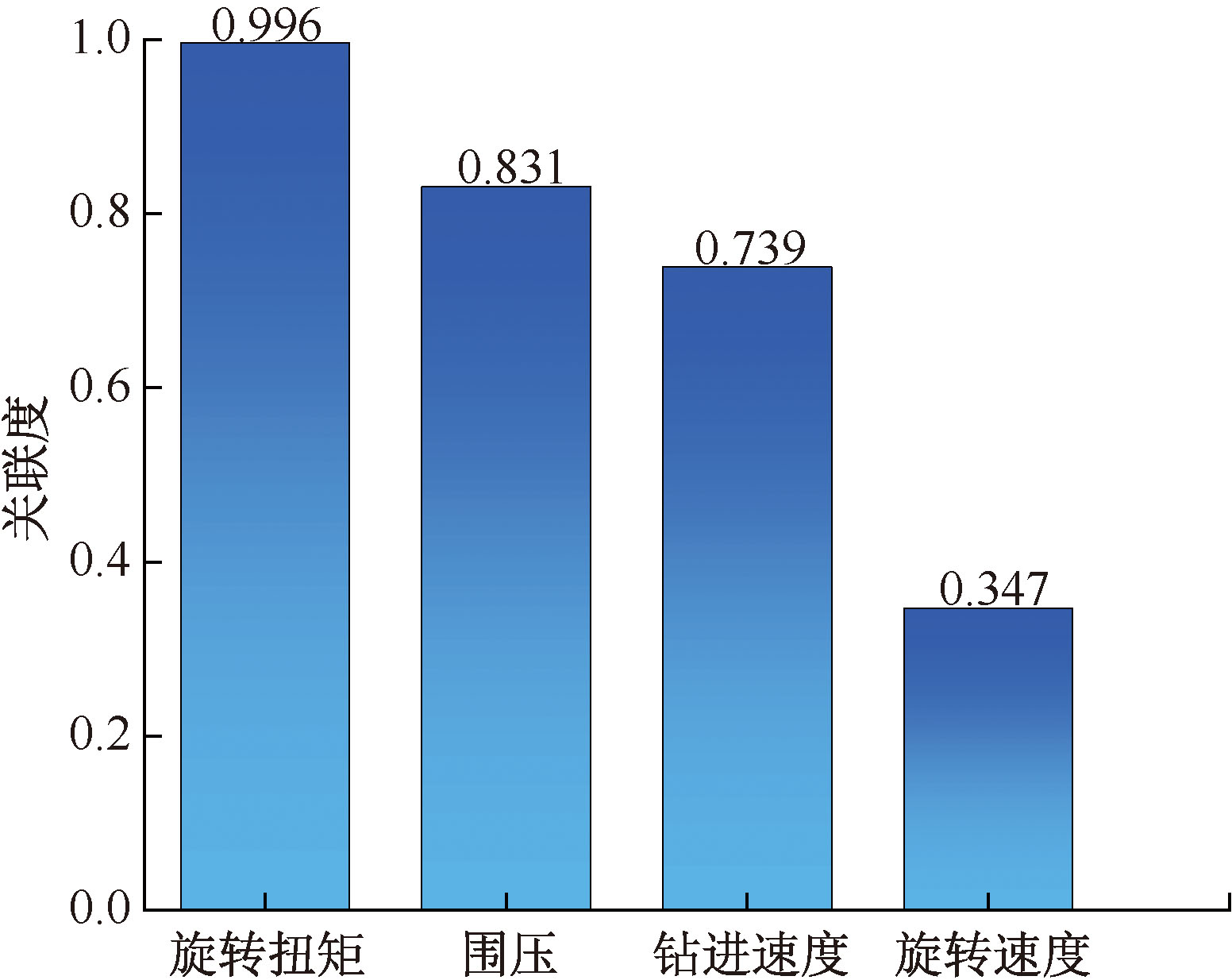

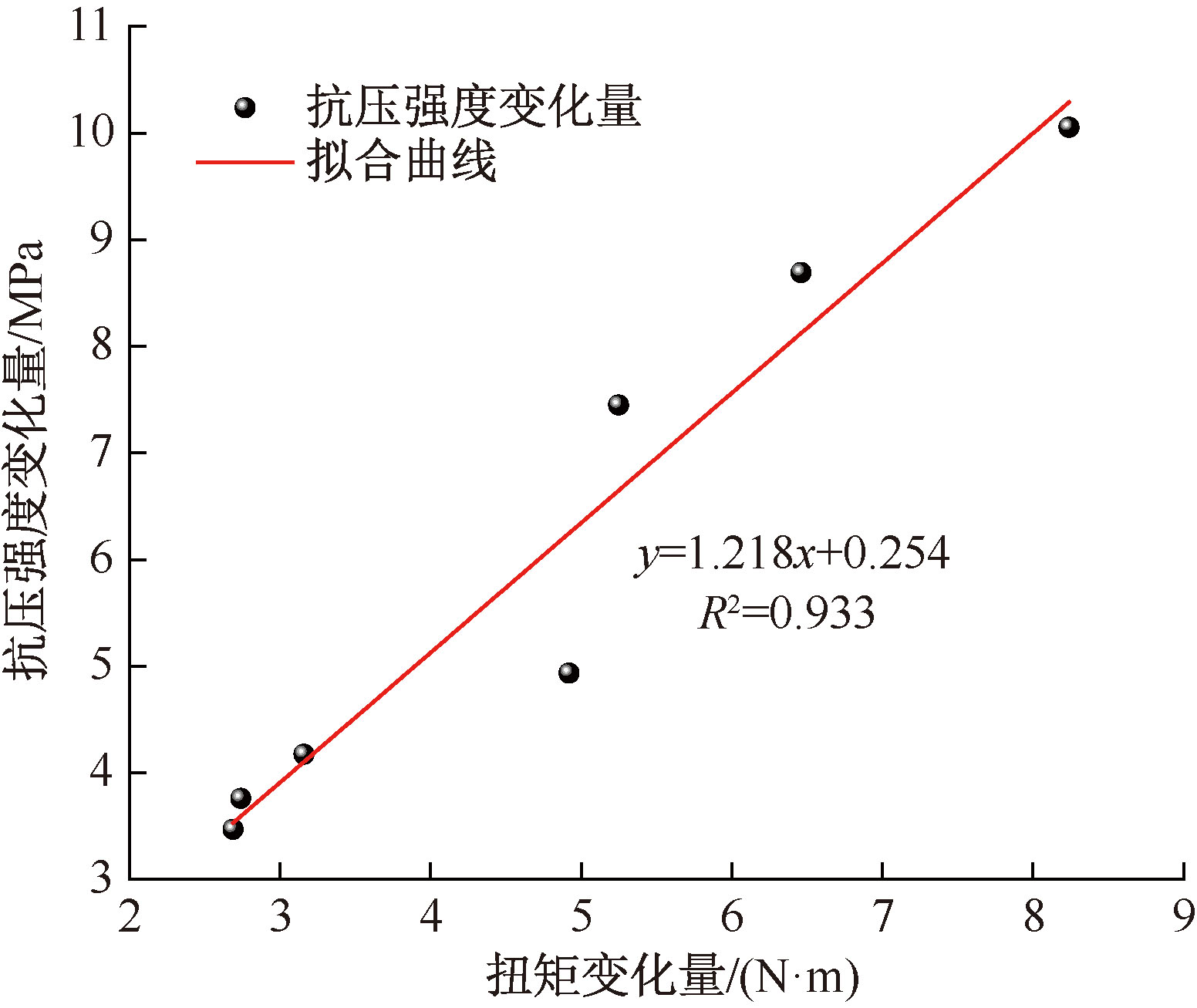

摘要： 为解决煤矿采掘过程中围岩力学参数非均质和获取困难问题,利用自主研制受载煤岩随钻参数测定试验装置,实时感知岩层强度及结构;分析围压、钻速、转速和旋转扭矩对模拟岩石试样强度的影响,并对采集的随钻参数灰色关联度耦合分析;在受载条件下,通过钻进不同组合类型的分层试件,还原真实环境下钻进煤岩层的效果,验证随钻参数对试件抗压强度识别的准确性。结果表明:试件强度与围压呈正相关,旋转扭矩与钻进速度呈正相关。旋转速度不同时,试件强度基本不变。旋转扭矩、围压、钻进速度、旋转速度与抗压强度关联度分别为0.996、0.831、0.739和0.347。试件强度与旋转扭矩成线性关系。通过分析旋转扭矩曲线的变化特征,可以识别岩层强度,进而定位分界位置。

关键词: 受载煤岩, 随钻参数, 试验装置, 灰色关联度, 分层试样, 分界面

Abstract:

Aiming at the problem of non-homogeneity and difficulty in obtaining the mechanical parameters of surrounding rock in the process of coal mining, the experimental device for determining the parameters of loaded coal rock with drilling was developed independently to realize the real-time perception of strength and structure of rock layer. The effects of circumferential pressure, drilling speed, rotational speed and rotational torque on strength of simulated rock specimens were investigated and analyzed by coupling the gray correlation of collected parameters with drilling. Under loaded conditions, stratified specimens of different combinations of types were drilled in order to restore the actual effect of drilling into coal and rock seams in real environments, and to verify the accuracy of identification of compressive strength of specimens by the following drilling parameters. It was shown that the strength of the specimens was positively correlated with the circumferential pressure, rotating torque and drilling speed. The strength of the specimen remained almost constant when the rotational speed varied. The correlations between rotational torque, circumferential pressure, drilling speed, and rotational speed and compressive strength were 0.996, 0.831, 0.739, and 0.347, respectively. The strength of the specimen was linearly related to the rotational torque. By analyzing the features of change in the rotating torque curve, the strength of the rock formation can be identified and thus the location of the stratum boundary can be located.

Key words: composite coal-rock, drilling parameters, test device, gray correlation degree, layered specimen, interface

中图分类号:

范超军, 孙其旺, 罗明坤, 张佳绩, 赖鑫峰. 受载煤岩随钻参数测定试验装置及耦合关系分析[J]. 中国安全科学学报, 2025, 35(8): 118-128.

FAN Chaojun, SUN Qiwang, LUO Mingkun, ZHANG Jiaji, LAI Xinfeng. Development and coupling relationship analysis of downhole real-time identification experimental device for coal-rock drilling parameters under load[J]. China Safety Science Journal, 2025, 35(8): 118-128.

图/表 22

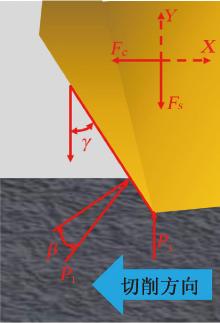

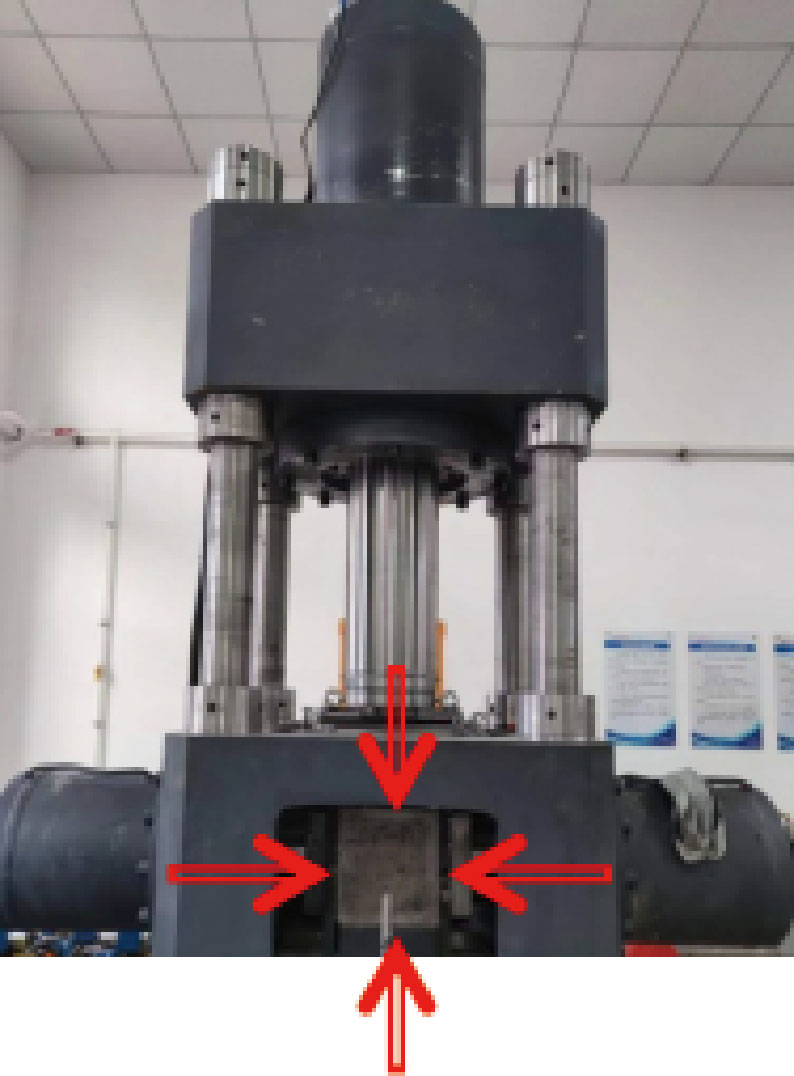

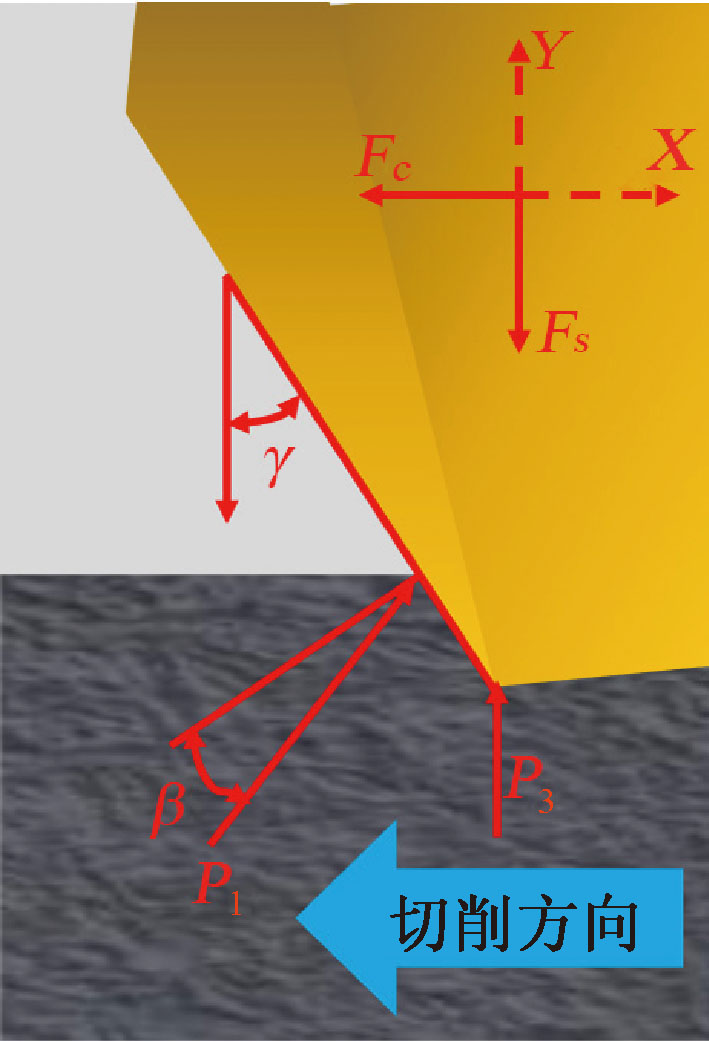

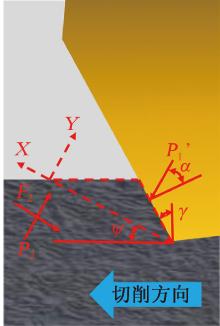

图1

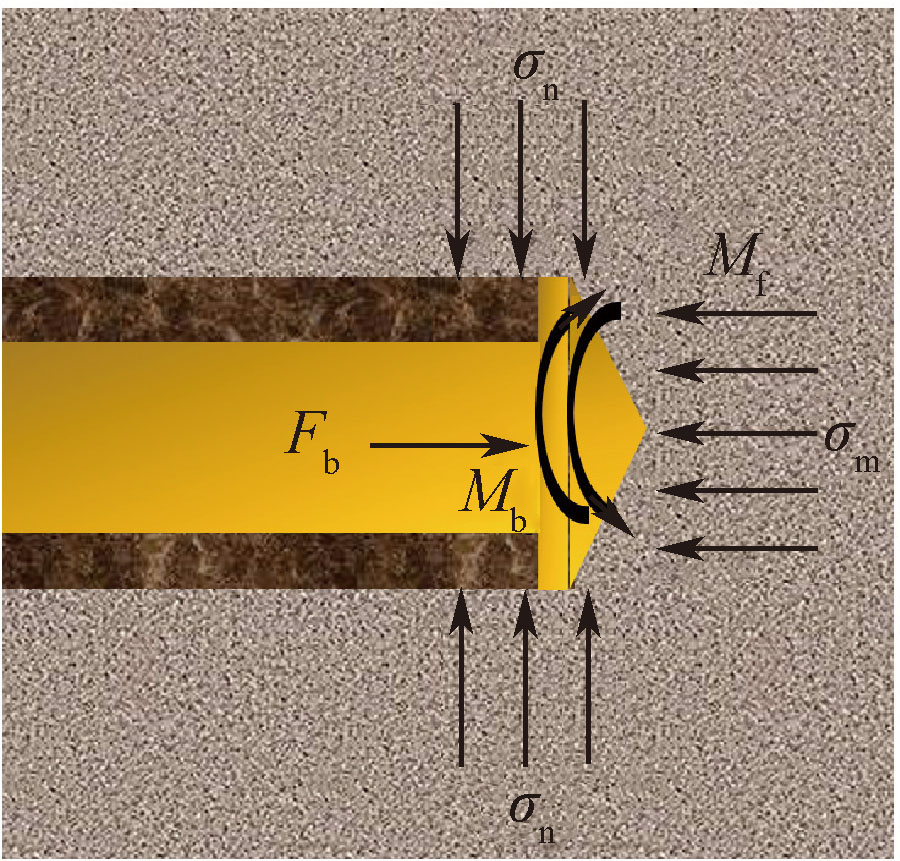

图2

图3

表1

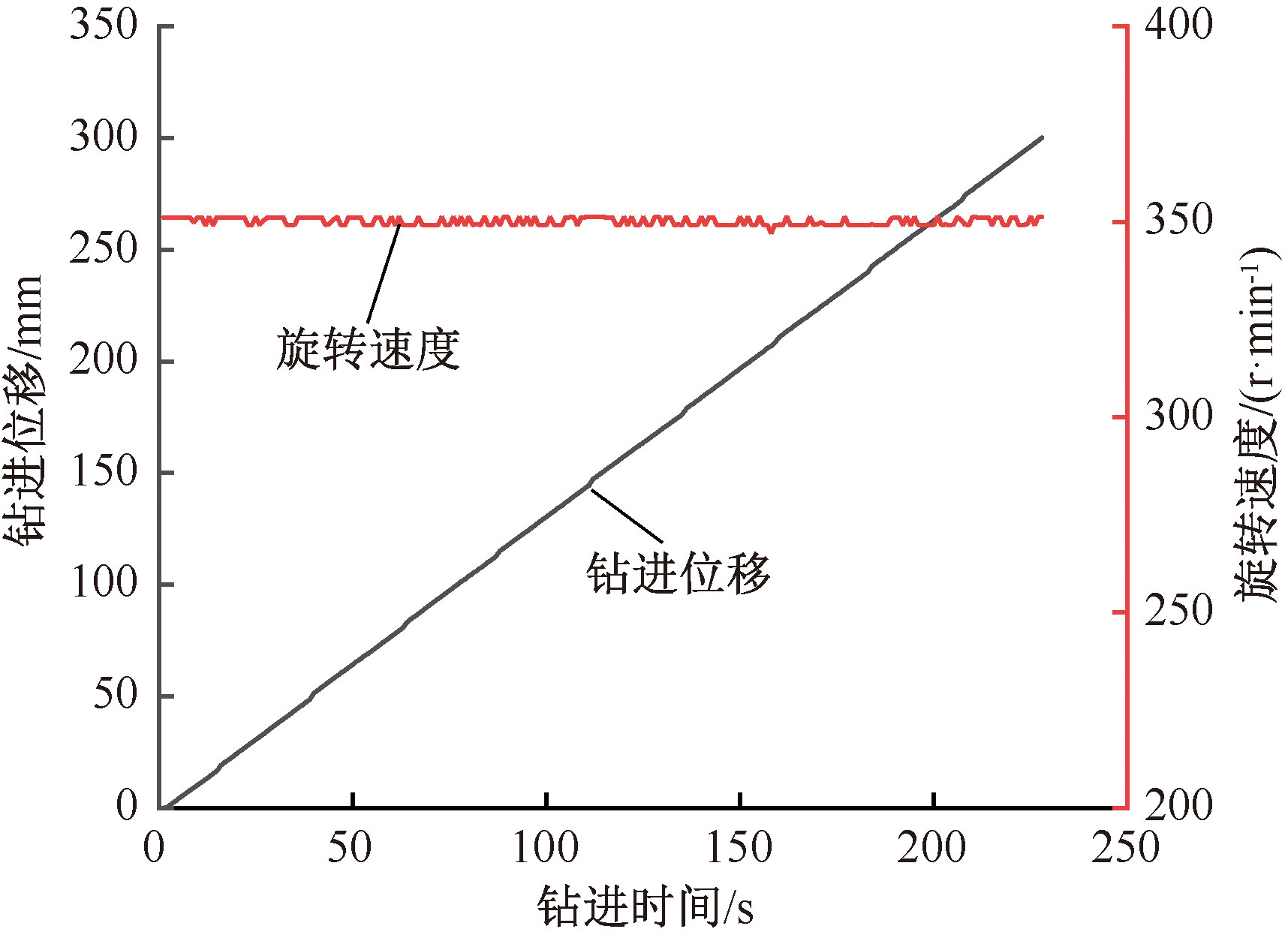

图4

表2

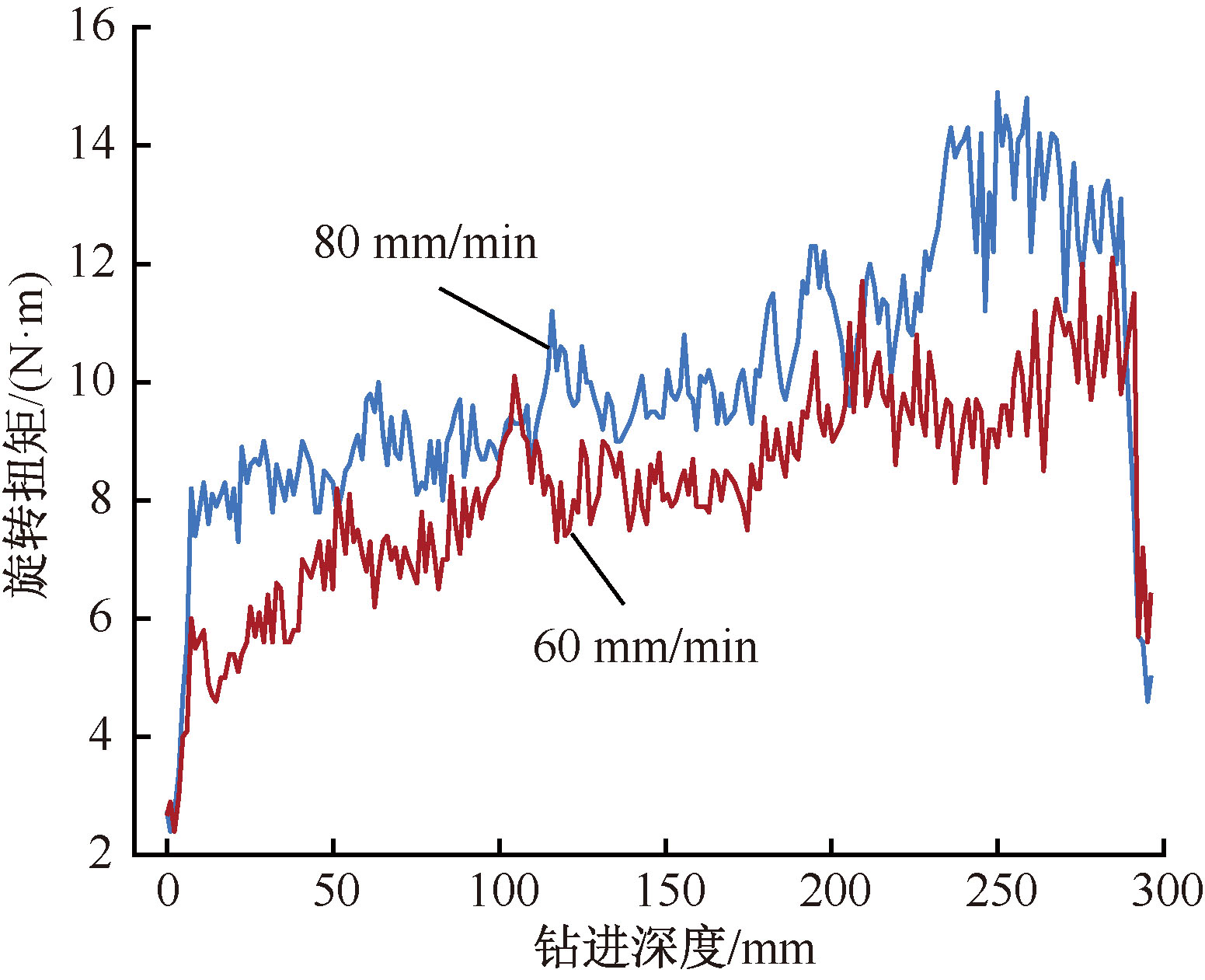

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

表3

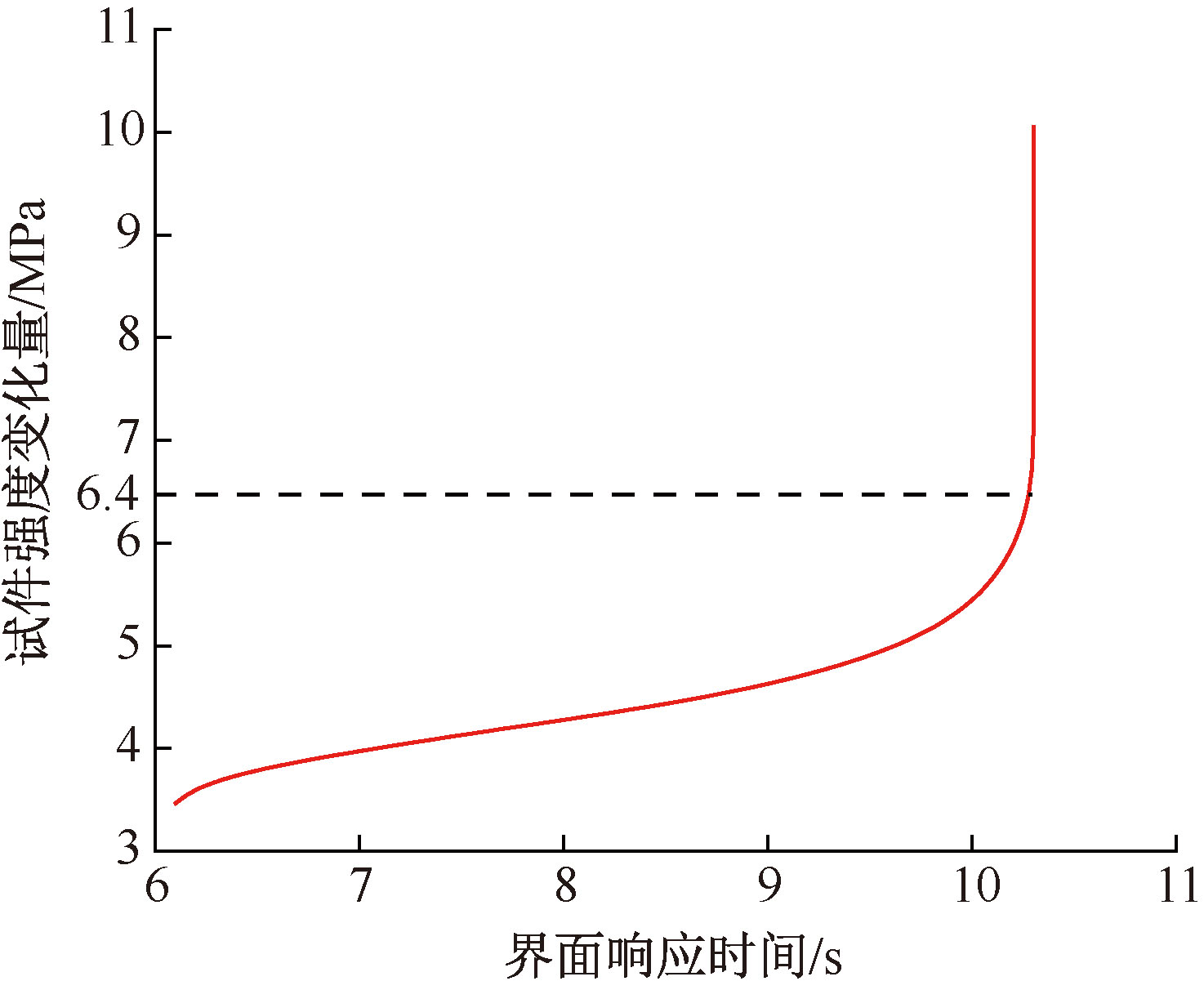

图15

图16

图17

图18

图19

参考文献 15

[1]	王海军, 齐庆杰, 梁运涛, 等. 我国煤矿重特大事故统计分析及对策建议[J]. 中国安全科学学报, 2024, 34(9):9-18. doi: 10.16265/j.cnki.issn1003-3033.2024.09.0208
	WANG Haijun, QI Qingjie, LIANG Yuntao, et al. Statistical analysis and countermeasures of major accidents in coal mines in China[J]. China Safety Science Journal, 2024, 34(9):9-18. doi: 10.16265/j.cnki.issn1003-3033.2024.09.0208
[2]	付恩三, 白润才, 刘光伟, 等. “十三五”期间我国煤矿事故特征及演变趋势分析[J]. 中国安全科学学报, 2022, 32(12):88-94. doi: 10.16265/j.cnki.issn1003-3033.2022.12.0076
	FU Ensan, BAI Runcai, LIU Guangwei, et al. Analysis on characteristics and evolution trend of coal mine accidents in our country during "13^th five-year" plan period[J]. China Safety Science Journal, 2022, 32(12):88-94. doi: 10.16265/j.cnki.issn1003-3033.2022.12.0076
[3]	贾真真, 叶青, 杨卓华. 瓦斯爆炸冲击-地应力动静载荷下巷道壁面损伤特性[J]. 中国安全科学学报, 2024, 34(10):116-123. doi: 10.16265/j.cnki.issn1003-3033.2024.10.0037
	JIA Zhenzhen, YE Qing, YANG Zuohua. Damage characteristics of roadway wall under dynamic-static loads by gas explosion impact and geostress[J]. China Safety Science Journal, 2024, 34(10):116-123. doi: 10.16265/j.cnki.issn1003-3033.2024.10.0037
[4]	姚吉康, 王志亮. 华山花岗岩力学特性及能量演化规律研究[J]. 水利水运工程学报, 2018(3):78-85.
	YAO Jikang, WANG Zhiliang. Study on mechanical property and energy evolution law of huashan granite[J]. Hydro-Science and Engineering, 2018(3):78-85.
[5]	李庆辉, 李少轩. 超深层砂岩储层岩石力学特性实验研究[J]. 岩石力学与工程学报, 2021, 40(5):948-957.
	LI Qinghui, LI Shaoxuan. Experimental study on mechanical properties of ultra-deep sandstone[J]. Chinese Journal of Rock Mechanics and Engineering, 2021, 40(5):948-957.
[6]	刘双飞. 真三轴加卸载下砂岩力学特性的速率效应[J]. 采矿技术, 2022, 22(1):109-112.
	LIU Shuangfei. Rate effect of mechanical properties of sandstone under true triaxial loading and unloading[J]. Mining Technology, 2022, 22(1):109-112.
[7]	董正东, 田浩源. 大理岩常规三轴压缩试验研究[J]. 土工基础, 2021, 35(5):635-639.
	DONG Zhengdong, TIAN Haoyuan. Experimental study on the conventional triaxial compression of marble rock samples[J]. Soil Engineering and Foundation, 2021, 35(5):635-639.
[8]	李占涛, 林小国, 宋春霞. 岩石钻孔振动与声波频谱特性实验研究[J]. 地下空间与工程学报, 2019, 15(4):1008-1016.
	LI Zhantao, LIN Xiaoguo, SONG Chunxia. Experimental study on vibration and acoustic spectrum characteristics of borehole in rock[J]. Chinese Journal of Underground Space and Engineering, 2019, 15(4):1008-1016.
[9]	王少锋, 吴毓萌, 蔡鑫, 等. 基于随钻参数的岩石强度预测与可钻性识别[J]. Journal of Central South University, 2023, 30(12):4036-4051.
	WANG Shaofeng, WU Yumeng, CAI Xin, et al. Strength prediction and drillability identification for rock based on measurement while drilling parameters[J]. Journal of Central South University, 2023, 30(12):4036-405.
[10]	李忠华, 朱丽媛, 李国臻, 等. 钻杆扭矩法测定煤岩强度的理论与试验研究[J]. 中国矿业大学学报, 2015, 44(4):612-616.
	LI Zhonghua, ZHU Liyuan, LI Guozhen, et al. Experimental and theoretical study of determination ofcoal rock strength using the drill rod torque method[J]. Journal of China University of Mining & Technology, 2015, 44(4):612-616.
[11]	TEALE R. The concept of specific energy in rock drilling[C]. International journal of rock mechanics and mining sciences & geomechanics abstracts[J]. Pergamon, 1965, 2(1):57-73.
[12]	尤建平, 陈果, 马统师, 等. 煤矿井下定向钻孔随钻测量数据综合采集系统研究[J]. 煤矿机械, 2024, 45(1):182-184.
	YIU Jianping, CHEN Guo, MA Tongshi, et al. Research on comprehensive acquisition system of data of directional drilling measurement while drilling in underground coal mine[J]. Coal Mine Machinery, 2024, 45(1):182-184.
[13]	王喆, 仇安兵, 龚敏, 等. 基于实测钻凿参数的类岩石材料强度识别研究[J]. 矿业安全与环保, 2023, 50(4):55-62,67.
	WANG Zhe, QIU Anbing, GONG Min, et al. Research on strength identification of rock-like materials based on measured drilling parameters[J]. Mining Safety and Environmental Protection, 2023, 50(4):55-62,67.
[14]	岳中文, 戴诗清, 李杨, 等. 煤巷液压锚杆钻机随钻参数采集系统及其应用[J]. 矿业科学学报, 2023, 8(1):66-73.
	YUE Zhongwen, DAI Shiqing, LI Yang, et al. The dilling parameler acquisilion system of hydraulic anchor driling rig in coal mine roadways and its application[J]. Joumal of Mining Seienee and Technology, 2023, 8(1):66-73.
[15]	廉瑞, 刘灿灿, 杨璐. 煤矿巷道顶板岩石强度随钻探测技术研究[J]. 煤炭技术, 2018, 37(8):69-71.
	LIAN Rui, LIU Cancan, YANG Lu. Research on measurement while drilling technology of rock strength of coal mine roadway roof[J]. Coal Technology, 2018, 37(8):69-71.

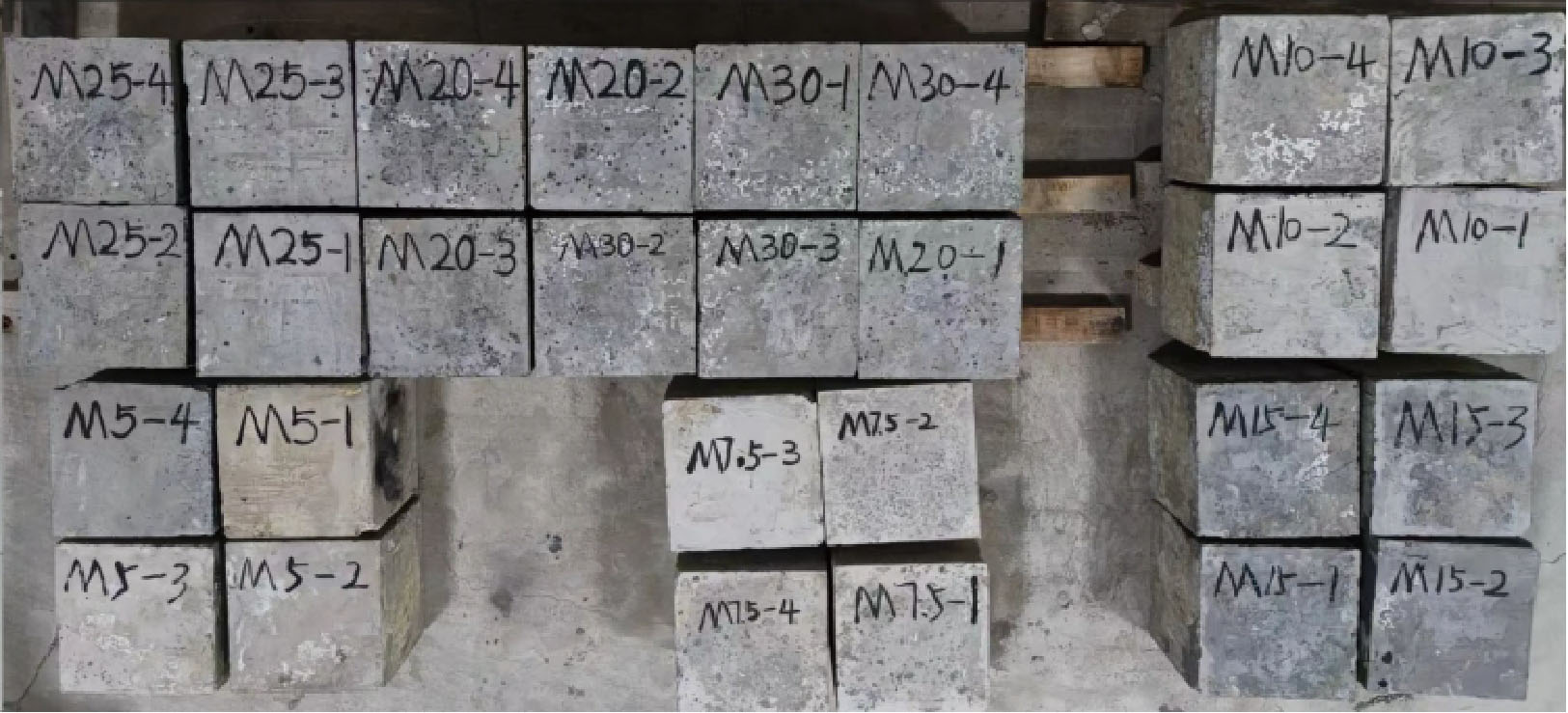

试样类型	河砂/ (kg·m^-3)	水/ (kg·m^-3)	水泥/ (kg·m^-3)	抗压强度/ MPa
M5	1 450	310	210	3.49
M7.5	1 450	310	230	4.73
M10	1 450	310	275	7.25
M15	1 450	310	320	8.20
M20	1 450	310	360	11.42
M25	1 450	310	400	12.18
M30	1 450	310	440	13.54

编号	试件类型	钻进速度/ (mm·min^-1)	旋转速度/ (r·min^-1)	围压/ MPa
1	M5	60	300	2
2		60	350	2
3		80	350	2
4		80	350	4
5	M7.5	60	300	2
6		60	350	2
7		80	350	2
8		80	350	4
9	M10	60	300	3
10		60	350	3
11		80	350	3
12		80	350	5
13	M15	60	300	3
14		60	350	3
15		80	350	3
16		80	350	5
17	M20	60	300	4
18		60	350	4
19		80	350	4
20		80	350	7
21	M25	60	300	4
22		60	350	4
23		80	350	4
24		80	350	7
25	M30	60	300	4
26		60	350	4
27		80	350	4
28		80	350	7

编号	试件类型	钻进速度/ (mm·min^-1)	旋转速度/ (r·min^-1)	围压/ MPa
1	M20+M10+M30	80	350	4
2	M15+M7.5+M25	80	350	4
3	M10+M5+M20	80	350	4
4	M15+M5+M30	80	350	4
