现场制备防灭火稠化浆体悬浮性能研究

doi:10.16265/j.cnki.issn1003-3033.2026.09.1421

中国安全科学学报 ›› 2026, Vol. 36 ›› Issue (9): 147-156.doi: 10.16265/j.cnki.issn1003-3033.2026.09.1421

现场制备防灭火稠化浆体悬浮性能研究

邵淑珍¹(), 施式亮¹^,²^,³^,^**(), 王磊¹, 鲁义¹^,²^,³, 邢舜博¹, 田帅¹

¹ 湖南科技大学资源环境与安全工程学院, 湖南湘潭 411201
² 地下空间防火防爆材料与装备湖南省工程研究中心, 湖南湘潭 411201
³ 火灾爆炸防控与应急技术湖南省普通高等学校重点实验室, 湖南湘潭 411201

收稿日期:2026-04-20 修回日期:2026-06-30 出版日期:2026-10-20
通信作者:
^** 施式亮(1962—),男,浙江天台人,博士,二级教授,博士生导师,主要从事安全科学与工程、矿山安全领域的研究。E-mail: sslhnust@yeah.net。
作者简介:
邵淑珍 (1986—),女,江西新干人,博士研究生,主要研究方向为矿井煤自燃防治。E-mail:417098169@qq.com。
鲁义教授
基金资助:
国家自然科学基金资助(52274196); 国家自然科学基金资助(52374200); 湖南省自然科学基金青年学生基础研究项目资助(2025JJ60923)

Study on suspension performance of on-site preparation of fire prevention and extinguishing thickened slurry

Shao Shuzhen¹(), Shi Shiliang¹^,²^,³^,^**(), Wang Lei¹, Lu Yi¹^,²^,³, Xing Shunbo¹, Tian Shuai¹

¹ School of Resource & Environment and Safety Engineering, Hunan University of Science and Technology, Xiangtan Hunan 411201, China
² Hunan Engineering Research Center for Fire and Explosion Prevention Materials and Equipment in Underground Spaces, Xiangtan Hunan 411201, China
³ Key Laboratory of Fire and Explosion Prevention and Emergency Technology in Hunan Province, Xiangtan Hunan 411201, China

Received:2026-04-20 Revised:2026-06-30 Published:2026-10-20

摘要/Abstract

摘要：

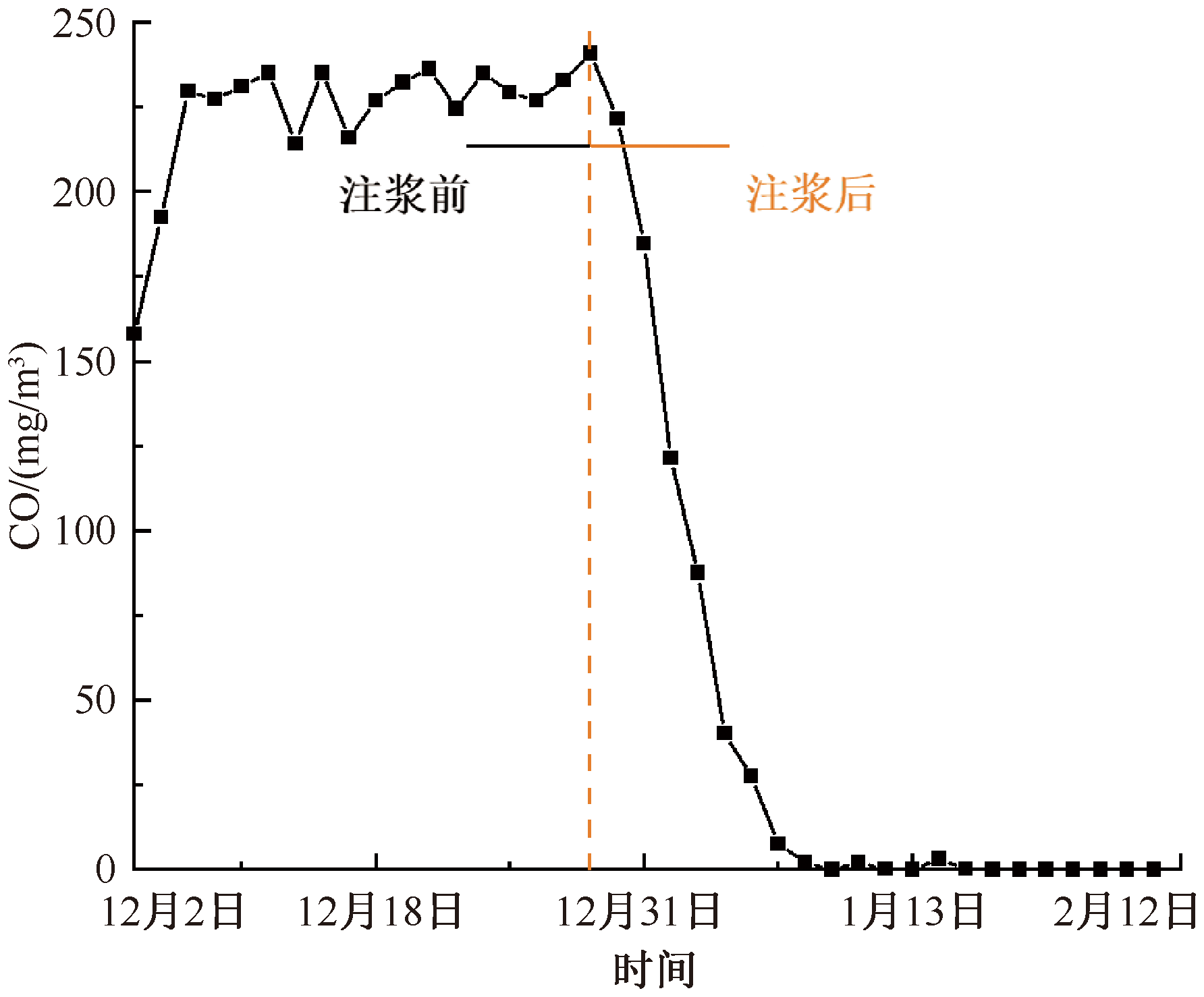

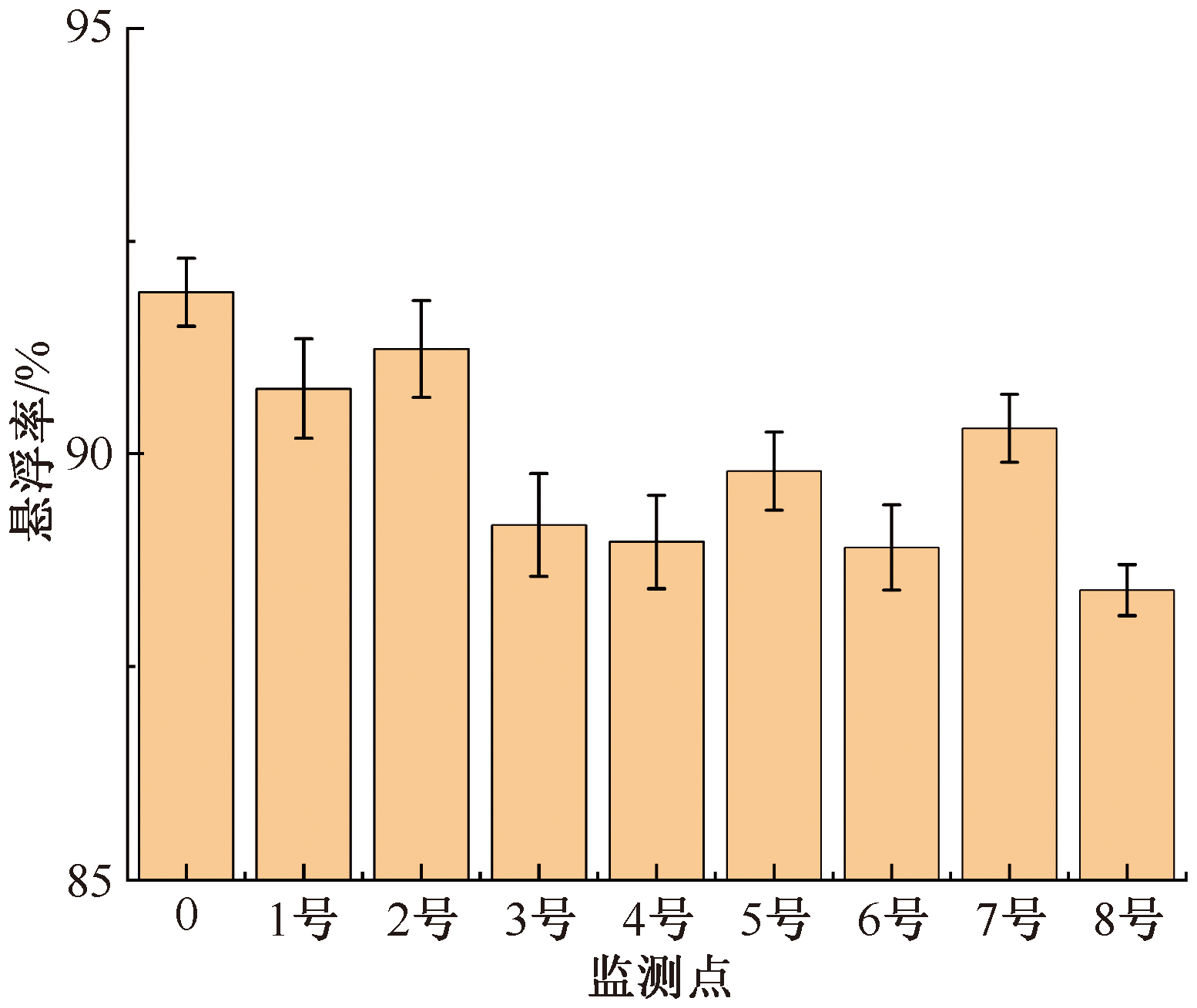

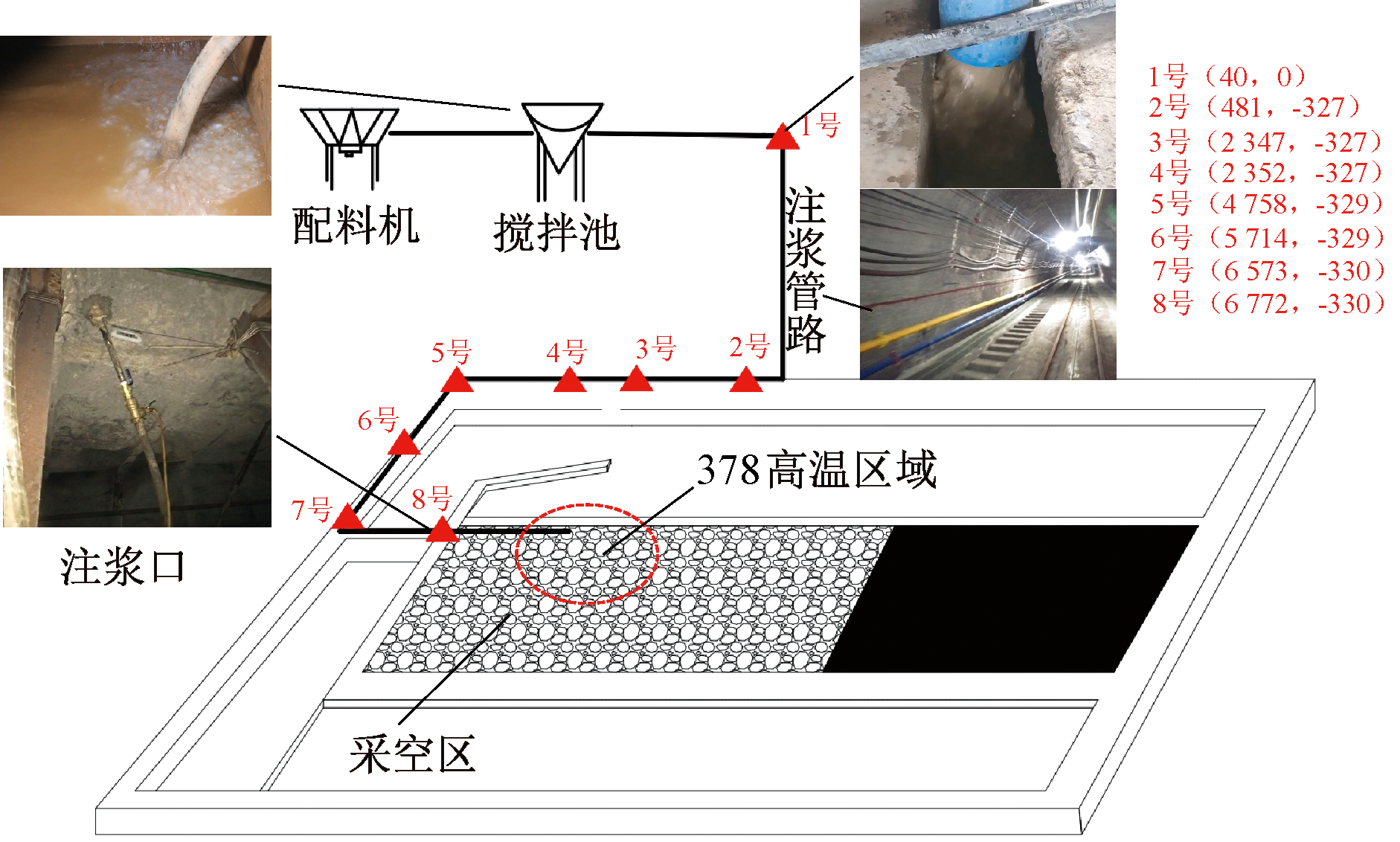

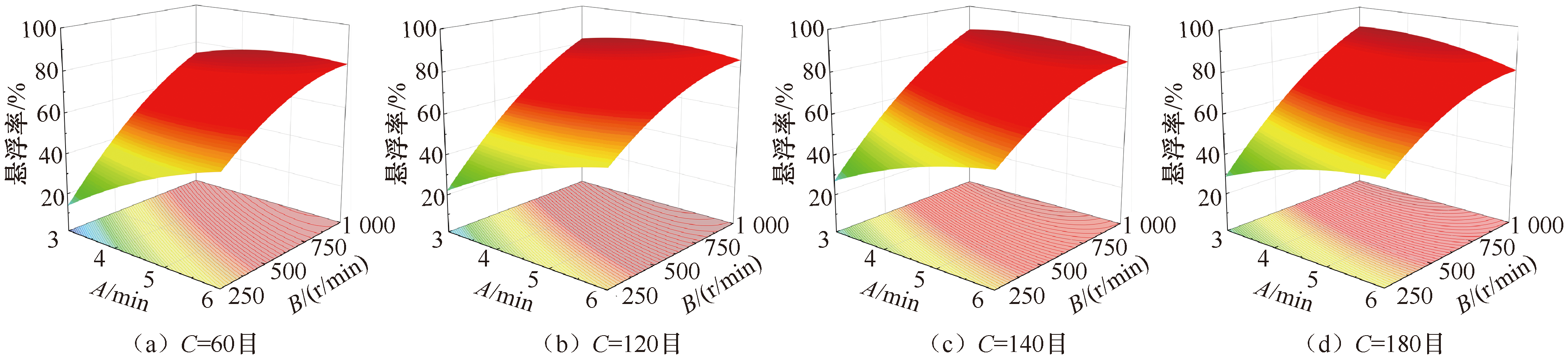

为解决传统黄土防灭火浆体易沉降、堵管路、堆积失效的工程难题,提升稠化浆体悬浮稳定性,对黄土颗粒开展力学分析,探明搅拌时间、搅拌速度、颗粒粒径通过改变颗粒间作用力影响悬浮特性;结合极差、方差、回归及响应面分析,明确因素主次、最优参数区间,并通过现场注浆监测验证参数实用性。研究结果表明:浆体搅拌时间A和浆体搅拌速度B会使稠化浆体剪切稀化,从而改变稠化浆体三维网状结构及分子间的缠结作用;黄土颗粒大小C会影响黄土颗粒在浆体中的比表面积、力学作用和聚团行为,三者共同影响浆体稠度和悬浮性能;A为5 min,B为1 000 r/min,C为140目时,稠化浆体静态悬浮率最优,达到82.5%;各因素对静态悬浮率δ影响的主次排序为B>A>C,搅拌速度是影响稠化浆体静态悬浮率的重要因素;影响稠化浆体材料悬浮效果的因素最优范围为4.3 min≤A≤5.9 min、B=1 000 r/min、108目≤C≤167目,分析结果与极差方差分析结果基本一致;现场注浆过程中的监测及注浆结果验证了实验室得出的最优制备参数对于现场注浆效果具有较好的指导作用。

关键词: 现场制备, 防灭火, 稠化浆体, 悬浮性能, 响应曲面, 静态悬浮率, 现场因素

Abstract:

To address the engineering problems of traditional loess fire-extinguishing slurry, such as easy sedimentation, pipeline blockage and accumulation failure, and improve the suspension stability of thickened slurry, mechanical analysis of loess particles was carried out to derive the settling velocity formula. It was clarified that stirring time, stirring speed and particle size affect suspension characteristics by changing the interaction forces between particles. Combined with range analysis, variance analysis, regression analysis and response surface analysis, the priority of influencing factors and the optimal parameter range were determined, and the practicability of the parameters was verified through on-site grouting monitoring. The results show that the stirring time of slurry A and the stirring speed of slurry B can cause shear thinning of the thickened slurry, thereby changing its three-dimensional network structure and intermolecular entanglement; the size of loess particles C will affect their specific surface area, mechanical effects, and agglomeration behavior in the slurry. These three factors together affect the consistency and suspension performance of the slurry. The static suspension rate of the thickened slurry reaches the optimal level of 82.5% when A is 5 min, B is 1000 r/min, and C is 140 mesh. The primary and secondary ranking of each factor on the static suspension rate δ is B>A>C, indicating that stirring speed is a key factor affecting the static suspension rate of thickened slurry. The optimal ranges of factors influencing the suspension effect of thickened slurry materials are determined as 4.3 min ≤ A ≤ 5.9 min, B = 1000 r/min and 108 mesh ≤ C ≤ 167 mesh. The analysis results are basically consistent with those of range and variance analysis, which verifies the validity of the range and variance analysis results. Field grouting test results verify that the optimal preparation parameters obtained from laboratory experiments provide reliable guidance for on-site grouting performance.

Key words: on-site preparation, fire prevention and extinguishing, thickened slurry, suspension performance, response surface, static suspension rate, on-site factors

中图分类号:

X936

邵淑珍, 施式亮, 王磊, 鲁义, 邢舜博, 田帅. 现场制备防灭火稠化浆体悬浮性能研究[J]. 中国安全科学学报, 2026, 36(9): 147-156.

Shao Shuzhen, Shi Shiliang, Wang Lei, Lu Yi, Xing Shunbo, Tian Shuai. Study on suspension performance of on-site preparation of fire prevention and extinguishing thickened slurry[J]. China Safety Science Journal, 2026, 36(9): 147-156.

图/表 17

图1

表1

表2

图2

图3

表3

图4

表4

图5

表5

图6

图7

图8

图9

图10

图11

图12

参考文献 18

[1]	周亮, 戴广龙, 秦汝祥. 高瓦斯易自燃煤层采空区遗煤自燃影响因素研究[J]. 中国安全科学学报, 2018, 28(2):122-127. doi: 10.16265/j.cnki.issn1003-3033.2018.02.021
	Zhou Liang, Dai Guanglong, Qin Ruxiang. Research on factors influencing spontaneous combustion of coal ingoaf in gassy coal seam having propensity to spontaneous combustion[J]. China Safety Science Journal, 2018, 28(2):122-127. doi: 10.16265/j.cnki.issn1003-3033.2018.02.021
[2]	鲁义, 颜晴琼, 王俏, 等. 采空区高温点液态CO2处理后瓦斯解吸能量变化特性[J]. 中国安全科学学报, 2024, 34(11):73-80. doi: 10.16265/j.cnki.issn1003-3033.2024.11.0678
	Lu Yi, Yan Qingqiong, Wang Qiao, et al. Characteristics of gas desorption energy change after treatment of high-temperature points in goaf with liquid CO₂[J]. China Safety Science Journal, 2024, 34(11):73-80.
[3]	秦波涛, 仲晓星, 王德明, 等. 煤自燃过程特性及防治技术研究进展[J]. 煤炭科学技术, 2021, 49(1): 66-99.
	Qin Botao, Zhong Xiaoxing, Wang Deming, et al. Research progress of coal spontaneous combustion process characteristics and prevention technology[J]. Coal Science and Technology, 2021, 49(1): 66-99.
[4]	Lang Lu, Xin Chengyun, Liu Xinyu. Heat and mass transfer of liquid nitrogen in coal porous media[J]. Heat and Mass Transfer 2018, 54(4): 1 101-1 111.
[5]	张玉涛, 史学强, 李亚清, 等. 环保型煤自燃阻化剂的阻化特性及机理研究[J]. 中国矿业大学学报, 2018, 47(6): 1 224-1 232.
	Zhang Yutao, Shi Xueqiang, Li Yaqing, et al. Mechanism and inhibiting effects of environmental-friendly inhibitor on coal spontaneous combustion[J]. Journal of China University of Mining & Technology, 2018, 47(6): 1 224-1 232.
[6]	李竟境, 鲁义, 邵淑珍, 等. 防治煤自燃的水合相变材料热学及阻燃特性研究[J]. 中国安全科学学报, 2025, 35(12):164-171. doi: 10.16265/j.cnki.issn1003-3033.2025.12.0064
	Li Jingjing, Lu Yi, Shao Shuzhen, et al. Study on thermal and flame retardant properties of hydrated phase change materials for preventing coal spontaneous combustion[J]. China Safety Science Journal, 2025, 35(12):164-171. doi: 10.16265/j.cnki.issn1003-3033.2025.12.0064
[7]	Tang Zongqing, Xu Guang, Yang Shengqiang, et al. Fire-retardant foam designed to control the spontaneous combustion and the fire of coal: flame retardant and extinguishing properties[J]. Powder Technology, 2021, 384: DOI:10.1016/j.powtec.2021.02.024.
[8]	周西华, 张潇文, 白刚, 等. 煤矿热动力灾害防控研究现状及趋势综述[J]. 辽宁工程技术大学学报(自然科学版), 2024, 43(5):534-544.
	Zhou Xihua, Zhang Xiaowen, Bai Gang, et al. Review on research status and trend of coal mine thermodynamic disaster prevention and control[J]. Journal of Liaoning Technical University (Natural Science Edition), 2024, 43(5): 534 544.
[9]	于志金, 邓云欣, 陈晓坤, 等. 矿用煤自燃阻化剂研究进展与展望[J]. 中国安全生产科学技术, 2025, 21(1):5-15.
	Yu Zhijin, Deng Yunxin, Chen Xiaokun, et al. Research progress and prospect of coal spontaneous combustion inhibitors for mines[J]. Journal of Safety Science and Technology, 2025, 21(1): 5 15.
[10]	秦波涛, 冯乐乐, 蒋文婕, 等. 矿井泡沫防灭火技术研究进展[J]. 煤炭科技, 2022, 43(5):1-12,26.
	Qin Botao, Feng Lele, Jiang Wenjie, et al. Research progress of mine foam fire extinguishing technology[J]. Coal Science & Technology Magazine, 2022, 43(5): 1 12,26.
[11]	陈凯. 粉煤灰稠化胶体的制备及防灭火特性研究[D]. 徐州: 中国矿业大学, 2020.
	Chen Kai. Study on preparation of fly ash thickenedcolloid and fire-extinguishing properties[D]. Xuzhou: China University of Mining and Technology, 2020.
[12]	姚海飞. 蒙西矿区黄砂灌浆成胶原理及配比实验研究[J]. 矿业安全与环保, 2020, 47(5): 7-12.
	Yao Haifei. Experimental study on the principle and proportion of yellow sand grouting into glue in Mengxi mining area[J]. Mining Safety & Environmental Protection, 2020, 47(5): 7-12.
[13]	徐振. 煤制甲醇气化灰渣灌浆特性实验研究[D]. 西安: 西安科技大学, 2018.
	Xu Zhen. Experimental study on grouting characteristics of coal-methanol methanolified ash residue[D]. Xi'an: Xi'an University of Science and Technology, 2018.
[14]	王航. 张家峁矿煤自燃规律及砂浆防灭火技术研究[D]. 西安:西安科技大学, 2018.
	Wang Hang. Study on the spontaneous combustion law of Zhangjiamao coal mine and the fire prevention and extinguishing technology of mortar[D]. Xi'an: Xi'an University of Science and Technology,2018.
[15]	李博. 粉煤灰矿化封存CO2复合材料制备及其防灭火特性研究[D]. 徐州:中国矿业大学, 2024.
	Li Bo. Study on preparation of fly ash-based composite materials for mineralization and sequestration of CO₂ and their fire prevention and extinguishing properties[D]. Xuzhou: China University of Mining and Technology,2024.
[16]	张继强. 煤矿冒落区井下注浆充填浆体扩散及浆-岩固结机制研究[D]. 淮南: 安徽理工大学, 2025.
	Zhang Jiqiang. Study on grout diffusion and grout-rock consolidation mechanism in underground grouting backfilling of coal mine caving zones[D]. Huainan: Anhui University of Science and Technology, 2025.
[17]	吴芳华. 矿用防灭火磷石膏基自产气膨胀浆体研制及其特性研究[D]. 湘潭: 湖南科技大学, 2024.
	Wu Fanghua. Study on development and properties of mine fire prevention and extinguishing phosphogypsum-based self-generated gas expansive slurry[D]. Xiangtan: Hunan University of Science and Technology, 2024.
[18]	Chen Jingxin, Wu Ankang, Yang Mingliang, et al. Characterization of sodium alginate-based films incorporated with thymol for fresh-cut apple packaging[J]. Food Control, 2021, 126:DOI:10.1016/j.foodcont.2021.108063.

水平	影响因素
水平	A/min	B/(r/min)	C/目
1	3	250	60
2	4	500	100
3	5	750	140
4	6	1 000	180

试验号	水平组合	试验条件
试验号	水平组合	A/min	B/(r/min)	C/目
1	A₁B₁C₁	3	250	60
2	A₁B₂C₃	3	500	140
3	A₁B₃C₄	3	750	180
4	A₁B₄C₂	3	1 000	100
5	A₂B₁C₂	4	250	100
6	A₂B₂C₄	4	500	180
7	A₂B₃C₃	4	750	140
8	A₂B₄C₁	4	1 000	60
9	A₃B₁C₃	5	250	140
10	A₃B₂C₁	5	500	60
11	A₃B₃C₂	5	750	100
12	A₃B₄C₄	5	1 000	180
13	A₄B₁C₄	6	250	180
14	A₄B₂C₂	6	500	100
15	A₄B₃C₁	6	750	60
16	A₄B₄C₃	6	1 000	140

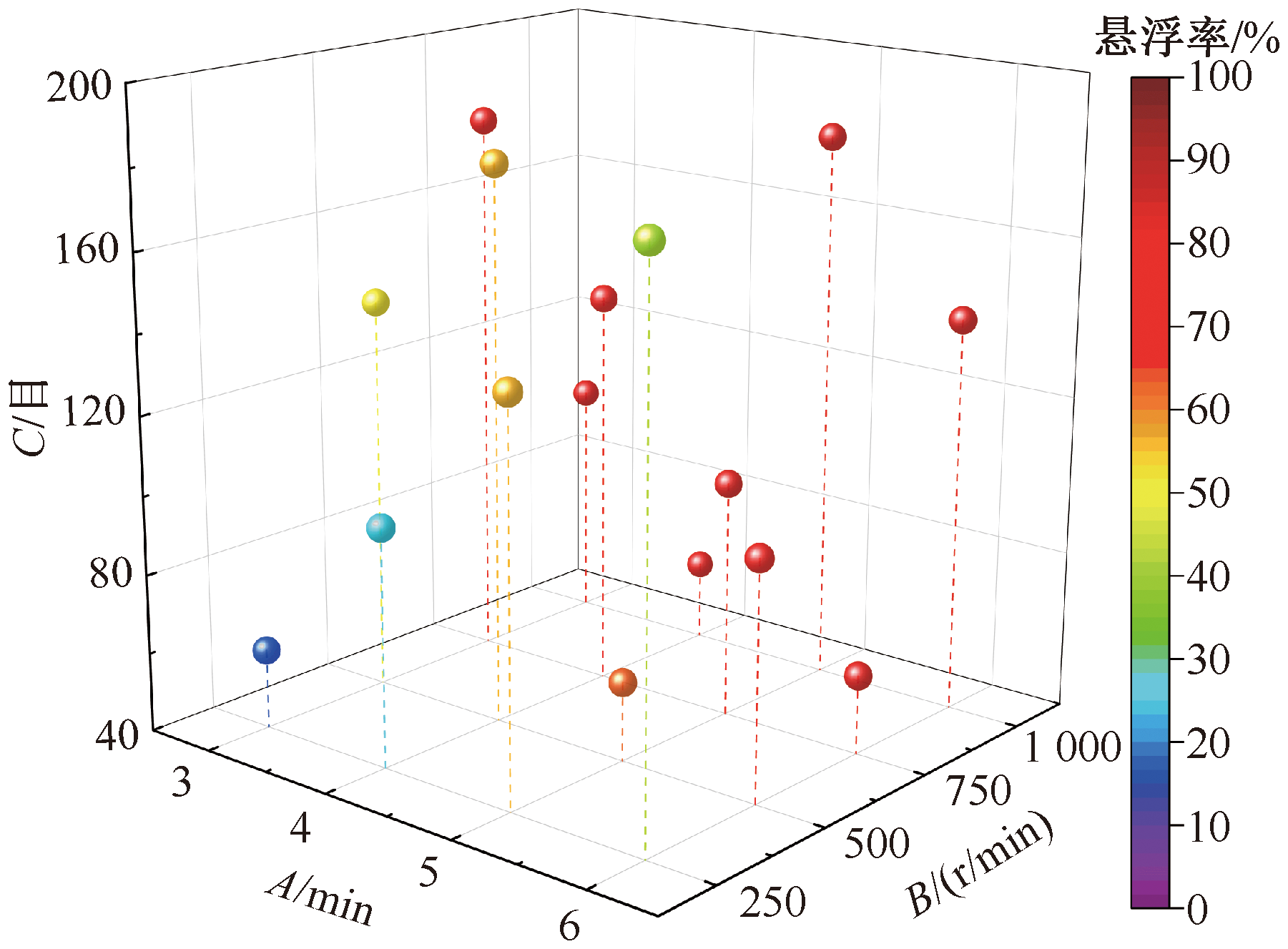

试验号	A/min	B/(r/min)	C/目	δ/%
1	3	250	60	17.50
2	3	500	140	50.00
3	3	750	180	72.50
4	3	1 000	100	81.00
5	4	250	100	25.00
6	4	500	180	55.00
7	4	750	140	78.75
8	4	1 000	60	81.25
9	5	250	140	56.25
10	5	500	60	62.50
11	5	750	100	81.25
12	5	1 000	180	82.00
13	6	250	180	42.50
14	6	500	100	68.75
15	6	750	60	80.00
16	6	1 000	140	82.50

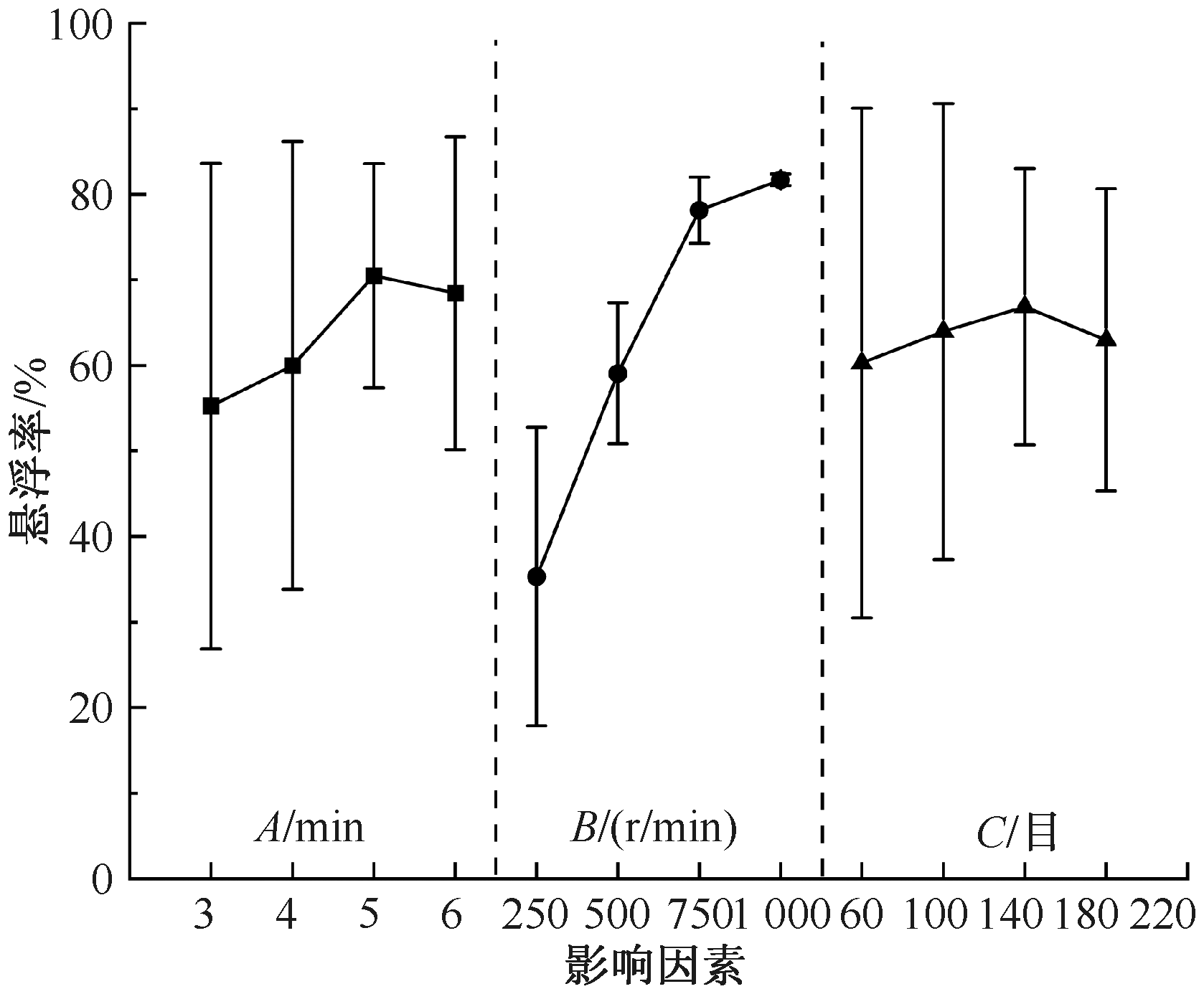

试验号	静态悬浮率/%
试验号	A	B	C
K₁	221.00	141.25	241.25
K₂	240.00	236.25	256.00
K₃	282.00	312.50	267.50
K₄	273.75	326.75	252.00
K₁'	55.25	35.31	60.31
K₂'	60.00	59.06	64.00
K₃'	70.50	78.13	66.88
K₄'	68.44	81.69	63.00
R	15.25	46.38	6.56
优水平	A₃	B₄	C₃
主次顺序	B>A>C
优组合	A₃B₄C₃

方差来源	平方和	自由度	均方	F	P值
A	614.73	3	204.91	2.662	0.142
B	5 435.574	3	1 811.858	23.541	0.001^**
C	88.168	3	29.389	0.382	0.77
误差	461.805	6	76.967	—	—
总计	71 211.563	16	—	—	—
