露天矿挖掘机液压系统特性分析与智能监测系统研究

doi:10.16265/j.cnki.issn1003-3033.2023.S2.0039

摘要/Abstract

摘要：

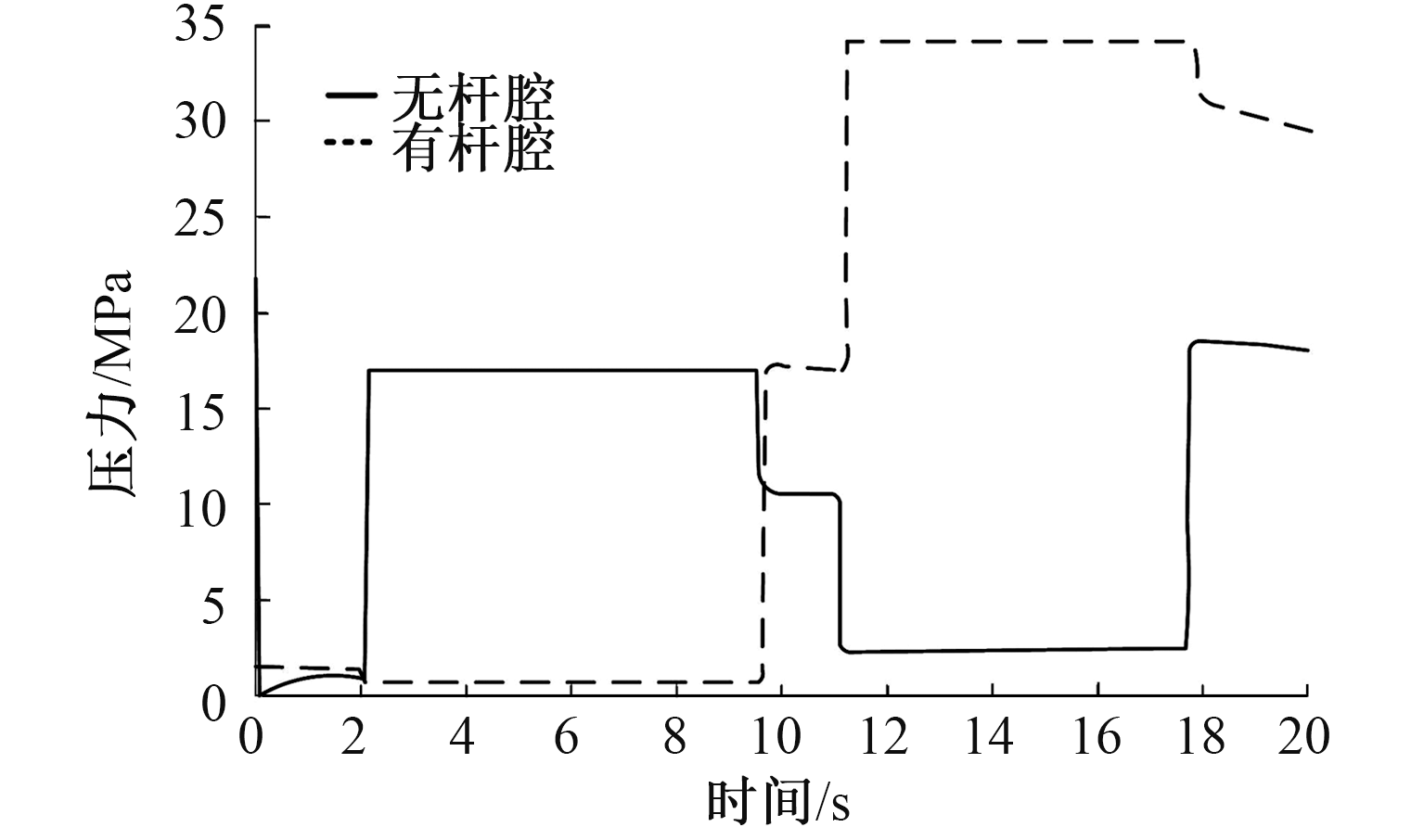

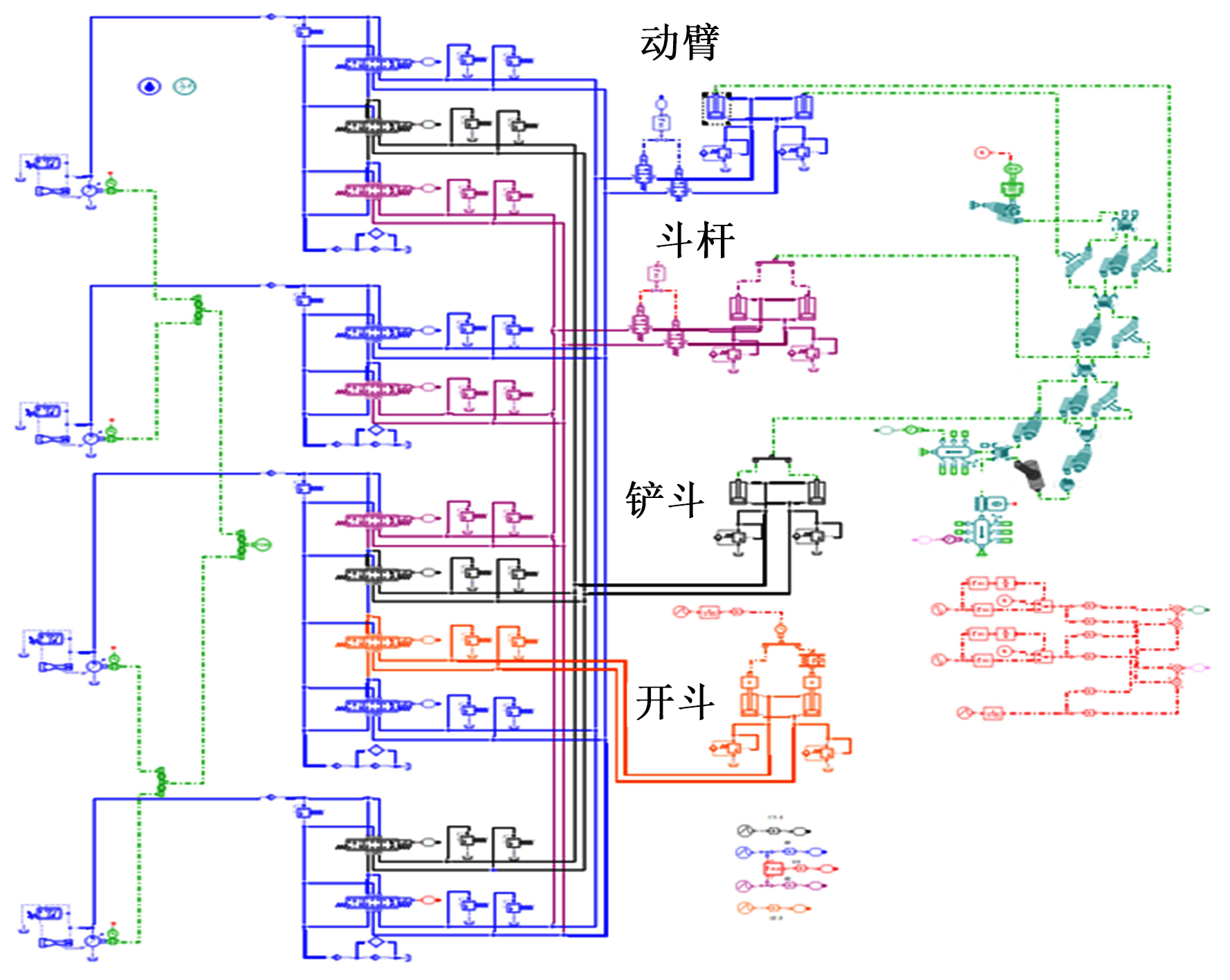

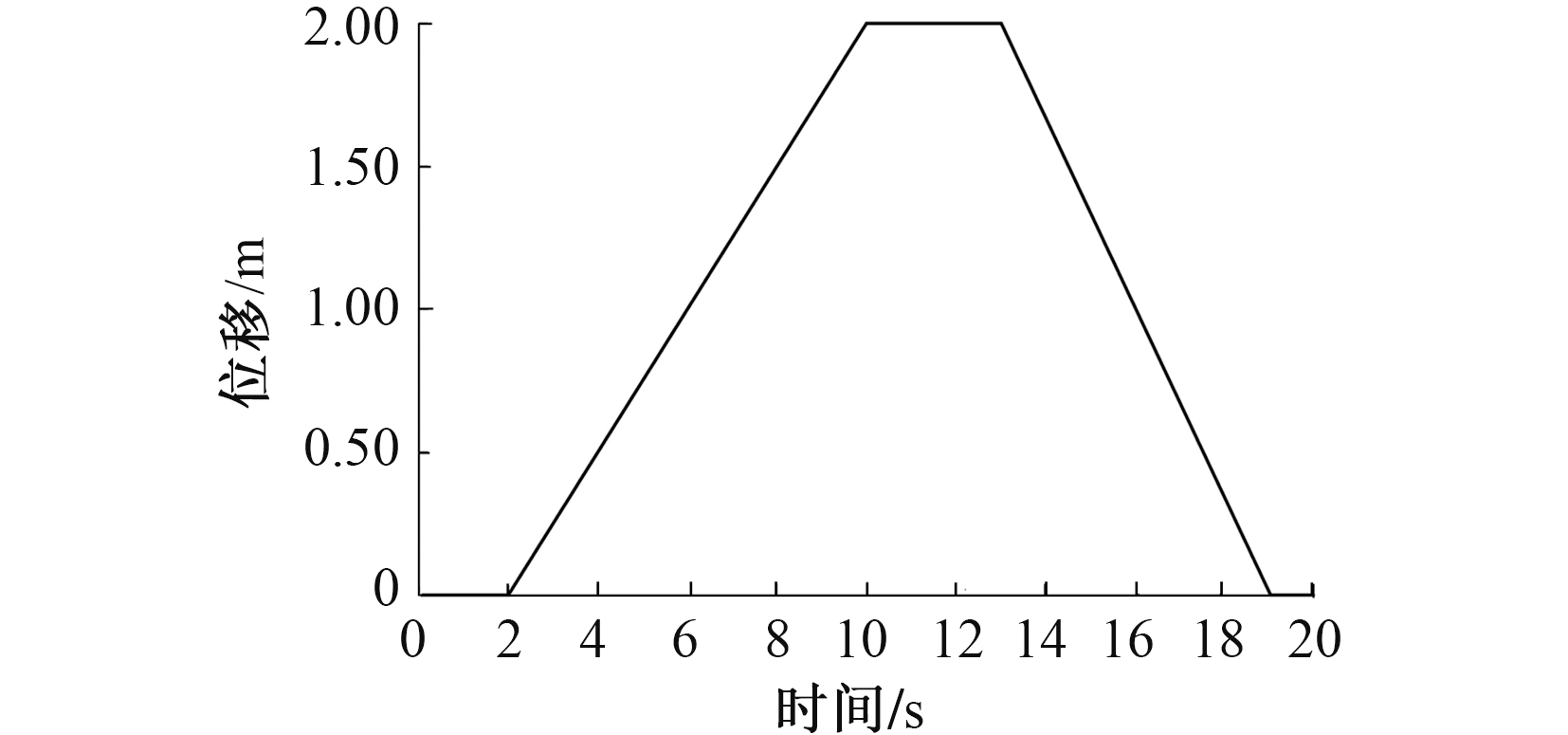

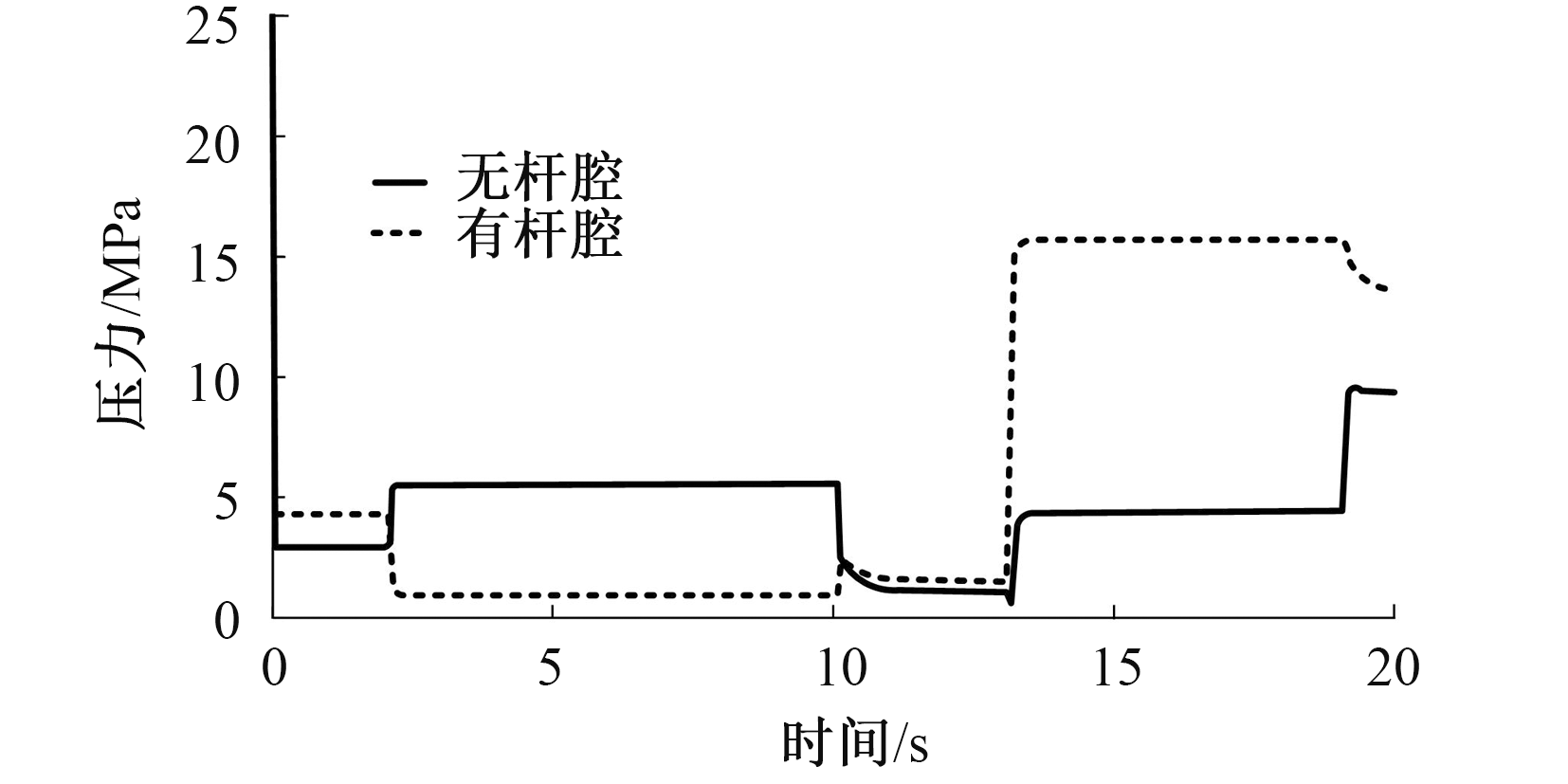

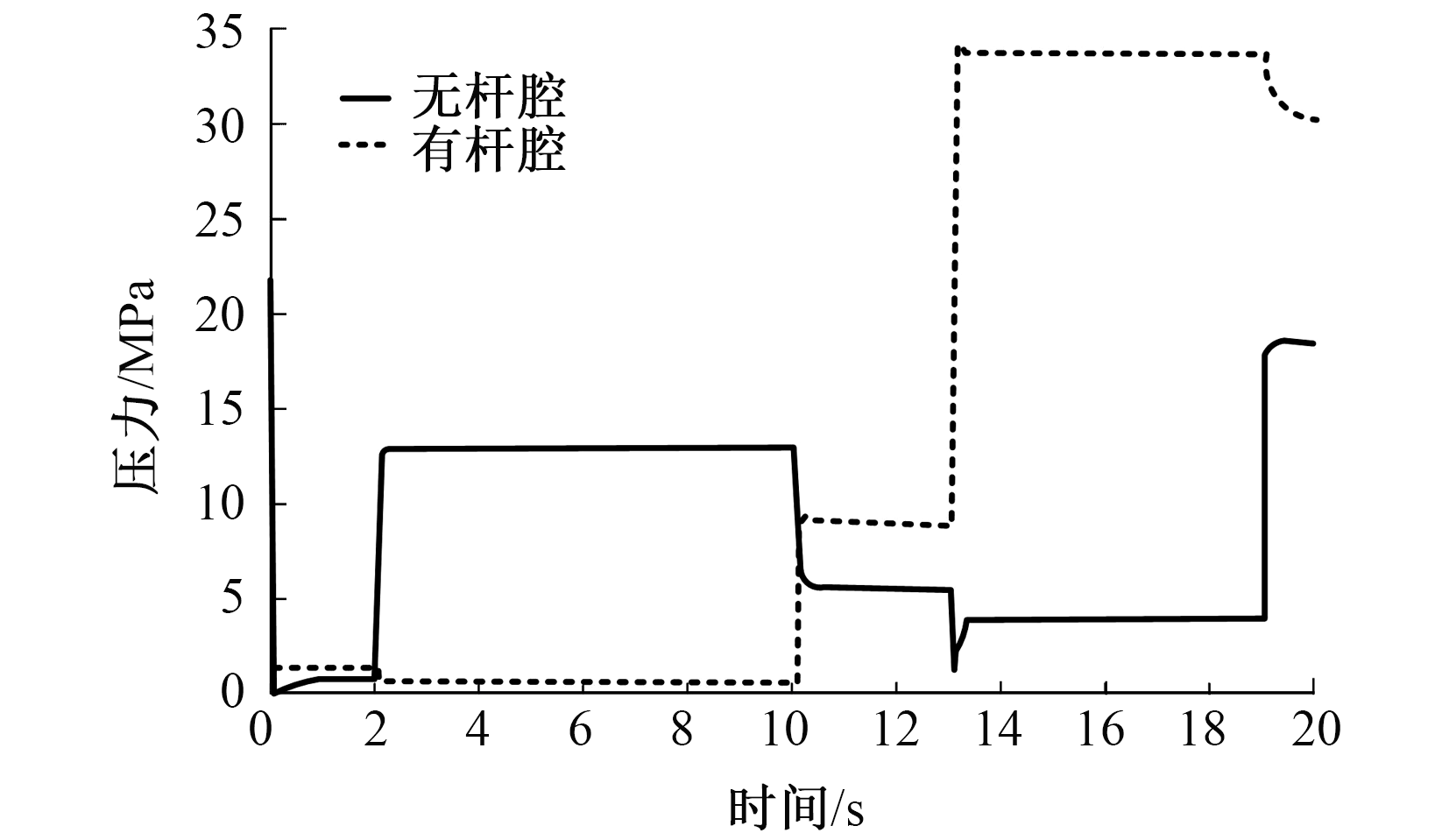

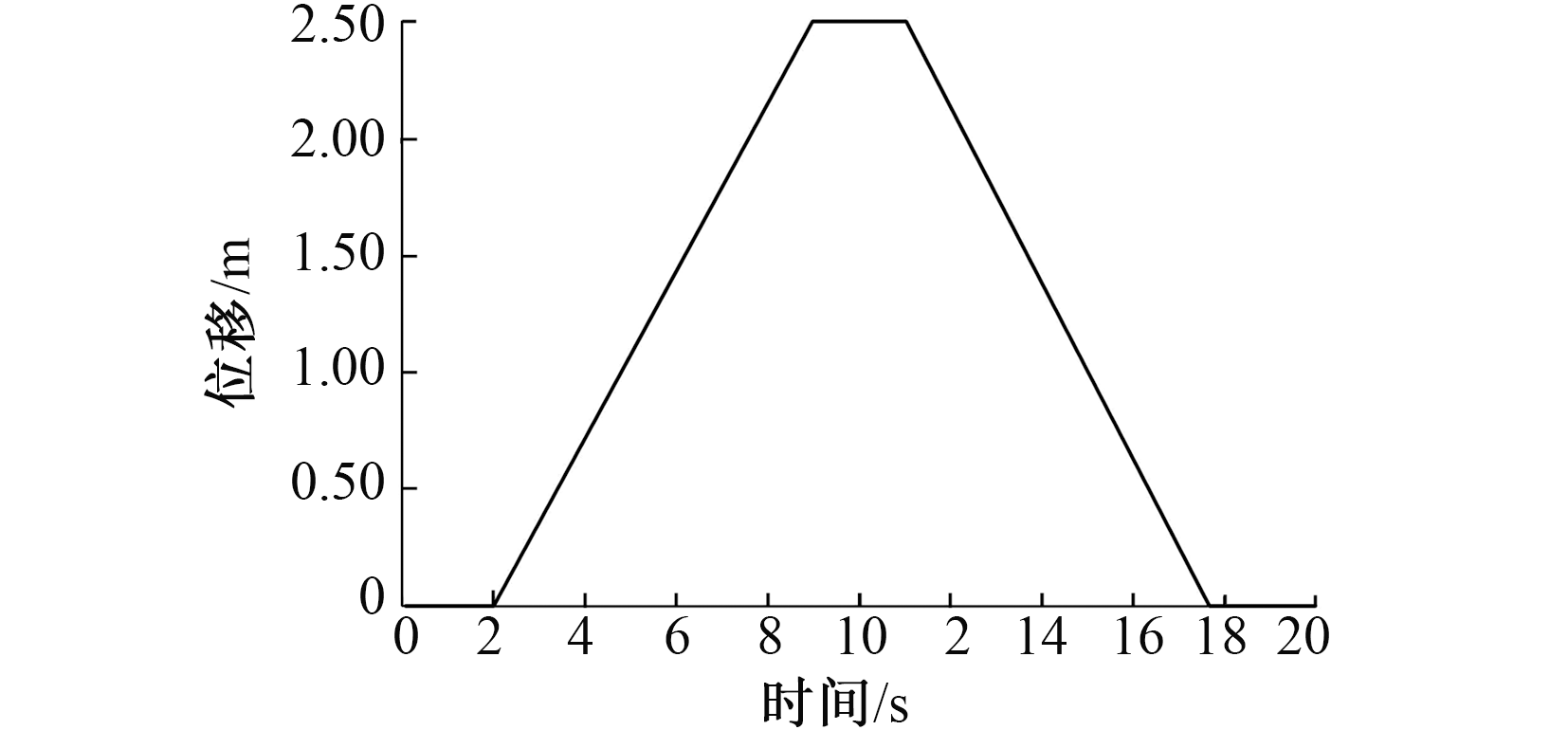

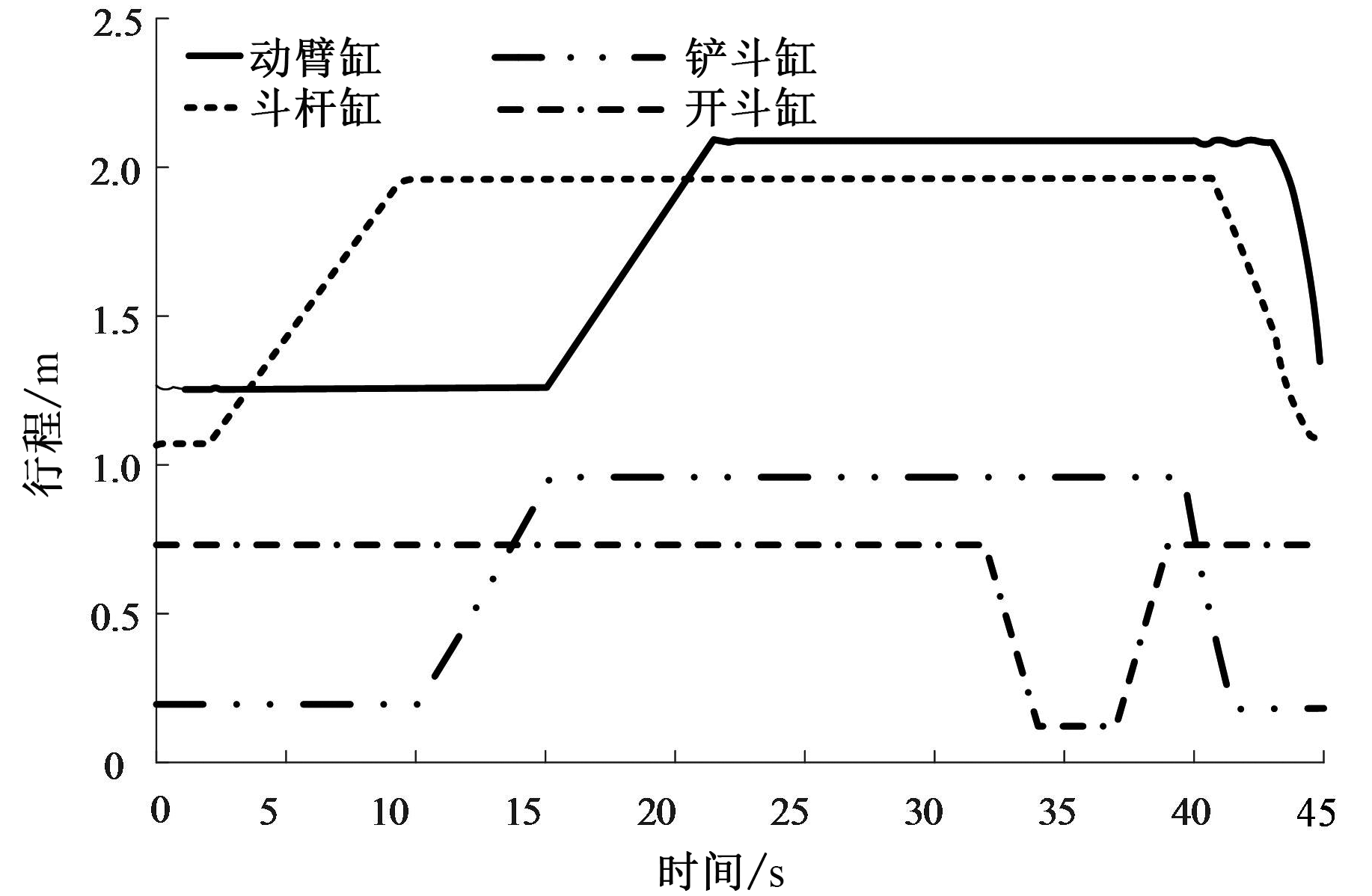

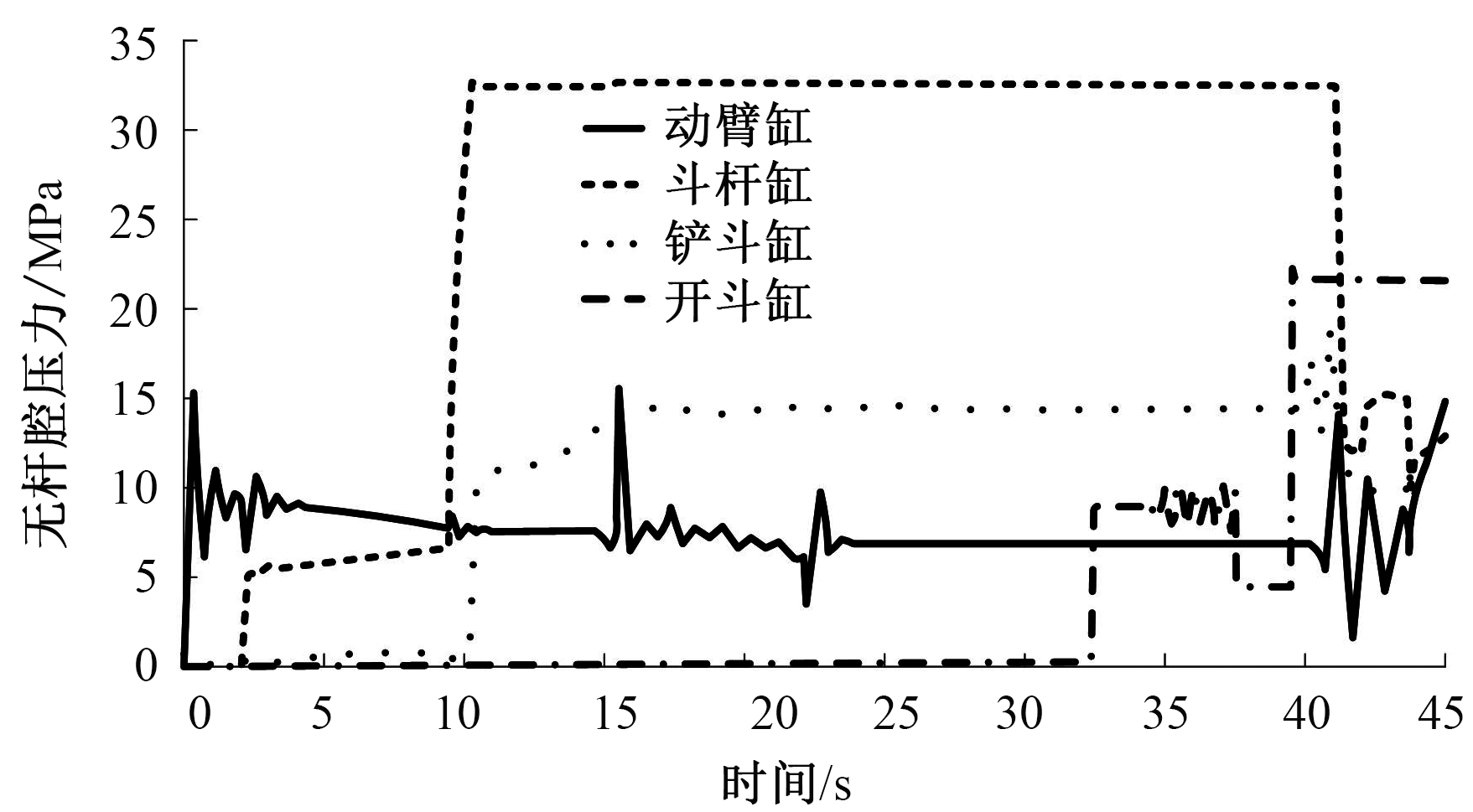

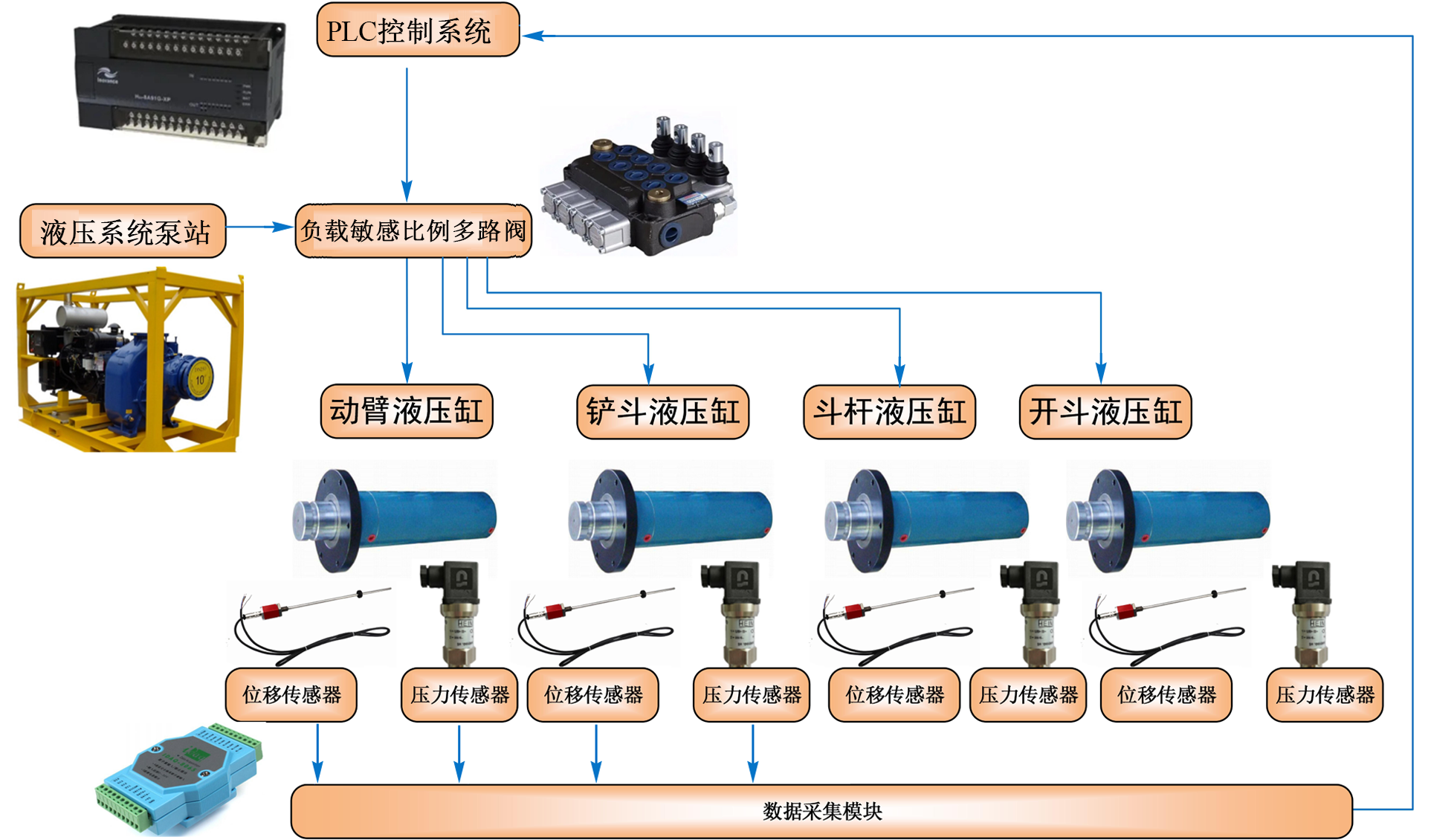

为预防大型露天矿用液压挖掘机作业过程中由液压系统部件损坏引发的设备故障,开展液压挖掘机工作过程工作性能分析与智能监测系统研究,以某型号350 t液压挖掘机为研究对象,基于AMESim仿真软件,建立挖掘机系统主泵模型和系统整体模型,仿真分析液压挖掘机工作臂、振动杆、工作铲斗独立运动特性;建立包括数据监测系统、数据传输系统、智能分析系统的露天矿挖掘机液压系统智能监测平台架构,并在神华宝日希勒露天矿应用。结果表明:相比于独立工作过程液压缸的位移和压力变化规律,复合运动过程中的压力更高且出现波动现象,原因是实际工作过程中各环节会产生振动及负载的影响。设计的液压系统智能监测平台能够实现对矿用挖掘机的液压系统状态的实时有效监测,大幅提高矿用挖掘机液压系统的稳定性。

关键词: 液压挖掘机, 系统特性, AMESim仿真, 液压系统, 智能监测

Abstract:

To prevent equipment failures caused by damage to hydraulic system components during the operation of hydraulic excavators in large open-pit mines, research on performance analysis and intelligent monitoring systems of hydraulic excavators during the operation process was carried out. A 350 t hydraulic excavator was taken as the research object. The main pump model and the whole system model of the excavator system were established based on AMESim simulation software. The independent motion characteristics of the working arm, vibration rod, and working bucket of the hydraulic excavator were simulated. The intelligent monitoring platform architecture of the hydraulic system of open-pit mine excavators including a data monitoring system, data transmission system, and intelligent analysis system was established and successfully applied in the Shenhua Baorixile open-pit mine. The results show that compared with the change law of the displacement and pressure of the hydraulic cylinder during the independent working process, the pressure during the composite motion process is higher and fluctuates due to the vibration and load effects that occur in various stages of the actual working process. The designed intelligent monitoring platform of the hydraulic system can realize the real-time and effective monitoring of the hydraulic system state of the mine excavator and can greatly improve the stability of the hydraulic system of the mine excavator.

Key words: hydraulic excavator, system characteristics, AMESim simulation, hydraulic system, intelligent monitoring

中图分类号:

X924.2安全监测技术与设备

张周爱, 海素峰, 薛国庆, 张玉华. 露天矿挖掘机液压系统特性分析与智能监测系统研究[J]. 中国安全科学学报, 2023, 33(S2): 122-127.

ZHANG Zhouai, HAI Sufeng, XUE Guoqing, ZHANG Yuhua. Research on characteristics analysis and intelligent monitoring system of hydraulic system of open-pit mine excavators[J]. China Safety Science Journal, 2023, 33(S2): 122-127.

图/表 13

图1

表1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

参考文献 12

[1]	史青录. 液压挖掘机[M]. 北京: 机械工业出版社, 2012: 168-171.
[2]	陈正利. 我国挖掘机行业的行成与发展、现状及前景[J]. 建设机械技术与管理, 2004 (11): 25-29.
	CHEN Zhengli. Formation, development, current situation and outlook of excavator industry in China[J]. Construction Machinery Technology & Management, 2004(11): 25-29.
[3]	曹善华. 单斗挖掘机[M]. 北京: 机械工业出版社, 1988: 1-102.
[4]	张永明, 刘吉亮. 大型正铲式挖掘机的发展与进步[J]. 机械管理开发, 2009, 24(6): 38-39.
	ZHANG Yongming, LIU Jiliang. Development and advancement of the excavators in mine[J]. Mechanical Management and Development, 2009, 24(6): 38-39.
[5]	马鹏飞. 正铲液压挖掘机工作装置构型综合与优化设计[D]. 兰州: 兰州理工大学, 2021.
	MA Pengfei. Configuration synthesis and optimization design of working device of the face-shovel hydraulic excavator[D]. Lanzhou: Lanzhou University of Technology, 2021.
[6]	黄一洋. 一种新型正铲液压挖掘机工作机构的研究[D]. 南宁: 广西大学, 2020.
	HUANG Yiyang. Research on a new working mechanism of face-shovel hydraulic excavator[D]. Nanning: Guangxi University, 2020.
[7]	徐弓岳. 大型正铲液压挖掘机工作装置的多目标优化设计方法研究[D]. 秦皇岛: 燕山大学, 2019.
	XU Gongyue. Research on the multiobjective optimization design method of large face shovel hydraulic exacavator working attachment[D]. Qinhuangdao: Yanshan University, 2019.
[8]	唐剑波. 新型变胞挖掘机构设计与瞬态动力学研究[D]. 南宁: 广西大学, 2017.
	TANG Jianbo. Design and transient dynamic research of a noval excavating mechanism with metamorphic functions[D]. Nanning: Guangxi University, 2017.
[9]	王龙. 新型三自由度可控机构式挖掘机的型综合与分析[D]. 南宁: 广西大学, 2015.
	WANG Long. New type 3-DOF controlled institution type synthesis and analysis of excavator[D]. Nanning: Guangxi University, 2015.
[10]	DING Huafeng, HAN Lei, YANG Wenjian, et al. Kinematics and dynamics analyses of a new type face-shovel hydraulic excavator[J]. Proceedings of the Institution of Mechanical Engineers, Part C: Journal of Mechanical Engineering Science, 2017, 231(5): 909-924. doi: 10.1177/0954406215625675
[11]	CUI Hongxin, LI Huanliang, FENG Ke, et al. Kinematic simulation of hydraulic excavator’s working attachment based on matlab/robot[J]. Advanced Materials Research, 2013, 694-697: 1 765-1 770.
[12]	李洪, 张永明, 李光, 等. 正铲液压挖掘机工作装置机构运动学仿真及优化[J]. 矿山机械, 2014, 42(4):34-35,39.
	LI Hong, ZHANG Yongming, LI Guang, et al. Kinematic simulation and optimization of manipulator of face-shovel hydraulic excavator[J]. Mining & Processing Equipment, 2014, 42(4): 34-35, 39.

参数名称	数值
主阀阀芯质量/kg	1
主阀阀芯直径/mm	20
主阀阀杆直径/mm	10
主阀弹簧刚度/(N·mm^-1)	85
系统安全阀开启压力/MPa	40
动臂缸活塞直径/mm	160
动臂缸活塞杆直径/mm	100
斗杆缸活塞直径/mm	200
斗杆缸活塞杆直径/mm	100
铲斗缸活塞直径/mm	200
铲斗缸活塞杆直径/mm	100
端口溢流阀开启压力/MPa	38
变量泵排量/(mL·r^-1)	260
发动机转速/(r·min^-1)	1 800
