海上平台含硫化氢气体泄漏事故后果分析

doi:10.16265/j.cnki.issn1003-3033.2024.09.0065

摘要/Abstract

摘要：

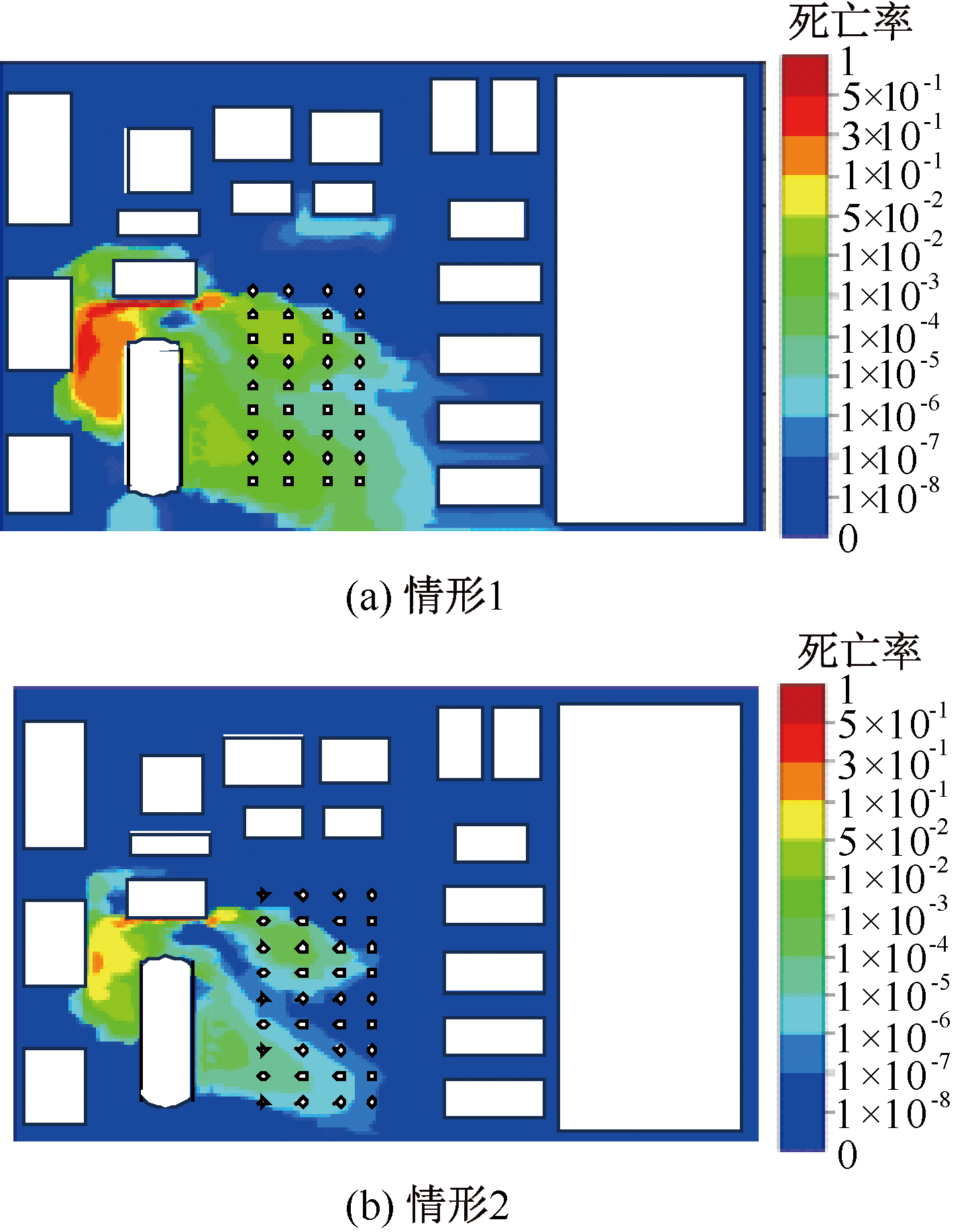

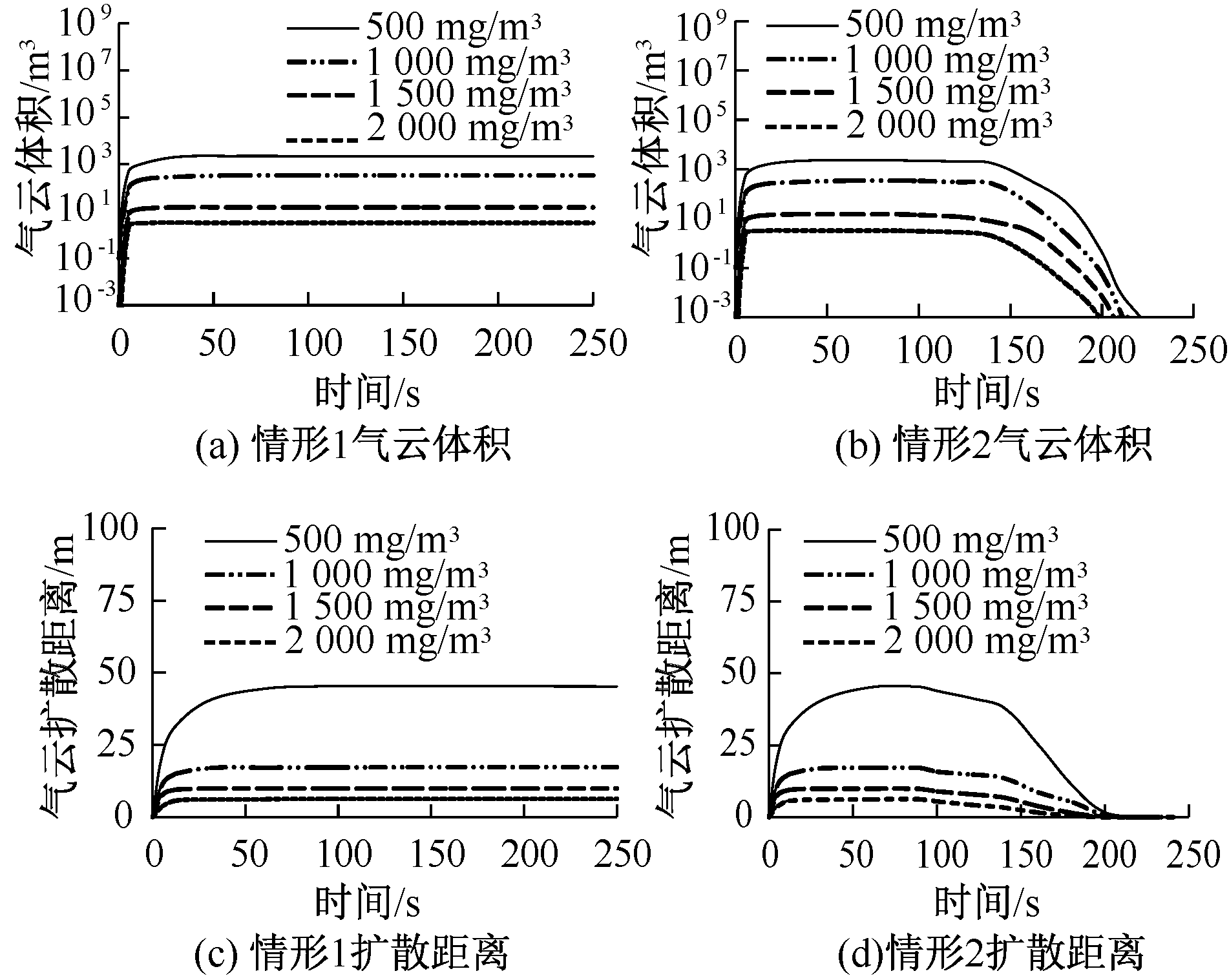

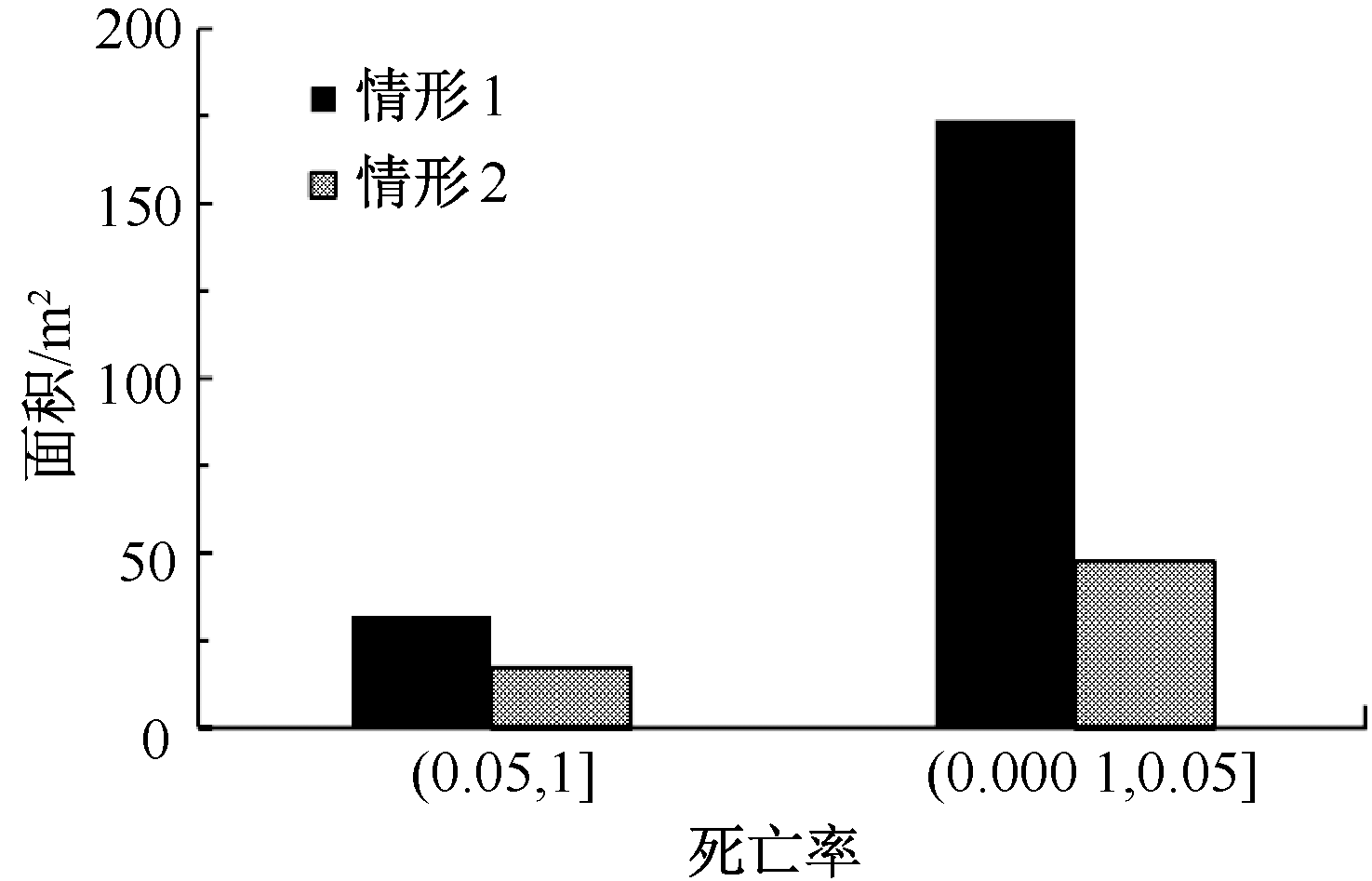

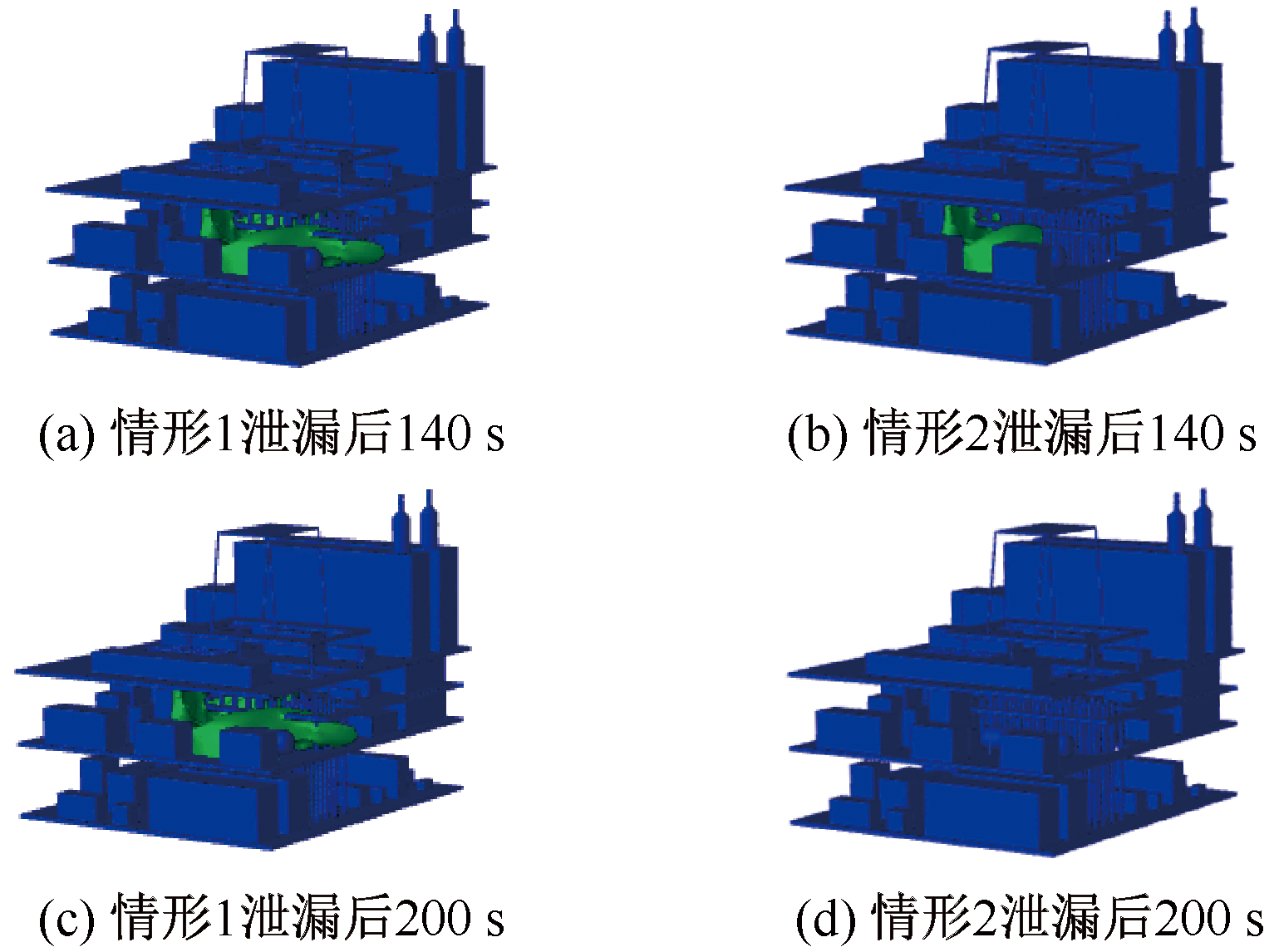

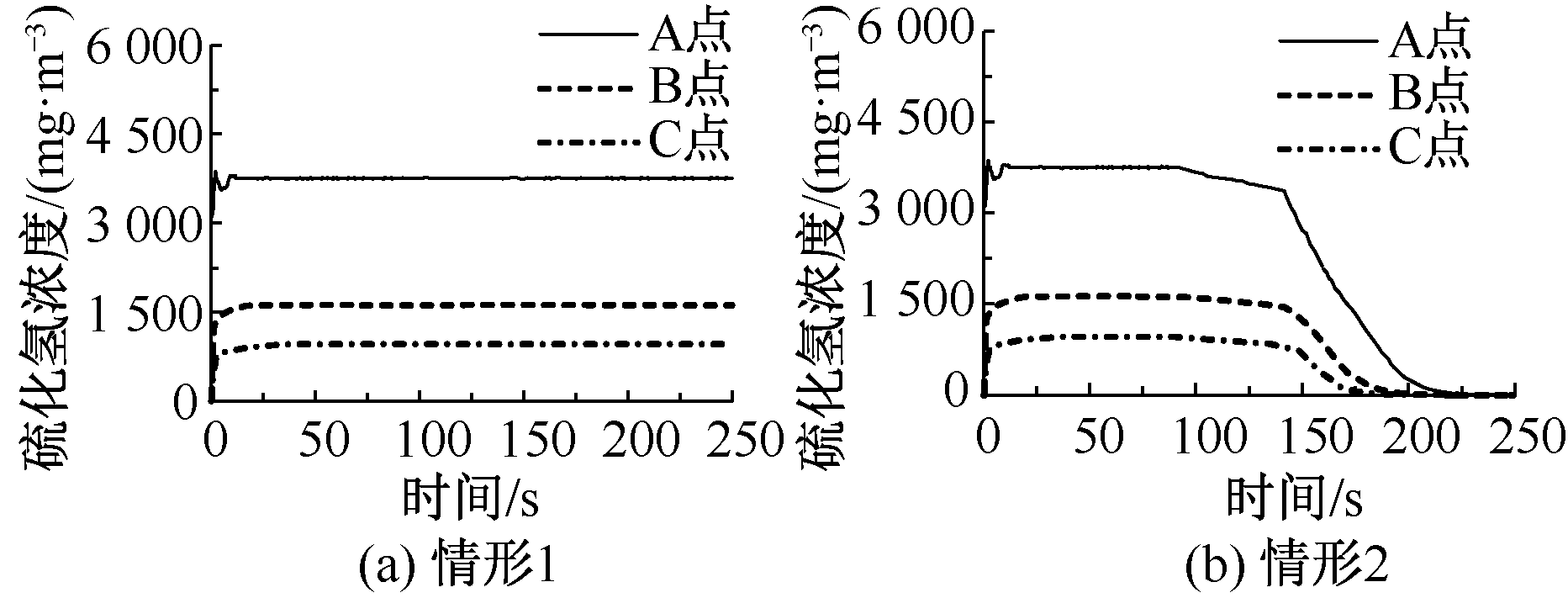

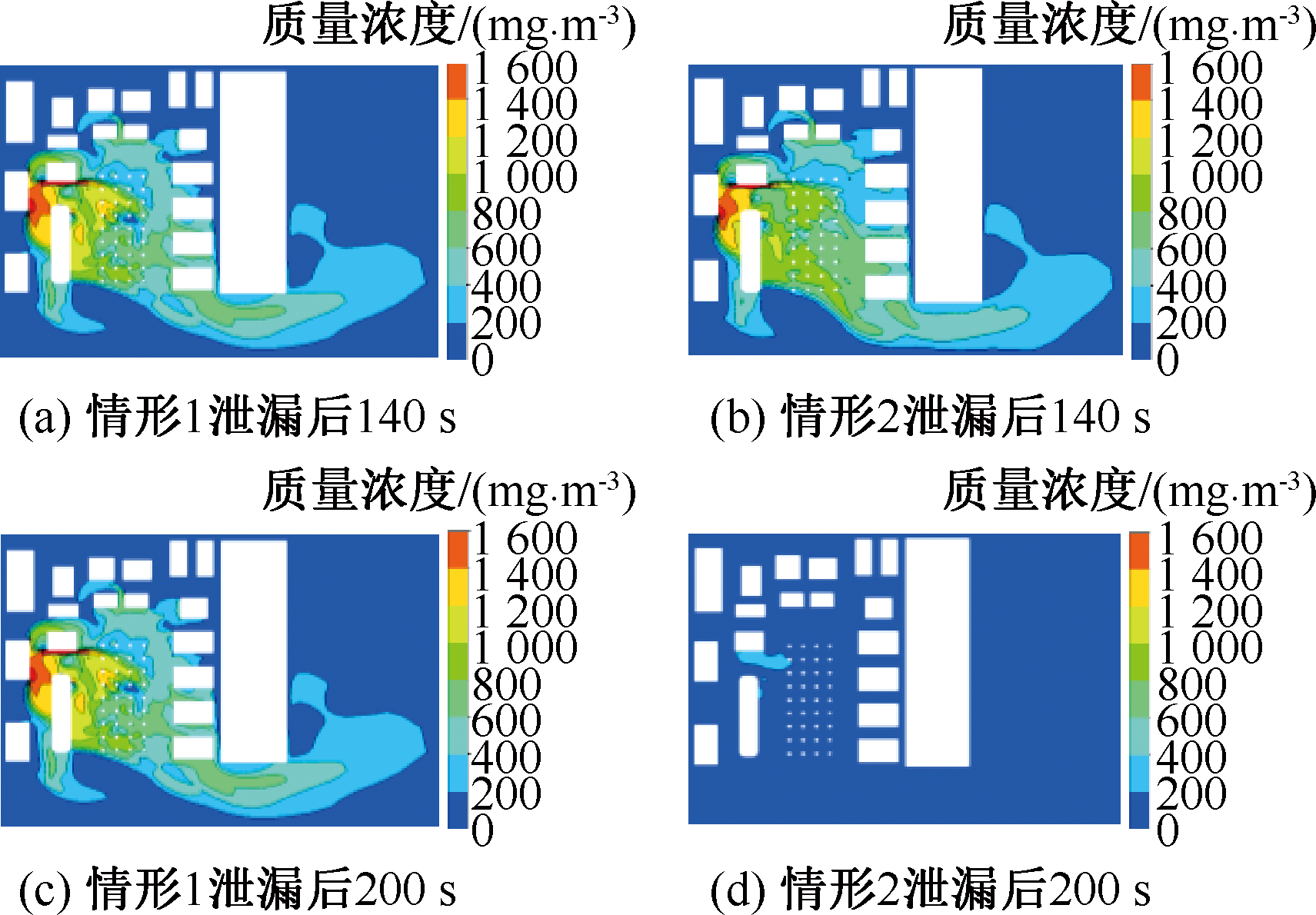

为评估海上平台含硫化氢伴生气的泄漏事故后果,采用ANSYS Fluent软件模拟平台分离器含硫化氢伴生气扩散的时空变化。根据含硫化氢伴生气扩散的发展过程,对比泄漏后未采取保护措施和采取应急保护措施2种情形下伴生气气云团的毒害范围;结合剂量反应模型定量评估含硫化氢伴生气泄漏后毒害的危险程度。结果表明:相对于泄漏后未采用保护措施的情况,采取应急关断措施50 s后,硫化氢质量浓度阈值为500~2 000 mg/m³的气云团体积减小20%~37.5%,水平扩散距离减小15.4%~47.6%;随后采取主动泄放措施后,毒害气云团体积和水平扩散距离进一步迅速减小。综合考虑硫化氢积聚浓度和暴露反应,采取应急关断+主动泄放的应急保护措施可大幅降低平台受到毒害的死亡率,泄漏孔附近3个监测点的死亡率分别由0.998、0.034、0.000 239降低至0.759、0.002 9、0.000 000 65;采用措施后平台中层甲板水平截面的不可接受区和合理接收区的面积较未采用措施分别降低63.7%和81.7%,显著降低伴生气泄漏毒害后果的危险程度。

关键词: 海上平台, 含硫化氢气体, 气体泄漏, 事故后果, 气云团, 危险程度

Abstract:

In order to evaluate the consequences of H₂S-containing associated gas leakage on the platform, ANSYS Fluent software was used to simulate the spatiotemporal changes of the gas diffusion. According to the development process of H₂S-containing gas diffusion, the toxic area of the associated gas cloud in two scenarios, namely no protective measures and emergency protective measures, were compared. A quantitative evaluation of the degree of toxic risk of H₂S-containing associated gas leakage was conducted by using the dose-response model. The results showed that compared to the scenario with no protective measures, after taking the “shutdown” measure, the volume and horizontal diffusion distance of the gas cloud with H₂S concentration ranging from 500-2 000 mg/m³are reduced by 20%-37.5% and 15.4%-47.6%, respectively. After that, the toxic gas cloud volume and horizontal diffusion distance can be further reduced rapidly by taking the "blowdown" measures. By considering the H₂S accumulative concentration and exposure reaction, “shutdown + blowdown” measures can obviously reduce the fatality probability. The fatality of three monitoring spots near the leakage hole decreases from 0.998, 0.034 and 0.000 239 to 0.759, 0.002 9 and 0.000 000 65 respectively. The area of intolerable section and ALARP section of horizontal plane on the middle deck decrease by 63.7% and 81.7% after taking the emergency protective measures. The hazardous degree of toxic consequences caused by associated gas leakage can be significantly reduced.

Key words: offshore platform, H₂S containing gas, gas leakage, accident consequence, gas cloud, hazardous degree

中图分类号:

X937

马晨波, 陆心怡, 宫景雯, 胡冬, 赵思奇, 曹杨. 海上平台含硫化氢气体泄漏事故后果分析[J]. 中国安全科学学报, 2024, 34(9): 131-137.

MA Chenbo, LU Xinyi, GONG Jingwen, HU Dong, ZHAO Siqi, CAO Yang. Consequences analysis of H₂S-containing gas leakage on offshore platform[J]. China Safety Science Journal, 2024, 34(9): 131-137.

图/表 11

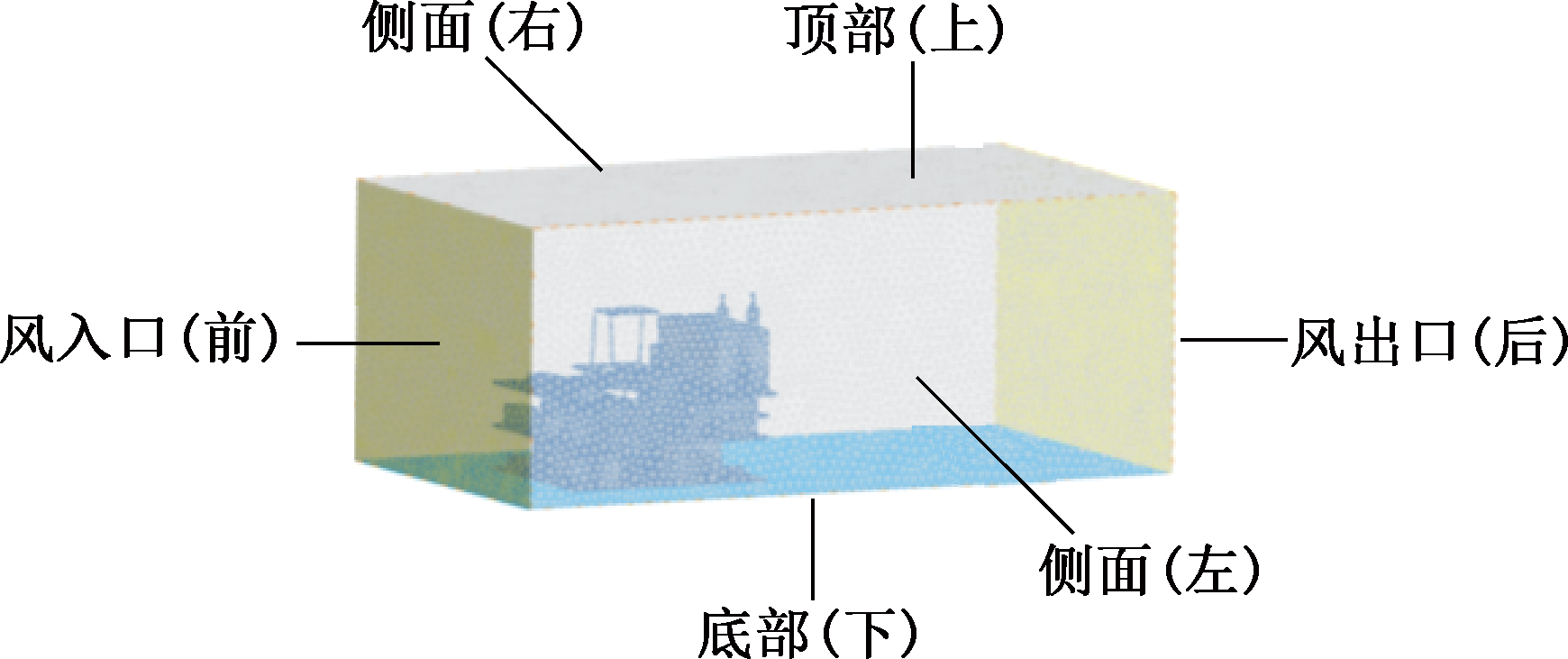

图1

表1

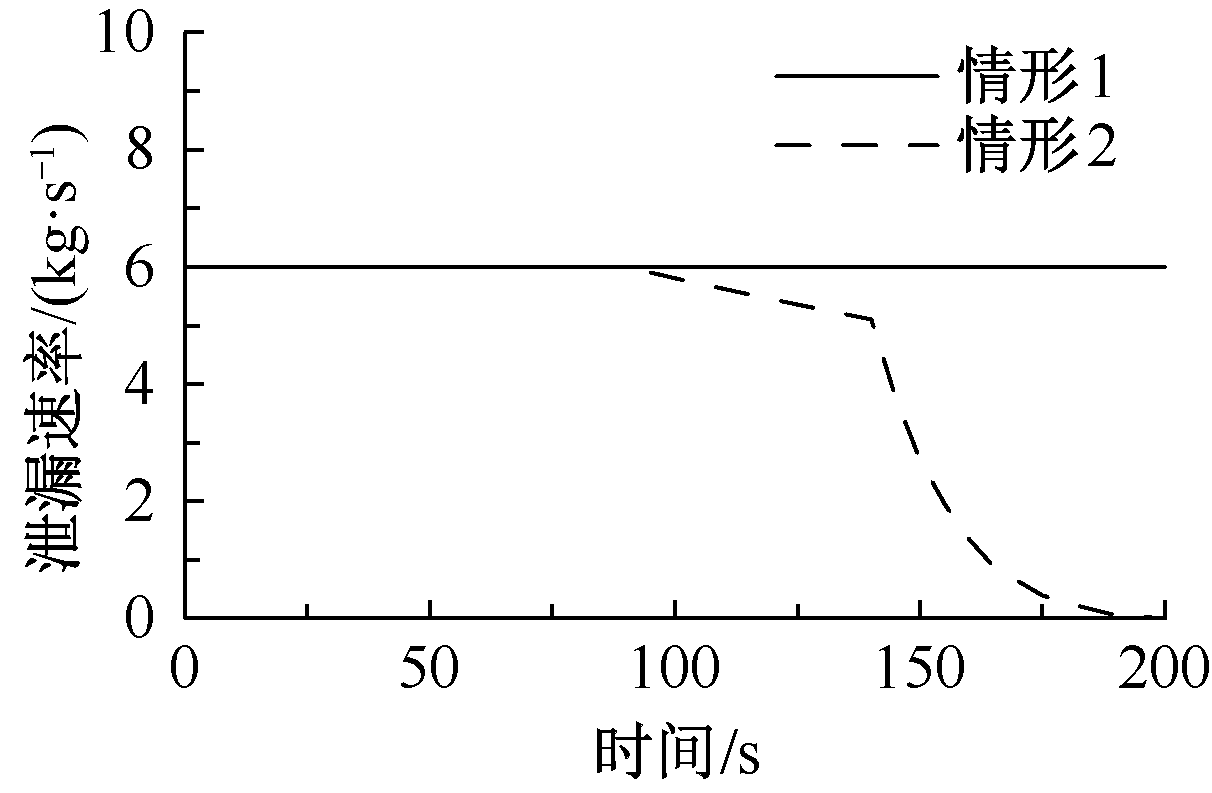

图2

图3

图4

图5

图6

图7

图8

图9

图10

参考文献 19

[1]	王文和, 张爽, 刘林精, 等. 1992—2017年近25年硫化氢中毒事故统计分析研究[J]. 工业安全与环保, 2020, 46(2):1-5.
	WANG Wenhe, ZHANG Shuang, LIU Linjing, et al. Statistical analysis of hydrogen sulfide poisoning accidents in recent 25 years from 1992 to 2017[J]. Industrial Safety and Environmental Protection, 2020, 46(2):1-5.
[2]	BP 2010. Deepwater horizon accident investigation report[EB/OL].[2024-01-15]. https://www.bp.com/content/dam/bp/business-sites/en/global/corporate/pdfs/sustainability/issue-briefings/deepwater-horizon-accident-investigation-report-executive-summary.pdf.
[3]	危险化学品安全监督管理司. 历史上二月发生的危险化学品事故[EB/OL].[2024-04-08]. https://www.mem.gov.cn/fw/jsxx/202002/t20200204_344127.shtml.
[4]	章博, 王志刚, 王彦富. 高硫炼油装置硫化氢泄漏场景集定量分析[J]. 中国安全生产科学技术, 2015, 11(10):73-78.
	ZHANG Bo, WANG Zhigang, WANG Yanfu. Quantitative analysis on scenario set of hydrogen sulfide leakage for high-sulfur oil refinery installations[J]. Journal of Safety Science and Technology, 2015, 11(10):73-78.
[5]	BAGHERI M, ALAMDARI A, DAVOUDI M. Quantitative risk assessment of sour gas transmission pipelines using CFD[J]. Journal of Natural Gas Science and Engineering, 2016, 31:108-118.
[6]	杨冬冬, 陈国明, 师吉浩. 海洋平台井喷含硫天然气扩散危险区域研究[J]. 中国安全生产科学技术, 2017, 13(8):114-120.
	YANG Dongdong, CHEN Guoming, SHI Jihao. Research on dangerous region of H₂S-containing natural gas diffusion resulting from offshore platform blowout[J]. Journal of Safety Science and Technology, 2017, 13(8):114-120.
[7]	YANG Dongdong, CHEN Guoming, FU Jianmin, et al. The mitigation performance of ventilation on the accident consequences of H₂S-containing natural gas release[J]. Process Safety and Environmental Protection, 2021, 148:1327-1336.
[8]	杨圆鉴, 赵志杰, 朱愚, 等. 高含硫天然气站场泄漏扩散数值模拟分析[J]. 工业安全与环保, 2021, 47(9):32-35.
	YANG Yuanjian, ZHAO Zhijie, ZHU Yu, et al. Numerical simulation analysis of leakage and diffusion in high sulfur natural gas station[J]. Industrial Safety and Environmental Protection, 2021, 47(9):32-35.
[9]	邓奇根, 杨炎杰, 李伟华, 等. 狭长密闭空间高硫天然气泄漏组合控制效果研究[J]. 科学技术与工程, 2023, 23(10):4463-4468.
	DENG Qigen, YANG Yanjie, LI Weihua, et al. Composite control effect of high-sulfur natural gas leakage in closed narrow-long space[J]. Science Technology and Engineering, 2023, 23(10):4463-4468.
[10]	TAUSEEF S M, RASHTCHIAN D, ABBASI S A. CFD-based simulation of dense gas dispersion in presence of obstacles[J]. Journal of Loss Prevention in the Process Industries, 2011, 24(4):371-376.
[11]	Center for Chemical Process Safety (CCPS). Guidelines for consequence analysis of chemical releases[M]. New York: Wiley-AIChE, 1999:125-175.
[12]	API Standard 579, Fitness for services[S]. 2000.
[13]	刘茂. 事故风险分析理论与方法[M]. 北京: 北京大学出版社, 2012:18-62.
[14]	杨冬冬, 陈国明, 付建民, 等. 海洋平台含硫化氢天然气泄漏爆炸连锁事故后果动态评估[J]. 化工进展, 2021, 40(11):6393-6400. doi: 10.16085/j.issn.1000-6613.2020-2512
	YANG Dongdong, CHEN Guoming, FU Jianmin, et al. Consequences assessment of H₂S-containing natural gas release and explosion accidents on offshore platforms[J]. Chemical Industry and Engineering Progress, 2021, 40(11):6393-6400. doi: 10.16085/j.issn.1000-6613.2020-2512
[15]	刘文鹏, 金良安, 高占胜, 等. 风速梯度对海上可燃气云爆燃特性影响的数值模拟[J]. 中国安全科学学报, 2018, 28(7):58-63. doi: 10.16265/j.cnki.issn1003-3033.2018.07.010
	LIU Wenpeng, JIN Liang'an, GAO Zhansheng, et al. Numerical simulation of influence of wind velocity gradient on deflagration characteristics of offshore flammable gas cloud[J]. China Safety Science Journal, 2018, 28(7):58-63. doi: 10.16265/j.cnki.issn1003-3033.2018.07.010
[16]	马晨波, 陆心怡, 刘向东, 等. 海上平台泄漏天然气燃爆特性分析[J]. 中国安全科学学报, 2022, 32(10):107-114. doi: 10.16265/j.cnki.issn1003-3033.2022.10.2741
	MA Chenbo, LU Xinyi, LIU Xiangdong, et al. Analysis of deflagration characteristics of leakage gas on an offshore platform[J]. China Safety Science Journal, 2022, 32(10):107-114. doi: 10.16265/j.cnki.issn1003-3033.2022.10.2741
[17]	张志伟, 张国维, 朱国庆, 等. 基于Fluent的地下管廊液氮灭火数值模拟方法[J]. 中国安全科学学报, 2022, 32(8): 133-139. doi: 10.16265/j.cnki.issn1003-3033.2022.08.1891
	ZHANG Zhiwei, ZHANG Guowei, ZHU Guoqing, et al. Numerical simulation method of liquid nitrogen fire extinguishing in underground pipe gallery based on Fluent[J]. China Safety Science Journal, 2022, 32(8):133-139. doi: 10.16265/j.cnki.issn1003-3033.2022.08.1891
[18]	YANG Dongdong, CHEN Guoming, SHI Jihao, et al. A novel approach for hazardous area identification of toxic gas leakage accidents on offshore facilities[J]. Ocean Engineering, 2020, 217: DOI:10.1016/j.oceaneng.2020.107926.
[19]	GAI Wenmei, JIA Haijiang, XI Xuejun, et al. Shelter-in-place risk assessment for high pressure natural gas wells with hydrogen sulphide and its application in emergency management[J]. Journal of Loss Prevention in the Process Industries, 2020, 63:DOI:10.1016/j.jlp.2019.103993.

甲板	距离海平面	甲板尺寸
上层	29.0	45.5(长)×37.5(宽)
二层	24.5	31.5(长)×37.5(宽)
中层	20.5	43.5(长)×37.5(宽)
下层	12.0	43.5(长)×37.5(宽)
