海上平台泄漏天然气爆燃特性分析

doi:10.16265/j.cnki.issn1003-3033.2022.10.2741

摘要/Abstract

摘要：

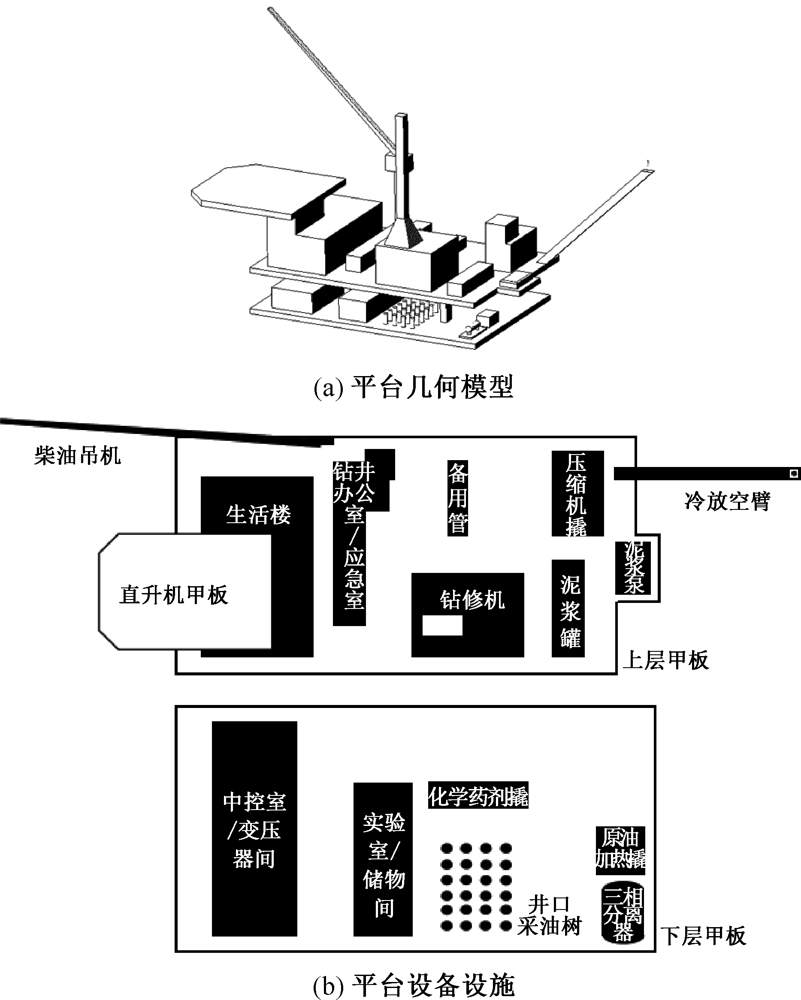

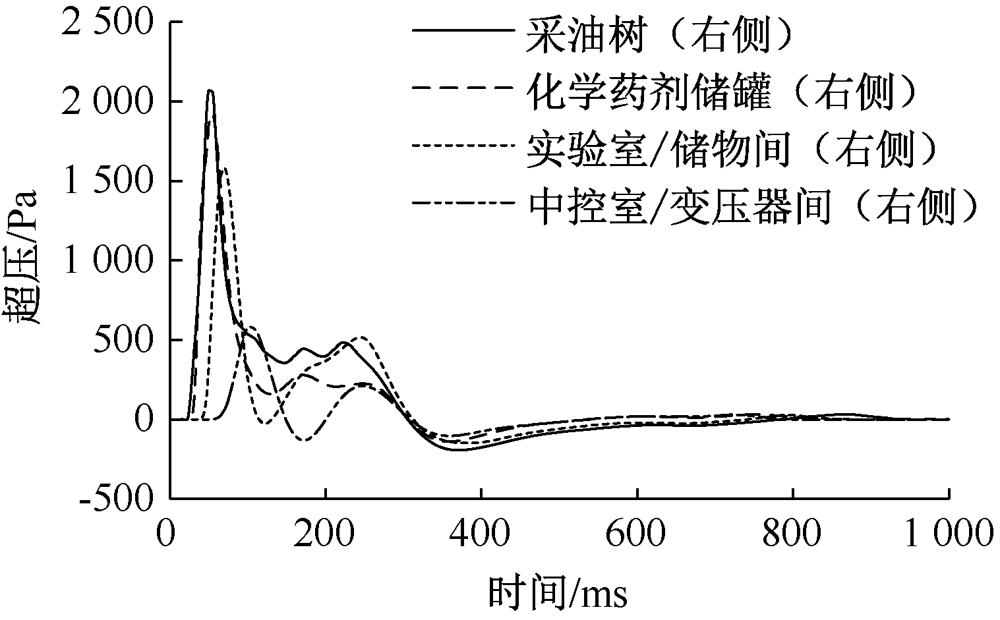

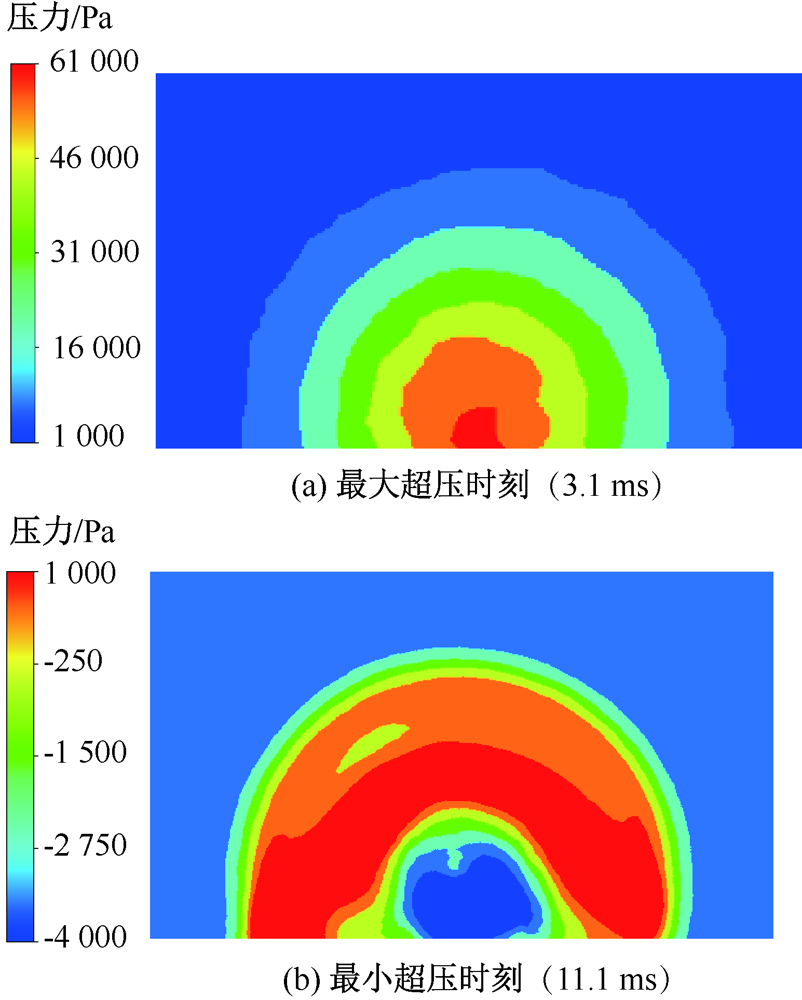

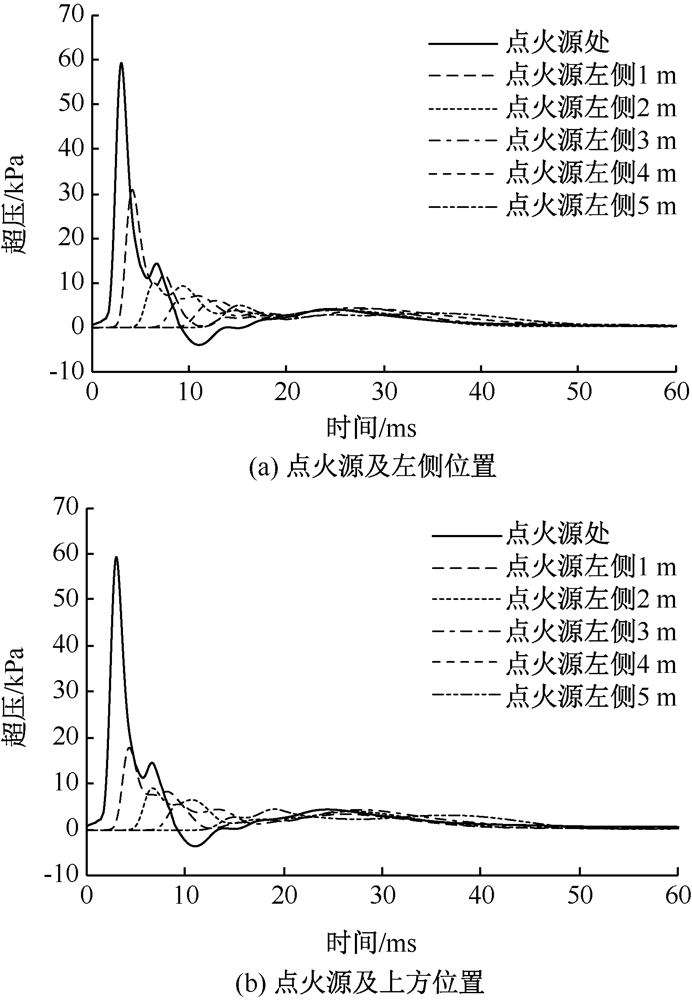

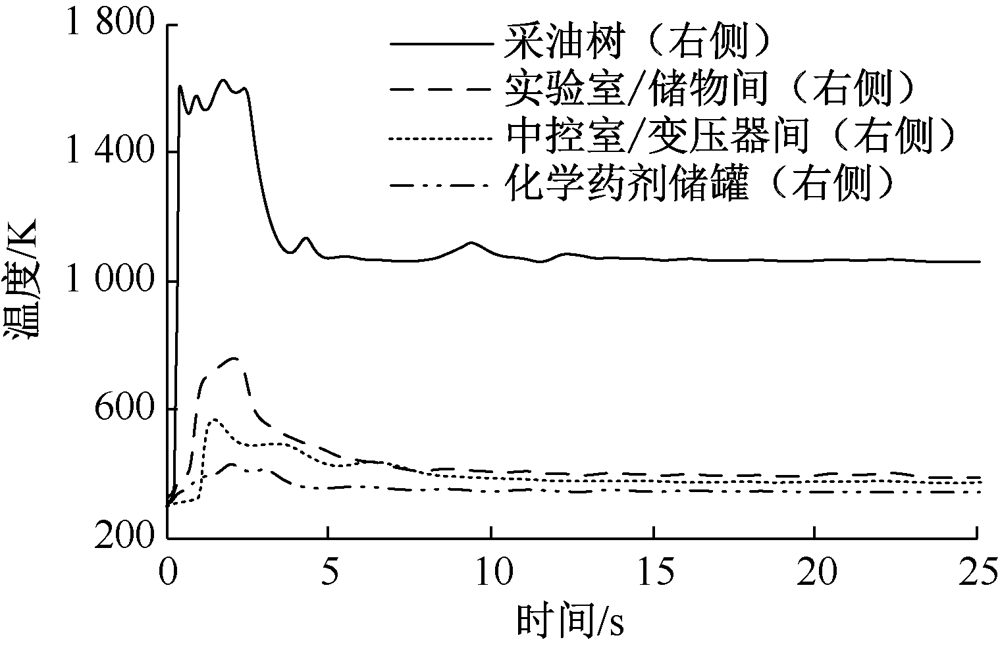

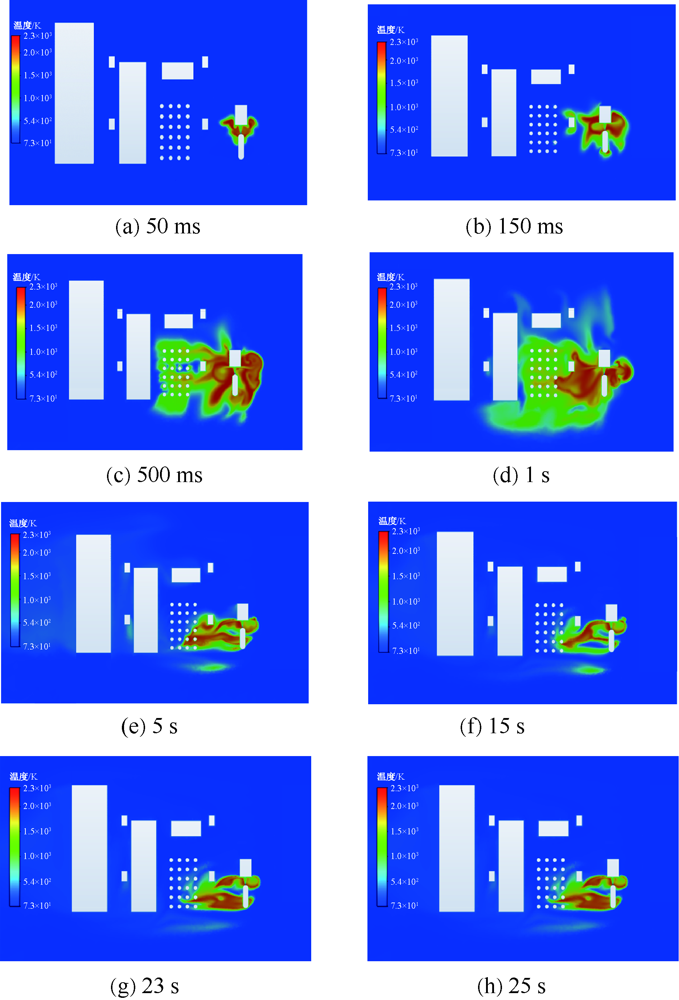

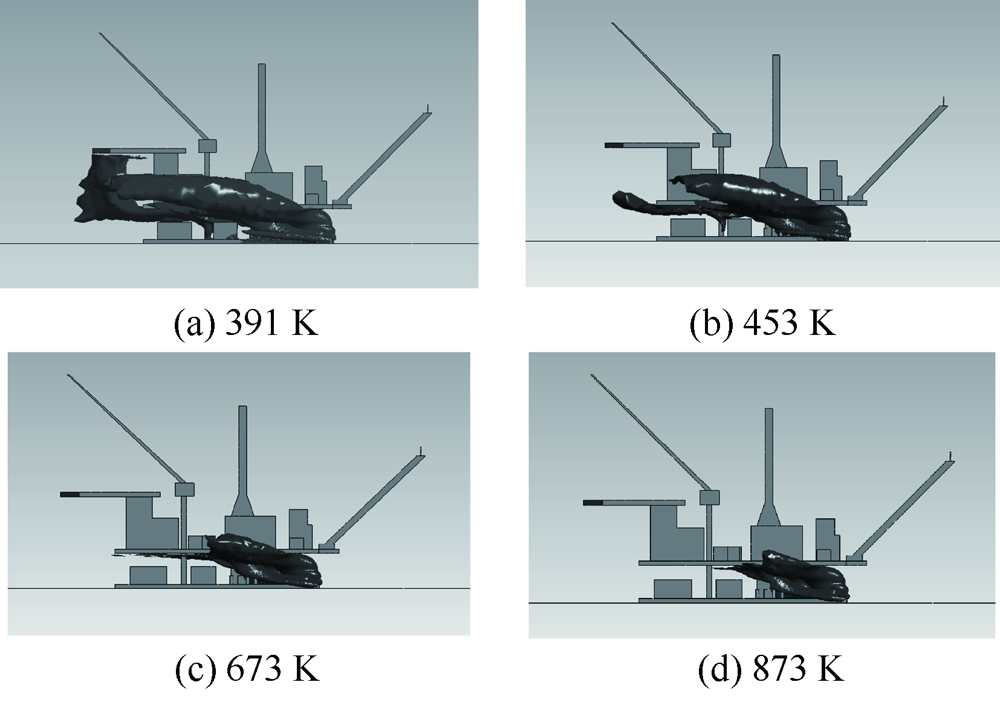

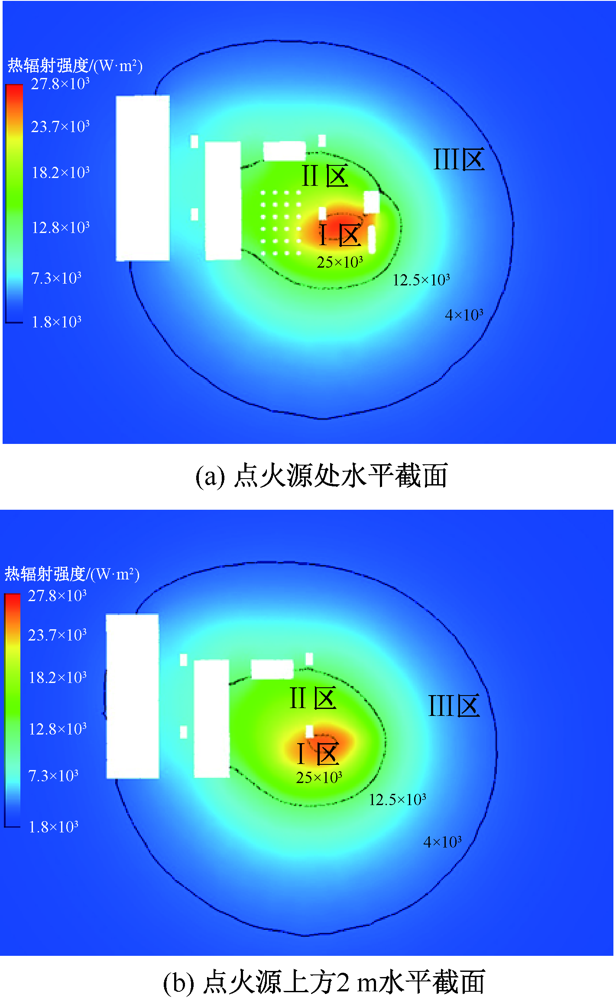

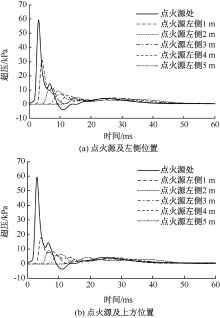

为评估海上平台泄漏天然气的爆燃事故后果，应用ANSYS Fluent软件模拟研究平台分离器泄漏天然气爆燃的演化过程。首先，根据海上平台结构和设备设施布置情况，建立平台三维模型；然后，探究天然气爆燃事故的爆燃超压、燃烧温度和燃烧热辐射强度3个关键参数的时空分布特征；最后，分析多种危害情况下的危险区域和影响范围，并从工程角度提出安全防范建议。结果表明：爆燃超压对三相分离器和加热器撬的影响最严重，井口区采油树、实验室和中控室等设备设施受超压影响较小，爆燃超压对人体伤害的最小安全距离为点火源下风侧22.5 m；燃烧产生的高温对设备设施的影响主要集中在三相分离器、井口区采油树和平台立柱，对人员的伤害范围会延伸至上层甲板生活楼区域；火灾热辐射会造成下甲板设备设施变形破坏，持续的热辐射作用会造成作业人员烧伤。

关键词: 海上平台, 天然气, 爆燃超压, 燃烧温度, 热辐射强度

Abstract:

In order to evaluate deflagration consequences arising from natural gas leakage on a domestic offshore platform， ANSYS Fluent software was used to simulate the evolution process of deflagration accidents. Firstly， a three-dimensional model was established based on the structure and equipment layout of the offshore platform. Then， the spatial and temporal distribution characteristics of three key parameters， overpressure of deflagration， high temperature and thermal radiation intensity of combustion， were investigated. Finally， the hazardous area and influence range of the deflagration were analyzed， and the corresponding safety prevention suggestions were proposed. The results show that overpressure has the most serious effect on the three-phase separator and heater skid， while other facilities （i.e.， Christmas trees， laboratory and central control room） are less affected by overpressure. The minimum distance to ensure the safety of humans under overpressure is 22.5 m downwind side of the ignition source. The impact of high temperature on facilities is mainly reflected in the three-phase separator， Christmas trees and column. The hazardous area generated by high temperature is extended to the living quarter. Deformation of facilities on lower deck can be caused by thermal radiation of combustion， and personnel burns can be caused the continuous thermal radiation.

Key words: offshore platform, natural gas, deflagration overpressure, combustion temperature, thermal radiation intensity

马晨波, 陆心怡, 刘向东, 胡冬, 武旭, 曹杨. 海上平台泄漏天然气爆燃特性分析[J]. 中国安全科学学报, 2022, 32(10): 107-114.

MA Chenbo, LU Xinyi, LIU Xiangdong, HU Dong, WU Xu, CAO Yang. Analysis of deflagration characteristics of leakage gas on an offshore platform[J]. China Safety Science Journal, 2022, 32(10): 107-114.

图/表 15

图1

图2

图3

图4

图5

图6

图7

表1

图8

图9

图10

图11

图12

图13

图14

参考文献 22

[1]	SEO J K, LEE S E, PARK J S. A method for determining fire accidental loads and its application to thermal response analysis for optimal design of offshore thin-walled structures[J]. Fire Safety Journal, 2017, 92:107-121. doi: 10.1016/j.firesaf.2017.05.022
[2]	曹杨, 王红红, 吕松松, 等. 危险性气体泄漏扩散研究方法对比[J]. 工业安全与环保, 2021, 47(1):17-21.
	CAO Yang, WANG Honghong, LYU Songsong, et al. Comparison of research methods on hazardous gas leakage and diffusion[J]. Industrial Safety and Environmental Protection, 2021, 47(1):17-21.
[3]	PRANESH V, PALANICHAMY K, SAIDAT O, et al. Lack of dynamic leadership skills and human failure contribution analysis to manage risk in deep water horizon oil platform[J]. Safety Science, 2017, 92:85-93. doi: 10.1016/j.ssci.2016.09.013
[4]	杨兆晶, 侯磊, 朱淼. 某大型LNG储罐泄漏扩散及其影响因素研究[J]. 天然气与石油, 2020, 38(1):47-53.
	YANG Zhaojing, HOU Lei, ZHU Miao. Research on leakage and diffusion of a large LNG storage tank and its influencing factors[J]. Natural Gas and Oil, 2020, 38(1):47-53.
[5]	王文和, 肖丰, 万琳, 等. 大型飞机库内航空煤油泄漏蒸发扩散特征研究[J]. 中国安全科学学报, 2020, 30(9):88-95.
	WANG Wenhe, XIAO Feng, WAN Lin, et al. Study on characteristics of evaporation and diffusion of kerosene leakage in large aircraft hangar[J]. China Safety Science Journal, 2020, 30(9):88-95.
[6]	何乐平, 唐爽, 胡启军, 等. 综合管廊天然气泄漏扩散及监控方法优化研究[J]. 中国安全科学学报, 2019, 29(9):43-50. doi: 10.16265/j.cnki.issn1003-3033.2019.09.007
	HE Leping, TANG Shuang, HU Qijun, et al. Study on natural gas leakage and diffusion in utility tunnels and optimization of monitoring methods[J]. China Safety Science Journal, 2019, 29(9):43-50. doi: 10.16265/j.cnki.issn1003-3033.2019.09.007
[7]	GUPTA S, CHAN S. A CFD based explosion risk analysis methodology using time varying release rates in dispersion simulations[J]. Journal of Loss Prevention in the Process Industries, 2016, 39:59-67. doi: 10.1016/j.jlp.2015.11.004
[8]	黄坤, 廖柠, 孔令圳, 等. 基于PHAST软件的站场冷放空燃爆事故模拟分析[J]. 安全与环境学报, 2018, 18(2):555-559.
	HUANG Kun, LIAO Ning, KONG Lingzhen, et al. Simulated analysis of the cold venting deflagration accidents in the gas stations via the PHAST software[J]. Journal of Safety and Environment, 2018, 18(2):555-559.
[9]	LI Xinhong, CHEN Guoming, ZHU Hongwei, et al. Gas dispersion and deflagration above sea from subsea release and its impact on offshore platform[J]. Ocean Engineering, 2018, 163(1):157-168. doi: 10.1016/j.oceaneng.2018.05.059
[10]	LI Xinhong, CHEN Guoming, ZHANG Renren, et al. Simulation and assessment of gas dispersion above sea from a subsea release: a CFD-based approach[J]. International Journal of Naval Architecture and Ocean Engineering, 2019, 11(1):353-363. doi: 10.1016/j.ijnaoe.2018.07.002
[11]	卢盛灿, 张军, 伍斯杰, 等. 海底管道水平方向泄漏实验与数值模拟[J]. 油气储运, 2018, 37(4):469-474.
	LU Shengcan, ZHANG Jun, WU Sijie, et al. Experiments and numerical simulation on the horizontal leakage of submarine pipelines[J]. Oil & Gas Storage and Transportation, 2018, 37(4):469-474.
[12]	YANG Ruochen, KHAN F, YANG Ming, et al. A numerical fire simulation approach for effectiveness analysis of fire safety measures in floating liquefied natural gas facilities[J]. Ocean Engineering, 2018, 157(1):219-233. doi: 10.1016/j.oceaneng.2018.03.052
[13]	李佳航, 杨国梁, 多英全, 等. 基于FLACS的海上钻探平台井喷爆炸事故后果模拟分析[J]. 中国安全生产科学技术, 2022, 18(6):155-161.
	LI Jiahang, YANG Guoliang, DUO Yingquan, et al. Simulation analysis on consequence of blowout and explosion accident on offshore drilling platform based on FLACS[J]. Journal of Safety Science and Technology, 2022, 18(6):155-161.
[14]	YANG Dongdong, CHEN Guoming, DAI Ziliang. Accident modeling of toxic gas-containing flammable gas release and explosion on an offshore platform[J]. Journal of Loss Prevention in the Process Industries, 2020, 65:1-9.
[15]	王秋红, 王力文, 蒋军成, 等. 城镇地埋天然气管道泄漏诱发气云爆炸仿真[J]. 中国安全科学学报, 2021, 31(9):75-82. doi: 10.16265/j.cnki.issn1003-3033.2021.09.011
	WANG Qiuhong, WANG Liwen, JIANG Juncheng, et al. Simulation study on gas explosion induced by gas leakage of urban buried gas pipeline[J]. China Safety Science Journal, 2021, 31(9):75-82. doi: 10.16265/j.cnki.issn1003-3033.2021.09.011
[16]	魏超南, 陈国明, 刘康. 浮式生产系统泄漏天然气爆燃特性与安全区域[J]. 石油学报, 2014, 35(4):786-794. doi: 10.7623/syxb201404023
	WEI Chaonan, CHEN Guoming, LIU Kang. Leakage gas deflagration characteristics and safety area of FPSO[J]. Acta Petrolei Sinica, 2014, 35(4):786-794. doi: 10.7623/syxb201404023
[17]	ANDERSON J. Fundamentals of aerodynamics[M]. NewYork: McGraw-Hill Education, 2016:584-587.
[18]	API Standard 579,Fitness for services[S]. 2000.
[19]	刘茂. 事故风险分析理论与方法[M]. 北京: 北京大学出版社, 2012:786-794.
[20]	刘文鹏, 金良安, 高占胜, 等. 风速梯度对海上可燃气云爆燃特性影响的数值模拟[J]. 中国安全科学学报, 2018, 28(7):58-63. doi: 10.16265/j.cnki.issn1003-3033.2018.07.010
	LIU Wenpeng, JIN Liang'an, GAO Zhansheng, et al. Numerical simulation of influence of wind velocity gradient on deflagration characteristics of offshore flammable gas cloud[J]. China Safety Science Journal, 2018, 28(7):58-63. doi: 10.16265/j.cnki.issn1003-3033.2018.07.010
[21]	凌晓东. 槽车装卸区泄漏爆炸CFD模拟研究[J]. 消防科学与技术, 2018, 37(9):1282-1286.
	LING Xiaodong. CFD simulation on leakage and explosion accident of truck loading station[J]. Fire Science and Technology, 2018, 37(9):1282-1286.
[22]	LI Xinhong, ABBASSI R, CHEN Guoming, et al. Modeling and analysis of flammable gas dispersion and deflagration from offshore platform blowout[J]. Ocean Engineering, 2020, 201:1-12.

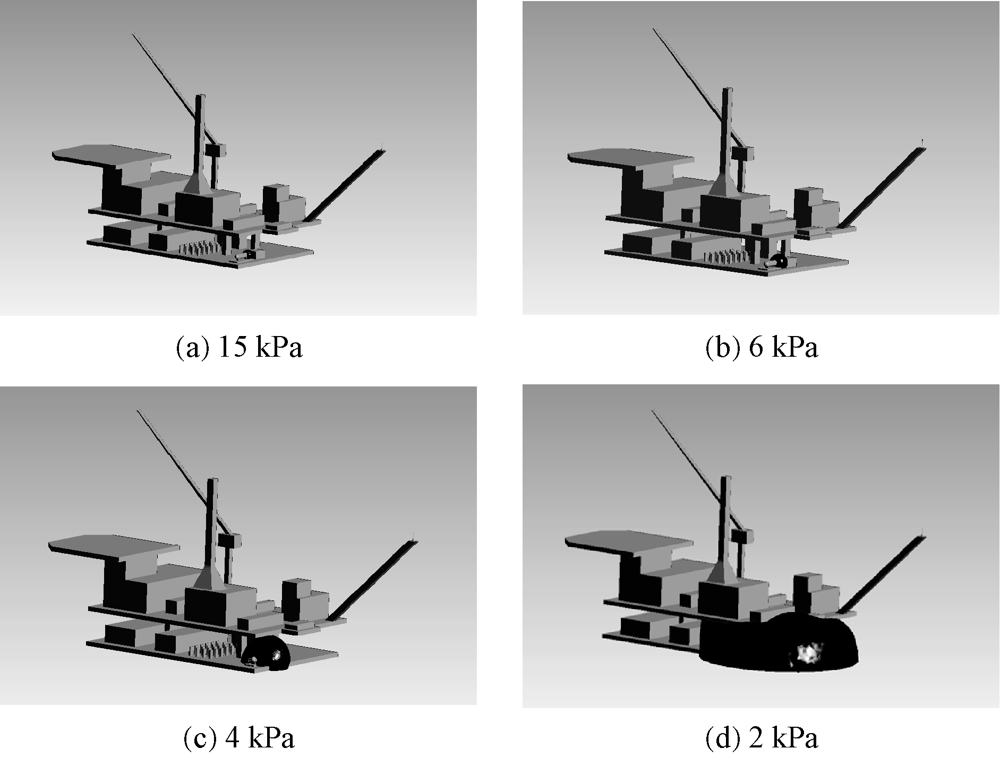

压力/ kPa	点火源左侧覆盖距离/m	覆盖面积/m²	体积/ m³
15	1.9	2.2	2.2
6	2.1	10.1	19.6
4	5.5	45.7	229.1
2	17.5	366.8	5 977.9
