Influence of asperity shapes on friction coefficients of sandstone joints

doi:10.16265/j.cnki.issn1003-3033.2022.04.006

Abstract

Abstract:

In order to analyze influence of asperity shapes on sliding stability of sandstones, a sliding friction test was performed on a self-made device. With asperity shapes of sandstone surface being considered as a regular polygon and asperity shape coefficient being introduced, a prediction model for friction coefficients of sandstone joints, including asperities, was proposed. The results indicate that along with increase in asperity's length, friction coefficients gradually decrease, and their variation range becomes narrower. When the length is constant, friction coefficients gradually decrease with the increase of asperity shape coefficient. And in the case of constant asperity shape coefficient, friction coefficients gradually decrease with increase of length. The predicted friction coefficient is in good agreement with test value when the length is between 2-5 mm.

Key words: asperity shape, sandstone joint, friction coefficient, dilatancy angle, friction angle

WANG Laigui, ZHAO Guochao, LIU Xiangfeng, ZHAO Na, LI Xilin. Influence of asperity shapes on friction coefficients of sandstone joints[J]. China Safety Science Journal, 2022, 32(4): 36-43.

Figures/Tables 13

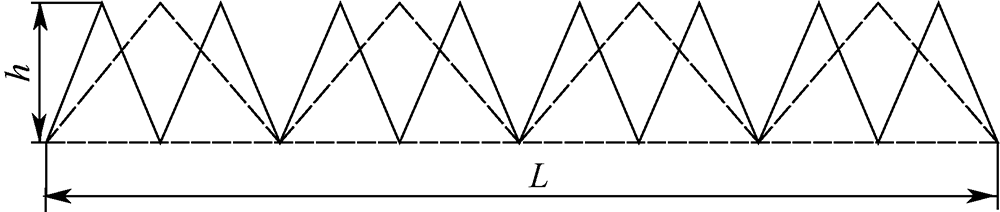

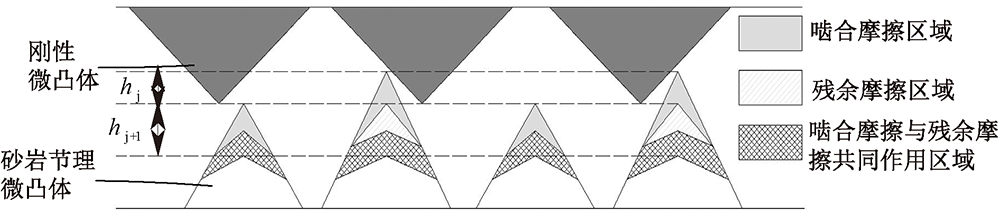

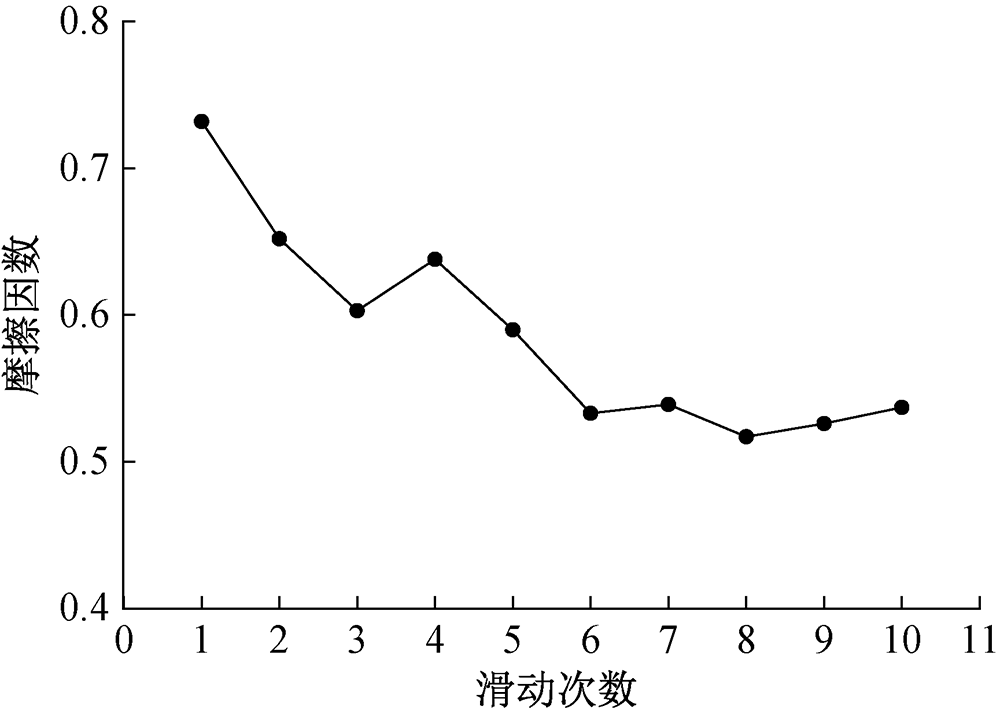

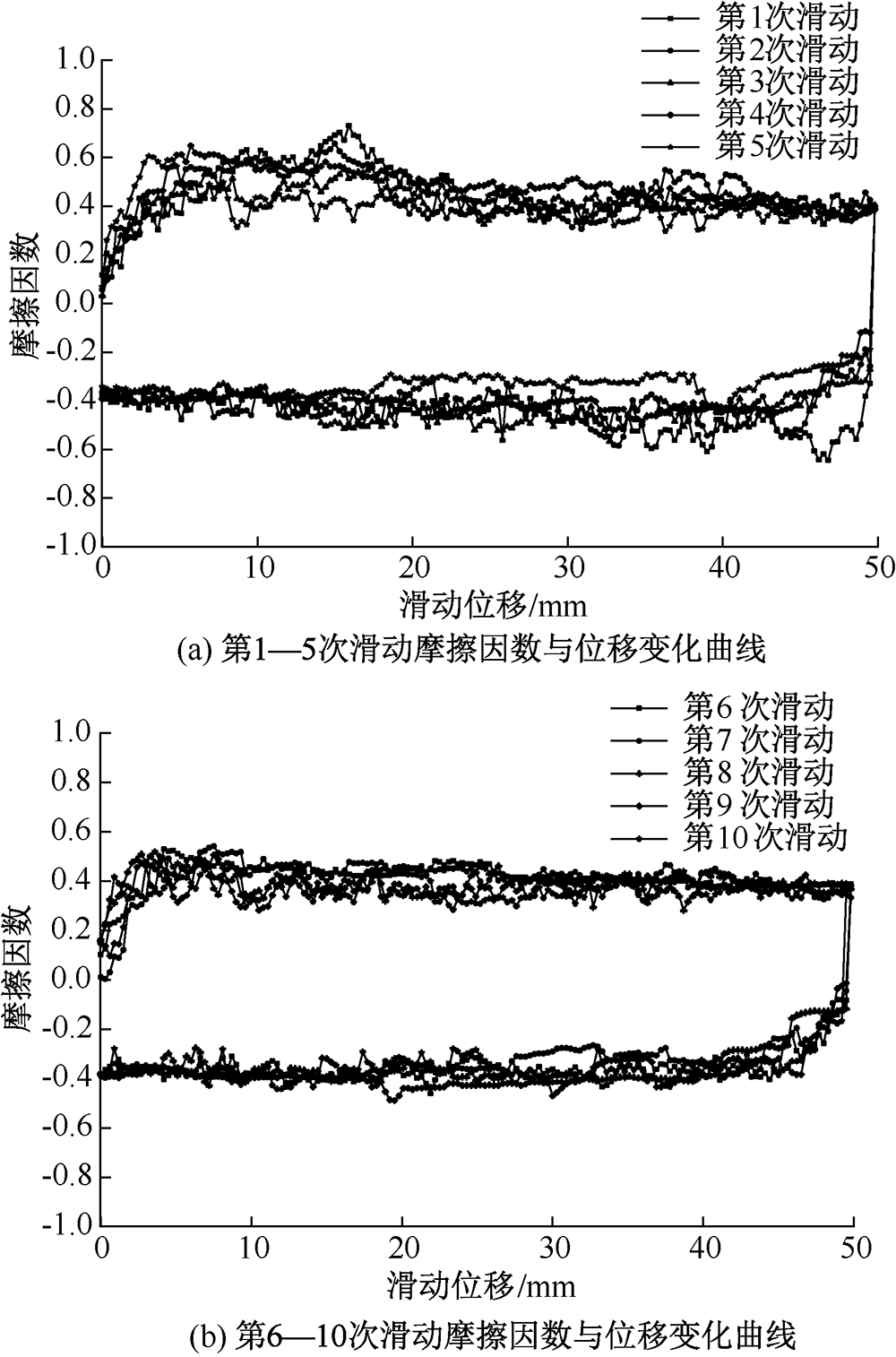

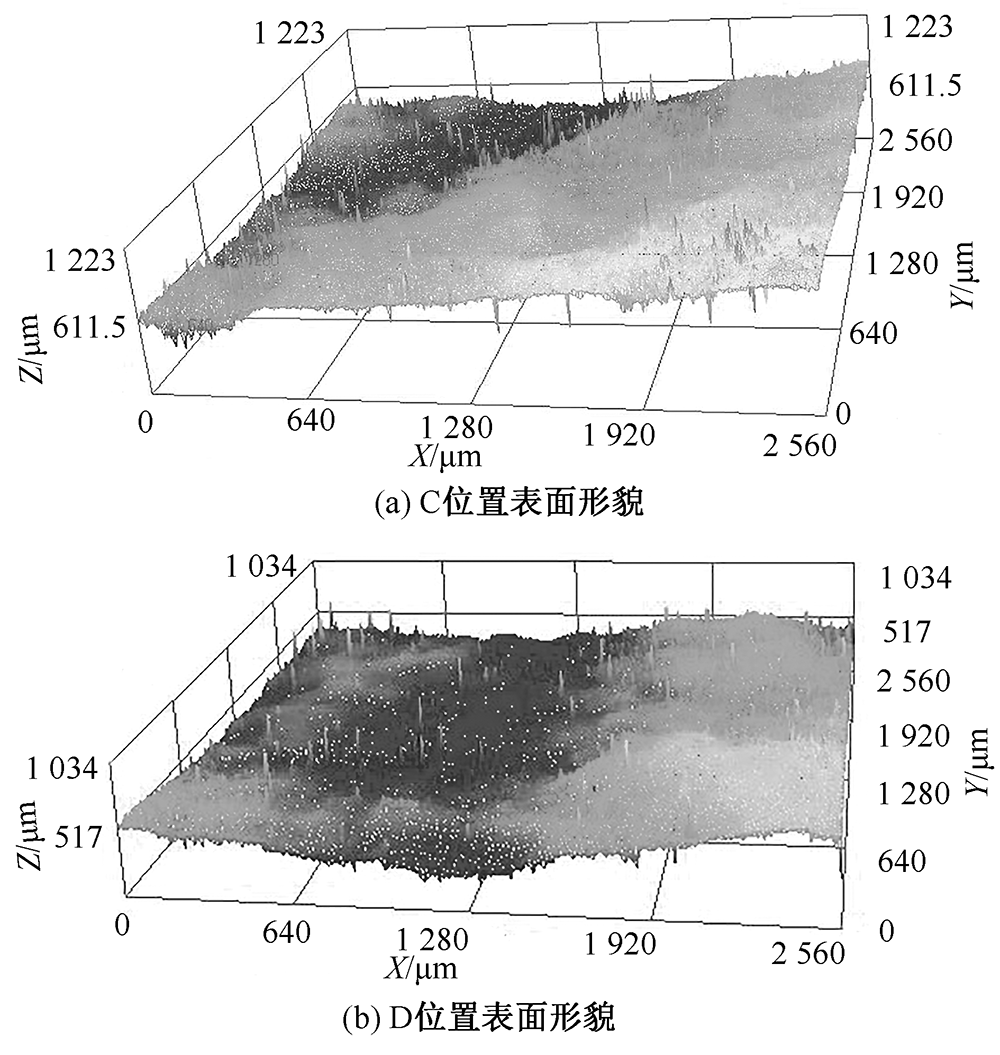

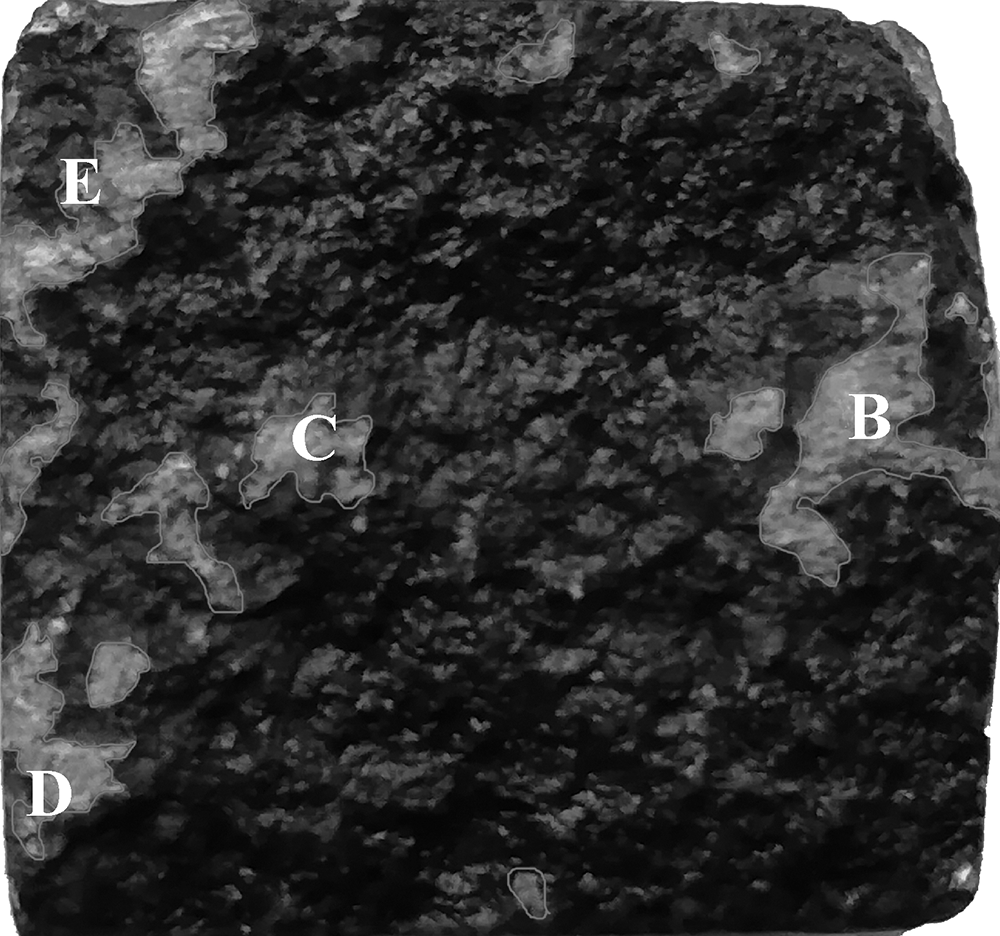

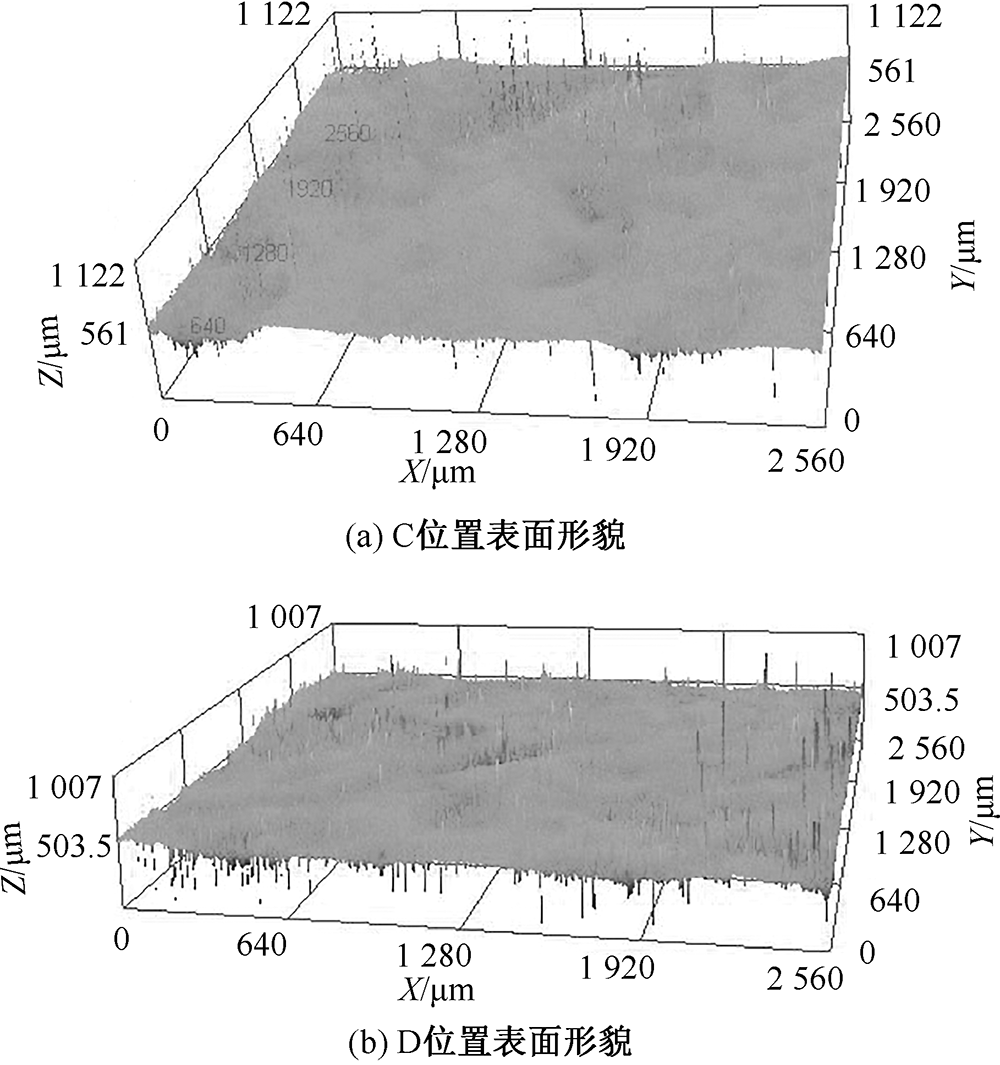

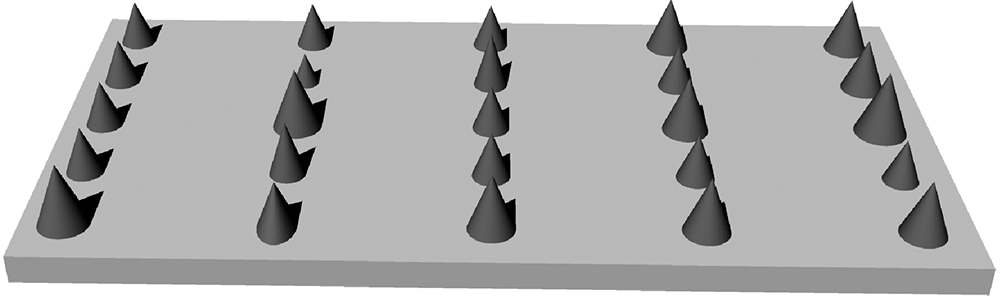

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Tab.1

Tab.2

Tab.3

References 16

[1]	王来贵, 古新蕊. 尾矿坝边坡失稳判据研究[J]. 中国安全科学学报, 2011, 21(8):80-84.
	WANG Laigui, GU Xinrui. Study on instability criterion of tailings dam slope[J]. China Safety Science Journal, 2011, 21(8):80-84.
[2]	王东, 姜聚宇, 刘帅, 等. 露天煤矿边坡相对稳定性判据研究与应用[J]. 中国安全科学学报, 2018, 28(7):76-81. doi: 10.16265/j.cnki.issn1003-3033.2018.07.013
	WANG Dong, JIANG Juyu, LIU Shuai, et al. Research on slope relative stability criterion and its application in open-pit coal mine[J]. China Safety Science Journal, 2018, 28(7):76-81. doi: 10.16265/j.cnki.issn1003-3033.2018.07.013
[3]	周子涵, 陈忠辉, 包敏, 等. 顺倾断续节理岩质边坡的稳定性突变[J]. 煤炭学报, 2020, 45(增1):161-172.
	ZHOU Zihan, CHEN Zhonghui, BAO Min, et al. Stability of rock slope with bedding intermittent joints based on catastrophe theory[J]. Journal of China Coal Society, 2020, 45(S1):161-172.
[4]	BATTON N. Review of a new shear-strength criterion for rock joints[J]. Engineering Geology, 1973, 7(4):287-332. doi: 10.1016/0013-7952(73)90013-6
[5]	HABERFIELD C M, JOHNSTONI W. A mechanistically-based model for rough rock joints[J]. International Journal of Rock Mechanics & Mining Sciences & Geomechanics Abstracts, 1994, 31(4):279-292.
[6]	HUANG T H, CHANG C S, CHAO C Y. Experimental and mathematical modeling for fracture of rock joint with regular asperities[J]. Engineering Fracture Mechanics, 2002, 69(17):1977-1996. doi: 10.1016/S0013-7944(02)00072-3
[7]	GU Xuefan, SEIDEL J P, HABERFIELD C M. Direct shear test of sandstone-concrete joints[J]. International Journal of Geomechanics, 2003, 3(1):21-33. doi: 10.1061/(ASCE)1532-3641(2003)3:1(21)
[8]	MULVIHILL D M, KARTAL M E, NOWELL D, et al. An elastic-plastic asperity interaction model for sliding friction[J]. Tribology International, 2011, 44(12):1679-1694. doi: 10.1016/j.triboint.2011.06.018
[9]	VAND L G, DEROOIJ M B, SCHIPPERD J. Stability criteria for a pyramidal shaped asperity ploughing through a plastically deforming substrate[J]. Wear, 2013, 300(1/2):96-104. doi: 10.1016/j.wear.2013.01.119
[10]	HOMAND F, BELEM T, SOULEY M. Friction and degradation of rock joint surfaces under shear loads[J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2001, 25:973-999. doi: 10.1002/nag.163
[11]	YANG Z Y, CHIANG D Y. An experimental study on the progressive shear behavior of rock joints with tooth-shaped asperities[J]. International Journal of Rock Mechanics & Mining Sciences, 2000, 37(8):1247-1259.
[12]	JOHANSSON F, HAKAN S. A conceptual model for the peak shear strength of fresh and unweathered rock joints[J]. International Journal of Rock Mechanics and Mining Sciences, 2014, 69:31-38. doi: 10.1016/j.ijrmms.2014.03.005
[13]	OH J, CORDING E J, MOON T. A joint shear model incorporating small-scale and large-scale irregularities[J]. International Journal of Rock Mechanics and Mining Sciences, 2015, 76:78-87. doi: 10.1016/j.ijrmms.2015.02.011
[14]	JOHANSSON F. Influence of scale and matedness on the peak shear strength of fresh, unweathered rock joints[J]. International Journal of Rock Mechanics and Mining Sciences, 2016, 82(1):36-47. doi: 10.1016/j.ijrmms.2015.11.010
[15]	赵永武, 吕彦明, 蒋建忠. 新的粗糙表面弹塑性接触模型[J]. 机械工程学报, 2007, 43(3):95-101.
	ZHAO Yongwu, LYU Yanming, JIANG Jianzhong. New elastic-plastic model for the contact of rough surfaces[J]. Chinese Journal of Mechanical Engineering, 2007, 43(3):95-101.
[16]	ZHAO Guochao, WANG Laigui, ZHAO Na, et al. Analysis of the variation of friction coefficient of sandstone joint in sliding[J]. Advances in Civil Engineering, 2020:DOI: 10.1155/2020/8863960. doi: 10.1155/2020/8863960

微凸体长度λ/mm	1.11	1.25	1.43	1.67	2.0	2.50	3.33	5.0	10.0
正三棱锥	3.391	2.786	2.293	1.884	1.539	1.243	0.988	0.765	0.568
正四棱锥	1.827	1.602	1.399	1.215	1.048	0.895	0.754	0.625	0.505
正五棱锥	1.513	1.348	1.196	1.056	0.925	0.804	0.691	0.586	0.487
正六棱锥	1.386	1.243	1.111	0.988	0.873	0.765	0.664	0.568	0.479
圆锥	1.169	1.063	0.963	0.869	0.779	0.694	0.614	0.537	0.464

c,K值误差	K=1.0	K=1.2	K=1.4	K=1.6	K=1.8	K=2.0	K=2.2	K=2.4	K=2.6	K=2.8
c=1.0	9.18	7.23	5.72	4.94	4.65	4.63	4.80	5.62	7.28	9.04
c=1.2	7.49	5.42	4.39	4.20	4.31	4.56	5.80	7.68	9.56	11.44
c=1.4	5.77	3.99	3.72	4.00	4.38	5.89	7.89	9.88	11.88	14.05
c=1.6	4.04	3.33	3.64	4.22	5.77	7.89	10.01	12.28	14.61	16.94
c=1.8	2.95	3.22	4.01	5.44	7.68	10.02	12.48	14.95	17.41	19.87
c=2.0	2.75	3.70	5.05	7.26	9.86	12.46	15.06	17.66	20.26	22.86

微凸体形状	正三棱锥	正四棱锥	正五棱锥	正六棱锥	圆锥
微凸体长度/mm	5.0	3.33	3.33	2.5	2.0
第一次滑动初始剪胀角/(°)	15.91	15.52	13.15	15.91	16.42
基础摩擦角/(°)	21.5	21.5	21.5	21.5	21.5
K=1.0时误差/%	9.89	10.43	13.56	9.89	9.18
误差最小时c、K的取值	c=2.0,K=1.0	c=2.0,K=1.0	c=2.0,K=1.4	c=2.0,K=1.0	c=2.0,K=1.0
最小误差/%	2.74	2.85	3.30	2.74	2.75
