Interval non-probabilistic reliability analysis of support structures for deep tunnel

doi:10.16265/j.cnki.issn1003-3033.2023.12.0546

Abstract

Abstract:

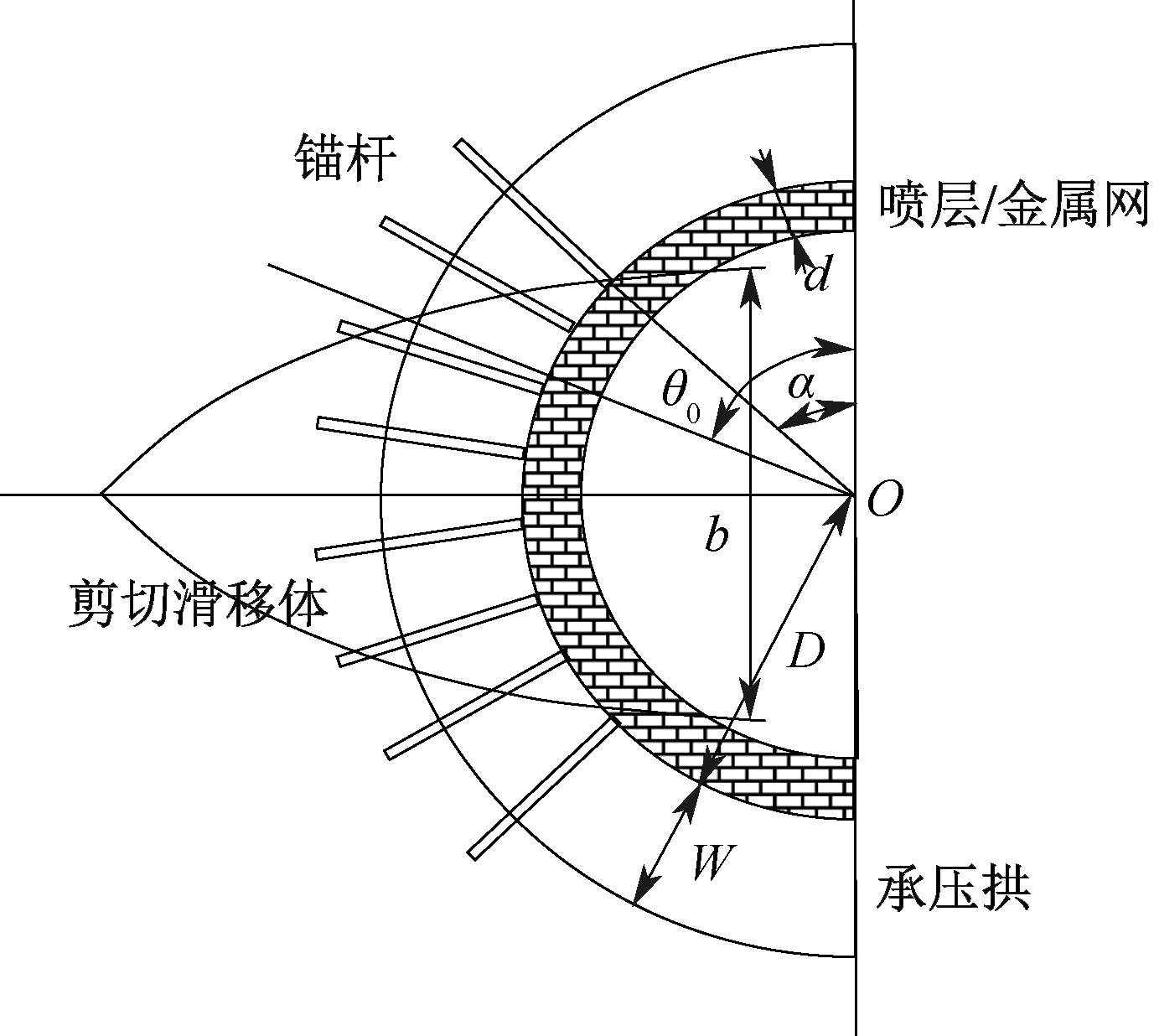

Aiming at the current situation of a lack of uncertain data, an interval non-probabilistic tool was introduced to perform a preliminary investigation in the domain of reliability analysis for the support structures of the deep tunnel. Firstly, the mechanism of the shearing slip displacement in the weak rock surrounding the deep tunnel was taken as an illustrative example, and a method was developed to calculate the total support resistance by using the combined support modes. Subsequently, based on the framework of the interval non-probabilistic theory, and meanwhile considering the influence caused by the interval extension problem, the applicability of the interval non-probabilistic tool was discussed for reliability study on the support structures of the deep tunnel. Eventually, a fluctuation range was defined to characterize the variations of the interval used for those uncertain parameters, and on this basis the difference for the level of those effects of fluctuations regarding a single-parameter and multiple-parameters coupling on the reliability of the support structures was revealed via the sensitivity analyses. The results manifest that the greater the fluctuation range of the interval for the uncertain parameters, the smaller the value of the non-probabilistic reliability index will be. Moreover, the larger the number of uncertain parameters involved in the fluctuation coupling, the higher the decrease in the value of the non-probabilistic reliability index will be. Hence, this situation makes the unfavorable effects on the reliability of the support structures more significant.

Key words: deep tunnel, support structures, interval non-probability, reliability, sensitivity analysis, multi-parameters fluctuation coupling

LI Xiang, WEI Heng, WANG Jingtong. Interval non-probabilistic reliability analysis of support structures for deep tunnel[J]. China Safety Science Journal, 2023, 33(12): 67-76.

Figures/Tables 11

Fig.1

Tab.1

Fig.2

Fig.3

Tab.2

Tab.3

Fig.4

Tab.4

Fig.5

Fig.6

Tab.5

References 24

[1]	何满潮, 任树林, 陶志刚. 深埋隧道灾变防控方法[J]. 工程地质学报, 2022, 30(6): 1777-1797.
	HE Manchao, REN Shulin, TAO Zhigang. Disaster prevention and control methods for deep buried tunnels[J]. Journal of Engineering Geology, 2022, 30(6): 1777-1797.
[2]	高召宁, 陈登国, 孙振川, 等. 考虑损伤和扩容影响的隧洞围岩稳定性分析[J]. 中国安全科学学报, 2020, 30(7): 159-165. doi: 10.16265/j.cnki.issn1003-3033.2020.07.024
	GAO Zhaoning, CHEN Dengguo, SUN Zhenchuan, et al. Stability analysis of tunnel surrounding rock considering influence of damage and dilatancy[J]. China Safety Science Journal, 2020, 30(7):159-165. doi: 10.16265/j.cnki.issn1003-3033.2020.07.024
[3]	王新丰, 何毅, 陆明远, 等. 开挖卸荷扰动深部巷道围岩变形破坏特征研究[J]. 中国安全科学学报, 2021, 31(8): 83-90. doi: 10.16265/j.cnki.issn1003-3033.2021.08.012
	WANG Xinfeng, HE Yi, LU Mingyuan, et al. Study on deformation and failure characteristics of deep roadway surrounding rock under excavation unloading disturbance[J]. China Safety Science Journal, 2021, 31(8): 83-90. doi: 10.16265/j.cnki.issn1003-3033.2021.08.012
[4]	ZHU Hehua, YAN Jinxiu, LIANG Wenhao. Challenges and development prospects of ultra-long and ultra-deep mountain tunnels[J]. Engineering, 2019, 5(3): 384-392. doi: 10.1016/j.eng.2019.04.009
[5]	景诗庭, 朱永全, 宋玉香. 隧道结构可靠度[M]. 北京: 中国铁道出版社, 2002: 61-84.
[6]	李翔. 隧道工程稳定可靠度计算分析方法[M]. 长沙: 中南大学出版社, 2017: 32-111.
	LI Xiang. Analysis methods of reliability calculations for stability in tunnel engineering[M]. Changsha: Central South University Press, 2017: 32-111.
[7]	李世煇. 隧道支护设计新论:典型类比分析法应用和理论[M]. 北京: 科学出版社, 1999: 1-47.
	LI Shihui. A new concept of tunnel support design-application and theory of precedent type analysis[M]. Beijing: Science Press, 1999: 1-47.
[8]	TIAN Huaming, WANG Yu. Data-driven and physics-informed Bayesian learning of spatiotemporally varying consolidation settlement from sparse site investigation and settlement monitoring data[J]. Computers and Geotechnics, 2023, 157: DOI:10.1016/j.compgeo.2023.105328.
[9]	王晓军, 王磊, 李云龙, 等. 飞行器复合材料结构非概率可靠性优化设计[M]. 北京: 科学出版社, 2020: 167-185.
[10]	FINA M, LAUFF C, FAES M G R, et al. Bounding imprecise failure probabilities in structural mechanics based on maximum standard deviation[J]. Structural Safety, 2023, 101: DOI:10.1016/j.strusafe.2022.102293.
[11]	MO Jiang, YAN Wangji, YUEN Kaveng, et al. Efficient inner-outer decoupling scheme for non-probabilistic model updating with high dimensional model representation and Chebyshev approximation[J]. Mechanical Systems and Signal Processing, 2023, 188: DOI:10.1016/j.ymssp.2022.110040.
[12]	苏永华, 何满潮, 曹文贵. 岩体地下结构围岩稳定非概率可靠性的凸集合模型分析方法[J]. 岩石力学与工程学报, 2005, 24(3): 377-383.
	SU Yonghua, HE Manchao, CAO Wengui. Non-probabilistic reliability convex model method for stability analysis of surrounding rock mass of underground structure[J]. Chinese Journal of Rock Mechanics & Engineering, 2005, 24(3): 377-383.
[13]	DONG Longjun, SUN Daoyun, LI Xibing, et al. Interval non-probabilistic reliability of surrounding jointed rock mass considering microseismic loads in mining tunnels[J]. Tunnelling and Underground Space Technology, 2018, 81: 326-335. doi: 10.1016/j.tust.2018.06.034
[14]	LI Xiang, LI Xibing, ZHOU Zilong, et al. A non-probabilistic information-gap approach to rock tunnel reliability assessment under severe uncertainty[J]. Computers and Geotechnics, 2021, 132(1/2): DOI:10.1016/j.compgeo.2020.103940.
[15]	孟波, 靖洪文, 陈坤福, 等. 软岩巷道围岩剪切滑移破坏机理及控制研究[J]. 岩土工程学报, 2012, 34(12):2255-2262.
	MENG Bo, JING Hongwen, CHEN Kunfu, et al. Shear and slip failure mechanism and control of tunnels with weak surrounding rock[J]. Chinese Journal of Geotechnical Engineering, 2012, 34(12):2255-2262.
[16]	谢亦朋, 杨秀竹, 阳军生, 等. 松散堆积体隧道围岩变形破坏细观特征研究[J]. 岩土力学, 2019, 40(12): 4925-4934.
	XIE YiPeng, YANG Xiuzhu, YANG Junsheng, et al. Mesoscopic characteristics of deformation and failure on surrounding rocks of tunnel through loose deposits[J]. Rock and Soil Mechanics, 2019, 40(12):4925-4934.
[17]	LIU Yuanxue, ZHENG Yingren. Plastic mechanics of geomaterial[M]. Beijing: Science Press, 2019: 221-247.
[18]	孟国涛, 侯靖, 陈建林, 等. 巨型地下洞室脆性围岩高应力破裂防治措施研究[J]. 地下空间与工程学报, 2019, 15(1): 247-255.
	MENG Guotao, HOU Jing, CHEN Jianlin, et al. Study on the prevention and control measures of high stress fracture in the brittle surrounding rock of the giant underground cavern[J]. Chinese Journal of Underground Space and Engineering, 2019, 15(1): 247-255.
[19]	马栋, 孙毅, 王武现, 等. 高地应力软岩隧道大变形控制关键技术[J]. 隧道建设:中英文, 2021, 41(10): 1634-1643.
	MA Dong, SUN Yi, WANG Wuxian, et al. Key technologies for controlling large deformation of soft rock tunnels with high geostress[J]. Tunnel Construction, 2021, 41(10): 1634-1643.
[20]	王后裕, 陈上明, 言志信. 地下工程动态设计原理[M]. 北京: 化学工业出版社, 2008: 171-177.
[21]	司天琪, 苏永华, 肖旺. 基于Info-gap理论的支护围岩稳健可靠性分析[J]. 岩土力学, 2017, 38(3): 827-832, 910.
	SI Tianqi, SU Yonghua, XIAO Wang. Robust reliability analysis of support surrounding rock based on Info-gap theory[J]. Rock and Soil Mechanics, 2017, 38(3): 827-832, 910.
[22]	郭书祥, 吕震宙, 冯元生. 基于区间分析的结构非概率可靠性模型[J]. 计算力学学报, 2001, 18(1):56-60.
	GUO Shuxiang, LYU Zhenzhou, FENG Yuansheng. A non-probabilistic model of structural reliability based on interval analysis[J]. Chinese Journal of Computational Mechanics, 2001, 18(1):56-60.
[23]	吕震宙, 冯蕴雯, 岳珠峰. 改进的区间截断法及基于区间分析的非概率可靠性分析方法[J]. 计算力学学报, 2002, 19(3): 260-264.
	LYU Zhenzhou, FENG Yunwen, YUE Zhufeng. An advanced interval-truncation approach and non-probabilistic reliability analysis based on interval analysis[J]. Chinese Journal of Computational Mechanics, 2002, 19(3): 260-264.
[24]	MOORE R E, KEARFOTT B R, CLOUD M J. Introduction to interval analysis[M]. Philadelphia: Society for Industrial and Applied Mathematics, 2009: 197-223.

围岩及支护结构参数			取值
不确定性参数	围岩参数	c/MPa	[0.53, 0.61]
		φ/(°)	[33.6, 36.4]
		q₀/MPa	[16.45, 18.55]
		(θ₁-θ₂)/(°)	[120, 130]
	支护结构参数	d/m	[0.331, 0.381]
		A/m	[0.17, 0.23]]
		S_e/m	[0.76, 0.84]
		S_t/m	[0.76, 0.84]
确定性参数		τ_f /MPa	3.2
	I_Q/mm²		50.26
	τ_j /MPa		150
	I_G/mm²		452.39
	σ_k/MPa		360

不确定性参数	F	η降幅
φ	0.07 ~ 0.20	0.799 8
(θ₁-θ₂)		0.012 2
c		0.493 6
S_t		0.457 1
S_e		0.368 9
q₀		0.012 2
d		0.160 1
A		0.028 9

双参数波动耦合	F	η降幅
φ,c	0.07 ~ 0.20	0.903 0
φ,S_t		0.887 1
φ,S_e		0.854 4
c,S_t		0.771 0
c,S_e		0.704 2
S_t,S_e		0.672 0

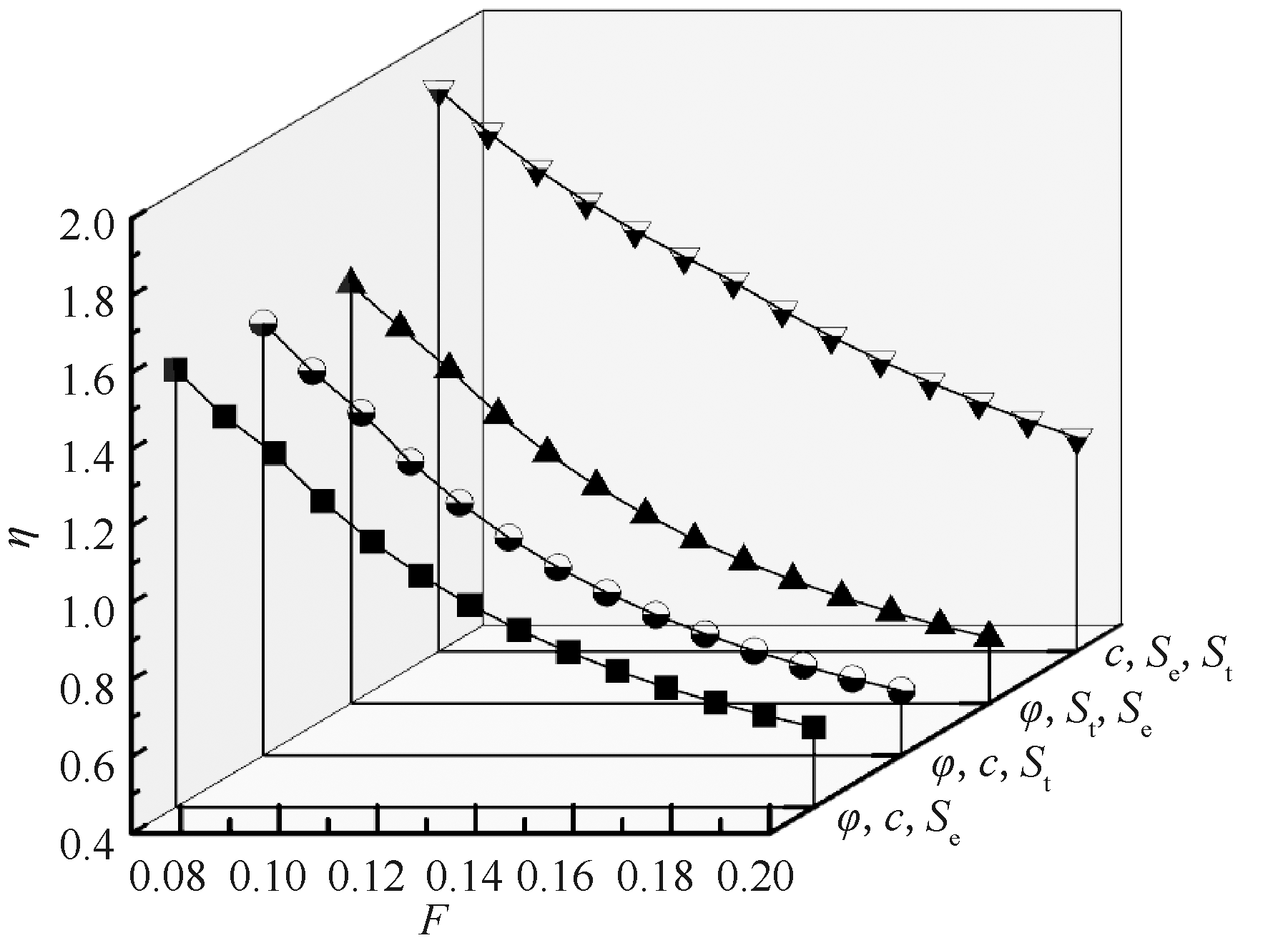

三参数波动耦合	F	η降幅
c,φ,S_e	0.07 ~ 0.20	0.930 9
c,φ,S_t		0.956 1
c,S_e,S_t		0.905 3
φ,S_e,S_t		0.918 9

单参数波动与多参数波动耦合	F	η降幅
φ	0.07 ~ 0.20	0.799 8
φ,c		0.903 0
φ,c,S_t		0.956 1
φ,c,S_t,S_e		0.970 9
