Prediction of motion stability of large shovel hydraulic excavators based on ADAMS

doi:10.16265/j.cnki.issn1003-3033.2023.S2.0033

Abstract

Abstract:

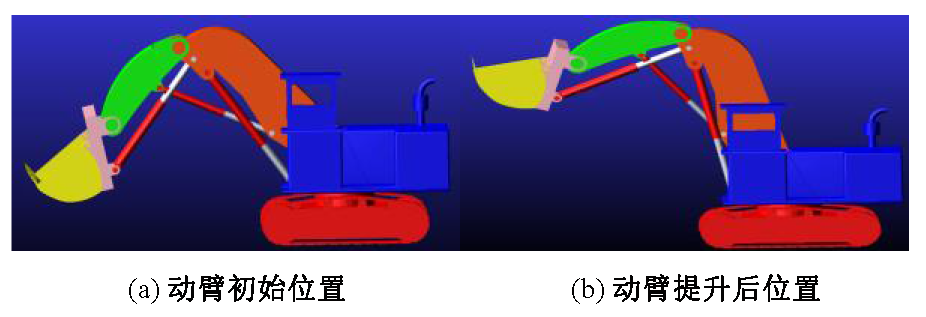

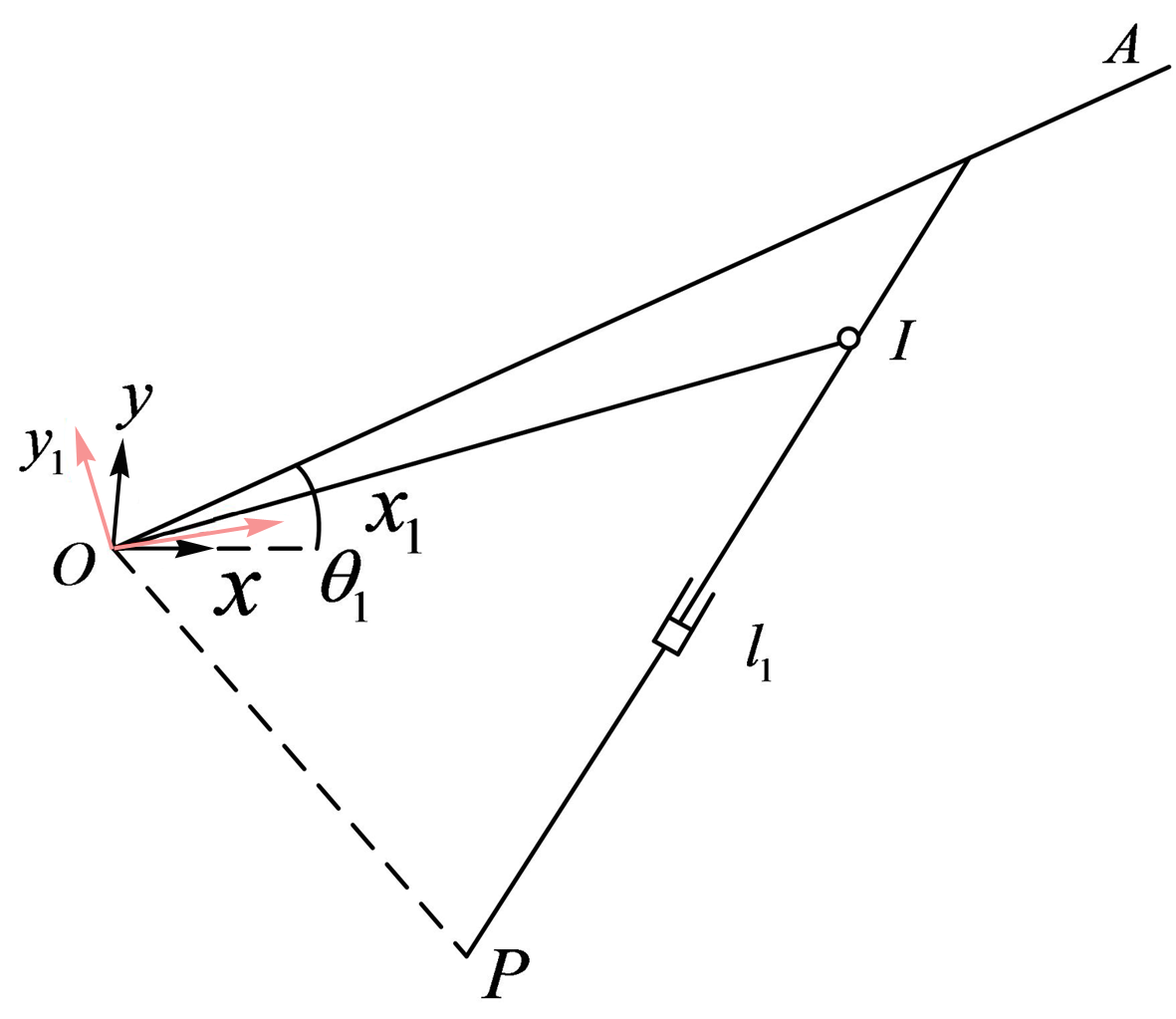

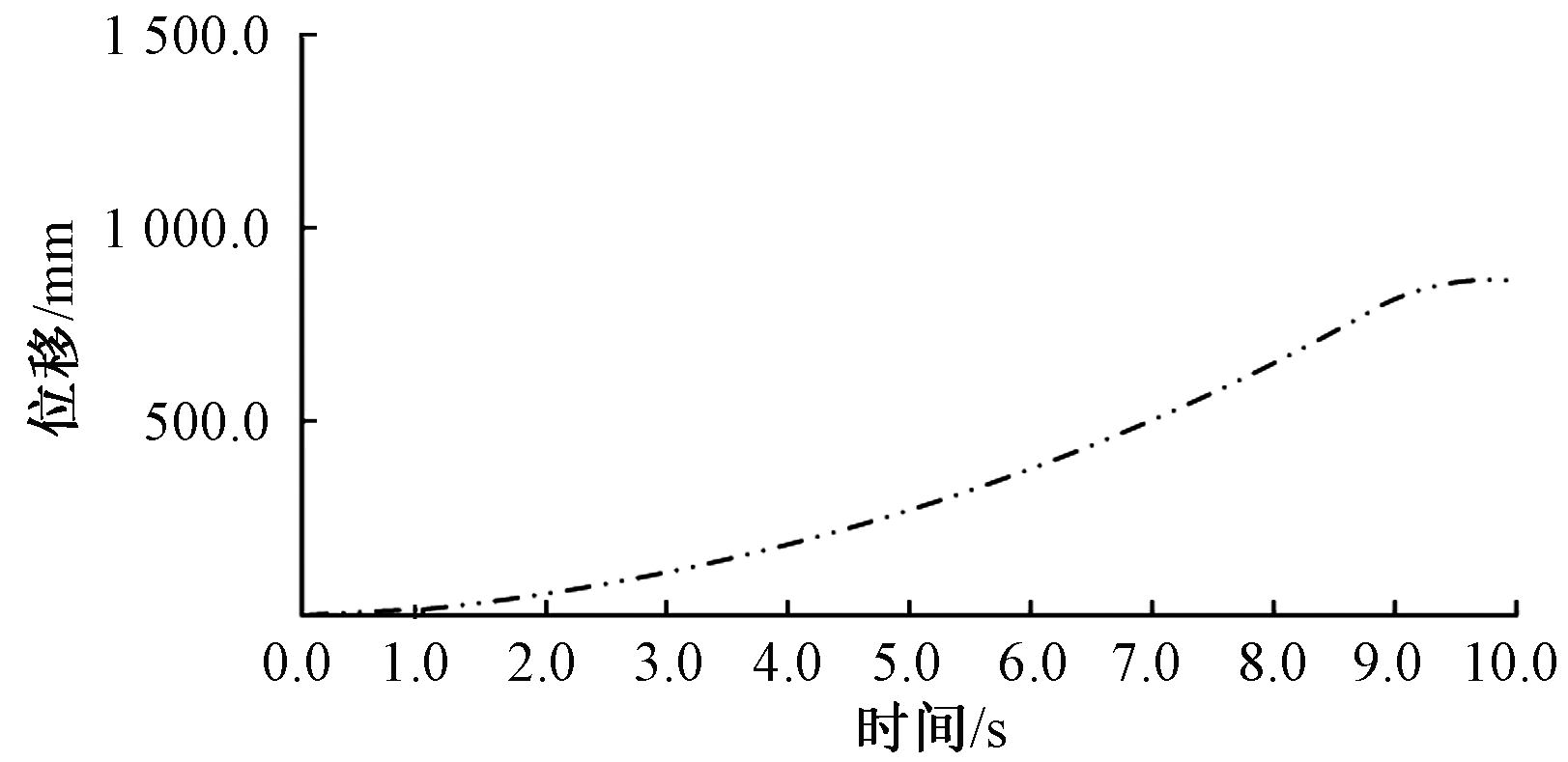

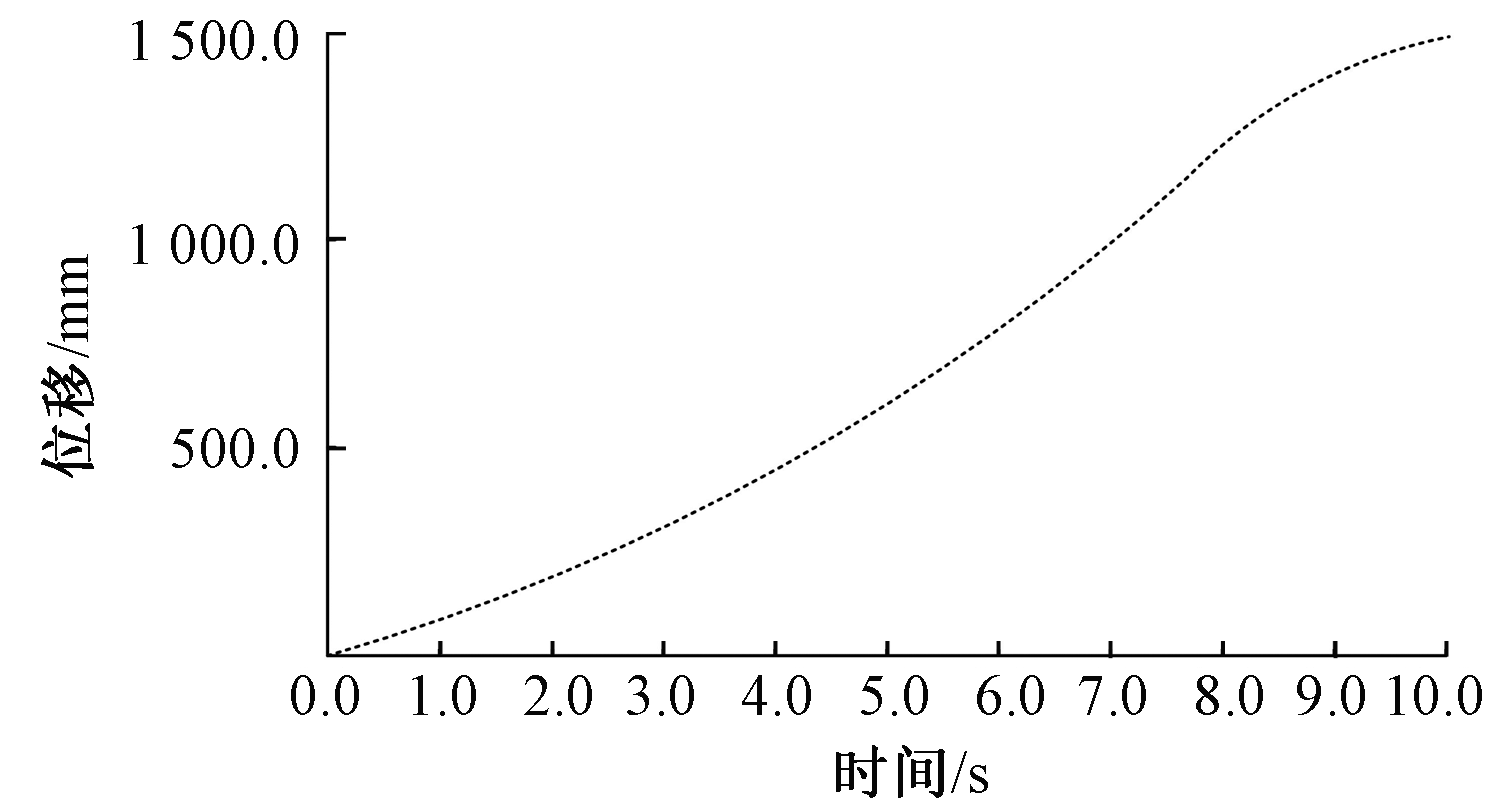

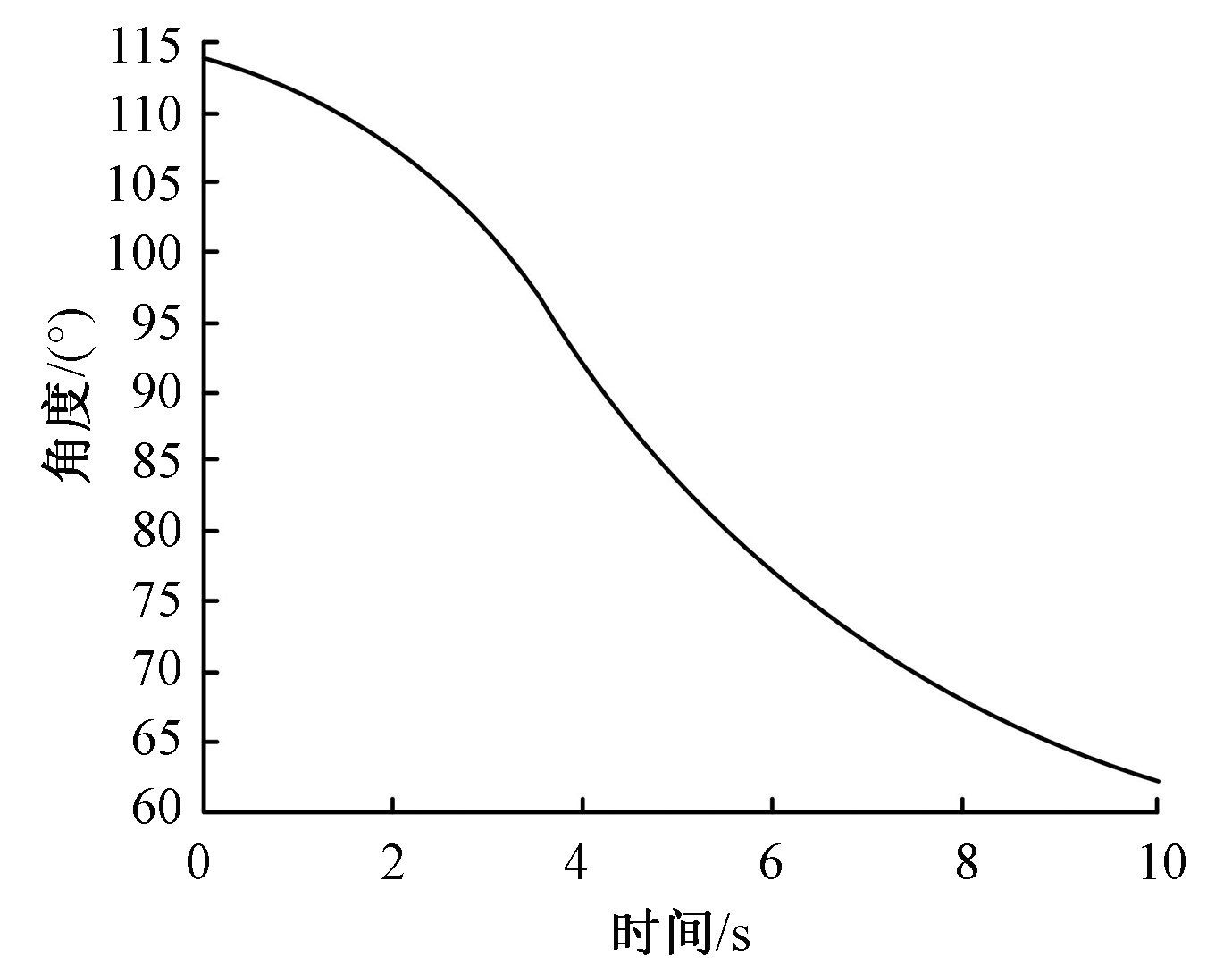

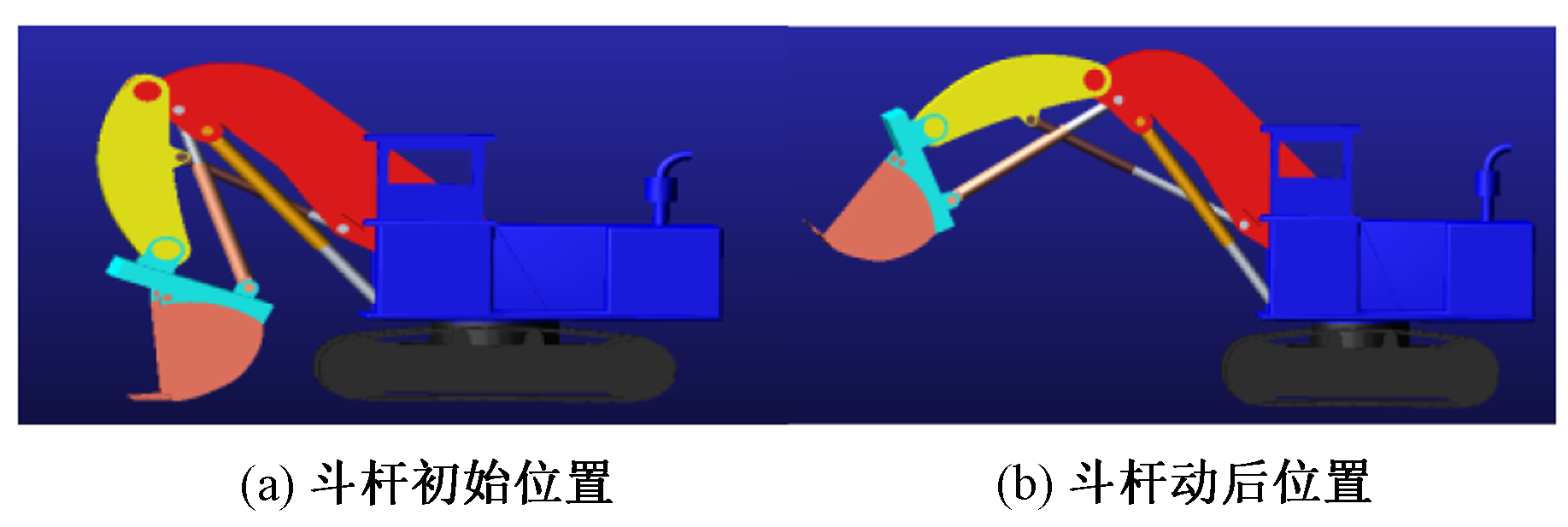

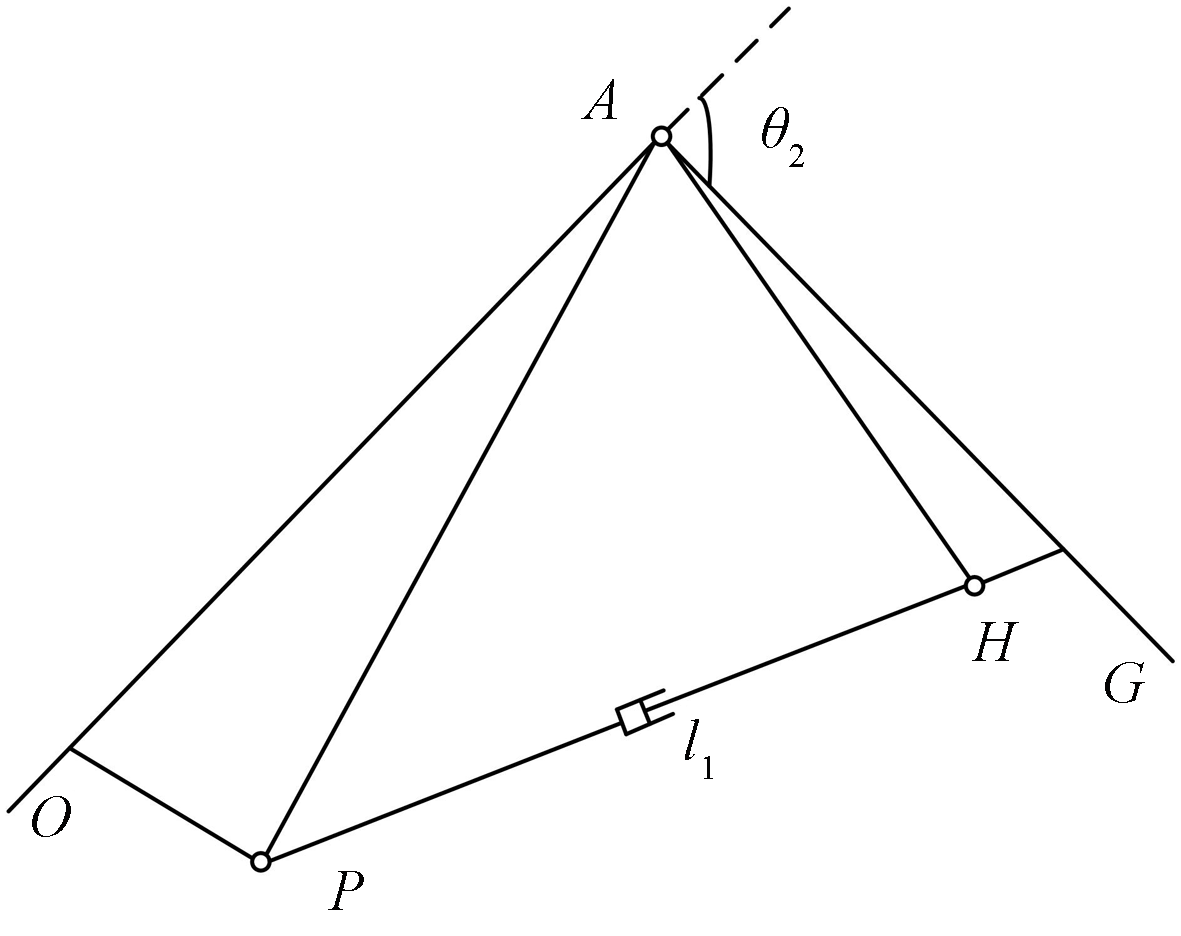

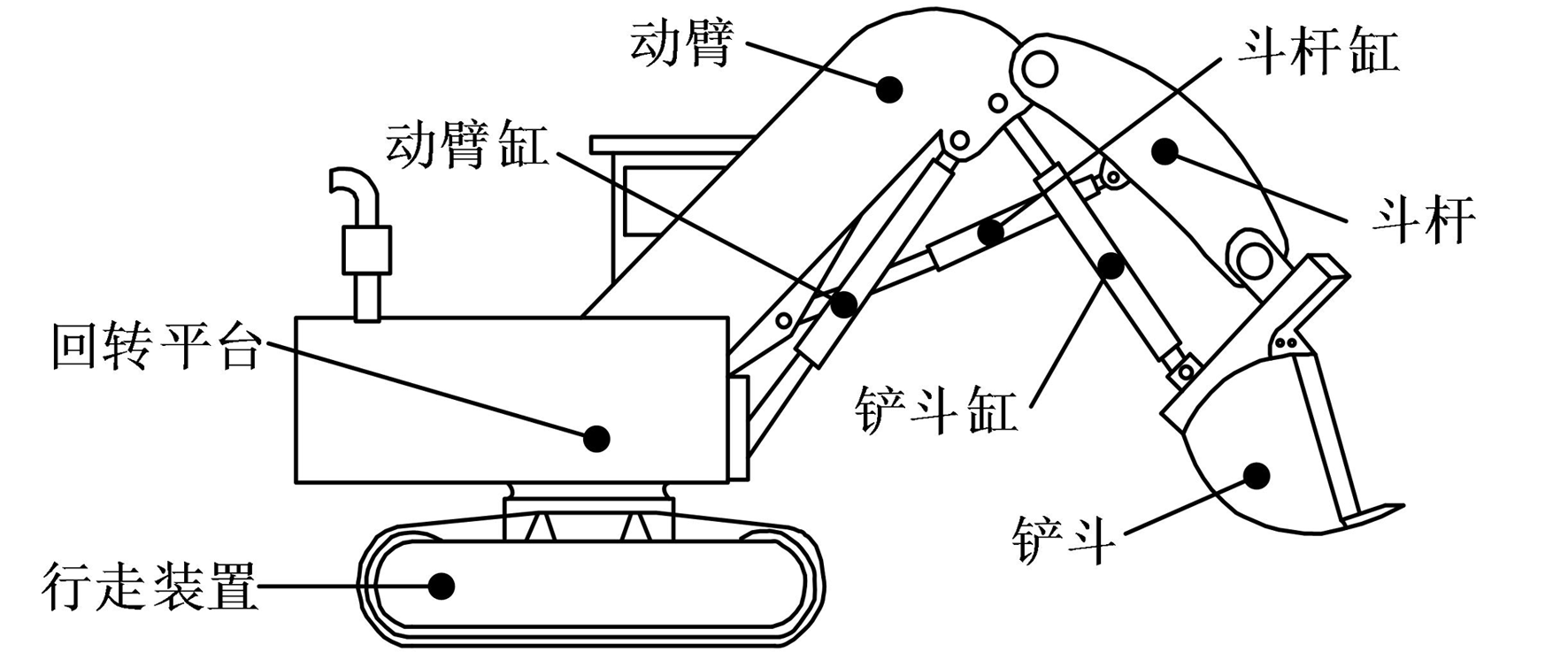

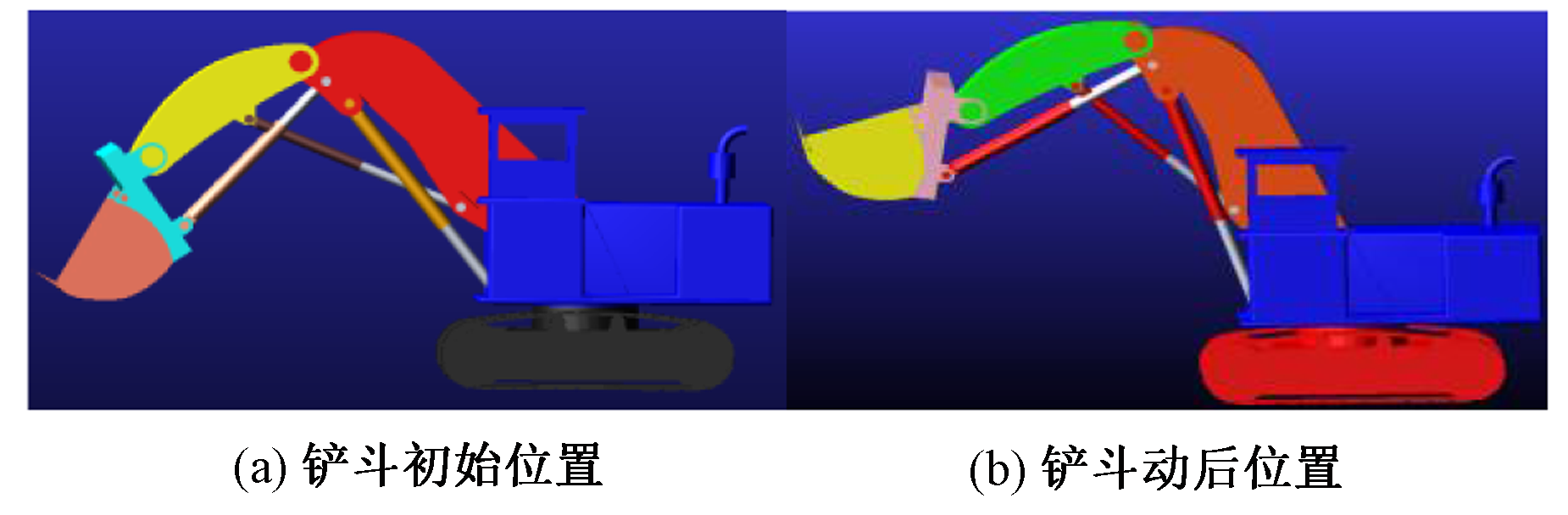

In order to improve the controllability and stability of the working device of a large shovel hydraulic excavator, the working device of a 350 t shovel hydraulic excavator was studied. Firstly, the basic structure of the shovel hydraulic excavator was introduced. Based on the D-H method, the forward and inverse kinematics solutions of the working device were solved, and the coordinates of each hinge point of the excavator working device and the displacement and angle change functions of the boom, bucket rod, and bucket cylinders were obtained. Then, the software Matlab was used to verify the displacement and angle function model, and the function change curve was obtained. Finally, SolidWorks and ADAMS were used to establish a virtual prototype of a 350 t large shovel hydraulic excavator. The kinematics simulation of the boom cylinder, bucket rod cylinder, and bucket cylinder of the working device was carried out, and the displacement curve was drawn. The simulation curve obtained by comparative analysis was compared with the function model curve obtained by Matlab. The results show that the displacement function curves of the boom, bucket rod, and bucket cylinder obtained by the D-H method are basically consistent with the simulation curves obtained by ADAMS simulation. The accuracy of the theoretical value and the simulation value is proved.

Key words: shovel hydraulic excavator, boom cylinder, bucket rod cylinder, bucket cylinder, D-H method, automatic dynamic analysis of mechanical systems (ADAMS)

CLC Number:

X936

JIA Feng, SU Honggang, RONG Bao, WEI Zhidan, WEI Lidong. Prediction of motion stability of large shovel hydraulic excavators based on ADAMS[J]. China Safety Science Journal, 2023, 33(S2): 128-134.

Figures/Tables 18

Fig.1

Fig.2

Tab.1

Fig.3

Fig.4

Fig.5

Tab.2

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

Fig.15

Fig.16

References 9

[1]	史青录. 液压挖掘机[M]. 北京: 机械工业出版社,2012:4-5.
[2]	陈正利. 我国挖掘机行业的行成与发展、现状及前景[J]. 建设机械技术与管理, 2004, 17(11):25-29.
	CHEN Zhengli. Formation, development,current situation and outlook of excavator industry in China.[J]. Construction Machinery Technology and Management, 2004, 17(11):25-29.
[3]	张永明, 刘吉亮. 大型正铲式挖掘机的发展与进步[J]. 机械管理开发, 2009, 24(6):38-39.
	ZHANG Yongming, LIU Jiliang. Development and advancement of the excavators in mine[J]. Machinery Management Development, 2009, 24(6):38-39.
[4]	DING Huanfeng, HAN Lei, YANG Wenjian, et al. Kinematics and dynamics analyses of a new type face shovel hydraulic excavator[J]. Proceedings of the Institution of Mechanical Engineers, Part C: Journal of Mechanical Engineering Science, 2017, 231(5): 909-924. doi: 10.1177/0954406215625675
[5]	聂保珍. 正铲挖掘装置运动分析及控制系统研究[D]. 秦皇岛: 燕山大学, 2017.
	NIE Baozhen. Research on motion analysis and control system of face-shovel digging device[D]. Qinhuangdao: Yanshan University, 2017.
[6]	张俊, 孙树礼, 谭孝天. 基于NX的挖掘机关键部件参数化设计系统构建与分析[J]. 煤炭技术, 2019, 38(6): 132-135.
	ZHANG Jun, SUN Shuli, TAN Xiaotian. Construction and simulation of parametric design system for excavator key components based on NX[J]. Coal Technology, 2019, 38(6): 132-135.
[7]	LYU Guangming, XU Guosheng, XIE Shuai. Dynamics analysis and fuzzy control for the working device of hydraulic excavator[C]. International Conference on Oriental Thinking and Fuzzy Logic, 2016: 151-160.
[8]	李因武, 吴庆文, 常志勇. 基于仿生斗齿的反铲液压挖掘机动臂仿真优化设计[J]. 吉林大学学报:工学版, 2018, 48(3): 821-827.
	LI Yinwu, WU Qingwen, CHANG Zhiyong. Simulation and optimization design of backhoe hydraulic excavationbased on bionic teeth[J]. Journal of Jilin University:Engineering and Technology Edition, 2018, 48(3): 821-827.
[9]	李泉儒. 基于ADAMS的液压挖掘机工作装置仿真分析[D]. 西安: 长安大学, 2018.
	LI Quanru. Simulation analysis of hydraulic excavator working device based on ADAMS[D]. Xi'an: Chang'an University, 2018.

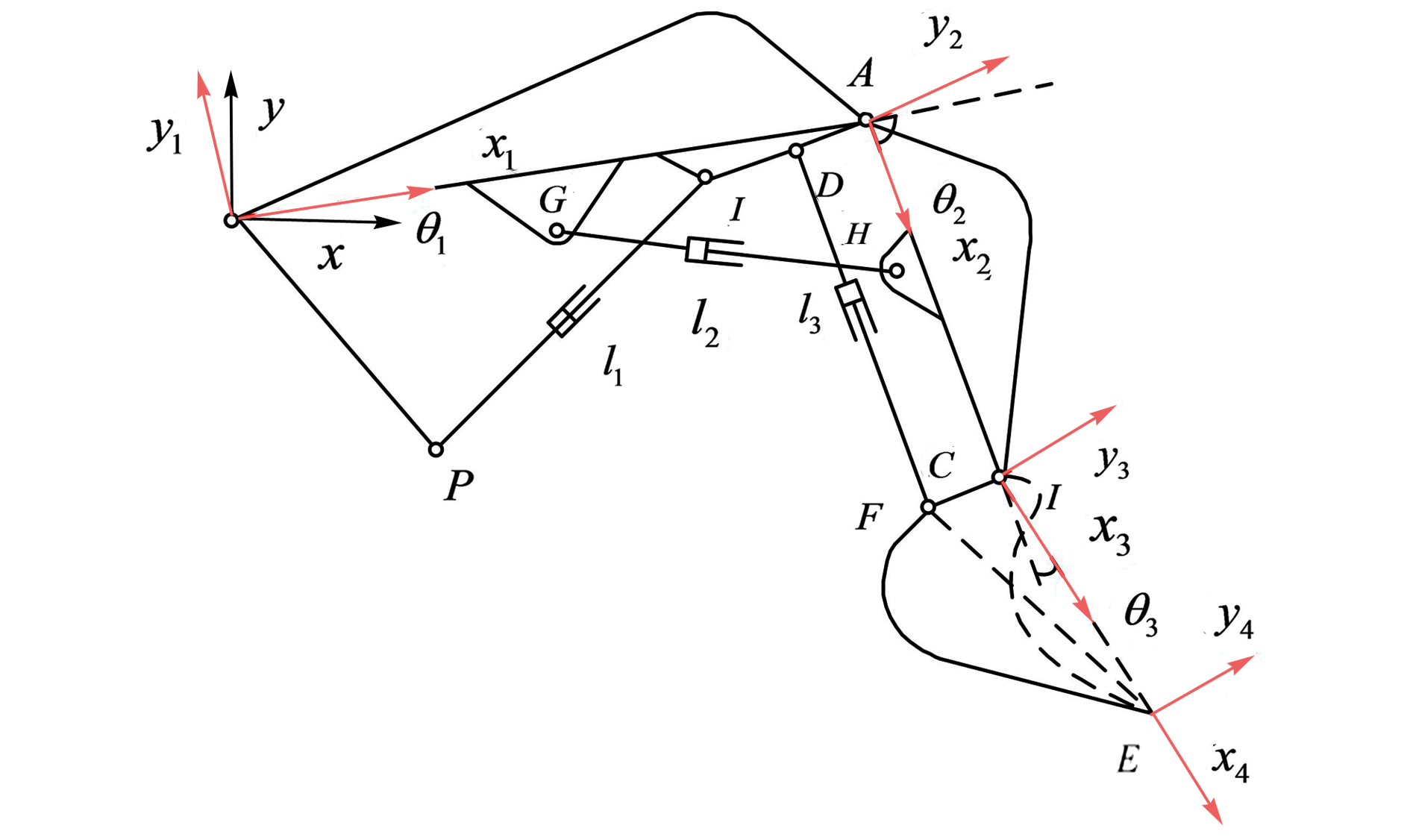

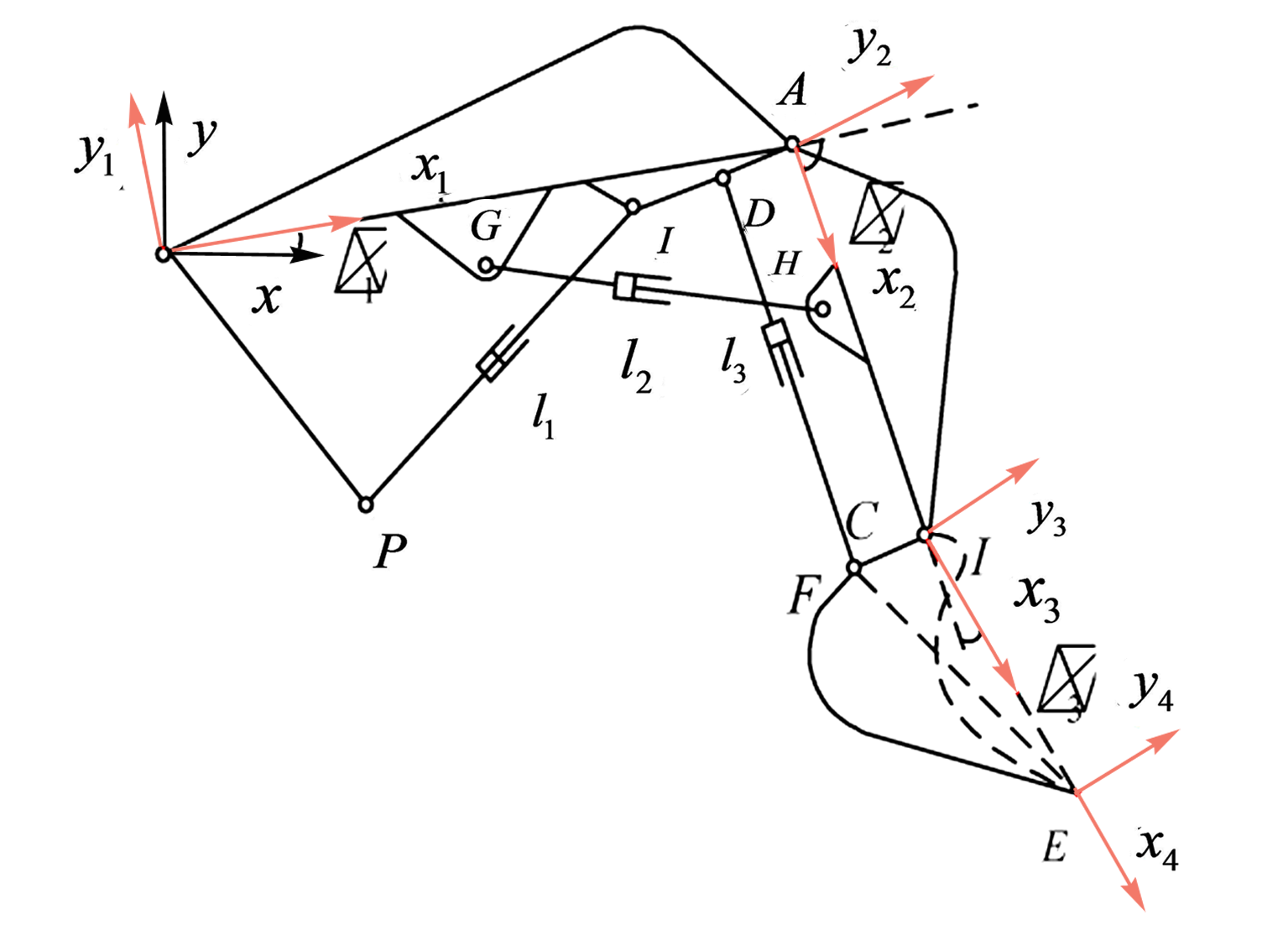

i	a_i_-1	θ_i
1	0	θ₁
2	OA	θ₂
3	AC	θ₃
4	CE	—

参数名称	取值/ mm	参数名称	取值/ mm	参数名称	取值/ mm
OA	7 867	AB	4 457	OG	4 672
AC	5 088	AH	3 208	AG	3 798
CE	4 581	CH	2 083	EF	4 920
OI	6 947	AI	1 582	CF	1 223
