Application of material flow analysis method in investigation of material evidence in hazardous chemical cases

doi:10.16265/j.cnki.issn1003-3033.2024.11.0279

Abstract

Abstract:

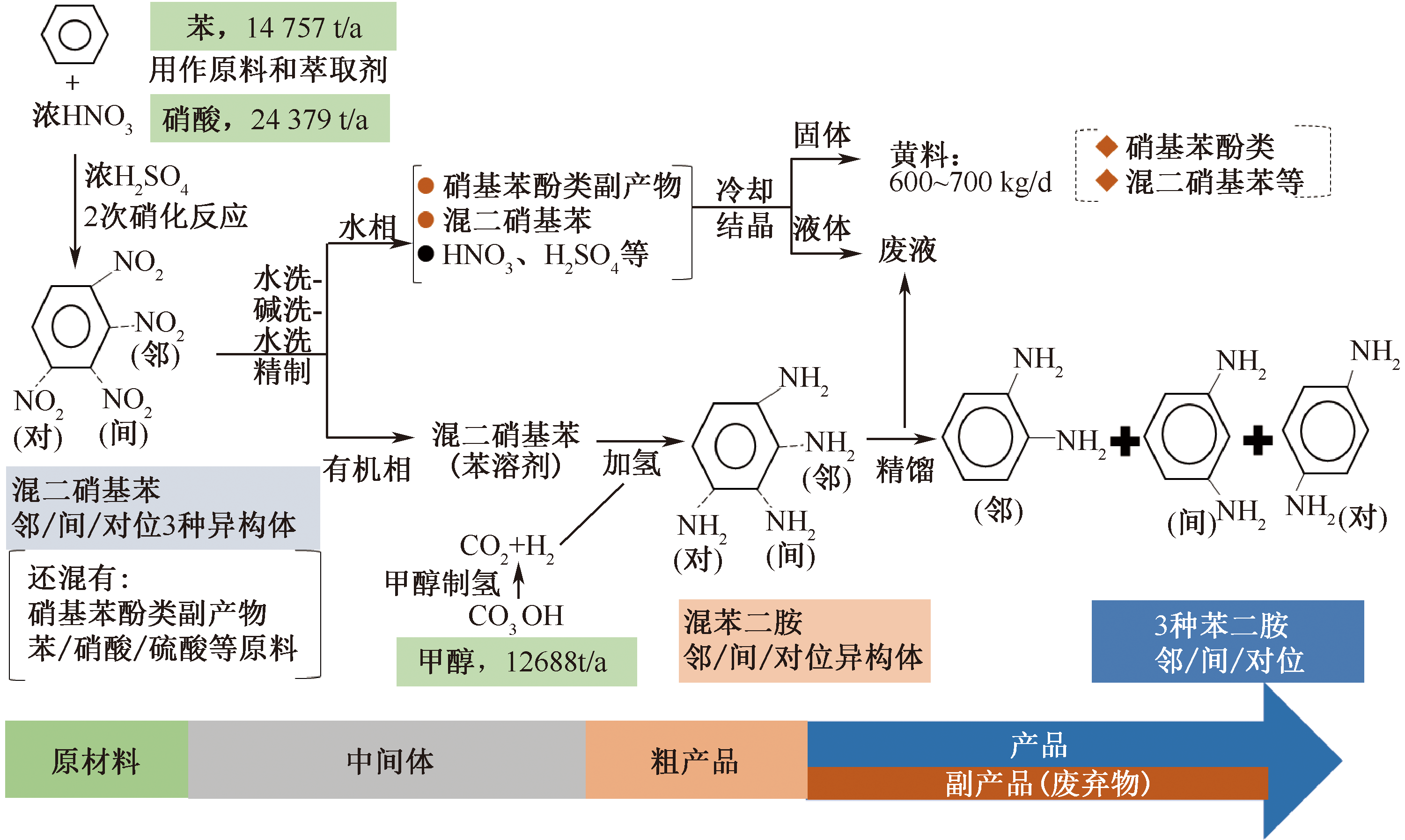

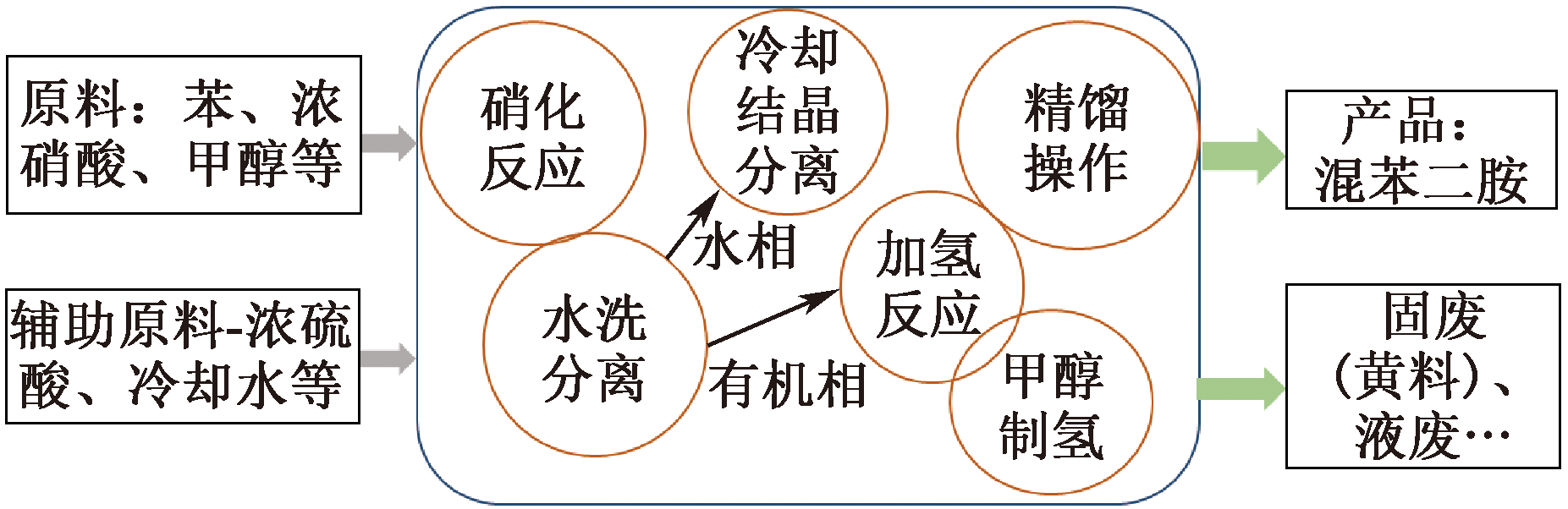

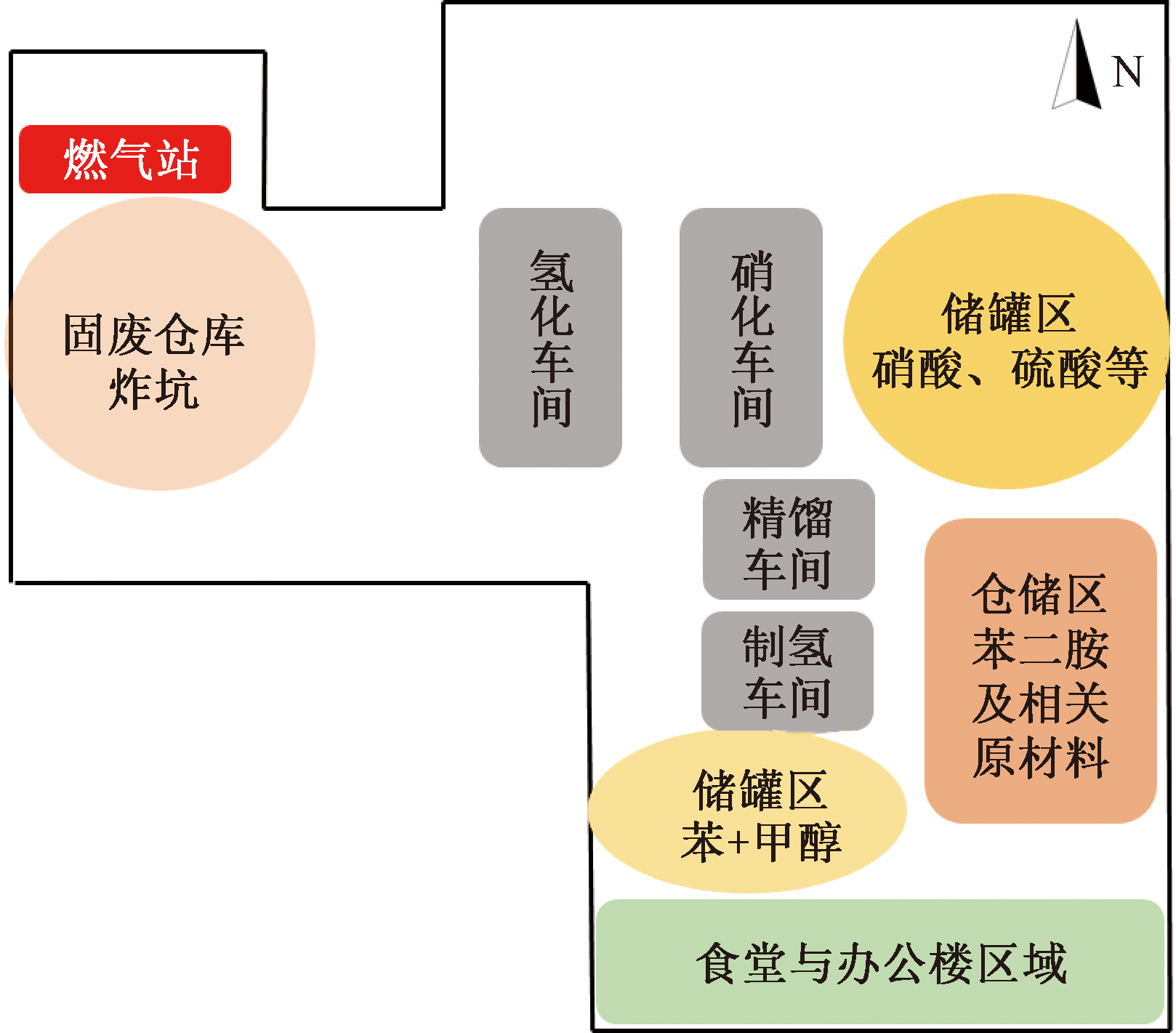

Physical evidence investigation was a necessary means and important link to identify the causes of hazardous chemical incidents. However, the manifestations of hazardous chemical incidents were often explosions and fires, which could easily trigger a domino effect, making physical evidence investigation somewhat difficult. In order to improve the efficiency of on-site inspections and reduce the occurrence of hazardous chemical incidents. MFA method was adopted to conduct on-site intelligence information analysis and explore the application value of MFA theoretical methods in the physical evidence inspection of hazardous chemical incidents based on specific cases. Based on "Jiangsu Xiangshui 3·21 serious Explosion Accident", "Material Flow Analysis Map" and "Hazardous Substance Distribution Map" were drawn for Tianjiayi Chemical Plant, and material flow analysis research was conducted on the involved enterprises. The results indicate that MFA can identify hazardous areas and substances, providing safety protection reference information for on-site inspectors. It can also provide scope and direction for extracting, inspecting, and identifying on-site physical evidence.

Key words: material flow analysis(MFA), hazardous chemical incidents, site inspection, explosion accident, technological process

CLC Number:

X937

LI Guangyao, ZHANG Guannan, ZHOU Zheng, GUO Hongling, ZHU Jun. Application of material flow analysis method in investigation of material evidence in hazardous chemical cases[J]. China Safety Science Journal, 2024, 34(11): 140-145.

Figures/Tables 9

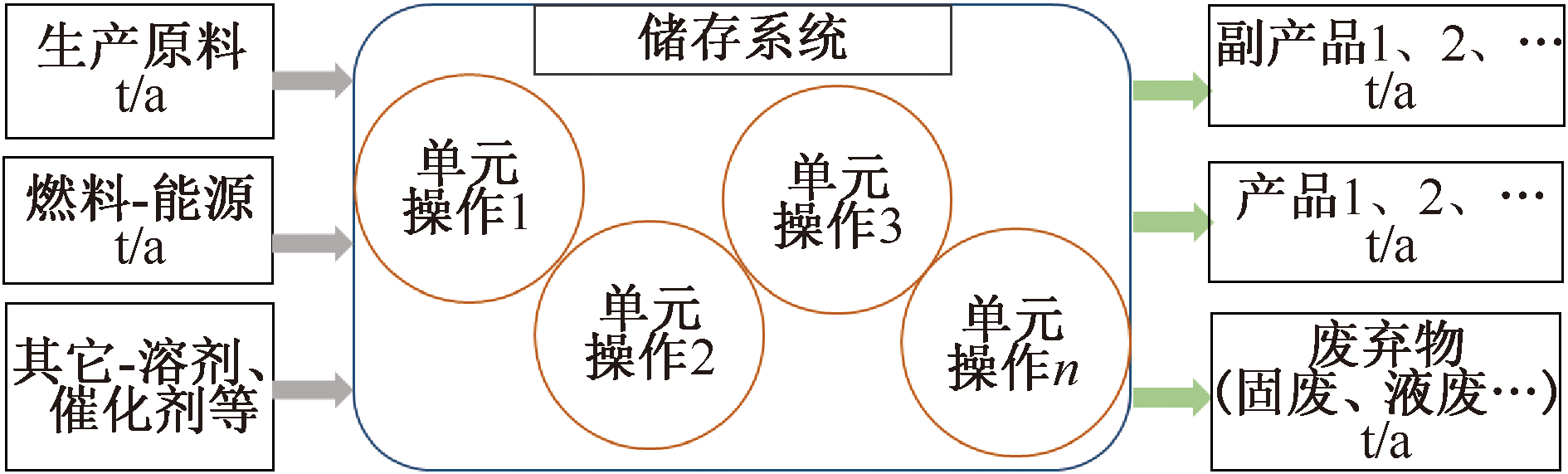

Fig.1

Fig.2

Fig.3

Table 1

Fig.4

Table 2

Fig.5

Fig.6

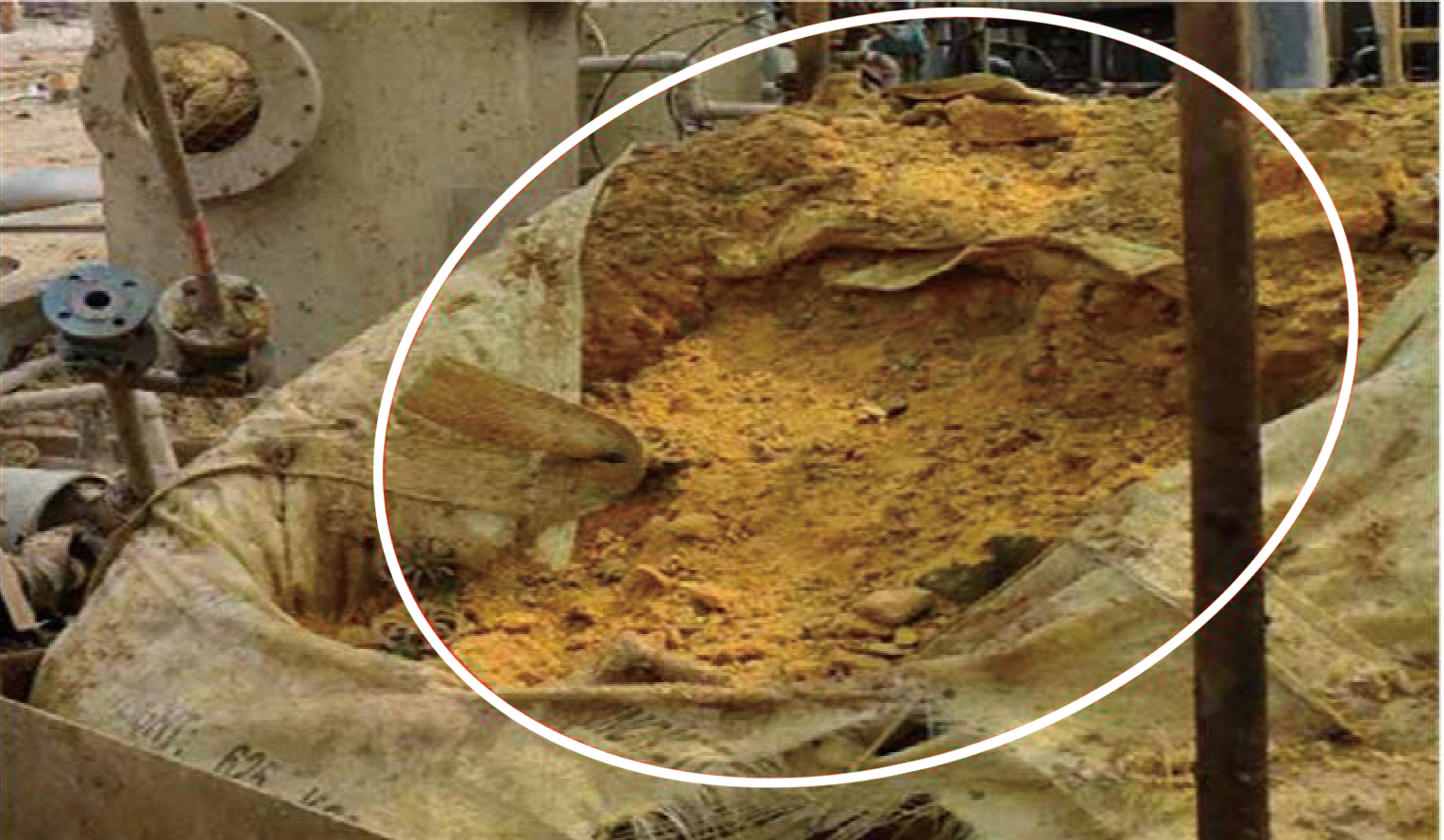

Fig.7

References 15

[1]	陈吕军, 田金平, 赵远. 杭州湾精细化工园区碳的物质流分析研究[J]. 环境污染与防治, 2009, 31 (12):80-83.
	CHEN Lüjun, TIAN Jinping, ZHAO Yuan. Study on carbon material flow analysis of Hangzhou bay fine chemical industry park[J]. Environmental Pollution & Control, 2009, 31 (12): 80-83.
[2]	柳晓燕, 朱芬芬, 赵冰. 中国玻璃物质流分析和未来需求预测研究[J]. 中国环境科学, 2022, 42 (5):2 464-2 470.
	LIU Xiaoyan, ZHU Fenfen, ZHAO Bing. Research on glass material flow analysis and future demand forecasting in China[J]. China Environmental Science, 2022, 42 (5): 2 464-2 470.
[3]	GUO Xueyi, CHEN Yuanlin, WANG Qinmeng, et al. Analysis of copper and arsenic material flow during copper pyrometallurgical smelting process[J]. Transactions of Nonferrous Metals Society of China, 2022, 32 (1):364-376.
[4]	张塬月. 基于物质流分析的工业园产业链生态化及评价研究[D]. 西安: 西安建筑科技大学, 2022.
	ZHANG Yuanyue. Research on ecological and evaluation of industrial chain of industrial park based on material flow analysis[D]. Xi'an: Xi'an University of Architecture and Technology, 2022.
[5]	成春春, 宋浩宇, 李春丽. 基于MFA方法纯碱生产过程物质流及能量流分析[J]. 无机盐工业, 2020, 52 (6):59-62.
	CHENG Chunchun, SONG Haoyu, LI Chunli. Analysis of material flow and energy flow in soda ash production process based on MFA method[J]. Inorganic Chemicals Industry, 2020, 52 (6): 59-62.
[6]	王丽娜, 王奕潼, 孙秀英, 等. 物质流分析在化工企业中的应用案例[J]. 辽宁工业大学学报:社会科学版, 2018, 20(1):27-29,53.
	WANG Li'na, WANG Yitong, SUN Xiuying, et al. application cases of material flow analysis in chemical enterprises[J]. Journal of Liaoning University of Technology:Social Science Edition, 2018, 20 (1): 27-29,53.
[7]	智静, 傅泽强, 陈燕. 宁东能源(煤)化工基地物质流分析[J]. 干旱区资源与环境, 2012, 26(9):137-142.
	ZHI Jing, FU Zeqiang, CHEN Yan. Material flow analysis of Ningdong energy (coal) chemical industry base[J]. Journal of Arid Land Resources and Environment, 2012, 26 (9): 137-142.
[8]	李光耀, 孙振文, 王萍, 等. 危险化学品事故物质因素信息挖掘研究现状与展望[J]. 刑事技术, 2021, 46 (4):394-400. doi: 10.16467/j.1008-3650.2021.0099
	LI Guangyao, SUN Zhenwen, WANG Ping, et al. Research status and prospect of material factor information mining in hazardous chemical accidents[J]. Forensic Science and Technology, 2021, 46 (4): 394-400. doi: 10.16467/j.1008-3650.2021.0099
[9]	中华人民共和国国务院事故调查组. 江苏响水天嘉宜化工有限公司“3·21”特别重大爆炸事故调查报告[R], 2019.
[10]	盐城市环境保护科学研究所. 江苏天嘉宜化工有限公司固废和废液焚烧项目环评报告[R], 2015.
[11]	江苏省环科院环境科技有限责任公司. 江苏天嘉宜化工有限公司环保设施效能评估及复产整治报告[R], 2018.
[12]	李光耀, 孙振文, 朱军, 等. 危险化学品爆炸火灾事故数据库的构建及应用[J]. 消防科学与技术, 2023, 42(4):575-579.
	LI Guangyao, SUN Zhenwen, ZHU Jun, et al. Construction and application of hazardous chemical explosion fire accident database[J]. Fire Science and Technology, 2023, 42 (4): 575-579.
[13]	王起全, 刘志刚, 杨鑫刚, 等. 化工园区重大危险源风险情景构建分析[J]. 中国安全科学学报, 2020, 30(8):63-69. doi: 10.16265/j.cnki.issn1003-3033.2020.08.010
	WANG Qiquan, LIU Zhigang, YANG Xin'gang, et al. Analysis on risk scenario construction of major hazard installations in chemical industry parks[J]. China safety Science Journal, 2020, 30 (8): 63-69. doi: 10.16265/j.cnki.issn1003-3033.2020.08.010
[14]	王成, 钱琛庚, 张文耀, 等. 危化品爆炸大规模高精度仿真软件研发与应用[J]. 中国安全科学学报, 2022, 32(9):20-28. doi: 10.16265/j.cnki.issn1003-3033.2022.09.2692
	WANG Cheng, QIAN Chengeng, ZHANG Wenyao, et al. Development and application of large scale and high precision simulation software for dangerous chemical explosion[J]. China safety Science Journal, 2022, 32 (9): 20-28. doi: 10.16265/j.cnki.issn1003-3033.2022.09.2692
[15]	岳文静, 杜丽敬, 陈先锋, 等. 基于DBN的气体泄漏事故情景推演与节点分析[J]. 中国安全科学学报, 2022, 32(增1):165-170.
	YUE Wenjing, DU Lijing, CHEN Xianfeng, et al. Scenario deduction and node analysis of gas leakage accident based on DBN[J]. China safety Science Journal, 2022, 32 (S1): 165-170. doi: 10.16265/j.cnki.issn1003-3033.2022.S1.0893

序号	名称	面积	备注
1	仓库 4个	见备注	仓库1:648 m²;仓库2:1 296 m²; 仓库3:1 296 m²;仓库4:1 296 m²
2	甲类库	720 m²	-
3	1#罐区	2 424 m²	3×1 500 m³立式93%硫酸储罐;1×1 500 m³立式98%硫酸储罐;4×200 m³卧式浓硝酸储罐
4	2#罐区	583 m²	2×25 m³立式二硝基苯储罐;1×25 m³立式间苯二胺储罐;1×25 m³立式甲醇储罐;1×25 m³立式粗间苯二胺储罐;2×15 m³卧式98%硫酸储罐;2×15 m³卧式发烟硫酸储罐;2×12 m³卧式盐酸储罐
5	3#罐区	417 m²	1×50 m³立式均三甲苯储罐;1×50 m³立式对二甲苯储罐;1×50 m³立式硫酸储罐;1×25 m³立式甲醇储罐;1×25 m³立式甲苯储罐;3×50 m³立式甲醇储罐
6	5#罐区	1 761 m²	2×1 500 m³立式苯储罐;1×1 500 m³立式甲醇储罐
7	6#罐区	129 m²	2×50 m³立式甲醇储罐

序号	名称	危害性	现勘防护建议
1	甲醇	易燃、剧毒、易挥发	眼防护:化学安全防护镜呼吸防护:过滤式防毒面具防护服:防渗透、防静电手脚防护:防渗透现场严禁明火、吸烟
2	苯	易燃、高毒、易挥发
3	浓硝酸	强腐蚀性
4	浓硫酸	强腐蚀性
5	硝基苯系物	爆炸物
6	苯二胺类	有毒
7	其他	—
