Radiation noise suppression and dose information extraction method based on FPGA

doi:10.16265/j.cnki.issn1003-3033.2025.03.1820

Abstract

Abstract:

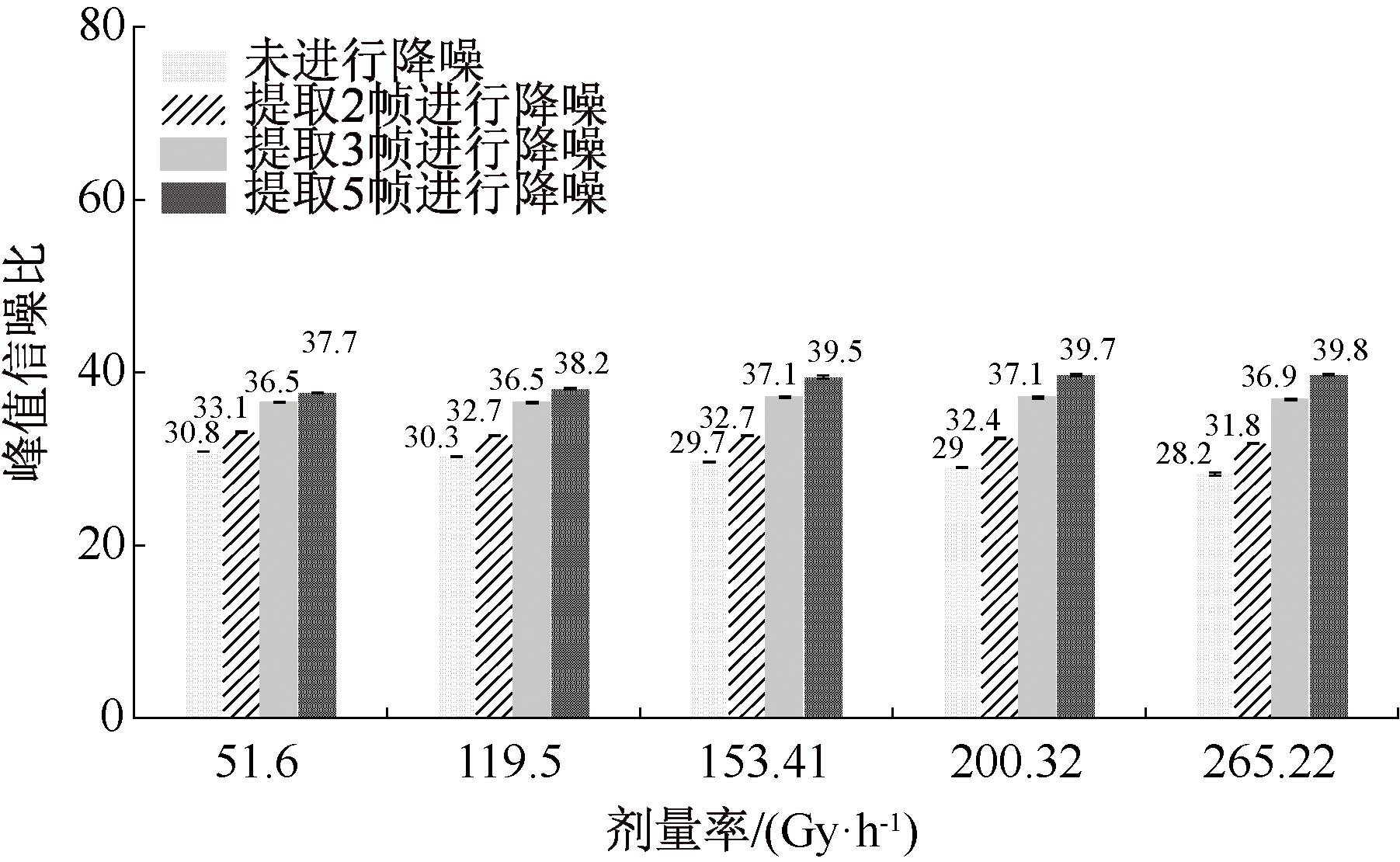

In order to improve and advance the nuclear radiation detection and monitoring integrated technology based on pixel sensors, a radiation noise suppression and nuclear detection method leveraging the parallel advantages of FPGA was proposed, with corresponding programs developed. By analyzing the characteristics of radiation noise signals, radiation noise suppression and two-dimensional wavelet transform programs based on FPGA were developed to output clear radiation field images. The images were decomposed into horizontal, vertical, and diagonal components, and the results of linear fitting statistics for each component were investigated to identify the component with the best linear fit. The research results demonstrate that the FPGA program modules effectively execute radiation noise suppression and nuclear detection functions in images. After noise reduction, the peak signal-to-noise ratio(PSNR) of the images is improved by approximately 11 dB. The diagonal component is shown to best characterize the radiation response information of the images, achieving a linearity of 0.99624 in linear fitting for different dose rates.

Key words: field programmable gate array (FPGA), radiated noise, noise suppression, dose information extraction, complementary metal oxide semiconductor (CMOS), two-dimensional wavelet transform

CLC Number:

X945

XU Shoulong, HOU Zhixiong, WEI Cuiyue, ZOU Shuliang. Radiation noise suppression and dose information extraction method based on FPGA[J]. China Safety Science Journal, 2025, 35(3): 85-91.

Figures/Tables 9

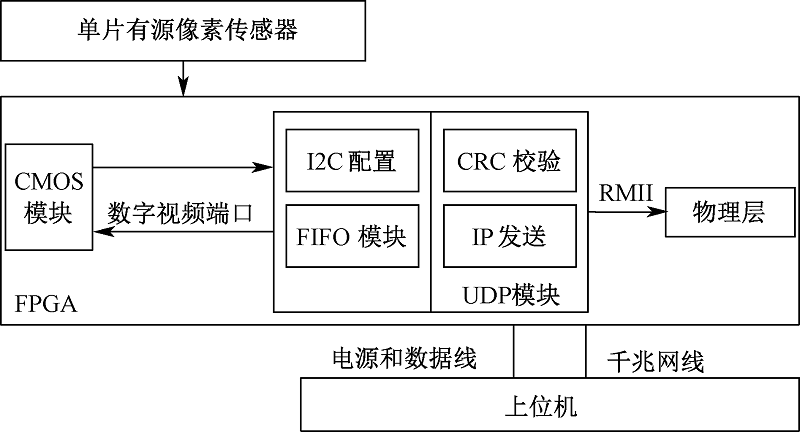

Fig.1

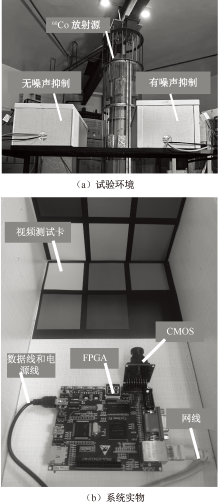

Fig.2

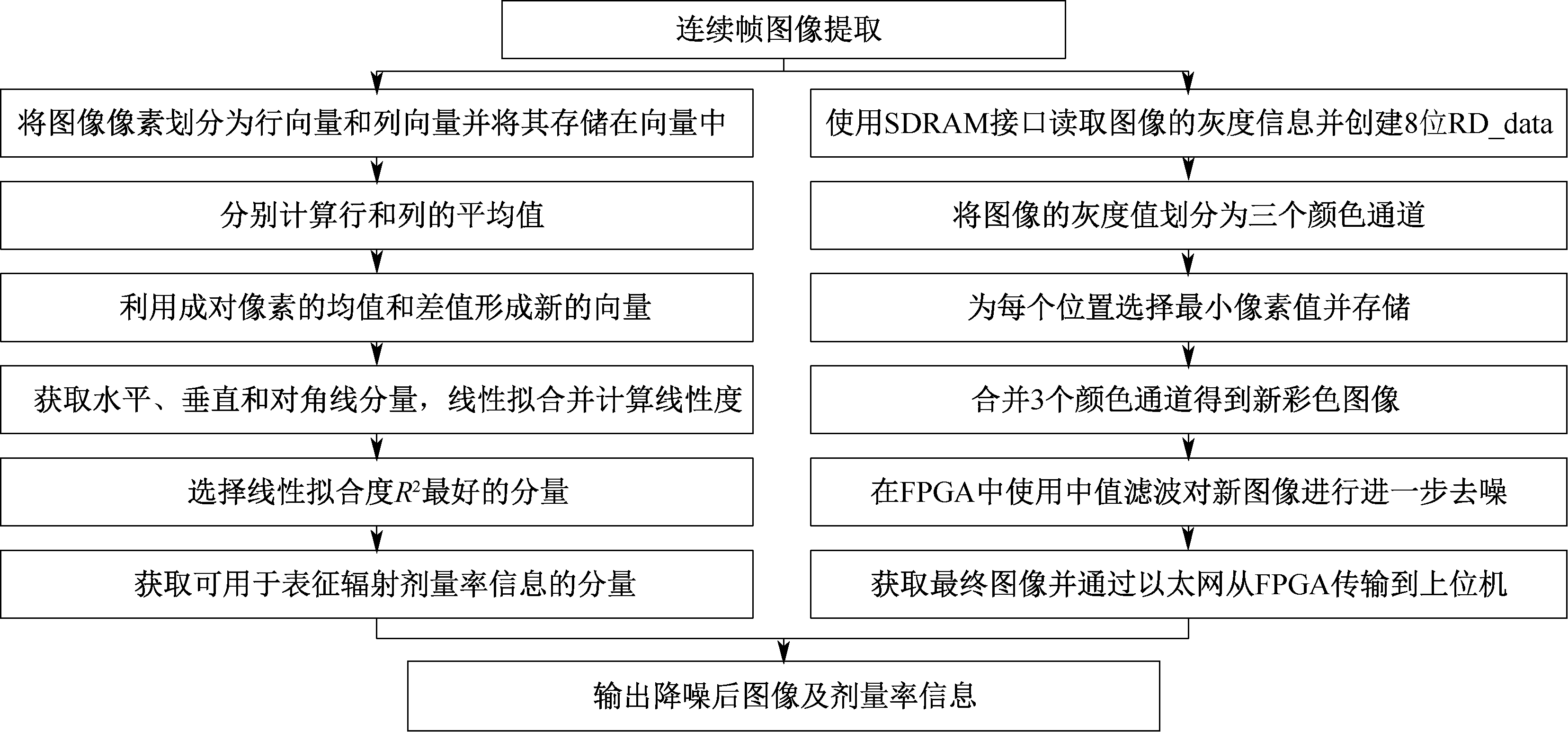

Fig.3

Fig.4

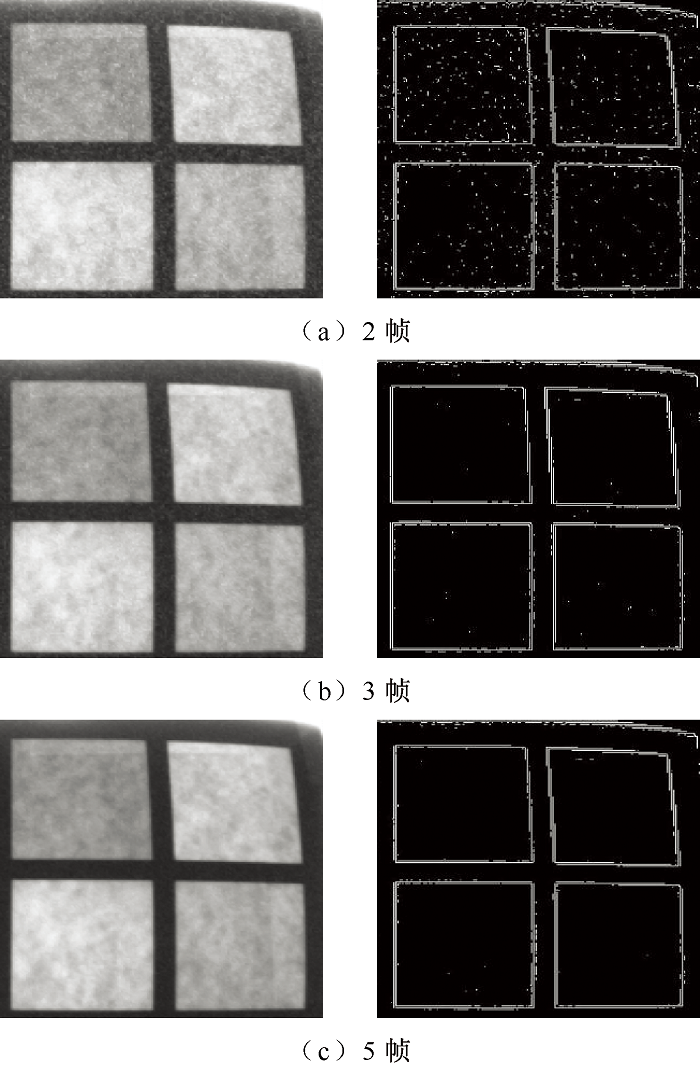

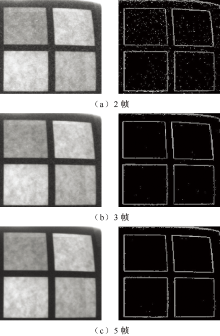

Fig.5

Fig.6

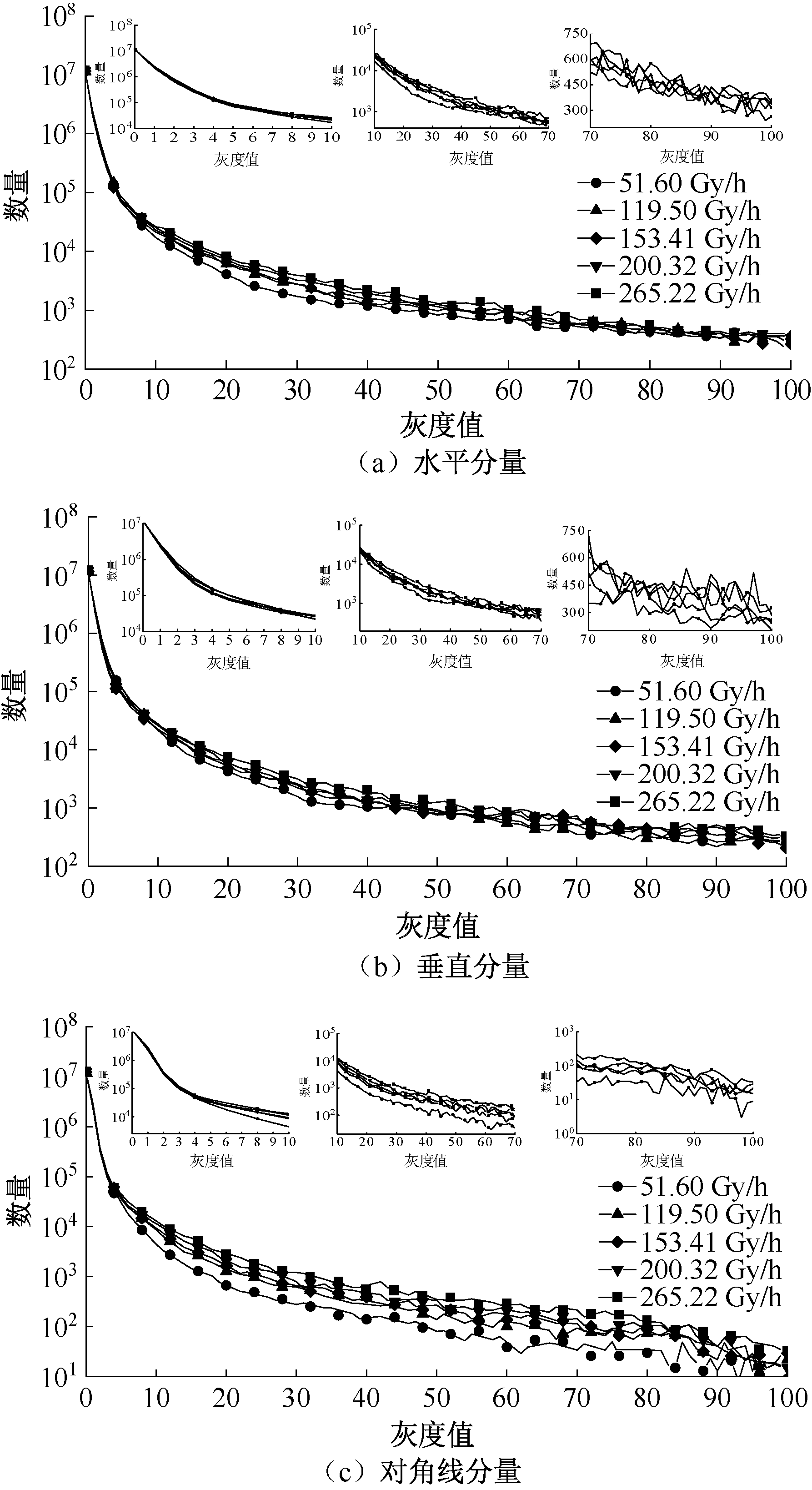

Fig.7

Fig.8

Table 1

References 22

[1]	孙美兰, 邹树梁, 徐守龙, 等. 基于动态贝叶斯网络的乏燃料后处理核应急情景分析[J]. 中国安全科学学报, 2024, 34(10): 214-220. doi: 10.16265/j.cnki.issn1003-3033.2024.10.1738
	SUN Meilan, ZOU Shuliang, XU Shoulong, et al. Nuclear emergency scenario analysis for spent fuel reprocessing based on dynamic Bayesian network[J]. China Safety Science Journal, 2024, 34(10): 214-220. doi: 10.16265/j.cnki.issn1003-3033.2024.10.1738
[2]	罗中兴, 左莉, 罗昆升, 等. 核辐射监测全沉浸式VR训练系统设计与实现[J]. 中国安全科学学报, 2023, 33(1):130-135. doi: 10.16265/j.cnki.issn1003-3033.2023.01.0146
	LUO Zhongxing, ZUO Li, LUO Kunsheng, et al. Design and implementation of a fully immersive VR training system for nuclear radiation monitoring[J]. China Safety Science Journal, 2023, 33(1): 130-135. doi: 10.16265/j.cnki.issn1003-3033.2023.01.0146
[3]	XU Shoulong, ZOU Shuliang, HAN Yongchao, et al. Study on the availability of 4T-APS as a video monitor and radiation detector in nuclear accidents[J]. Sustainability, 2018, 10(7): DOI:10.3390/su10072172.
[4]	JIANGI Wei, YAMN C, RYAN S, et al. Time-gated and multi-junction SPADs in standard 65 nm CMOS technology[J]. IEEE Sensors Journal, 2021, 21(10): 12 092-12 103.
[5]	JOO Jieun, LEE Myungjae, PARK Sungmin. A CMOS optoelectronic receiver IC with an on-chip avalanche photodiode for home-monitoring LiDAR sensors[J]. Sensors, 2021, 21(13): DOI:10.3390/s21134364.
[6]	STAECK S, KAYSER Y, BAUMANN J, et al. Towards soft X-ray fluorescence measurements in the laboratory using a laser-produced plasma source and a complementary metal-oxide semiconductor detector[J]. Journal of Instrumentation, 2021, 16(3): DOI:10.1088/1748-0221/16/03/P03033.
[7]	WANG Jeffreygan, MA Ruihua, WU Xing, et al. Infrared detection through CMOS detector enabled by reversible luminescence quenching of quantum dots[J]. AIP Advances, 2023, 13(2):DOI:10.1063/5.0137649.
[8]	NAIR V, RADHAKRISHNAN A, CHITHRA R, et al. Memristive pixel-CNN loop generate for CNN generalisations[J]. IEEE Transactions on Nanotechnology, 2023, 22: 120-125.
[9]	YAN Zhangfa, ZHANG Zhaohui, XU Shuyu, et al. Nuclear radiation detection based on the convolutional neural network under public surveillance scenarios[J]. Open Physics, 2022, 20(1): 49-57.
[10]	LIU Yalei, XU Jiangtao, ZHA Wanbin, et al. A 1/f noise optimized correlated multiple sampling technique for complementary metal oxide semiconductor image sensor[J]. International Journal of Circuit Theory and Applications, 2023, 51(12): 5529-5542.
[11]	YAMAMOTO K, SAKAMOTO N, YURIMOTO H. Analysis of the noise properties of a solid-state SCAPS ion imager and development of software noise reduction[J]. Surface and Interface Analysis, 2010, 42(10/11): 1603-1605.
[12]	LUO Yifu, FU Liping, JIA Nan, et al. MSR-Net: a novel noise elimination method for real CMOS image sensor[J]. IEEE Access, 2024, 12: 78 714-78 725.
[13]	LI Menglin, PENG Jia, JING Yuyu, et al. Synaptic feature of quantum dot light-emitting diodes for visualization of learning process[J]. The Journal of Physical Chemistry Letters, 2024, 15(41): 10 334-10 340.
[14]	XU Shoulong, DONG Hanfeng, QIN Zhiwei, et al. Parallel processing of radiation measurements and radiation video optimization[J]. Optics Express, 2022, 30(26): 46 870-46 887.
[15]	ZHANG Dongliang, WU Wenchen. Radiation environment-constrained FPGA reinforcement technology and reliability research utilizing error control coding[J]. IEEE Access, 2024, 12:74737-74 750.
[16]	CHEN Zhong, HU Tianlong, HAO Yuya, et al. High-speed phase structured light integrated architecture on FPGA[J]. IEEE Transactions on Industrial Electronics, 2023, 71(1): 1017-1027.
[17]	GIORDANO R, TORTONE G, VINCENZI D, et al. Neutron-irradiation testing of FPGA-embedded hadron fluence sensors[J]. IEEE Transactions on Nuclear Science, 2023, 70(5): 774-781.
[18]	PAUL R K, DAS A, DHARA P, et al. Implementation of FPGA based real-time digital DAQ for high resolution, and high count rate nuclear spectroscopy application[J]. Journal of Instrumentation, 2023, 18(7):DOI:10.1088/1748-0221/18/07/P07042.
[19]	DONG Junqi, WANG Zhu, LIAO Yuan, et al. A fully digital coincidence doppler broadening spectrometer based on FPGA[J]. Journal of Instrumentation, 2023, 18(4): DOI:10.1088/1748-0221/18/04/P04036.
[20]	FARIAS M S, NEDJAH N, DE ARVALHO P V R. Active redundant hardware architecture for increased reliability in FPGA-based nuclear reactors critical systems[J]. Microprocessors and Microsystems, 2022, 90: DOI:10.1016/j.micpro.2022.104495.
[21]	OGINO N, ARIMOTO M, SAWANO T, et al. High-speed readout system of X-ray CMOS image sensor for time domain astronomy[J]. Journal of Instrumentation, 2024, 19(1): DOI:10.1088/1748-0221/19/01/C01006.
[22]	LIU Wei, JI Long, QIU Haiyang, et al. Research on a back-illuminated CMOS sensor for LUV imaging[J]. Journal of Instrumentation, 2022, 17(8): DOI:10.1088/1748-0221/17/08/T08004.

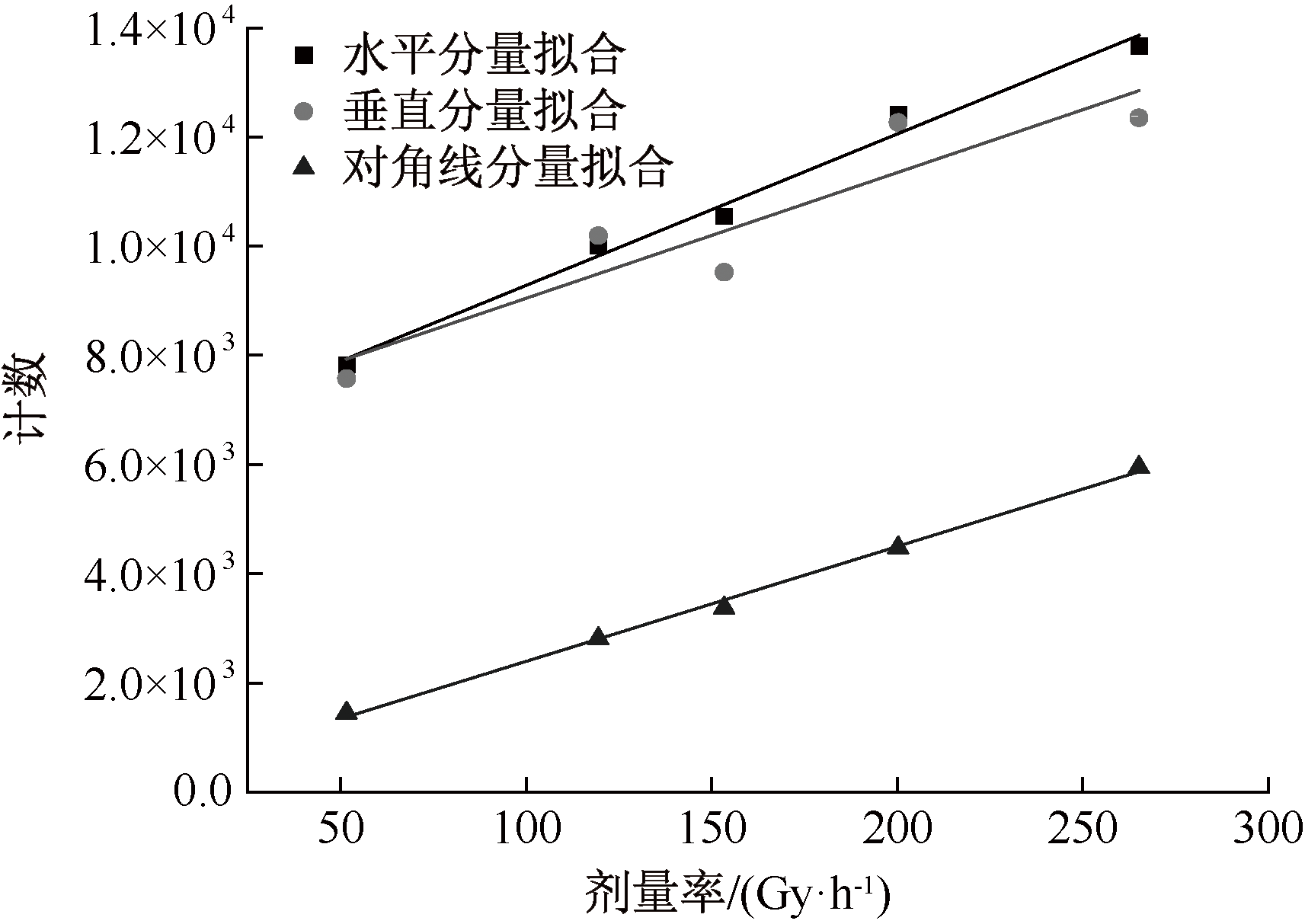

分量	截距		斜率		R²
分量	值	标准误差	值	标准误差	R²
水平	6 510.093 68	312.472 68	27.725 5	1.798 39	0.983 38
垂直	6 745.975 18	933.113 11	23.010 09	5.370 4	0.812 72
对角	293.553 17	112.116 11	21.030 61	0.645 27	0.996 24
