Mathematical model of single-source multi-destinations evacuation and optimization of emergency exits

doi:10.16265/j.cnki.issn1003-3033.2025.03.1994

Abstract

Abstract:

In order to improve the evacuation efficiency of public buildings and reduce casualties caused by emergencies, in view of the optimization problems of emergency exits and evacuation plans, a mathematical model and algorithm for the single-source multi-sink evacuation problem were proposed. Firstly, all evacuation paths were identified using path algorithm and sorted based on evacuation time. Then, the recursive formula for calculating evacuation time was derived based on the User Equilibrium (UE) principle and k-shortest path. The capacity allocation issues of each evacuation path at intersections were analyzed. After that then the optimization strategy for emergency exits is obtained. Finally, taking a building as an example, the evacuation network was established and calculated to validate the effectiveness of the algorithm and optimization strategy. The results show that the evacuation efficiency of the building network increases gradually with the increase in the number of evacuees, and the rate of change stabilizes after reaching a certain threshold value, Evacuation efficiency is closely associated with the total traffic capacity of specific emergency exits. Through the optimization of specific emergency exits, the evacuation efficiency of the network is enhanced, evacuation time can be reduced, and the optimization effect becomes more pronounced as the number of evacuees increases.

Key words: single-source multi-destinations, emergency exit, evacuation model, User Equilibrium principle, path algorithm

CLC Number:

X913.4安全系统工程

ZHOU Lingchang, LIANG Yin, LAI Yanping. Mathematical model of single-source multi-destinations evacuation and optimization of emergency exits[J]. China Safety Science Journal, 2025, 35(3): 187-193.

Figures/Tables 9

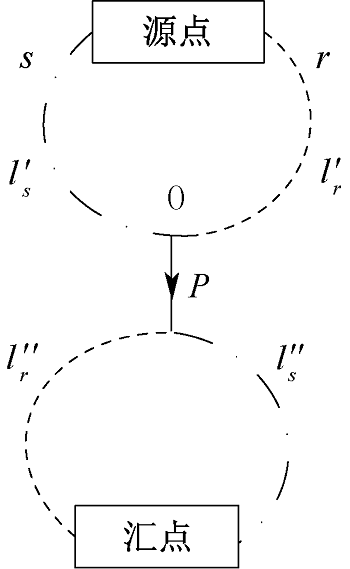

Fig.1

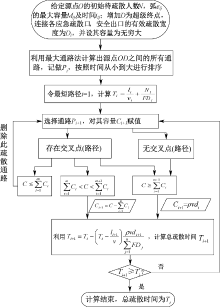

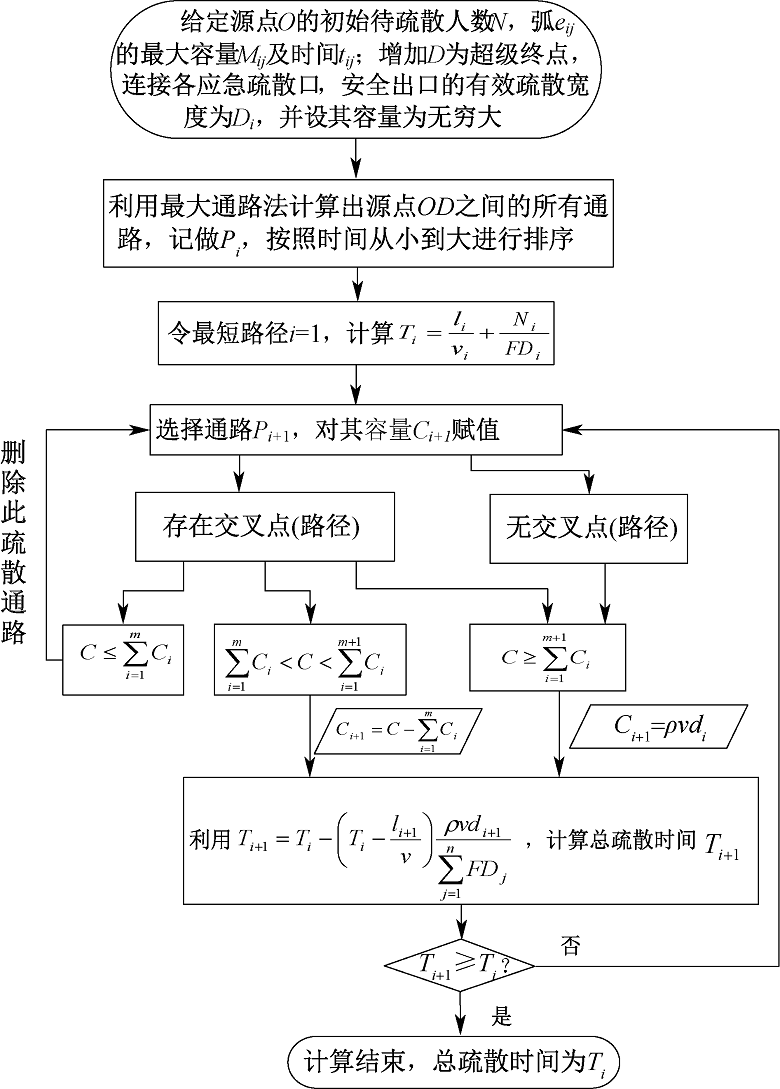

Fig.2

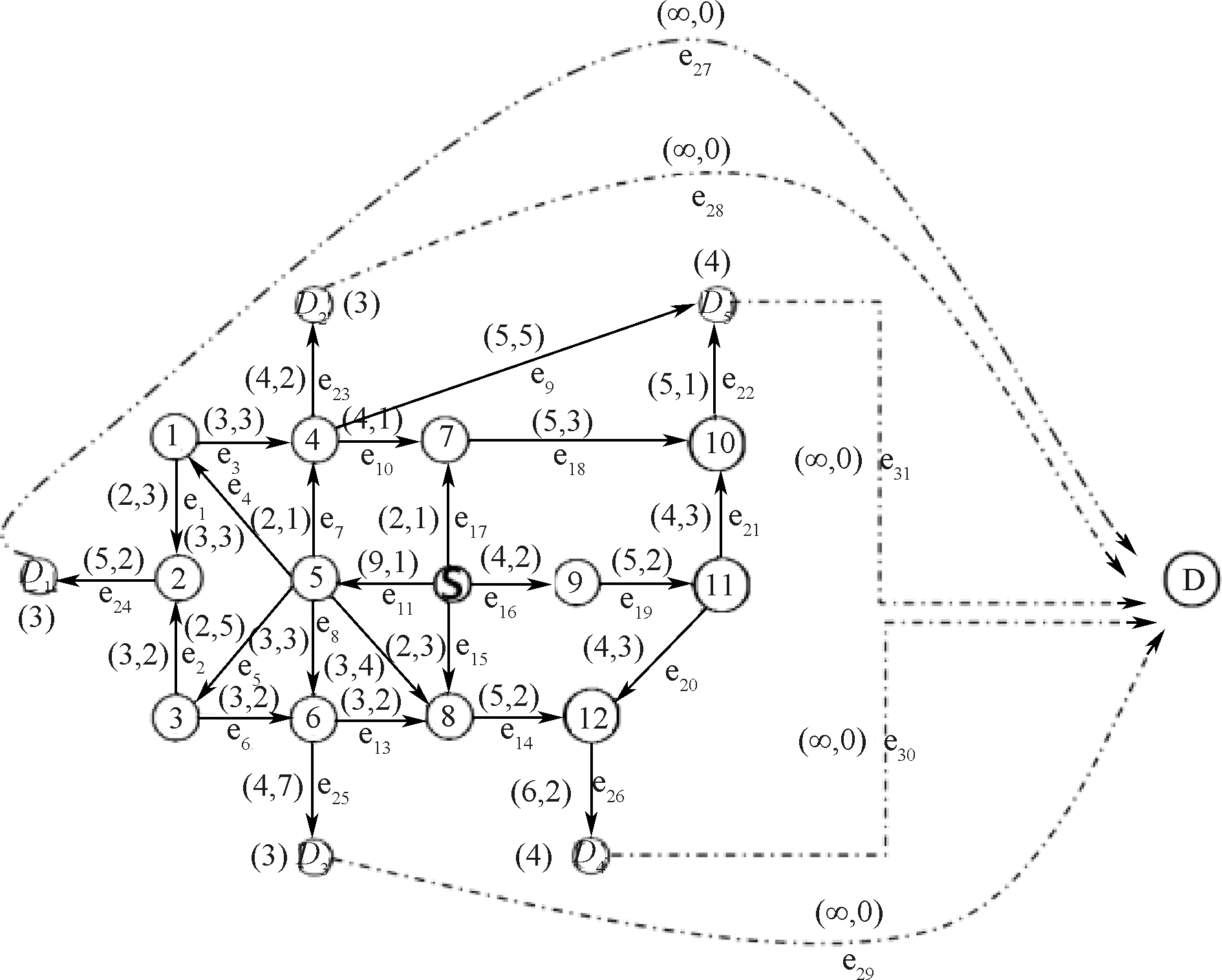

Fig.3

Table 1

Table 2

Evacuation paths and travel time before optimization

序号	通路编号	包含的疏散弧	运动时间
1	①	e₇、e₁₁、e₂₃、e₂₈	4
2	②	e₁₇、e₁₈、e₂₂、e₃₁	6
3	③	$e 14 、 e 15 、 e 26 、$ e₃₀	7
4	⑥	e₁₆、e₁₉、e₂₁、e₂₂、e₃₁	8
5	⑦	e₁、e₄、e₁₁、e₂₄、e₂₇	9
6	⑧	e₃、e₄、e₁₁、e₂₃、e₂₈	9
7	⑨	e₁₁、e₁₂、e₁₄、e₂₆、e₃₀	9
8	⑬	e₈、e₁₁、e₂₅、e₂₉	11

Table 2

Table 3

Table 4

Fig.4

Fig.5

References 18

[1]	杨建芳, 高岩, 李丽花. 多出口建筑物突发事件应急疏散模型和算法[J]. 系统工程理论与实践, 2011, 31(增1):147-153.
	YANG Jianfang, GAO Yan, LI Lihua. Emergency evacuation model and algorithm in the building with several exits[J]. Systems Engineering-Theoryand Practice, 2011, 31(S1):147-153.
[2]	邓青, 周郑, 邓立, 等. 存在逆行人员的疏散模型构建及稳定性分析[J]. 中国安全科学学报, 2023, 33(9):196-203. doi: 10.16265/j.cnki.issn1003-3033.2023.09.2178
	DENG Qing, ZHOU Zheng, DENG Li, et al. Construction and stability analysis of an evacuation model for contrary movement personnel[J]. China Safety Science Journal, 2023, 33(9):196-203. doi: 10.16265/j.cnki.issn1003-3033.2023.09.2178
[3]	李进, 张江华. 基于路径的网络流控制应急疏散模型与算法[J]. 自然灾害学报, 2012, 21(6):9-18.
	LI Jin, ZHANG Jianghua. Path-based network flow control emergency evacuation model and algorithm[J]. Journal of Natural Disasters, 2012, 21(6):9-18.
[4]	胡明明, 李新娥, 杨丽梅. 景区应急疏散的动态路线规划算法研究[J]. 旅游科学, 2023, 37(6):163-179.
	HU Mingming, LI Xin'e, YANG Limei, A research on dynamic emergency evacuation route planning algorithm for tourist attractions[J]. Tourism Science, 2023, 37(6):163-179.
[5]	杨建芳, 高岩, 王宏杰. 多层建筑物应急疏散模型和算法[J]. 系统仿真学报, 2014, 26(2):267-273.
	YANG Jianfang, GAO Yan, WANG Hongjie. Multi-storied building emergency evacuation model and algorithm[J]. Journal of System Simulation, 2014, 26(2):267-273.
[6]	HAMACHER H W, TJANDRA S A. Mathematica modeling of evacuation problems: a state of the art[C]. Pedestrian and Evacuation Dynamics, 2002:227-266.
[7]	LIM G J, ZANGENEH S, BAHARNEMATI M R, et al. A capacitated network flow optimization approach for short notice evacuation planning[J]. European Journal of Operational Research, 2012, 223(1):234-245.
[8]	董皓男, 叶晓彤, 郝从朴. 商用建筑室内火灾应急疏散路径规划算法[J]. 测绘地理信息, 2021, 46(增1):40-43.
	DONG Haonan, YE Xiaotong, HAO Congpu. Emergency evacuation path planning algorithm for indoor fire in commercial buildings[J]. Journal of Geomatics, 2021, 46(S1):40-43.
[9]	王丽, 李育萌, 刘云, 等. Zigbee耦合A^*算法的疏散路径动态规划与指示系统[J]. 中国安全科学学报, 2023, 33(11):142-149. doi: 10.16265/j.cnki.issn1003-3033.2023.11.0939
	WANG Li, LI Yumeng, LIU Yun, et al. A dynamic planning and indication system for evacuation paths based on Zigbee coupled A^* algorithm[J]. China Safety Science Journal, 2023, 33(11):142-149. doi: 10.16265/j.cnki.issn1003-3033.2023.11.0939
[10]	曹祥红, 杜薇, 魏晓鸽, 等. 一种用于火灾疏散路径动态规划的算法[J]. 消防科学与技术, 2022, 41(9):1237-1242.
	CAO Xianghong, DU Wei, WEI Xiaoge, et al. An algorithm for fire evacuation path dynamic planning[J]. Fire Science and Technology, 2022, 41(9):1237-1242.
[11]	袁媛, 汪定伟. 灾害扩散实时影响下的应急疏散路径选择模型[J]. 系统仿真学报, 2008, 20(6):1563-1566.
	YUAN Yuan, WANG Dingwei. Route selection model in emergency evacuation under real time effect of disaster extension[J]. Journal of System Simulation, 2008, 20(6):1563-1566.
[12]	高明霞, 贺国光. 考虑交叉口特性的疏散交通路线研究[J]. 土木工程学报, 2007, 40(6):80-83.
	GAO Mingxia, HE Guoguang. Optimization of evacuation routes considering movements at intersections[J]. China Civil Engineering Journal, 2007, 40(6):80-83.
[13]	毛占利, 刘畅. 疏散路径受阻情况下的人员疏散模型及算法[J]. 安全与环境学报, 2017, 17(5):1873-1878.
	MAO Zhanli, LIU Chang, Evacuation model and the algorithm on the condition of the urgent obstructed evacuation route[J]. Journal of Safety and Environment, 2017, 17(5):1873-1878.
[14]	CHEN Pohan, FENG Feng. A fast flow control algorithm for real-time emergency evacuation in large indoor areas[J]. Fire Safety Journal, 2009, 44(5):732-740.
[15]	刘剑, 贾进章, 郑丹. 流体网络理论[M]. 北京: 煤炭工业出版社, 2002: 24-30.
[16]	段志国, 张晓刚, 黄旭. 通路法调节复杂风网流量[J]. 煤炭技术, 2020, 39(2):137-140.
	DUAN Zhiguo, ZHANG Xiaogang, HUANG Xu. Regulation complex wind network flow by pathway method[J]. Coal Technology, 2020, 39(2):137-140.
[17]	李雨成, 潘霄. 基于通路法的按需分风算法研究[J]. 现代矿业, 2010, 26(6):60-61.
	LI Yucheng, PAN Xiao. The algorithm research of demand and sub-wind based on path[J]. Modern Mining, 2010, 26(6):60-61.
[18]	张江华, 刘治平, 朱道立. 多源点突发灾害事故应急疏散模型与算法[J]. 管理科学学报, 2009, 12(3):111-118.
	ZHANG Jianghua, LIU Zhiping, ZHU Daoli. Multi-source emergency evacuation model and algorithm[J]. Journal of Management Sciences in China, 2009, 12(3):111-118.

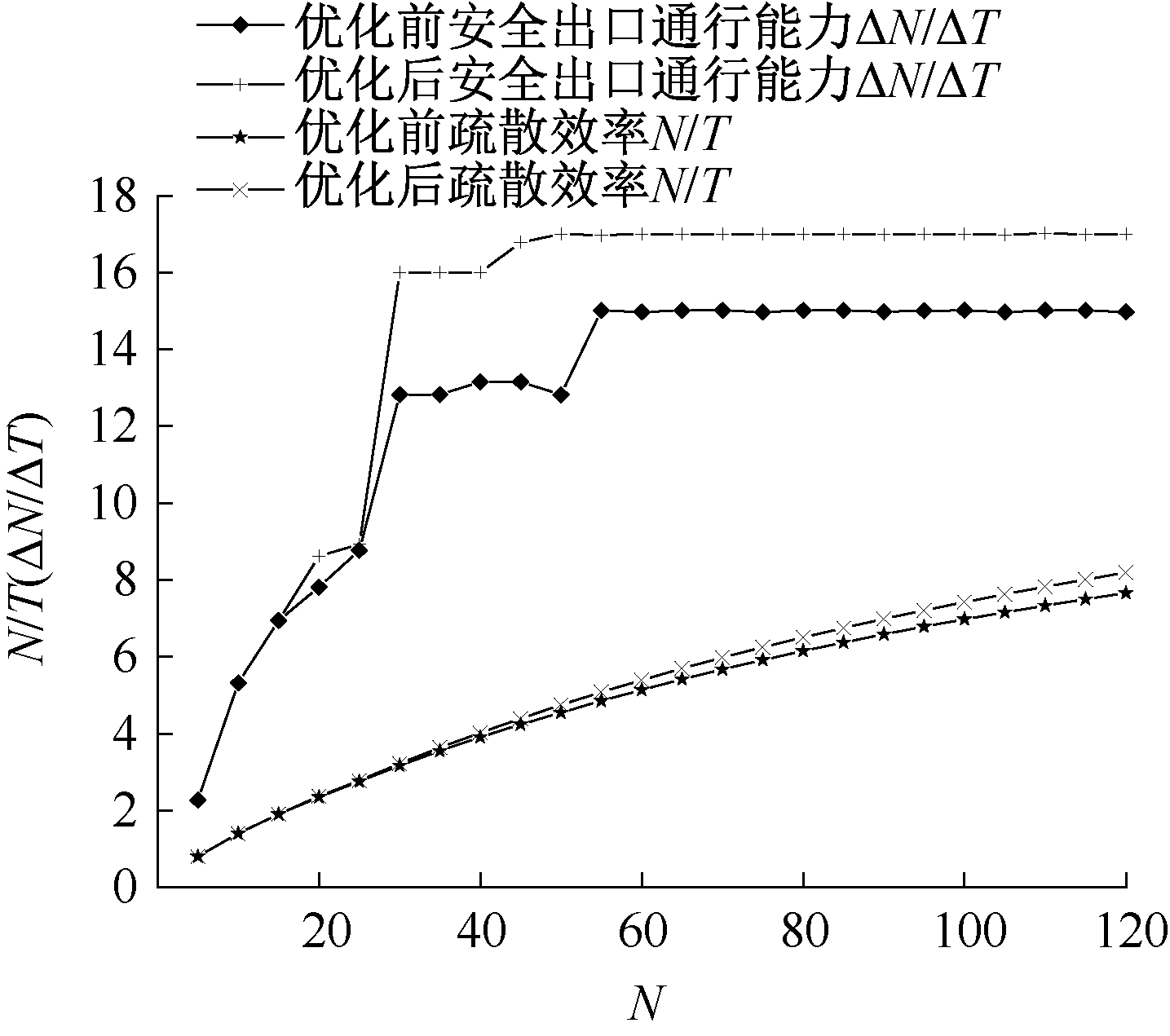

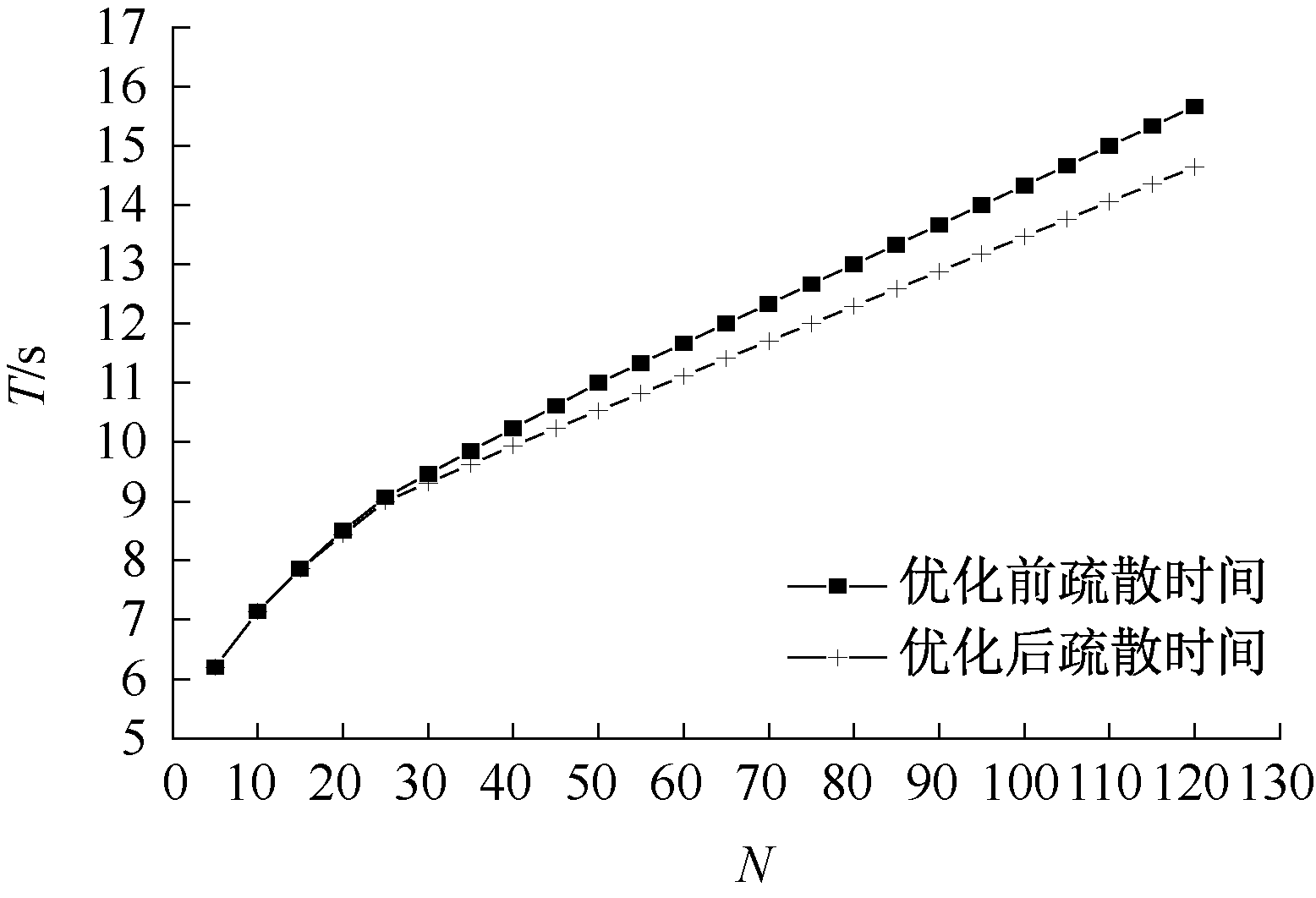

序号	人数	疏散时间 T/s		疏散效率/ (人·s^-1)		ΔN∶ΔT/ (人·s^-1)
序号	人数	优化前	优化后	优化前	优化后	优化前	优化后
1	0	4	4	—	—	—	—
2	5	6.2	6.2	0.81	0.81	2.27	2.27
3	10	7.14	7.14	1.4	1.4	5.32	5.32
4	15	7.86	7.86	1.9	1.9	6.94	6.94
5	20	8.5	8.44	2.35	2.37	7.81	8.62
6	25	9.07	9.0	2.76	2.78	8.77	8.93
7	30	9.46	9.31	3.17	3.22	12.82	16.00
8	35	9.85	9.63	3.55	3.64	12.82	16.00
9	40	10.23	9.94	3.91	4.03	13.16	16.00
10	45	10.61	10.24	4.24	4.4	13.16	16.79
11	50	11	10.53	4.54	4.75	12.82	17.00
12	55	11.33	10.82	4.8	5.08	15.02	16.97
13	60	11.67	11.12	5.14	5.4	14.97	17.01
14	65	12	11.41	5.4	5.7	15.02	17.01
15	70	12.33	11.7	5.68	5.98	15.02	17.01
16	75	12.67	12.0	5.92	6.25	14.97	17.01
17	80	13	12.29	6.15	6.51	15.02	17.01
18	85	13.33	12.59	6.38	6.75	15.02	17.01
19	90	13.67	12.88	6.58	6.99	14.98	16.99
20	95	14	13.18	6.79	7.21	15.00	17.00
21	100	14.33	13.47	6.98	7.42	15.02	17.00
22	105	14.67	13.77	7.16	7.63	14.97	16.98
23	110	15	14.06	7.33	7.82	15.02	17.02
24	115	15.33	14.35	7.5	8.01	15.02	17.00
25	120	15.67	14.65	7.66	8.196	14.97	17.01
