Study on influence of wetting modification of medium and high rank coal on gas-water migration

doi:10.16265/j.cnki.issn1003-3033.2025.04.0882

Abstract

Abstract:

In order to solve the problem of increasing difficulty of water injection in deep coal seam and poor inhibition effect of emission, based on the theoretical method of wetting modification of coal seam, wetting agent was used to act on gas-bearing coal body to inhibit gas desorption and migration. The fluorocarbon FS-3100 surfactant with strong wettability was used to test the influence of wettability on the gas-water migration process in coal through gas-containing coal desorption test and fracturing fluid displacement flow test, and to explore the change mechanism of coal wettability on gas-containing coal desorption efficiency and flow capacity. The results show that the surface tension of water is reduced to 17.9 mN /m after adding wetting agent in water, and the contact angle of coal water is only 3-3.5°. After the wetting agent was used to modify the coal body, the desorption rate of gas in the coal is significantly reduced. The gas desorption rates of Xinjing and Baode coals are reduced to 46.08% and 39.2%, respectively, which are 8.4% and 9.8% higher than that of water. After the wetting agent acts on the coal body, the displacement flow rate of the Xinjing coal sample increases from 8.59% to 14.10%, and the Baode coal sample increases from 10.65% to 16.67%, and the water injection capacity of the coal body is significantly enhanced. The wetting agent molecules are adsorbed on the surface of the coal matrix, which reduces the interfacial tension between coal and water and the surface energy of the coal body, so that the friction resistance of the water molecules flowing in the pores and fissures of the coal body is reduced, and the water molecules can infiltrate smaller-scale pores and produce stronger water lock effect. Finally, the gas desorption and migration adsorbed on the pores and coal surface are inhibited, and the gas plugging effect is formed.

Key words: medium-high rank coal, wetting modification, gas-water migration, surfactant, gas desorption

CLC Number:

X936

QI Yufei, TIAN Lin, CAO Yunxing. Study on influence of wetting modification of medium and high rank coal on gas-water migration[J]. China Safety Science Journal, 2025, 35(4): 127-136.

Figures/Tables 15

Fig.1

Table 1

Table 2

Fig.2

Fig.3

Fig.4

Table 3

Fig.5

Fig.6

Fig.7

Table 4

Fig.8

Fig.9

Table 5

Fig.10

References 33

[1]	王国法, 任世华, 庞义辉, 等. 煤炭工业“十三五”发展成效与“双碳”目标实施路径[J]. 煤炭科学技术, 2021, 49(9): 1-8.
	WANG Guofa, REN Shihua, PANG Yihui, et al. Development achievements of China's coal industry during the 13^th Five-Year Plan period and implementation path of "dual carbon" target[J]. Coal Science and Technology, 2021, 49(9): 1-8.
[2]	林柏泉, 常建华, 翟成. 我国煤矿安全现状及应当采取的对策分析[J]. 中国安全科学学报, 2006, 16(5): 42-46.
	LIN Baiquan, CHANG Jianhua, ZHAI Cheng. Analysis on coal mine safety situation in china and its countermeasures[J]. China Safety Science Journal, 2006, 16(5): 42-46.
[3]	申晓静, 岳基伟, 梁跃辉, 等. 高温高压氛围下煤体吸附瓦斯特性研究[J]. 中国安全科学学报, 2024, 34(2): 176-184. doi: 10.16265/j.cnki.issn1003-3033.2024.02.1453
	SHEN Xiaojing, YUE Jiwei, LIANG Yuehui, et al. Study on gas adsorption characteristics of coal under high temperature and high pressure atmosphere[J]. China Safety Science Journal, 2024, 34(2):176-184. doi: 10.16265/j.cnki.issn1003-3033.2024.02.1453
[4]	陈向军, 杜云飞, 李立杨. 煤体水力化措施综合消突作用研究[J]. 煤炭科学技术, 2017, 45(6): 43-49.
	CHEN Xiangjun, DU Yunfei, LI Liyang. Study on comprehensive outburst elimination effect of hydraulic measures applied to coal mass[J]. Coal Science and Technology, 2017, 45(6):43-49.
[5]	赵发军, 郝富昌, 刘明举. 突出煤层先注后冲防喷孔消突技术研究[J]. 中国安全生产科学技术, 2017, 13(4): 16-20.
	ZHAO Fajun, HAO Fuchang, LIU Mingju. Study on borehole blowout prevention and outburst elimination technology by water injection first and then hydraulic punching in outburst coal seam[J]. Journal of Safety Science and Technology, 2017, 13(4): 16-20.
[6]	聂百胜, 柳先锋, 郭建华, 等. 水分对煤体瓦斯解吸扩散的影响[J]. 中国矿业大学学报, 2015, 44(5): 781-787.
	NIE Baisheng, LIU Xianfeng, GUO Jianhua, et al. Effect of moisture on gas desorption and diffusion in coal mass[J]. Journal of China University of Mining & Technology, 2015, 44(5): 781-787.
[7]	MOORE T A. Coalbed methane: a review[J]. International Journal of Coal Geology, 2012, 101: 36-81.
[8]	GHANBARI E, DEHGHANPOUR H. Impact of rock fabric on water imbibition and salt diffusion in gas shales[J]. International Journal Of Coal Geology, 2015, 138: 55-67.
[9]	CHATURVEDI T, SCHEMBRE J M, KOVSCEK A R. Spontaneous imbibition and wettability characteristics of Powder river basin coal[J]. International Journal Of Coal Geology, 2009, 77: 34-42.
[10]	麻红顺, 刘厚宁, 严康. 不同变质程度煤的润湿性研究[J]. 煤炭技术, 2016, 35(8): 119-121.
	MA Hongshun, LIU Houning, YAN Kang. Study on different rank of coal wettability[J]. Coal Technology, 2016, 35(8): 119-121.
[11]	周刚, 程卫民, 徐翠翠, 等. 不同变质程度煤尘润湿性差异的¹³C-NMR特征解析[J]. 煤炭学报, 2015, 40(12): 2849-2855.
	ZHOU Gang, CHENG Weimin, XU Cuicui, et al. Characteristic analysis of ¹³C-NMR for the wettability difference of coal dust with diverse degrees of metamorphism[J]. Journal of China Coal Society, 2015, 40(12): 2849-2855.
[12]	HUANG Qiming, LIU Shimin, WANG Gang, et al. Evaluating the changes of sorption and diffusion behaviors of Illinois coal with various water-based fracturing fluid treatments[J]. Fuel, 2021, 283: DOI: 10.1016/j.fuel.2020.118884.
[13]	MENG Junqing, WANG Lijuan, ZHANG Shuo, et al. Effect of anionic/nonionic surfactants on the wettability of coal surface[J]. Chemical Physics Letters, 2021, 785: 130-139.
[14]	LYU Shuaifeng, CHEN Xiaojun, WU Xiaoming. Experimental study of influence of natural surfactant soybean phospholipid on wettability of high-rank coal[J]. Fuel, 2019, 239: 1-12. doi: 10.1016/j.fuel.2018.11.005
[15]	WANG Ziwei, LIU Shimin, QIN Yong. Coal wettability in coalbed methane production: a critical review[J]. Fuel, 2021, 303: DOI: 10.1016/j.fuel.2021.121277.
[16]	林海飞, 田佳敏, 刘丹, 等. SDBS与CaCl₂复配液对煤体瓦斯解吸抑制效应研究[J]. 中国安全科学学报, 2019, 29(11): 149-155. doi: 10.16265/j.cnki.issn1003-3033.2019.11.024
	LIN Haifei, TIAN Jiamin, LIU Dan, et al. Inhibitory effect of SDBS and CaCl₂ compound solution on gas desorption of coal[J]. China Safety Science Journal, 2019, 29(11): 149-155. doi: 10.16265/j.cnki.issn1003-3033.2019.11.024
[17]	周群, 张文豪, 查舰, 等. 磁化与活性剂协同改善水湿润性能的作用机制[J]. 中国安全科学学报, 2023, 33(3): 75-82. doi: 10.16265/j.cnki.issn1003-3033.2023.03.1178
	ZHOU Qun, ZHANG Wenhao, ZHA Jian, et al. Synergistic mechanism between surfactants and magnetization on water wetting characteristics[J]. China Safety Science Journal, 2023, 33(3): 75-82. doi: 10.16265/j.cnki.issn1003-3033.2023.03.1178
[18]	杨威, 罗黎明, 王一涵, 等. 煤微观结构化学调控及注水驱替瓦斯规律[J]. 煤炭学报, 2023, 48(8): 3091-3101.
	YANG Wei, LUO Liming, WANG Yihan, et al. Chemical regulation of coal microstructure and study of waterinjection displacement gas law[J]. Journal of China Coal Society, 2023, 48(8): 3091-3101.
[19]	秦桐, 蒋曙光, 张卫清. 煤的润湿性研究进展[J]. 煤矿安全, 2017, 48(9): 163-166.
	QIN Tong, JIANG Shuguang, ZHANG Weiqing. Research progress on coal wettability[J]. Safety in Coal Mines, 2017, 48(9): 163-166.
[20]	GB /T 212—2008, 煤的工业分析方法[S].
	GB /T 212-2008, Proximate analysis of coal[S].
[21]	张雪洁, 陈明义, 张同浩, 等. 表面活性剂水溶液抑制煤体瓦斯解吸作用的研究进展[J]. 矿业科学学报, 2022, 7(6): 738-751.
	ZHANG Xuejie, CHEN Mingyi, ZHANG Tonghao, et al. Research progress of surfactantaqueous solution inhibiting the desorption of gas in coal[J]. Journal ofMining Science and Technology, 2022, 7(6):738-751.
[22]	NI Guanhua, LI Zhao, XIE Hongchao. The mechanism and relief method of the coal seam water blocking effect (WBE) based on the surfactants[J]. Powder Technology, 2018, 323: 60-68.
[23]	GB/T 19560—2008,煤的高压等温吸附实验方法[S].
	GB/T 19560-2008, Experimental method of high-pressure isothermal adsorption to coal[S].
[24]	GB/T 19559—2021,煤层气含量测定方法[S].
	GB/T 19559-2021, Method of determining coalbed gas content[S].
[25]	YAO Yanbin, ZHANG Chu, YE Shun, et al. Water-methane interactions in coal: insights from molecular simulation[J]. Unconventional Resources, 2023, 3: 113-122.
[26]	李小龙, 肖雯, 刘晓强, 等. 压裂返排技术优化[J]. 断块油气田, 2015, 22(3): 402-404.
	LI Xiaolong, XIAO Wen, LIU Xiaoqiang, et al. Fracturing flowback technology optimization[J]. Fault-Block Oil & Gas Field, 2015, 22(3): 402-404.
[27]	才博, 毕国强, 何春明, 等. 人工裂缝复杂程度的压裂液返排表征方法及应用[J]. 石油钻采工艺, 2017, 39(1): 20-24.
	CAI Bo, BI Guoqiang, HE Chunming, et al. A characterization method on complexity degree of artificial fractures based on fracturing fluid flowback and its application[J]. Oil Drilling & Production Technology, 2017, 39(1): 20-24.
[28]	毛潇潇, 赵迪斐, 杨玉娟, 等. 阳泉新景矿高煤级煤的孔隙结构分形特征[J]. 煤田地质与勘探, 2017, 45(3): 59-66.
	MAO Xiaoxiao, ZHAO Difei, YANG Yujuan, et al. Fractal characteristics of pore structure in high rank coals from Xinjing coal mine, Yangquan[J]. Coal Geology & Exploration, 2017, 45(3): 59-66.
[29]	刘迈杰. 保德区块煤储层物性及气体吸附解吸特性研究[D]. 北京: 中国地质大学(北京), 2021.
	LIU Maijie. Study on the physical properties of coal reservoir and its adsorption and desorption characteristics in Baode block[D]. Beijing: China University of Geosciences (Beijing), 2021.
[30]	何涛. 水分对煤瓦斯解吸性能及力学特性的影响研究[D]. 徐州: 中国矿业大学, 2015.
	HE Tao. Research on effects of moisture on the gas desorption and mechanical properties of coal[D]. Xuzhou: China University of Mining and Technology, 2015.
[31]	王皓. 突出松软煤层注水防突机理及爆破增注技术研究[D]. 徐州: 中国矿业大学, 2019.
	WANG Hao. Research on mechanism of outburst soft coalseam and water injection strengthened byloosening blasting technology[D]. Xuzhou: China University of Mining and Technology, 2019.
[32]	刘震, 李增华, 杨永良, 等. 水分对煤体瓦斯吸附及径向渗流影响试验研究[J]. 岩石力学与工程学报, 2014, 33(3): 586-593.
	LIU Zhen, LI Zenghua, YANG Yongliang, et al. Experimental study of effect of water on sorption and radial gas seepage of coal[J]. Chinese Journal of Rock Mechanics and Engineering, 2014, 33(3): 586-593.
[33]	王方祥, 孙立波, 赵阳, 等. 压裂液返排率影响因素的实验研究[J]. 长江大学学报:自然科学版, 2023, 20(1):1-8.
	WANG Fangxiang, SUN Libo, ZHAO Yang, et al. Experimental study on factors affecting backflow rate of fracturing fluid[J]. Journal of Yangtze University : Natural Science Edition, 2023, 20(1):1-8.

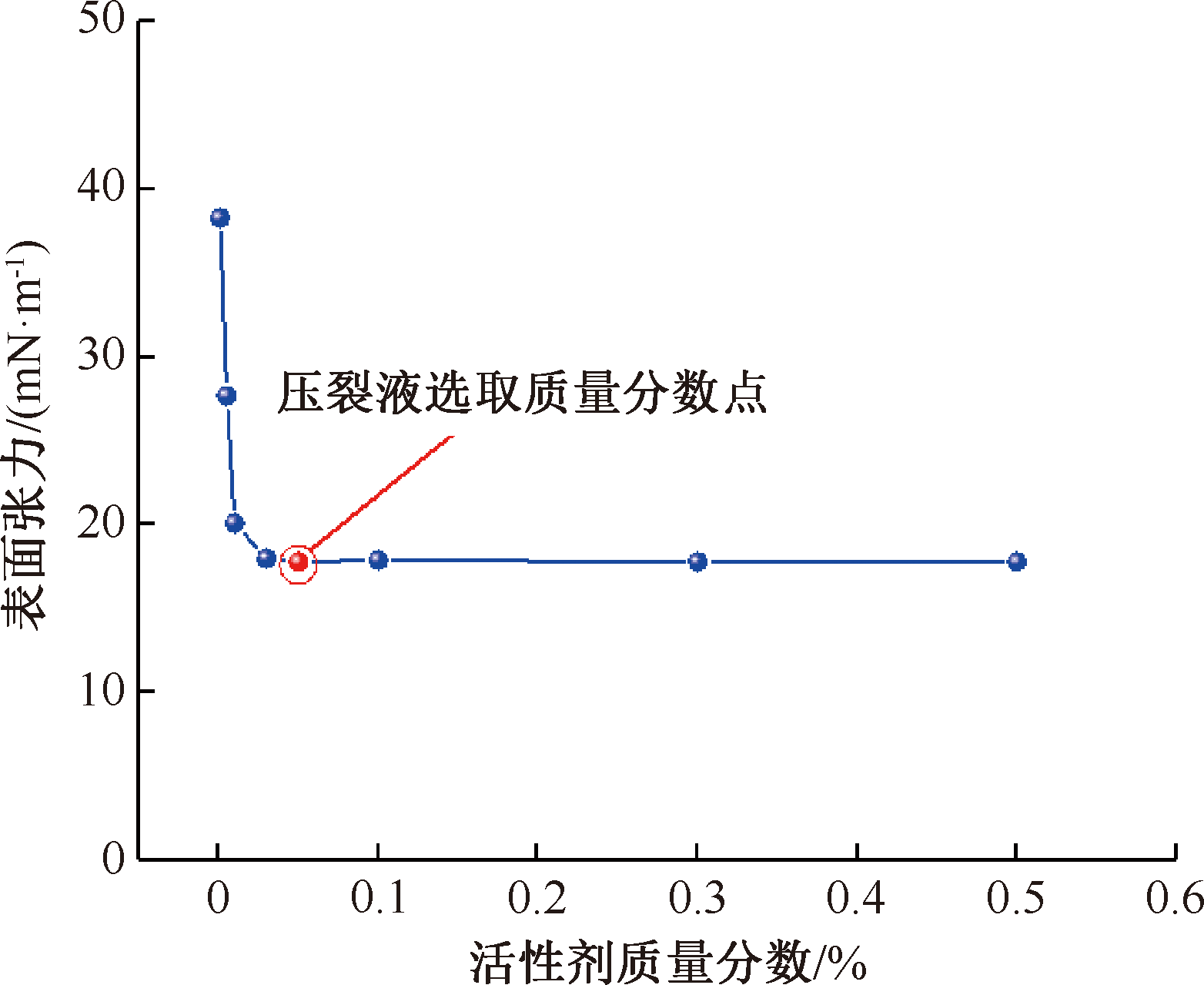

活性剂质量分数/%	0.001	0.005	0.01	0.03	0.05	0.1	0.3	0.5
FS-3100/(mN·m^-1)	38.3	27.7	20.1	18.0	17.8	17.9	17.8	17.8
清水/(mN·m^-1)	71.8

压裂液类型	质量分数/%	黏度/ (mPa·s^-1)	酸碱度/ pH	表面张力/ (mN·m^-1)	新景煤样接触角/(°)	保德煤样接触角/(°)
FS-3100	0.05	1	6	17.8	3.5	3
清水	0	1	7	71.8	73.4	67.1

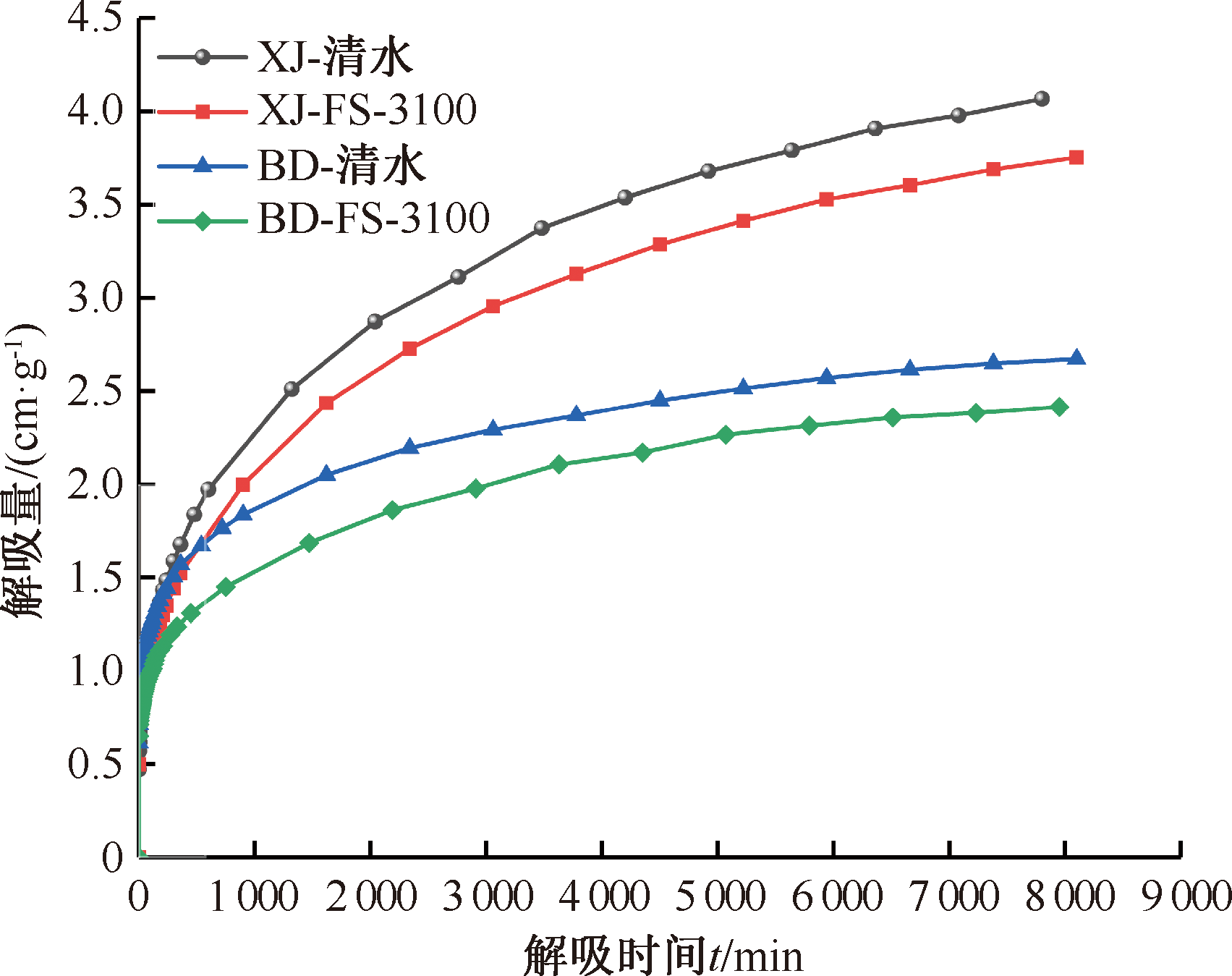

煤样编号	压裂液类型	压裂液接触角/ (°)	干燥煤样质量/g	平衡压力/ MPa	样品吸附量/ (cm³·g^-1)	样品解吸压力/ MPa	样品解吸量/ (cm³·g^-1)	解吸率/%
XJ-1	清水	73.4	256.48	2.08	8.011 2	1.31	4.029 5	50.30
XJ-2	0.05% FS-3100	3.5	256.80	2.08	8.027 2	0.82	3.699 3	46.08
BD-1	清水	67.1	227.55	2.16	6.102 43	1.54	2.651 8	43.45
BD-2	0.05% FS-3100	3	227.54	2.16	6.109 82	1.04	2.394 9	39.20

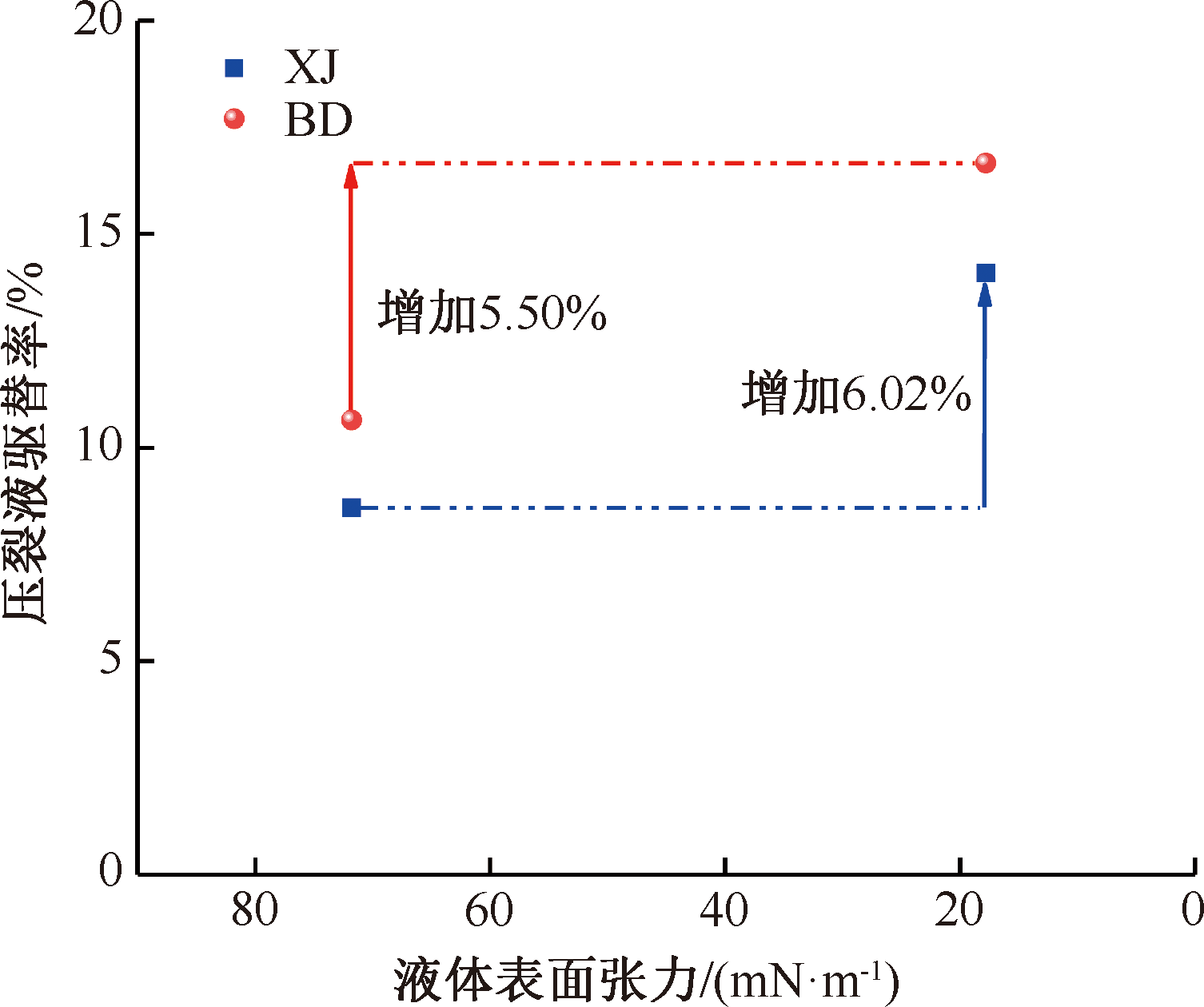

采样矿井	煤样编号	压裂液类型	液体表面张力/ (mN·m^-1)	105 ℃真空干燥后样品质量/g	高压饱和压裂液质量/g	煤样含水饱和度/%	驱替后样品质量/g	压裂液驱替占比/%
新景	XJ-1	清水	71.8	198.73	201.99	1.640	201.71	8.589
新景	XJ-2	0.05% FS-3100	17.8	140.70	142.90	1.564	142.59	14.091
保德	BD-1	清水	71.8	133.15	137.00	2.891	136.59	10.649
保德	BD-2	0.05% FS-3100	17.8	199.89	204.75	2.431	203.94	16.667

压裂液类型	表面张力/ (mN·m^-1)	新景煤接触角/ (°)	保德煤接触角/ (°)	12 MPa 侵入新景煤孔隙直径/nm	12 MPa 侵入保德煤孔隙直径/nm
清水	71.8	73.4	67.1	6.84	9.31
0.05% FS-3100	17.8	3.5	3	5.92	5.93
