Location optimization of metro subway emergency rescue stations considering node importance

doi:10.16265/j.cnki.issn1003-3033.2025.11.1151

Abstract

Abstract:

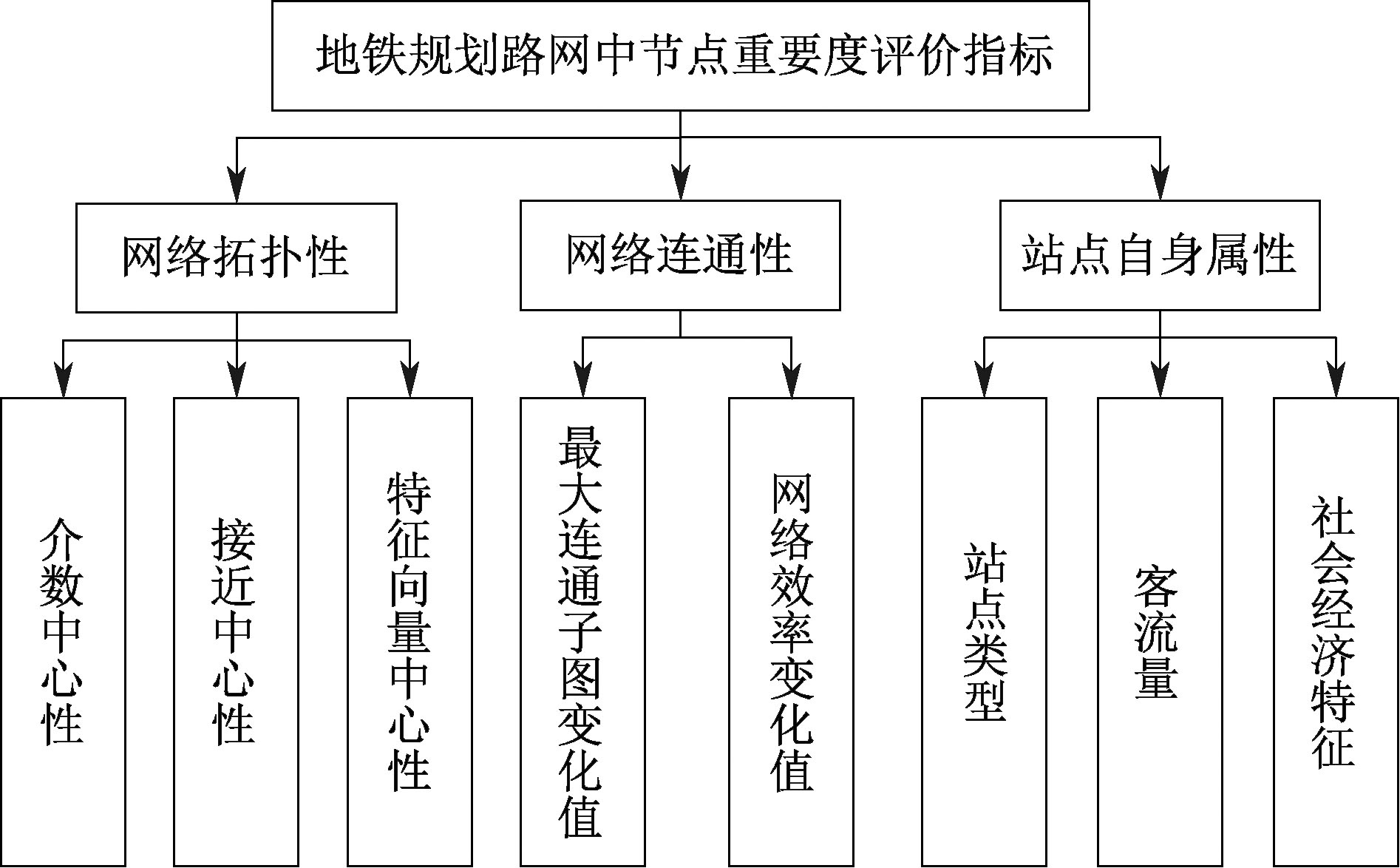

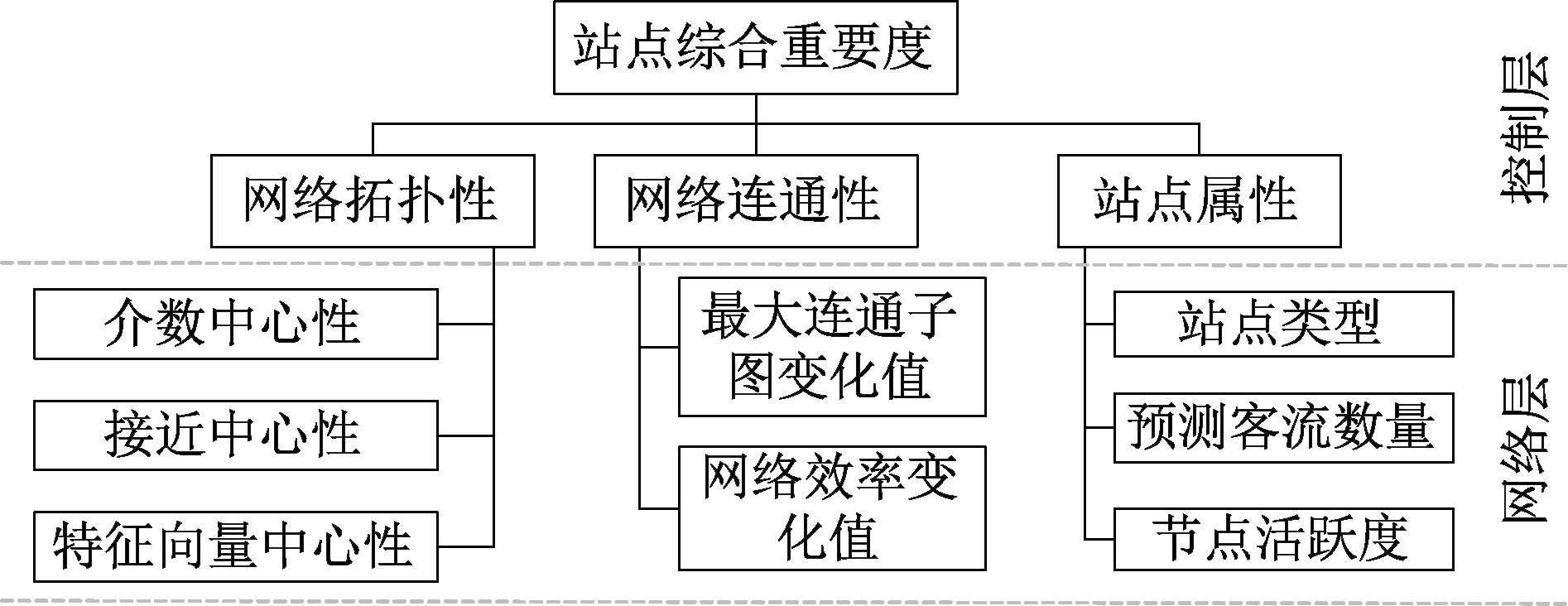

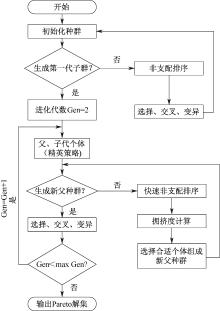

In order to study the scientific and reasonable location selection of regional emergency rescue stations and base-level emergency rescue stations in the planning and construction stage of the subway network, firstly, the topology model of the subway network was constructed based on complex network theory. Relevant indicators were selected to construct the evaluation system of node importance, and GWR model was used to predict passenger flow to supplement the research data. Secondly, aiming at the highest efficiency, optimal coverage and lowest cost, the multi-objective location model of regional emergency rescue stations was established, and NSGA-Ⅱ algorithm was used to solve the optimal scheme. At the same time, a hybrid analysis calculation method was designed to solve the comprehensive importance value parameters of nodes in the model, and based on the site selection results of regional emergency rescue stations, the enumeration method was used to solve the optimal solution of base-level emergency rescue stations. Finally, Xi'an metro planning network was taken as an example to verify the calculation. The results show that compared with the optimal solution in the case of "no consideration of node importance", the regional location solution with "consideration of node importance" saves about 2.19% in cost, improves the rescue efficiency by about 9.43%, and exceeds the optimal solution with about 4.66% in coverage. Therefore, the location scheme of "considering node importance" is more in line with the actual needs of the subway network.

Key words: location of emergency rescue stations, node importance, subway system, geographic weighted regression (GWR), non-dominated sorting genetic algorithm-II (NSGA-Ⅱ)

CLC Number:

LEI Bin, LI Yujin, LI Na, LIU Wei, LUO Linlin, LEI Dongbo. Location optimization of metro subway emergency rescue stations considering node importance[J]. China Safety Science Journal, 2025, 35(11): 207-219.

Figures/Tables 18

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Table 1

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Table 2

Fig.11

Table 3

Regression results of GWR model

变量	平均值	标准差	最小值	中位数	最大值
常量	-168 516 130.165	4 224 641 289.852	-15 825 142 686.303	1 218 361.11	11 721 158 427.216
Latitude	209 859.391	30 315 792.293	-73 392 471.835	-332 945.764	116 347 057.038
Longitude	1 486 901.707	31 376 088.717	-90 165 545.648	9 706.352	108 863 525.476
L	58 909.568	261 642.165	-206 190.932	2 378.096	1 302 629.774
WFA	-0.537	2.551	-12.708	0.005	1.170
$H'$	3 120 256.414	11 299 289.166	-15 212 345.320	118 078.390	54 420 625.406
D	27 537.578	163 450.085	-568 774.910	12 576.100	485 804.271

Table 3

Table 4

Table 5

Fig.12

Fig.13

References 21

[1]	施润妮, 朱双凯, 张艳玲. 城市轨道交通应急救援站设置研究综述[J]. 产业创新研究, 2021(18): 113-115.
[2]	XU Lei, WANG Chuanjiang, DONG Wei, et al. A method for optimal allocation of regional rail transit emergency resources based on resource sharing[J]. Journal of Physics: Conference Series, 2020, 1624: DOI:10.1088/1742-6596/1624/4/042037.
[3]	MOHRI S S, AKBARZADEH M, MATIN S H S. A hybrid model for locating new emergency facilities to improve the coverage of the road crashes[J]. Socio-Economic Planning Sciences, 2020, 69: DOI:10.1016/j.seps.2019.01.005.
[4]	TRIVEDI A, SINGH A. A hybrid multi-objective decision model for emergency shelter location-relocation projects using fuzzy analytic hierarchy process and goal programming approach[J]. International Journal of Project Management, 2016, 35(5): 827-840. doi: 10.1016/j.ijproman.2016.12.004
[5]	张宇, 韩梅, 汤兆平, 等. 多层级协同的地铁应急救援基地选址优化[J]. 铁道运输与经济, 2024, 46(4): 161-171.
	ZHANG Yu, HAN Mei, TANG Zhaoping, et al. Multi-level collaborative site optimization for subway emergency rescue base[J]. Railway Transport and Economy, 2024, 46(4): 161-171.
[6]	路庆昌, 崔欣, 谢驰, 等. 城市轨道交通网络关键站点识别方法对比与分析[J]. 北京交通大学学报, 2022, 46(3): 18-25. doi: 10.11860/j.issn.1673-0291.20210076
	LU Qingchang, CUI Xin, XIE Chi, et al. Comparison and analysis of identification methods for critical stations in urban rail transit networks[J]. Journal of Beijing Jiaotong University, 2022, 46(3): 18-25. doi: 10.11860/j.issn.1673-0291.20210076
[7]	王梓行, 姜大立, 漆磊, 等. 基于冗余度的复杂网络抗毁性及节点重要度评估模型[J]. 复杂系统与复杂性科学, 2020, 17(3): 78-85.
	WANG Zihang, JIANG Dali, QI Lei, et al. Complex network invulnerability and node importance evaluation model based on redundancy[J]. Complex Systems and Complexity Science, 2020, 17(3): 78-85.
[8]	DU Zhouyang, TANG Jinjun, QI Yong, et al. Identifying critical nodes in metro network considering topological potential: a case study in Shenzhen city-China[J]. Physica A: Statistical Mechanics and its Applications, 2020, 539: DOI:10.1016/j.physa.2019.122926.
[9]	梁青槐, 柴树山, 钟思敏, 等. 城市轨道交通站点网络结构综合重要度识别[J]. 铁道工程学报, 2019, 36(9):66-71.
	LIANG Qinghuai, CHAI Shushan, ZHONG Simin, et al. Identification of comprehensive importance of urban transit stations in network structure[J]. Journal of Railway Engineering Society, 2019, 36(9):66-71.
[10]	孙剑萍, 胡义, 汤兆平. 考虑节点重要度的城市轨道交通应急救援点选址研究[J]. 中国安全生产科学技术, 2024, 20(9):173-180.
	SUN Jianping, HU Yi, TANG Zhaoping. Study on site selection of emergency rescue points in urban rail transit considering node importance[J]. Journal of Safety Science and Technology, 2024, 20(9):173-180.
[11]	孙晓黎, 朱才华, 马超群. 考虑步行影响范围的城市轨道交通客流需求预测[J]. 铁道运输与经济, 2023, 45(4): 133-140.
	SUN Xiaoli, ZHU Caihua, MA Chaoqun. Passenger flow demand forecast of urban rail transit considering walking influence range[J]. Railway Transport and Economy, 2023, 45(4): 133-140.
[12]	袁发涛. 基于多源数据的轨道站点客流量预测模型[D]. 重庆: 重庆交通大学, 2021.
	YUAN Fatao. Passenger flow forecast model of rail station based on multi-source data[D]. Chongqing: Chongqing Jiaotong University, 2021.
[13]	岂常禄, 胡昊. 基于混合地理加权回归的城市轨道交通站点客流预测研究[J]. 铁道科学与工程学报, 2021, 18(7):1903-1909.
	QI Changlu, HU Hao. Research on ridership forecast of urban rail transit station based on mixed geographic weighted regression[J]. Journal of Railway Science and Engineering, 2021, 18(7):1903-1909.
[14]	LIU Xiaoping, NIU Ning, LIU Xingjian, et al. Characterizing mixed-use buildings based on multi-source big data[J]. International Journal of Geographical Information Science, 2017, 32(4): 738-756.
[15]	陈刘瑜, 李希建, 毕娟, 等. 基于AHP-TOPSIS的冲击型煤与瓦斯突出倾向性预测[J]. 中国安全科学学报, 2020, 30(4):47-52. doi: 10.16265/j.cnki.issn1003-3033.2020.04.008
	CHEN Liuyu, LI Xijian, BI Juan, et al. Prediction of coal-gas outburst induced by rock-burst tendency based on AHP-TOPSIS[J]. China Safety Science Journal, 2020, 30(4):47-52. doi: 10.16265/j.cnki.issn1003-3033.2020.04.008
[16]	黄亚江, 李书全, 李益锌, 等. 基于DEMATEL-ISM-ANP的地铁运营安全韧性综合评价[J]. 中国安全科学学报, 2022, 32(6):171-177. doi: 10.16265/j.cnki.issn1003-3033.2022.06.2120
	HUANG Yajiang, LI Shuquan, LI Yixin, et al. Comprehensive evaluation on subway operation safety resilience based on DEMATEL-ISM-ANP[J]. China Safety Science Journal, 2022, 32(6):171-177. doi: 10.16265/j.cnki.issn1003-3033.2022.06.2120
[17]	交通运输部. 城市轨道交通运营期间安全评估规范(交办运(2023)58号)[Z]. 2023-09-22.
[18]	张星玄. 基于城市交通网络节点重要性的应急设施选址研究[D]. 石家庄: 石家庄铁道大学, 2021.
	ZHANG Xingxuan. Research on emergency facility location based on the node importance of urban traffic network[D]. Shijiazhuang: Shijiazhuang Tiedao University, 2021.
[19]	曹琉, 胡锐, 郭兆能, 等. 城市轨道交通应急资源选址和配置方法研究[J]. 交通运输研究, 2016, 2(4):54-61.
	CAO Liu, HU Rui, GUO Zhaoneng, et al. Emergency resource location and distribution of urban rail transit[J]. Transport Research, 2016, 2(4):54-61.
[20]	陈博文, 陈建岭. 基于改进多目标遗传算法的电动汽车换电站选址研究[J]. 物流研究, 2024(1):36-40.
	CHEN Bowen, CHEN Jianling. Research on the location planning of electric vehicle battery swap stations based on improved multi-objective genetic algorithm[J]. Logistics Research, 2024(1): 36-40.
[21]	付德强, 王旭, 张伟. 基于NSGA-Ⅱ的应急储备库多目标选址决策模型及算法研究[J]. 运筹与管理, 2014, 23(4):64-69.
	FU Deqiang, WANG Xu, ZHANG Wei. Decision model of the multi-objective supplies reserve storage location problem based NSGA-Ⅱ[J]. Operations Research and Management Science, 2014, 23(4): 64-69.

类型	属性	来源
地铁站流量数据	西安市地铁路网2023年8月21日—9月17日期间的各线路站点的每日客流量数据	西安市轨道交通集团有限公司
地铁路网结构等矢量数据	西安市地铁线路和站点的矢量数据文件	百度地图及数据网站
POI数据	西安市地铁各站点地理坐标及类别信息等	百度地图应用程序接口
其他数据	西安市地铁站点周边接驳其他交通情况	大众点评、本地宝、安居客等网站

站点类型	站点编号	站点个数
1	{1,2,3,4,…,237,238}	167
2	{13,24,29,…,220,224}	17
3	{10,12,17,…,233,239}	56

类别	地铁网络节点集合	数量	等级	描述
1	{21,22,…,123,149}	19	Ⅰ	极为重要
2	{10,12,…,225,233}	53	Ⅱ	重要
3	{11,15,…,217,239}	107	Ⅲ	较为重要
4	{1,2,…,237,238}	61	Ⅳ	普通
