Study on reduction of seismic vulnerability of frame-elevated silo by base isolation

doi:10.16265/j.cnki.issn1003-3033.2025.11.1388

Abstract

Abstract:

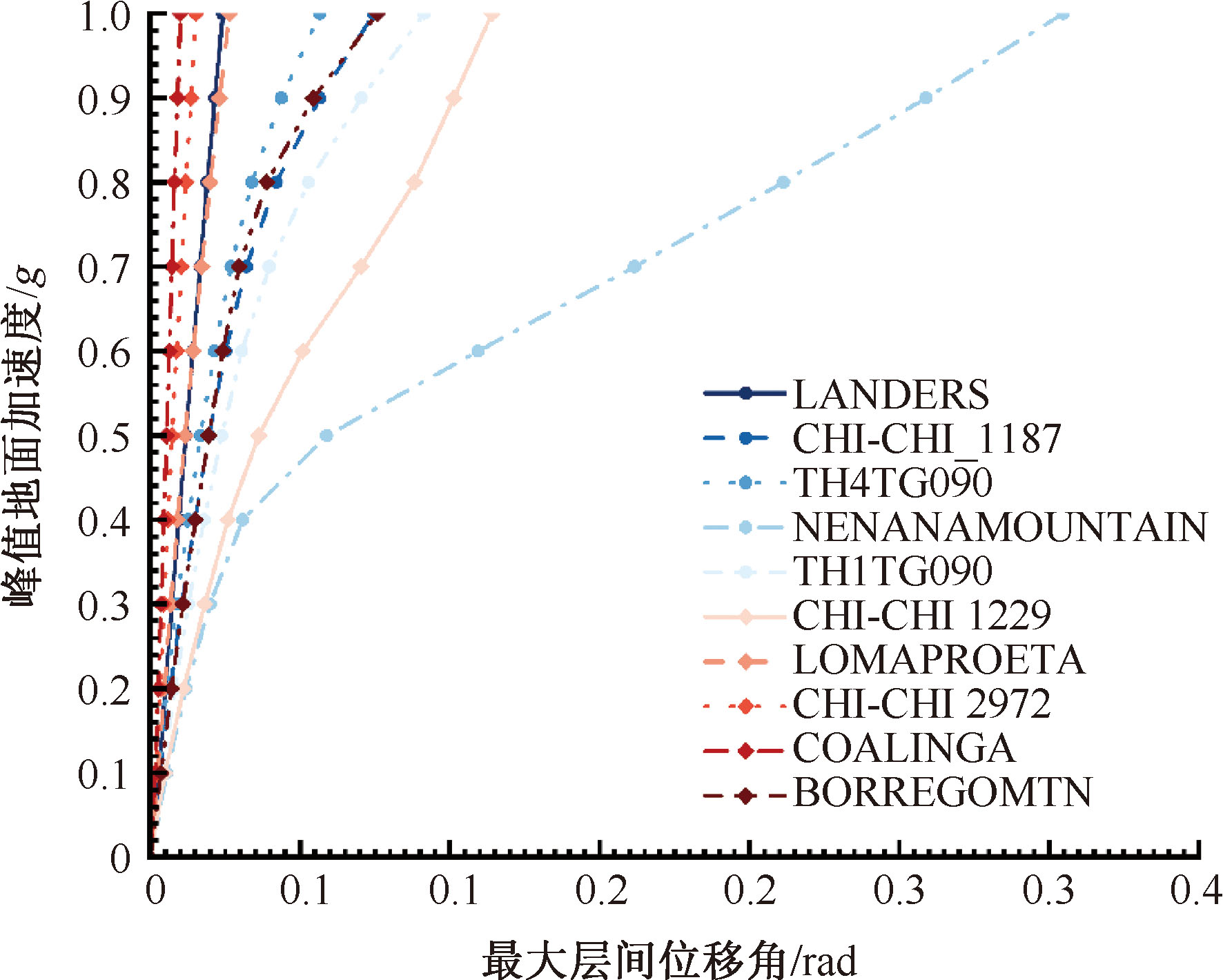

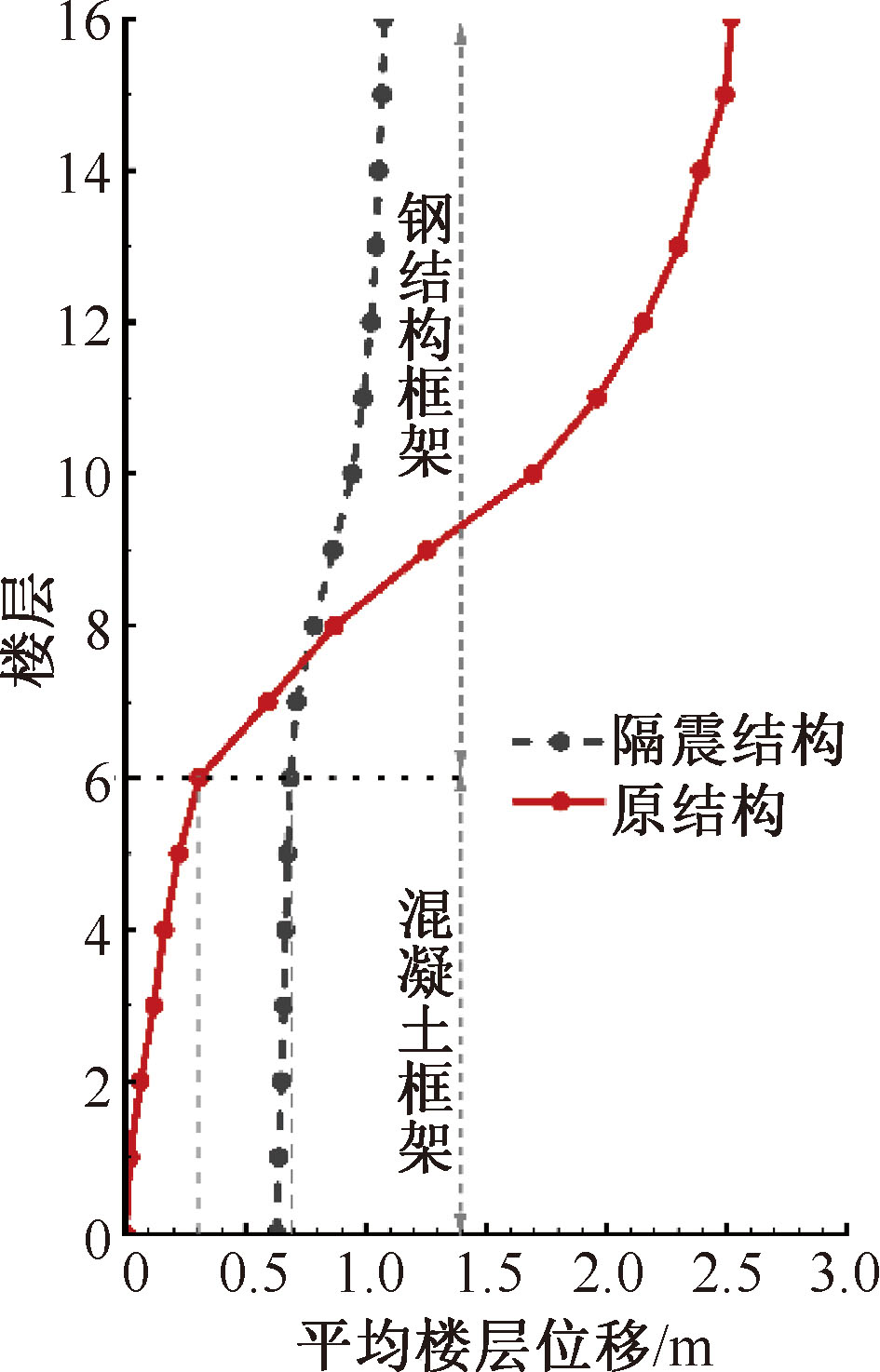

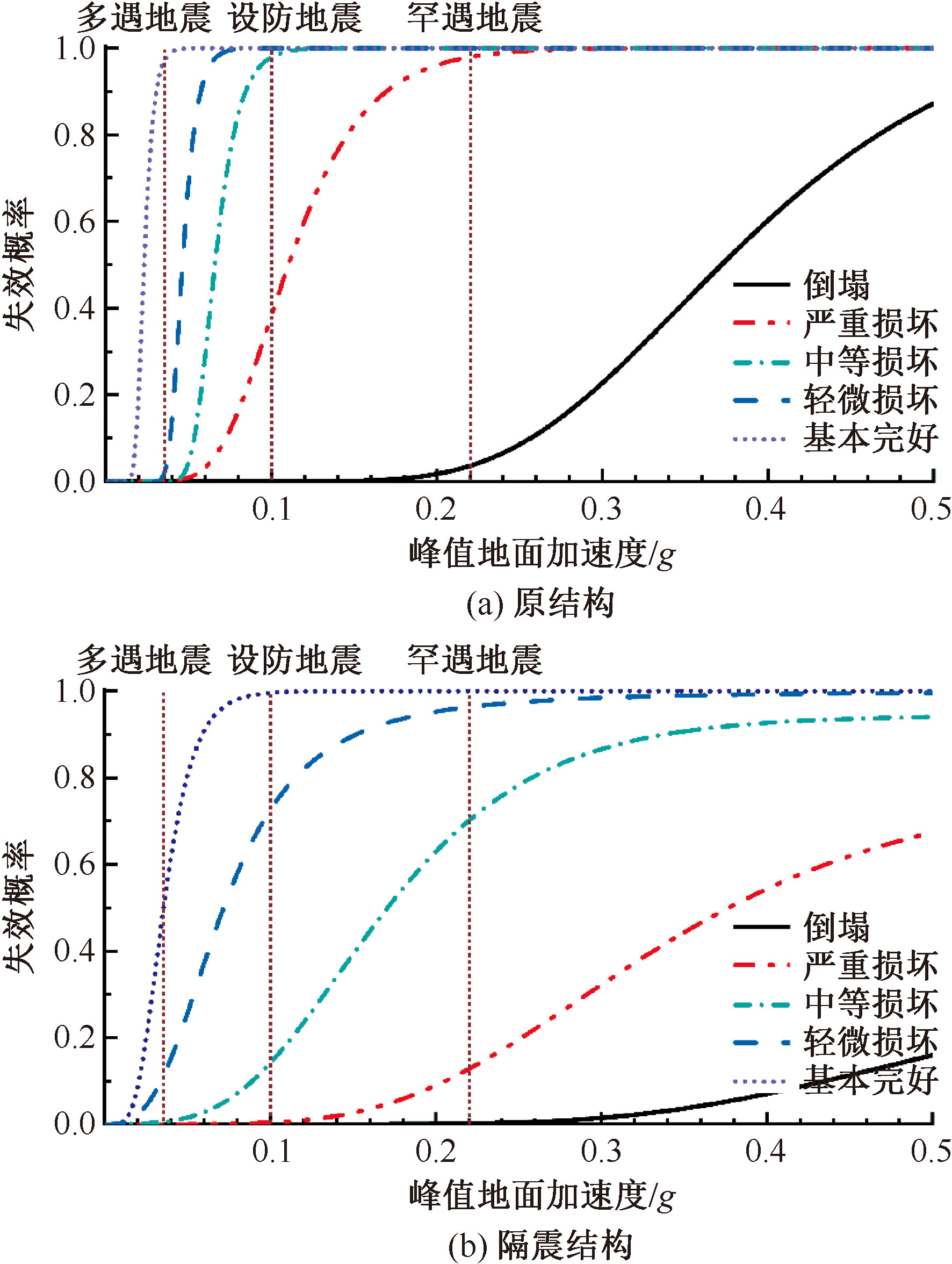

To mitigate the seismic collapse risks of elevated silo structures, this study adopted base isolation devices to enhance their seismic performance. A photovoltaic-grade ethylene-vinyl acetate (EVA) packaging project was selected as the research object. A finite element model incorporating base isolation was developed using IDA, and seismic fragility analysis was conducted. The maximum inter-story drift ratio was selected as the Engineering Demand Parameter (EDP), while Peak Ground Acceleration (PGA) was adopted as the Intensity Measure (IM). The seismic performance and failure probability of the original structure and the base-isolated structure were compared and analyzed. The results demonstrate that under the rare earthquake (PGA = 0.22 g), peak inter-story drift ratios are reduced by 65.8% (X-direction) and 51.07% (Y-direction) through base isolation. Furthermore, the progression of plastic hinges is effectively suppressed, and the soft-story collapse mechanism is eliminated. Under the rare earthquake, the collapse probability of the base-isolated structure is significantly reduced from 3.63% to 0.173%. Compared to the original structure, the base-isolated structure exhibits significantly better capability in resisting collapse risks induced by low-probability seismic events. This research provides a theoretical foundation and practical guidelines for the seismic isolation design of elevated silo structures.

Key words: base isolation device, frame-supported elevated silo, silo structures, seismic vulnerability, incremental dynamic analysis (IDA), rare earthquake

CLC Number:

X924.4安全控制技术

LUO Yongzhe, ZHANG Jiahao, TENG Zhenchao, JI Jing. Study on reduction of seismic vulnerability of frame-elevated silo by base isolation[J]. China Safety Science Journal, 2025, 35(11): 72-80.

Figures/Tables 15

Fig.1

Table 1

Fig.2

Table 2

Fig.3

Table 3

Table 4

Fig.4

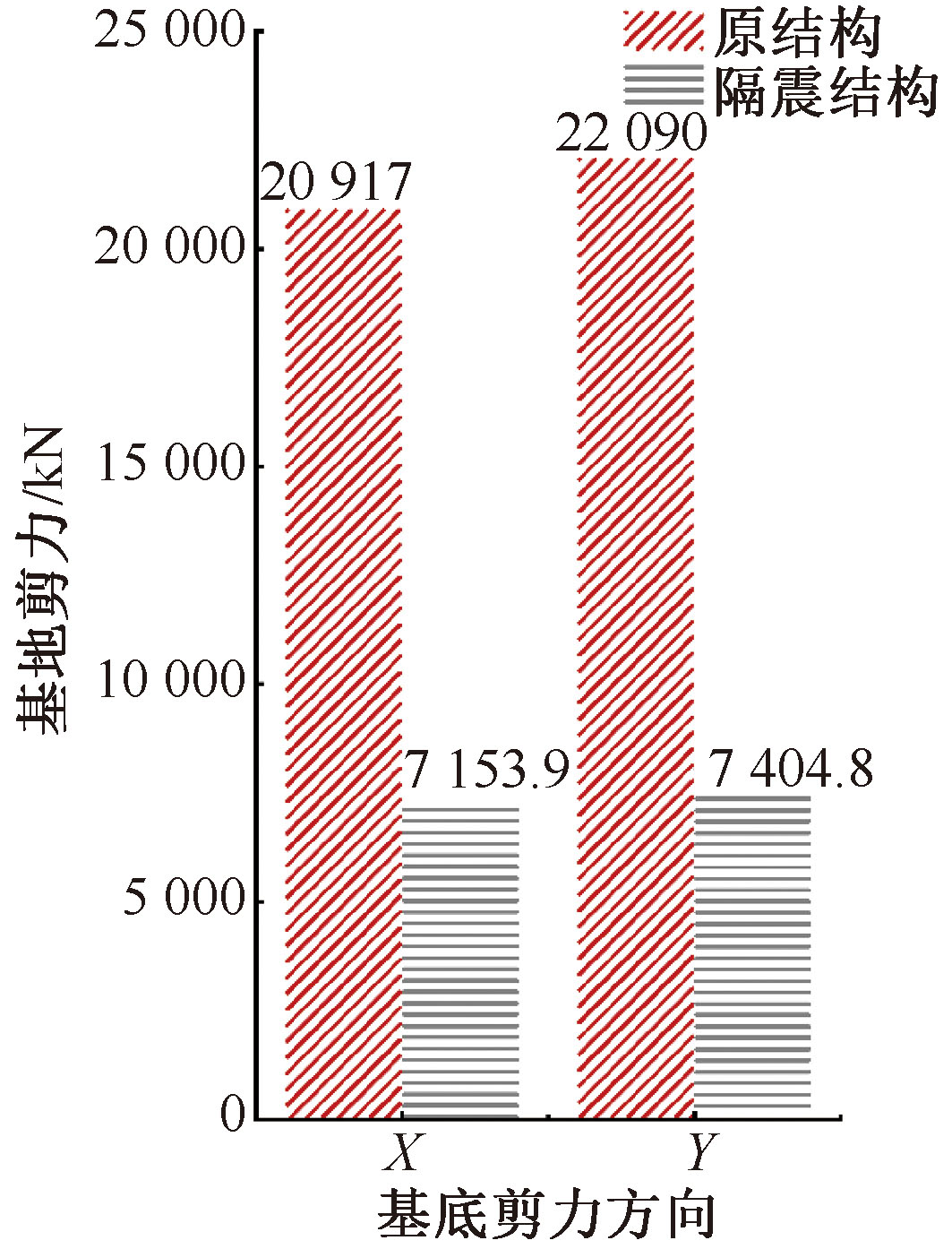

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Table 5

Fig.10

References 23

[1]	KHALIL M, RUGGIERI S, UVA G. Assessment of structural behavior, vulnerability, and risk of industrial silos: state-of-the-art and recent research trends[J]. Applied Sciences, 2022, 12(6): DOI: 10.3390/app12063006.
[2]	DOGANGUN A, KARACA Z, DURMUS A, et al. Cause of damage and failures in silo structures[J]. Journal of Performance of Constructed Facilities, 2009, 23(2): 65-71. doi: 10.1061/(ASCE)0887-3828(2009)23:2(65)
[3]	MARIUS P, BENNO H, MARKUS F. Performance assessment of seismic retrofitting measures on silo structures using innovative seismic protection systems[C]. Proceedings of the 7^thEuropean Congress on Computational Methods in Applied Sciences and Engineering, 2016: 5851-5867.
[4]	UCKAN E, AKBAS B, SHEN J, et al. Seismic performance of elevated steel silos during Van earthquake, October 23, 2011[J]. Natural Hazards, 2015, 75: 265-287. doi: 10.1007/s11069-014-1319-9
[5]	KANYILMAZ A, CASTIGLIONI A C. Reducing the seismic vulnerability of existing elevated silos by means of base isolation devices[J]. Engineering Structures, 2017, 143: 477-497. doi: 10.1016/j.engstruct.2017.04.032
[6]	PHAN H N, PAOLACCI F, CORRITORE D, et al. Seismic vulnerability mitigation of liquefied gas tanks using concave sliding bearings[J]. Bulletin of Earthquake Engineering, 2016, 14: 3283-3299. doi: 10.1007/s10518-016-9939-y
[7]	PAOLACCI F. On the effectiveness of two isolation systems for the seismic protection of elevated tanks[J]. Journal of Pressure Vessel Technology, 2015, 137(3): DOI: 10.1115/PVP2014-28563.
[8]	GIANNINI R, PAOLACCI F, ANGELIS D M, et al. Shaking table tests upon a base isolated steel liquid storage tank[C]. 14^th World Conference on Earthquake Engineering, 2008: 12-17.
[9]	CASTIGLIONI C A, KANYILMAZ A, BELLOS J. Simplified numerical modeling of elevated silos for nonlinear dynamic analysis[J]. Ingegneria Sismica, 2016, 33(1/2): 5-15.
[10]	许启铿, 李建业, 刘涛, 等. 基于IDA方法的柱承式筒仓结构地震易损性分析[J]. 防灾减灾工程学报, 2024, 44(3):640-648.
	XU Qikeng, LI Jianye, LIU Tao, et al. IDA-based fragility assessment of column-supported silo[J]. Journal of Disaster Prevention and Mitigation Engineering, 2024, 44(3): 640-648.
[11]	王录民, 张华, 卢文胜, 等. 柱承式群仓结构模型模拟地震振动台试验研究[J]. 建筑结构, 2010, 40(10):41-43.
	WANG Lumin, ZHANG Hua, LU Wensheng, et al. Study of shaking table tests on the model of group silos structures[J]. Building Structure, 2010, 40(10): 41-43.
[12]	李葱葱, 马东辉, 王志涛. 基于IDA的群体典型框架结构的震害预测研究[J]. 中国安全科学学报, 2013, 23(4):127-132.
	LI Congcong, MA Donghui, WANG Zhitao. Earthquake damage prediction of group typical frame structures based on IDA method[J]. China Safety Science Journal, 2013, 23(4): 127-132.
[13]	段红杰, 周文玉, 蒋玮. 大直径筒仓结构的有限元分析[J]. 工业建筑, 2000, 30(9):30-32.
	DUAN Hongjie, ZHOU Wenyu, JIANG Wei. Finite element analysis of large diameter concrete silos[J]. Industrial Construction, 2000, 30(9): 30-32.
[14]	张强, 周德源, 邹翾, 等. 基于纤维模型RC框架结构非线性全过程分析[J]. 四川建筑科学研究, 2009, 35(3):6-9.
	ZHANG Qiang, ZHOU Deyuan, ZOU Xuan, et al. Full-range nonlinear analysis based on fiber model of RC frame structures[J]. Sichuan Building Science, 2009, 35(3): 6-9.
[15]	张帅枫. 不同工况下钢板仓模型地震响应机理研究[D]. 郑州: 郑州航空工业管理学院, 2023.
	ZHANG Shuaifeng. Study on seismic response mechanism of steel silo model under different working conditions[D]. Zhengzhou: Zhengzhou University of Aeronautics, 2023.
[16]	GB 50077—2017, 钢筋混凝土筒仓设计标准[S].
	GB50077-2017, Standard for design of reinforced concrete silos[S].
[17]	GB 50009—2012, 建筑结构荷载规范[S].
	GB50009-2012, Load code for the design of building structures[S].
[18]	王威, 黄小宁, 王宁, 等. 基于隔震技术的偏心结构扭转控制研究[J]. 工程抗震与加固改造, 2020, 42(1):83-89.
	WANG Wei, HUANG Xiaoning, WANG Ning, et al. Research on torsion control of eccentric structure based on isolation technology[J]. Earthquake Resistant Engineering and Retrofitting, 2020, 42(1): 83-89.
[19]	蔡粮锴, 柏文, 戴君武, 等. 基础隔震结构隔震层扭转控制及影响研究[J]. 地震工程与工程振动, 2022, 42(4):200-209.
	CAI Liangkai, BAI Wen, DAI Junwu, et al. Research on torsional control and influence of isolation layer of base isolation structure[J]. Earthquake Engineering and Engineering Dynamics, 2022, 42(4): 200-209.
[20]	马丽, 于剑桥, 邹爱华. 西部高烈度地区某小学综合楼隔震设计及性能研究[J]. 工程抗震与加固改造, 2021, 43(3):109-115.
	MA Li, YU Jianqiao, ZOU Aihua. Seismic design and performance study of the comprehensive building of a primary school in high intensity areas of Western China[J]. Earthquake Resistant Engineering and Retrofitting, 2021, 43(3): 109-115.
[21]	庞倩文, 翟永梅, 胡苇. 基于增量动力分析的建筑震害预测研究[J]. 防灾减灾学报, 2023, 39(4): 77-82.
	PANG Qianwen, ZHAI Yongmei, HU Wei. Research on building seismic damage prediction based on incremental dynamic analysis[J]. Journal of Disaster Prevention and Reduction, 2023, 39(4): 77-82.
[22]	王彬, 丁海平. 地基-基础隔震系统整体地震响应有限元分析[J]. 中国安全科学学报, 2005, 15(8):12-16,114.
	WANG Bin, DING Haiping. Finite element analysis of whole seismic response of the foundation base isolated structure[J]. China Safety Science Journal, 2005, 15(8): 12-16,114.
[23]	吕西林, 苏宁粉, 周颖. 复杂高层结构基于增量动力分析法的地震易损性分析[J]. 地震工程与工程振动, 2012, 32(5):19-25.
	LYU Xilin, SU Ningfen, ZHOU Ying. IDA-based seismic fragility analysis of a complex high-rise structure[J]. Earthquake Engineering and Engineering Dynamics, 2012, 32(5): 19-25.

抗震参数	设防信息
抗震设防类别	丙
抗震设防烈度/(°)	7
基本地震加速度/g	0.10
设计地震分组	第Ⅲ组
场地类别	Ⅳ
场地特征周期/s	0.90

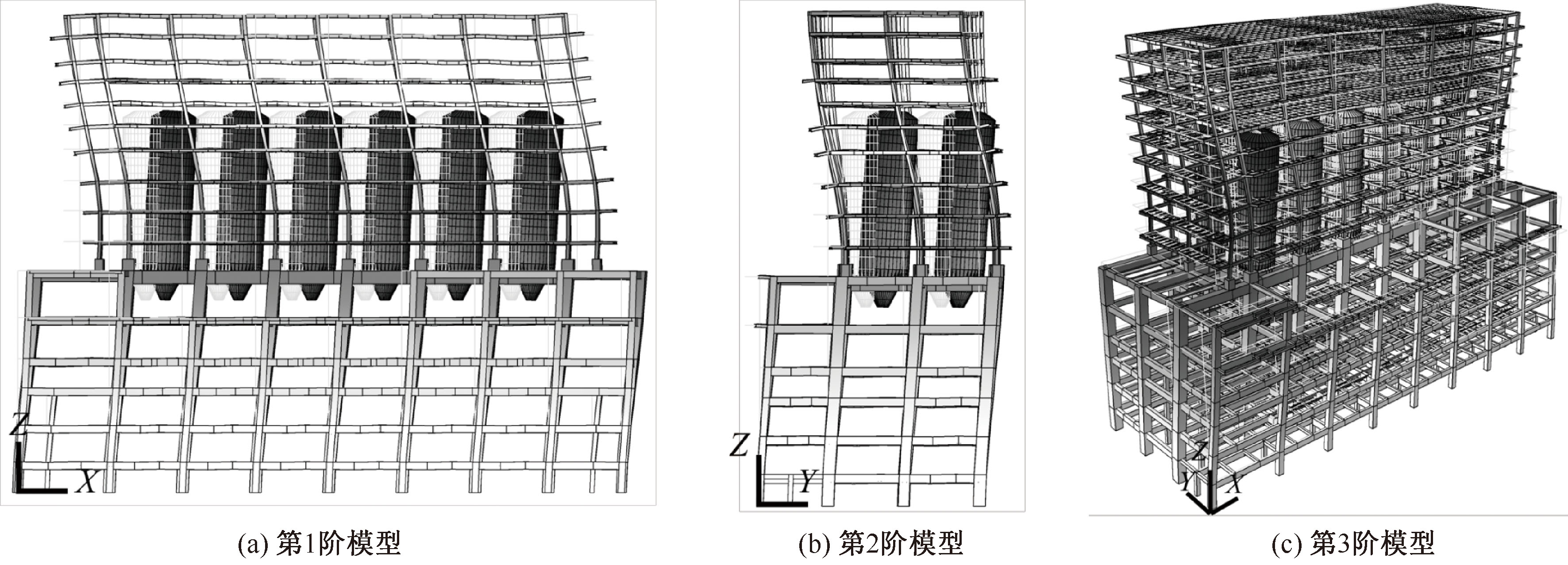

模态	周期/s	X向参与/%	Y向参与/%	Z向参与/%
1	1.299	T_X - 55.32	T_Y - 7.861	R_Z - 0.529
2	1.205	T_X - 7.612	T_Y - 48.74	R_Z - 0.082
3	1.064	T_X - 0.452	T_Y - 0.080	R_Z - 53.06

支座类型	直径/ mm	橡胶厚度/ mm	第1形状系数	第2形状系数	竖向刚度/ (kN·m^-1)	初始刚度/ (kN·m^-1)	屈服强度/ kN	屈服后刚度/ (kN·m^-1)	等效刚度/ (kN·m^-1)
铅芯叠层橡胶支座	700	163	30	5	3 600 000	19 120	106	1 470	2 120
铅芯叠层橡胶支座	900	220	30	5	4 800 000	26 680	227	2 050	3 080
天然叠层橡胶支座	1 000	220	30	5	4 500 000	2 100	—	—	2 100

模态	周期/s	X向参与/%	Y向参与/%	Z向参与/%
1	5.998	T_X - 93.97	T_Y - 0.087	R_Z - 1.904
2	5.931	T_X - 0.093	T_Y - 96.34	R_Z - 0.005
3	4.913	T_X - 1.814	T_Y - 0.012	R_Z - 93.24
