Experimental study on explosion intensity of dust cloud in lead and zinc concentrate powder

doi:10.16265/j.cnki.issn1003-3033.2025.12.1385

Abstract

Abstract:

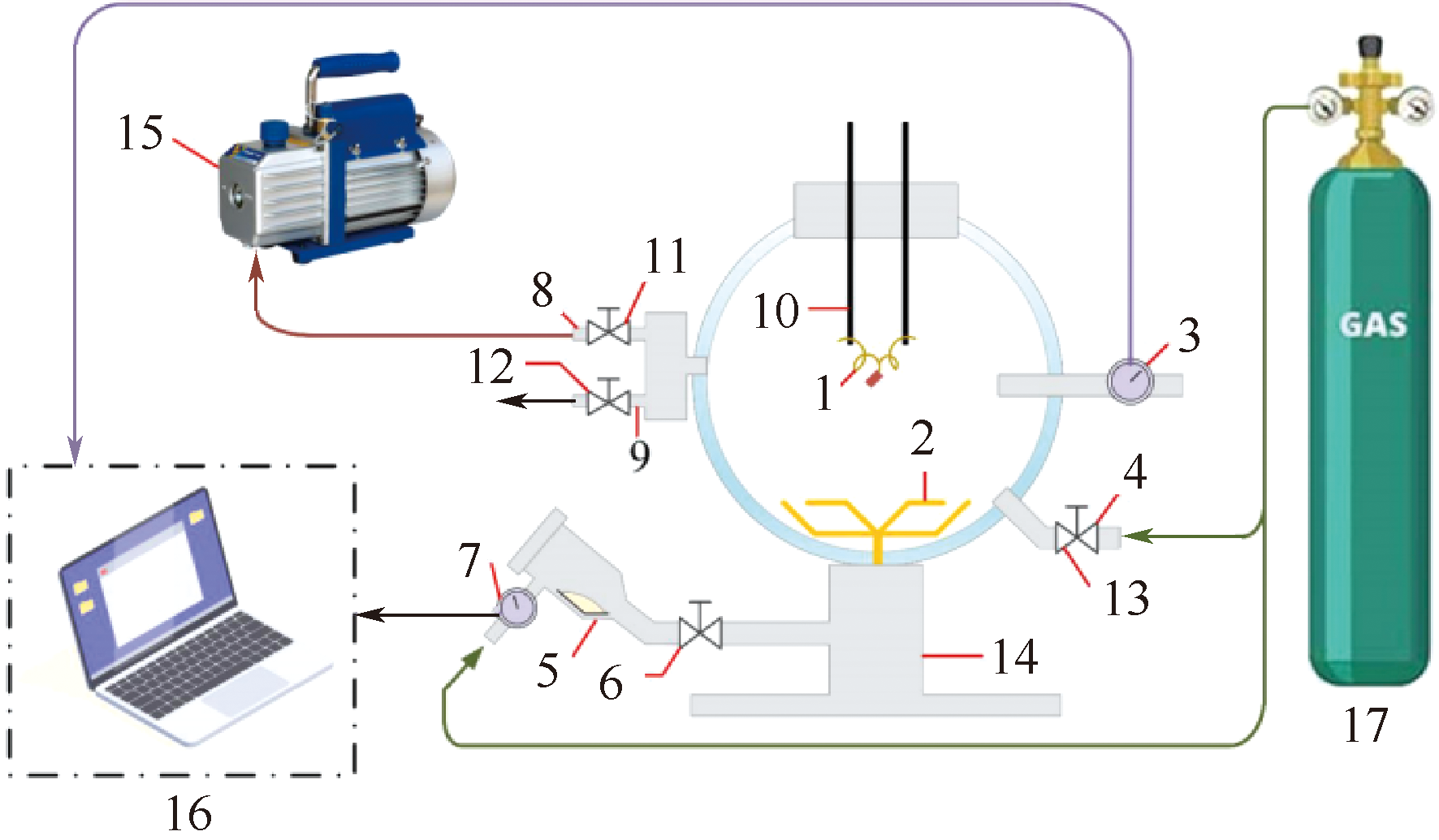

In order to prevent dust cloud combustion and explosion accidents in the high sulfur content concentrate warehouse after beneficiation, lead concentrate and zinc concentrate of Panlong Lead Zinc Mine were taken as examples. Tests on explosion intensity and the lower explosion limit at different mass concentrations were conducted using a 20 L balls. Main parameters, including the maximum explosion pressure, explosion lower limit, and explosion index of the lead zinc concentrate powder dust cloud, were obtained. The results show that maximum explosion pressures of lead concentrate and zinc concentrate dust clouds were 0.335 and 0.251 MPa, respectively, both occurring when the mass concentration of the dust cloud was 1 000 g/m³. The lower explosive limits of mass concentration are 160-170 and 210-220 g/m³, respectively, indicating low explosion risk. The explosion risk and hazard of dust clouds in lead concentrate are higher than those in zinc concentrate. The explosion mechanism of concentrate dust cloud particles being ignited, exploded, and subjected to a chain reaction is obtained. These findings provide an experimental and theoretical basis for preventing dust cloud explosion of concentrate in the concentrate warehouse.

Key words: lead concentrate, zinc concentrate, dust cloud, explosion intensity, lower explosive limit

CLC Number:

X932爆炸安全与防火、防爆

DENG Zhenli, QIN Guoju, TANG Yunjian, LI Xiaoquan, WEI Ningying. Experimental study on explosion intensity of dust cloud in lead and zinc concentrate powder[J]. China Safety Science Journal, 2025, 35(12): 64-69.

Figures/Tables 8

Fig.1

Fig.2

Table 1

Table 2

Fig.3

Table 3

Fig.4

Table 4

References 15

[1]	陈刚, 张晓蕾, 徐帅, 等. 我国2005—2020年粉尘爆炸事故统计分析[J]. 中国安全科学学报, 2022, 32(8):76-83. doi: 10.16265/j.cnki.issn1003-3033.2022.08.0812
	CHEN Gang, ZHANG Xiaolei, XU Shuai, et al. Statistical analysis on dust explosion accidents in China from 2005 to 2020[J]. China Safety Science Journal, 2022, 32(8): 76-83. doi: 10.16265/j.cnki.issn1003-3033.2022.08.0812
[2]	吕鹏飞, 谷晓珂, 李公方, 等. 可燃粉尘热稳定性研究进展[J]. 中国安全科学学报, 2023, 33(12):92-103. doi: 10.16265/j.cnki.issn1003-3033.2023.12.1228
	LYU Pengfei, GU Xiaoke, LI Gongfang, et al. Research progress on thermal stabolity of combustible dust[J]. China Safety Science Journal, 2023, 33(12):92-103. doi: 10.16265/j.cnki.issn1003-3033.2023.12.1228
[3]	YUAN Zhi, KHAKZAD N, KHAN F, et al. Dust explo-sions: a threat to the process industries[J]. Process Safety and Environmental Protection, 2015, 98:57-71. doi: 10.1016/j.psep.2015.06.008
[4]	梁乐乐, 李晓泉, 王菲, 等. 糖粉最大爆炸压力和爆炸下限试验研究[J]. 广西大学学报:自然科学版, 2021, 46(1): 150-158.
	LIANG Lele, LI Xiaoquan, WANG Fei, et al. Experimental study on maximum explosion pressure and lower explosion limit of sugar powder[J]. Journal of Guangxi University: Natural Science Edvition, 2021, 46(1): 150-158.
[5]	田长顺, 饶运章, 向彩榕, 等. 基于Factsage的金属硫化矿尘爆炸过程产物分析[J]. 中国安全生产科学技术, 2020, 16(12):79-84.
	TIAN Changshun, RAO Yunzhang, XIANG Cairong, et al. Analysis on products in explosion process of metal sulfide ore dust based on Factsage[J]. Journal of Safety Science and Technology, 2020, 16(12):79-84.
[6]	RAO Yunzhang, TIAN Changshun, XU Wei, et al. Explosion pressure and minimum explosible concentration properties of metal sulfide ore dust clouds[J]. Journal of Chemistry, 2020:DOI:10.1155/2020/7980403.
[7]	苏港, 饶运章, 田长顺, 等. 基于爆炸参数的硫化矿尘云爆炸风险评估[J]. 有色金属科学与工程, 2023, 14(1):118-124.
	SU Gang, RAO Yunzhang, TIAN Changshun, et al. Risk assessment of sulfide ore dust cloud explosion based on explosion parameters[J]. Nonferrous Metals Science and Engineering, 2023, 14(1):118-124.
[8]	饶运章, 肖春瑜, 许威, 等. 硫化矿尘云爆炸下限浓度研究[J]. 矿业研究与开发, 2020, 40(10):123-127.
	RAO Yunzhang, XIAO Chunyu, XU Wei, et al. Study on the minimum explosive concentration of sulfide ore dust cloud[J]. Mining Research and Development, 2020, 40(10):123-127.
[9]	徐圆圆, 李孜军, 徐宇, 等. 基于氧化还原分析的硫化矿尘爆炸压力预测[J]. 中国安全生产科学技术, 2022, 18(7):122-127.
	XU Yuanyuan, LI Zijun, XU Yu, et al. Prediction on explosion pressure of sulfide mineral dust based on redox analysis[J]. Journal of Safety Science and Technology, 2022, 18(7):122-127.
[10]	田长顺, 饶运章, 苏港, 等. 磁黄铁矿对黄铁矿粉尘爆炸特性参数的影响[J]. 有色金属科学与工程, 2023, 14(5):692-699.
	TIAN Changshun, RAO Yunzhang, SU Gang, et al. Effects of pyrrhotite on explosion characteristic parameters of pyrite dust[J]. Nonferrous Metals Science and Engineering, 2023, 14(5):692-699.
[11]	田长顺, 饶运章, 许威, 等. 金属硫化矿尘爆炸反应过程机理分析[J]. 有色金属科学与工程, 2020, 11(6):78-84.
	TIAN Changshun, RAO Yunzhang, XU Wei, et al. Mechanism analysis of explosion reaction process of metal sulfide ore dust[J]. Nonferrous Metals Science and Engineering, 2023, 14(5):692-699.
[12]	田长顺, 饶运章, 许威, 等. 金属硫化矿尘爆炸研究进展[J]. 金属矿山, 2020(4):178-185.
	TIAN Changshun, RAO Yunzhang, XU Wei, et al. Study progress of metal sulfide ores dust explosion[J]. Metal Mine, 2020(4):178-185.
[13]	LIANG Siting, LI Xiaoquan, JIANG Juju, et al. Study of explosion characteristics andmechanism of sucrose dust[J]. Processes, 2023:DOI:10.3390/pr11010176.
[14]	GB/T16425—2018,粉尘云爆炸下限浓度测定方法[S].
	GB/T16425-2018,Determination for minimum explosive concentration of dust clouds[S].
[15]	EN 1127-1:2019, Explosive atmospheres-explosion prevention and protection-Part 1: basic concepts and methodology[S].

成分	Cu	Pb	Zn	Ti	Ag^*	Fe	Cd	Ni
含量	0.12	57.91	3.55	0.006	206	7.42	0.017	<0.005
成分	Co	Al	Ca	Mg	K	Na	S	C
含量	<0.005	0.13	0.50	0.23	0.065	0.032	19.42	1.09
成分	Mn	P	Sb	As	Hg	SiO₂	—	—
含量	<0.005	0.53	1.26	1.60	0.003	1.40	—	—

成分	Cu	Pb	Zn	Ti	Ag^*	Fe	Cd	Ni
含量	0.034	1.25	51.33	0.008	53.8	5.74	0.21	<0.005
成分	Co	Al	Ca	Mg	K	Na	S	C
含量	<0.005	0.15	0.92	0.47	0.074	0.044	31.65	0.64
成分	Mn	P	Sb	As	Hg	SiO₂	—	—
含量	<0.005	0.14	0.079	0.38	0.03	1.23	—	—

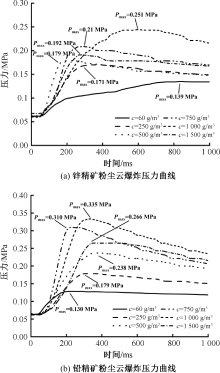

精矿	质量浓度/ (g·m^-3)	最大爆炸压力 P_max/ MPa	最大爆炸压力上升速率 (dP/dt)_max/ (MPa·s^-1)	爆炸指数K_max/ (MPa·m·s^-1)	是否爆炸
锌精矿	60	0.139	—	—	×
	250	0.171	28.941	7.86	√
	500	0.179	30.644	8.32	√
	750	0.21	35.751	9.70	√
	1 000	0.251	37.453	10.17	√
	1 500	0.192	34.900	9.47	√
铅精矿	60	0.130	—	—	×
	250	0.179	28.941	7.86	√
	500	0.238	35.751	9.70	√
	750	0.310	43.412	11.78	√
	1 000	0.335	44.263	12.01	√
	1 500	0.266	34.048	9.24	√

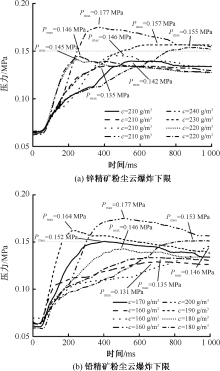

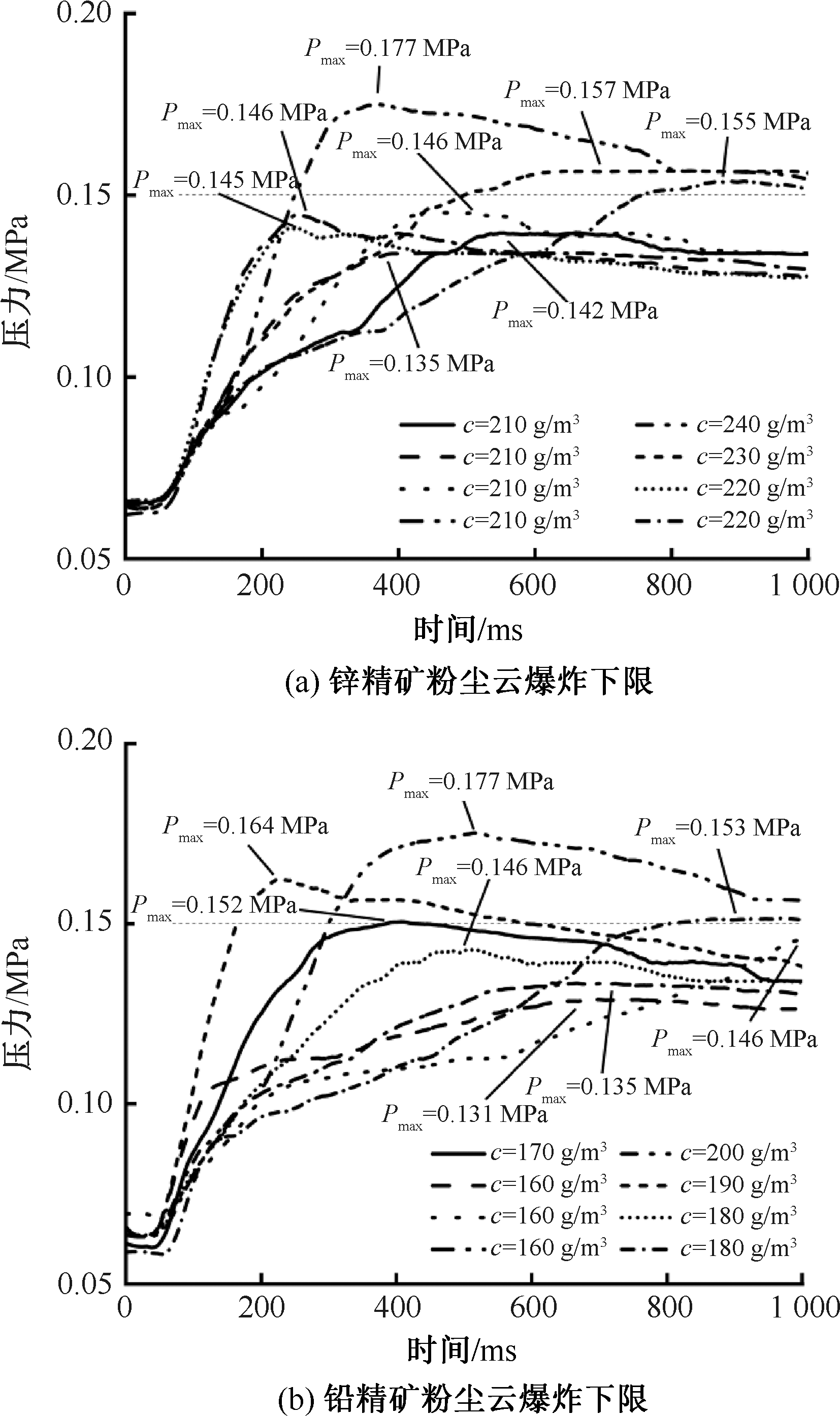

硫精矿	质量浓度/ (g·m^-3)	最大爆炸压力 P_max/ MPa	最大爆炸压力上升速率 (dP/dt)_max/ (MPa·s^-1)	爆炸指数 K_max/ (MPa·m·s^-1)	是否爆炸
锌硫精矿	240	0.177	30.644	8.32	√
	230	0.157	30.644	8.32	√
	220	0.145	—	—	×
	220	0.155	31.495	8.55	√
	210	0.142	—	—	×
	210	0.135	—	—	×
	210	0.146	—	—	×
	200	0.146	—	—	×
铅硫精矿	200	0.177	30.644	8.32	√
	190	0.164	33.197	9.01	√
	180	0.146	—	—	×
	180	0.153	30.644	8.32	√
	170	0.152	32.346	8.78	√
	160	0.131	—	—	×
	160	0.146	—	—	×
	160	0.135	—	—	×
