Numerical simulation study on dynamic response stability of concrete roadway floor in Lijiahao Coal Mine

doi:10.16265/j.cnki.issn1003-3033.2025.S1.0022

Abstract

Abstract:

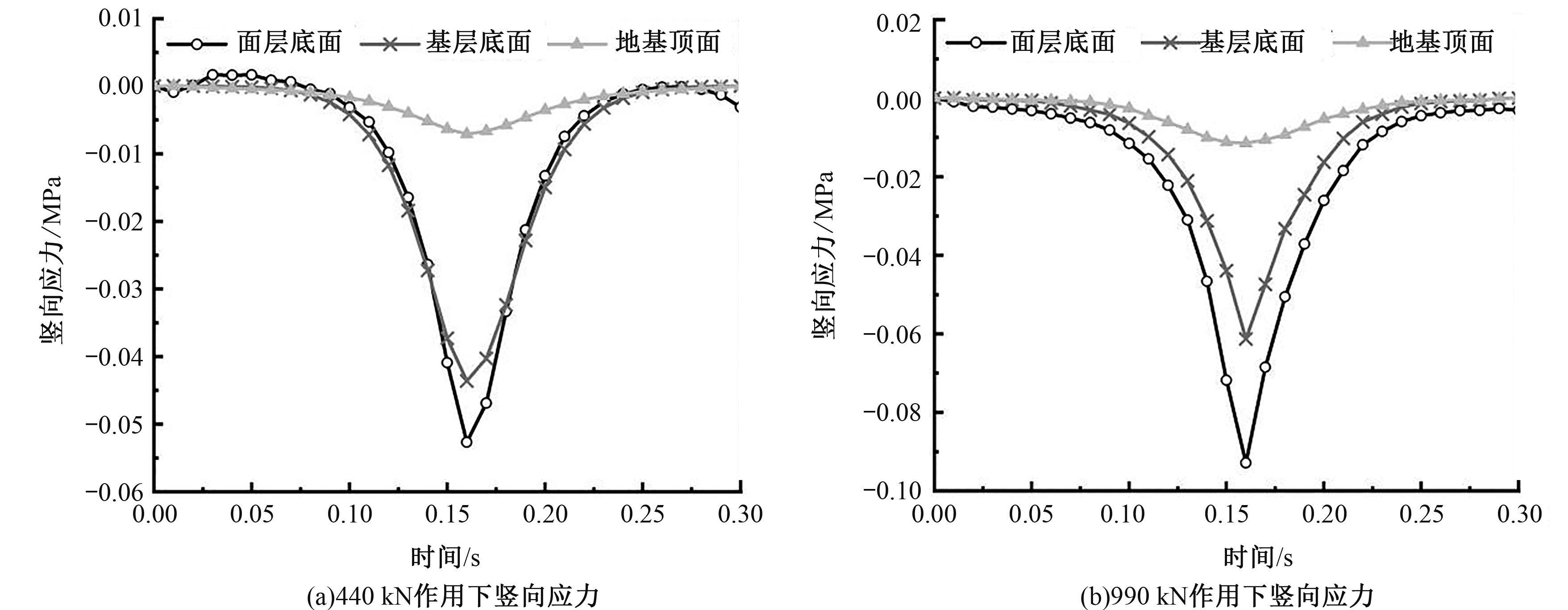

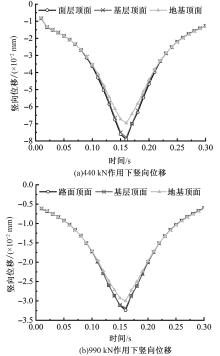

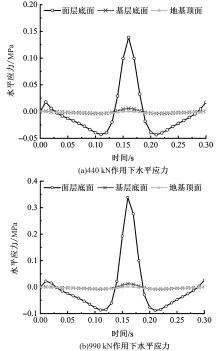

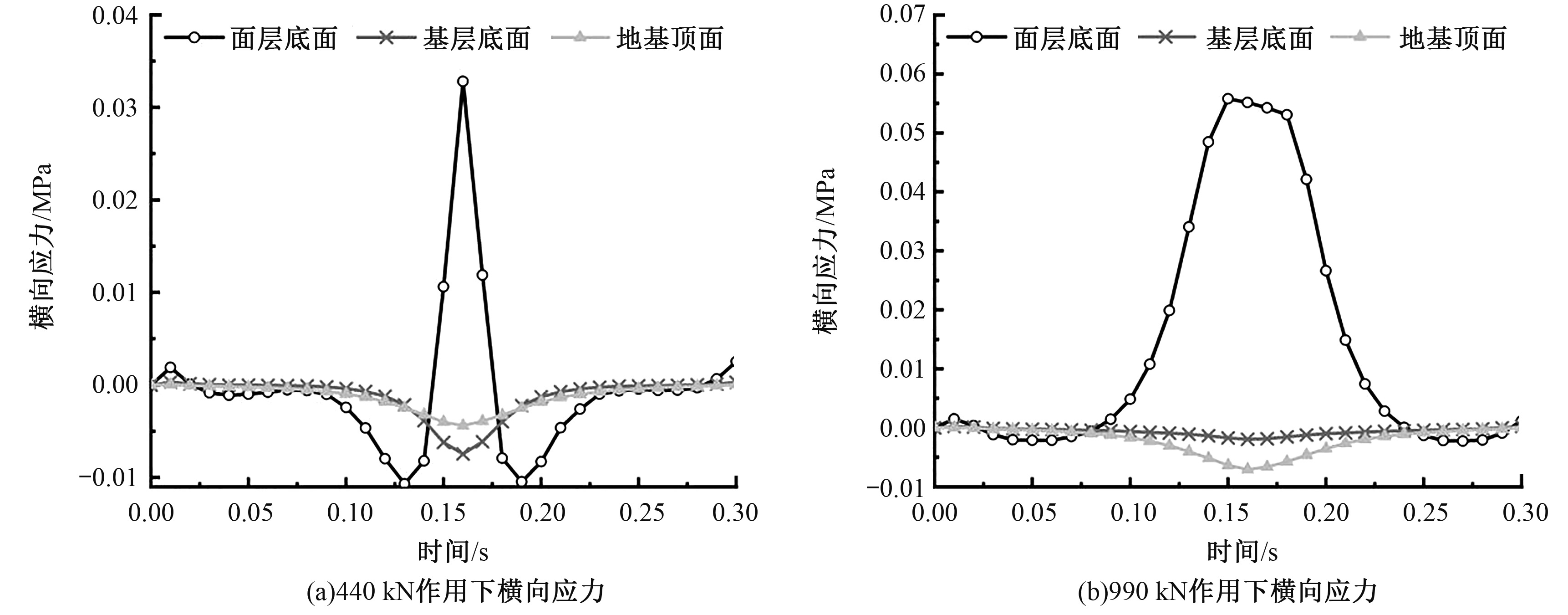

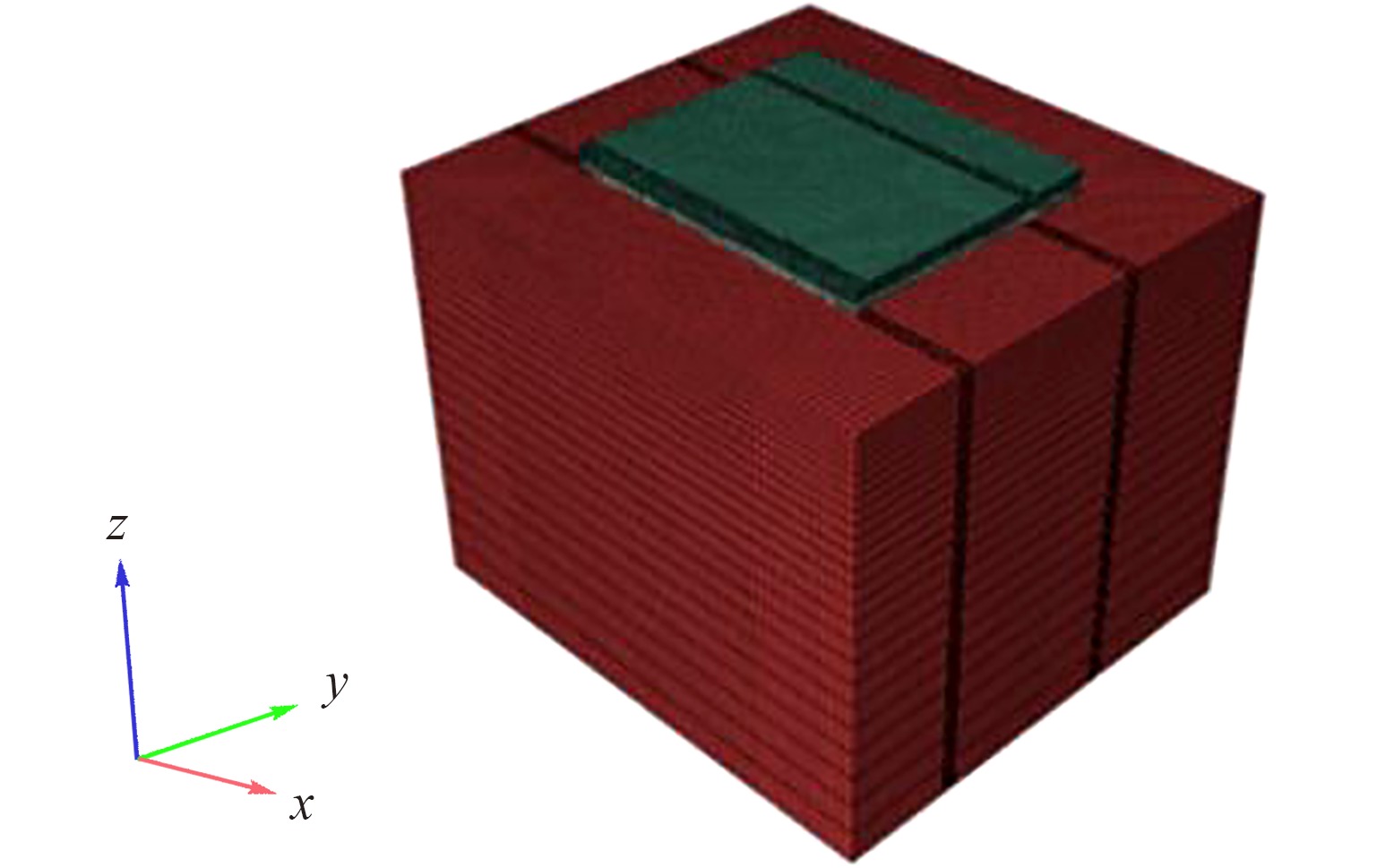

In order to solve the problem of road structure damage caused by cyclic heavy load of underground vehicles in coal mines, which affects the stability of roadway floor and threatens safety production, the finite element software simulation method was used to analyze the dynamic response of the concrete roadway floor of Lijiahao Coal Mine under the moving load of the trackless rubber-tyred vehicle. The influence of the dynamic load of the trackless rubber-tyred vehicle on the concrete roadway of Lijiahao Coal Mine was determined. First, ABAQUS software was used to model the roadway floor of Lijiahao Coal Mine; then, the dynamic response of vertical displacement and stress at different positions in the model of the roadway floor of Lijiahao Coal Mine under the action of vehicle moving load was analyzed. Finally, the dynamic response of the most unfavorable position of the roadway floor of Lijiahao Coal Mine under different axle loads was explored. The results show that the vertical displacement of the top surface of the surface layer and the horizontal stress of the bottom surface of the base layer are the most unfavorable dynamic response positions under different axial loads, which provides guidance for the design of the concrete roadway structure of the Lijiahao Coal Mine.

Key words: roadway floor, dynamic response, moving load, ABAQUS, vertical displacement

CLC Number:

X936

YU Mingsheng, CHEN Kai, HUANG Fei, LIU Long, ZHANG Zilong, SHI Zhanshan. Numerical simulation study on dynamic response stability of concrete roadway floor in Lijiahao Coal Mine[J]. China Safety Science Journal, 2025, 35(S1): 144-150.

Figures/Tables 14

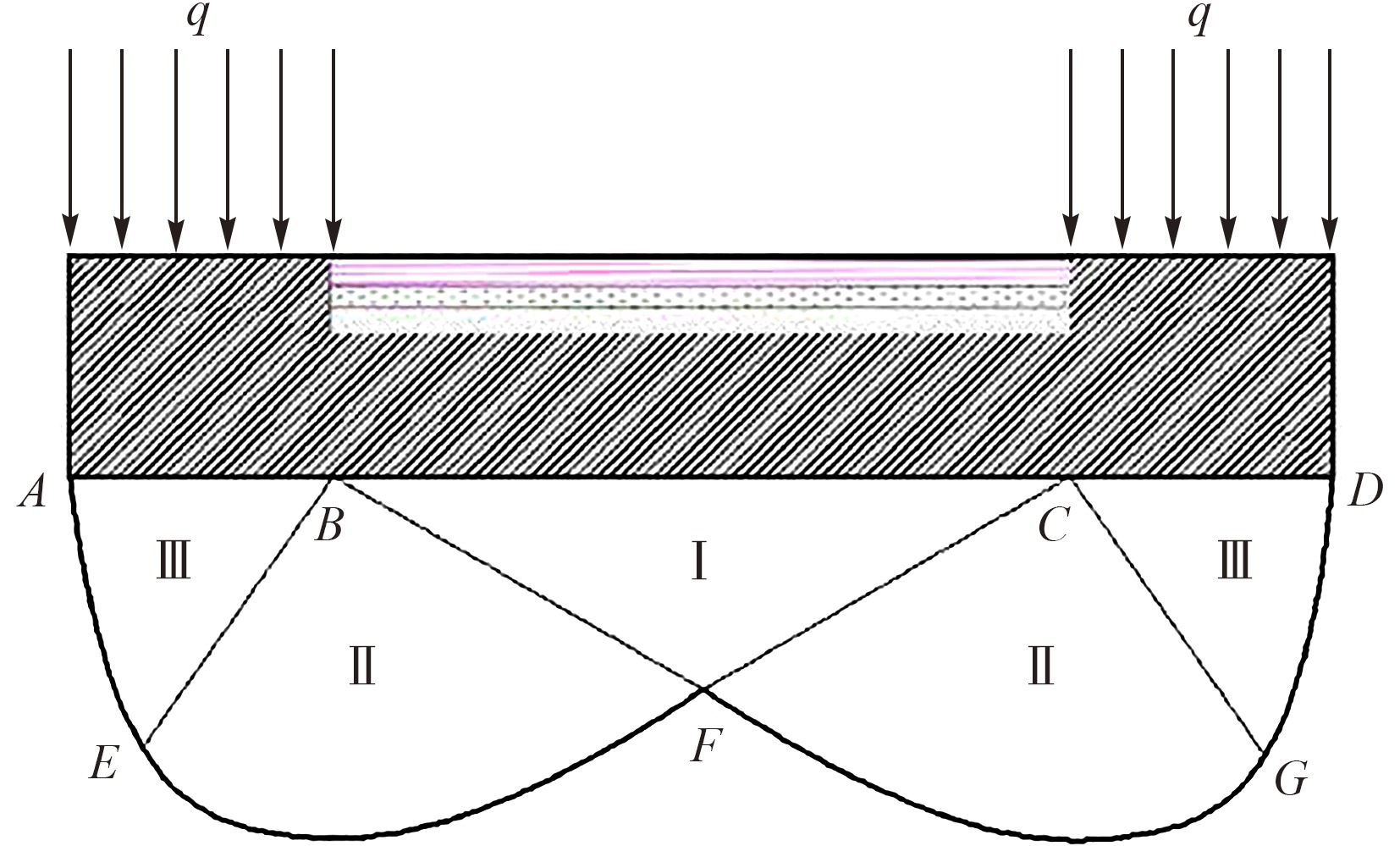

Fig.1

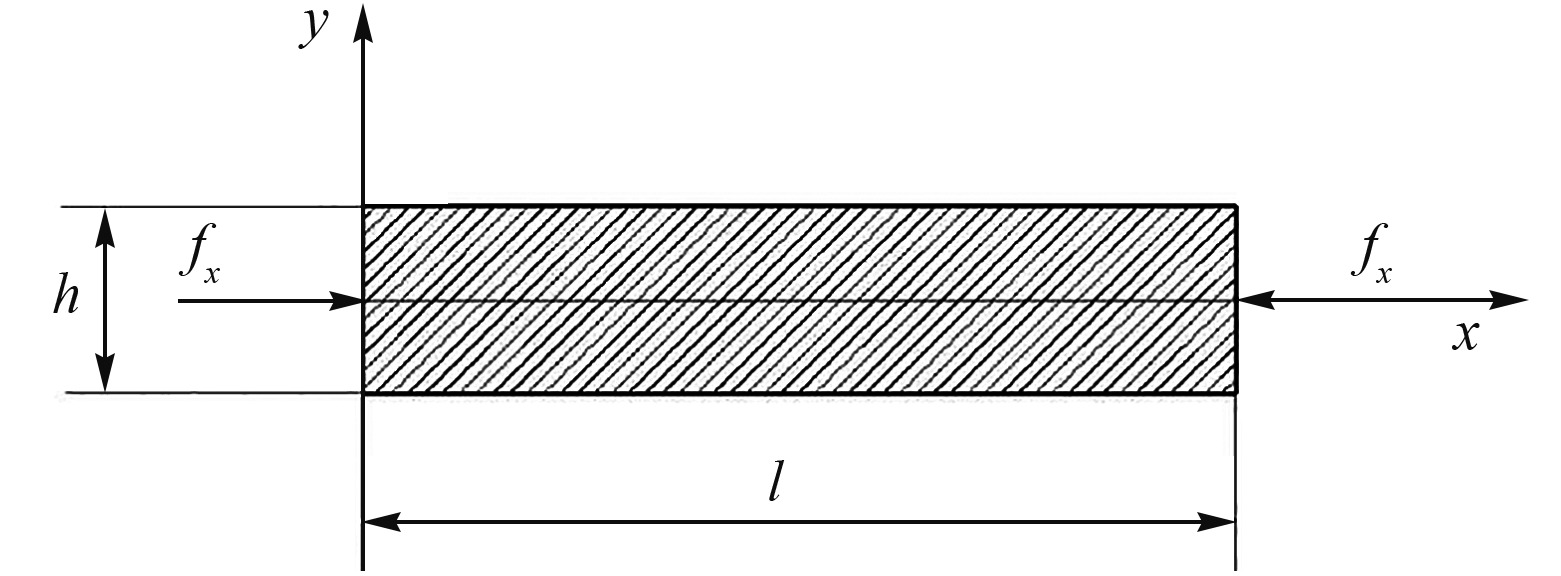

Fig.2

Fig.3

Fig.4

Table 1

Table 2

Fig.5

Table 3

Fig.6

Fig.7

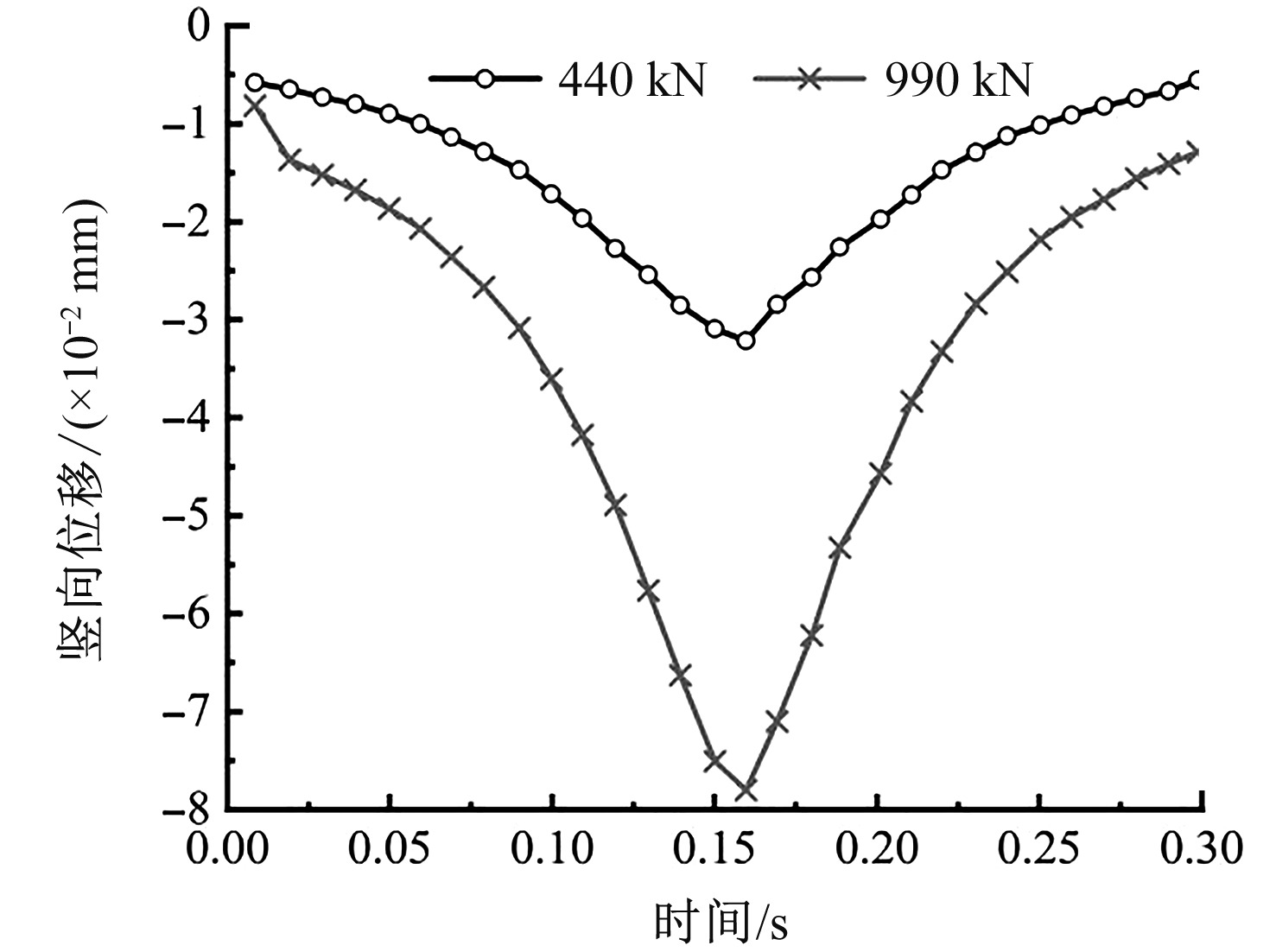

Fig.8

Fig.9

Fig.10

Fig.11

References 12

[1]	高峻. 倾斜煤层层状底板变形控制技术研究[J]. 煤炭工程, 2025, 57(2):68-74.
	GAO Jun. Deformation control technology of layered floor of inclined coal seam[J]. Coal Engineering, 2025, 57(2):68-74.
[2]	谢静静. 考虑接缝传荷能力的刚性道面设计计算理论[D]. 西安: 西北工业大学, 2004.
	XIE Jingjing. Design and calculation theory of rigid pavement considering joint load transfer capacity[D]. Xi'an Northwestern Polytechnical University, 2004.
[3]	林小平. 水泥混凝土路面路基应力水平分析[J]. 同济大学学报:自然科学版, 2010, 38(4):545-552.
	LIN Xiaoping. Stress level analysis of cement concrete pavement subgrade[J]. Journal of Tongji University:Natural Science Edition, 2010, 38(4):545-0 552.
[4]	兰家泉. 车辆荷载作用下沥青路面的动力响应研究[J]. 西部交通科技, 2023(7):86-89,128.
	LAN Jiaquan. Study on the dynamic response of asphalt pavement under vehicle load[J]. Western Transportation Technology, 2023(7):86-89,128.
[5]	李晗, 严战友, 罗成城, 等. 温度-移动荷载耦合作用下沥青路面结构力学响应研究[J]. 公路与汽运, 2023(4):51-56,60.
	LI Han, YAN Zhanyou, LUO Chengcheng, et al. Study on the mechanical response of asphalt pavement structure under the coupling effect of temperature and moving load[J]. Highway and Automobile Transportation, 2023(4):51-56,60.
[6]	WANG Wei, CUI Xinchao, QI Yun, et al. Research on the evaluation model of emergency rescue capability of coal mine water penetration accident[J]. Scientific Reports, 2025, 15(1): DOI: 10.1038/s41598-024-62725-5.
[7]	于瑞尚. 移动载荷下沥青路面结构受力模拟分析术[J]. 山东交通科技, 2019(5):87-89,94.
	YU Ruishang. Simulation analysis of stress on asphalt pavement structure under mobile load[J]. Shandong Transportation Technology, 2019(5):87-89,94.
[8]	卢玉林, 陈晓冉. 车辆移动荷载作用下的基坑边坡动力响应[J]. 科学技术与工程, 2023, 23(8):3 414-3 421.
	LU Yulin, CHEN Xiaoran. Dynamic response of excavation slope under the action of vehicle moving load[J]. Science Technology and Engineering, 2023, 23(8):3 414-3 421.
[9]	马宪永, 董泽蛟, 全蔚闻. 车辆移动荷载下黏弹性沥青路面的弹性等效方法[J]. 土木工程学报, 2022, 55(8):118-128.
	MA Xianyong, DONG Zejiao, QUAN Weiwen. Elastic equivalent method for viscoelastic asphalt pavement under vehicle moving load[J]. China Civil Engineering Journal, 2022, 55(8):118-128.
[10]	郑耀, 康晨, 张慧梅. 车辆振动模型作用下不平整沥青路面的动力响应[J]. 公路, 2021, 66(6):71-76.
	ZHENG Yao, KANG Chen, ZHANG Huimei. Dynamic response of uneven asphalt pavement under the action of vehicle vibration model[J]. Highway, 2021, 66(6):71-76.
[11]	彭安平, 李亮. 振动荷载与移动荷载作用下桥梁动力响应对比试验与数值分析[J]. 铁道科学与工程学报, 2019, 16(9):2 256-2 264.
	PENG Anping, LI Liang. Comparative experiment and numerical analysis of bridge dynamic response under vibration load and moving load[J]. Journal of Railway Science and Engineering, 2019, 16(9):2 256-2 264.
[12]	QI Yun, XUE Kailong, WANG Wei, et al. Coal and gas protrusion risk evaluation based on cloud model and improved combination of assignment[J]. Scientific reports, 2024, 14(1):DOI: 10.1038/s41598-024-55382-1.

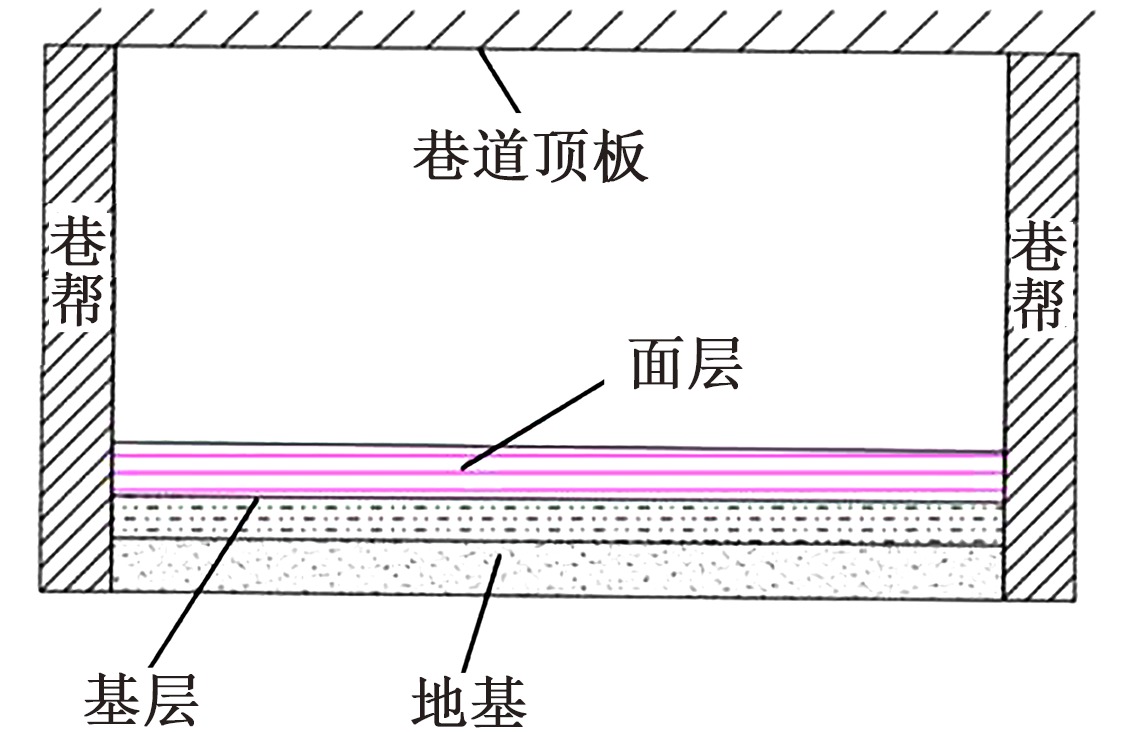

结构层	材料类型	弹性模量/ MPa	密度/ (kg·m^-3)	泊松比
面层	混凝土	31 000	2 350	0.20
基层	水泥稳定碎石	1 500	2 200	0.25
地基	泥岩	1 000	2 500	0.30

结构层	平面尺寸/(m×m)	厚度/m
面层	5×6	0.25
基层	5×6	0.20
地基	10×9	8.00

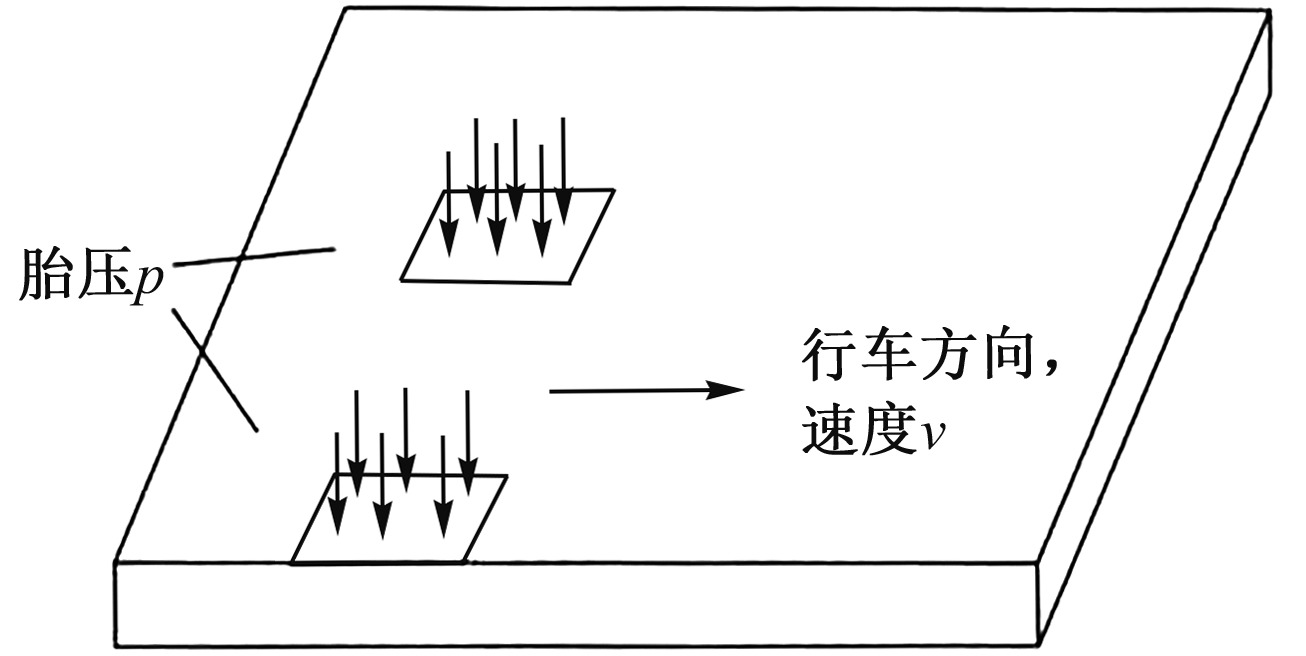

无轨胶轮车竖向轴载/kN	440	990
车轮接触面长×宽/(cm×cm)	30.6×24.0	39.69×31.2
接触面压强/MPa	1.2	1.6
