阜山金矿进回风巷粉尘孔粒径分布及其分形特征

doi:10.16265/j.cnki.issn1003-3033.2022.01.016

摘要/Abstract

摘要：

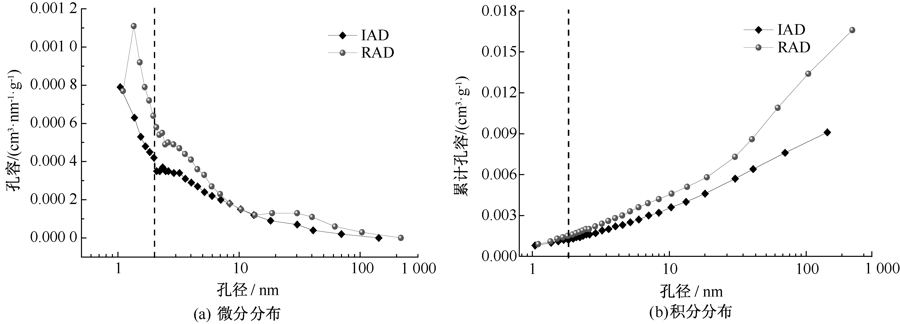

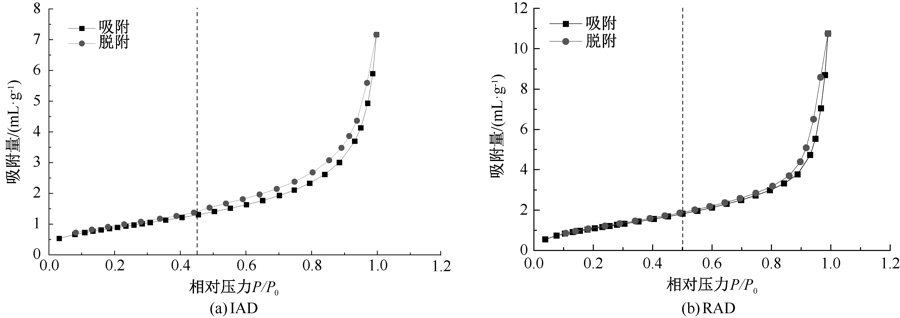

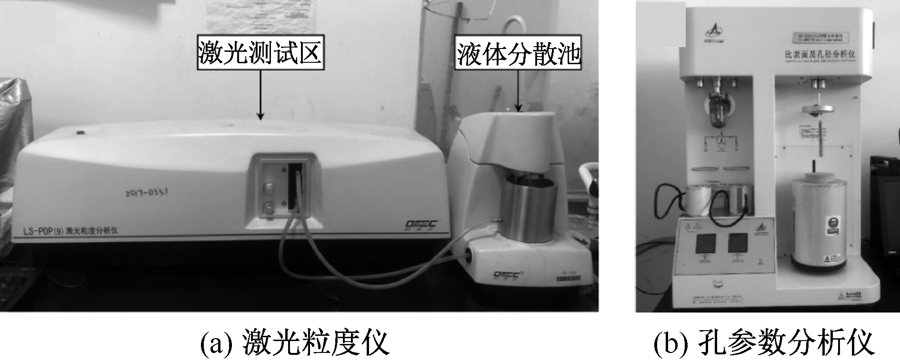

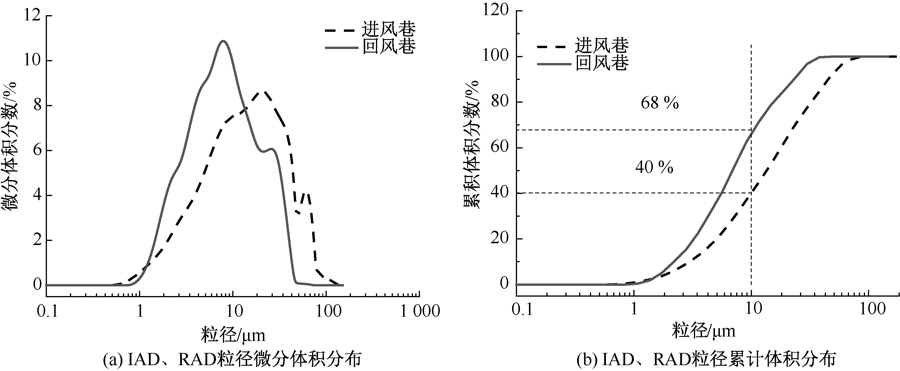

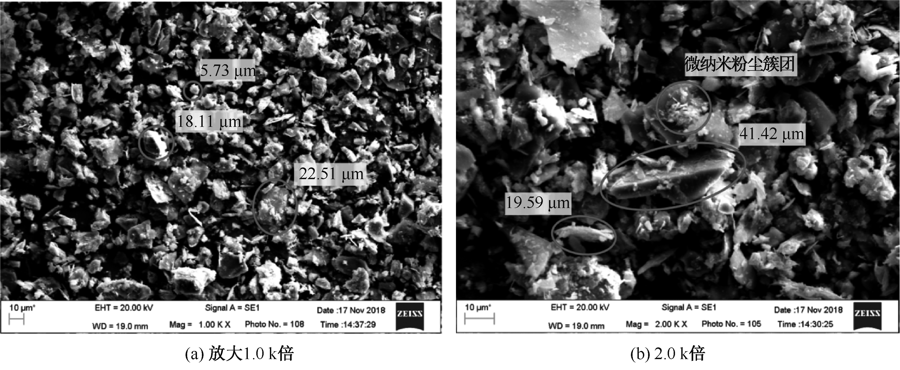

为探究金属矿井下粉尘孔粒径特征,以阜山金矿为例,系统研究其进风巷粉尘(IAD)、回风巷粉尘(RAD)的孔粒径分布(PSD)情况。首先,利用激光粒度分析仪与扫描电子显微镜(SEM)、低温液氮吸附仪分别测试粉尘粒径与孔参数,然后利用分形理论计算并分析其粒度分形维数与孔分形维数。结果表明:RAD粒径比IAD粒径小,两者最可几粒径分别为7.19、23.58 μm,可被人体吸入粉尘(粒径 ≤ 10 μm)占比分别为65%、40%,但IAD中的微细颗粒物(粒径 ≤ 1μm)占比多于RAD,两者分别为0.67%、0.39%;其次,IAD、RAD孔结构类型均以不透气性密闭孔为主,且RAD孔结构较IAD更为发达,金矿采场爆破作用是致使RAD孔结构发达的原因;此外,IAD、RAD均具有显著的粒径和孔分形特征,其中IAD的粒度分形维数与孔分形维数均大于RAD,说明IAD粒径分布更复杂、表面粗糙度更大、孔复杂度更高。因此,金属矿山应加强对IAD的重视与控制。

关键词: 阜山金矿, 进风巷粉尘(IAD), 回风巷粉尘(RAD), 粒径分布(PSD), 孔结构, 分形维数

Abstract:

In order to study particle size and pore characteristics of dust in underground metal mines, with Fushan gold mine as an example, PSD and pore characteristics of its IAD and RAD were systematically investigated. Firstly, PSD of dust samples were measured by using laser particle size analyzer and scanning electron microscope (SEM), meanwhile, pore parameters were measured by low-pressure N₂ gas adsorption device. Then, fractal dimensions of particle size and pore volume were calculated according fractal theory, respectively. The results show that the particle size of RAD is less than that of IAD. Their most probable particle size are 7.19 and 23.58 μm, respectively, and the respirable dust percentage in them are 65% and 40%, respectively. However, the fine particles (particle size less than 1 μm) percentage in IAD (0.67%) is larger than that in RAD (0.39%). In addition, pore types in RAD and IAD are similar and mainly consist by impermeable closed pore, while RAD pore is more developed than IAD pore, which was caused by the blasting action in gold mines. Furthermore, both IAD and RAD feature significant fractal characteristics, and fractal dimensions of IAD, including particle size and pore volume, are larger than that of RAD, which indicates that PSD, surface roughness and pore complexity of IAD are all more complicated than that of RAD. Therefore, gold mines should pay more attention to IAD.

Key words: Fushan gold mine, intake airway dust (IAD), return airway dust (RAD), particle size distribution(PSD), pore structure, fractal dimension

徐晶格, 欧盛南, 刘建国, 金龙哲, 王嘉莹. 阜山金矿进回风巷粉尘孔粒径分布及其分形特征[J]. 中国安全科学学报, 2022, 32(1): 118-126.

XU Jingge, OU shengnan, LIU Jianguo, JIN Longzhe, WANG Jiaying. PSD, pore structure, and fractal characteristics of intake and return airway dust in Fushan gold mine[J]. China Safety Science Journal, 2022, 32(1): 118-126.

图/表 10

图1

表1

图2

图3

图4

图5

表2

图6

图7

图8

参考文献 31

[1]	中华人民共和国国家卫生健康委员会. 2019年我国卫生健康事业发展统计公报[EB/OL]. [2020-06-06].
[2]	张丹丹, 刘贝贝. 我国矿山职业病的统计与展望分析[J]. 能源与环保, 2017, 39(9): 173-178.
	ZHANG Dandan, LIU Beibei. Statistics and prospect of occupational diseases of mine in China[J]. China Energy and Environmental Protection, 2017, 39(9): 173-178.
[3]	程攀攀, 王海宁, 梅力, 等. 颗粒粉尘在水平管道内运移的三维数值模拟[J]. 环境工程学报, 2017, 11(10): 5457-5464.
	CHENG Panpan, WANG Haining, MEI Li, et al. 3D simulation on transporting of particle dust in horizontal duct[J]. Chinese Journal of Environment Engineering, 2017, 11(10): 5457-5464.
[4]	JIAO Fengyuan, ZHANG Huarong, CAO Weiguo, et al. Effect of particle size of coal dust on explosion pressure[J]. Journal of Measurement Science and Instrumentation, 2019, 10(3): 223-225.
[5]	GUSTAFSSON Å, KRAIS A, GORZAS A, et al. Isolation and characterization of a respirable particle fraction from residential house-dust[J]. Environmental Research, 2018, 161: 284-290. doi: 10.1016/j.envres.2017.10.049
[6]	付士根, 李全明, 胡家国, 等. 光散射原理在粉尘测量系统的应用研究[J]. 中国安全科学学报, 2020, 30(6): 37-42. doi: 10.16265/j.cnki.issn1003-3033.2020.06.006
	FU Shigen, LI Quanming, HU Jiaguo, et al. Application research of light scattering principle in dust measurement system[J]. China Safety Science Journal, 2020, 30(6): 37-42. doi: 10.16265/j.cnki.issn1003-3033.2020.06.006
[7]	YANG Jing, WU Xiukun, GAO Jianguang, et al. Surface characteristics and wetting mechanism of respirable coal dust[J]. Mining Science and Technology (China), 2010, 20(3): 365-371. doi: 10.1016/S1674-5264(09)60209-X
[8]	王俊哲, 王渝岗, 张建安, 等. 煤粉的分形特征及其对水煤浆级配的影响[J]. 煤炭学报, 2014, 39(5): 961-965.
	WANG Junzhe, WANG Yugang, ZHANG Jian'an, et al. Fractal characteristics of pulverized coal and its effect on PSD of coal-water slurry[J]. Journal of China Coal Society, 2014, 39(5): 961-965.
[9]	张松航, 唐书恒, 汤达祯, 等. 鄂尔多斯盆地东缘煤储层渗流孔隙分形特征[J]. 中国矿业大学学报, 2009, 38(5): 713-718.
	ZHANG Songhang, TANG Shuheng, TANG Dazhen, et al. Fractal characteristics of coal reservoir seepage pore, eastmargin of Ordos basin[J]. Journal of China University of Mining & Technology, 2009, 38(5): 713-718.
[10]	YAO Yanbin, LIU Dameng, TANG Dazheng, et al. Fractal characterization of seepage-pores of coals from China: An investigation on permeability of coals[C]. Conference of the International Association for Mathematical Geology, 2008, 1159-1166.
[11]	杨静, 伍修锟, 李改平, 等. 煤尘粒度分形特征的研究[J]. 山东科技大学学报: 自然科学版, 2010, 29(1): 31-36.
	YANG Jing, WU Xiukun, LI Gaiping, et al. Study on the fractal characteristics for particle sizes of coal dusts[J]. Journal of Shandong University of Science and Technology : Nature Science, 2010, 29(1): 31-36.
[12]	李庆钊, 林柏泉, 张军凯, 等. 矿井煤尘的分形特征及对其表面润湿性能的影响[J]. 煤炭学报, 2012, 37(增1): 138-142.
	LI Qingzhao, LIN Baiquan, ZHANG Junkai, et al. Fractal characteristics of particle size distribution and its effects on the surface wetting performance of coal mine dusts[J]. Journal of China Coal Society, 2012, 37(S1): 138-142.
[13]	ZHOU Qun, QIN Botao, WANG Jun, et al. Experimental investigation on the changes of the wettability and surface characteristics of coal dust with different fractal dimensions[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2018, 551: 148-157. doi: 10.1016/j.colsurfa.2018.05.005
[14]	奚志林, 王德明, 马汉鹏, 等. 分维数与粉尘吸湿速度之间的关系[J]. 煤炭学报, 2006, 31(5): 594-598.
	XI Zhilin, WANG Deming, MA Hanpeng, et al. Relation between dust wettability characteristic and fractional dimension[J]. Journal of China Coal Society, 2006, 31(5): 594-598.
[15]	晋良海, 罗汉, 郑霞忠, 等. 露天梯段爆破粉尘体积分散度的分形表达[J]. 中国安全科学学报, 2016, 26(8): 139-144.
	JIN Lianghai, LUO Han, ZHENG Xiazhong, et al. Fractal expression of dust volume dispersion in bench blasting in open air[J]. China Safety Science Journal, 2016, 26(8): 139-144.
[16]	ZHU Jiefeng, LIU Jianzhong, YANG Yumeng, et al. Fractal characteristics of pore structures in 13 coal specimens: relationship among fractal dimension, pore structure parameter, and slurry ability of coal[J]. Fuel Processing Technology, 2016, 149: 256-267. doi: 10.1016/j.fuproc.2016.04.026
[17]	张天宝, 纪洪广, 李颂. 金矿采场环境因素变化分析及灰色聚类评价[J]. 中国安全科学学报, 2018, 28(9): 142-147. doi: 10.16265/j.cnki.issn1003-3033.2018.09.024
	ZHANG Tianbao, JI Hongguang, LI Song. Analysis of environmental factors change in mining face of a gold mine and its grey cluster assessment[J]. China Safety Science Journal, 2018, 28(9): 142-147. doi: 10.16265/j.cnki.issn1003-3033.2018.09.024
[18]	LIU Jianguo, JIN Longzhe, WANG Jiaying, et al. Co-influencing mechanisms of physicochemical properties of blasting dust in iron mines on its wettability[J]. International Journal of Minerals, Metallurgy, and Materials, 2019, 26(9): 1080-1091. doi: 10.1007/s12613-019-1874-x
[19]	NIE Baisheng, LIU Xianfeng, YANG Longlong, et al. Pore structure characterization of different rank coals using gas adsorption and scanning electron microscopy[J]. Fuel, 2015, 158(15): 908-917. doi: 10.1016/j.fuel.2015.06.050
[20]	MANDELBORT B B. The fractal geometry of nature[M]. New York: W H Freeman, 1982: 394-397.
[21]	LEE G J, PYUN S I, RHEE C K. Characterisation of geometric and structural properties of pore surfaces of reactivated microporous carbons based upon image analysis and gas adsorption[J]. Microporous & Mesoporous Materials, 2006, 93(1/2/3): 217-225.
[22]	SUN Wenjing, FENG Yanyan, JIANG Chengfa, et al. Fractal characterization and methane adsorption features of coal particles taken from shallow and deep coalmine layers[J]. Fuel, 2015, 155(1): 7-13. doi: 10.1016/j.fuel.2015.03.083
[23]	王嘉莹, 金龙哲, 郭敬中, 等. 梅山铁矿爆破粉尘润湿性能关键影响因素[J]. 中南大学学报:自然科学版, 2019, 50(10): 2527-2535.
	WANG Jiaying, JIN Longzhe, GUO Jingzhong, et al. Key influencing factors on wettability of blasting dust in Meishan iron mine[J]. Journal of Central South University: Science and Technology, 2019, 50(10): 2527-2535.
[24]	陈长久, 安雪晖. 粒径分布对水泥水化过程影响的数值模拟[J]. 清华大学学报: 自然科学版, 2013, 53(5): 625-629.
	CHEN Changjiu, AN Xuehui. Simulation of the effects of the particle size distribution on cement hydration[J]. Journal of Tsinghua University:Science and Technology, 2013, 53(5): 625-629.
[25]	ZHOU Qun, QIN Botao, WANG Jun, et al. Experimental investigation on the changes of the wettability and surface characteristics of coal dust with different fractal dimensions[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2018, 551: 148-157. doi: 10.1016/j.colsurfa.2018.05.005
[26]	陈萍, 唐修义. 低温氮吸附法与煤中微孔隙特征的研究[J]. 煤炭学报, 2001, 26(5): 552-556.
	CHEN Ping, TANG Xiuyi. The research on the adsorption of nitrogen in low temperature and micro-pore properties in coal[J]. Journal of China Coal Society, 2001, 26(5): 552-556.
[27]	LASTOSKIE C, GUBBINS K E, QUIRKE N. Pore size distribution analysis of microporous carbons: a density functional theory approach[J]. Journal of Physical Chemistry, 1993, 97(18): 4786-4796. doi: 10.1021/j100120a035
[28]	FRIESEN W I, MIKULA R J. Fractal dimensions of coal particles[J]. Journal of Colloid & Interface Science, 1987, 120(1): 263-271.
[29]	NI Guanhua, LI Shang, RAHMAN S, et al. Effect of nitric acid on the pore structure and fractal characteristics of coal based on the low-temperature nitrogen adsorption method[J]. Powder Technology, 2020, 367: 506-516. doi: 10.1016/j.powtec.2020.04.011
[30]	蒋仲安, 曾发镔, 王亚朋. 我国金属矿山采运过程典型作业场所粉尘污染控制研究现状与展望[J]. 金属矿山, 2021(1): 135-153.
	JIANG Zhongan, ZENG Fabin, WANG Yapeng. Research status and prospect of dust pollution control in typical working places during mining and transportation of metal mines in China[J]. Metal Mine, 2021(1): 135-153.
[31]	金珊珊, 杨金龙, 黎攀. 粉煤灰水泥砂浆孔隙结构及分形维数的演变特征[J]. 混凝土, 2020(7): 99-102.
	JIN Shanshan, YANG Jinlong, LI Pan. Evolution of pore structure and fractal dimension of fly ash cement mortar[J]. Concrete, 2020(7): 99-102.

编号	孔参数		计算模型
1	比表面积		BET(Brunauer-Emmett-Teller)
1	比表面积		Langmuir
2	孔体积	微孔	密度泛函理论 (Density Functional Theory)
2	孔体积	介孔	BJH (Barrett-Joyner-Halenda)
3	平均孔径	微孔	H-K (Horvath-Kawazoe)
3	平均孔径	全孔	BJH
4	孔径微积分分布		DFT

粉尘来源	比表面积/(m²·g^-1)		孔体积/(cm³·g^-1)			平均孔径/nm
粉尘来源	BET	Langmuir	DFT(微孔^*)	BJH(介孔^*)	总孔体积^*	H-K	BJH
IAD	3.319	5.780	0.001 3	0.011 8	0.013 1	1.278	10.61
RAD	4.386	7.970	0.001 6	0.018 0	0.019 6	1.342	11.61
