辐射对流散热下大尺寸三元锂电池热模型

doi:10.16265/j.cnki.issn1003-3033.2023.06.1941

摘要/Abstract

摘要：

为精准界定热失控发展过程中锂电池热聚集特征,采用理论和试验相结合的方法,研究热滥用引发的大尺寸三元锂电池热模型。首先,依据能量守恒定律,明确电池热模型中的加热片产热量Q_e、化学反应产热量Q_f、电能释放产热量Q_j和环境散热量Q_d这4个热量参数,进而基于物理热量计算公式(Q = CMΔθ)和集总参数法,构建大尺寸三元锂电池由热滥用引发的热模型;其次,对模型参数获取进行理论分析,研究4个热量参数对电池热累积变化的重要度;最后,结合试验数据,将研究区间以点(t_i,θ_i)进行分区,确定表面传热系数h的值,进一步验证辐射对流散热下热失控锂电池热模型。结果表明:总产热量Q_w为 12.88×10⁵ J,总散热量Q_d为 6.60×10⁵ J,其中,辐射散热量为2.91×10⁵ J,对流散热量为3.69×10⁵ J,利用热模型计算出的热量理论预测热失控峰值温度θ_p,与试验结果契合度较好,明确锂电池热失控发展过程中的热量聚集特征。

关键词: 辐射对流, 散热量, 大尺寸三元锂电池, 热模型, 热滥用

Abstract:

In order to accurately define the characteristics of battery thermal accumulation during the development of thermal runaway, a combination method of theory and experiment was used to study the thermal model of large format ternary lithium batteries caused by thermal abuse. Firstly, according to the law of conservation of energy, the four heat parameters of the battery thermal model, heat production from heater (Q_e), heat production from chemical reaction (Q_f), heat production from electrical energy release (Q_j) and ambient heat dissipation (Q_d), were clarified. Then, based on the physical heat calculation formula (Q = CMΔθ) and the lumped parameter method, the thermal model for heat abuse of large format ternary lithium batteries was constructed. Secondly, the theoretical analysis of the model parameters was carried out, and the importance of the four thermal parameters on the thermal cumulative change of the battery was investigated. Finally, combined with the experimental data, the value of the surface heat transfer coefficient h was determined by dividing the study scope into points (t_i, θ_i), and the thermal model of the thermal runaway lithium battery in the heat dissipation environment was further verified. The calculation results show that the heat production (Q_w) = 12.88×10⁵ J, the heat dissipation (Q_d) = 6.60×10⁵ J, of which the radiation heat dissipation is 2.91×10⁵ J, and the convection heat dissipation is 3.69×10⁵ J. The thermal runaway peak temperature θ_p is theoretically predicted by the heat calculated by the thermal model, which is highly consistent with the experimental results. The research work can provide guidance for the prevention of thermal disasters caused by the thermal runaway of lithium batteries.

Key words: radiation convection, heat dissipation, thermal model, thermal abuse, thermal runaway

贺元骅, 赵逸明, 张俐恒, 王之媛, 黄江. 辐射对流散热下大尺寸三元锂电池热模型[J]. 中国安全科学学报, 2023, 33(6): 49-55.

HE Yuanhua, ZHAO Yiming, ZHANG Liheng, WANG Zhiyuan, HUANG Jiang. Research on thermal model of large format ternary lithium battery under radiation convection heat dissipation[J]. China Safety Science Journal, 2023, 33(6): 49-55.

图/表 6

图1

表1

表2

图2

表3

图3

参考文献 31

[1]	欧阳明高. 欧阳明高:新能源革命的高潮正在到来[J]. 中国电力企业管理, 2021(16):11-14.
[2]	孙强, 贾井运, 王海斌, 等. 常压及低压下锂电池热失控随数量变化特性[J]. 中国安全科学学报, 2022, 32(2):145-151. doi: 10.16265/j.cnki.issn1003-3033.2022.02.020
	SUN Qiang, JIA Jingyun, WANG Haibin, et al. Research on thermal runaway characteristics of lithium-ion batteries along with cell number changes under standard and low atmospheric pressures[J]. China Safety Science Journal, 2022, 32(2):145-151. doi: 10.16265/j.cnki.issn1003-3033.2022.02.020
[3]	张青松, 郭超超, 秦帅星. 锂离子电池燃爆特征及空运安全性研究[J]. 中国安全科学学报, 2016, 26(2):50-55.
	ZHANG Qingsong, GUO Chaochao, QIN Shuaixing. Study on lithium-ion batteries explosive characteristics and aviation transportation safety[J]. China Safety Science Journal, 2016, 26(2):50-55.
[4]	JIN Yang, ZHAO Zhixing, MIAO Shan, et al. Explosion hazards study of grid-scale lithium-ion battery energy storage station[J]. Journal of Energy Storage, 2021, 42:DOI:10.1016/j.est.2021.102987. doi: 10.1016/j.est.2021.102987
[5]	FENG Xuning, OUYANG Minggao, LIU Xiang, et al. Thermal runaway mechanism of lithium ion battery for electric vehicles: a review[J]. Energy Storage Materials, 2018, 10:246-267. doi: 10.1016/j.ensm.2017.05.013
[6]	GOLUBKOV A W, FUCHS D, WAGNER J, et al. Thermal-runaway experiments on consumer Li-ion batteries with metal-oxide and olivin-type cathodes[J]. Rsc Advances, 2014, 4:3633-3642. doi: 10.1039/C3RA45748F
[7]	SPOTNITZ R, FRANKLIN J. Abuse behavior of high-power, lithium-ion cells[J]. Journal of Power Sources, 2003, 113(1):81-100. doi: 10.1016/S0378-7753(02)00488-3
[8]	刘同宇, 李师, 付卫东, 等. 大容量磷酸铁锂动力电池热失控预警策略研究[J]. 中国安全科学学报, 2021, 31(11):120-126. doi: 10.16265/j.cnki.issn 1003-3033.2021.11.017
	LIU Tongyu, LI Shi, FU Weidong, et al. Study on early warning strategy of large LFP traction battery's thermal runaway[J]. China Safety Science Journal, 2021, 31(11):120-126. doi: 10.16265/j.cnki.issn 1003-3033.2021.11.017
[9]	王淮斌, 李阳, 王钦正, 等. 三元锂离子动力电池热失控及蔓延特性实验研究[J]. 工程科学学报, 2021, 43(5):663-675.
	WANG Huaibin, LI Yang, WANG Qinzheng, et al. Experimental study on the thermal runaway and its propagation of a lithium-ion traction battery with NCM cathode under thermal abuse[J]. Chinese Journal of Engineering, 2021, 43(5):663-675.
[10]	DOUGHTY D H, BUTLER P C, JUNGST R G, et al. Lithium battery thermal models[J]. Journal of Power Sources, 2002, 110(2):357-363. doi: 10.1016/S0378-7753(02)00198-2
[11]	RICHARD M N, DAHN J R. Predicting electrical and thermal abuse behaviours of practical lithium-ion cells from accelerating rate calorimeter studies on small samples in electrolyte[J]. Journal of Power Sources, 1999, 79(2):135-142. doi: 10.1016/S0378-7753(99)00055-5
[12]	WANG Qingsong, PING Ping, ZHAO Xuejuan, et al. Thermal runaway caused fire and explosion of lithium ion battery[J]. Journal of Power Sources, 2012, 208:210-224. doi: 10.1016/j.jpowsour.2012.02.038
[13]	GUO Guifang, LONG Bo, CHENG Bo, et al. Three-dimensional thermal finite element modeling of lithium-ion battery in thermal abuse application[J]. Journal of Power Sources, 2010, 195(8):2393-2398. doi: 10.1016/j.jpowsour.2009.10.090
[14]	VERBRUGGE M W. Three-dimensionai temperature and current distribution in a battery module[J]. Aiche Journal, 2010, 41(6):1550-1562. doi: 10.1002/(ISSN)1547-5905
[15]	DRAKE S J, MARTIN M, WETZ D A, et al. Heat generation rate measurement in a Li-ion cell at large C-rates through temperature and heat flux measurements[J]. Journal of Power Sources, 2015, 285:266-273. doi: 10.1016/j.jpowsour.2015.03.008
[16]	LYON R E, WALTERS R N. Energetics of lithium ion battery failure[J]. Journal of Hazardous Materials, 2016, 318(15):164-172. doi: 10.1016/j.jhazmat.2016.06.047
[17]	吴唐琴. 锂离子电池产热和热诱导失控特性实验研究[D]. 合肥: 中国科学技术大学, 2018.
	WU Tangqin. Experimental study on heat generation and thermal induced runaway of lithium-ion battery[D]. Hefei: University of Science and Technology of China, 2018.
[18]	FENG Xuning, FANG Mou, HE Xiangming, et al. Thermal runaway features of large format prismatic lithium ion battery using extended volume accelerating rate calorimetry[J]. Journal of Power Sources, 2014, 255:294-301. doi: 10.1016/j.jpowsour.2014.01.005
[19]	冯旭宁. 车用锂离子动力电池热失控诱发与扩展机理、建模与防控[D]. 北京: 清华大学, 2016.
	FENG Xuning. Thermal runaway initiation and propagation of lithium-ion traction battery for electric vehicle: test, modeling and prevention[D]. Beijing: Tsinghua University, 2016.
[20]	HATCHARD T D, MACNEIL D D, BASU A, et al. Thermal model of cylindrical and prismatic lithium-ion cells[J]. Journal of the Electrochemical Society, 2001, 148(7):755-761.
[21]	FORGEZ C, DO D V, FRIEDRICH G, et al. Thermal modeling of a cylindrical LiFePO₄/graphite lithium-ion battery[J]. Journal of Power Sources, 2010, 195(9): 2961-2968. doi: 10.1016/j.jpowsour.2009.10.105
[22]	FU Yangyang, SONG Lu, LONG Shi, et al. Ignition and combustion characteristics of lithium ion batteries under low atmospheric pressure[J]. Energy, 2018, 161:38-45. doi: 10.1016/j.energy.2018.06.129
[23]	赵春朋. 受限空间三元锂离子电池热失控燃爆危险性研究[D]. 合肥: 中国科学技术大学, 2021.
	ZHAO Chunpeng. Study on the risk of thermal runaway deflagration of ternary lithium-ion batteries in confined space[D]. Hefei: University of Science and Technology of China, 2021.
[24]	KIM G H, PESARAN A, SPOTNITZ R. A three-dimensional thermal abuse model for lithium-ion cells[J]. Journal of Power Sources, 2007, 170(2):476-489. doi: 10.1016/j.jpowsour.2007.04.018
[25]	LIU Xiang, REN Dongsheng, HSU Hungjen, et al. Thermal runaway of lithium-Ion batteries without internal short circuit[J]. Joule, 2018, 2(10):2047-2064. doi: 10.1016/j.joule.2018.06.015
[26]	MALEKI H, HOWARD J N. Internal short circuit in Li-ion cells[J]. Journal of Power Sources, 2009, 191(2):568-574. doi: 10.1016/j.jpowsour.2009.02.070
[27]	TORABI F, ESFAHANIAN V. Study of thermal-runaway in batteries I. theoretical study and formulation[J]. Journal of the Electrochemical Society, 2011, 158(8):850-858.
[28]	CHEN S C, WAN C C, WANG Y Y. Thermal analysis of lithium-ion batteries[J]. Journal of Power Sources, 2005, 140(1):111-124. doi: 10.1016/j.jpowsour.2004.05.064
[29]	LIU Yanhui, NIU Huichang, LI Zhao, et al. Thermal runaway characteristics and failure criticality of massive ternary Li-ion battery piles in low-pressure storage and transport[J]. Process Safety and Environmental Protection, 2021, 155:486-497. doi: 10.1016/j.psep.2021.09.031
[30]	陈长坤, 路长, 姚斌, 等. 燃烧学[M]. 北京: 机械工业出版社, 2012:43.
[31]	程昀, 李劼, 贾明, 等. 动力锂离子电池模块散热结构仿真研究[J]. 中国有色金属学报, 2015, 25(6): 1607-1616.
	CHENG Yun, LI Jie, JIA Ming, et al. Simulation research of heat dissipation structure for automotive lithium-ion battery packs[J]. The Chinese Journal of Nonferrous Metals, 2015, 25(6): 1607-1616.

工作模式	主参数	终止时间/min	终止电压/V	终止电流/A
恒流放电	18.50 A	—	3.0	—
静置	—	30	—	—
恒流恒压充电	18.50 A 4.20 V	—	—	1.85
静置	—	30	—	—
恒流放电	18.50 A	—	3.0	—
静置	—	30	—	—
恒流恒压充电	18.50 A 4.20 V	—	—	1.85

x	c_x	m_x/g	ΔH_x/(J·g^-1)
SEI膜	0.15^[24]	108.96	257^[24]
隔膜	1^[19]	19.07	-233.2^[24]
电解液	1^[19]	117	800^[19]
负极	1^[19]	108.96	1 714^[24]
正极,1	0.999^[19]	194.05	108^[25]
正极,2	0.999^[19]	194.05	108^[25]

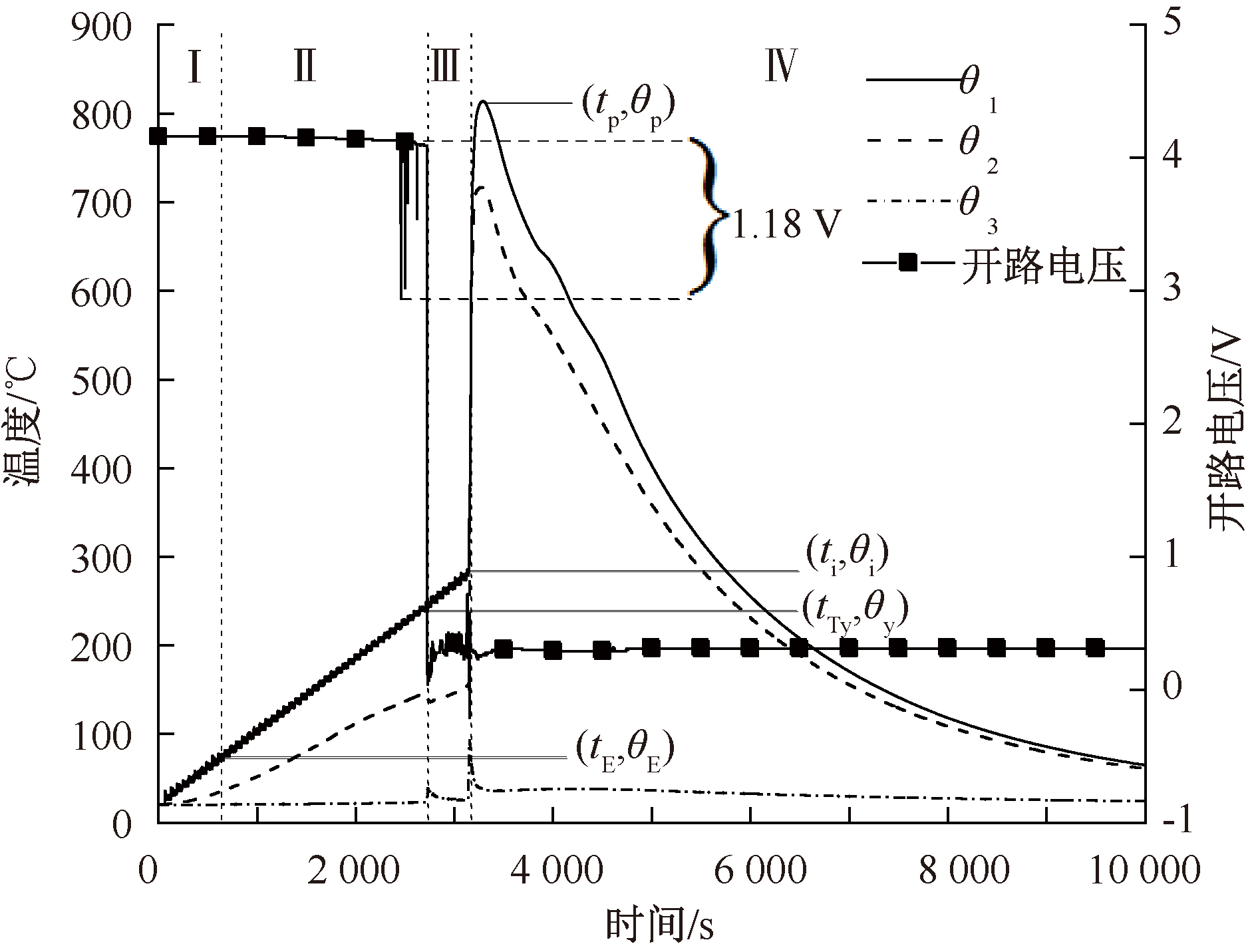

θ	θ₁/℃	t/s	θ_a(θ₃)/℃
θ_E	80	678(t_E)	20.6
θ_v	246.2	2 723(t_v)	23.2
θ_i	282.3	3 143(t_i)	51.7
θ_p	813.9	3 287(t_p)	38.3
