极薄煤层高效钻采关键技术

doi:10.16265/j.cnki.issn1003-3033.2023.07.0421

中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (7): 98-104.doi: 10.16265/j.cnki.issn1003-3033.2023.07.0421

极薄煤层高效钻采关键技术

徐阿猛¹^,²(), 胡洋¹^,²^,^**(), 尹立³, 贾进章⁴, 杨涛¹^,²

¹ 华北科技学院安全工程学院,河北廊坊 065201
² 应急管理部工业安全事故分析与监测预警重点实验室,河北廊坊 065201
³ 辽宁工程技术大学矿业学院,辽宁阜新123000
⁴ 辽宁工程技术大学安全科学与工程学院,辽宁阜新123000

收稿日期:2023-02-17 修回日期:2023-05-10 出版日期:2023-07-28
通讯作者:
^** 胡洋(1979—),男,辽宁沈阳人,博士,副教授,从事应急管理、工业安全及瓦斯爆炸等方面的科研与教学工作。E-mail:28770007@qq.com。
作者简介:
徐阿猛 (1976—),男,陕西武功人,硕士,讲师,从事矿山安全、煤矿瓦斯防治及应急管理等方面的科研与教学工作。E-mail:xamling@163.com。
贾进章,教授
杨涛,教授
基金资助:
国家自然科学基金(51574124); 中央引导地方科技发展资金项目(226Z1708G); 中央高校基本科研业务基金(3142015031); 河北省矿井灾害防治重点实验室开放基金(KJZH2013K04)

Key technology of efficient drilling and mining in extremely thin coal seam

XU A'meng¹^,²(), HU Yang¹^,²^,^**(), YIN Li³, JIA Jinzhang⁴, YANG Tao¹^,²

¹ School of Safety Engineering, North China Institute of Science & Technology, Langfang Hebei 065201, China
² Key Lab for Prevention and Control of Mine Disaster of Hebei Province, Langfang Hebei 065201, China
³ School of Mining Engineering, Liaoning Technical University, Fuxin Liaoning 123000, China
⁴ School of Safety Science and Engineering, Liaoning Technical University, Fuxin Liaoning 123000, China

Received:2023-02-17 Revised:2023-05-10 Published:2023-07-28

摘要/Abstract

摘要：

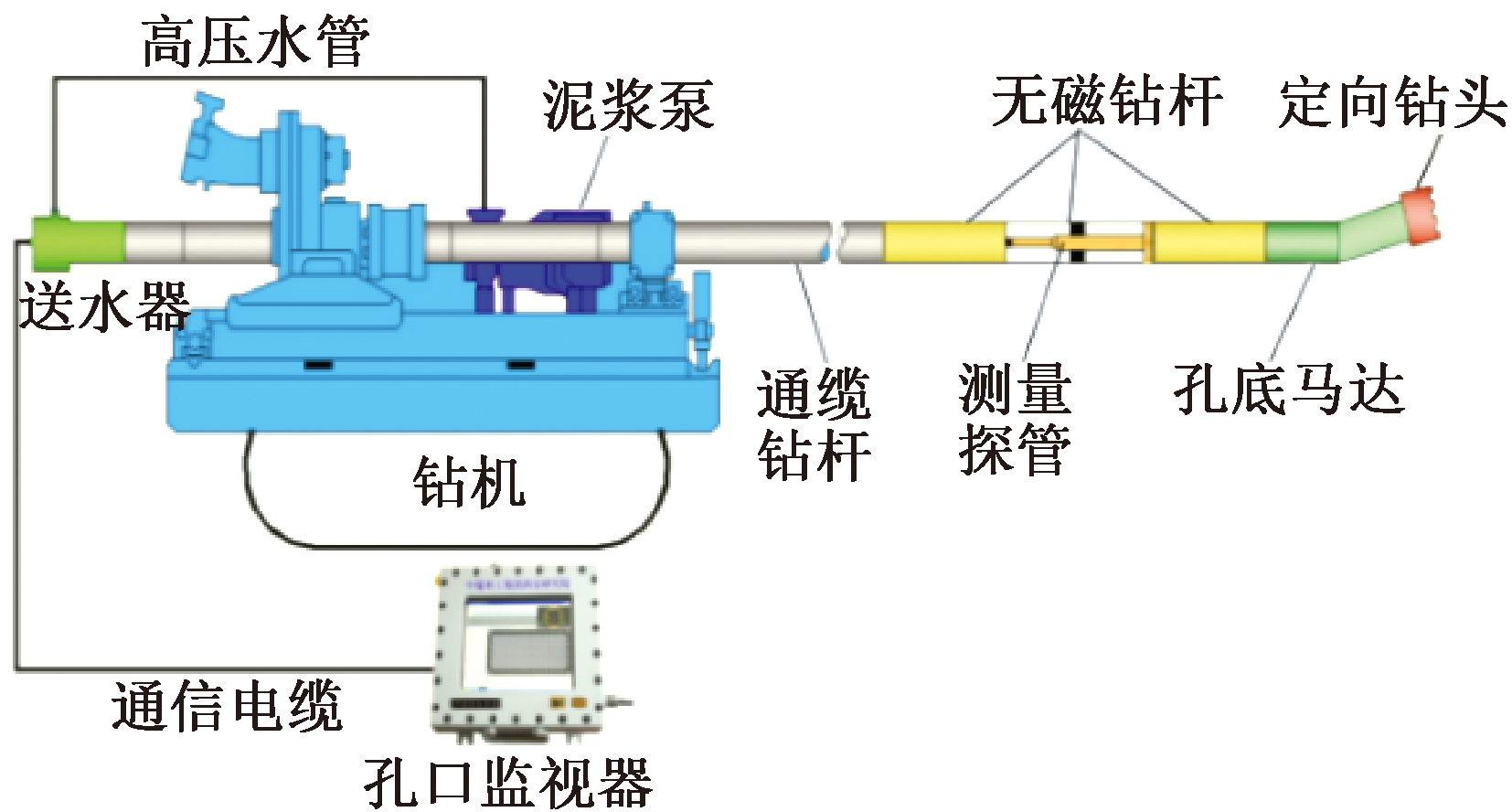

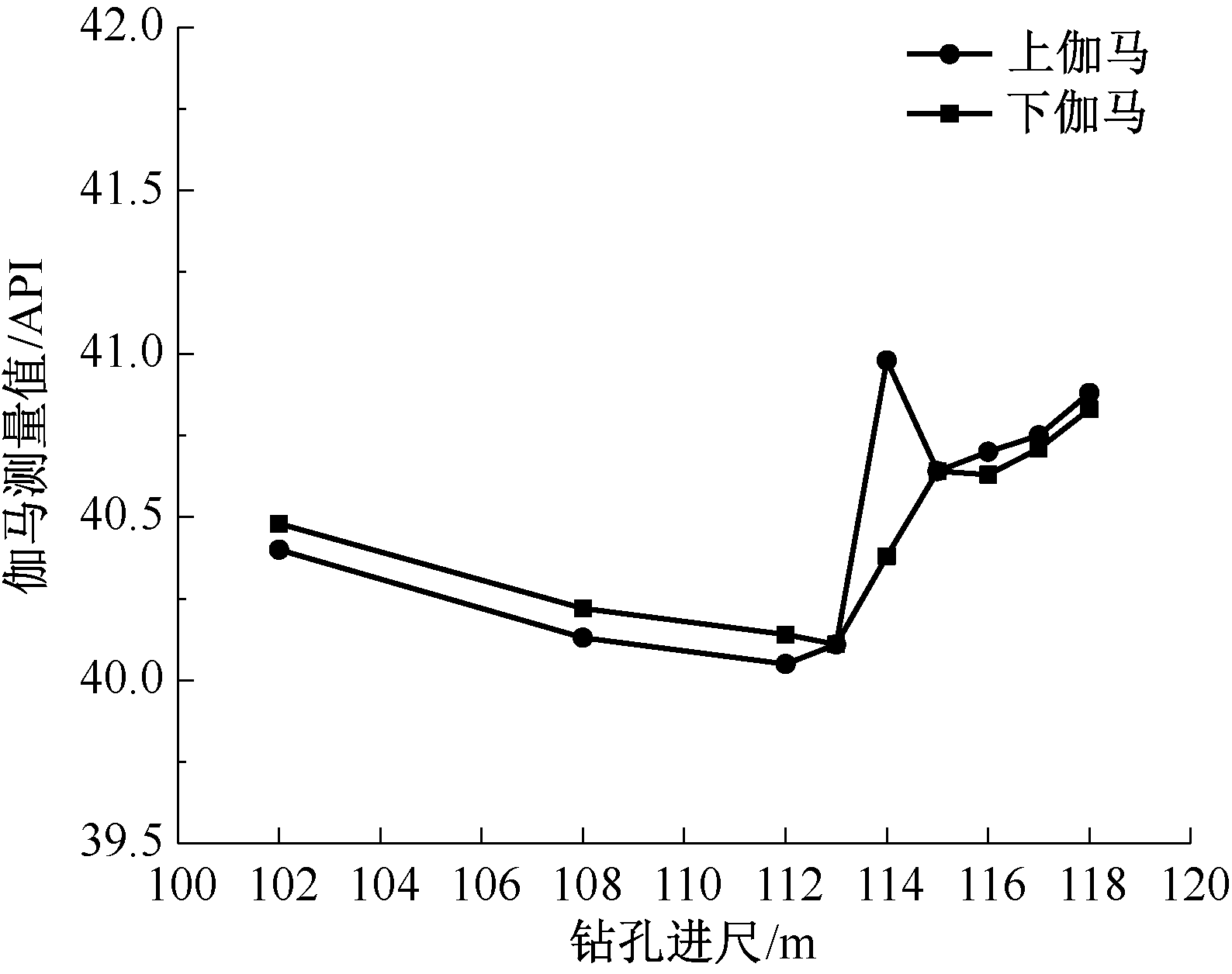

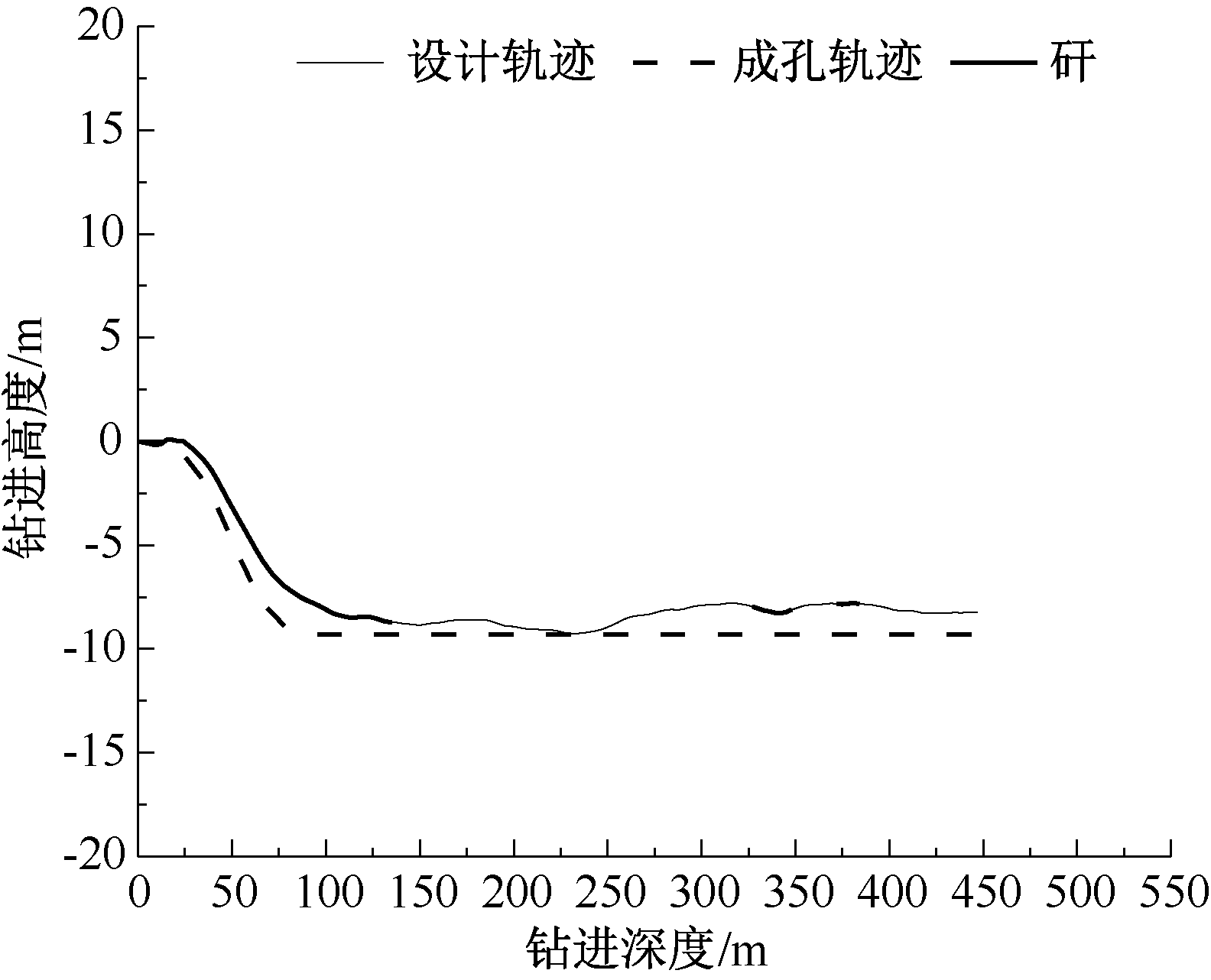

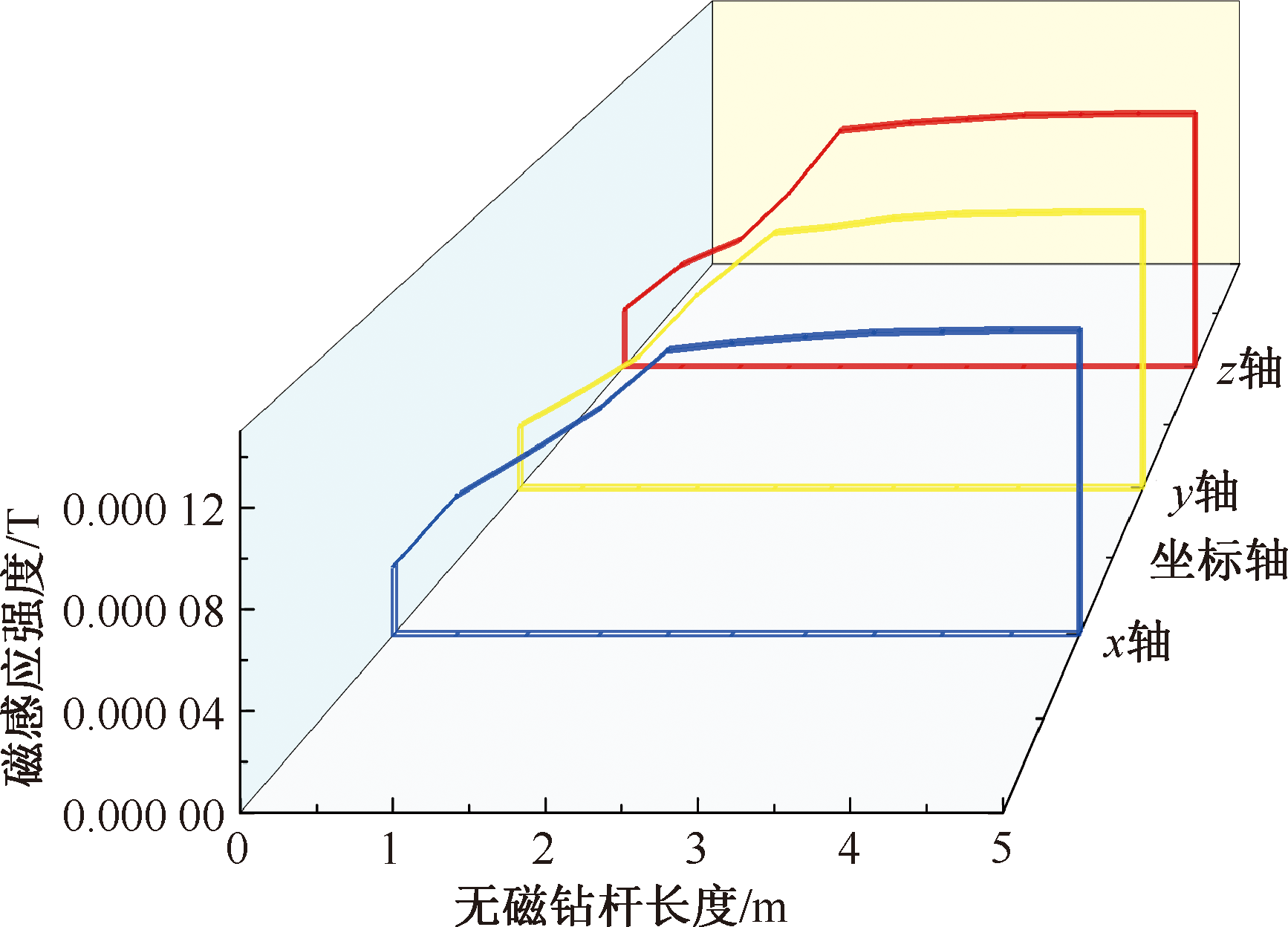

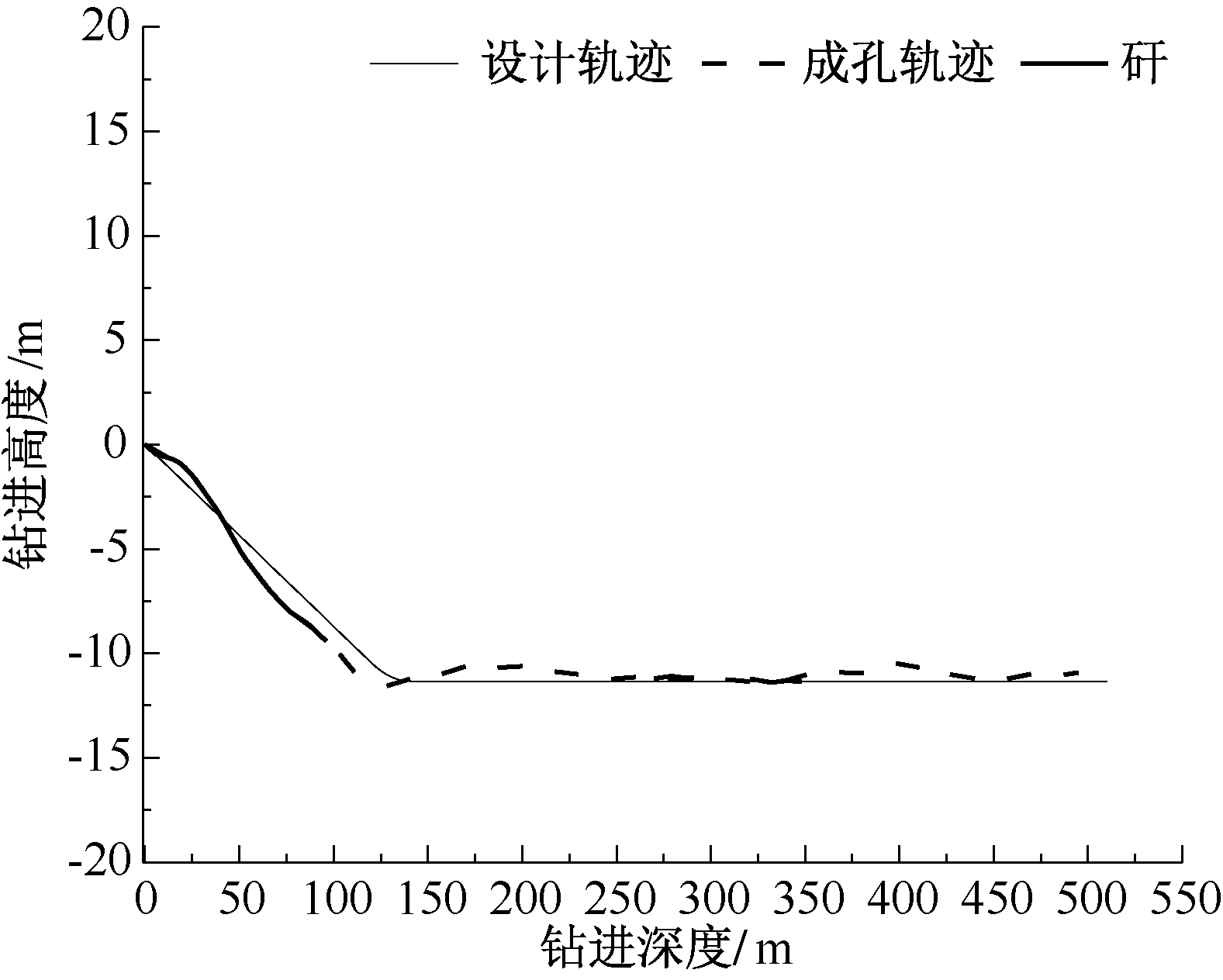

为提高极薄煤层钻遇率和瓦斯抽采效率,通过数值计算及现场试验等方法改进钻孔施工装备,提出将随钻测量定向钻进系统和随钻方位伽马测井仪联用的钻采关键技术,并结合中高压液动冲击器,形成适用于极薄煤层的新工艺。结果表明:下无磁管长度缩短为2 m,可有效提高随钻测量系统的测量精度,满足极薄煤层探顶探底及探边的需求;钻孔施工的实际轨迹与设计轨迹耦合度较高,实际轨迹和穿矸轨迹均控制在靶区范围内,实现了钻孔轨迹的全程化监测及轨道控制,使极薄煤层钻遇率均值达到88%左右,提高近40%;结合中高压液动冲击器碎岩钻进施工方式,有效解决钻孔过程中出现的塌孔、卡钻等事故,提高了钻孔的成孔率,形成了适用于极薄煤层的装备体系,使钻进效率提高了3倍,瓦斯抽放纯量达到未改进工艺前的3.8倍以上。

关键词: 极薄煤层, 高效钻采, 关键技术, 钻遇率, 随钻测量, 随钻方位伽马, 瓦斯抽采

Abstract:

In order to improve the drilling ratio and gas extraction efficiency of extremely thin coal seam, the drilling construction equipment was improved through numerical calculation and field test. The key drilling and production technology was put forward by combining the directional drilling system with the azimuth gamma-ray logging instrument while drilling. Combining with the medium-high pressure hydraulic impactor, a new technology suitable for extremely thin coal seams was formed. The results show that the length of the lower non-magnetic tube is shortened to 2 m, which can effectively improve the measurement accuracy of drilling system and meet the exploration needs of the extremely thin coal seam. The coupling degree between the actual trajectory and the design trajectory of the drilling construction is high. The actual trajectory and the gangue trajectory are controlled within the target area, and the whole process monitoring and trajectory control of the drilling trajectory are realized. The average drilling ratio of the extremely thin coal seam is about 88%, which is increased by nearly 40%. Combined with the rock breaking drilling construction method of medium-high pressure hydraulic impactor, the accidents such as hole collapse and sticking in the drilling process are effectively solved, the hole forming rate of the borehole is improved, and the equipment system suitable for extremely thin coal seam is formed. The drilling efficiency is increased by 3 times, and the gas drainage purity has been increased by more than 3.8 times.

Key words: thin coal seam, efficient drilling, key technology, drilling ratio, measurement while drilling, azimuthal gamma while drilling, gas extraction

徐阿猛, 胡洋, 尹立, 贾进章, 杨涛. 极薄煤层高效钻采关键技术[J]. 中国安全科学学报, 2023, 33(7): 98-104.

XU A'meng, HU Yang, YIN Li, JIA Jinzhang, YANG Tao. Key technology of efficient drilling and mining in extremely thin coal seam[J]. China Safety Science Journal, 2023, 33(7): 98-104.

图/表 11

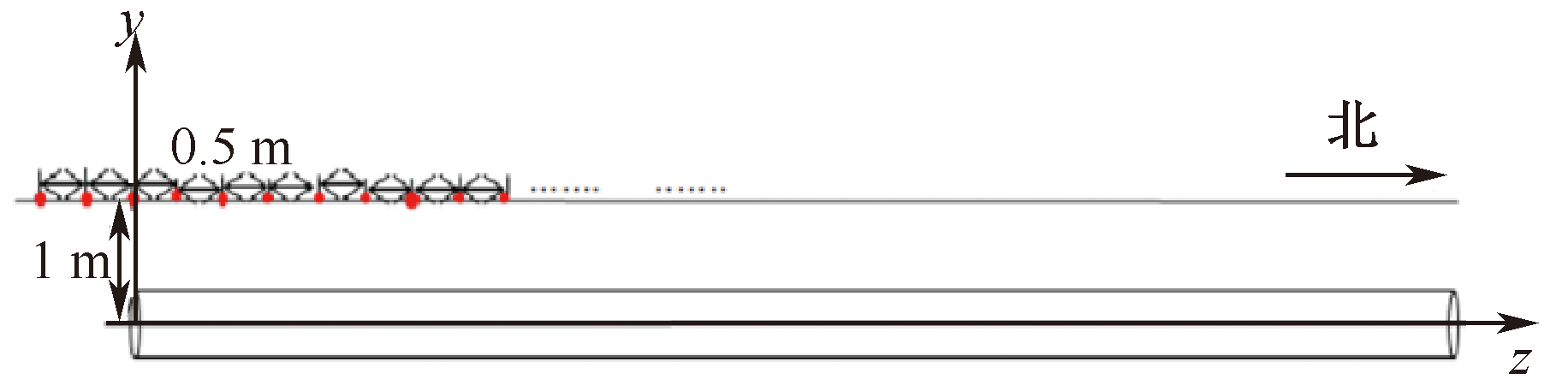

图1

图2

图3

图4

图5

图6

图7

图8

图9

表1

图10

参考文献 17

[1]	陈浮, 于昊辰, 卞正富, 等. 碳中和愿景下煤炭行业发展的危机与应对[J]. 煤炭学报, 2021, 46(6):1808-1820.
	CHEN Fu, YU Haochen, BIAN Zhengfu, et al. How to handle the crisis of coal industry in China under the vision of carbon neutrality[J]. Journal of China Coal Society, 2021, 46(6):1808-1820.
[2]	李建平, 杜长龙, 张永忠. 我国薄与极薄煤层开采设备的现状和发展趋势[J]. 煤炭科学技术, 2005, 33(6):65-67.
	LI Jianping, DU Changlong, ZHANG Yongzhong. Present status and development tendency of mining equipment for thin and ultra thin seam in China[J]. Coal Science and Technology, 2005, 33(6):65-67.
[3]	吕俊高, 程颖. 柏林煤矿极薄煤层机械化开采技术研究[J]. 煤炭技术, 2015, 34(9):6-7.
	LYU Jungao, CHENG Ying. Study on technology of mechanized mining in extremely thin coal seam of Bolin coal mine[J]. Coal Technology, 2015, 34(9):6-7.
[4]	彭杨皓, 方鹏帅, 戴旭, 等. 极薄煤层综合机械化上行复采可行性研究[J]. 煤炭技术, 2017, 36(9):18-21.
	PENG Yanghao, FANG Pengshuai, DAI Xu, et al. Study on feasibility of paper thin coal seam fully mechanized ascending re-mining[J]. Coal Technology, 2017, 36(9):18-21.
[5]	张明杰, 范豪杰, 田加加, 等. 远距离极薄煤层下保护层开采防突效果研究[J]. 煤炭科学技术, 2017, 45(3):67-72,83.
	ZHANG Mingjie, FAN Haojie, TIAN Jiajia, et al. Study on outburst prevention effect of mining in long distance and ultra thin underneath protective seam[J]. Coal Science and Technology, 2017, 45(3):67-72,83.
[6]	石智军, 姚克, 田宏亮, 等. 煤矿井下随钻测量定向钻进技术与装备现状及展望[J]. 煤炭科学技术, 2019, 47(5):22-28.
	SHI Zhijun, YAO Ke, TIAN Hongliang, et al. Present situation and prospect of directional drilling technology and equipment while drilling measurement in underground coal mine[J]. Coal Science and Technology, 2019, 47(5):22-28.
[7]	金鑫, 彭冬, 胡振阳, 等. 无线随钻测量系统在定向长钻孔中的应用[J]. 煤炭技术, 2022, 41(5):156-159.
	JIN Xin, PENG Dong, HU Zhenyang, et al. Application of wireless measurement while drilling system in directional long drilling borehole[J]. Coal Technology, 2022, 41(5):156-159.
[8]	蒋必辞, 张鹏, 丛琳, 等. 基于UCOS-Ⅱ的随钻方位伽马测井控制系统设计实现[J]. 煤炭技术, 2019, 38(8):158-161.
	JIANG Bici, ZHANG Peng, CONG Lin, et al. Design and implementation of YSG control system based on UCOS-II[J]. Coal Technology, 2019, 38(8):158-161.
[9]	张鹏云, 孙建孟, 成志刚, 等. 随钻方位伽马成像测井在鄂尔多斯盆地 H 井区水平井地质导向中的应用[J]. 科学技术与工程, 2021, 21(23): 9713-9724.
	ZHANG Pengyun, SUN Jianmeng, CHENG Zhigang, et al. Application of azimuthal gamma ray imaging logging while drilling to geosteering in horizontal wells of H area, Ordos basin[J]. Science Technology and Engineering, 2021, 21(23): 9713-9724.
[10]	周兢, 刘永升, 豆子钧, 等. 矿山巷道救援生命保障孔轨迹设计与控制方法[J]. 中国安全科学学报, 2022, 32(3):84-89. doi: 10.16265/j.cnki.issn1003-3033.2022.03.011
	ZHOU Jing, LIU Yongsheng, DOU Zijun, et al. Trajectory design and control method of mine roadway rescue life support hole[J]. China Safety Science Journal, 2022, 32(3):84-89. doi: 10.16265/j.cnki.issn1003-3033.2022.03.011
[11]	王建龙, 于志强, 王波, 等. 冲击类钻井提速工具专用PDC钻头设计与试验[J]. 石油矿场机械, 2019, 48(3):19-23.
	WANG Jianlong, YU Zhiqiang, WANG Bo, et al. Design and test of PDC bit for impact drilling speed-up tool[J]. Oil Field Equipment, 2019, 48(3):19-23.
[12]	李泉新. 煤矿井下复合定向钻进及配套泥浆脉冲无线随钻测量技术研究[D]. 北京: 煤炭科学研究总院, 2018.
	LI Quanxin. Research on technology of drilling combined rotary with direction and related mud pulse MWD[D]. Beijing: China Coal Research Institute, 2018.
[13]	范淑瑞, 王晓峰, 张合. 基于最小二乘拟合的地磁场测量误差补偿方法[J]. 探测与控制学报, 2013, 35(4):40-43.
	FAN Shurui, WANG Xiaofeng, ZHANG He. Error correction of geomagnetic field measurement system[J]. Journal of Detection & Control, 2013, 35(4):40-43.
[14]	闫亚男. 随钻方位伽马成像在地层识别中的应用研究[D]. 青岛: 中国石油大学(华东), 2019.
	YAN Ya'nan. Application research of LWD azimuthal gamma imaging in formation identification[D]. Qingdao: China University of Petroleum, 2019.
[15]	武程亮. 方位伽马在煤层气水平井中的应用[J]. 钻探工程, 2021, 48(5):69-75.
	WU Chengliang. Application of azimuth gamma in coal bed methane horizontal wells[J]. Drilling Engineering, 2021, 48(5):69-75.
[16]	豆旭谦, 姚宁平, 李秀山, 等. 基于单柱齿破岩过程的高压液动冲击回转钻进试验研究[J]. 煤田地质与勘探, 2022, 50(12):170-176.
	DOU Xuqian, YAO Ningping, LI Xiushan, et al. Experimental study on high-pressure hydraulic percussive rotary drilling based on single-tooth rock-breaking process[J]. Coal Geology & Exploration, 2022, 50(12):170-176.
[17]	赵鹏翔, 常泽晨, 李树刚, 等. 厚煤层采空区定向孔分域抽采研究及应用[J]. 中国安全科学学报, 2023, 33(1):70-79. doi: 10.16265/j.cnki.issn1003-3033.2023.01.0416
	ZHAO Pengxiang, CHANG Zechen, LI Shugang, et al. Research and application of direction hole zoning extraction in goaf of thick coal seam[J]. China Safety Science Journal, 2023, 33(1):70-79. doi: 10.16265/j.cnki.issn1003-3033.2023.01.0416

组号	见煤起止井段/m	见煤起止段长/m	非煤层段长/m	钻遇率/%
1	96~495	399	48	88
2	135~447	312	33	89
