利民煤矿井田地应力场反演及分区特征

doi:10.16265/j.cnki.issn1003-3033.2023.S2.0011

中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (S2): 105-110.doi: 10.16265/j.cnki.issn1003-3033.2023.S2.0011

利民煤矿井田地应力场反演及分区特征

董海清¹(), 兰天伟²^,³, 袁永年¹, 令向东¹, 李亚斌¹, 李阳¹

¹ 国家能源集团乌海能源公司内蒙古利民煤焦有限责任公司, 内蒙古鄂尔多斯 016064
² 辽宁工程技术大学鄂尔多斯研究院, 内蒙古鄂尔多斯 017010
³ 辽宁工程技术大学矿业学院, 辽宁阜新 123000

收稿日期:2023-07-10 修回日期:2023-10-12 出版日期:2023-12-30
作者简介:
董海清 (1981—),男,内蒙古乌海人,硕士,高级工程师,主要从事煤矿生产安全技术工作。E-mail:9682131@qq.com。
兰天伟教授
袁永年高级工程师
令向东高级工程师
李亚斌高级工程师
李阳工程师
基金资助:
辽宁省“兴辽英才计划”青年拔尖人才计划项目(XLYC2007042); 辽宁省教育厅基本科研项目(重点项目)(LJKZ0325)

Inversion and zoning characteristics of in-situ stress field in Limin Coal Mine

DONG Haiqing¹(), LAN Tianwei²^,³, YUAN Yongnian¹, LING Xiangdong¹, LI Yabin¹, LI Yang¹

¹ Wuhai Energy Company Inner Mongolia Limin Coal & Coking Co., Ltd., National Energy Group, Ordos Inner Mongolia 016064, China
² Ordos Research Institute, Liaoning University of Engineering and Technology, Ordos Inner Mongolia 017010, China
³ School of Mining, Liaoning University of Engineering and Technology, Fuxin Liaoning 123000, China

Received:2023-07-10 Revised:2023-10-12 Published:2023-12-30

摘要/Abstract

摘要：

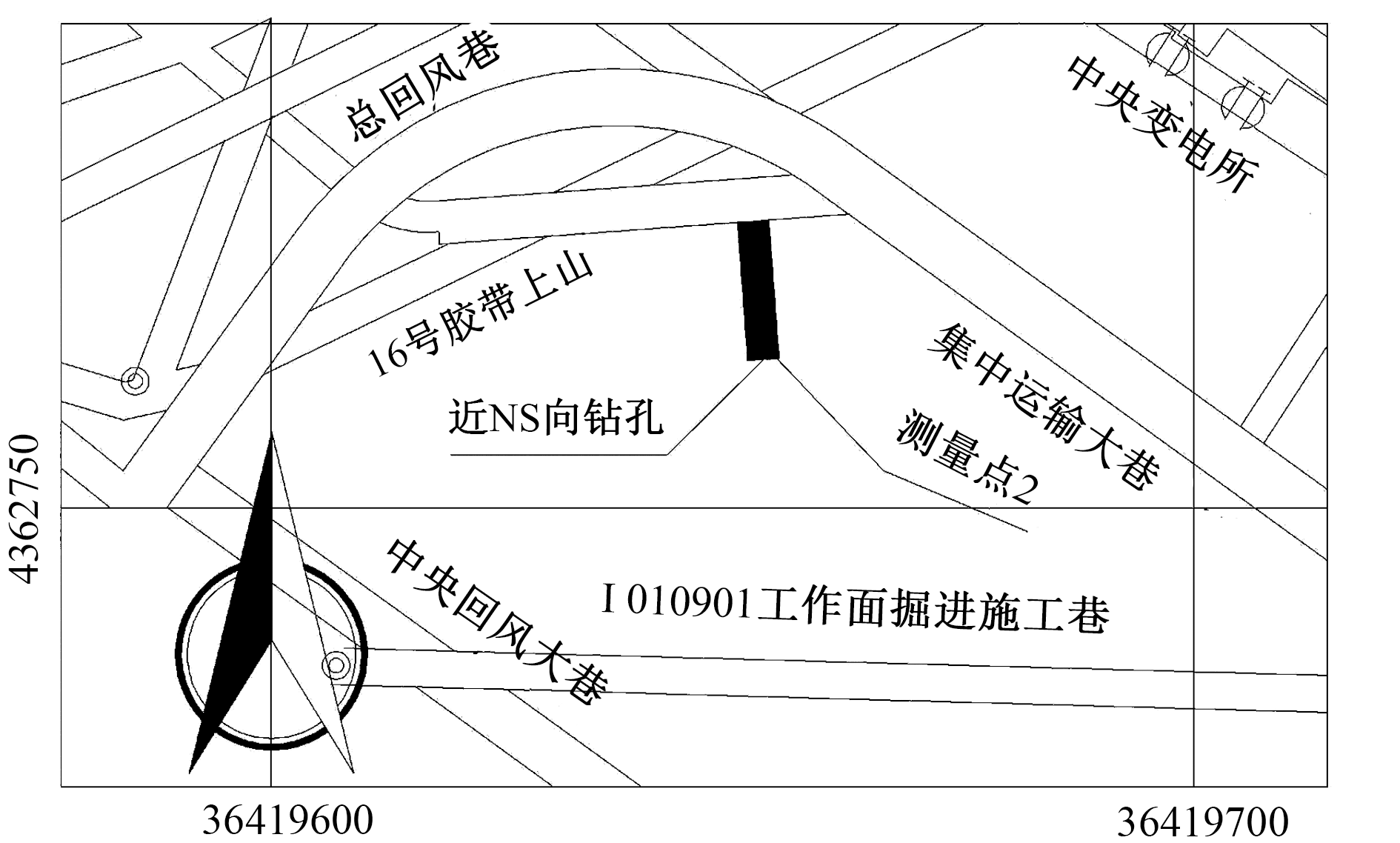

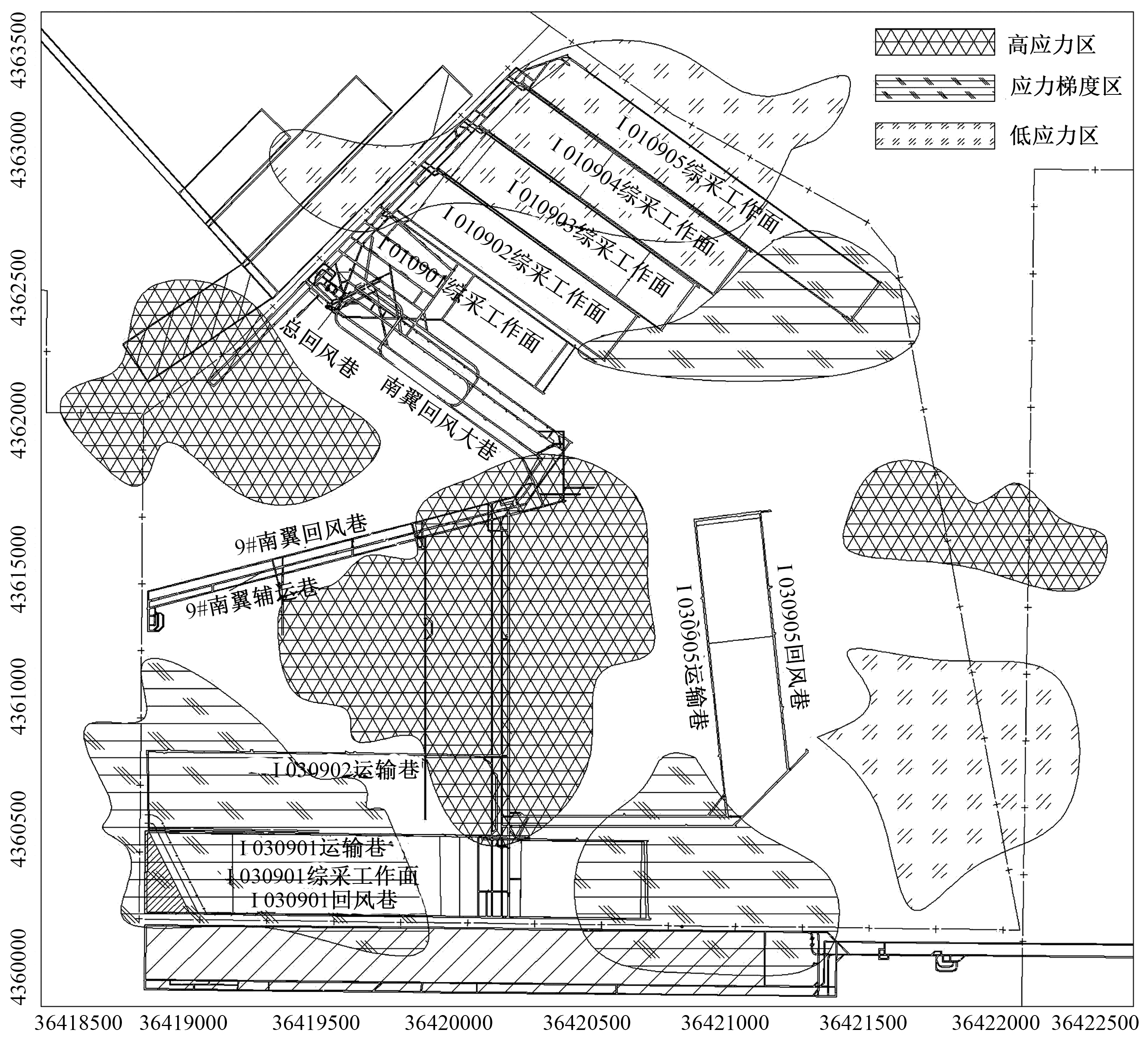

为预防矿井采掘过程由应力集中导致的巷道围岩、支护变形和破坏,需要明确井田地应力分布特征。根据区域构造分析和板块构造运动态势,揭示利民煤矿井田应力场形成的动力源及演化特征,通过井田原位地应力测试,确定地应力场主应力方向及量值,得到利民煤矿的水平构造应力场占主要优势,其最大水平主应力方向为S85.78°W—S89.93°W,方向为近EW向,构建9号煤层顶板岩性数据库和岩体应力计算模型,反演井田最大主应力分布特征,并根据应力集中系数对井田进行构造应力分区,分析不同构造应力分区内巷道围岩稳定性的差异。结果表明:高应力分区内围岩变化程度最大,且能量积聚最为集中。巷道围岩产生应力集中的临界尺度更小,更容易发生强矿压显现情况。

关键词: 地应力, 构造应力, 应力分区, 围岩稳定性, 应力集中

Abstract:

In order to prevent the deformation and failure of roadway surrounding rock and support caused by stress concentration in the process of mining, it is necessary to clarify the distribution characteristics of in-situ stress in the mine field. According to the regional tectonic analysis and plate tectonic movement situation, the dynamic source and evolution characteristics of the stress field formation in Limin coal mine were revealed. Through the in-situ stress test in the mine field, the principal stress direction and value of the in-situ stress field were determined, and the horizontal tectonic stress field of Limin coal mine was identified with the main advantage. The maximum horizontal principal stress direction was S85.78°W-S89.93°W, and the direction was nearly EW. The roof lithology database and rock stress calculation model of the No.9 coal seam were constructed to invert the distribution characteristics of the maximum principal stress in the mine field, and the tectonic stress zoning of the mine field was carried out according to the stress concentration coefficient. The differences in the stability of roadway surrounding rock in different tectonic stress zones were analyzed. The results show that the surrounding rock in the high stress zone changes the most, and the energy accumulation is the most concentrated. The critical scale of stress concentration in roadway surrounding rock is smaller, and strong mine pressure is more likely to occur.

Key words: in-situ stress, tectonic stress, stress zone, stability of surrounding rock, stress concentration

中图分类号:

X936

董海清, 兰天伟, 袁永年, 令向东, 李亚斌, 李阳. 利民煤矿井田地应力场反演及分区特征[J]. 中国安全科学学报, 2023, 33(S2): 105-110.

DONG Haiqing, LAN Tianwei, YUAN Yongnian, LING Xiangdong, LI Yabin, LI Yang. Inversion and zoning characteristics of in-situ stress field in Limin Coal Mine[J]. China Safety Science Journal, 2023, 33(S2): 105-110.

图/表 5

图1

图2

表1

表2

图3

参考文献 20

[1]	袁亮. 深部采动响应与灾害防控研究进展[J]. 煤炭学报, 2021, 46(3):716-725.
	YUAN Liang. Research progress of mining response and disaster prevention and control in deep coal mines[J]. Journal of China Coal Society, 2021, 46(3):716-725.
[2]	彭文庆, 朱豪, 汪琦. 破碎岩体巷道围岩承载结构应力分布规律[J]. 中南大学学报:自然科学版, 2023, 54(6):2447-2 458.
	PENG Wenqing, ZHU Hao, WANG Qi. Stress distribution law of surrounding rock bearing structure of broken surrounding rock roadway[J]. Journal of Central South University: Science and Technology, 2023, 54(6):2447-2 458.
[3]	张岳桥, 施炜, 廖昌珍, 等. 鄂尔多斯盆地周边断裂运动学分析与晚中生代构造应力体制转换[J]. 地质学报, 2006, 80(5):639-647.
	ZHANG Yueqiao, SHI Wei, LIAO Changzhen, et al. Fault kinematic analysis and change in late mesozoic tectonic stress regimes in the peripheral zones of the Ordos basin, North China[J]. Acta Geologica Sinica, 2006, 80(5):639-647.
[4]	张传庆, 黄书岭, 周辉, 等. 基于地应力水平评价的围岩潜在破坏模式研究[J]. 岩石力学与工程学报, 2018, 37(1):3187-3 195.
	ZHANG Chuanqing, HUANG Shuling, ZHOU Hui, et al. Study on potential failure modes of surrounding rock mass based on evaluation of geostress level[J]. Chinese Journal of Rock Mechanics and Engineering, 2018, 37(1):3187-3 195.
[5]	康红普, 林健, 张晓. 深部矿井地应力测量方法研究与应用[J]. 岩石力学与工程学报, 2007, 26(5):929-933.
	KANG Hongpu, LIN Jian, ZHANG Xiao. Research and application of in-situ stress measurement method in deep mines[J]. Chinese Journal of Rock Mechanics and Engineering, 2007, 26(5):929-933.
[6]	蔡美峰, 刘卫东, 李远. 玲珑金矿深部地应力测量及矿区地应力场分布规律[J]. 岩石力学与工程学报, 2010, 29(2):227-233.
	CAI Meifeng, LIU Weidong, LI Yuan. In-situ stress measurement at deep position of Linglong gold mine and distribution law of in-situ stress field in mine area[J]. Chinese Journal of Rock Mechanics and Engineering, 2010, 29(2):227-233.
[7]	LI Peng, CAI Meifeng, GUO Qifeng, et al. In situ stress state of the northwest region of the Jiaodong Peninsula,China from overcoring stress measurements in three gold mines[J]. Rock Mechanics and Rock Engineering, 2019,52:4 497-4 507.
[8]	YIN Shuai, XIE Runchen, WU Zhonghu, et al. In situ stress heterogeneity in a highly developed strike-slip fault zone and its effect on the distribution of tight gases:a 3D finite element simulation study[J]. Marine and Petroleum Geology, 2019, 99(1):75-91. doi: 10.1016/j.marpetgeo.2018.10.007
[9]	ZHAO Haijun, MA Fengshan, XU Jiamo, et al. In situ stress field inversion and its application in mining-induced rock mass movement[J]. International Journal of Rock Mechanics and Mining Sciences, 2012,53:120-128.
[10]	GUO Peng, YAO Leihua. Simulation of three-dimensional tectonic stress fields and quantitative prediction of tectonic fracture within the damintun depression,Liaohe basin,northeast China[J]. Journal of Structural Geology, 2016, 86(5):211-223. doi: 10.1016/j.jsg.2016.03.007
[11]	FENG Jianwei, SHANG Ling, LI Xize, et al. 3D numerical simulation of heterogeneous in situ stress field in low-permeability reservoirs[J]. Petroleum Science, 2019, 16(5):939-955. doi: 10.1007/s12182-019-00360-w
[12]	陈立军, 刘伟, 王海萍, 等. 鄂尔多斯盆地吴定区域侏罗系储层特征及其主控因素[J]. 甘肃科学学报, 2023, 35(6):31-37,43.
	CHEN Lijun, LIU Wei, WANG Haiping, et al. Characteristics and main control factors of Jurassic reservoir in the Wuqi-Anding Area,Ordos basin[J]. Journal of Gansu Sciences, 2023, 35(6):31-37,43.
[13]	阴钰毅, 姚志纯, 郭小波, 等. 鄂尔多斯盆地西缘二叠系隐伏构造特征及勘探意义[J]. 岩性油气藏, 2022, 34(4):79-88.
	YIN Yuyi, YAO Zhichun, GUO Xiaobo, et al. Characteristics of Permian concealed structures in western margin of Ordos basin and its significance for oil and gas exploration[J]. Lithologic Reservoirs, 2022, 34(4):79-88.
[14]	何登发, 包洪平, 开百泽, 等. 鄂尔多斯盆地及其邻区关键构造变革期次及其特征[J]. 石油学报, 2021, 42(10):1255-1 269.
	HE Dengfa, BAO Hongping, KAI Baize, et al. Critical tectonic modification periods and its geologic features of Ordos basin and adjacent area[J]. Acta Petrolei Sinica, 2021, 42(10):1255-1 269.
[15]	欧阳征健, 冯娟萍, 龚慧山, 等. 鄂尔多斯盆地西缘横山堡地区构造特征与油气勘探目标优选[J]. 地质科学, 2021, 56(1):19-27.
	OUYANG Zhengjian, FENG Juanping, GONG Huishan, et al. Structural characteristics and optimization of oil and gas exploration targets in Hengshanpu area, western margin of Ordos basin[J]. Chinese Journal of Geology, 2021, 56(1):19-27.
[16]	开百泽, 何登发, 马静辉, 等. 鄂尔多斯盆地构造沉降特征及对盆地成因的启示[J]. 地质科学, 2020, 55(3):657-671.
	KAI Baize, HE Dengfa, MA Jinghui, et al. The characteristics of tectonic subsidence in Ordos basin and its enlightenment to basin genesis[J]. Chinese Journal of Geology, 2020, 55(3):657-671.
[17]	郄晨龙, 卞正富, 杨德军, 等. 鄂尔多斯煤田高强度井工煤矿开采对土壤物理性质的扰动[J]. 煤炭学报, 2015, 40(6):1448-1 456.
	QIE Chenlong, BIAN Zhengfu, YANG Dejun, et al. Effect of high-intensity underground coal mining disturbance on soil physical properties[J]. Journal of China Coal Society, 2015, 40(6):1448-1 456.
[18]	高立新, 韩晓明, 戴勇, 等. 鄂尔多斯地块的运动特性与现今地震活动性[J]. 大地测量与地球动力学, 2017, 37(4):349-354.
	GAO Lixin, HAN Xiaoming, DAI Yong, et al. Movement characteristics and the present seismic behavior of the Ordos block[J]. Journal of Geodesy and Geodynamics, 2017, 37(4):349-354.
[19]	崔笃信, 郝明, 李煜航, 等. 鄂尔多斯块体周缘地区现今地壳水平运动与应变[J]. 地球物理学报, 2016, 59(10):3646-3 661.
	CUI Duxin, HAO Ming, LI Yuhang, et al. Present-day crustal movement and strain of the surrounding area of Ordos block derived from repeated GPS observations[J]. Chinese Journal of Geophysics, 2016, 59(10):3646-3 661.
[20]	白相东, 迟宝明, 关成尧, 等. 鄂尔多斯南缘构造带现今地块运动模式[J]. 吉林大学学报:地球科学版, 2015, 45(3):674-682.
	BAI Xiangdong, CHI Baoming, GUAN Chengyao, et al. Ordos block modern movement patterns in southern Ordos margin tectonic belt[J]. Journal of Jilin University:Earth Science Edition, 2015, 45(3):674-682.

测孔	主应力类别	主应力值/ MPa	方位角/ (°)	倾角/ (°)
1号	σ₁	20.60	265.78	-9.94
	σ₂	8.38	-33.08	70.05
	σ₃	4.55	178.88	17.12
2号	σ₁	22.40	269.93	-4.98
	σ₂	9.27	-62.07	84.37
	σ₃	7.06	180.16	2.63

测孔	σ_x	σ_y	σ_z	τ_xy	τ_yz	τ_zx
1号	20.2	4.9	8.4	0.9	1.2	2.1
2号	22.3	7.1	9.4	9.7	0.1	1.1
