基于Topsis改进因子分析的公路隧道入口段视觉负荷研究

doi:10.16265/j.cnki.issn1003-3033.2024.01.0039

摘要/Abstract

摘要：

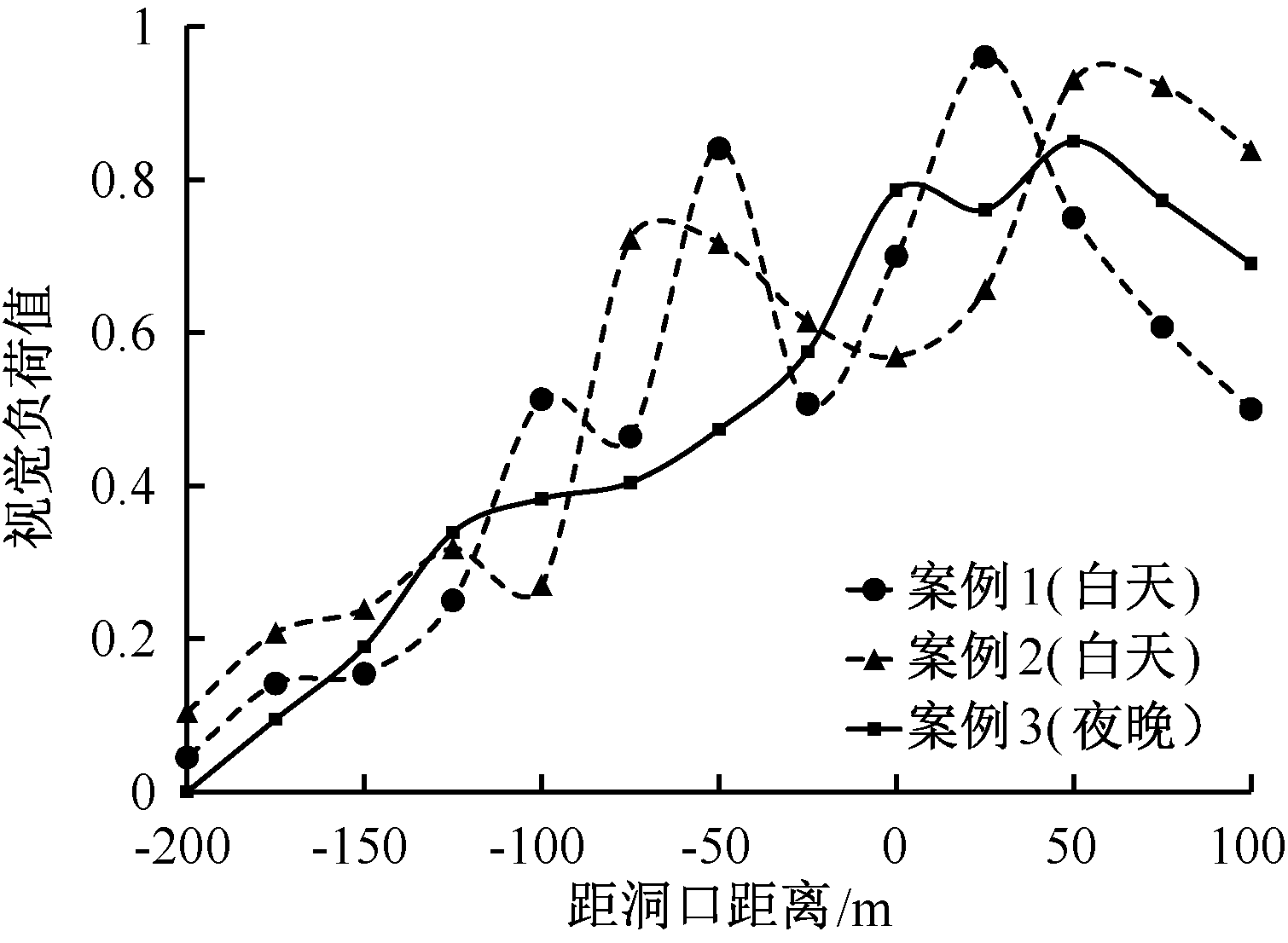

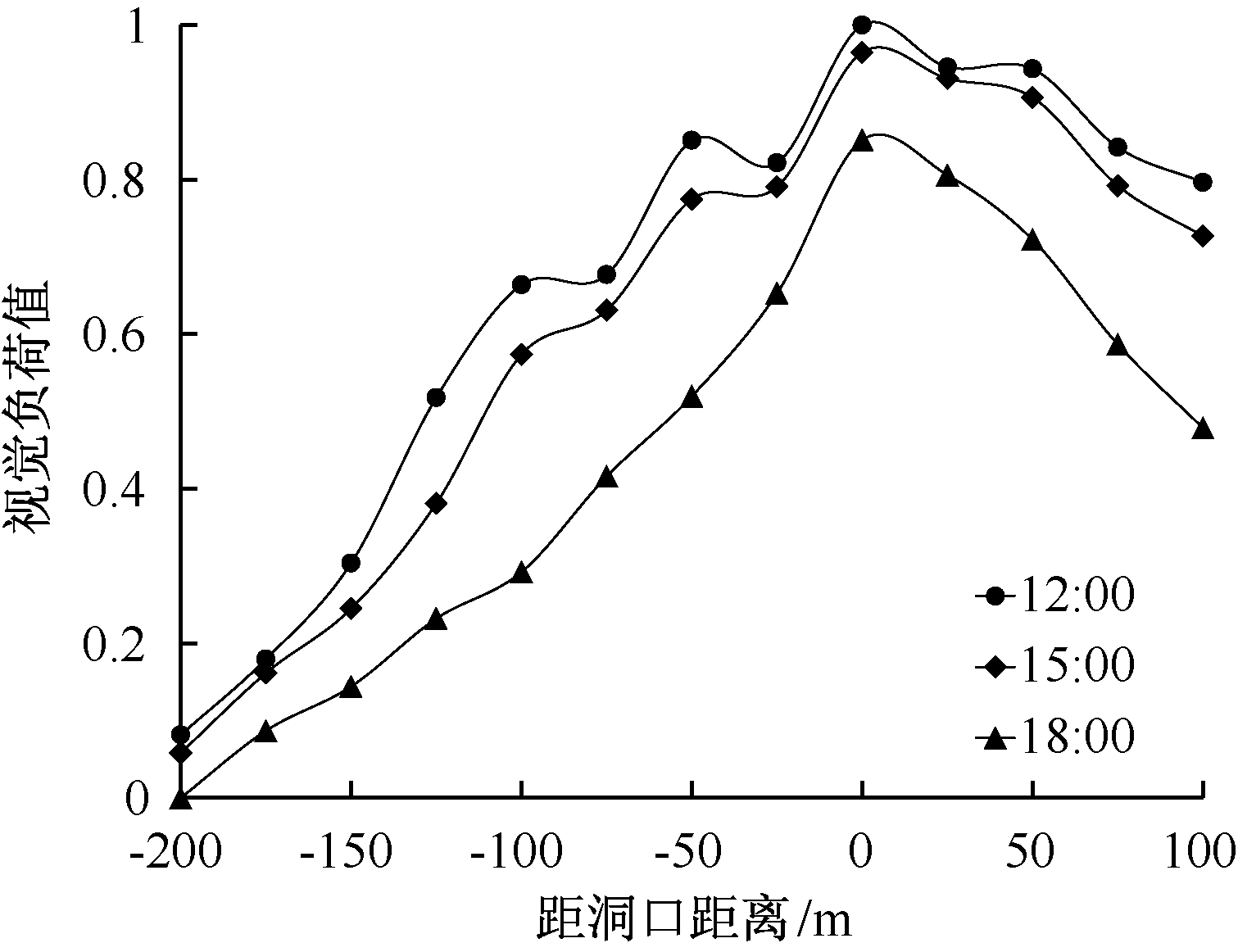

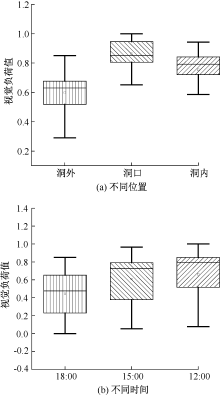

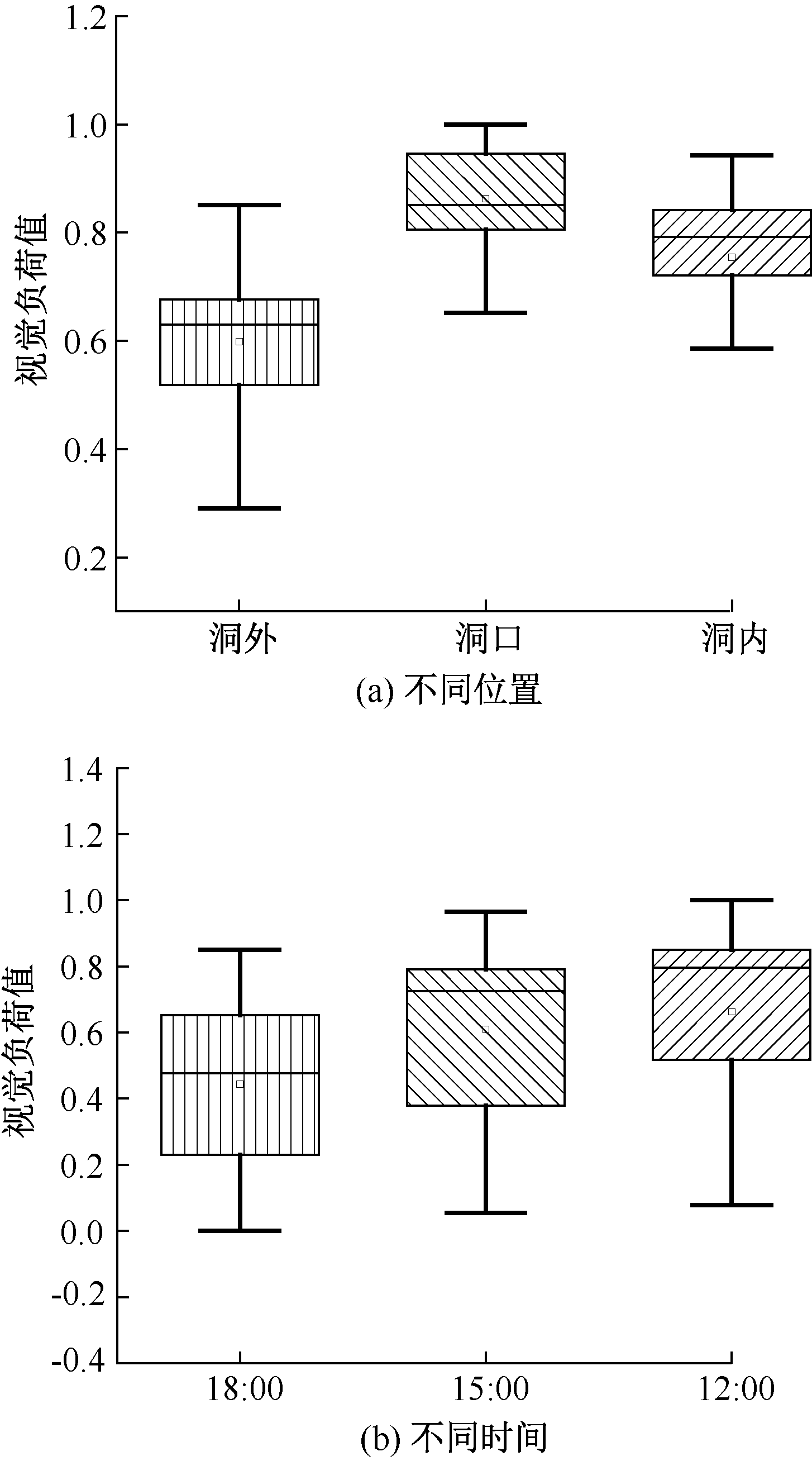

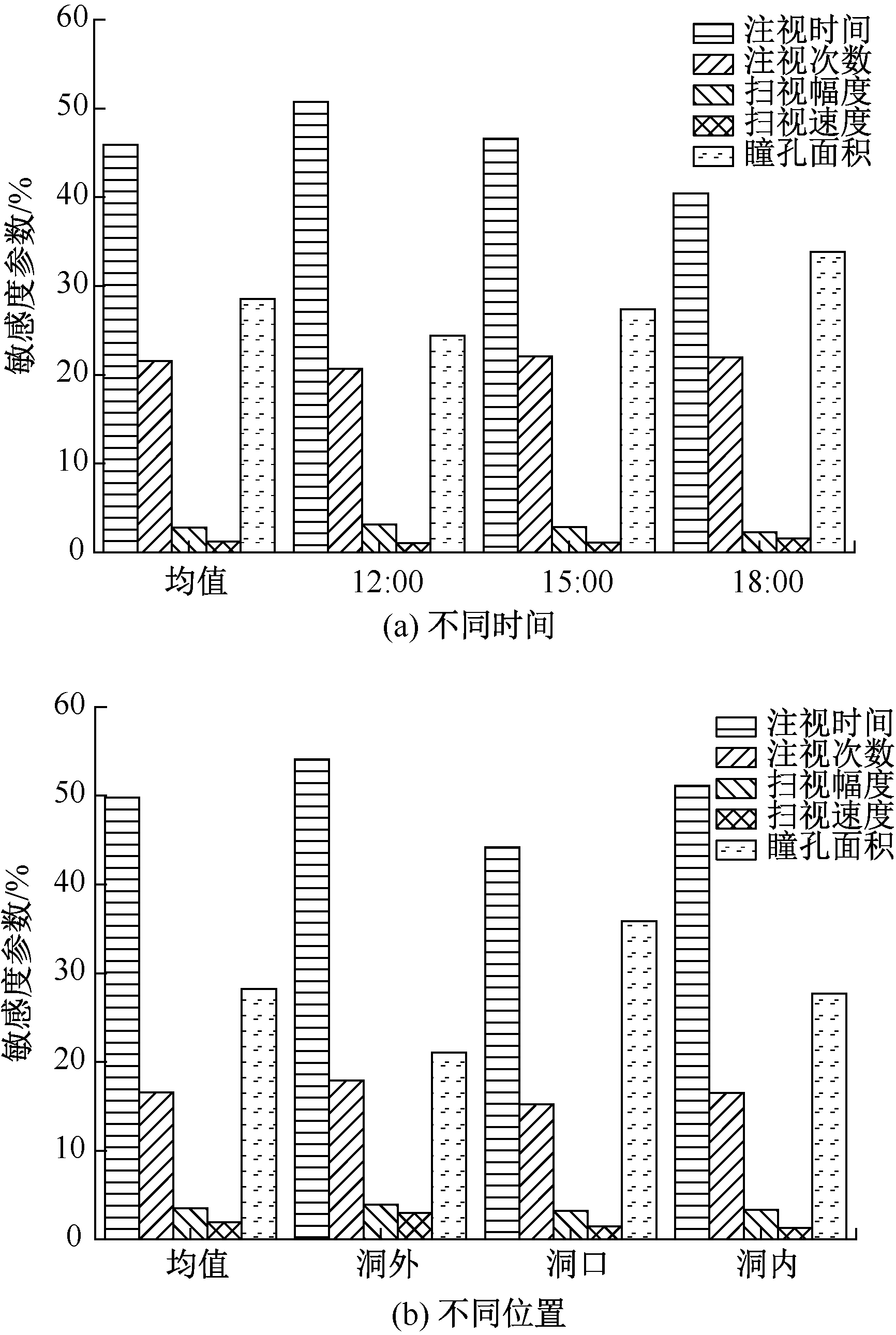

为探究直线公路隧道入口段驾驶者的视觉负荷,首先,通过实车试验采集5种视觉指标,采用Topsis改进因子分析法建立视觉负荷评价模型;然后,分析不同时间及位置下视觉负荷的变化特征,基于构建的视觉负荷曲线提出行车舒适评价标准,并运用已发表数据验证构建负荷模型的泛化能力;最后,通过敏感度分析探究视觉指标对视觉负荷的影响程度。结果表明:当驾驶者位于距洞口-13~55 m(12:00)、-10~49 m(15:00)时,视觉负荷超过临界值(0.906),驾驶者的行车舒适度和安全性极低;洞口驾驶者的视觉负荷值和接近度远大于洞内和洞外;18:00的视觉负荷和接近度远低于12:00和15:00。视觉指标的敏感度参数从大到小依次为注视时间、瞳孔面积、注视次数、扫视幅度、扫视速度。

关键词: Topsis改进因子分析, 公路隧道入口段, 视觉负荷, 行车安全, 视觉指标

Abstract:

In order to investigate the visual load of drivers at the threshold zone of linear highway tunnels, five visual indicators of drivers were collected through the real vehicle test. A visual load evaluation model was developed by the Topsis improved factor analysis method, the visual load at different times and locations was analyzed, the evaluation criteria of driving comfort were proposed based on the constructed visual load curve, the generalization ability of the constructed load model was verified by using published data, and finally, the influence of visual indicators on visual load was investigated by sensitivity analysis. The results show that when the driver locates about -13 m to 55 m (12:00) and -10 m to 49 m (15:00) from the entrance, the visual load exceeds the boundary value (0.906), indicating the driver's driving comfort and safety is extremely low. The visual load and closeness of the drivers near the entrance are much greater than those inside and outside the entrance, and the visual load and closeness at 18:00 are much lower than those at 12:00 and 15:00. The sensitivity parameters of the visual indicators are fixation duration, pupil area, fixation time, saccade range, saccade speed in descending order.

Key words: Topsis improved factor analysis, threshold zone of highway tunnel, visual load, traffic safety, visual indicators

中图分类号:

X910安全人体学

梁波, 秦灿, 牛佳安, 肖靖航, 文森. 基于Topsis改进因子分析的公路隧道入口段视觉负荷研究[J]. 中国安全科学学报, 2024, 34(1): 77-84.

LIANG Bo, QIN Can, NIU Jia'an, XIAO Jinghang, WEN Sen. Visual load in threshold zone of highway tunnel based on Topsis improved factor analysis method[J]. China Safety Science Journal, 2024, 34(1): 77-84.

图/表 10

图1

表1

表2

表3

图2

表4

表5

图3

图4

图5

参考文献 19

[1]	王辉, 刘浩学, 赵炜华, 等. 公路隧道环境中交通事故特征分析[J]. 公路, 2009(11): 144-147.
[2]	张雪榆, 潘存书, 林伟, 等. 山地城市多车道交织区驾驶人心理负荷研究[J]. 中国安全科学学报, 2022, 32(3): 25-32. doi: 10.16265/j.cnki.issn1003-3033.2022.03.004
	ZHANG Xueyu, PAN Cunshu, LIN Wei, et al. Psychological load of drivers in multi?lane interweaving areas of urban roads[J]. China Safety Science Journal, 2022, 32(3): 25-32. doi: 10.16265/j.cnki.issn1003-3033.2022.03.004
[3]	梁波, 梁加林, 何世永, 等. 公路隧道光环境信息感知及试验研究[J]. 隧道建设:中英文, 2020, 40(9): 1251-1260.
	LIANG Bo, LIANG Jialin, HE Shiyong, et al. Study onlight environment information perception and experiment method of highway tunnel[J]. Tunnel Construction, 2020, 40(9): 1251-1260.
[4]	陈培焱, 吴刚, 马小翔, 等. 基于驾驶员视觉负荷的格栅式减光罩频闪效应研究[J]. 武汉理工大学学报:交通科学与工程版, 2020, 44(5): 785-788,793.
	CHEN Peiyan, WU Gang, MA Xiaoxiang, et al. Flickering frequency effect of grille light-reducing hood based on drivers' visual load[J]. Journal of Wuhan University of Technology:Transportation Science & Engineering, 2020, 44(5): 785-788,793.
[5]	彭金栓, 高翠翠, 郭应时. 基于熵率值的驾驶人视觉与心理负荷特性分析[J]. 重庆交通大学学报:自然科学版, 2014, 33(2): 118-121.
	PENG Jinshuan, GAO Cuicui, GUO Yingshi. Drivers' visual characteristics and mental load based on entropy rates[J]. Journal of Chongqing Jiaotong University:Natural Science, 2014, 33(2): 118-121.
[6]	段萌萌, 唐伯明, 胡旭辉, 等. 高隧道比路段隧道出入口驾驶员视觉负荷研究[J]. 交通运输系统工程与信息, 2018, 18(3): 113-119.
	DUAN Mengmeng, TANG Boming, HU Xuhui, et al. Driver's visual load at tunnel entrance and exit of sections with high ratio of tunnels[J]. Journal of Transportation Systems Engineering and Information Technology, 2018, 18(3): 113-119.
[7]	王首硕, 杜志刚, 文竞舟, 等. 低等级公路光学长隧道驾驶员视觉负荷研究[J]. 隧道建设:中英文, 2020, 40(2): 209-214.
	WANG Shoushuo, DU Zhigang, WEN Jingzhou, et al. Study on drivers' visual load in low-grade optical long tunnel[J]. Tunnel Construction, 2020, 40(2): 209-214.
[8]	丁旭, 王海晓, 高明星, 等. 公路隧道出入口驾驶员视觉负荷评价与建模[J]. 隧道建设:中英文, 2022, 42(4): 679-687.
	DING Xu, WANG Haixiao, GAO Mingxing, et al. Evaluation and modeling of driver's visual load at entrance and exit of a highway tunnel[J]. Tunnel Construction, 2022, 42(4): 679-687.
[9]	刘东旗. 不同隧道路段驾驶员眼动特征研究[D]. 西安: 长安大学, 2017.
	LIU Dongqi. Study on eye movement characteristics of drivers in different tunnel sections[D]. Xi'an: Chang'an University, 2017.
[10]	AMUNDSEN F, ENGEBRETSEN A. Studies on traffic accidents in norwegian road tunnels[J]. Tunnelling and Underground Space Technology, 2000, 15 (1): 3-11. doi: 10.1016/S0886-7798(00)00024-9
[11]	梁波, 文森, 肖尧, 等. 特长隧道出入口驾驶者生理负荷与行车安全性研究[J]. 隧道建设:中英文, 2021, 41(9): 1461-1467.
	LIANG Bo, WEN Sen, XIAO Yao, et al. Study on the physiological load of drivers and traffic safety at the entrances and exits of long tunnels[J]. Tunnel Construction, 2021, 41(9): 1461-1467.
[12]	梅家林, 杜志刚, 郑号染, 等. 不同时段特长隧道入口区域视觉负荷研究[J]. 中国安全科学学报, 2021, 31(6): 176-181. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.023
	MEI Jialin, DU Zhigang, ZHENG Haoran, et al. Research on visual load at entrance area of extra-long tunnel in different periods[J]. China Safety Science Journal, 2021, 31(6): 176-181. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.023
[13]	ROBATSCH K, NUSSBAUMER C. Tunnels mit gegenverkehr und richtungsverkehr/tunnels with uni- and bi-directional traffic[M]. Graz: Ministry of Building and Technology, 2004: 28-56.
[14]	王春雨. 隧道路段驾驶员视觉安全技术研究[D]. 重庆: 重庆交通大学, 2013.
	WANG Chunyu. Research on visual safety technology of driver in tunnel section[D]. Chongqing: Chongqing Jiaotong University, 2013.
[15]	王琳. 基于驾驶仿真的V形海底隧道视觉减速标线设置研究[D]. 青岛: 青岛理工大学, 2021.
	WANG Lin. Research on visual deceleration mark setting of V-shaped submarine tunnel based on driving simulation[D]. Qingdao: Qingdao University of Technology, 2021.
[16]	孙亚男. 寒区夜间快速路隧道入口新驾驶员眼动特性研究[D]. 长春: 吉林建筑大学, 2022.
	SUN Ya'nan. Study on eye movement characteristics of new drivers at the entrance of expressway tunnel at night in cold area[D]. Changchun: Jilin Jianzhu University, 2022.
[17]	NGUYEN T, KASHANI A, NGO T, et al. Deep neural network with high-order neuron for the prediction of foamed concrete strength[J]. Computer-Aided Civil and Infrastructure Engineering, 2018, 34(4): 316-332. doi: 10.1111/mice.2019.34.issue-4
[18]	JIAO Fangtong, DU Zhigang, WANG Shoushuo. Drivers' saccade characteristics in curves of extra-long urban underwater tunnels[J]. Transportation Research Record, 2020, 2674(2):102-111. doi: 10.1177/0361198120904643
[19]	WANG Shoushuo, DU Zhigang, JIAO Fangtong. Drivers' visual load at different time periods in entrance and exit zones of extra-long tunnel[J]. Traffic Injury Prevention, 2020, 21(8): 1-6. doi: 10.1080/15389588.2020.1712715

KMO检验	Bartelett球形检验
KMO值	近似卡方	自由度	显著性p值
0.788	187.037	10	0.00

标准化变量	公因子方差		因子载荷矩阵		因子得分系数矩阵
标准化变量	初始	提取	公因子F₁	公因子F₂	公因子F₁	公因子F₂
注视时间Z₁	1	0.847	0.92	0.017	-0.267	0.095
注视次数Z₂	1	0.964	0.98	0.056	0.278	-0.027
扫视幅度Z₃	1	0.998	0.063	0.997	-0.066	0.997
扫视速度Z₄	1	0.883	0.933	0.11	0.26	0.032
瞳孔面积Z₅	1	0.883	0.934	0.1	0.261	0.022

成分	初始特征值			提取载荷平方比			旋转载荷平方比
成分	总计	方差/%	累计/%	总计	方差/%	累计/%	总计	方差/%	累计/%
1	3.59	71.8	71.8	3.59	71.8	71.8	3.55	71.11	71.11
2	0.98	19.7	91.49	0.98	19.7	91.49	1.01	20.39	91.5
3	0.2	4.15	95.65	—	—	—	—	—	—
4	0.17	3.56	99.21	—	—	—	—	—	—
5	0.03	0.79	100	—	—	—	—	—	—

区段	分类	接近度	排名
时间区段	12:00	0.514 9	1
	15:00	0.493 2	2
	12:00	0.321 3	3
位置区段	洞外	0.478 7	3
	洞口	0.626 1	1
	洞内	0.533 1	2
