缓倾斜煤层高位定向长钻孔抽采卸压瓦斯技术研究

doi:10.16265/j.cnki.issn1003-3033.2024.S1.0024

中国安全科学学报 ›› 2024, Vol. 34 ›› Issue (S1): 102-108.doi: 10.16265/j.cnki.issn1003-3033.2024.S1.0024

缓倾斜煤层高位定向长钻孔抽采卸压瓦斯技术研究

双海清¹^,²^,³(), 刘子嘉¹, 林海飞¹^,²^,³, 周斌¹^,²^,³, 张文琦¹, 罗永刚⁴

¹ 西安科技大学安全科学与工程学院, 陕西西安 710054
² 西安科技大学西部矿井开采及灾害防治教育部重点实验室, 陕西西安 710054
³ 煤炭行业西部矿井瓦斯智能抽采工程研究中心, 陕西西安 710054
⁴ 陕西长武亭南煤业有限责任公司, 陕西咸阳 713600

收稿日期:2024-01-12 修回日期:2024-04-15 出版日期:2024-06-30
作者简介:
双海清 (1988—),男,陕西靖边人,博士,副教授,主要从事矿井瓦斯灾害防治、关停矿井开发利用等方面的研究。E-mail: shuanghaiqing@163.com。
林海飞,教授;
周斌,副教授。
基金资助:
国家自然科学青年项目(51904238); 陕西省自然科学青年基金资助(2019JQ-337); 陕西省自然科学青年基金资助(2022JQ-365); 陕西省教育厅专项科学研究计划(22JK0460)

Research on high directional and long drilling technology for extracting pressure relief gas in slowly inclined coal bed

SHUANG Haiqing¹^,²^,³(), LIU Zijia¹, LIN Haifei¹^,²^,³, ZHOU Bin¹^,²^,³, ZHANG Wenqi¹, LUO Yonggang⁴

¹ College of Safety Science and Engineering, Xi'an University of Science and Technology, Xi'an Shaanxi 710054, China
² Key Laboratory of Western Mine Exploitation and Hazard Prevention, Ministry of Education, Xi'an University of Science and Technology, Xi'an Shaanxi 710054, China
³ Western Engineering Research Center of Mine Gas Intelligent Drainage for Coal Industry, Xi'an Shaanxi 710054, China
⁴ Shaanxi Changwu Tingnan Coal Co., Xianyang Shaanxi 713600, China

Received:2024-01-12 Revised:2024-04-15 Published:2024-06-30

摘要/Abstract

摘要：

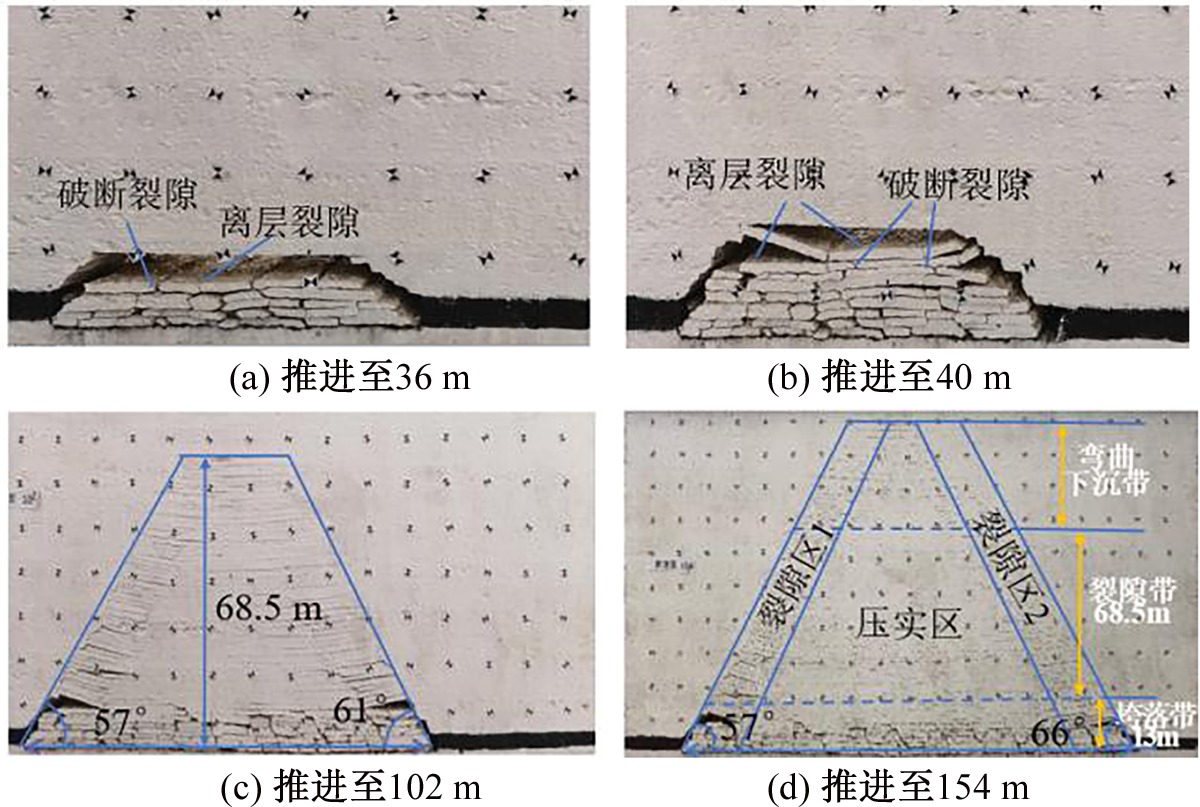

为探究缓斜煤层覆岩采动裂隙时空演化及卸压瓦斯富集区的变化特征,采用物理相似模拟和现场监测方法,分析采动覆岩裂隙演化和裂隙分布特征;研究卸压瓦斯富集区演化特征,确定高位定向钻孔的合理布置参数方案,并进行效果检验。结果表明:试验工作面沿煤层走向垮落带高度13 m,裂隙带高度68.5 m,沿工作面倾向裂隙网络受煤层倾角影响,工作面断裂角为54°~59°,裂隙发育的开度自工作面向上逐渐增大,瓦斯运移通道呈现出明显的非对称性特征;高位定向钻孔全生命周期瓦斯抽采过程依据其抽采体积分数可分为抽采初期、抽采中期和抽采末期3个阶段,其中抽采初期抽采体积分数偏低,抽采中期为钻孔抽采生命周期内的高效抽采阶段,进入抽采末期抽采体积分数呈现急剧下降的趋势;高位定向长钻孔抽采技术实施后,工作面上隅角、回风巷瓦斯体积分数均小于0.8%,瓦斯抽采效果良好,高位钻孔的布置方式较为合理。

关键词: 缓倾斜煤层, 高位定向长钻孔, 瓦斯抽采, 卸压瓦斯, 采动裂隙

Abstract:

In order to investigate the spatio-temporal evolution of mining-induced fissures and change characteristics of pressure relief gas-enriched area in the overlying rock of the slowly inclined coal bed, physical similarity simulation and field monitoring method were used to analyze the evolution and distribution characteristics of the fissure in the overlying rock. The evolution characteristics of the pressure relief gas-enriched area were studied to determine the parameter arrangement scheme of the high directional drilling holes, and the effect test was carried out. The results show that the test working face has a height of 13 m along the caving zone of the coal bed, and the height of the fissure zone is 68.5 m. The fissure network along the working face is affected by the inclination angle of the coal bed, and the fracture angle of the working face is 54°-59°. The openness of the fissure development is gradually increasing upward from the working face, and the gas transportation channel is asymmetric. The whole life cycle of the gas extraction process by high directional drilling can be divided into the early stage of extraction, the middle stage of extraction, and the end stage of extraction according to the extraction volume fraction. In the early stage of extraction, the volume fraction is low. The middle stage of extraction has high efficiency in the whole life cycle of extraction. In the late stage of extraction, the volume fraction shows a sharp decline. After the implementation of the high directional and long drilling technology, the volume fractions of the gas in the upper corners of the working face and in the return-air tunnel are all less than 0.8%, indicating a good effect of the gas extraction, and the arrangement of the high drilling holes is reasonable.

Key words: slowly inclined coal bed, high directional and long drilling holes, gas extraction, pressure relief gas, mining-induced fissures

中图分类号:

X936

双海清, 刘子嘉, 林海飞, 周斌, 张文琦, 罗永刚. 缓倾斜煤层高位定向长钻孔抽采卸压瓦斯技术研究[J]. 中国安全科学学报, 2024, 34(S1): 102-108.

SHUANG Haiqing, LIU Zijia, LIN Haifei, ZHOU Bin, ZHANG Wenqi, LUO Yonggang. Research on high directional and long drilling technology for extracting pressure relief gas in slowly inclined coal bed[J]. China Safety Science Journal, 2024, 34(S1): 102-108.

图/表 11

表1

表2

图1

图2

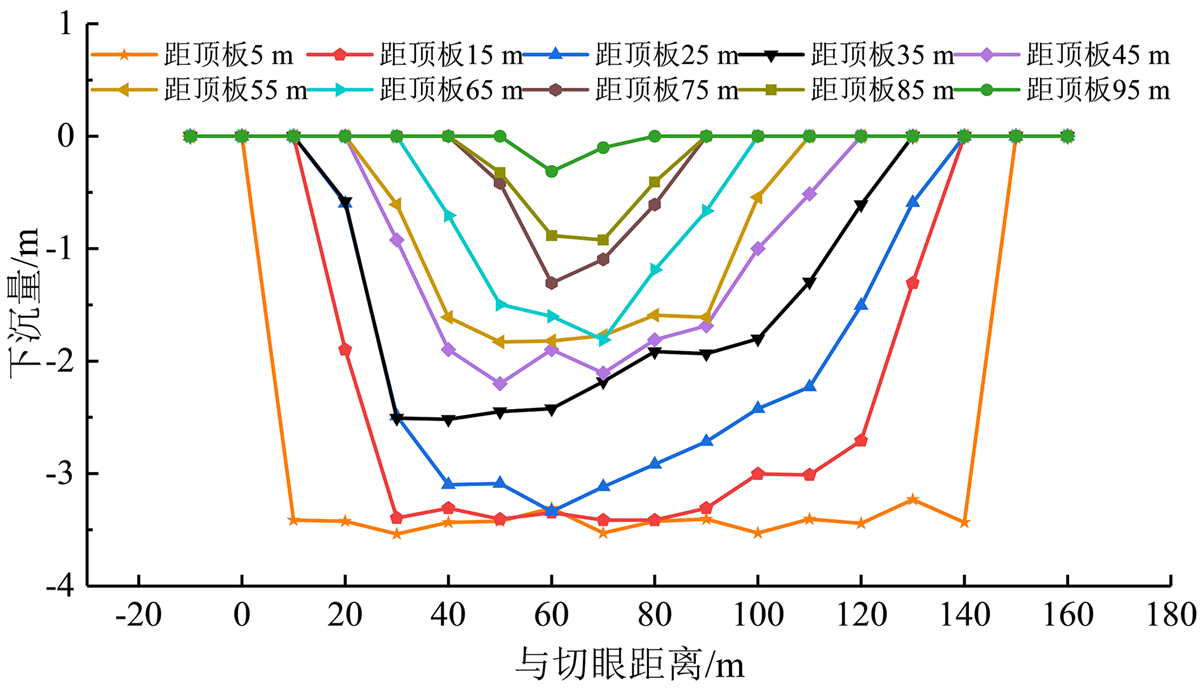

图3

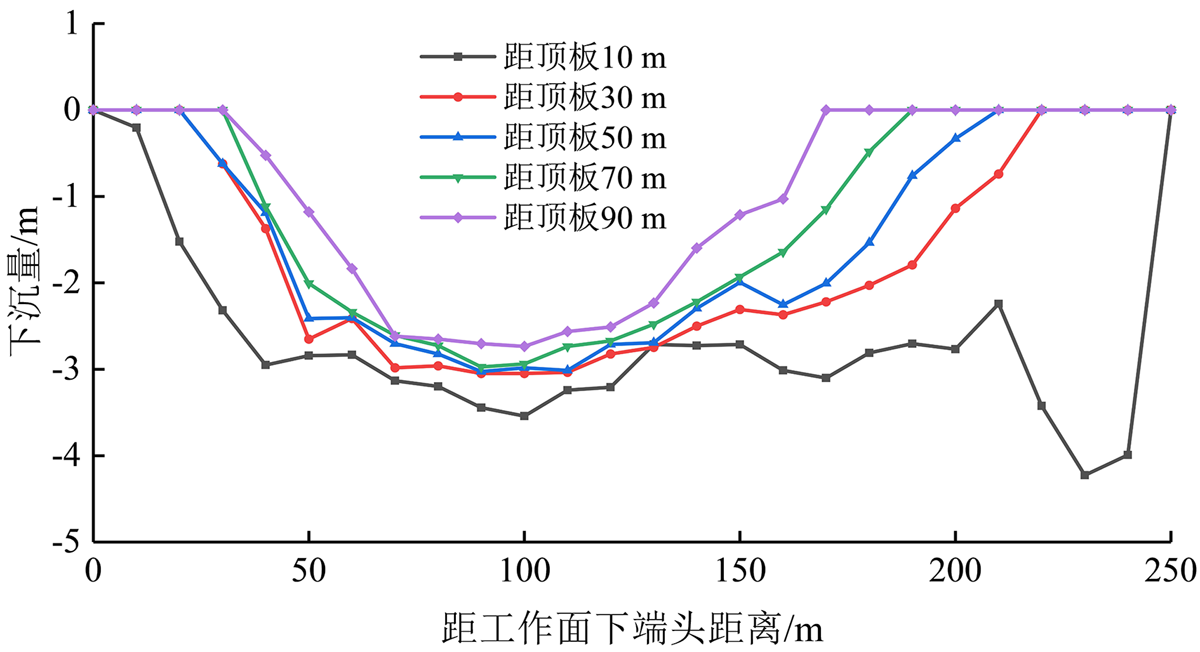

图4

图5

表3

图6

图7

图8

参考文献 15

[1]	袁亮. 煤及共伴生资源精准开采科学问题与对策[J]. 煤炭学报, 2019, 44(1):1-9.
	YUAN Liang. Scientific problem and countermeasure for precision mining of coal and associated resources[J]. Journal of China Coal Society, 2019, 44(1):1-9.
[2]	李树刚, 钱鸣高, 石平五. 煤层采动后甲烷运移与聚集形态分析[J]. 煤田地质与勘探, 2000, 28(5):31-33.
	LI Shugang, QIAN Minggao, SHI Pingwu. Methane migration and accumulation state after seam mining[J]. Coal Geology & Exploration, 2000, 28(5):31-33.
[3]	郭明杰, 郭文兵, 赵高博, 等. 长壁开采覆岩内水平定向长钻孔位置特征与卸压瓦斯抽采机理[J]. 煤炭学报, 2023, 48(10):3750-3 765.
	GUO Mingjie, GUO Wenbing, ZHAO Gaobo, et al. Position characteristics of horizontal-directional long boreholes in overlying strata and drainage mechanism of pressure-relief gas due to longwall mining[J]. Journal of China Coal Society, 2023, 48(10):3750-3 765.
[4]	龚选平, 武建军, 李树刚, 等. 低瓦斯煤层高强开采覆岩卸压瓦斯抽采合理布置研究[J]. 采矿与安全工程学报, 2020, 37(2):419-428.
	GONG Xuanping, WU Jianjun, LI Shugang, et al. Reasonable arrangement of pressure relief gas extraction in overburden rock under high strength mining in low gas seams[J]. Journal of Mining & Safety Engineering, 2020, 37(2):419-428.
[5]	程详, 赵光明, 李英明, 等. 软岩保护层开采覆岩采动裂隙带演化及卸压瓦斯抽采研究[J]. 采矿与安全工程学报, 2020, 37(3):533-542.
	CHENG Xiang, ZHAO Guangming, LI Yingming, et al. Evolution of overburden mining-induced fractured zone and pressure-relief gas drainage in soft rock protective seam[J]. Journal of Mining & Safety Engineering, 2020, 37(3):533-542.
[6]	徐阿猛, 胡洋, 尹立, 等. 极薄煤层高效钻采关键技术[J]. 中国安全科学学报, 2023, 33(7):98-104. doi: 10.16265/j.cnki.issn1003-3033.2023.07.0421
	XU Ameng, HU Yang, YIN Li, et al. Key technology of efficient drilling and mining in extremely thin coal seam[J]. China Safety Science Journal, 2023, 33(7):98-104. doi: 10.16265/j.cnki.issn1003-3033.2023.07.0421
[7]	赵鹏翔, 常泽晨, 李树刚, 等. 厚煤层采空区定向钻孔分域抽采研究及应用[J]. 中国安全科学学报, 2023, 33(1):70-79. doi: 10.16265/j.cnki.issn1003-3033.2023.01.0416
	ZHAO Pengxiang, CHANG Zechen, LI Shugang, et al. Research and application of directional drilling sub area extraction in thick coal seam goaf[J]. China Safety Science Journal, 2023, 33(1):70-79. doi: 10.16265/j.cnki.issn1003-3033.2023.01.0416
[8]	薛俊华, 肖健, 杜轩宏, 等. 我国煤矿保护层开采卸压瓦斯抽采现状及发展趋势[J]. 煤田地质与勘探, 2023, 51(6):50-61.
	XUE Junhua, XIAO Jian, DU Xuanhong, et al. Current situation and development trend of pressure-relief gas extraction in the protective layer mining in coal mines in China[J]. Coal Geology & Exploration, 2023, 51(6):50-61.
[9]	冯锦艳, 刘旭杭, 于志全. 大倾角煤层采动裂隙演化规律[J]. 煤炭学报, 2017, 42(8):1971-1 978.
	FENG Jinyan, LIU Xuhang, YU Zhiquan. Numerical simulation study on the mining-induced fracture evolution of steep coal seam[J]. Journal of China Coal Society, 2017, 42(8):1971-1 978.
[10]	王金安, 张基伟, 高小明, 等. 大倾角厚煤层长壁综放开采基本顶破断模式及演化过程(Ⅱ):周期破断[J]. 煤炭学报, 2015, 40(8):1737-1 745.
	WANG Jin'an, ZHANG Jiwei, GAO Xiaoming, et al. Fracture mode and evolution of main roof stratum above fully mechanized top coal caving longwall coalface in steeply inclined thick coal seam(Ⅱ): periodic fracture[J]. Journal of China Coal Society, 2015, 40(8):1737-1 745.
[11]	刘传安, 杨京伟. 煤层倾角对采动裂隙演化规律的影响[J]. 煤炭科学技术, 2013, 41(3):51-54.
	LIU Chuan'an, YANG Jingwei. Seam inclination affected to evolution law of mining cracks[J]. Coal Science and Technology, 2013, 41(3):51-54.
[12]	李春元, 左建平, 张勇. 深部开采底板破坏与基本顶岩梁初次垮断的联动效应[J]. 岩土力学, 2021, 42(12):3301-3 314.
	LI Chunyuan, ZUO Jianping, ZHANG Yong. The linkage effect between floor failure and first weighting of the main roof in deep longwall mining[J]. Rock and Soil Mechanics, 2021, 42(12):3301-3 314.
[13]	甘智慧, 尚慧, 杜荣军, 等. 基于FLAC3D和DEM数据的缓倾斜煤层开采沉陷分析[J]. 煤田地质与勘探, 2021, 49(3):158-166.
	GAN Zhihui, SHANG Hui, DU Rongjun, et al. Mining subsidence analysis of gently inclined coal seams based on FLAC3D and DEM data[J]. Coal Geology & Exploration, 2021, 49(3):158-166.
[14]	伍永平, 解盘石, 任世广. 大倾角煤层开采围岩空间非对称结构特征分析[J]. 煤炭学报, 2010, 35(2):182-184.
	WU Yongping, XIE Panshi, REN Shiguang. Analysis of asymmetric structure around coal face of steeply dipping seam mining[J]. Journal of China Coal Society, 2010, 35(2):182-184.
[15]	解盘石, 伍永平, 罗生虎, 等. 大倾角大采高采场倾向梯阶结构演化及稳定性分析[J]. 采矿与安全工程学报, 2018, 35(5):953-959.
	XIE Panshi, WU Yongping, LUO Shenghu, et al. Structural evolution of ladder roof and its stability analyses for a fully-mechanized working face with a large mining height in steeply inclined coal seam[J]. Journal of Mining & Safety Engineering, 2018, 35(5):953-959.

厚度/m	岩性	岩性描述
5.0	细砂岩	棕灰色,中部含少量方解石及菱铁矿,局部胶结有泥岩碎块
4.8	中粒砂岩	灰白色,中夹薄层砂质泥岩,含少重白云母及菱铁结核
1.4	细砂岩	惊黄色细砂岩,含自云母碎片
4.8	砂质泥岩	棕黄色及灰色砂质泥岩,下部0.9 m为浅灰色泥岩
1.9	砂质泥岩	黄灰色砂质泥岩中部含褐紫色菱铁矿结核
3.1	泥岩	浅灰色泥岩,含植物化石碎片,中部夹灰黄色砂质泥岩
1.9	砂质泥岩	深灰色、黑色砂质泥岩,含自云母碎片
2.1	细砂岩	灰黄色细砂岩,夹粉砂岩和白云母碎片
1.2	粗砂岩	灰色相砂岩,中部含少量泥质砂岩
1.8	粗砂岩	浅灰至灰白色粗砂岩,含白云母片
1.9	泥质砂岩	深灰色,下部为泥岩,局部夹薄层煤线
2.0	细砂岩	浅灰色细砂岩,中部含白云母
3.0	泥质砂岩	深灰色泥质砂岩
4.1	砂质泥岩	黑色砂质泥岩,平行层面含少里白云母碎片
3.5	己₁₅煤	黑色块状,光亮型煤

相似比	几何比 α_L	时间比 α_t	容重比 α_γ	应力比 α_σ	强度比 α_E
走向模型	100	10	1.5	150	150
倾向模型	200	14	1.5	300	300

钻孔编号	距顶板高度/m	距回风巷下帮/m	钻孔长度/ m	下筛管深度/m
1	18	25	522	489
2	21	30	525	510
3	24	35	525	327
4	27	38	522	457
5	30	43	513	501
6	36	48	501	501
