基于数字孪生的钻机运行安全状态监测技术研究

doi:10.16265/j.cnki.issn1003-3033.2024.S1.0039

摘要/Abstract

摘要：

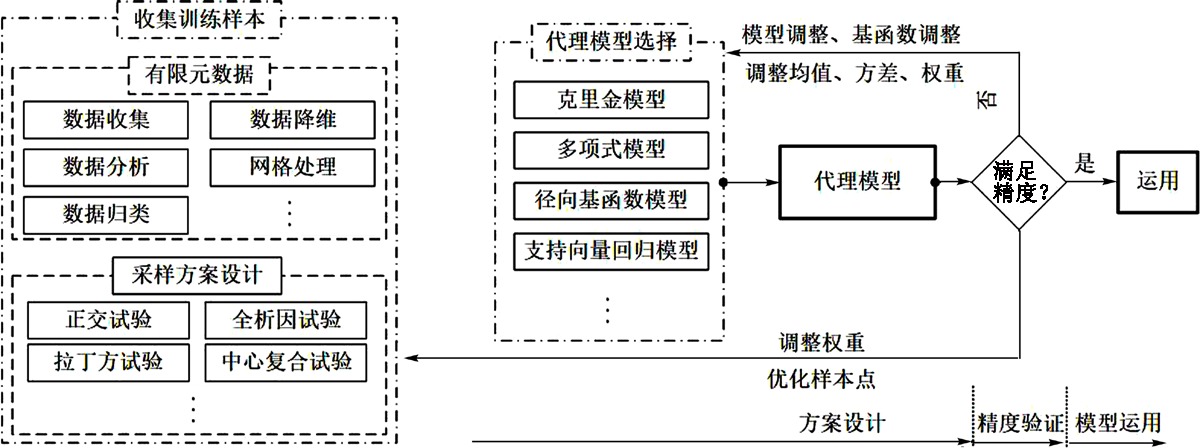

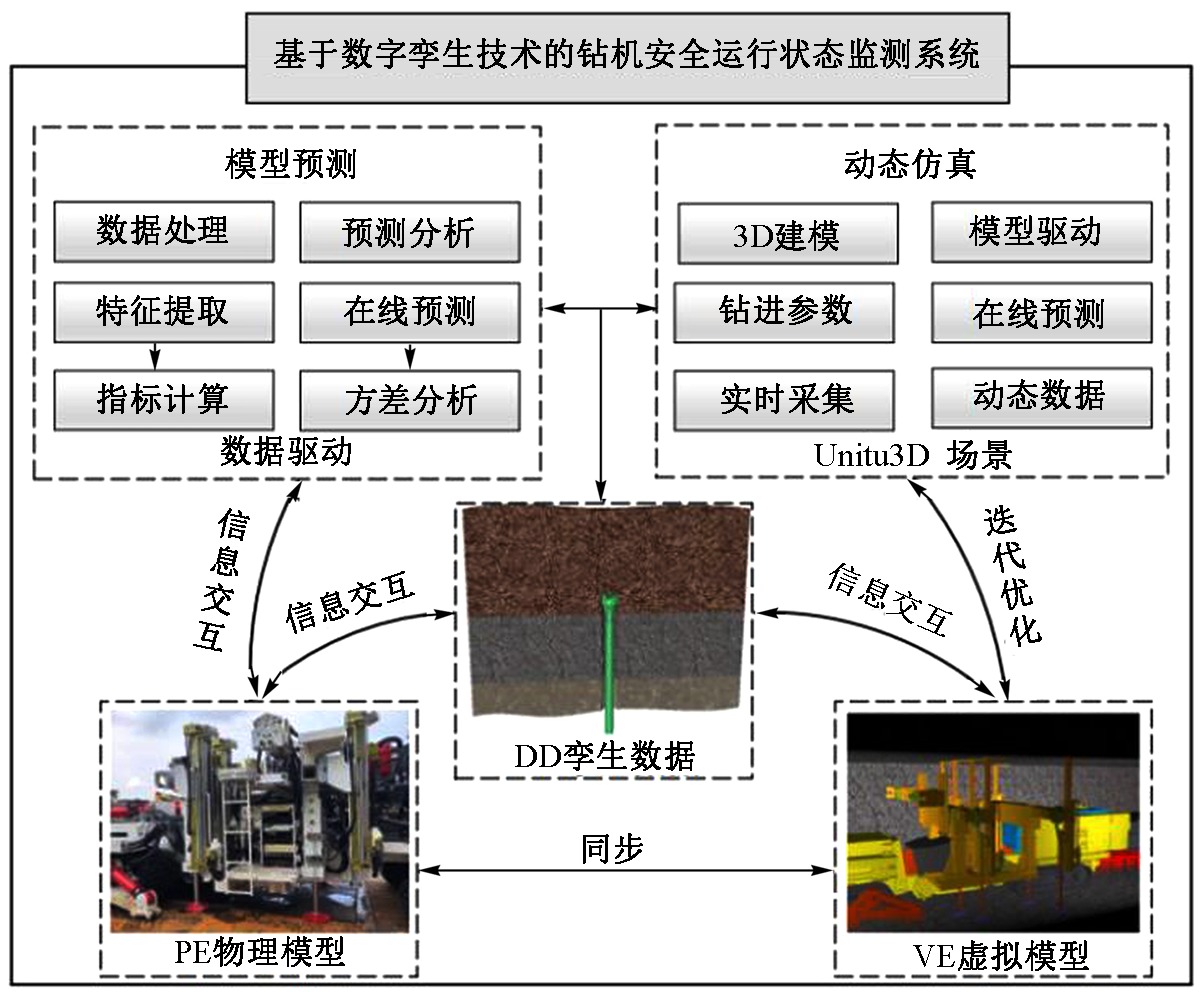

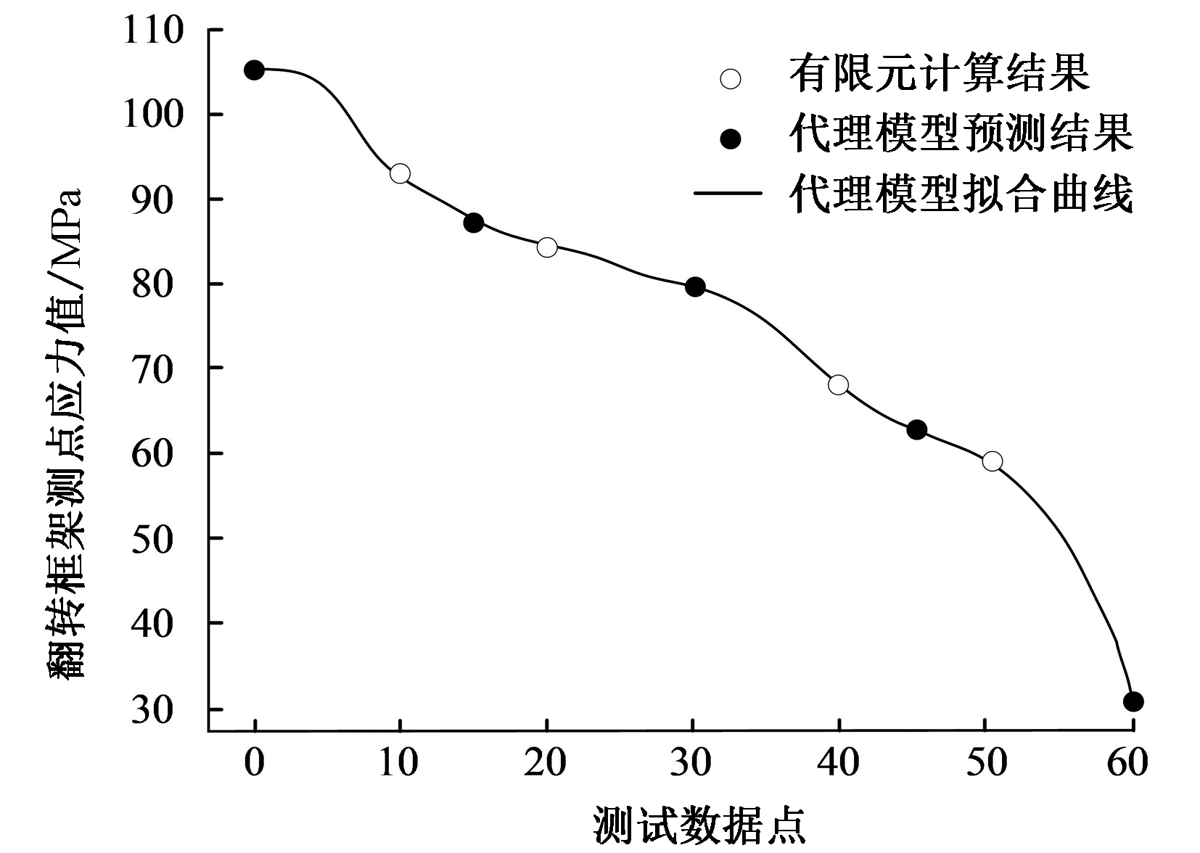

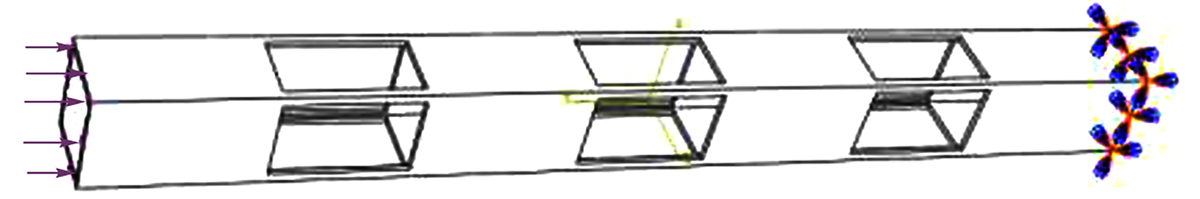

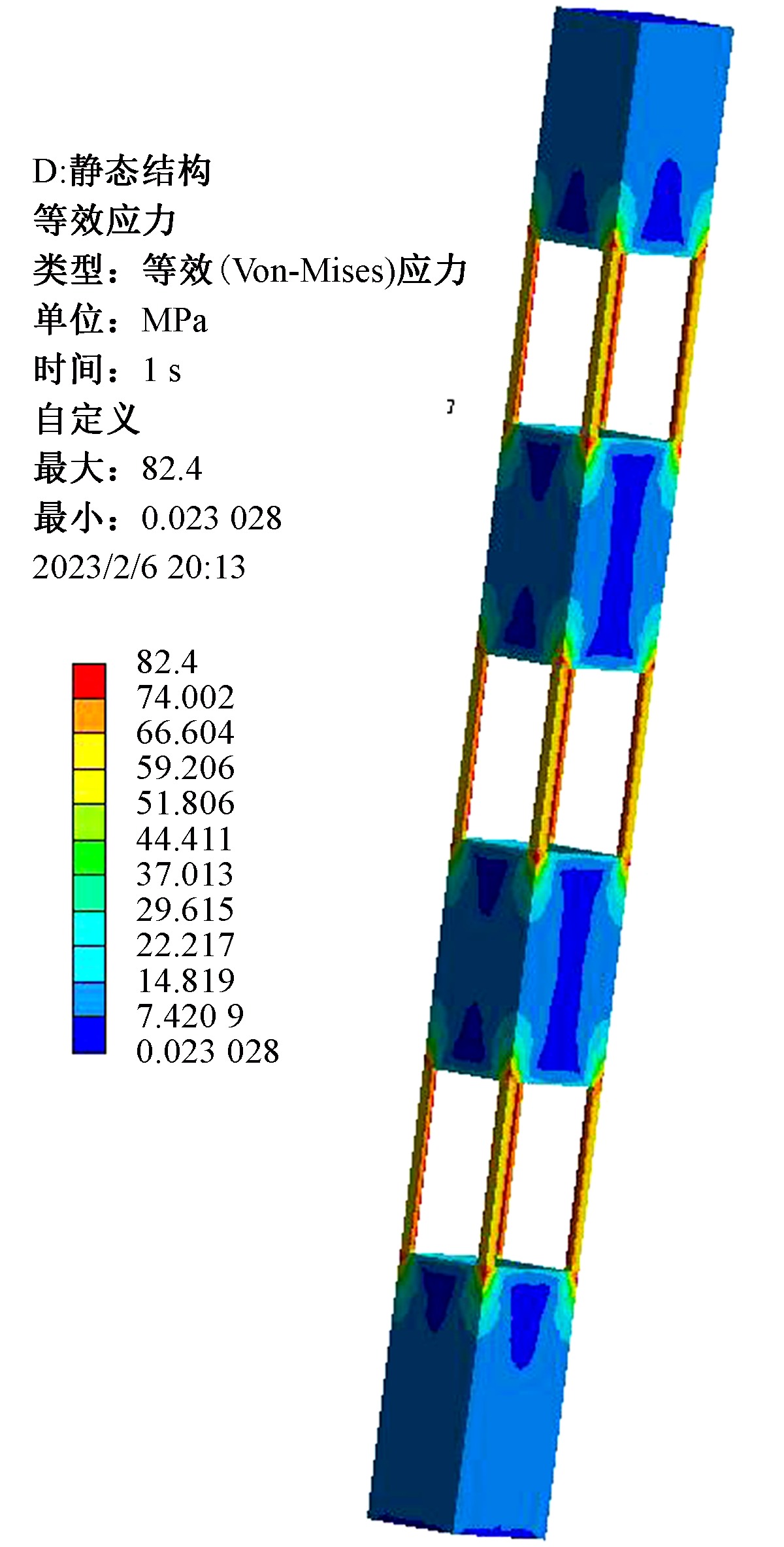

为预防矿用钻机因过载产生疲劳失效而诱发安全事故,提出基于数字孪生的钻机运行安全状态监测技术。首先,提出钻机运行安全状态数字孪生监控系统整体框架;然后,提出基于代理模型的钻机受力状态实时分析方法;最后,利用有限元法获取钻机翻转框架应力分布及幅值数据集,用于对代理模型的训练和测试。结果表明:有限元计算的做大应力值与代理模型预测值之间的差值最大不超过5×10^-6 MPa。且所有节点预测值与计算值之差的绝对值方差约为2×10^-6 MPa。这表明所提出的代理模型可用于代替有限元方法实时分析钻机翻转框架的应力。

关键词: 数字孪生, 矿用钻机, 状态监测, 代理模型, 受力状态

Abstract:

In order to prevent safety accidents caused by fatigue failure of mining drilling rigs due to overload, a safety condition monitoring technology of drilling rigs based on digital twins was studied. First, the overall framework of the digital twins-based monitoring system for safe operation conditions of drilling rigs was proposed, and then a real-time analysis method of drilling rig stress conditions based on a proxy model was studied. The finite element method was used to obtain stress distribution and amplitude data sets of the rig overturning frame, which were used for training and testing the proxy model. The results show that the maximum difference between the large-scale stress value calculated by the finite element method and the predicted value by the proxy model does not exceed 5×10^-6MPa. The absolute variance of the difference between the predicted values and the calculated values at all nodes is about 2×10^-6MPa. This shows that the proposed proxy model can be used instead of the finite element method to analyze the real-time stress of the rig overturning frame.

Key words: digital twins, mining drilling rig, condition monitoring, proxy model, stress condition

中图分类号:

X936

王晗. 基于数字孪生的钻机运行安全状态监测技术研究[J]. 中国安全科学学报, 2024, 34(S1): 134-139.

WANG Han. Research on safety condition monitoring technology of drilling rigs based on digital twins[J]. China Safety Science Journal, 2024, 34(S1): 134-139.

图/表 9

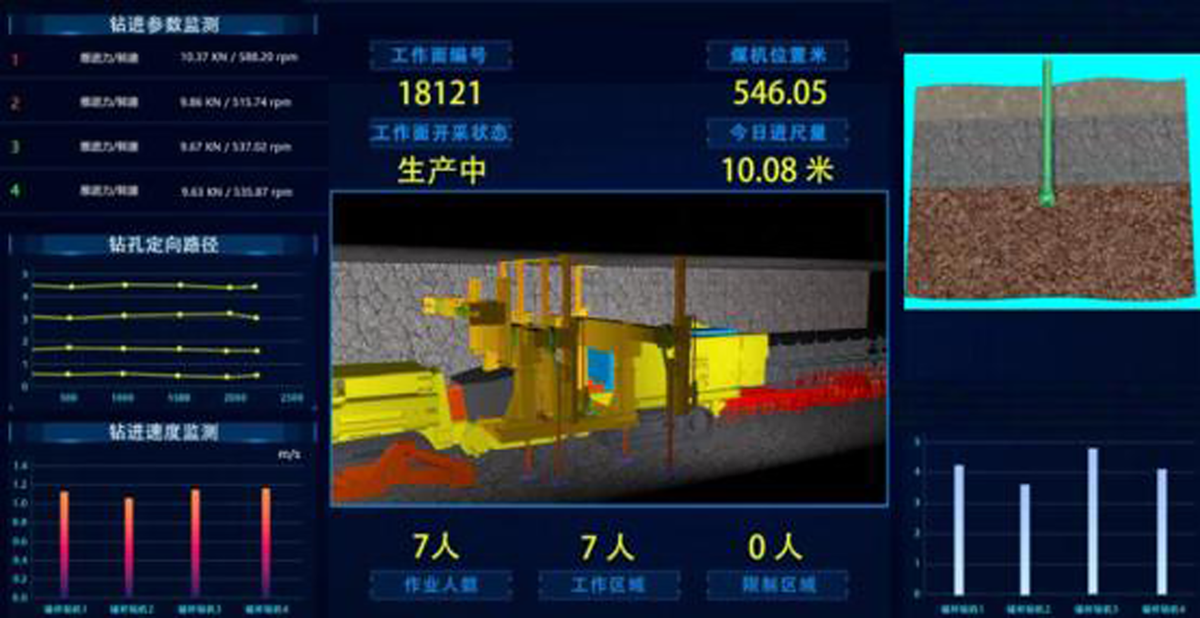

图1

图2

图3

表1

图4

表2

图5

图6

图7

参考文献 15

[1]	王国法, 赵国瑞, 任怀伟. 智慧煤矿与智能化开采关键核心技术分析[J]. 煤炭学报, 2019, 44(1):34-41.
	WANG Guofa, ZHAO Guorui, REN Huaiwei. Analysis of key technologies of intelligent coal mine and intelligent mining[J]. Journal of China Coal Society, 2019, 44(1):34-41.
[2]	王虹. 我国综合机械化掘进技术发展40年[J]. 煤炭学报, 2010, 35(11):1815-1 820.
	WANG Hong. The 40 years developmental review of the the fully mechanized mine roadway heading technology in China[J]. Journal of China Coal Society, 2010, 35(11):1815-1 820.
[3]	DONG Q, HE B, Q Q S, et al. Real-time prediction method of fatigue life of bridge crane structure based on digital twin[J]. Fatigue & Fracture of Engineering Materials & Structures, 2021, 44(9): 2 280-2 306.
[4]	张旭辉, 张超, 杨文娟, 等. 数字孪生驱动采掘工作面远程控制技术分析及发展趋势[J]. 智能矿山, 2020, 1(1):112-124.
	ZHANG Xuhui, ZHANG Chao, YANG Wenjuan, et al. Current status analysis and development trend of remote control technology of digital twin-driven mining face[J]. Journal of Intelligent Mine, 2020, 1(1):112-124.
[5]	张旭辉, 杨文娟, 薛旭升, 等. 煤矿远程智能掘进面临的挑战与研究进展[J]. 煤炭学报, 2022, 47(1):579-597.
	ZHANG Xuhui, YANG Wenjuan, XUE Xusheng, et al. Challenges and developing of the intelligent remote controlonroadheaders in coal mine[J]. Journal of China Coal Society, 2022, 47(1):579-597.
[6]	王岩, 张旭辉, 曹现刚, 等. 掘进工作面数字孪生体构建与平行智能控制方法[J]. 煤炭学报, 2022, 47(增1):384-394.
	WANG Yan, ZHANG Xuhui, CAO Xiangang, et al. Construction of digital twin and parallel intelligent control method for excavation face[J]. Iournal of China Coal Society, 2022, 47(S1):384-394.
[7]	杨文娟, 赵典, 张旭辉, 等. 数字孪生驱动的掘锚设备跟踪定位与碰撞检测方法研究[J]. 煤田地质与勘探, 2024, 52(5):160-173.
	YANG Wenjuan, ZHAO Dian, ZHANG Xuhui, et al. Research on digital twin-driven tracking, positioning and collision detection method of excavating and anchoring equipmen[J]. Coal Geology and Exploration, 2024, 52(5):160-173.
[8]	TEMKIN I O, MYASKOV A V, DERYABIN S A, et al. Digital twins and modeling of the transporting technological processes for on-line dispatch control in open pit mining[J]. Eurasian Min, 2020, 2: 55-58.
[9]	DU Zhiye, TIAN Yu, JIN Shuo, et al. An efficient modeling method for large-scale complex finite element electric field numerical calculation[J] IEEE Transactions on Magnetics, 2019, 55(6):1-5.
[10]	MALEK B S, LIONEL T. Automatic selection for general surrogate models[J]. Structural and Multidisciplinary Optimization, 2018, 58(2):719-734.
[11]	康煜晗, 裴志勇, 吴卫国. 基于代理模型技术的江海直达船体结构可靠性优化设计[J]. 船舶力学, 2024, 28(4):551-560.
	KANG Yuhan, PEI Zhiyong, WU Weiguo. Reliability optimization design of river-sea-going ship hull structure based on agent model technology[J]. Journal of Ship Mechanics, 2024, 28(4):551-560.
[12]	FERZIGER J H, PERIC' M, STREET R L. Computational methods for fluid dynamics[M]. Berlin:springer,2002:55-75.
[13]	FERRARI S, BELLOCCHIO F, PIURI V, et al. Ahierarchical RBF online learning algorithm forreal-time 3-D scanner[J]. IEEE Transactionson Neural Networks, 2009, 21(2):275-285.
[14]	王进峰, 问丛川, 花广如, 等. 基于Unity3D的数控机床数字孪生系统设计与实现[J]. 中国工程机械学报, 2023, 21(5):443-448.
	WANG Jinfeng, WEN Congchuan, HUA Guangru, et al. Design and implementation of digital twin system for CNC machine tools based on Unity3D[J]. Chinese Journal of Construction Machinery, 2023, 21(5):443-448.
[15]	刘立强, 孙文磊, 王一, 等. 基于Unity3D的油田抽油机三维可视化监控系统设计[J]. 系统仿真学报, 2024, 36(2):463-475. doi: 10.16182/j.issn1004731x.joss.22-1073
	LIU Liqiang, SUN Wenlei, WANG Yi, et al. Design of 3D visual monitoring system for oil field pumping unit based on Unity3D[J]. Journal of system Simulation, 2024, 36(2):463-475. doi: 10.16182/j.issn1004731x.joss.22-1073

整体网格数量	应力幅值/MPa	计算时间/s
3 230	82.35	21
8 545	80.42	42
13 873	83.25	49
15 943	81.40	75
32 096	81.62	117
55 296	80.95	135
