考虑重型刮板输送机安全运行的圆环链损伤机制研究

doi:10.16265/j.cnki.issn1003-3033.2024.S1.0041

摘要/Abstract

摘要：

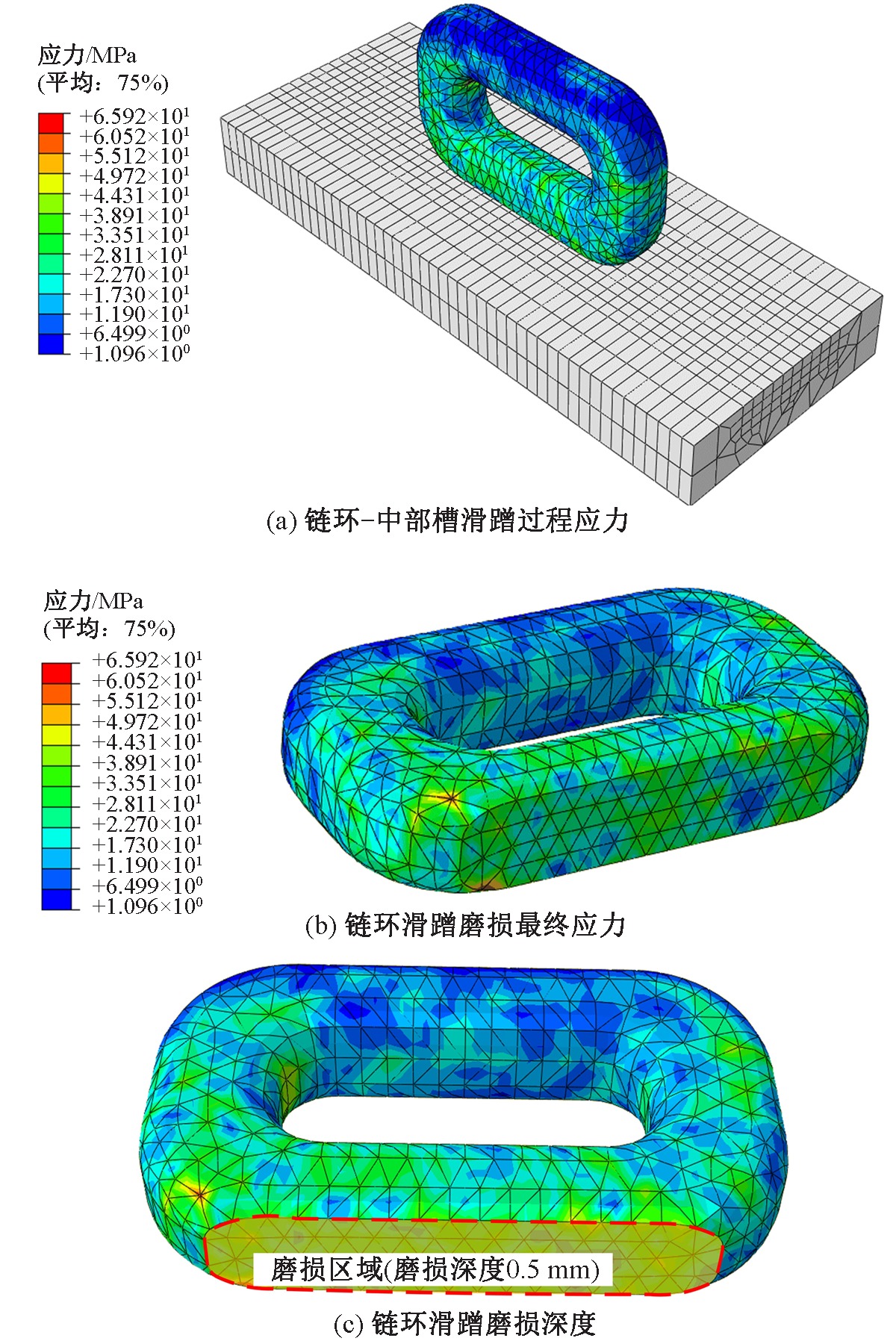

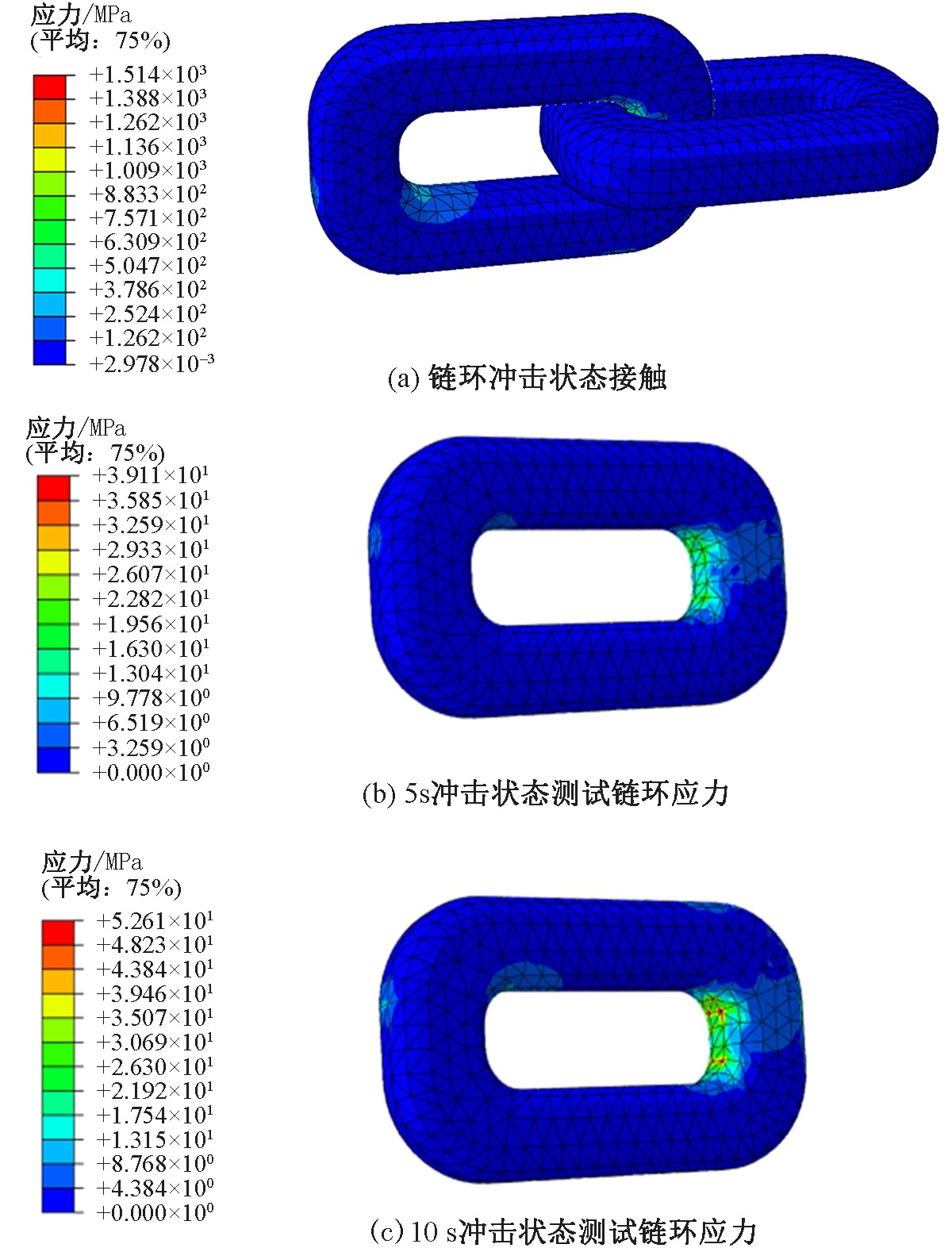

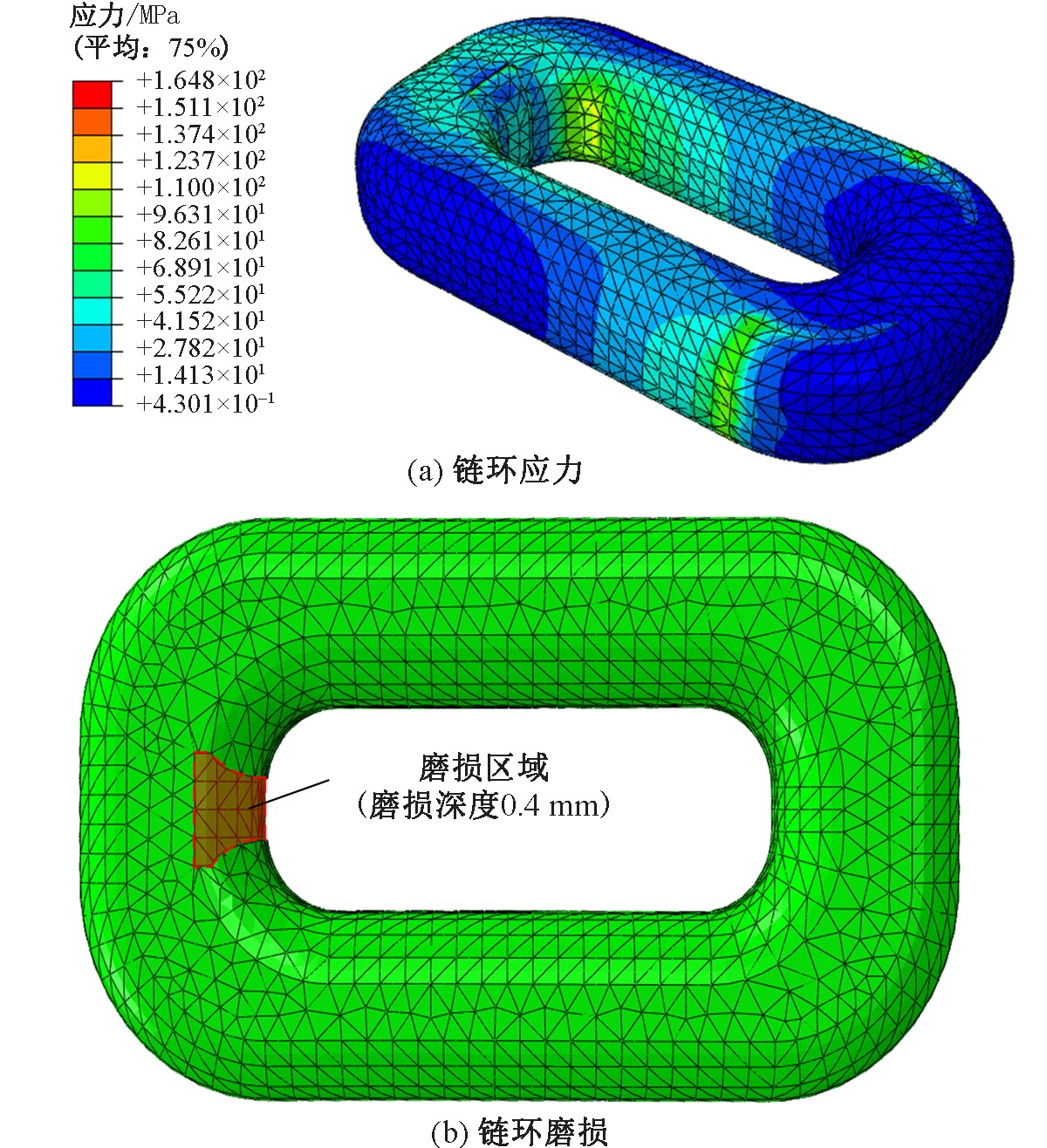

为探究刮板输送机圆环链损伤特征,针对不同的损伤模式,构建圆环链滑蹭磨损和振动冲击损伤的数学模型。通过采用有限元分析软件模拟仿真分析链环-中部槽、链环间滑蹭损伤以及圆环链传动过程的振动冲击损伤,探究圆环链损伤特征。研究结果表明:链环-中部槽滑蹭损伤模拟仿真下,链环底部受力最大为65.92 MPa,最大的磨损深度为0.55 mm;链环-链环滑蹭损伤模拟仿真下,链环链窝处受力最大为164.8 MPa;链环振动冲击损伤模拟仿真下,链环所受最大应力值从39.11 MPa逐渐升高至52.61 MPa。

关键词: 刮板输送机, 圆环链, 滑蹭磨损, 振动冲击, 有限元分析

Abstract:

To study the damage characteristics of the circular chain of the scraper conveyor, a mathematical model was constructed for the sliding and rubbing wear and vibration impact damage of the circular chain for different damage modes. By using finite element analysis software to simulate and analyze the sliding and rubbing damage between chain links and that between the chain link and the middle groove, as well as the vibration impact damage during the circular chain transmission process, the damage characteristics of circular chains were explored. The research results indicate that under the simulation of sliding and rubbing damage between the chain link and the middle groove, the maximum force on the bottom of the chain link is 65.92 MPa, and the maximum wear depth is 0.55 mm. Under the simulation of sliding and rubbing damage between chain links, the maximum force at the chain link socket is 164.8 MPa. Under the simulation of vibration impact damage of chain links, the maximum stress value on the chain link gradually increases from 39.11 MPa to 52.61 MPa.

Key words: scraper conveyor, circular chain, sliding and rubbing wear, vibration impact, finite element analysis

中图分类号:

X951交通运输安全

魏德志. 考虑重型刮板输送机安全运行的圆环链损伤机制研究[J]. 中国安全科学学报, 2024, 34(S1): 148-155.

WEI Dezhi. Damage mechanism of circular chain considering safe operation of heavy-duty scraper conveyor[J]. China Safety Science Journal, 2024, 34(S1): 148-155.

图/表 12

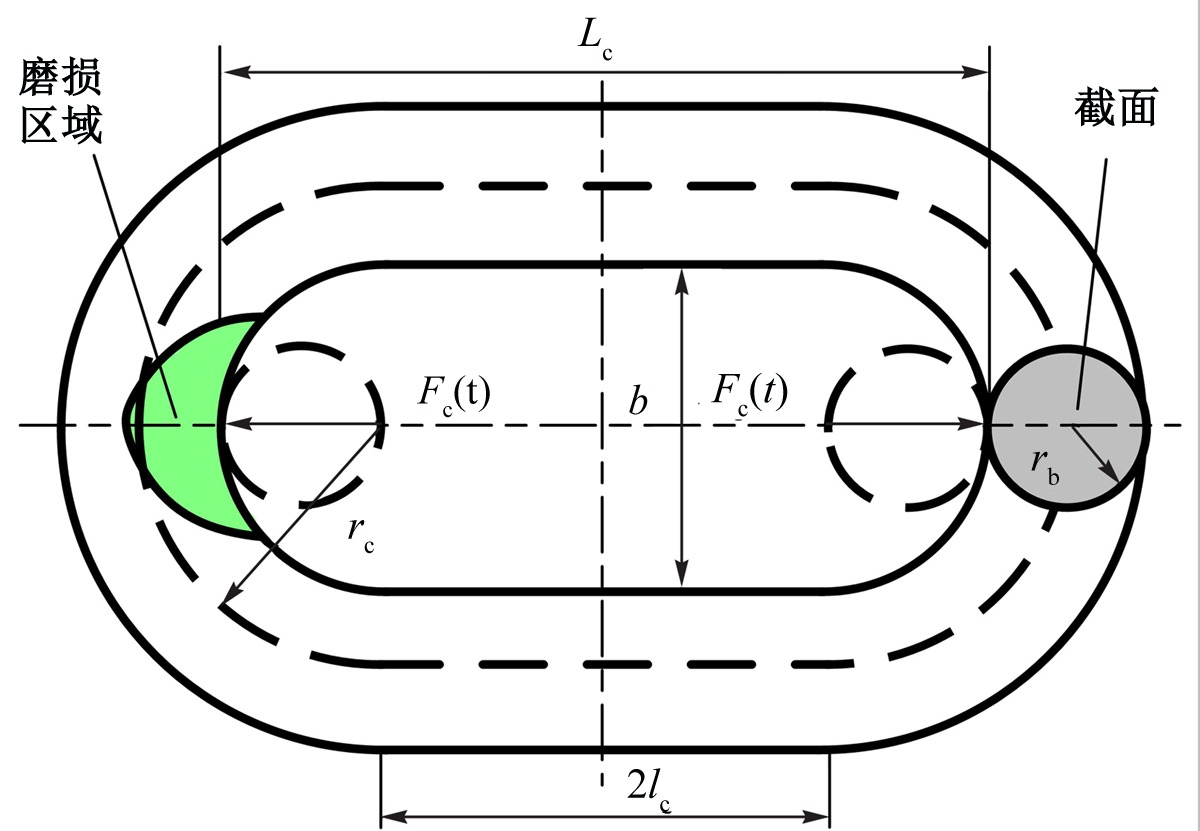

图1

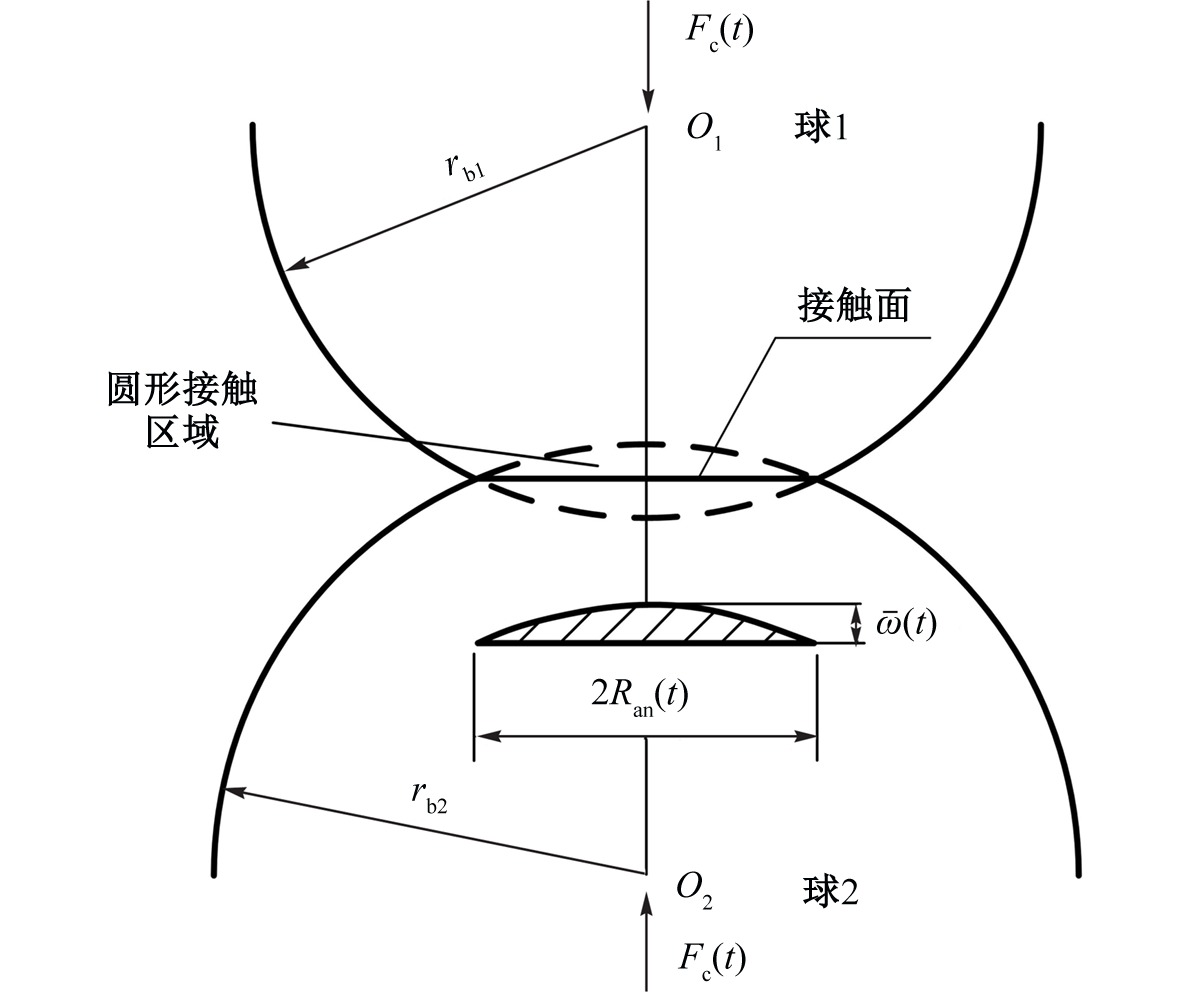

图2

图3

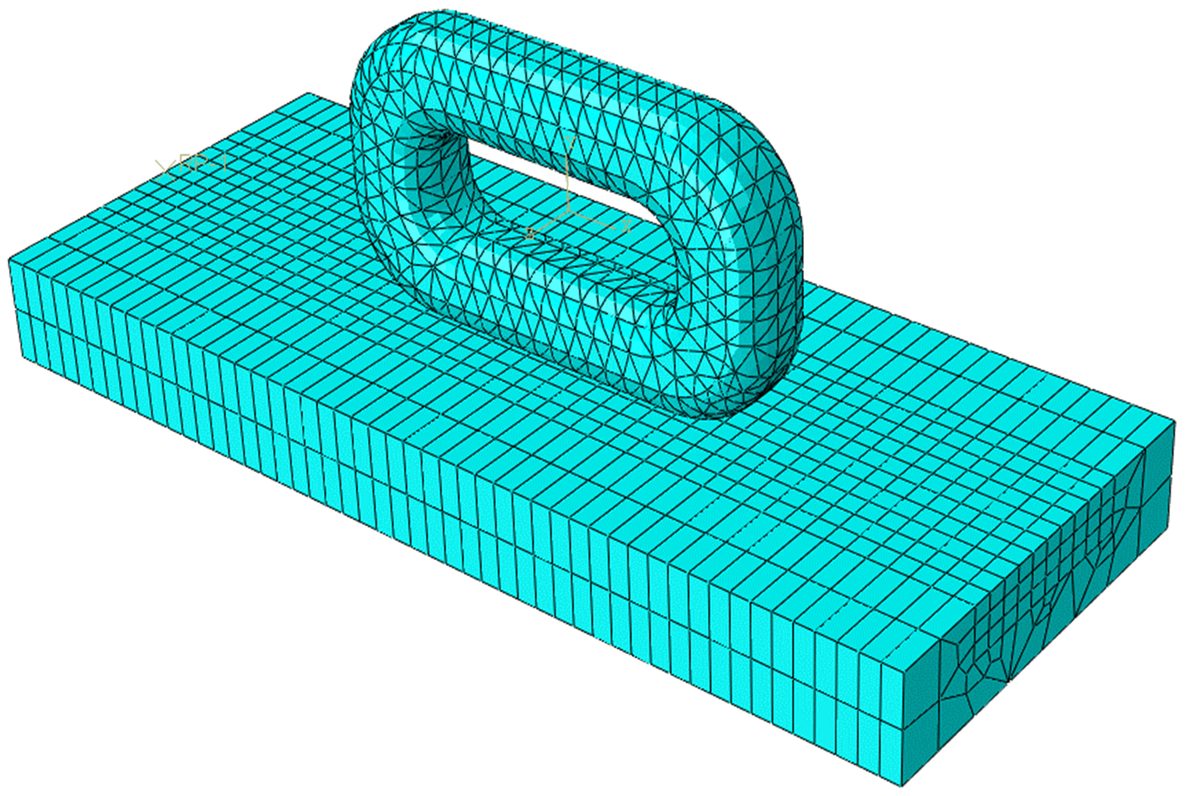

表1

图4

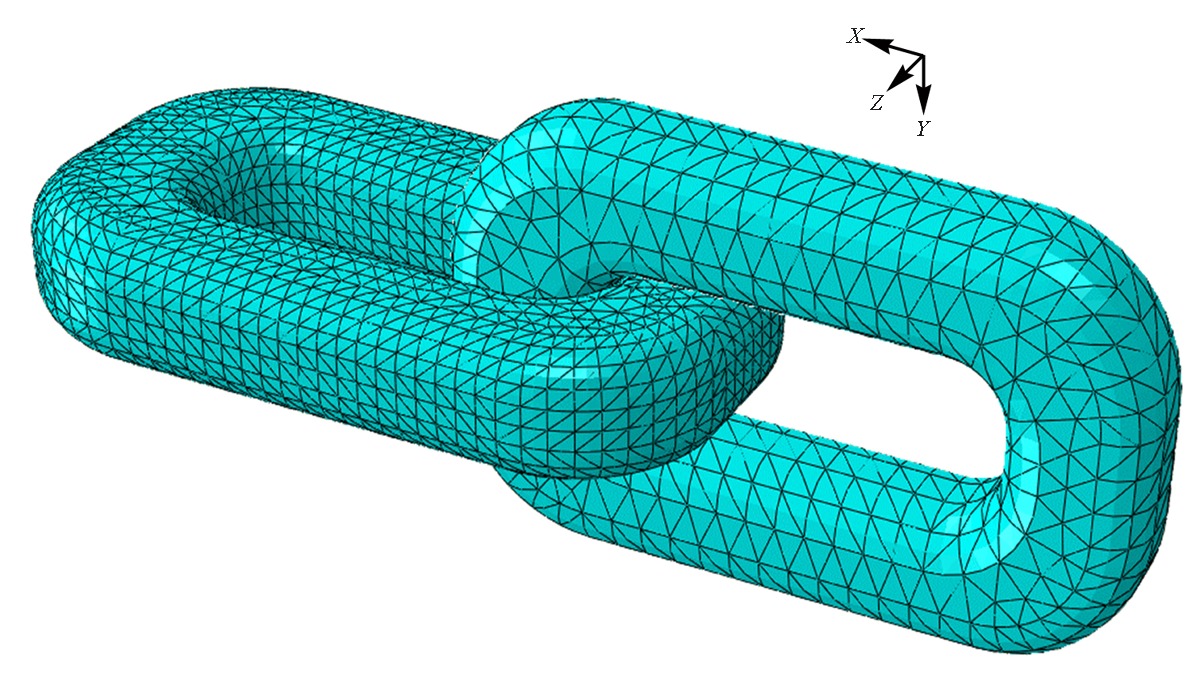

图5

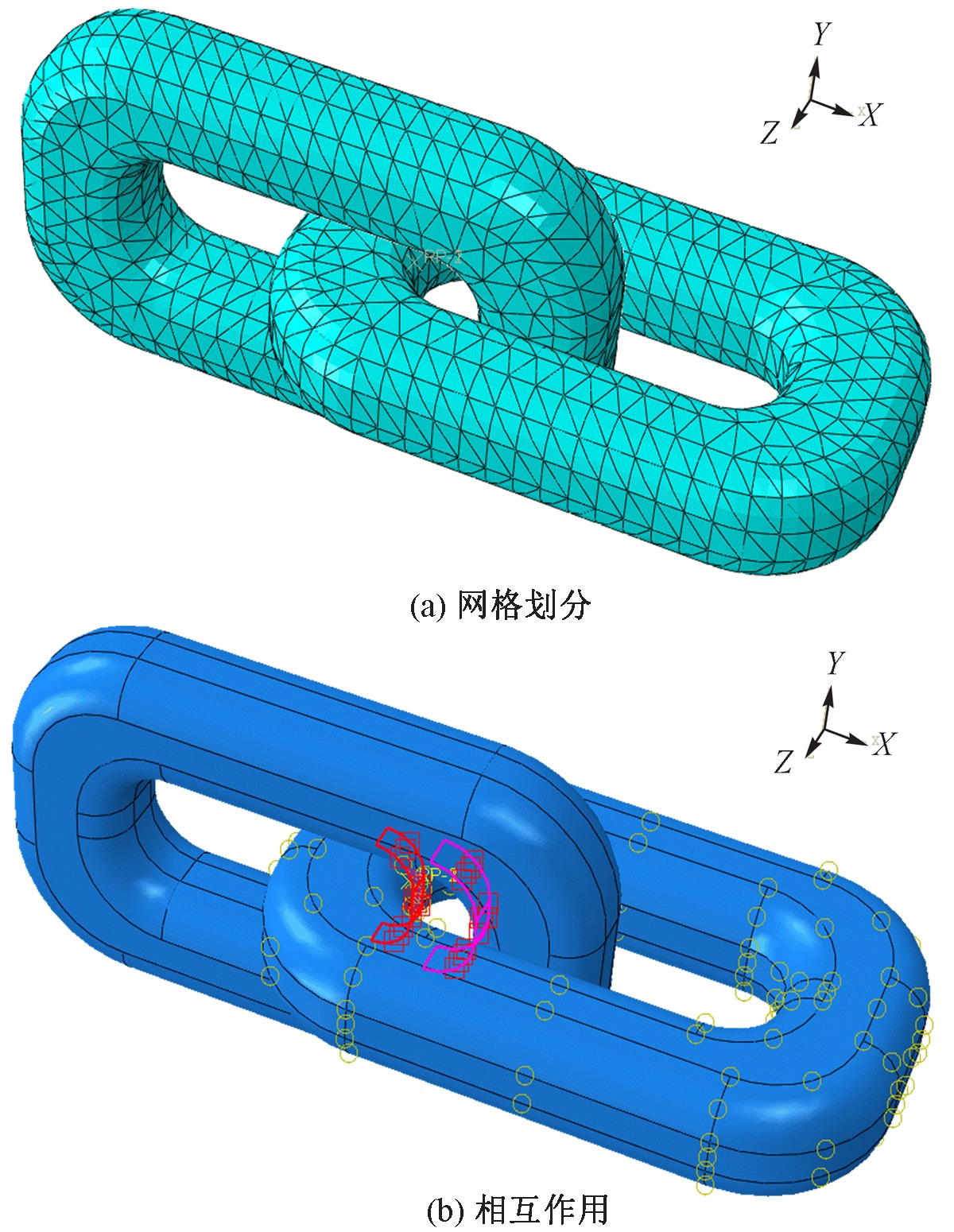

图6

图7

图8

图9

图10

图11

参考文献 18

[1]	洪海峰, 王祥海, 王思芳. 煤矿生产辅助单位安全生产标准化建设[J]. 中国安全科学学报, 2021, 31(增1):39-42.
	HONG Haifeng, WANG Xianghai, WANG Sifang. Work safety standardization construction of coal mine production auxiliary units[J]. China Safety Science Journal, 2021, 31(S1):39-42. doi: 10.16265/j.cnki.issn 1003-3033.2021.S1.008
[2]	付恩三, 白润才, 刘光伟, 等. “十三五”期间我国煤矿事故特征及演变趋势分析[J]. 中国安全科学学报, 2022, 32(12):88-94. doi: 10.16265/j.cnki.issn1003-3033.2022.12.0076
	FU Ensan, BAI Runcai, LIU Guangwei, et al. Analysis on characteristics and evolution trend of coal mine accidents in our country during ″13th five-year″ plan period[J]. China Safety Science Journal, 2022, 32(12):88-94. doi: 10.16265/j.cnki.issn1003-3033.2022.12.0076
[3]	李帅. 重载刮板输送机圆环链可靠性评估研究[D]. 徐州: 中国矿业大学, 2023.
	LI Shuai. Research on reliability evaluation of scraper chain for heavy-duty scraper conveyor[D]. Xuzhou: China University of Mining & Technology, 2023.
[4]	于鹏飞. 刮板输送机圆环链传动系统动力学特性及疲劳寿命研究[D]. 青岛: 山东科技大学, 2021.
	YU Pengfei. Research on dynamic characteristics and fatigue life of armoured face conveyor chain transmission system[D]. Qingdao: Shandong University of Science and Technology, 2021.
[5]	杨慧玲. 矿用刮板输送机圆环链故障的原因与处理[J]. 机械管理开发, 2020, 35(2):240-241,251.
	YANG Huiling. Fault analysis in the use of circular chain of mine scraper conveyor[J]. Mechanical Management and Development, 2020, 35(2):240-241,251.
[6]	刘广鹏, 王学文, 杨兆建, 等. 刮板输送机链传动系统动力学特性分析[J]. 机械传动, 2014, 38(7):115-118.
	LIU Guangpeng, WANG Xuewen, YANG Zhaojian, et al. Dynamics characteristic analysis of chain transmission system of scraper conveyer[J]. Journal of Mechanical Transmission, 2014, 38(7):115-118.
[7]	郭洁, 段金红, 郭传军, 等. 基于Adams的刮板输送机卡链及断链工况动力学特性分析[J]. 煤炭技术, 2023, 42(12):236-240.
	GUO Jie, DUAN Jinhong, GUO Chuanjun, et al. Analysis of dynamic characteristics of chain jamming and broken conditions of scraper conveyor based on Adams[J]. Coal Technology, 2023, 42(12):236-240.
[8]	郭智慧. 刮板输送机链条故障监测及预防措施研究[J]. 机械管理开发, 2023, 38(6):246-247,280.
	GUO Zhihui. Research on fault monitoring and prevention technology of scraper conveyor chain[J]. Mechanical Management and Development, 2023, 38(6):246-247,280.
[9]	毛君, 董先瑞, 谢苗, 等. 刮板输送机链传动系统接触动力学特性分析[J]. 工程设计学报, 2015, 22(5):445-451.
	MAO Jun, DONG Xianrui, XIE Miao, et al. Contact dynamics characteristic analysis on chain transmission system of scraper conveyer[J]. Chinese Journal of Engineering Design, 2015, 22(5):445-451.
[10]	谢苗, 毛君, 许文馨. 重型刮板输送机故障载荷工况与结构载荷工况的动力学仿真研究[J]. 中国机械工程, 2012, 23(10):1200-1 204.
	XIE Miao, MAO Jun, XU Wenxin. Dynamics simulation of heavy scraper conveyor in working condition of failure-load and structural load[J]. China Mechanical Engineering, 2012, 23(10):1200-1 204.
[11]	DOLIPSI M, REMIORZ E, SOBOTA P. Determination of dynamic loads of sprocket drum teeth and seats by means of a mathematical model of the longwall conveyor[J]. Archives of Mining Sciences, 2012, 57(4): DOI:10.2478/v10267-012-0073-7.
[12]	SUWANNAHONG W, SUVANJUMRAT C. Analysis of roller chain drive System with multi-flexible body dynamics methodology[C]. MATEC Web of Conferences,2017: DOI:10.1051/matecconf/20179506007.
[13]	SOBOTA P. Determination of the friction work of a link chain interworking with a sprocket drum / Wyznaczenie pracy tarcia ańcucha ogniwowego we wspódziaaniu z bbnem ańcuchowym[J]. Archives of Mining Sciences, 2013, 58(3):DOI:10.2478/amsc-2013-0056.
[14]	PANTAZOPOULOS G, VAZDIRVANIDIS A, TOULFATZIS A, et al. Fatigue failure of steel links operating as chain components in a heavy duty draw bench[J]. Engineering Failure Analysis, 2009, 16(7):2440-2 449.
[15]	LI Shuai, ZHU Zhencai, LU Hao, et al. Time-dependent reliability and optimal design of scraper chains based on fretting wear process[J]. Engineering Computations, 2021, 38(10):3673-3 693.
[16]	LI Junxia, LIANG Shaowei. Impact and friction of bulk material on the blanking area in the middle trough of scraper machine[J]. Journal of Coastal Research, 2019, 93(sp1):947-952.
[17]	MUTHUKUMAR S, DESROCHES R. A hertz contact model with non-linear damping for pounding simulation[J]. Earthquake Engineering & Structural Dynamics, 2006, 35(7):811-828.
[18]	李惟慷. 矿用圆环链传动接触动力学及损伤机理的研究[D]. 葫芦岛: 辽宁工程技术大学, 2013.
	LI Weikang. Study on contact dynamics and damage mechanism of mining round link chains transmission[D]. Huludao: Liaoning Technical University, 2013.

材料名称	密度/ (g·cm^-3)	弹性模量/MPa	泊松比	屈服强度/MPa	抗拉强度/MPa
ZG30MnSi	7.89	2.06×10⁵	0.28	1 050	570~720
23MnNiCrMo	7.85	2.1×10⁵	0.3	470	1470
