基于FRP-PCM加固的既有病害隧道加固性能评价

doi:10.16265/j.cnki.issn1003-3033.2025.05.1523

中国安全科学学报 ›› 2025, Vol. 35 ›› Issue (5): 186-194.doi: 10.16265/j.cnki.issn1003-3033.2025.05.1523

基于FRP-PCM加固的既有病害隧道加固性能评价

许振玉¹^,²(), 张学朋¹^,²^,^**(), 李宁博³, 蒋宇静¹^,⁴, 陈红宾⁴, 刘林胜⁵

¹ 山东科技大学露天煤矿灾害防治与生态保护全国重点实验室,山东青岛 266590
² 山东科技大学能源与矿业工程学院,山东青岛 266590
³ 水利部水利水电规划设计总院,北京 100120
⁴ 长崎大学工学研究科,日本长崎 8528521
⁵ 青岛地铁集团有限公司,山东青岛 266555

收稿日期:2025-01-15 修回日期:2025-03-18 出版日期:2025-05-28
通信作者:
^** 张学朋(1989—),男,山东滨州人,博士,副研究员,主要从事地下工程灾害防控理论与技术方面的研究。E-mail: zhangxuepeng0722@126.com。
作者简介:
许振玉 (2000— ),男,山东汶上人,硕士研究生,主要研究方向为地下工程灾害防治技术。E-mail: 1042327894@qq.com。
蒋宇静, 教授
蒋宇静, 教授
基金资助:
国家自然科学基金资助(52109132); 山东省高等学校青年创新团队发展计划(2024KJH065)

Performance assessment of diseased tunnels based on FRP-PCM reinforcement

XU Zhenyu¹^,²(), ZHANG Xuepeng¹^,²^,^**(), LI Ningbo³, JIANG Yujing¹^,⁴, CHEN Hongbin⁴, LIU Linsheng⁵

¹ State Key Laboratory of Disaster Prevention and Ecology Protection in Open-pit Coal Mines, Shandong University of Science and Technology, Qingdao Shandong, 266590, China
² College of Energy and Mining Engineering, Shandong University of Science and Technology, Qingdao Shandong, 266590, China
³ General Institute of Water Resources and Hydropower Planning and Design, Ministry of Water Resources, Beijing 100120, China
⁴ School of Engineering, Nagasaki University, Nagasaki 8528521, Japan
⁵ Qingdao Metro Group Co., Ltd., Qingdao Shandong 266555, China

Received:2025-01-15 Revised:2025-03-18 Published:2025-05-28

摘要/Abstract

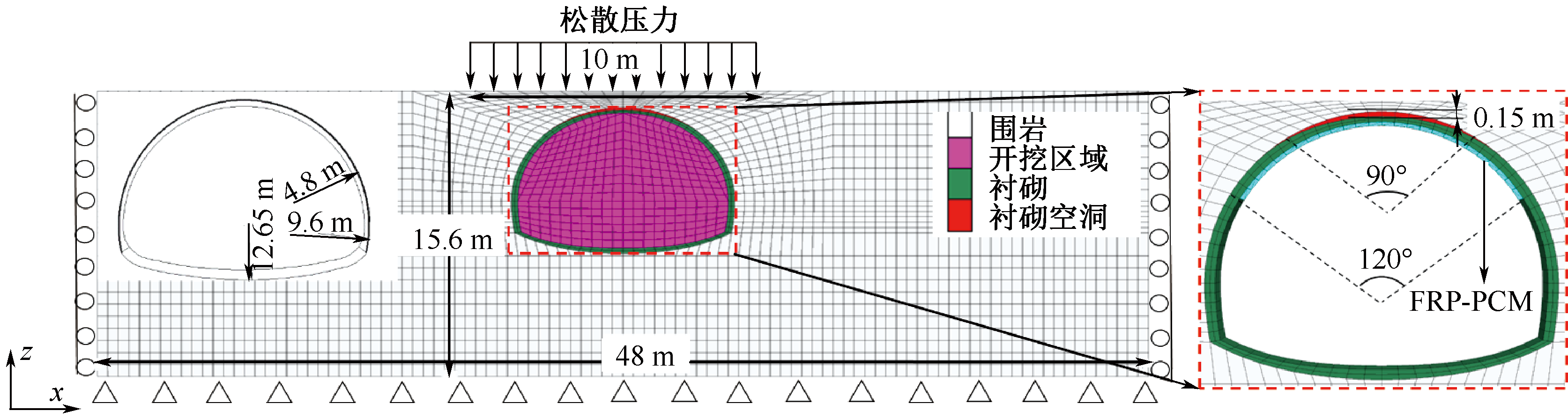

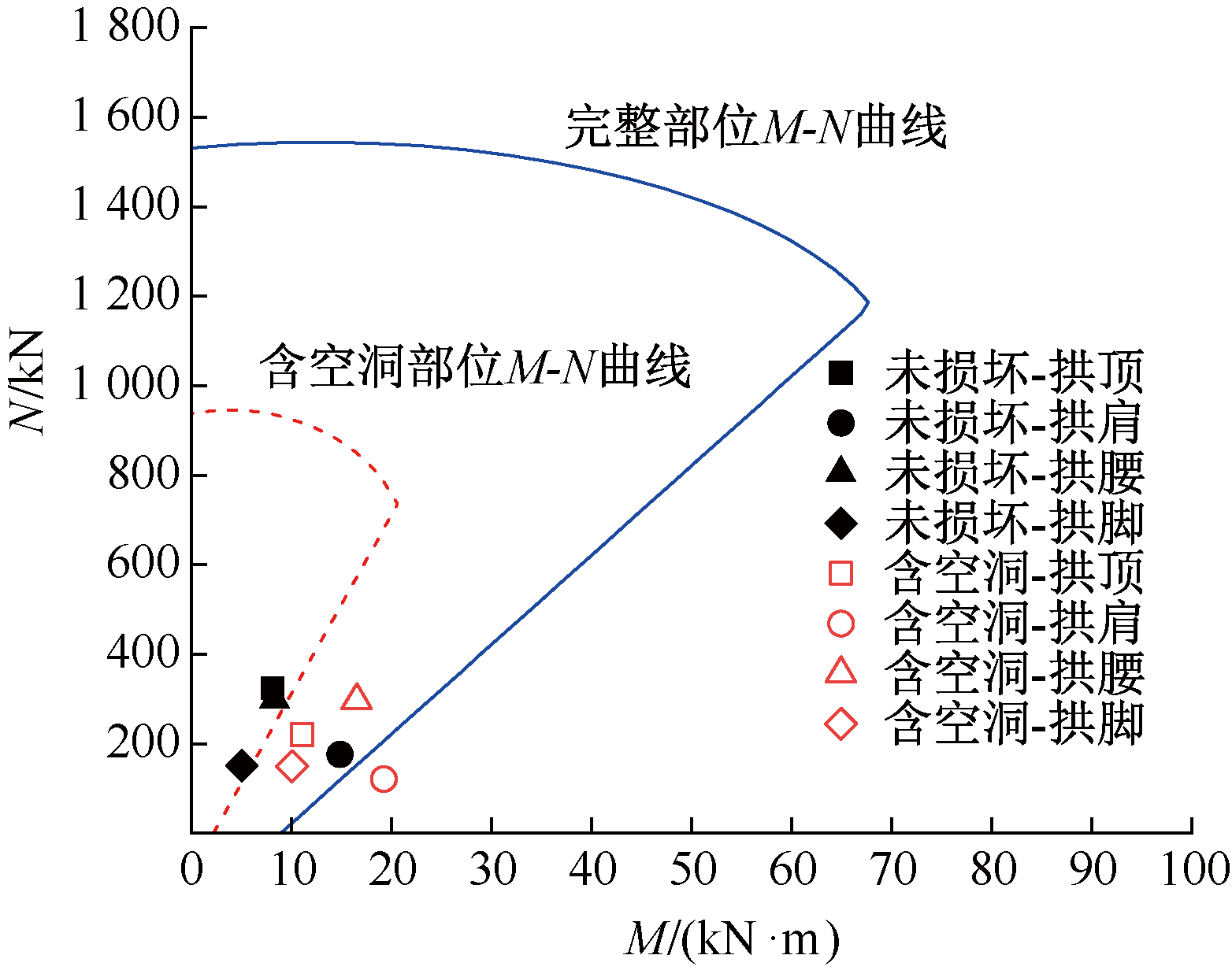

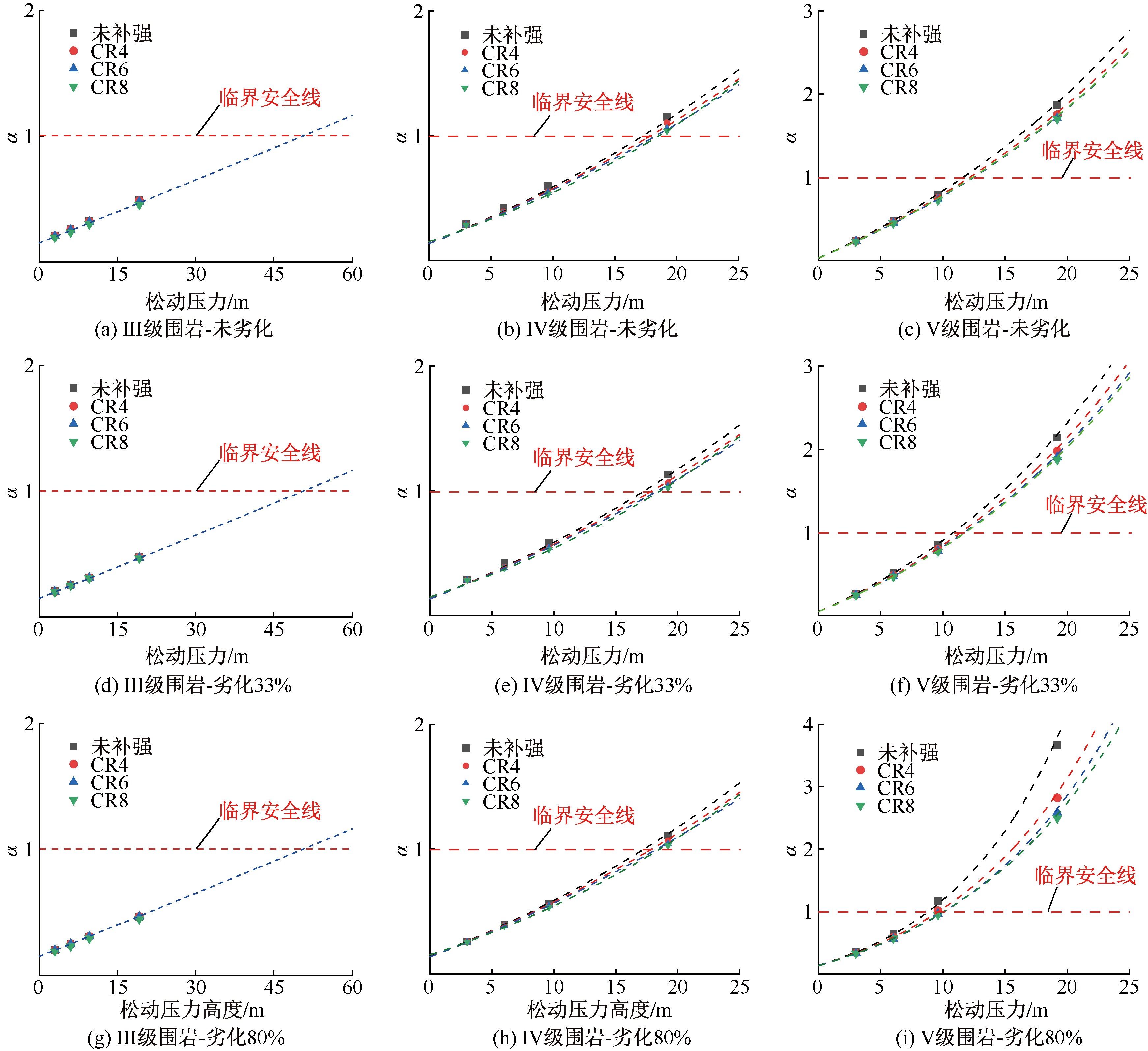

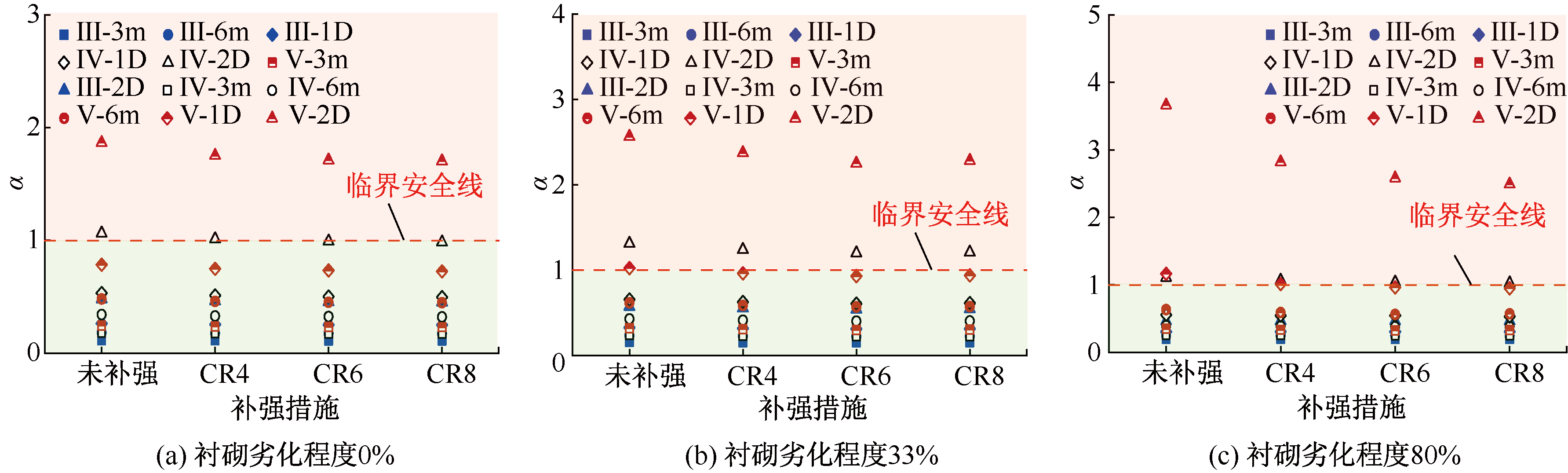

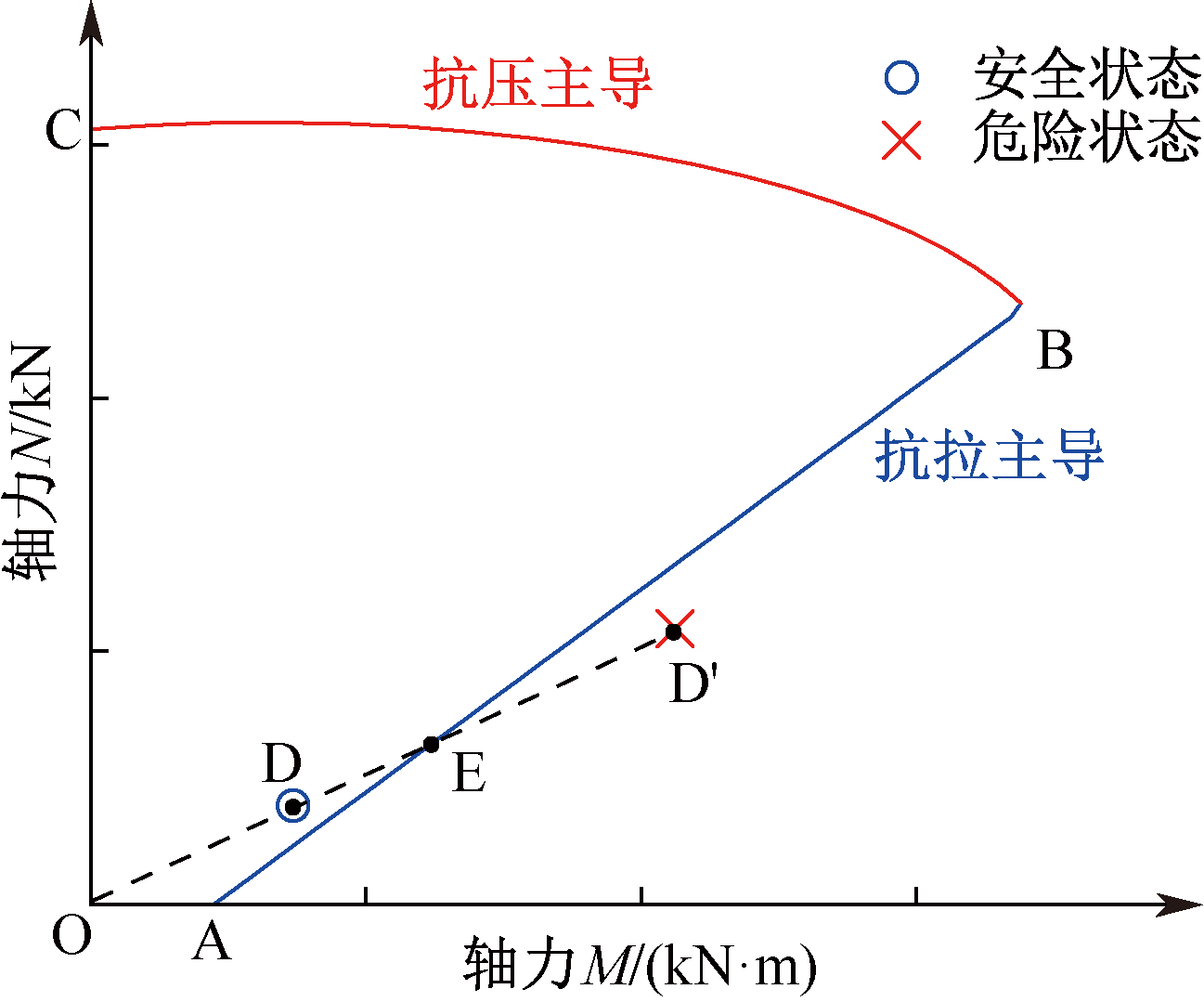

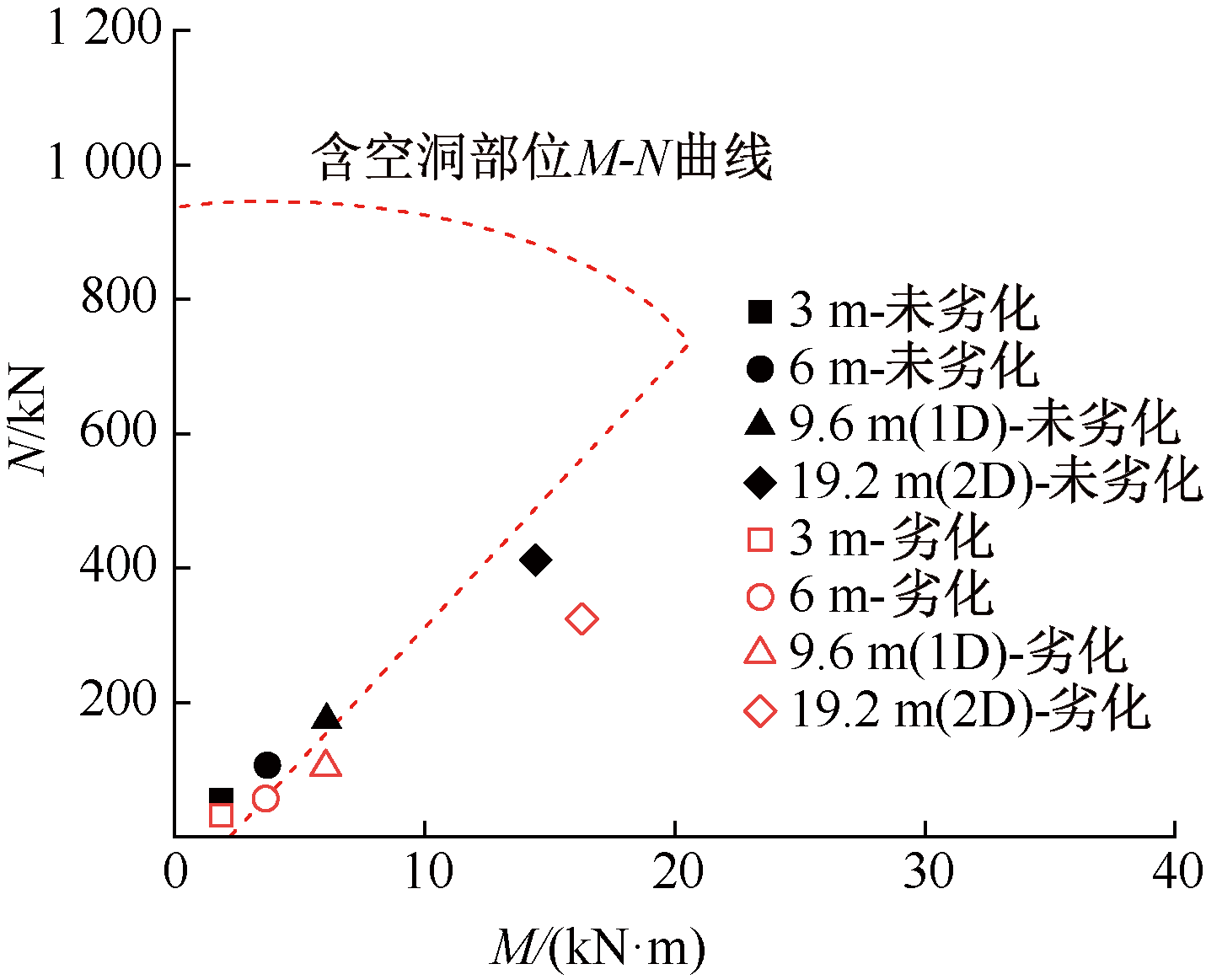

摘要： 为提高隧道工程安全运维能力,通过截面极限承载力,实现纤维增强聚合物水泥砂浆基复合材料(FRP-PCM)补强加固既有病害隧道性能的量化评价和选型的量化设计。基于有限差分原理建立隧道损伤模型,开展FRP-PCM补强病害隧道稳定性分析数值试验,根据相关规范作出截面极限承载力曲线(又称M-N曲线)综合评判隧道安全情况,同时,提出M-N曲线风险系数α,实现加固效果的定量化评价,并与工程规范相结合建立FRP型号的设计选型方案。结果表明:衬砌拱顶产生空洞时,通过M-N曲线判断拱顶部位和拱肩部位较危险。当围岩质量越差、衬砌混凝土劣化程度越高、松动压力高度越大时,FRP-PCM方法加固性能越显著;在劣化程度80%、围岩等级V级、松动压力高度19.2 m(2D)的工况条件下,经过不同型号FRP补强后能使衬砌M-N曲线风险系数降低23%~32%,较大提升衬砌的安全性能。基于M-N曲线风险系数,可根据围岩等级、松动压力高度、衬砌损伤情况等因素选择最优FRP型号进行补强加固。

关键词: 既有病害隧道, 纤维增强聚合物水泥砂浆基复合材料(FRP-PCM), 加固性能, M-N曲线, 衬砌病害

Abstract:

In order to enhance the safety and operational maintenance capabilities of tunnels, a quantitative evaluation framework and design methodology for FRP-PCM composite reinforcement in diseased tunnels was established through cross-sectional ultimate bearing capacity analysis. Numerical tests were conducted using the finite difference method to analyze the stability of FRP-PCM-reinforced diseased tunnels. Tunnel safety assessment was performed based on the sectional ultimate bearing capacity curve, commonly referred to as the M-N curve. A safety factor α of the M-N curve was proposed to enable a quantitative evaluation of the reinforcement effect. Based on this framework, a design and selection scheme for FRP was established, incorporating tunnel design specifications. The analysis reveals that when cavities exist at the crown of the tunnel, both the crown and shoulders exhibit higher risk levels according to the M-N curve. Furthermore, under conditions of poorer surrounding rock quality, greater lining concrete deterioration, and increased loosening pressure height, the reinforcing effect of the FRP-PCM method becomes more significant. For cases with an 80% degradation degree, Class V surrounding rock, and a loosened pressure height of 2D, the application of different types of FRP reinforcement reduces the safety factor of the M-N curve by 23%-32%, thereby significantly improving the structural safety of the lining. By leveraging the M-N curve's safety coefficient, an appropriate FRP type can be selected for defective lining reinforcement based on factors such as rock quality, loose pressure height, and lining conditions.

Key words: diseased tunnel, fiber-reinforced polymer cement mortar (FRP-PCM), reinforcement, M-N curve, lining diseases

中图分类号:

X913.4安全系统工程

许振玉, 张学朋, 李宁博, 蒋宇静, 陈红宾, 刘林胜. 基于FRP-PCM加固的既有病害隧道加固性能评价[J]. 中国安全科学学报, 2025, 35(5): 186-194.

XU Zhenyu, ZHANG Xuepeng, LI Ningbo, JIANG Yujing, CHEN Hongbin, LIU Linsheng. Performance assessment of diseased tunnels based on FRP-PCM reinforcement[J]. China Safety Science Journal, 2025, 35(5): 186-194.

图/表 15

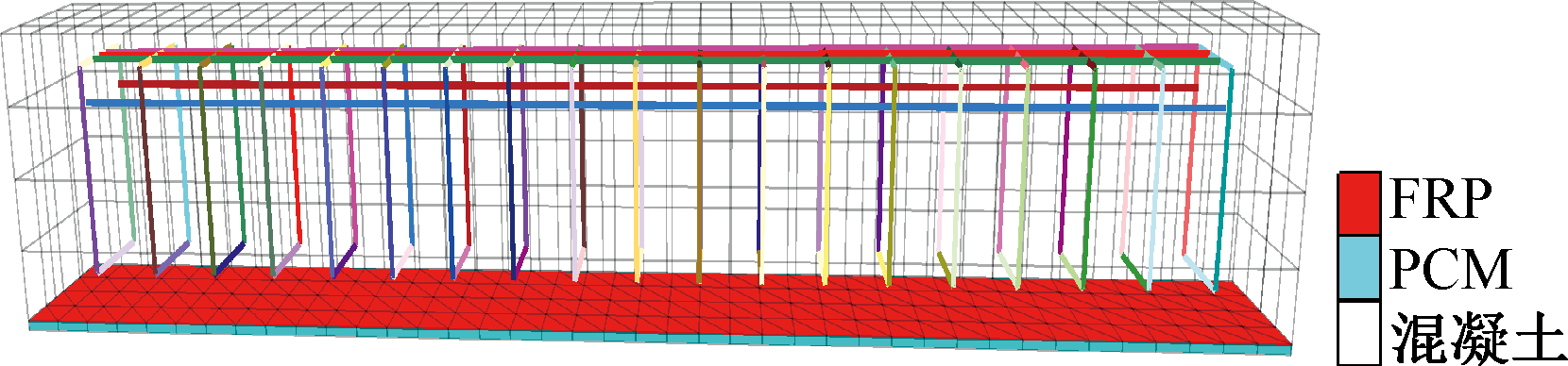

图1

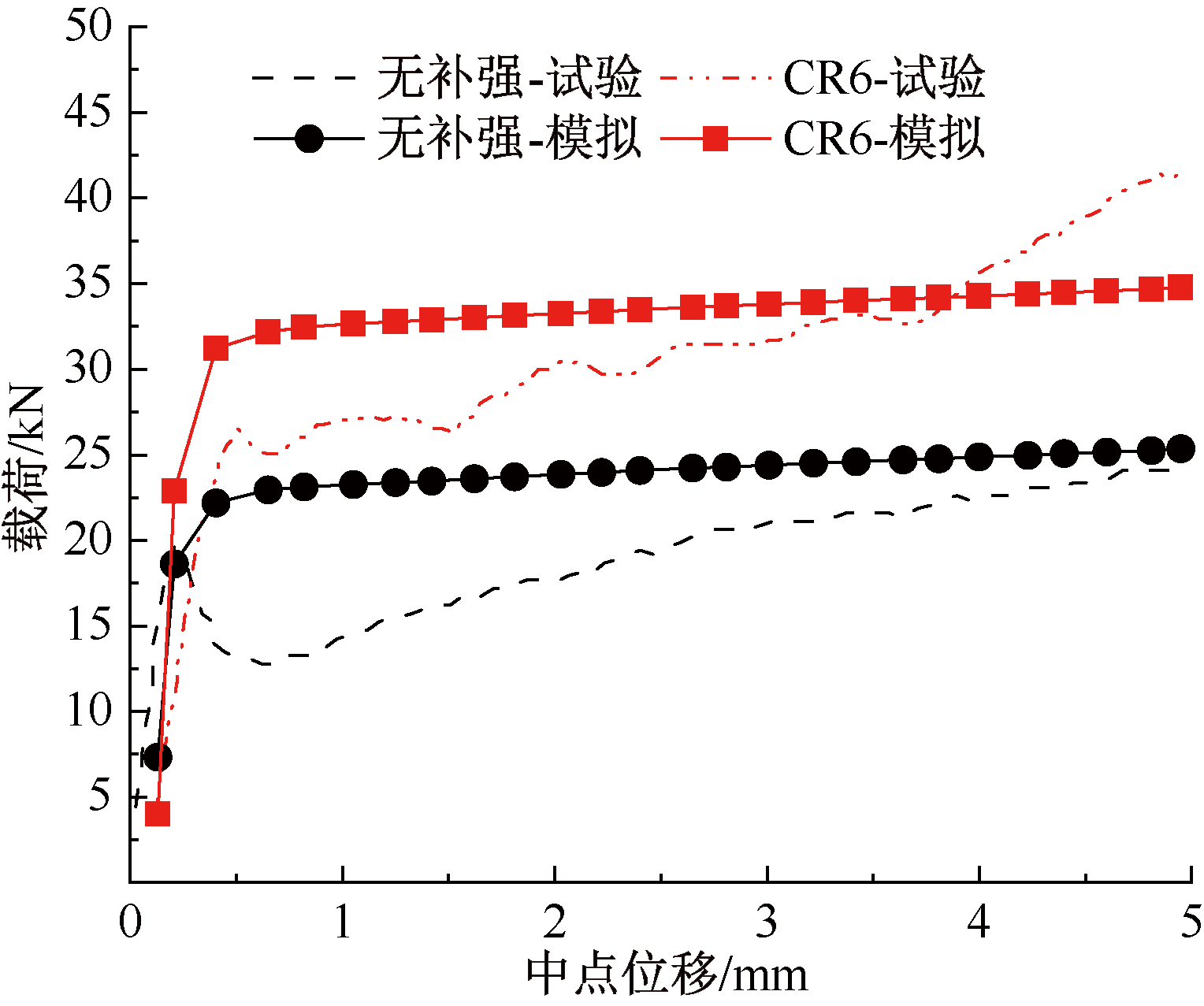

图2

表1

表2

表3

表4

图3

图4

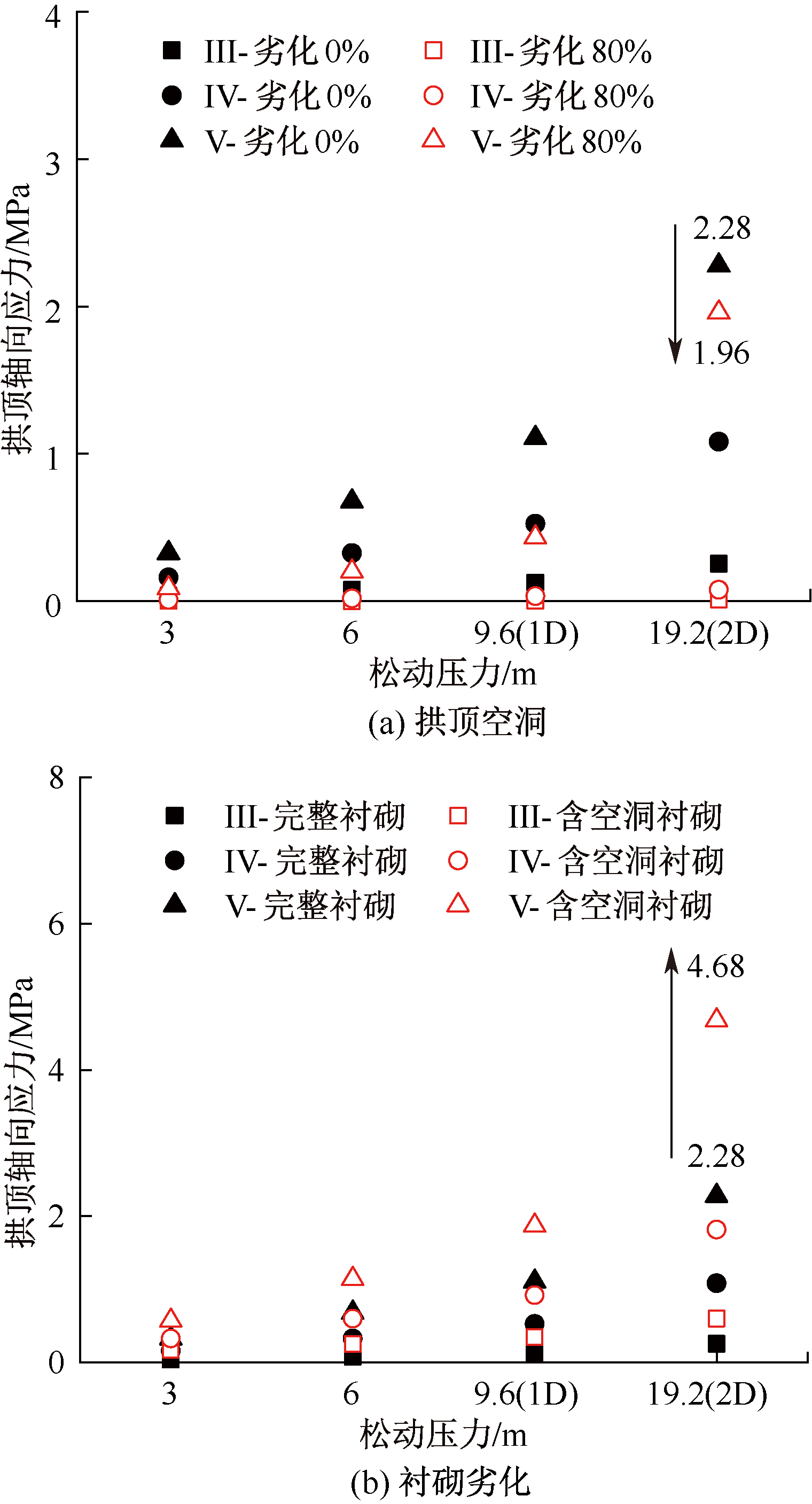

图5

图6

图7

图8

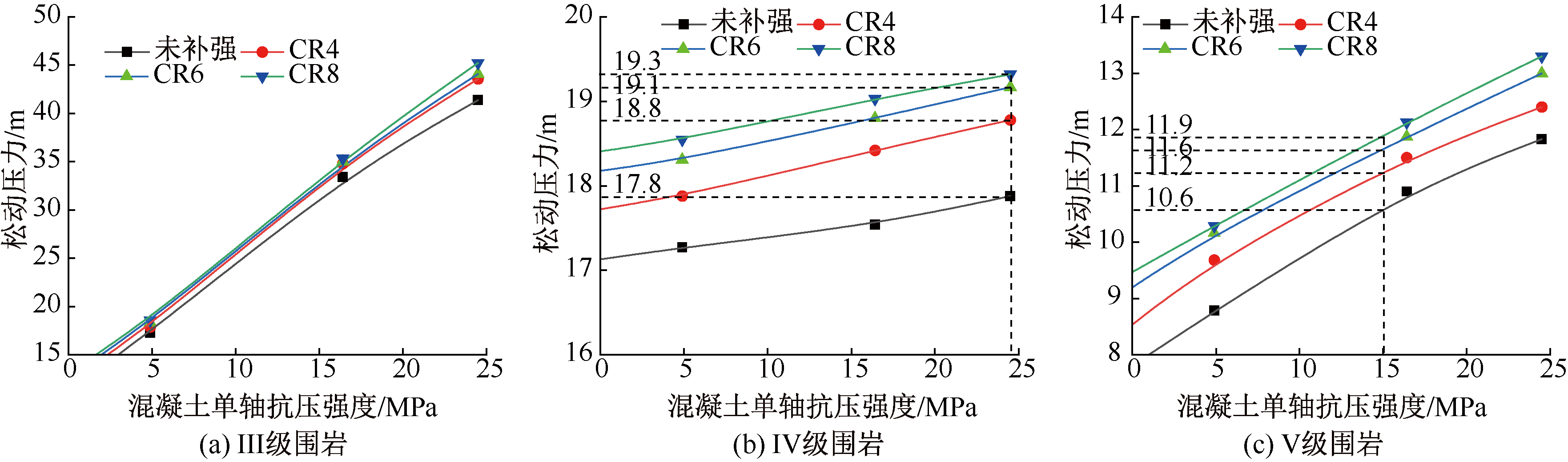

图9

图10

图11

参考文献 20

[1]	中华人民共和国交通运输部. 2023年交通运输行业发展统计公报[J]. 中国水运, 2024(8): 31-35.
[2]	巩江峰, 王伟, 黎旭, 等. 截至2023年底中国铁路隧道情况统计及2023年新开通重点项目隧道情况介绍[J]. 隧道建设(中英文), 2024, 44(2): 377-392.
	GONG Jiangfeng, WANG Wei, LI Xu, et al. Statistics of railway tunnels in China by the end of 2023 and overview of key tunnels of projects newly put into operation in 2023[J]. Tunnel Construction, 2024, 44(2): 377-392.
[3]	方林, 龚晟, 王桂林, 等. 动静荷载下岩溶突水隧道安全厚度计算方法研究[J]. 中国安全科学学报, 2024, 34(3):76-83. doi: 10.16265/j.cnki.issn1003-3033.2024.03.0344
	FANG Lin, GONG Sheng, WANG Guilin, et al. Research on safe thickness calculation method for karst burst tunnel under dynamic and static loading[J]. China Safety Science Journal, 2024, 34(3):76-83. doi: 10.16265/j.cnki.issn1003-3033.2024.03.0344
[4]	郑艾辰, 向晋扬, 黄锋, 等. 空洞对隧道结构安全影响试验与模拟[J]. 中国安全科学学报, 2022, 32(5): 119-126. doi: 10.16265/j.cnki.issn1003-3033.2022.05.1777
	ZHENG Aichen, XIANG Jinyang, HUANG Feng, et al. Test and simulation of influence of voids on tunnel structure[J]. China Safety Science Journal, 2022, 32(5): 119-126. doi: 10.16265/j.cnki.issn1003-3033.2022.05.1777
[5]	ZHANG Xuepeng, LI Bo, JIANG Yujing, et al. Ambient vibration-based quantitative assessment on tunnel lining defect using laser doppler vibrometer[J]. Measurement, 2025, 239: DOI: 10.1016/J.MEASUREMENT.2024.115481.
[6]	QIAO Jinli, SUN Yongtao, HU Jianbang, et al. Mechanical behavior of secondary lining vault void and mold grouting repair considering contact effect[J]. Structures, 2023, 47: 385-395.
[7]	柳献, 唐敏, 鲁亮, 等. 内张钢圈加固盾构隧道结构承载能力的试验研究:整环加固法[J]. 岩石力学与工程学报, 2013, 32(11): 2300-2306.
	LIU Xian, TANG Min, LU Liang, et al. Experimental study of ultimate bearing capacity of shield tunnel reinforced by full-ring steel plate[J]. Chinese Journal of Rock Mechanics and Engineering, 2013, 32(11): 2300-2306.
[8]	任天宇, 刘树亚, 柳献. 波纹钢板加固盾构隧道衬砌管片抗弯性能试验研究[J]. 隧道建设(中英文), 2019, 39(2):317-323.
	REN Tianyu, LIU Shuya, LIU Xian. Experimental study of bending capacity of shield tunnel lining segment strengthened by corrugated steel[J]. Tunnel Construction, 2019, 39(2): 317-323.
[9]	刘德军, 黄宏伟, 左建平, 等. 盾构管片横向大变形TRC控制方法及作用机制研究[J]. 岩石力学与工程学报, 2017, 36(8): 1889-1898.
	LIU Dejun, HUANG Hongwei, ZUO Jianping, et al. Control method and mechanism of large transverse deformation of shield segment using TRC[J]. Chinese Journal of Rock Mechanics and Engineering, 2017, 36(8): 1889-1898.
[10]	柳献, 张姣龙, 蒋子捷, 等. UHPC加固盾构隧道衬砌结构试验[J]. 中国公路学报, 2021, 34(8): 181-190. doi: 10.19721/j.cnki.1001-7372.2021.08.015
	LIU Xian, ZHANG Jiaolong, JIANG Zijie, et al. Experimenta investigations of a segmental tunnel ring strengthened by using UHPC[J]. China Journal of Highway and Transport, 2021, 34(8): 181-190. doi: 10.19721/j.cnki.1001-7372.2021.08.015
[11]	GUO Rui, PAN Yi, CAI Lianheng, et al. Bonding behavior of CFRP grid-concrete with PCM shotcrete[J]. Engineering Structures, 2018, 168: 333-345.
[12]	AMIRUDDIN A A. Shear behavior of concrete beams strengthened with CFRP grid and PCM shotcrete[J]. EPI International Journal of Engineering, 2019, 2(1): 5-8.
[13]	刘德军, 黄宏伟, 岳清瑞, 等. 隧道衬砌张拉裂缝开裂机制及快速修复方法初探[J]. 土木工程学报, 2015, 48(增1): 236-243.
	LIU Dejun, HUANG Hongwei, YUE Qingrui, et al. Study on cracking mechanism and rapid repair method for tensile cracks of tunnel lining[J]. China Civil Engineering Journal, 2015, 48(S1): 236-243.
[14]	LIU Xuezeng, SANG Yunlong, DING Shuang, et al. Experimental study on the mechanics characteristics of CFRP strengthening of highway tunnels at different damage states[J]. Geofluids, 2020(1): DOI:10.3390/app9152984.
[15]	王静. 围岩空洞对衬砌的影响及FRP材料加固效果的数值模拟研究[D]. 济南: 山东大学, 2022.
	WANG Jing. Research on the effect of surrounding rock cavity on lining and numerical simulation of reinforcement effect of FRP material[D]. Jinan: Shandong University, 2022.
[16]	JIANG Yujing, WANG Xiaoshan, LI Bo, et al. Estimation of reinforcing effects of FRP-PCM method on degraded tunnel linings[J]. Soils and Foundations, 2017, 57(3): 327-340.
[17]	HAN Wei, JIANG Yujing, LI Ningbo, et al. Failure behavior and reinforcing design of degraded tunnel linings based on the three-dimensional numerical evaluation[J]. Engineering Failure Analysis, 2021, 129: DOI: 10.1016/J.ENGFAILANAL.2021.105677.
[18]	TB 10003—2016, 铁路隧道设计规范[S].
	TB 10003-2016, Code for design of railway tunnel[S].
[19]	吴顺川. 岩石力学[M]. 北京: 高等教育出版社, 2021: 174-175.
[20]	Itasca Consulting Group Inc. FLAC_3D 7.0 documentation[Z]. 2024-02-25.

项目		密度 ρ/(kg·m^-3)	E₀/GPa	ν	φ/(°)	黏聚力 c/MPa	σ_c/MPa	σ_t/MPa
围岩等级	III级	2 400	13.500	0.275	44.5	1.10	3.28	0.33
	IV级	2 150	4.000	0.325	33	0.45	1.22	0.12
	V级	1 900	1.500	0.400	23.5	0.16	0.39	0.04
衬砌		2 400	24.500	0.200	40	6.99	30.00	2.00
空洞填充材料		980	0.012	0.130	10	0.50	1.09	0.20

劣化状态/%	E₀/GPa	ν	φ/(°)	c/MPa	σ_t/MPa
0	24.5	0.2	40	6.99	3
33	16.3	0.2		4.66	2
80	4.9	0.2		1.40	0.6

材料	E₀/ GPa	σ_t/ MPa	黏聚力c/ MPa	φ/ (°)	刚度系数k_s/ (MPa·mm^-1)	厚度/ mm
CR4	100	1 400	2.217	40	5.298	2
CR6		4.6			6.394	4
CR8					13.369	5
PCM	26				—	10

设计因素	工况值
衬砌空洞	含空洞、不含空洞模型
混凝土劣化程度/%	0、33、80
松动压力/m	3、6、9.6 (1D)、19.2 (2D)
围岩等级	III、IV、V
FRP型号	无补强、CR4、CR6、CR8
