山地管道地质灾害防护技术体系及案例研究

doi:10.16265/j.cnki.issn1003-3033.2025.S2.0002

摘要/Abstract

摘要：

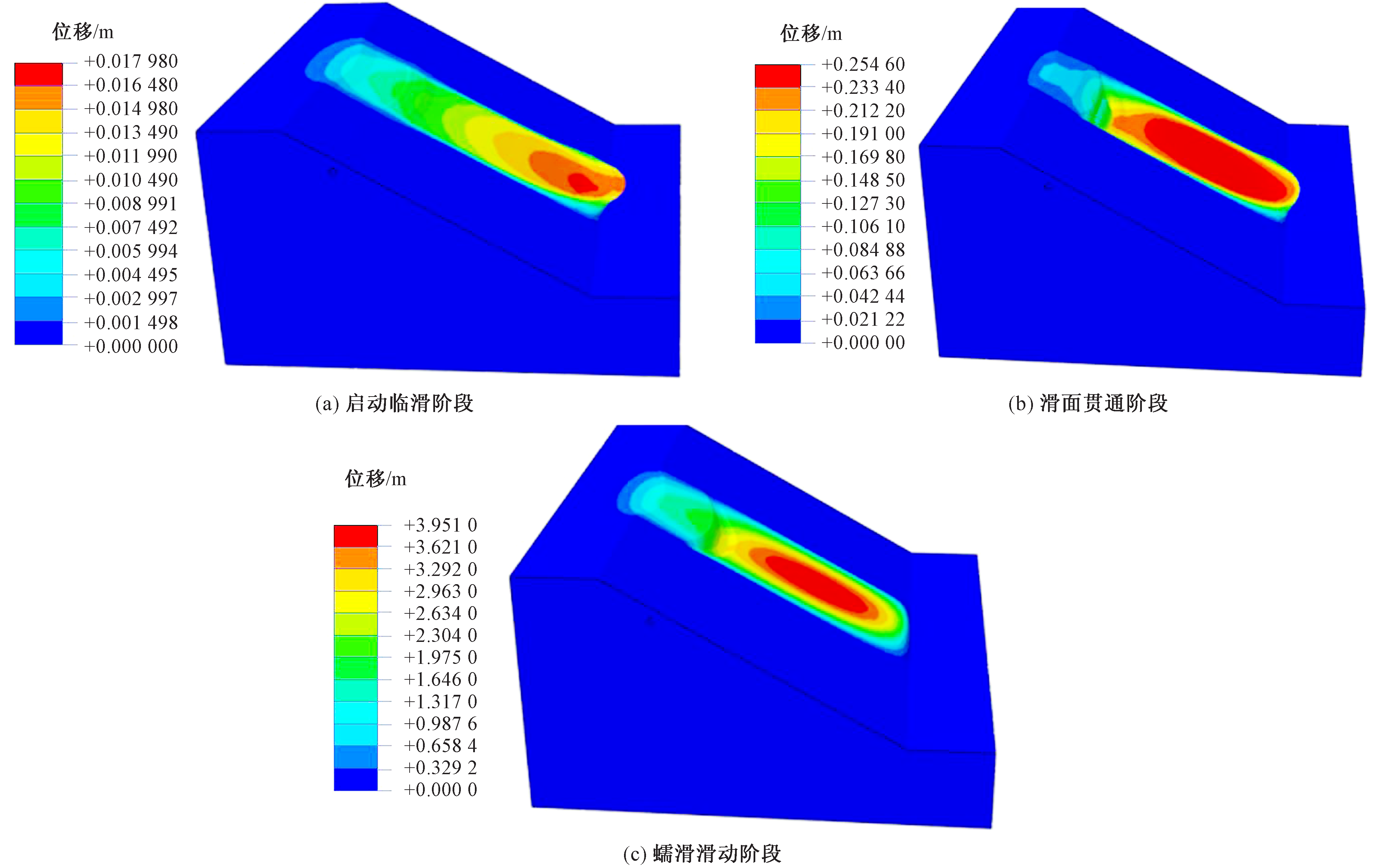

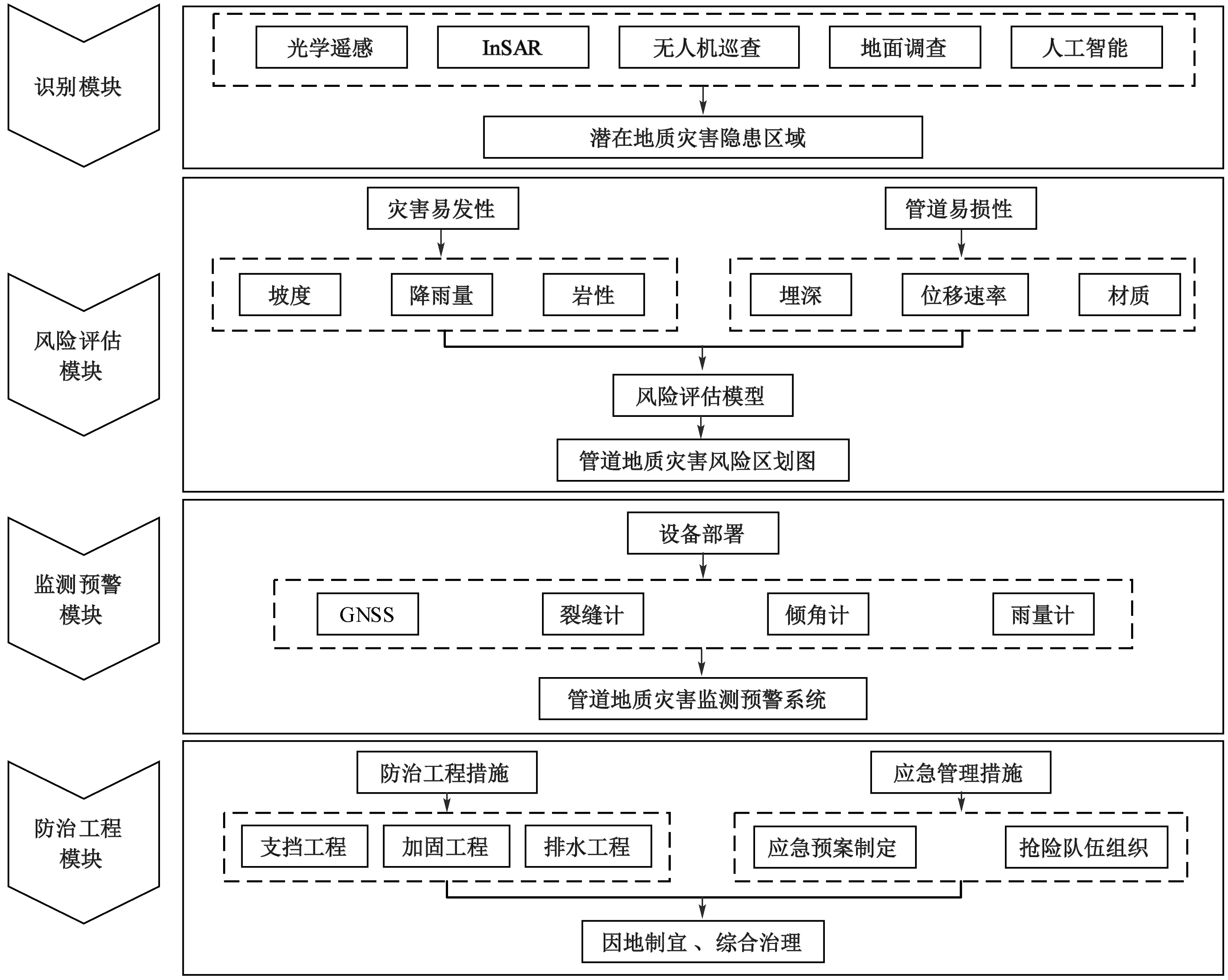

为应对我国山地管道面临的严峻地质灾害风险,解决现有防护技术系统性不足的问题,有必要构建一套科学的管道地质灾害防护技术体系。通过整合风险识别、评估、监测预警和工程治理4大核心技术模块,建立多平台协作的综合性防护框架;以贵州尧龙山段管道滑坡为案例,采用野外调查与有限元数值模拟相结合的方法,验证该体系的风险评估功能。结果表明,该管道的失效判据指数均小于1,无失效风险。所构建的技术体系可为管道地质灾害防治提供系统性的解决方案;该案例的具体数据能够为该区段管道的监测巡查与工程治理提供明确的科学依据。

关键词: 管道地质灾害, 防护技术体系, 风险评估, 监测预警, 失效判据

Abstract:

To address the severe geological disaster risks facing pipelines in mountainous regions of China and overcome the lack of a systematic approach in existing protection technologies, a scientific and systematic technical system for geological disaster prevention along pipelines was developed. By integrating four core technical modules, risk identification, assessment, monitoring and early warning, and engineering mitigation, a comprehensive protection framework based on multi-platform collaboration was established. By taking the pipeline landslide in the Yaolongshan section of Guizhou as a case study, the risk assessment function of this system was validated through a combination of field investigations and finite element numerical simulations. Research indicates that the integrated protection system represents a trend toward multi-technology and multi-tier integration in disaster prevention and control. The results indicate that all failure criterion indices for the landslide are less than 1, indicating no risk of failure. The developed technical system provides a systematic solution for geological disaster prevention in pipeline engineering. The specific data from the Yaolongshan case offer clear scientific support for monitoring, inspection, and engineering mitigation of pipelines in this section.

Key words: geological disaster related to pipeline, protective technology system, risk assessment, monitoring and early warning, failure criterion

中图分类号:

X948

杨大慎, 夏季, 韦荣方, 梁栋, 胡益铭, 王仁超. 山地管道地质灾害防护技术体系及案例研究[J]. 中国安全科学学报, 2025, 35(S2): 14-20.

YANG Dashen, XIA Ji, WEI Rongfang, LIANG Dong, HU Yiming, WANG Renchao. Technical system for geological hazard prevention in mountainous areas pipelines and case studies[J]. China Safety Science Journal, 2025, 35(S2): 14-20.

图/表 7

图1

图2

表1

表2

图3

图4

表3

参考文献 19

[1]	王锡军, 黄梓轩, 李福, 等. 山区油气管道地质灾害发育特征及防治对策[J]. 中国石油和化工标准与质量, 2022, 42(21):92-93, 96.
	WANG Xijun, HUANG Zixuan, LI Fu, et al. Development characteristics and prevention countermeasures of geological disasters for oil and gas pipelines in mountainous areas[J]. China Petroleum and Chemical Standard and Quality, 2022, 42(21): 92-93,96.
[2]	唐俊杰. 滑坡作用下管道变形特征与应变计算模型研究[D]. 绵阳: 西南科技大学, 2022.
	TANG Junjie. Study on deformation characteristics and strain calculation model of pipeline under landslide[D]. Mianyang: Southwest University of Science and Technology, 2022.
[3]	白路遥, 施宁, 伞博泓, 等. 基于卫星遥感的管道地质灾害识别与监测技术现状[J]. 油气储运, 2019, 38(4):368-372,378.
	BAI Luyao, SHI Ning, SAN Bohong, et al. Current situation of pipeline geological disaster identification and monitoring technology based on satellite remote sensing[J]. Oil and Gas Storage and Transportation, 2019, 38(4):368-372,378.
[4]	朱焱. 地基SAR形变监测数据处理研究与应用[D]. 长沙: 中南大学, 2023.
	ZHU Yan. Research and application of ground-based SAR deformation monitoring data processing[D]. Changsha: Central South University, 2023.
[5]	赵洵, 杨鸣峰, 魏新年, 等. 联合InSAR和LiDAR的油气管道沿线地质灾害隐患早期识别[J]. 测绘通报, 2023(7):131-135.
	ZHAO Xun, YANG Mingfeng, WEI Xinnian, et al. Early identification of hidden dangers of geological hazards early identification of hidden dangers of geological hazards[J]. Surveying and Mapping Notification, 2023(7):131-135.
[6]	曹洪洋, 任晓莹, 李志强. 基于GIS的分形理论和信息量法的区域滑坡易发性评价[J]. 中国安全科学学报, 2025, 35(1):178-185. doi: 10.16265/j.cnki.issn1003-3033.2025.01.0480
	CAO Hongyang, REN Xiaoying, LI Zhiqiang. Assessment of regional landslide susceptibility based on fractal theory and information amount method of GIS[J]. China Safety Science Journal, 2025, 35(1):178-185. doi: 10.16265/j.cnki.issn1003-3033.2025.01.0480
[7]	陈利琼, 曾志强, 张开. 基于未确知测度理论的山区管道地质灾害风险评估[J]. 科学技术与工程, 2022, 22(35): 15 528-15 535.
	CHEN Liqiong, ZENG Zhiqiang, ZHANG Kai. Risk assessment of geohazards in mountainous pipelines based on unascertained measure theory[J]. Science Technology and Engineering, 2022, 22(35): 15 528-15 535.
[8]	程刚, 王振雪, 李刚强, 等. 滑坡一体化全维度监测预警技术进展与展望[J]. 中国安全科学学报, 2023, 33(1):105-114. doi: 10.16265/j.cnki.issn1003-3033.2023.01.1144
	CHENG Gang, WANG Zhenxue, LI Gangqiang, et al. Progress and prospect of integrated full-dimensional monitoring and early warning technology for landslides[J]. China Safety Science Journal, 2023, 33(1):105-114. doi: 10.16265/j.cnki.issn1003-3033.2023.01.1144
[9]	聂肖虎, 谢璐瑶, 杨冬, 等. 降雨诱发滑坡在长输管道监测预警中的应用[J]. 矿产勘查, 2022, 13(6):825-835.
	NIE Xiaohu, XIE Luyao, YANG Dong, et al. Application of rainfall induced landslide in monitoring and early warning of long-distance pipeline[J]. Mineral Exploration, 2022, 13(6):825-835.
[10]	葛华, 方迎潮, 朱建平, 等. 穿越管道滑坡地表位移预警阈值及预警模型研究[J]. 人民长江, 2023, 54(1):126-132.
	GE Hua, FANG Yingchao, ZHU Jianping, et al. Prediction threshold of surface displacement and prediction model of pipeline crossing landslide[J]. Yangtze River, 2023, 54(1):126-132.
[11]	高建章, 方迎潮, 王学军, 等. 山区天然气管道—滑坡体系下花管微型桩与螺纹微型桩支护性能对比试验[J]. 中国地质灾害与防治学报, 2023, 34(2):120-131.
	GAO Jianzhang, FANG Yingchao, WANG Xuejun, et al. Physical model tests on supporting performance of micro-pile and micro-pile with thread in natural gas pipe-landslide system in mountainous area[J]. Chinese Journal of Geological Disasters and Prevention, 2023, 34(2):120-131.
[12]	杨明亮. 调蓄区顶管穿越管道施工技术分析[J]. 浙江水利水电学院学报, 2022, 34(2):57-62.
	YANG Mingliang. Analysis on construction technology of pipe jacking crossing pipeline in regulation and storage area[J]. Journal of Zhejiang University of Water Resources and Hydropower, 2022, 34(2):57-62.
[13]	白鹏飞, 谭小虎, 侯蕊芳. 社会网络视角下地质灾害应急处置合作关系[J]. 中国安全科学学报, 2024, 34(4):207-216. doi: 10.16265/j.cnki.issn1003-3033.2024.04.1081
	BAI Pengfei, TAN Xiaohu, HOU Ruifang. Geohazard emergency response partnerships from a social network perspective[J]. China Safety Science Journal, 2024, 34(4):207-216. doi: 10.16265/j.cnki.issn1003-3033.2024.04.1081
[14]	ZHANG Ran, HAO Guangbo, ZHANG Kong, et al. Unmanned aerial vehicle navigation in underground structure inspection: a review[J]. Geological Journal, 2023, 58(6): 2 454-2 472. doi: 10.1002/gj.v58.6
[15]	陈海燕. ABAQUS有限元分析从入门到精通[M]. 北京: 电子工业出版社, 2022: 480.
[16]	耿会云. 库伦莫尔本构模型在隧道施工中的应用[J]. 工程建设与设计, 2018(18):209-210.
	GENG Huiyun. The application of Mohr-Coulomb constitutive model in tunnel construction[J]. Construction & Design for Project, 2018(18): 209-210.
[17]	MADENCI E, OTERKUS S. Ordinary state-based peridynamics for plastic deformation according to von Mises yield criteria with isotropic hardening[J]. Journal of the Mechanics & Physics of Solids, 2016, 86:192-219.
[18]	王仁超. 滑坡作用下管道变形破坏机理试验研究[D]. 北京: 中国科学院大学, 2019.
	WANG Renchao. Experimental study of pipeline deformation and failure mechanism under landslide action[D]. Beijing: University of Chinese Academy of Sciences, 2019.
[19]	向楠, 覃怡, 周建庭, 等. 基于容许应力包络的连续刚构大桥安全评估技术研究[J]. 交通科技, 2015(2):68-71.
	XIANG Nan, QIN Yi, ZHOU Jianting, et al. Research on safety assessment technology of continuous rigid frame bridges based on allowable stress envelope[J]. Transportation Science & Technology, 2015(2): 68-71.

管道受力变形区段	有限元模拟值	判据指标	失效判据指标计算值
滑坡区	\|w\|_max=0.044 m	k₁=\|w\|_max/[δ]	0.04<1
滑坡区	\|θ\|_max=10°	k₂=\|θ)\|_max/[θ]	0.4<1
支撑区	σ_max=258.3 MPa	k₃=σ_max/[σ]	0.78<1
	τ_max=19.1 MPa	k₄=τ_max/[τ]	0.1<1
	Δ_max=0.01 m	k₅=Δ/[Δ_max]	0.06<1
