露天矿卸料口旋流风幕模拟及纹影成像验证

doi:10.16265/j.cnki.issn1003-3033.2026.05.0355

中国安全科学学报 ›› 2026, Vol. 36 ›› Issue (5): 150-158.doi: 10.16265/j.cnki.issn1003-3033.2026.05.0355

露天矿卸料口旋流风幕模拟及纹影成像验证

陈景序¹^,²^,³(), 智栐凯²^,³, 王杰²^,³, 荆德吉⁴, 郭雁潮¹^,³, 刘雅雯⁵

¹ 内蒙古科技大学安全与应急管理学院, 内蒙古包头 014010
² 内蒙古科技大学矿业与煤炭学院, 内蒙古包头 014010
³ 内蒙古自治区矿业工程重点实验室, 内蒙古包头 014010
⁴ 辽宁工程技术大学安全科学与工程学院, 辽宁阜新 123000
⁵ 中国矿业大学(北京)应急管理与安全工程学院, 北京 100083

收稿日期:2025-11-15 修回日期:2026-03-04 出版日期:2026-05-28
作者简介:
陈景序 (1989—),男,辽宁鞍山人,博士,副教授,主要从事粉尘防治理论及技术等方面的研究。E-mail:chanjingxu@sina.com。
荆德吉教授。
基金资助:
国家自然基金面上项目资助(52474229); 内蒙古自治区2025年重点研发和成果转化计划(社会公益领域)项目(2025YFSH0073); 自治区直属高校基本科研业务费项目(2024QNJS101); 自治区直属高校基本科研业务费项目(2025QNJS007)

Numerical simulation and schlieren imaging validation of a swirling air curtain at an open-pit mine discharge port

Chen Jingxu¹^,²^,³(), Zhi Yongkai²^,³, Wang Jie²^,³, Jing Deji⁴, Guo Yanchao¹^,³, Liu Yawen⁵

¹ School of Safety Science and Emergency Management, Inner Mongolia University of Science and Technology, Baotou Inner Mongolia 014010, China
² School of Mining and Coal, Inner Mongolia University of Science and Technology, Baotou Inner Mongolia 014010, China
³ Inner Mongolia Key Laboratory of Mining Engineering, Baotou Inner Mongolia 014010, China
⁴ Safety Science and Engineering College, Liaoning Technical University, Fuxin Liaoning 123000, China
⁵ School of Emergency Management and Safety Engineering, China University of Mining and Technology-Beijing, Beijing 100083, China

Received:2025-11-15 Revised:2026-03-04 Published:2026-05-28

摘要/Abstract

摘要：

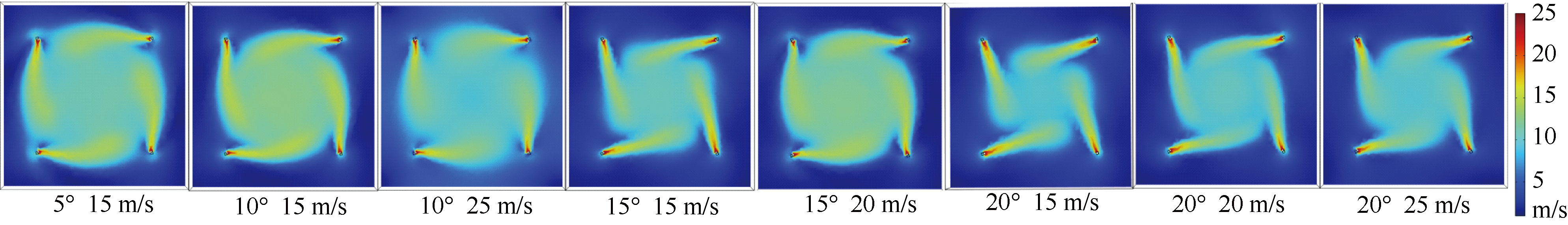

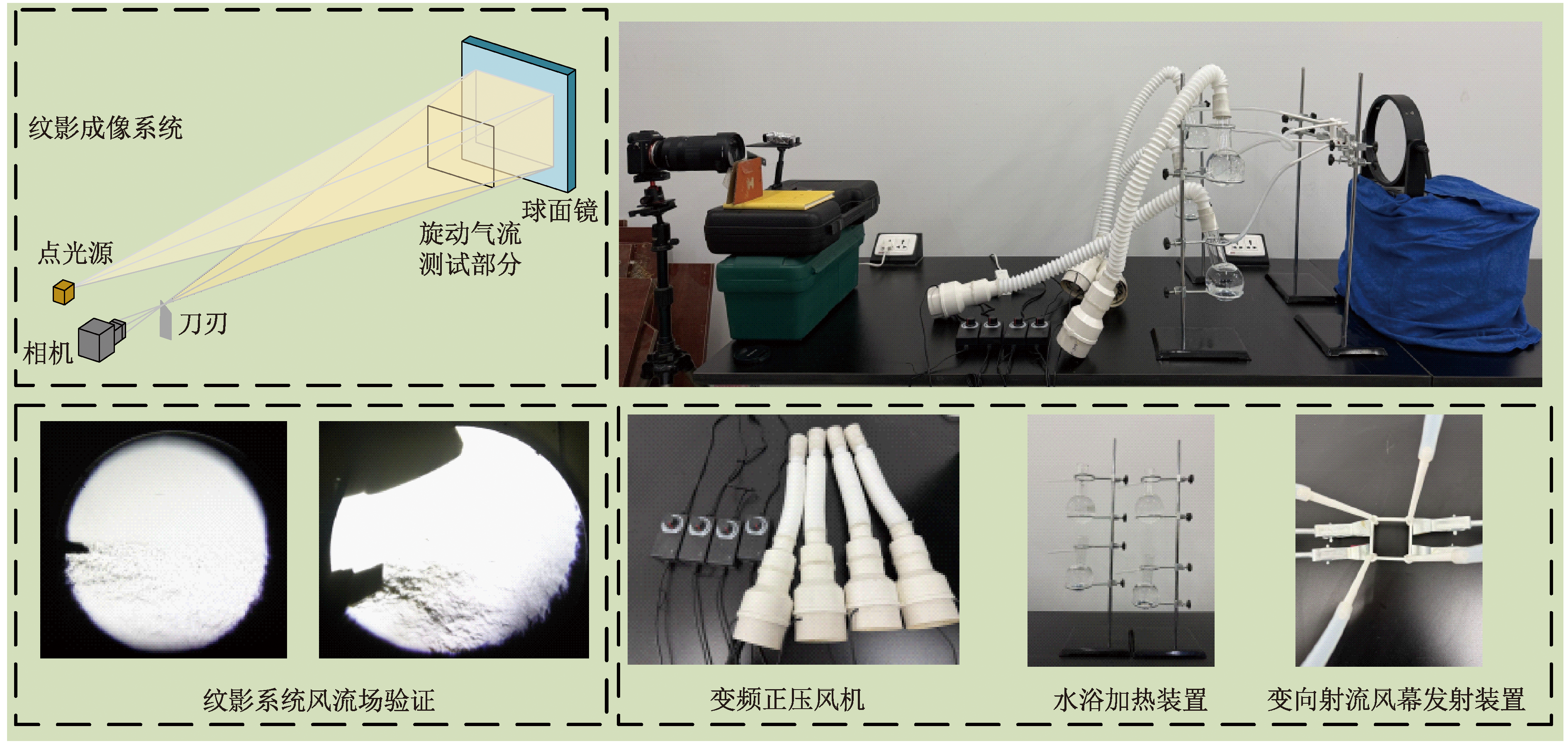

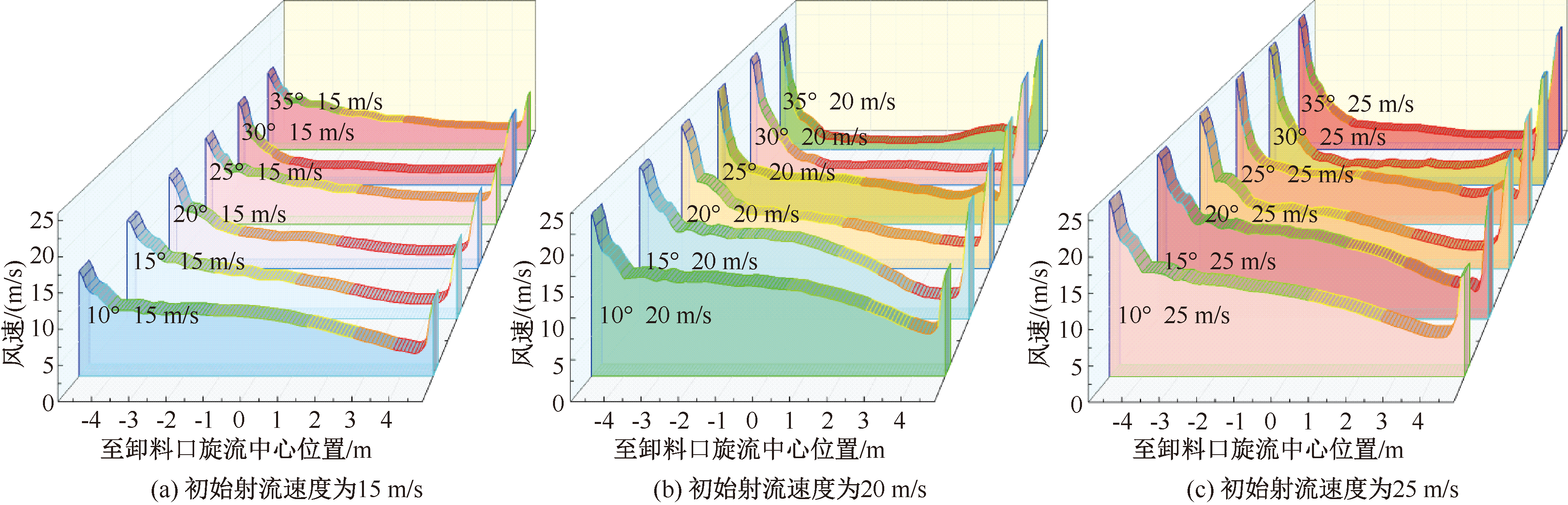

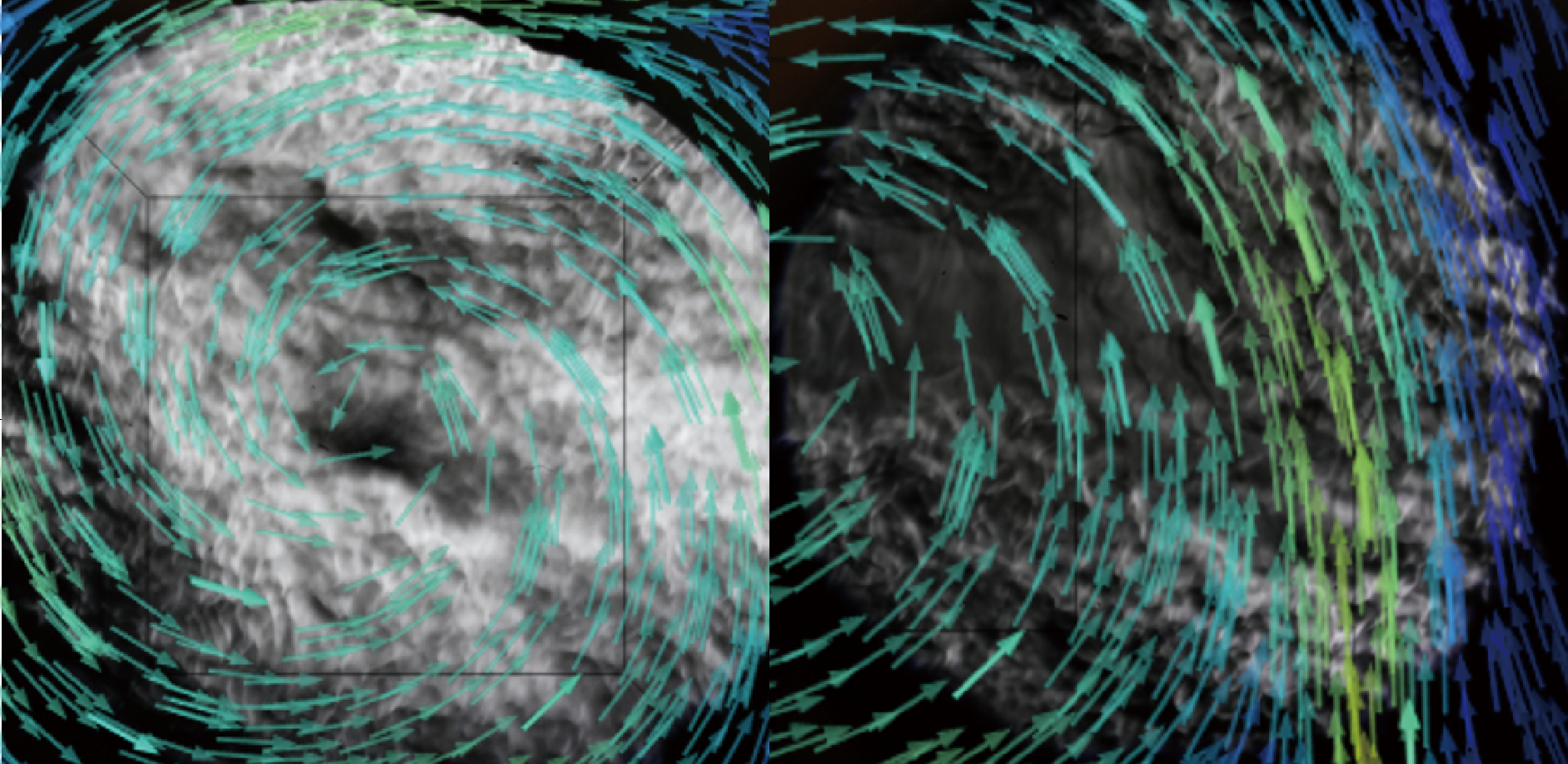

针对传统喷雾降尘技术耗水量大、抑尘范围有限等问题,利用数值仿真软件,按照1∶1比例建立露天矿卸料口几何模型;基于Realizable k-ε 湍流模型,开展卸料口落料口诱导气流风速分布研究,并根据流场特征提出一种旋流风幕控尘方法,通过诱导环流包裹粉尘、动压屏障阻隔扩散,形成闭合气流屏障阻隔粉尘逸散;采用数值模拟与纹影观测相结合的方法,分析卸料口诱导气流风速分布,对比不同角度和风速下的旋流风幕完整性。结果表明:旋流风幕形成由射流角度与风速协同主导;随射流角度与风速增加,风幕涡核结构逐渐清晰,流场闭合度显著增强;射流角度在10~20°、风速在15~25 m/s内时,可在卸料口形成稳定封闭的逆压旋流区,诱导卷吸与环流作用最为显著;当射流角度为15°、风速为20 m/s时,负压核心稳定,旋流成型最完整;角度过大或风速过高易引发湍流耗散与涡核紊乱,导致风幕结构破裂。经纹影观测系统对旋流流场验证,15°&20 m/s条件下旋流结构最为完整,验证了旋流控尘的可靠性和有效性。

关键词: 纹影成像, 露天矿, 卸料口, 旋流风幕, 射流角度, 射流速度

Abstract:

To address the issues of high water consumption and the limited dust suppression range of traditional spray-based dust control technologies, a 1∶1 geometric model of the discharge port in an open-pit mine was established using numerical simulation software. Based on the Realizable k-ε turbulence model, the velocity distribution of induced airflow at the discharge port was investigated. According to the flow field characteristics, a swirling air curtain dust control method was proposed. This method utilizes induced circulation to encapsulate dust particles and employs a dynamic pressure barrier to suppress their diffusion, thereby forming a closed airflow barrier that prevents dust escape. By combining numerical simulations with schlieren observations, the velocity distribution of the induced airflow was analyzed, and the integrity of the swirling air curtain under varying jet angles and airflow velocities was compared. The results indicate that the formation of the swirling air curtain is jointly governed by the jet angle and airflow velocity. As both parameters increase, the vortex core structure becomes more distinct, and the degree of flow field closure is significantly enhanced. When the jet angle ranges from 10° to 20° and the airflow velocity from 15 to 25 m/s, a stable closed reverse-pressure swirling forms at the discharge port, where induced entrainment and circulation effects are most pronounced. When the jet angle is 15° and the airflow velocity is 20 m/s, the negative pressure core remains most stable, and the swirling structure is most fully developed. In contrast, excessively large jet angles or overly high airflow velocities may lead to increased turbulent dissipation and vortex instability, resulting in the breakdown of the air curtain structure. Schlieren observation further confirm that the swirling structure is most complete under the condition of a 15° jet angle and 20 m/s airflow velocity, thereby verifying the reliability and effectiveness of the proposed swirling air curtain dust control method.

Key words: schlieren imaging, open-pit mine, discharge port, countercurrent air curtain, jet angle, jet velocity

中图分类号:

X964工业防尘

陈景序, 智栐凯, 王杰, 荆德吉, 郭雁潮, 刘雅雯. 露天矿卸料口旋流风幕模拟及纹影成像验证[J]. 中国安全科学学报, 2026, 36(5): 150-158.

Chen Jingxu, Zhi Yongkai, Wang Jie, Jing Deji, Guo Yanchao, Liu Yawen. Numerical simulation and schlieren imaging validation of a swirling air curtain at an open-pit mine discharge port[J]. China Safety Science Journal, 2026, 36(5): 150-158.

图/表 12

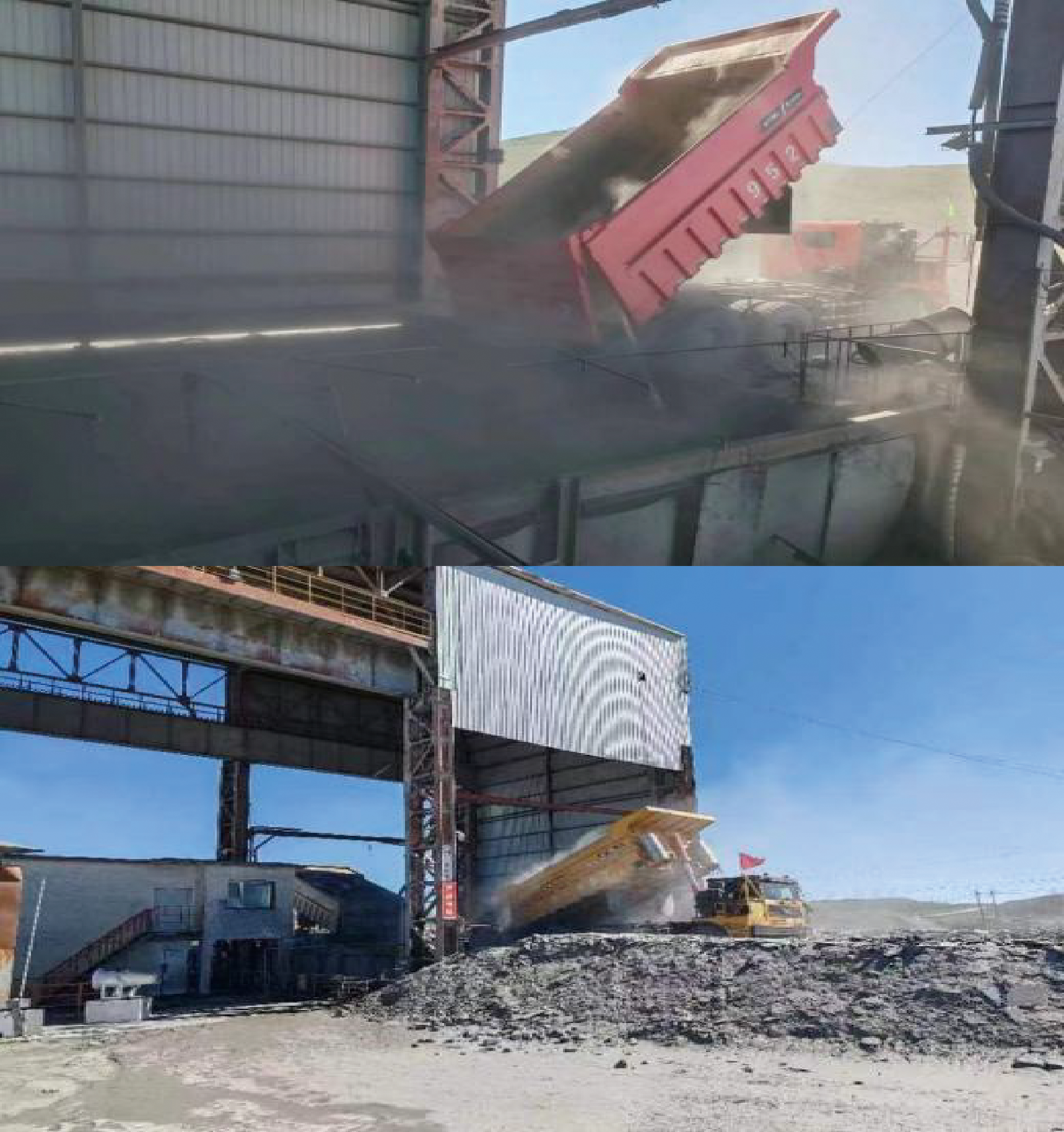

图1

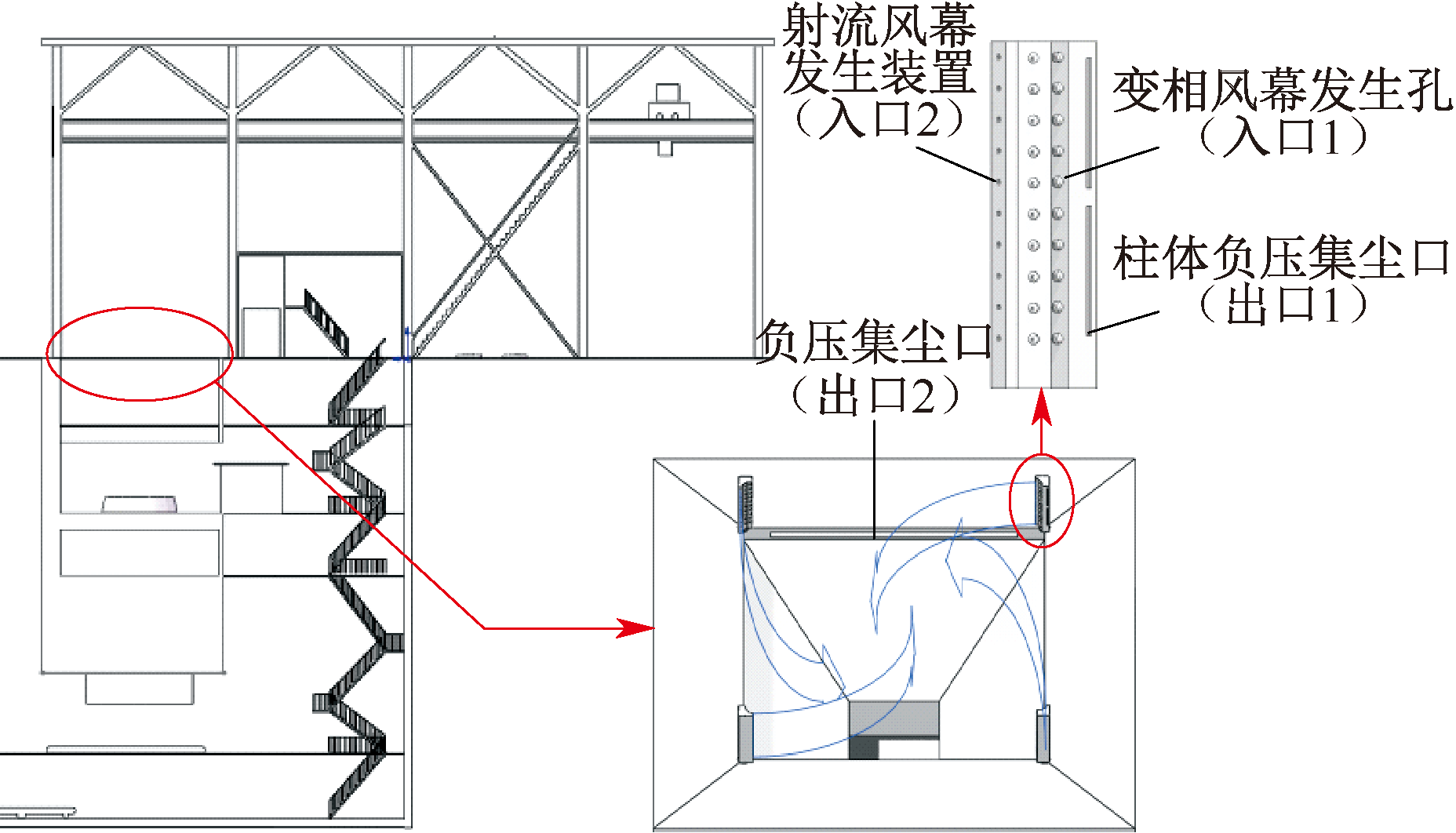

图2

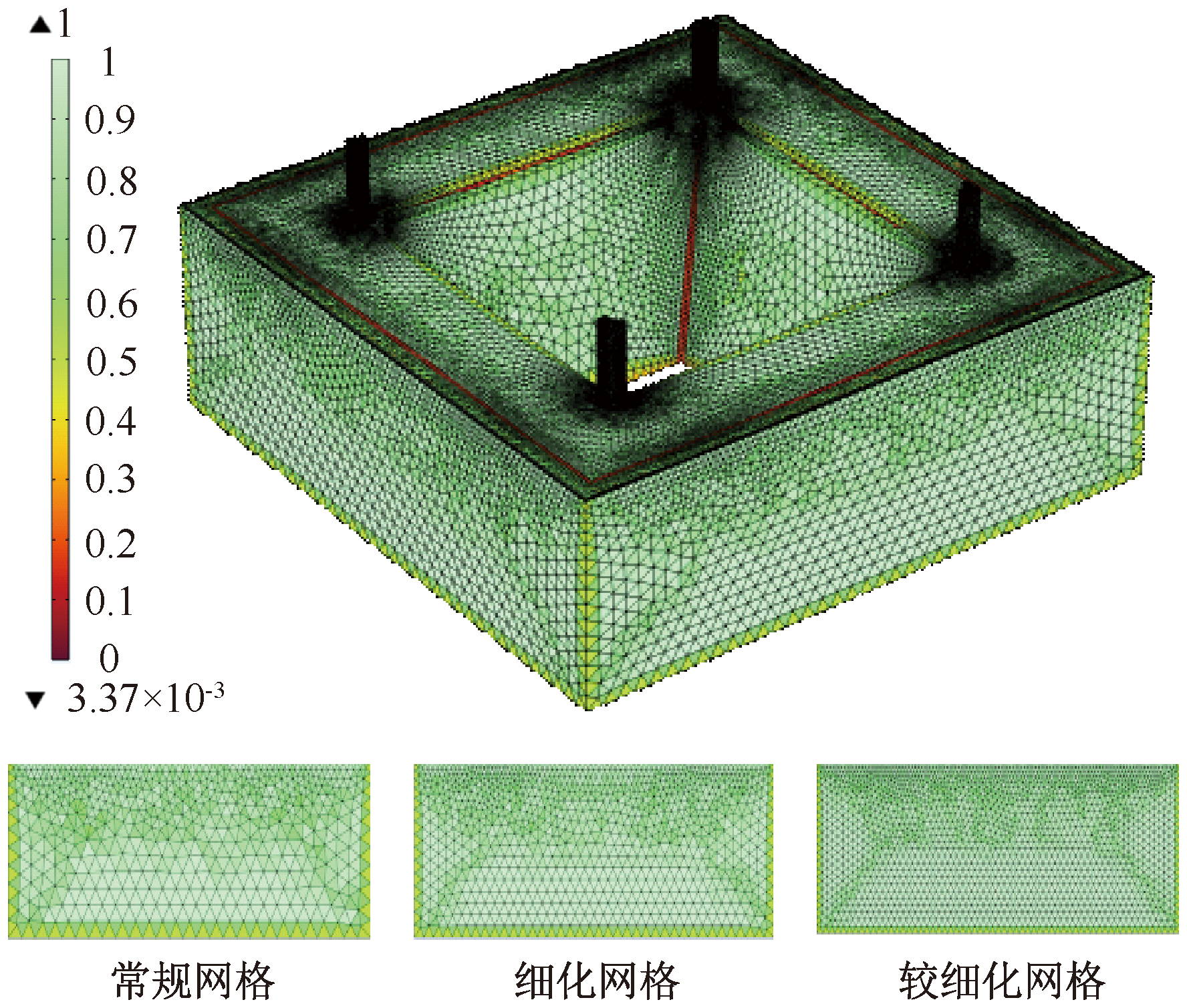

图3

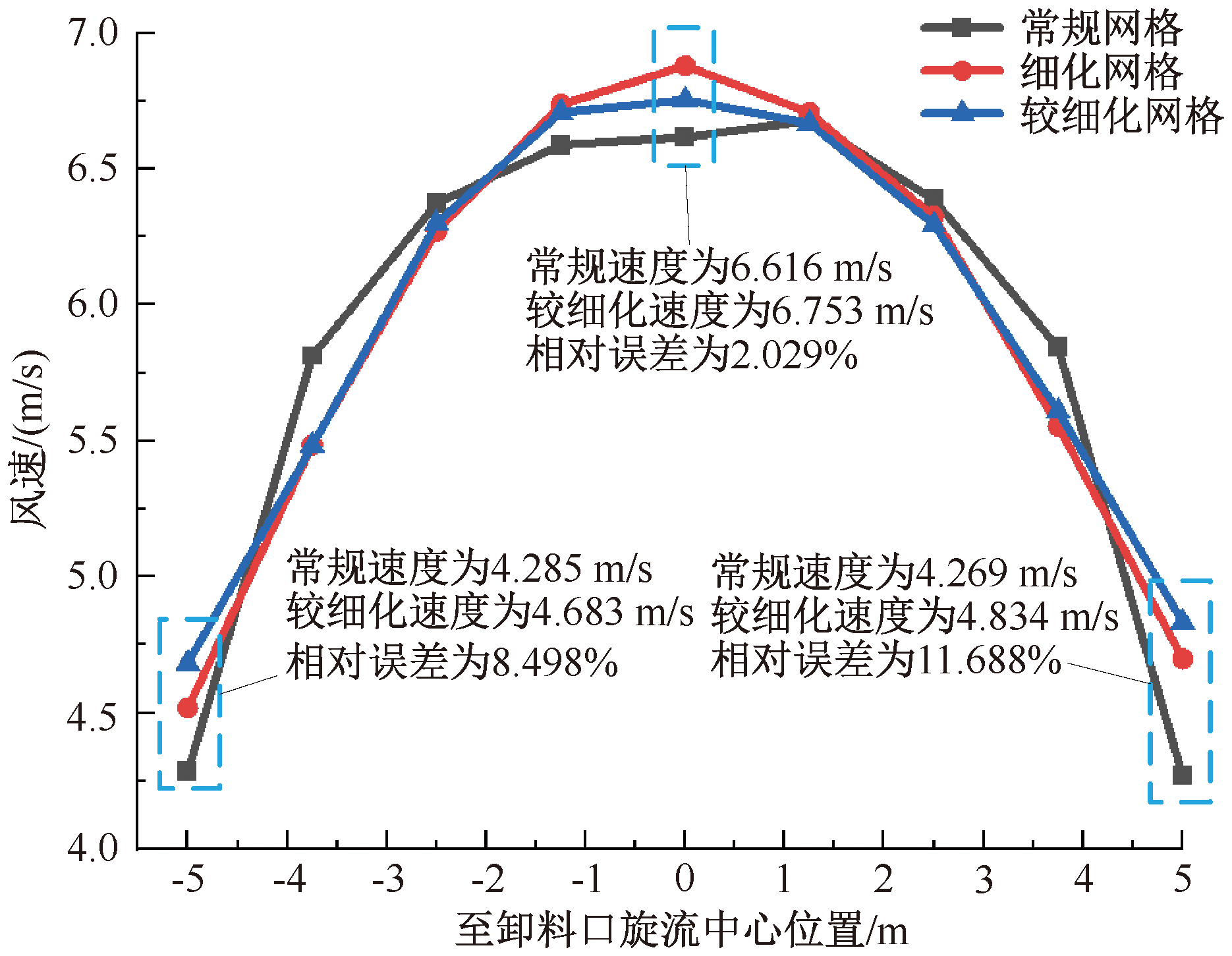

图4

表1

表2

图5

图6

表3

图7

图8

图9

参考文献 20

[1]	金龙哲, 郭敬中, 李刚, 等. 金属矿山采场爆破尘毒防控技术研究进展及展望[J]. 金属矿山, 2021(1):120-134.
	Jin Longzhe, Guo Jingzhong, Li Gang, et al. Study progress and prospect on prevention and control technology of blasting dust and poison in metal mine stope[J]. Metal Mine, 2021(1):120-134.
[2]	周福宝, 袁亮, 程卫民, 等. 矿井粉尘职业健康防护技术2013—2023年研究进展[J]. 中国安全生产科学技术, 2023, 19(12):5-15.
	Zhou Fubao, Yuan Liang, Cheng Weimin, et al. Research progress on occupational health protection technology of mine dust from 2013 to 2023[J]. Journal of Scifety and Technology, 2023, 19(12):5-15.
[3]	肖双双, 马亚洁, 李卫炎, 等. 我国露天矿粉尘防治理论技术近20 a研究进展与展望[J]. 金属矿山, 2023(7):40-56.
	Xiao Shuangshuang, Ma Yajie, Li Weiyan, et al. Study progress and prospect on theory and technology for dust prevention and control in open-pit mine of China in the past 20 Years[J]. Metal Mine, 2023(7):40-56.
[4]	李大怀. 露天矿非扰动区粉尘起尘机理及防治策略研究[D]. 徐州: 中国矿业大学, 2022.
	Li Dahuai. Study on dust initiation mechanism and prevention strategy in non-disturbed area of open-pit mine[D]. Xuzhou: China University of Mining and Technology, 2022.
[5]	汤万钧, 才庆祥. 露天矿内粉尘聚集机理及影响因素分析[J]. 矿业安全与环保, 2017, 44(4):95-98.
	Tang Wanjun, Cai Qingxing. Analysis on dust accumulation mechanism and influencing factors in open pit mine[J]. Mining Safety & Environmental Protection, 2017, 44(4):95-98.
[6]	Li Gang, Hu Jinhua, Chen Shiqiang. A review of dust control/removal methods in metal mines in China[J]. Powder Technology, 2023,430:DOI:10.1016/j.powtec.2023.119035.
[7]	Entwistle J A, Hursthouse A S, Marinho R P A, et al. Metalliferous mine dust: human health impacts and the potential determinants of disease in mining communities[J]. Current Pollution Reports, 2019, 5(3): 67-83. doi: 10.1007/s40726-019-00108-5
[8]	李全生, 颜杰, 王斌, 等. 哈尔乌素露天煤矿爆堆粉尘润湿性及其影响因素[J]. 中国安全科学学报, 2023, 33(增刊2):7-12.
	Li Quansheng, Yan Jie, Wang Bin, et al. Wetability of dust from blast piles in Ha'erwusu open-pit coal mine and its influencing,factors[J]. China Safety Science Journal, 2023, 33(S2):7-12. doi: 10.16265/j.cnki.issn1003-3033.2023.S2.0032
[9]	王瑜, 焦晓亮, 赵长海, 等. 露天煤矿吊斗铲倒堆工艺粉尘扩散特征研究[J]. 中国安全科学学报, 2023, 33(增刊2):188-194.
	Wang Yu, Jiao Xiaoliang, Zhao Changhai, et al. Research on dust diffusion characteristics of dragline stacking process in open-pit coal mine[J]. China Safety Science Journal, 2023, 33(S2):188-194. doi: 10.16265/j.cnki.issn1003-3033.2023.S2.0005
[10]	赵一迪, 聂兴信, 谢怡霄, 等. 露天矿破碎站卸料口粉尘运移规律研究[J]. 金属矿山, 2024(8):235-243.
	Zhao Yidi, Nie Xingxin, Xie Yixiao, et al. Study on dust migration rule at discharge port of crushing station in open-pit mine[J]. Metal Mine, 2024(8):235-243.
[11]	温恬靓, 耿凡, 李世航, 等. 选煤厂转载点煤流撞击作用下粉尘逸散与分布特性模拟研究[J]. 煤炭学报, 2025, 50(增刊1):600-613.
	Wen Tianliang, Geng Fan, Li Shihang, et al. Simulation study on dust emission and distribution characteristics of dust under the impact of coal flow at the transpersite of coal preparation plant[J]. Journal of China Coal Society, 2025, 50(S1):600-613.
[12]	宋子岭, 许璇, 赵晓亮, 等. 风速对露天矿采装工作面粉尘聚并效应的影响分析[J]. 安全与环境学报, 2023, 23(2):538-546.
	Song Ziling, Xu Xuan, Zhao Xiaoliang, et al. Analysis of the influence of wind speed on dust aggregation effect in open-pit mining face[J]. Journal of Safety and Environment, 2023, 23(2):538-546.
[13]	张建华. 露天煤矿破碎站受料斗粉尘扩散规律[J]. 洁净煤技术, 2024, 30(增刊1):370-375.
	Zhang Jianhua. Dust diffusion law of receiving hopper in crushing station of open-pit coal mine[J]. Clean Coal Technology, 2024, 30(S1):370-375.
[14]	Ma Qingxin, Nie Wen, Yang Shibo, et al. Effect of spraying on coal dust diffusion in a coal mine based on a numerical simulation[J]. Environmental Pollution, 2020,264:DOI:10.1016/j.envpol.2020.114717.
[15]	Li Zijun, Wen Shiyi, Guan Xinjie, et al. Investigating the efficacy of foam-based dust particle capture for dust elimination in ore pass unloading: a similar experimental study[J]. Powder Technology, 2024,446:DOI:10.1016/j.powtec.2024.120191.
[16]	敖忠晨. 煤破碎站卸料口粉尘运移规律及降尘方法研究[D]. 徐州: 中国矿业大学, 2020.
	Ao Zhongchen. Study on dust migration law and dust reduction method at discharge outlet of coal crushing station[D]. Xuzhou: China University of Mining and Technology, 2020.
[17]	Fang Xueming, Yuan Liang, Jiang Bingyou, et al. Effect of water-fog particle size on dust fall efficiency of mechanized excavation face in coal mines[J]. Journal of Cleaner Production, 2020, 254:DOI:10.1016/j.jclepro.2020.120146.
[18]	荆德吉, 贾鑫, 张天, 等. 落煤过程中涡旋吹吸式除尘技术数值模拟及试验[J]. 中国安全科学学报, 2021, 31(6):121-127. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.016
	Jing Deji, Jia Xin, Zhang Tian, el al. Numerical simulation and experimental study on vortex blowing and suction dedusting technology during coal falling[J]. China Safety Science Journal, 2021, 31(6): 121-127. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.016
[19]	袁亮. 煤矿粉尘防控与职业安全健康科学构想[J]. 煤炭学报, 2020, 45(1):1-7.
	Yuan Liang. Scientifie conception of coal mine dust control and occupational safety[J]. Journal of China Coal Society, 2020, 45(1):1-7.
[20]	蒋仲安, 张兆盈, 张勇, 等. 选煤厂转载点多种控尘措施及智能排风效果分析[J]. 矿业安全与环保, 2024, 51(6):9-17,25.
	Jiang Zhongan, Zhang Zhaoying, Zhang Yong, et al. Analysis of vanous dust control measures and intelligent exhaust effect at transfer point of coal preparation plant[J]. Mining Safety & Environmental Protection, 2024, 51(6):9-17,25.

参数名称	参数设定
出口压力/Pa	0
空气密度/(kg/m³)	1.205
连续相动力黏度/(Pa·s)	1.8·10^-5
气体分子扩散系数/(m²/s)	2·10^-5
温度/K	293.15
壁设置	无滑移

露天矿卸料口旋流风幕模拟及纹影成像验证

Numerical simulation and schlieren imaging validation of a swirling air curtain at an open-pit mine discharge port

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 20

相关文章 15

编辑推荐

Metrics

本文评价

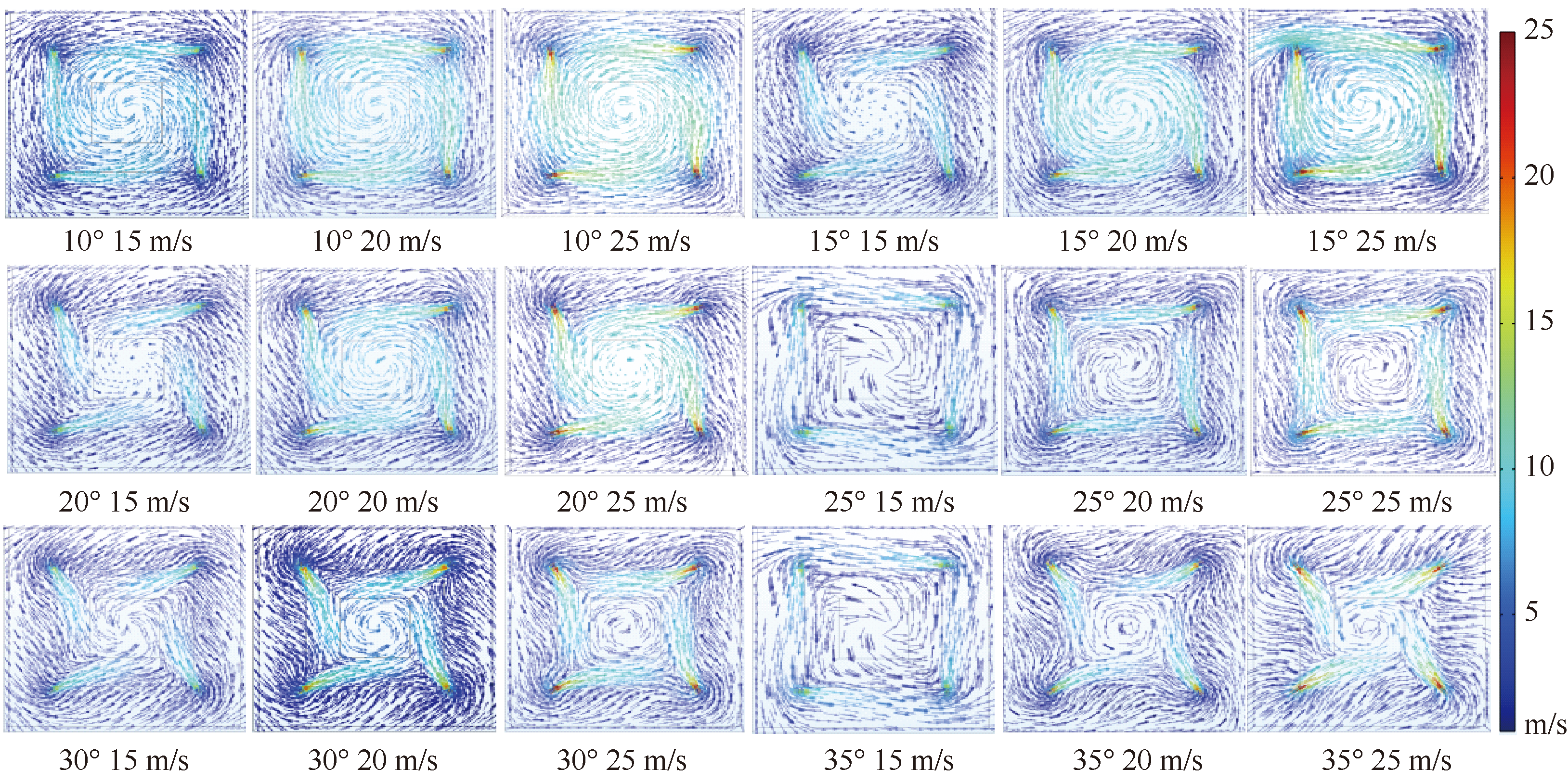

编号	条件		旋流风幕完整度	编号	条件		旋流风幕完整度
编号	入口角度/(°)	入口速度/(m/s)	旋流风幕完整度	编号	入口角度/(°)	入口速度/(m/s)	旋流风幕完整度
1	10	15	完整	10	25	15	不完整
2	10	20	较完整	11	25	20	不完整
3	10	25	完整	12	25	25	不完整
4	15	15	完整	13	30	15	一般完整
5	15	20	完整	14	30	20	一般完整
6	15	25	较完整	15	30	25	一般完整
7	20	15	完整	16	35	15	一般完整
8	20	20	完整	17	35	20	一般完整
9	20	25	完整	18	35	25	一般完整

[1]	谢尊贤, 马浩浩, 江松, 武潇云. 基于GA-BP神经网络的露天矿山排土场边坡失稳预测[J]. 中国安全科学学报, 2026, 36(3): 81-88.
[2]	孙祚, 佟瑞鹏, 齐庆杰, 刘英杰, 甘一雄, 孟城. 水位升降作用下露天矿岩质边坡变形破坏机制[J]. 中国安全科学学报, 2026, 36(2): 127-135.
[3]	郑斌, 王浩臣, 任义, 高永涛, 周喻. 露天矿采坑淤泥体原位疏干排水采掘设计与工程应用[J]. 中国安全科学学报, 2025, 35(S2): 139-146.
[4]	徐红剑, 姜旭桐, 于正兴, 张亦海, 陈才贤. 某露天矿排土场稳定性分析及诱发泥石流演进过程模拟[J]. 中国安全科学学报, 2025, 35(S2): 168-174.
[5]	杜文秀, 闫路. 露天采场边坡稳定性研究:以巴润矿为例[J]. 中国安全科学学报, 2025, 35(S2): 196-202.
[6]	蔡博渊, 于正兴, 任义, 张亦海, 马海涛, 王一丹. 基于CNN-LSTM模型的露天矿边坡表面变形预测[J]. 中国安全科学学报, 2025, 35(S2): 231-238.
[7]	常盛山, 庞一博. 极限平衡法下某露天矿采场多工况边坡稳定性分析[J]. 中国安全科学学报, 2025, 35(S2): 87-94.
[8]	杨奉展, 顾清华, 李少博, 杨建春. 露天矿低能见度下多模态融合障碍物检测[J]. 中国安全科学学报, 2025, 35(5): 195-203.
[9]	田森, 龚远恒, 李永新, 赵映, 王光进, 司鹄. 寒区露天矿边坡裂隙岩体冻-动联合损伤劣化特性研究[J]. 中国安全科学学报, 2025, 35(4): 85-93.
[10]	刘光伟, 张浩博, 雷健, 黄云龙, 任崇辉. 面向露天矿无人矿卡行驶障碍物检测模型[J]. 中国安全科学学报, 2025, 35(11): 49-55.
[11]	顾清华, 殷书檀, 王丹, 李学现, 尹慧民. 基于改进YOLOv8的矿卡司机疲劳驾驶检测[J]. 中国安全科学学报, 2025, 35(1): 60-66.
[12]	于海成, 田羽, 李庆健, 李新鹏, 薛国庆, 张玉华. 基于红外图像和目标检测的露天矿火灾探测技术[J]. 中国安全科学学报, 2024, 34(S1): 212-218.
[13]	魏德志, 杜志勇, 滕春阳, 辛吴天, 李泽坤. 露天矿破碎站链条断裂安全监测技术研究[J]. 中国安全科学学报, 2023, 33(S2): 170-175.
[14]	田丰, 唐晓骞, 乔东青. 基于SA-CSA算法的露天矿卡车调度优化方法[J]. 中国安全科学学报, 2023, 33(S2): 176-181.
[15]	赵忠奇, 于海成, 白宝山, 谢苗. 露天矿洒水车注水口自动识别与定位技术研究[J]. 中国安全科学学报, 2023, 33(S2): 216-221.

入口角度/(°)	入口1 速度/(m/s)	入口2 速度/(m/s)	入口3 速度/(m/s)
10	15	20	25
15	15	20	25
20	15	20	25
25	15	20	25
30	15	20	25
35	15	20	25
