综合管廊弯道处掺氢天然气爆炸特性及控爆措施

doi:10.16265/j.cnki.issn1003-3033.2026.07.0828

中国安全科学学报 ›› 2026, Vol. 36 ›› Issue (7): 144-152.doi: 10.16265/j.cnki.issn1003-3033.2026.07.0828

综合管廊弯道处掺氢天然气爆炸特性及控爆措施

曹娇娇¹(), 吴建松¹^,^**(), 姚卫²^,³

¹ 中国矿业大学(北京) 应急管理与安全工程学院, 北京 100083
² 中国科学院力学研究所空天飞行高温气动全国重点试验室, 北京 100190
³ 中国科学院大学工程科学学院, 北京 100049

收稿日期:2026-02-28 修回日期:2026-05-22 出版日期:2026-07-28
通信作者:
^**吴建松(1985—),男,河北邯郸人,博士,教授,主要从事城市公共安全方面的研究。E-mail: jiansongwu@hotmail.com。
作者简介:
曹娇娇 (1997—),女,河北邢台人,博士研究生,主要研究方向为综合管廊燃气爆炸与气体爆炸数值仿真。E-mail:caojjiao@163.com。
姚卫, 研究员
基金资助:
中央高校青年教师科研创新能力支持项目(ZYGXQNJSKYCXNLZCXM-E17)

Explosion characteristics and explosion control measures of hydrogen-enriched natural gas in curved sections of utility tunnels

Cao Jiaojiao¹(), Wu Jiansong¹^,^**(), Yao Wei²^,³

¹ School of Emergency Management and Safety Engineering, China University of Mining and Technology-Beijing, Beijing 100083, China
² State Key Laboratory of High Temperature Gas Dynamics, Institute of Mechanics, Chinese Academy of Science, Beijing 100190, China
³ School of Engineering Science, University of Chinese Academy of Science, Beijing 100049, China

Received:2026-02-28 Revised:2026-05-22 Published:2026-07-28

摘要/Abstract

摘要：

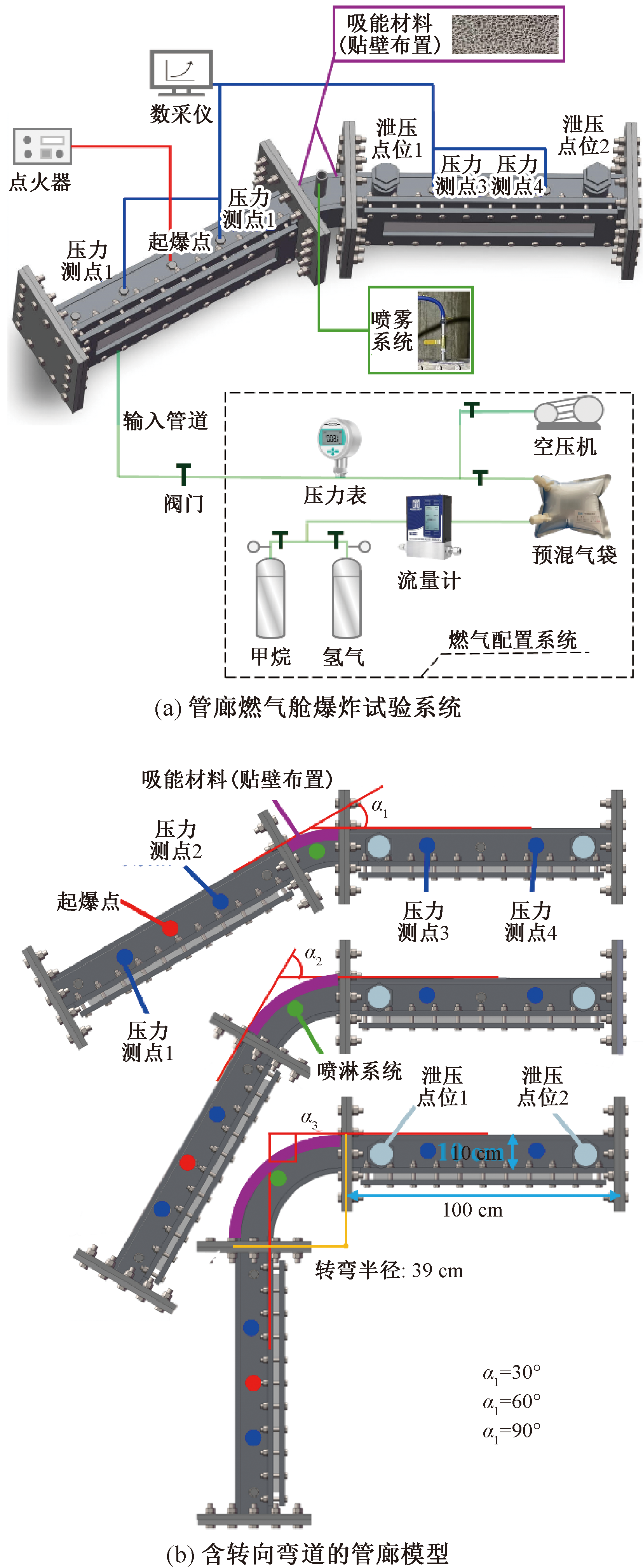

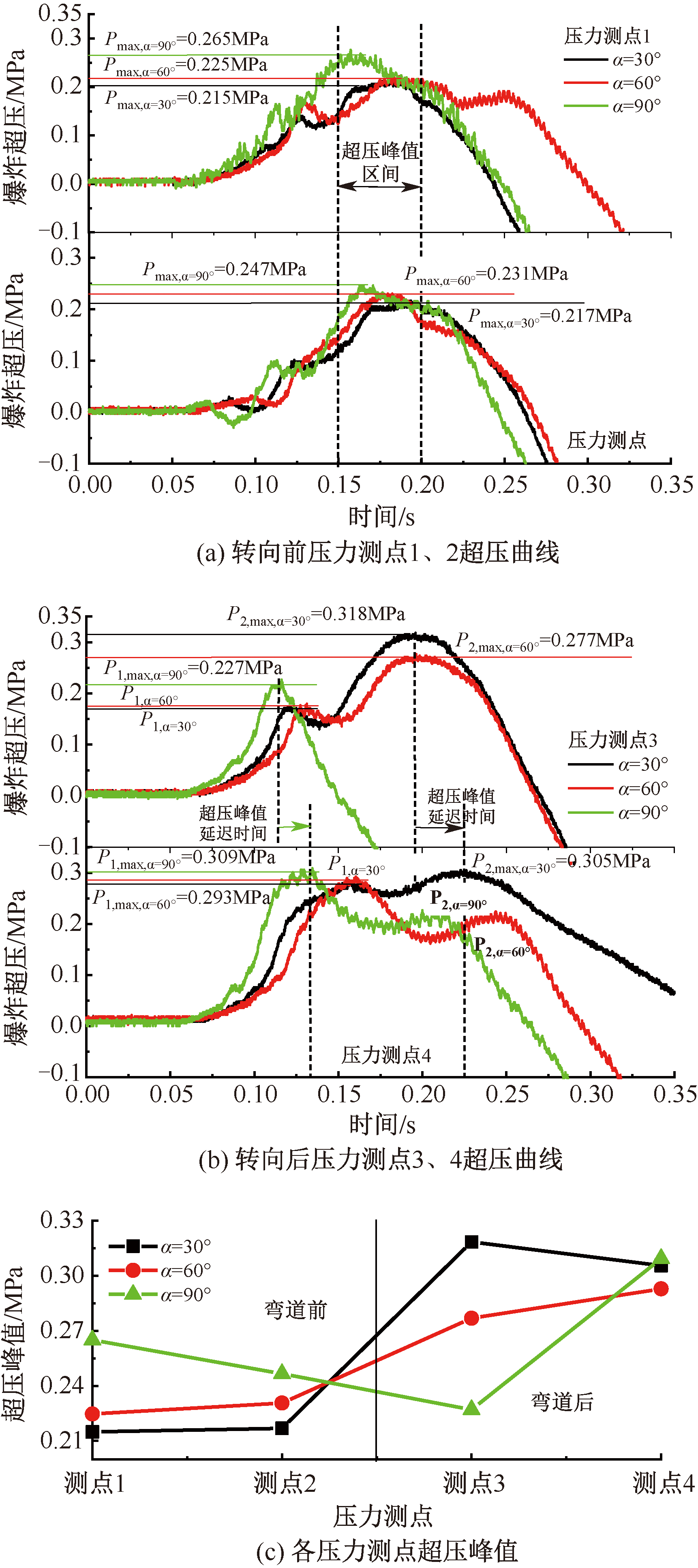

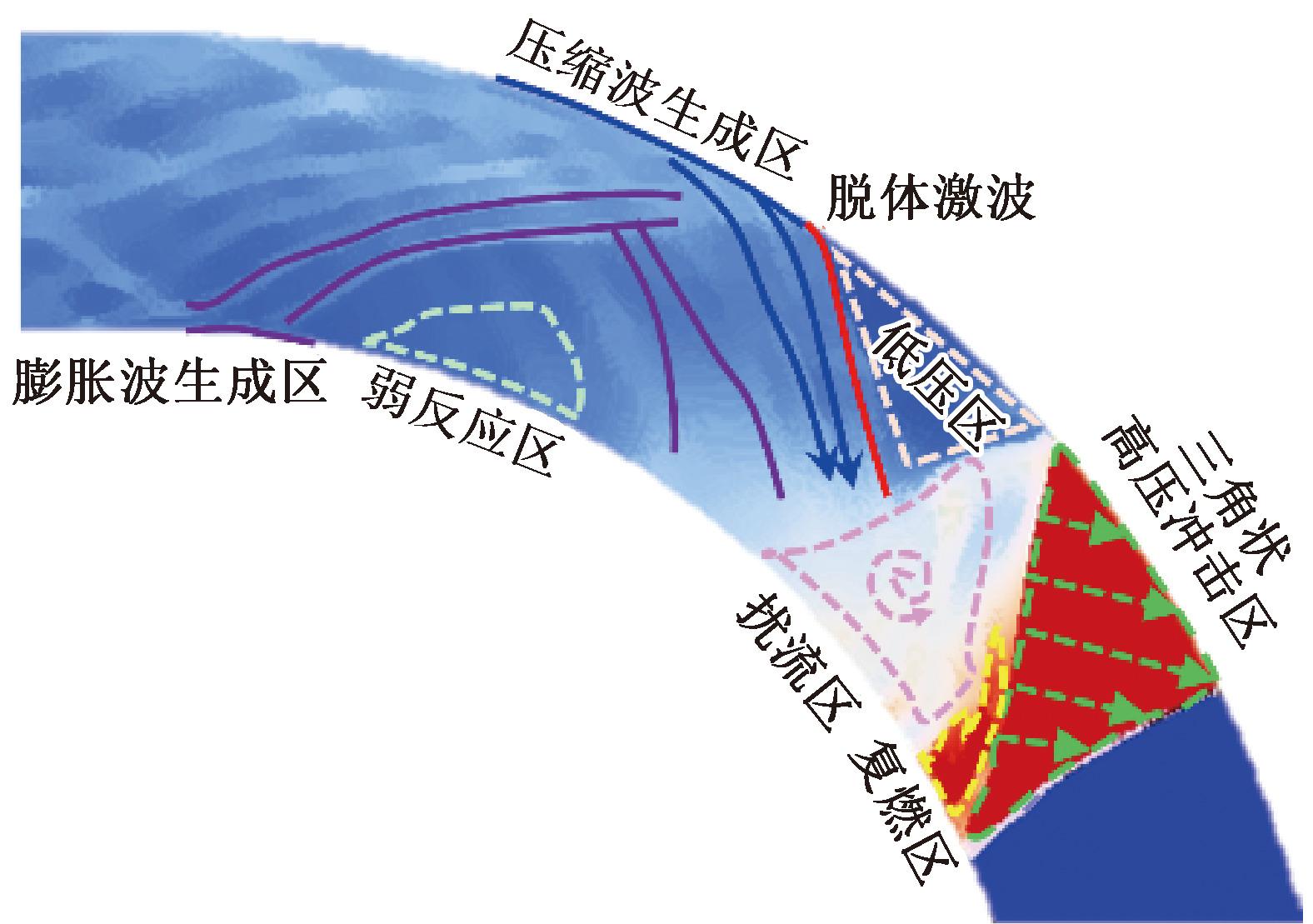

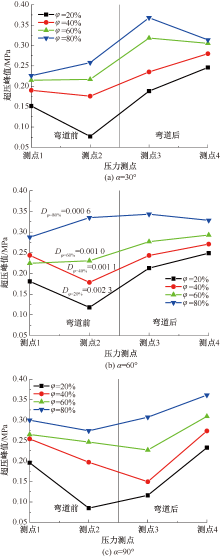

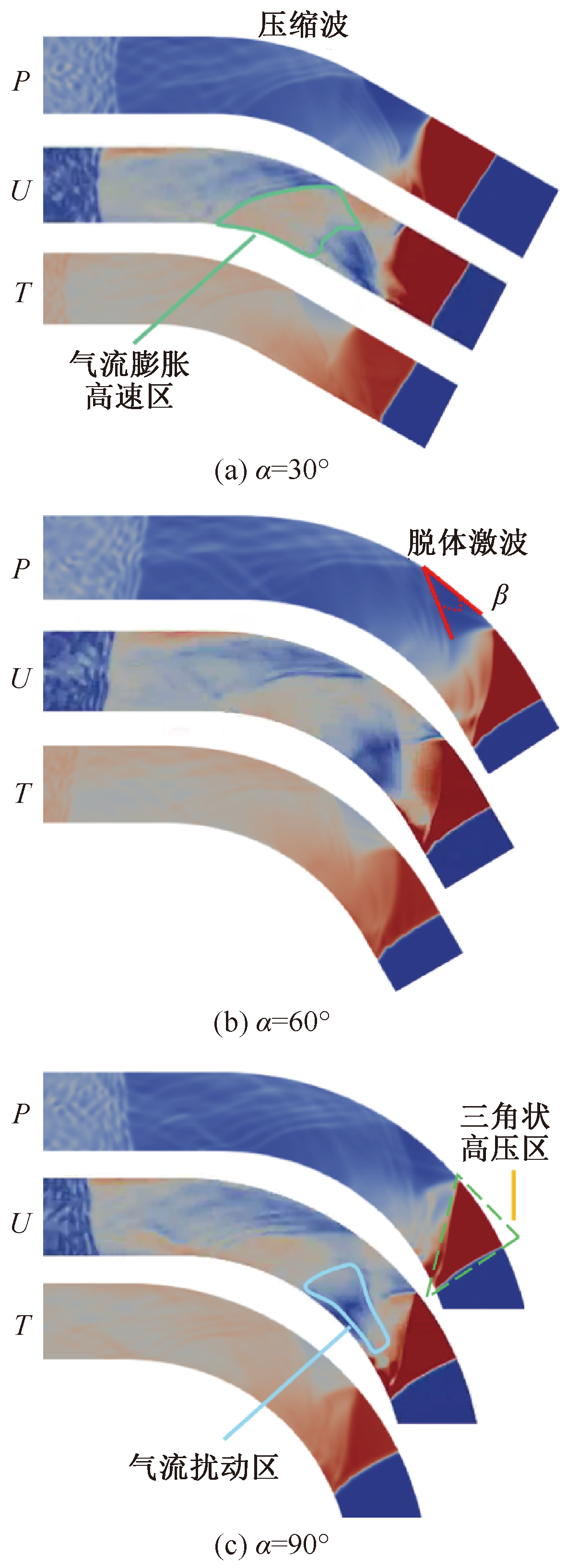

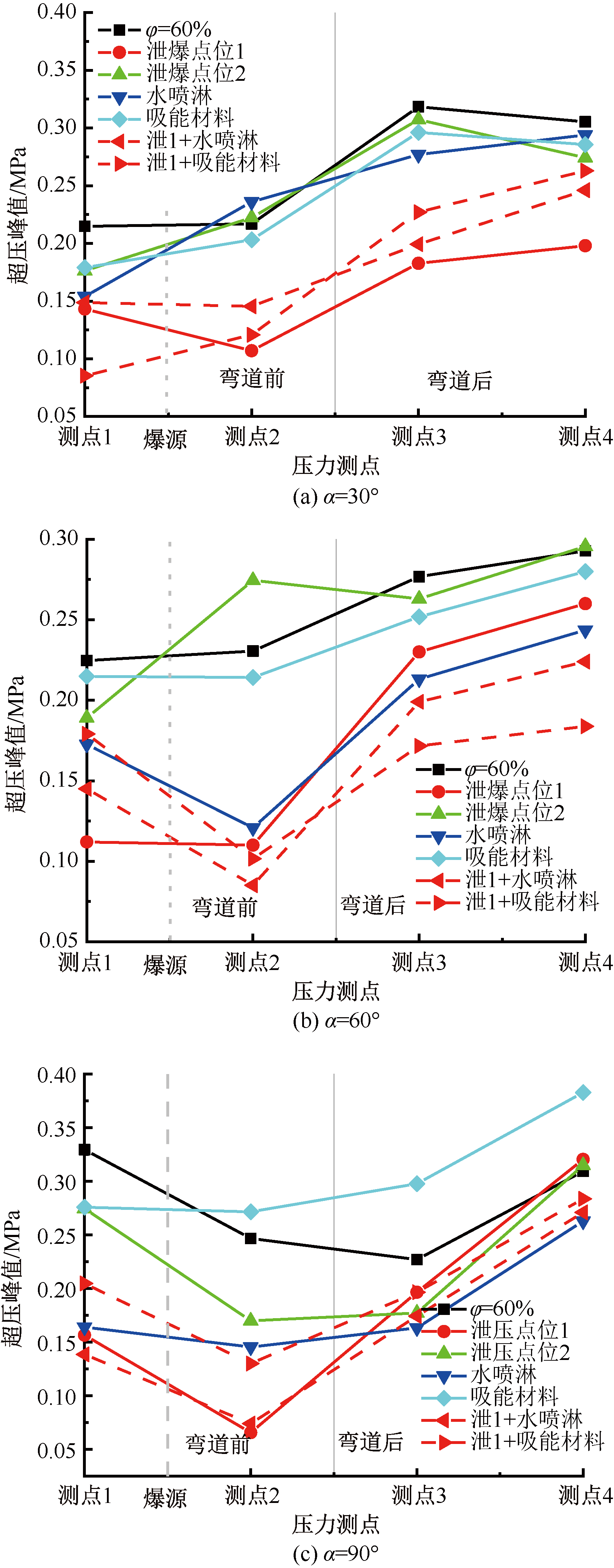

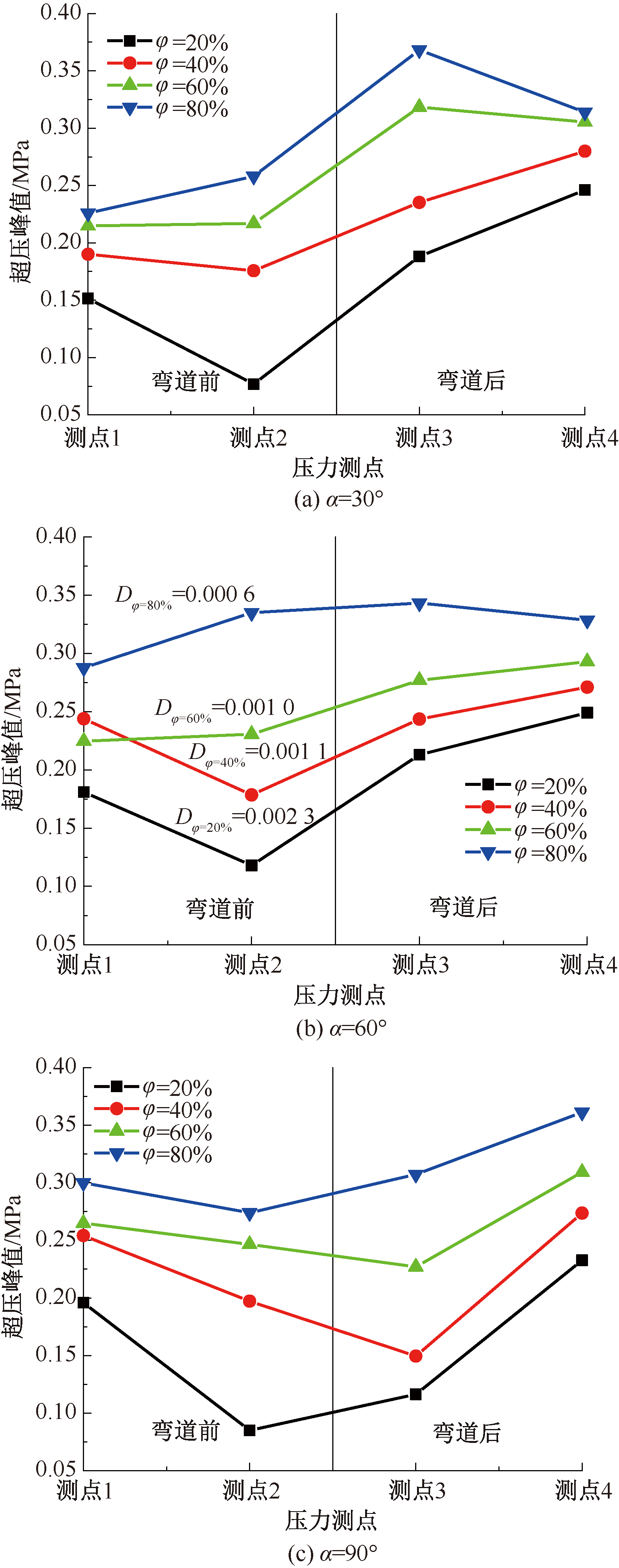

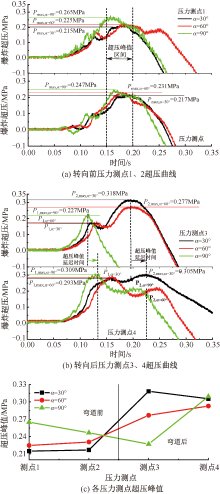

为解决含转向弯道综合管廊燃气舱掺氢天然气泄漏爆炸传播特性不明、防控方法低效等问题,采用自主研发的管廊爆炸缩尺试验系统、OpenFOAM数值模拟仿真技术和爆炸动力学理论,研究转向弯道对爆炸传播特性的影响及弯道处爆炸控制方法。结果表明:高含氢量的掺氢天然气在转向弯道附近爆炸威力激增;管廊转向前爆炸超压峰值随转向角增大而增大,转向后则相反;大角度弯道对转向后管廊结构具有保护作用;管廊转向弯道处激波绕射形成弱化学反应区,随转向角度增大演变为三角高压区;弯道泄压口在直角弯道下控爆效率最高达到73.33%,水喷淋系统为50.21%,吸能材料为16.31%。

关键词: 综合管廊, 弯道, 掺氢天然气, 爆炸特性, 控爆措施

Abstract:

The problems of unclear laws of hydrogen-enriched natural gas explosion propagation in the gas compartment in curved utility tunnels and inefficient explosion prevention and control methods were addressed. To achieve this, a scaled explosion experimental system, numerical simulation technology (OpenFOAM), and explosion dynamics theory were designed. The influence of turning bends on explosion propagation characteristics was studied. The explosion control mechanisms of explosion control methods at bends were analyzed. The results show that the explosion power of hydrogen-enriched natural gas with rich hydrogen surges near turning bends. The explosion overpressure peak before the tunnel turns is increased with the increase of the turning angle, while it is the opposite after turning. The tunnel structure after turning is protected by the large-angle bends. Shock wave diffraction is formed at the turning bends of the tunnel, and the formation of a weak chemical reaction zone is led to, and a triangular high-pressure zone is formed at the turning point with the increase of the turning angle. Therefore, the bend and the tunnel structure after turning can be effectively protected by setting explosion control measures at bends. Among them, the highest explosion control efficiency of the explosion vent at the bend is as high as 73.33%. The highest explosion control efficiency of the water spray system is 50.21%, while the highest explosion control efficiency of the energy-absorbing material is 16.31%. A reference basis for the layout strategy of explosion consequence control measures in the gas compartment at curved utility tunnels can be provided by the research results.

Key words: utility tunnels, curve, hydrogen-enriched natural gas, explosion charcteristics, explosion control measures

中图分类号:

X932爆炸安全与防火、防爆

曹娇娇, 吴建松, 姚卫. 综合管廊弯道处掺氢天然气爆炸特性及控爆措施[J]. 中国安全科学学报, 2026, 36(7): 144-152.

Cao Jiaojiao, Wu Jiansong, Yao Wei. Explosion characteristics and explosion control measures of hydrogen-enriched natural gas in curved sections of utility tunnels[J]. China Safety Science Journal, 2026, 36(7): 144-152.

图/表 11

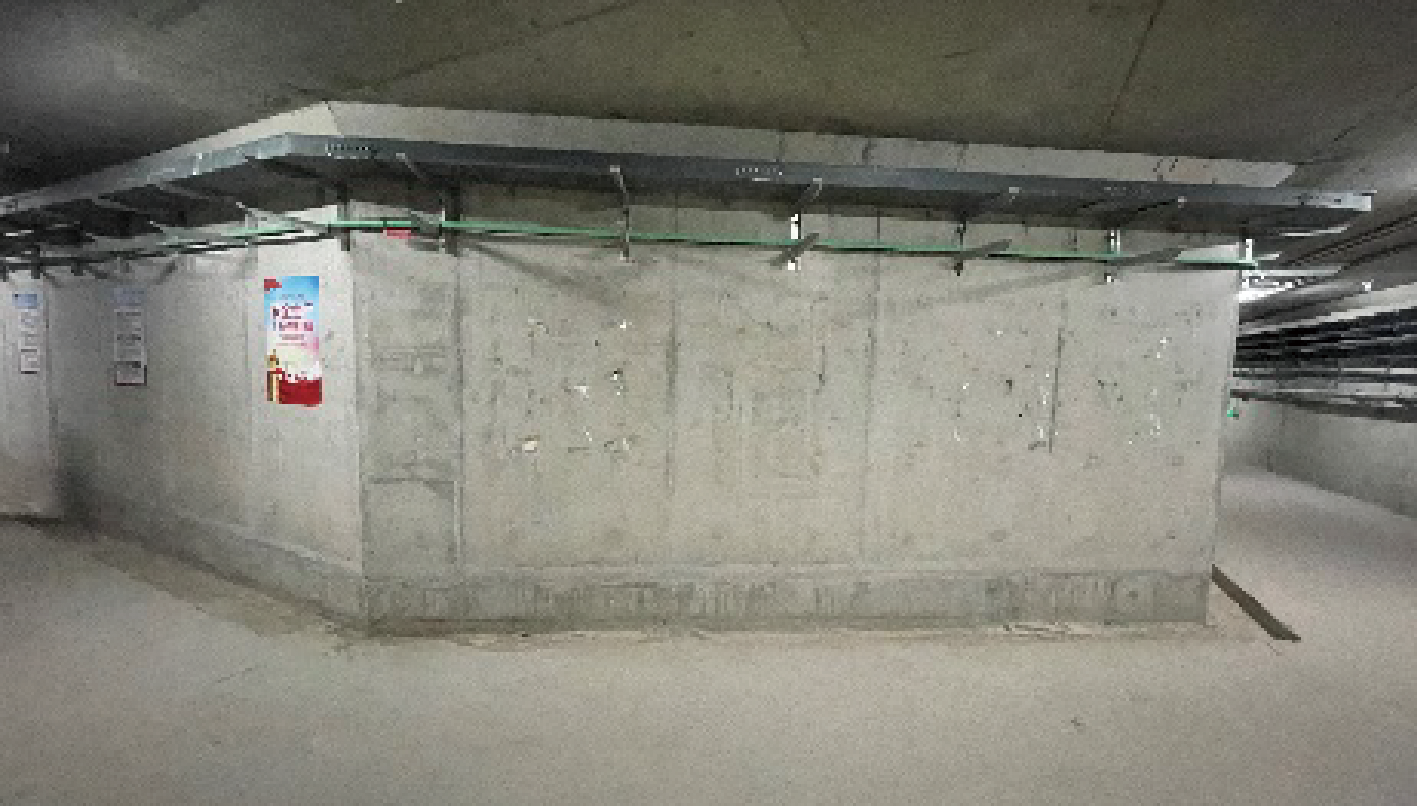

图1

图2

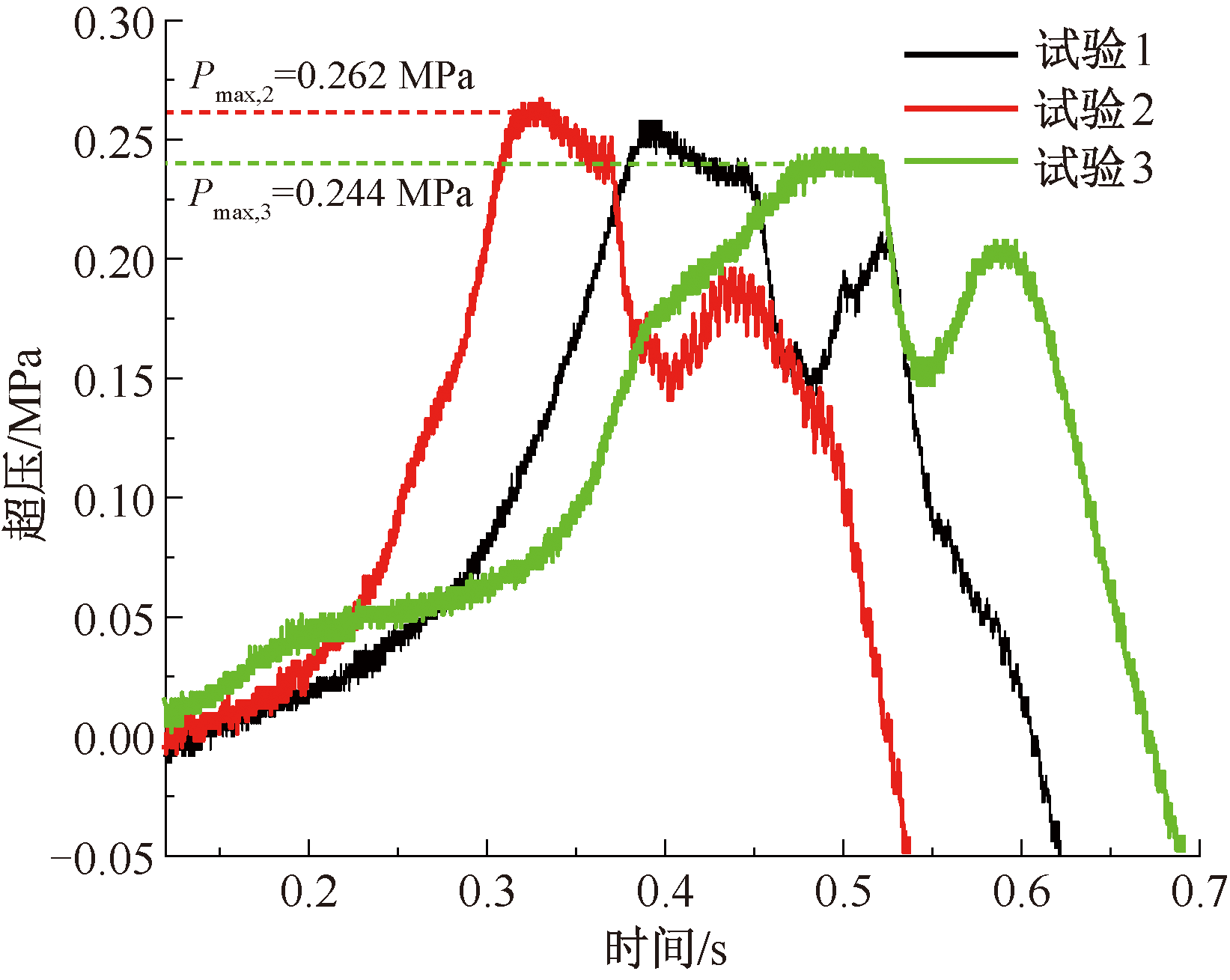

图3

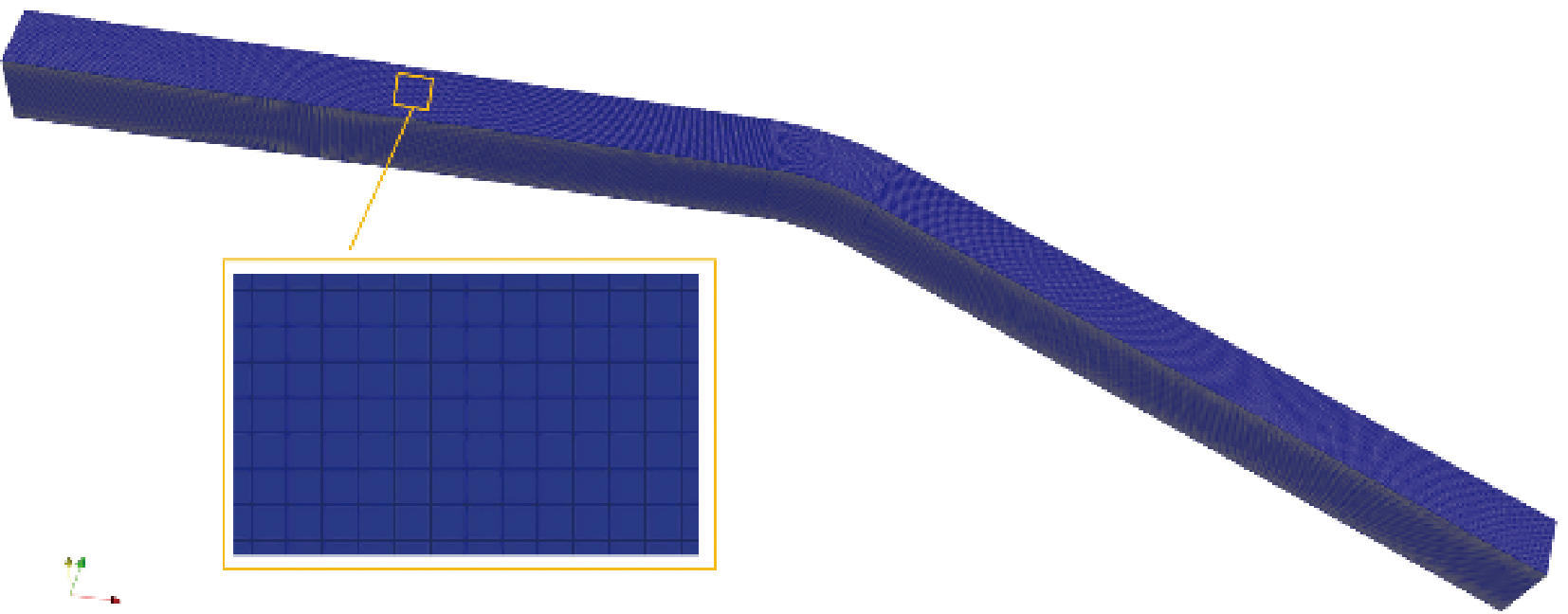

图4

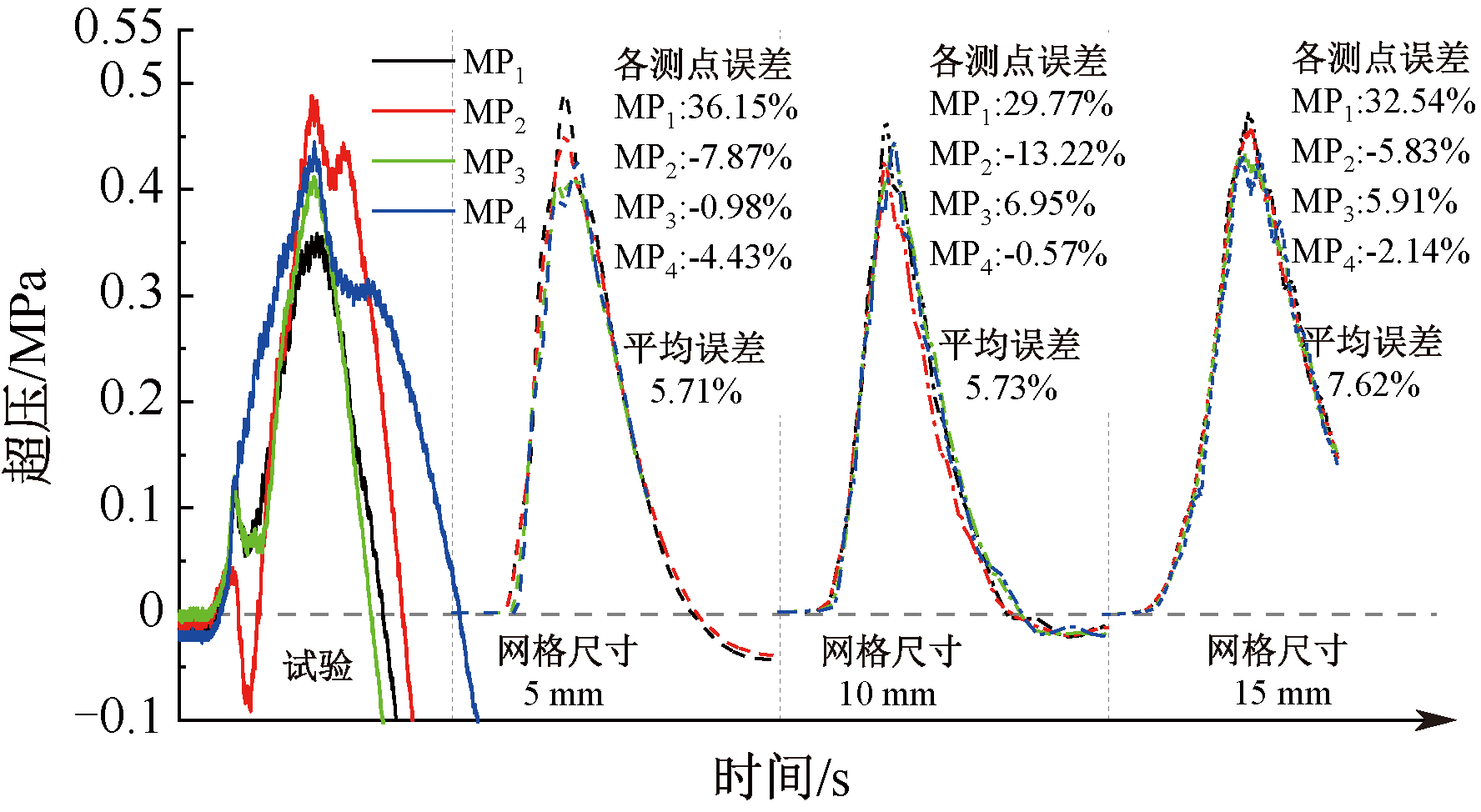

图5

图6

图7

图8

图9

图10

图11

参考文献 22

[1]	Cao Jiaojiao, Wu Jiansong, Zhang Haonan, et al. Experimental study on hydrogen-blended natural gas explosion characteristic and severity control measure in utility tunnels[J]. International Journal of Hydrogen Energy, 2024, 92: 738-747. doi: 10.1016/j.ijhydene.2024.10.301
[2]	GB/T 50838—2015城市综合管廊工程技术标准[S].
	GB/T50838-2015 Standard for urban utility tunnel engineering[S].
[3]	尚娟, 鲁仰辉, 郑津洋, 等. 掺氢天然气管道输送研究进展和挑战[J]. 化工进展, 2021, 40(10): 5499-5505. doi: 10.16085/j.issn.1000-6613.2020-2140
	Shang Juan, Lu Yanghui, Zheng Jinyang, et al. Research status-in-situ and key challenges in pipeline transportation of hydrogen-natural gas mixtures[J]. Chemical Industry and Engineering Progress, 2021, 40(10): 5499-5505.
[4]	制氢电解槽和输氢管道: 欧洲氢能下一步的着力点[EB/OL]. [2023-07-29]. https://www.sohu.com/a/707356091_121117085.html.
[5]	孙菲. “双碳”目标下掺氢燃气发电的现状与思考[J]. 当代石油石化, 2023, 31(2):40-44.
	Sun Fei. Current situation and thinking of hydrogen blending in gas power generation under "dual carbon" goals[J]. Petroleum & Petrochemical Today, 2023, 31(2):40-44.
[6]	全晓波. 全国政协委员,香港恒基兆业集团主席、香港中华煤气有限公司主席李家杰:借鉴香港经验推进天然气管网掺氢试点[N]. 中国能源报,2023-03-13 (006).
[7]	王洪建. 天然气掺氢:大规模开发绿氢的前奏[J]. 能源评论, 2023(5):60-63.
[8]	王洪建. 天然气掺氢与纯氢管道输送技术研究进展[J]. 管道保护, 2024(5):4-7.
[9]	Chen Di, Zhang Huaxin, Li Jun, et al. A full-scale experimental investigation of natural gas explosion in a 710-m long utility tunnel with multiple pipelines[J]. Tunnelling and Underground Space Technology, 2024, 153: DOI:10.1016/j.tust.2024.106049.
[10]	Xue Yongzhi, Chen Guohua, Zhang Qiang, et al. Simulation of the dynamic response of an urban utility tunnel under a natural gas explosion[J]. Tunnelling and Underground Space Technology, 2021, 108: DOI:10.1016/J.TUST.2020.103713.
[11]	Pang Lei, Li Wei, Yang Kai. Gas explosion overpressure loads in utility tunnels under different pipe support spacing[J]. Tunnelling and Underground Space Technology, 2025, 155: DOI:10.1016/J.TUST.2024.106193.
[12]	Yang Kai, Li Wei, Dai Xiaole, et al. Effect of hydrogen ratio on leakage and explosion characteristics of hydrogen-blended natural gas in utility tunnels[J]. International Journal of Hydrogen Energy, 2024, 64:132-147. doi: 10.1016/j.ijhydene.2024.03.247
[13]	Xu Ying, Huang Yimiao, Li Jingde, et al. A risk-based optimal pressure relief opening design for gas explosions in underground utility tunnels[J]. Tunnelling and Underground Space Technology, 2021, 116: DOI:10.1016/J.TUST.2021.104091.
[14]	Duan Yulong, Liu Liwen, Yang Jie, et al. Effects of explosion-venting interlayer within utility tunnels on the characteristics of natural gas explosions[J]. Fuel, 2024, 377: DOI:10.1016/J.FUEL.2024.132766.
[15]	Cao Jiaojiao, Xu Tong, Wu Jiansong. Experimental study on hydrogen-blended natural gas explosion in utility tunnels: explosion control and optimization strategy[J]. Journal of Loss Prevention in the Process Industries, 2025, 97: DOI:10.1016/J.JLP.2025.105700.
[16]	Cao Jiaojiao, Wu Jiansong, Zhao Yimeng, et al. Suppression effects of energy-absorbing materials on natural gas explosion in utility tunnels[J]. Energy, 2023, 281: DOI:10.1016/J.ENERGY.2023.128262.
[17]	姚卫, 刘杭, 张政, 等. 基于动态分区概念的高超声速燃烧大涡模拟[J]. 力学学报, 2022, 54(4):954-974.
	Yao Wei, Liu Hang, Zhang Zheng, et al. Large eddy simulation of hypersonic combustion based on dynamic zone concept[J]. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(4): 954-974.
[18]	Gregory P S, David M G, Michael F, et al. GRI-Mech[EB/OL]. [1999-03-12]. http://www.me.berkeley.edu/gri_mech/.html.
[19]	Jachimowski C J. Analytical study of the hydrogen-air reaction mechanism with application to scramjet combustion[R], 1988.
[20]	Spalart P R, Allmaras S R. A one-equation turbulence model for aerodynamic flows[J]. Recherche Aerospatiale, 1992, 439:5-21.
[21]	Golovitchev V I, Nordin N, Jarnicki R. 3-D diesel spray simulations using a new detailed chemistry turbulent combustion model[J]. SAE Transactions, 2000, 109(4):1391-1405.
[22]	Nan Fan, Luo Zhenmin, Cheng Fangming, et al. Research progress and development trends of hydrogen explosion suppression materials and mechanisms[J]. Process Safety and Environmental Protection, 2024, 184:1318-1331. doi: 10.1016/j.psep.2024.02.062
