防火密封胶理化性能、热解和燃烧特性研究

doi:10.16265/j.cnki.issn1003-3033.2026.09.1312

摘要/Abstract

摘要：

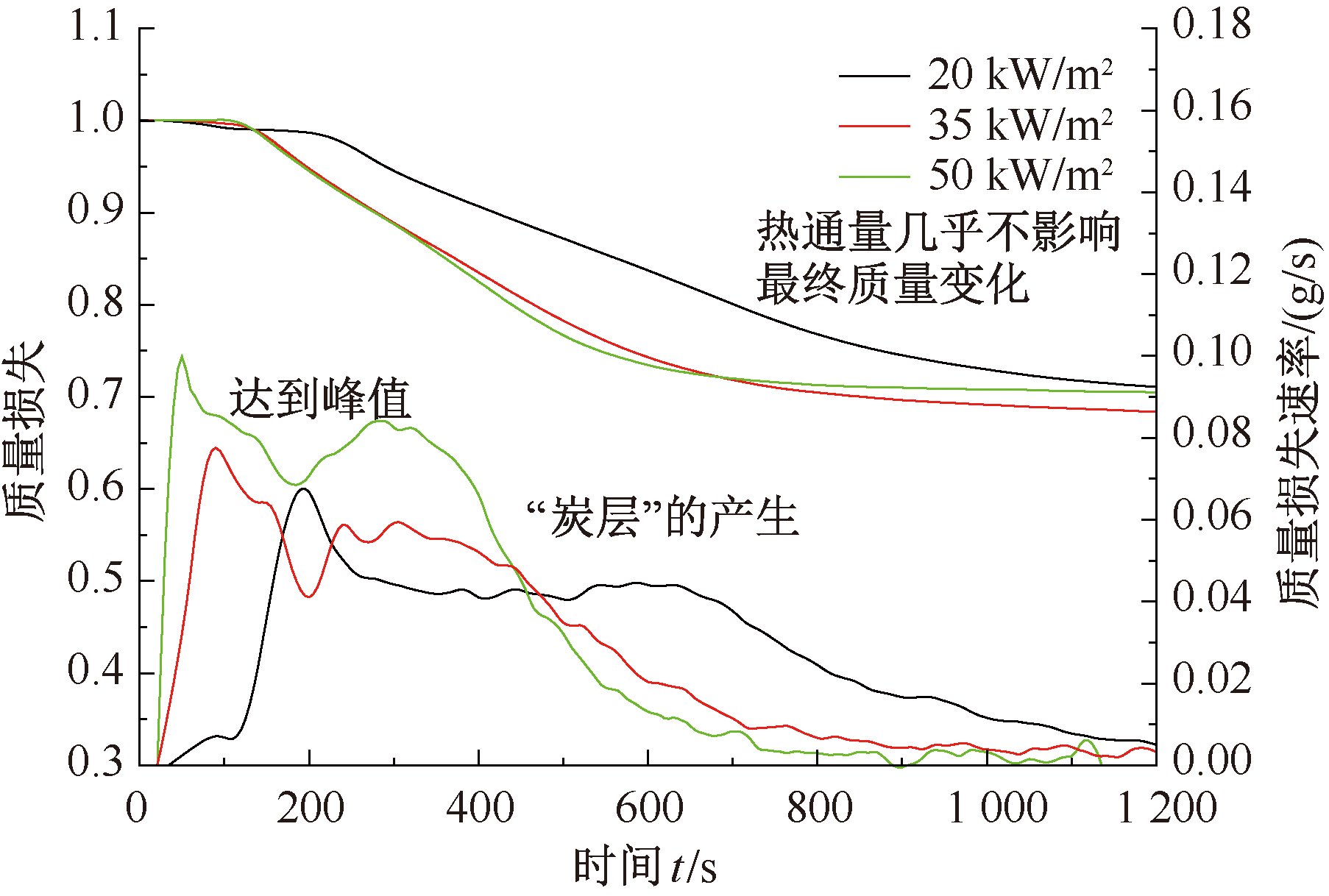

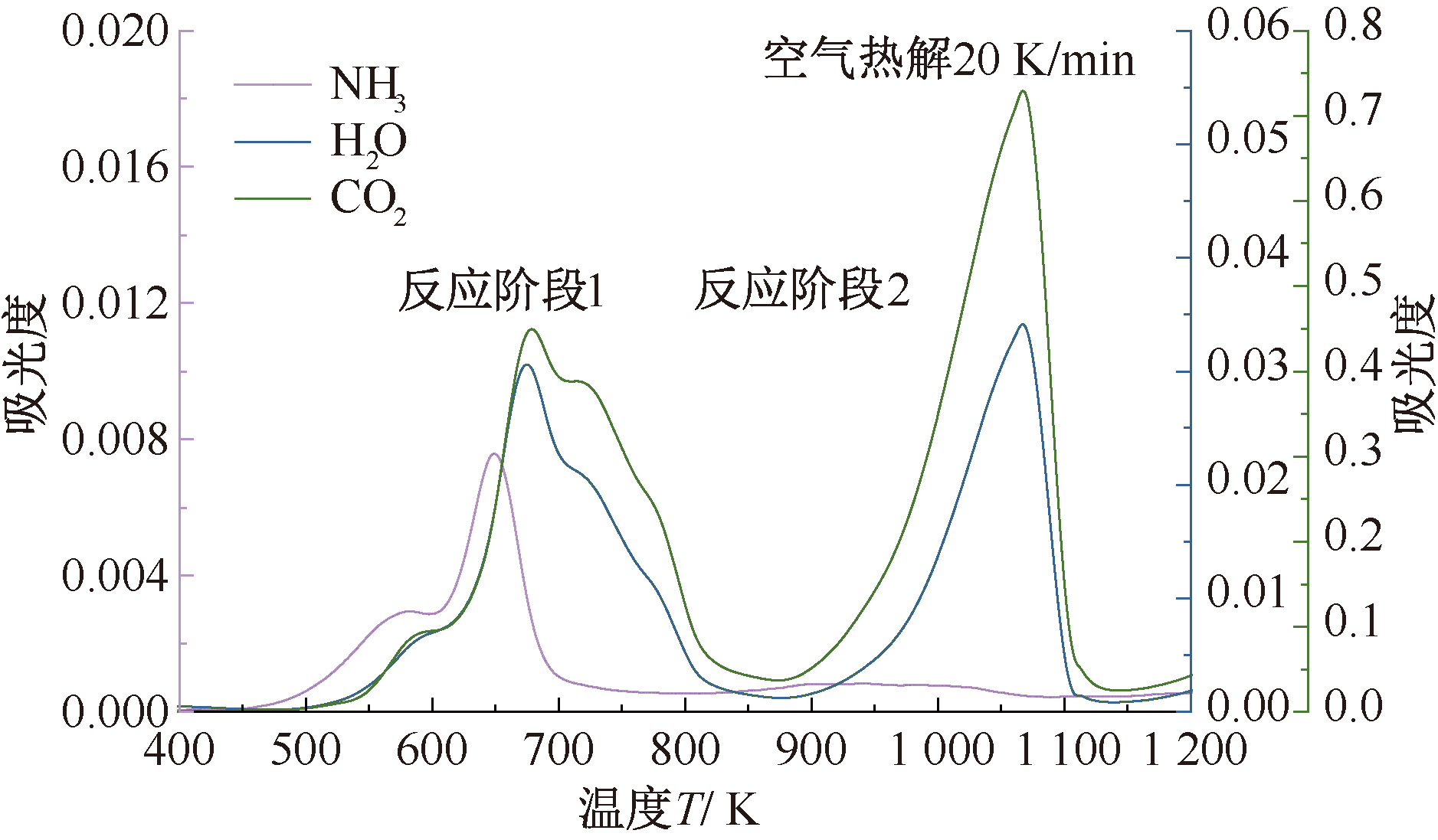

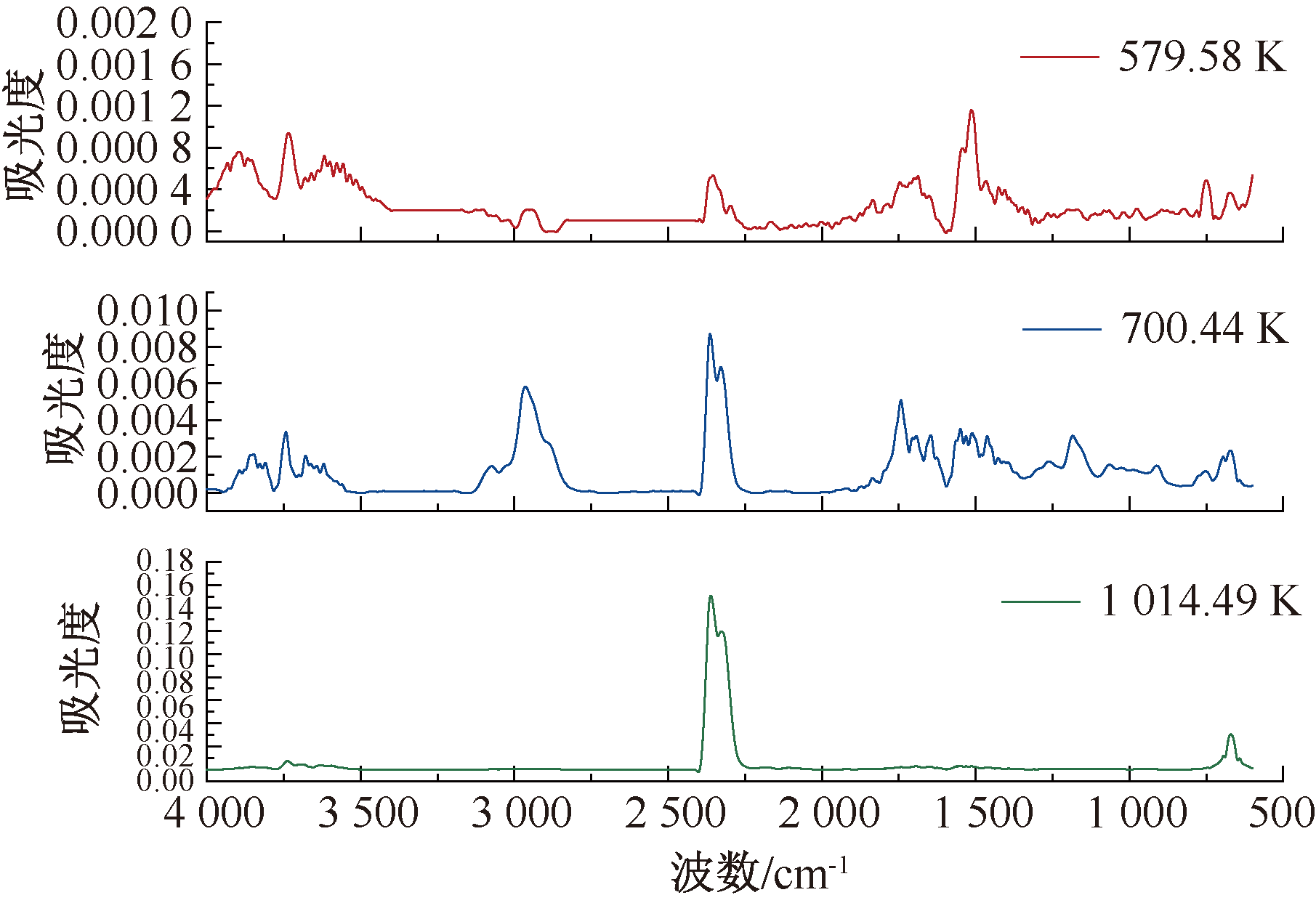

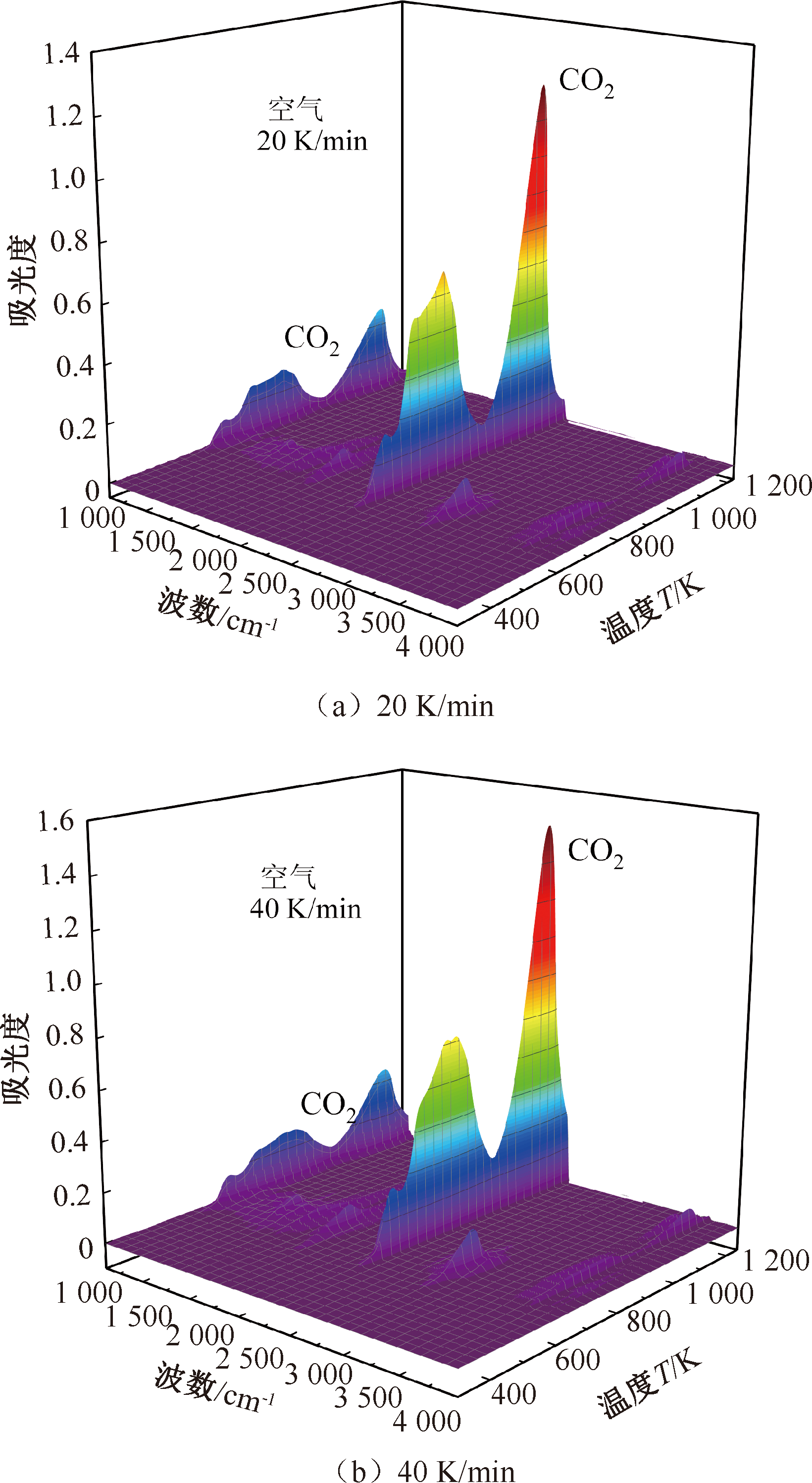

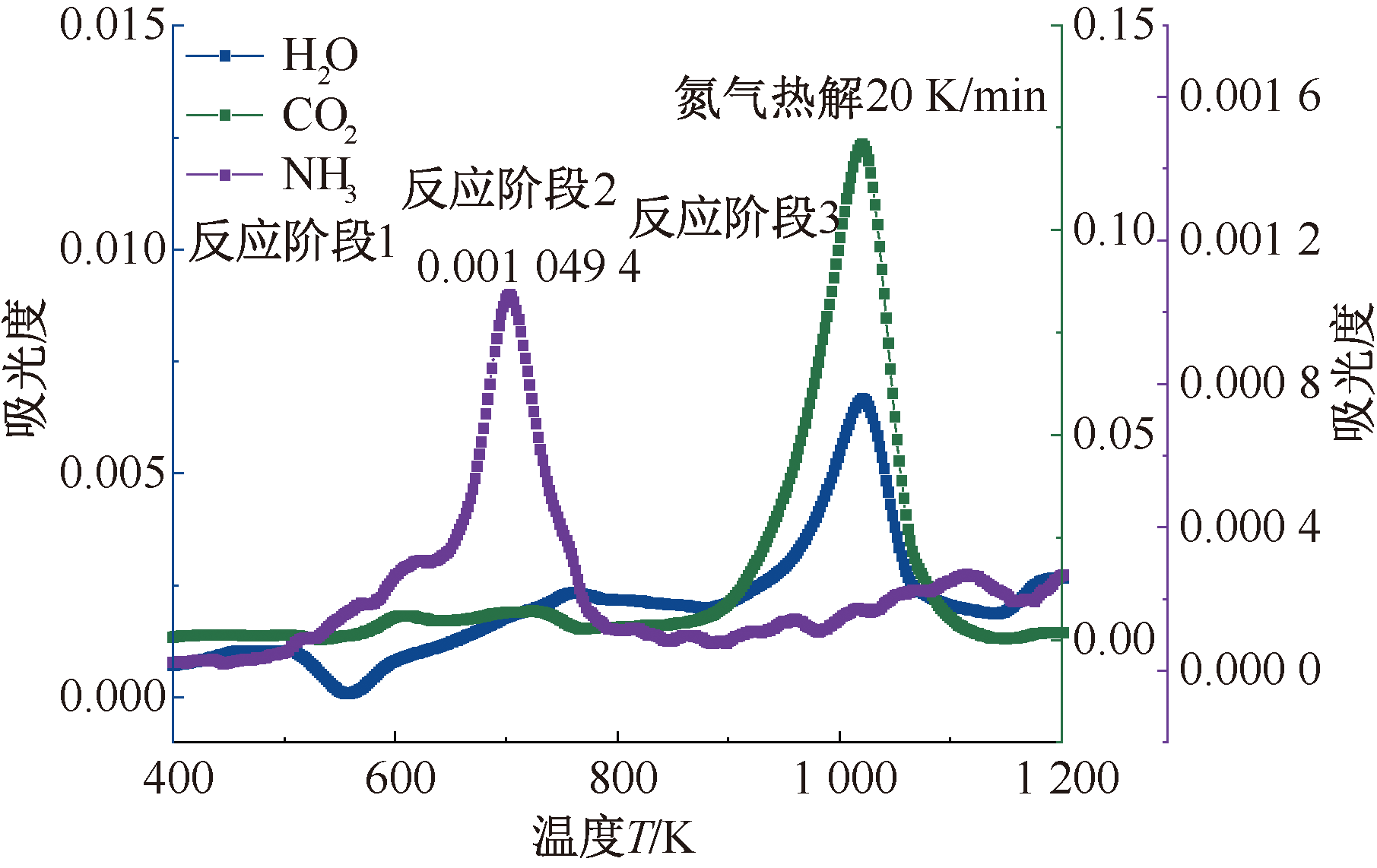

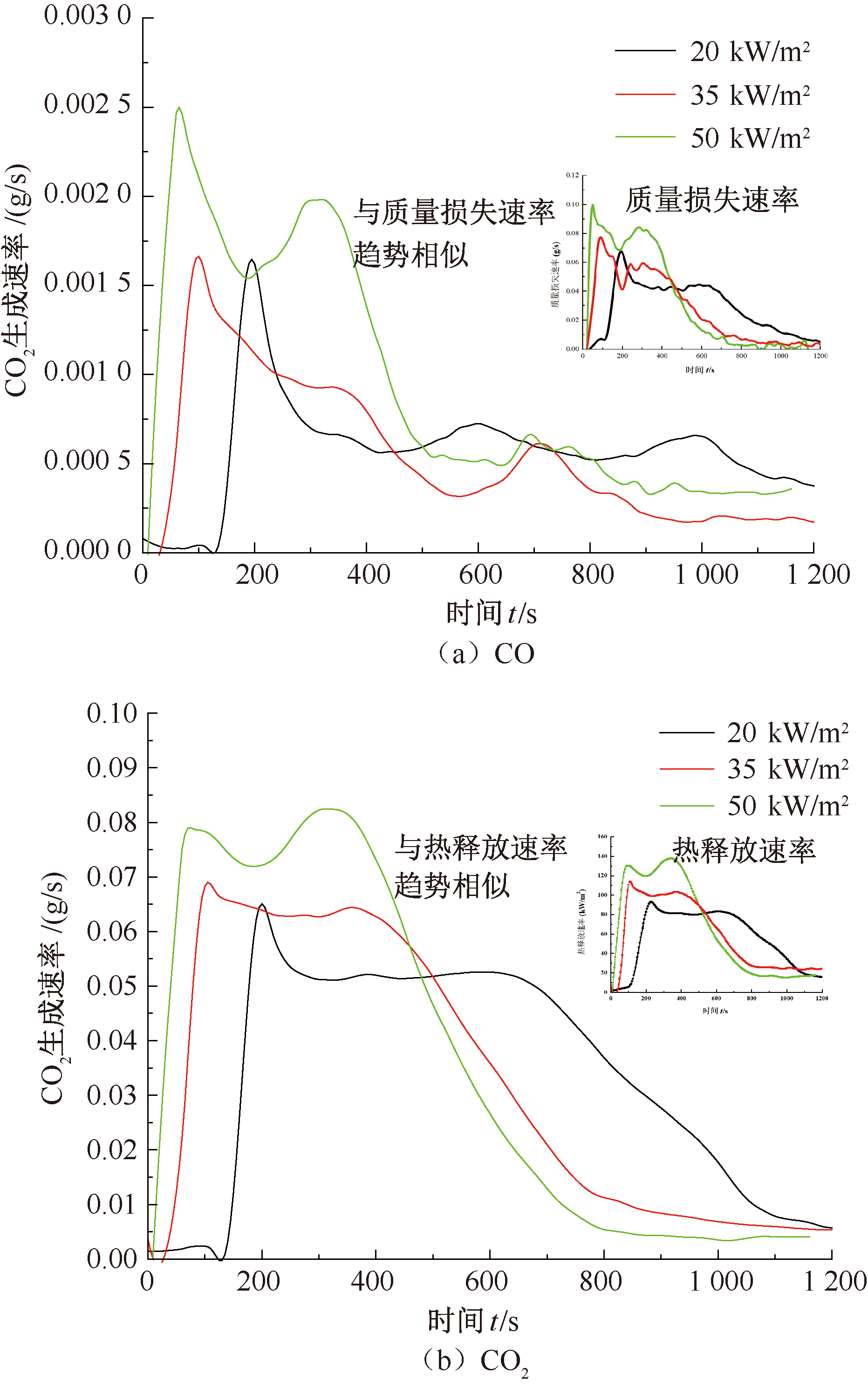

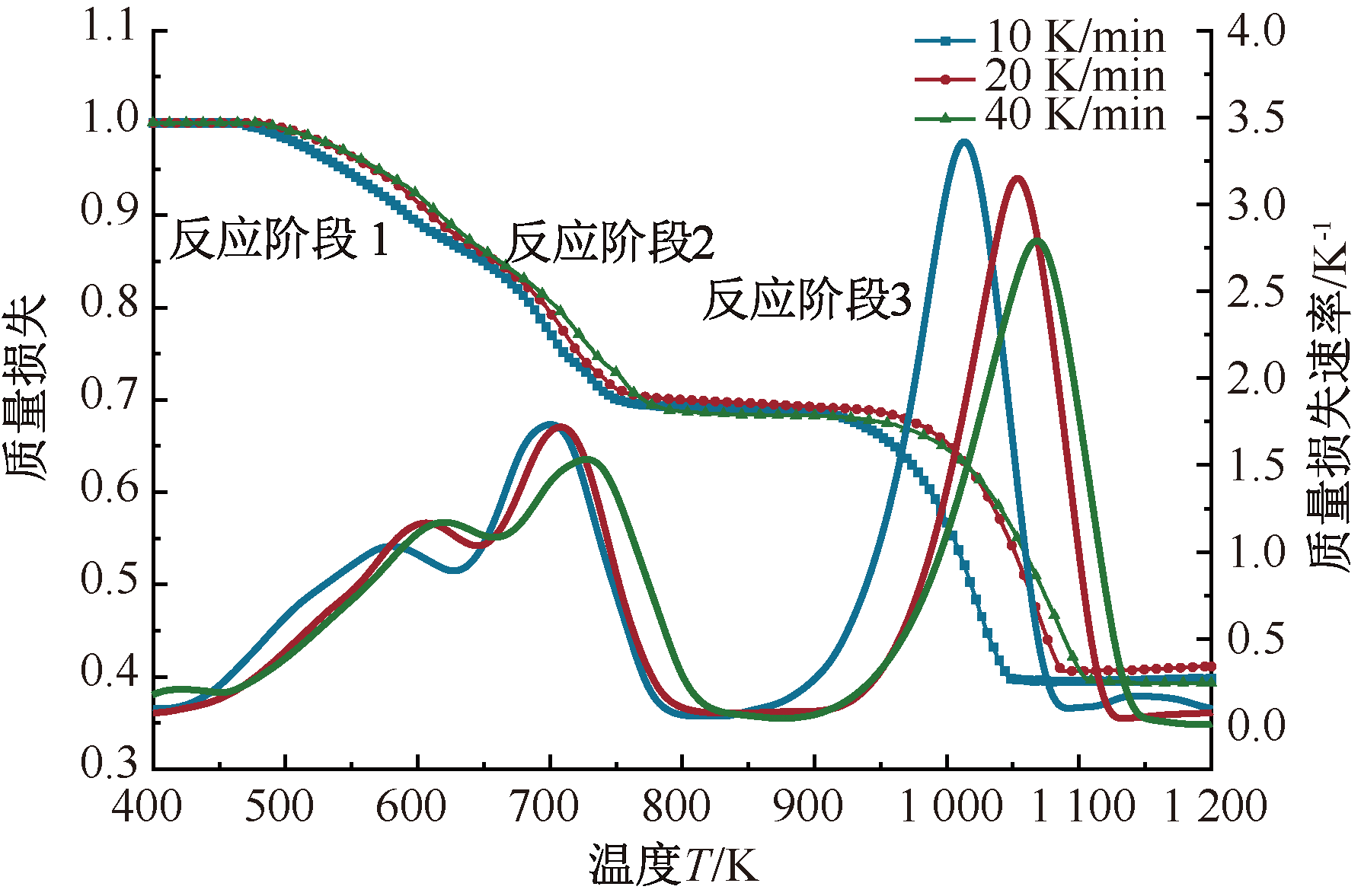

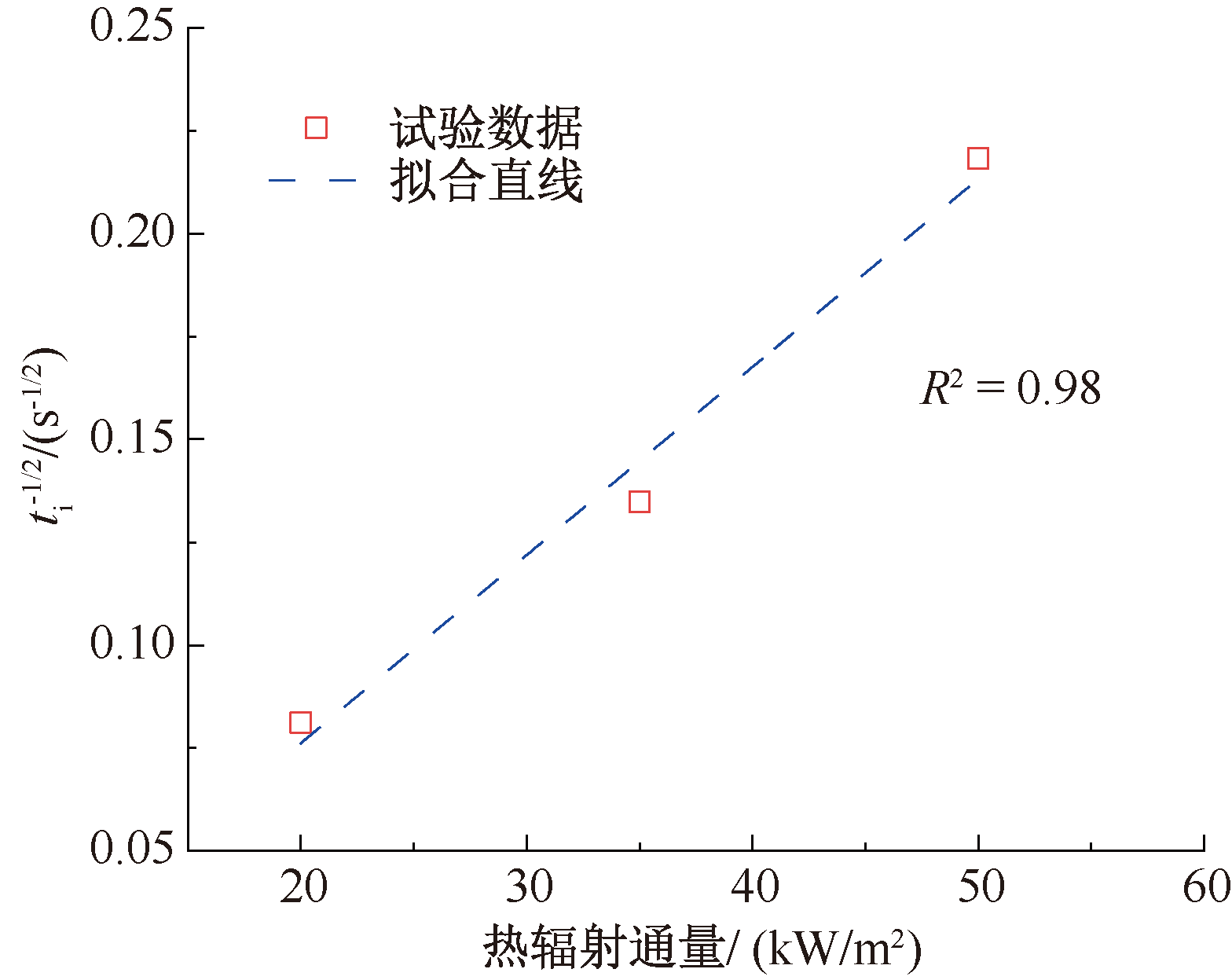

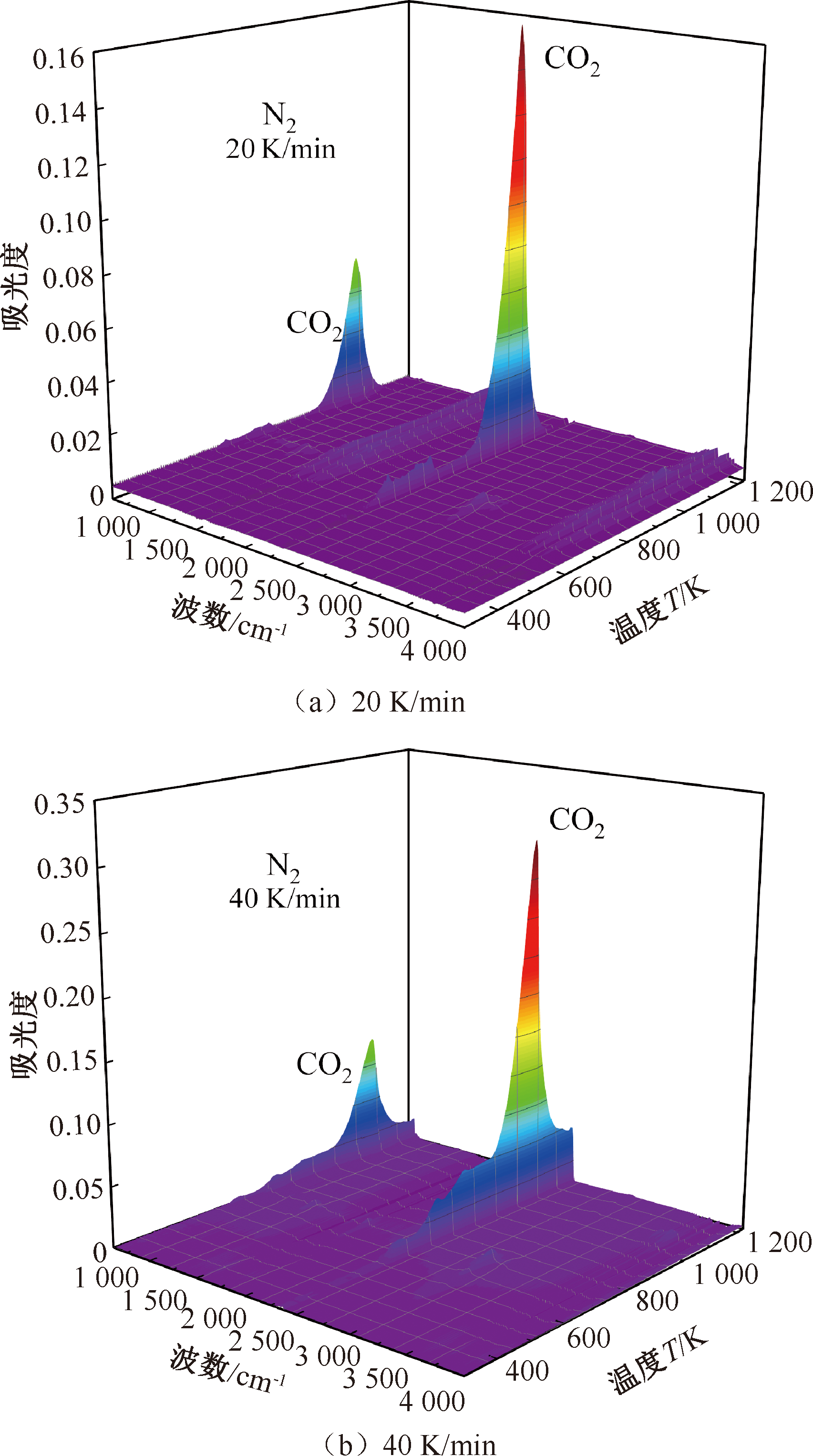

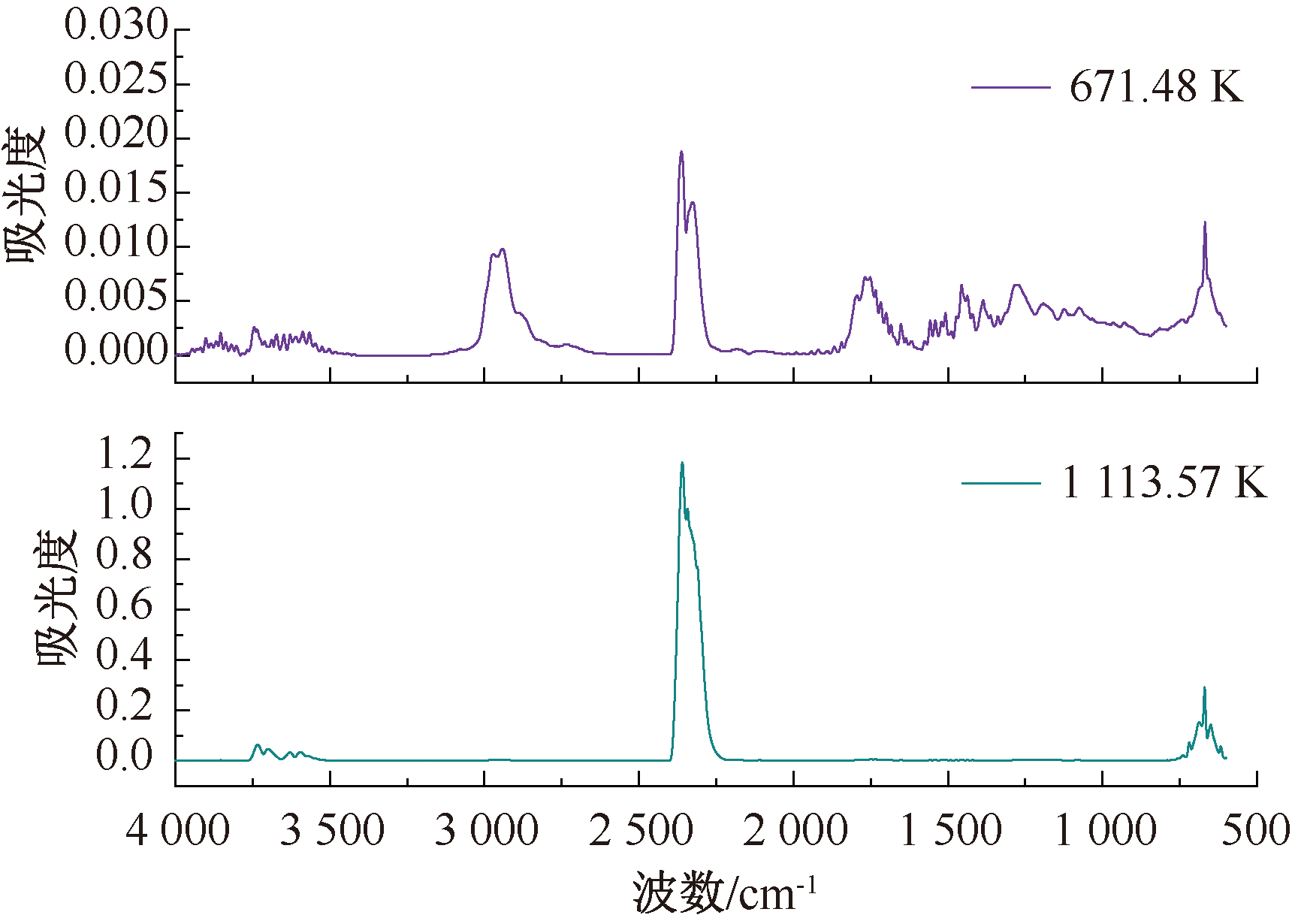

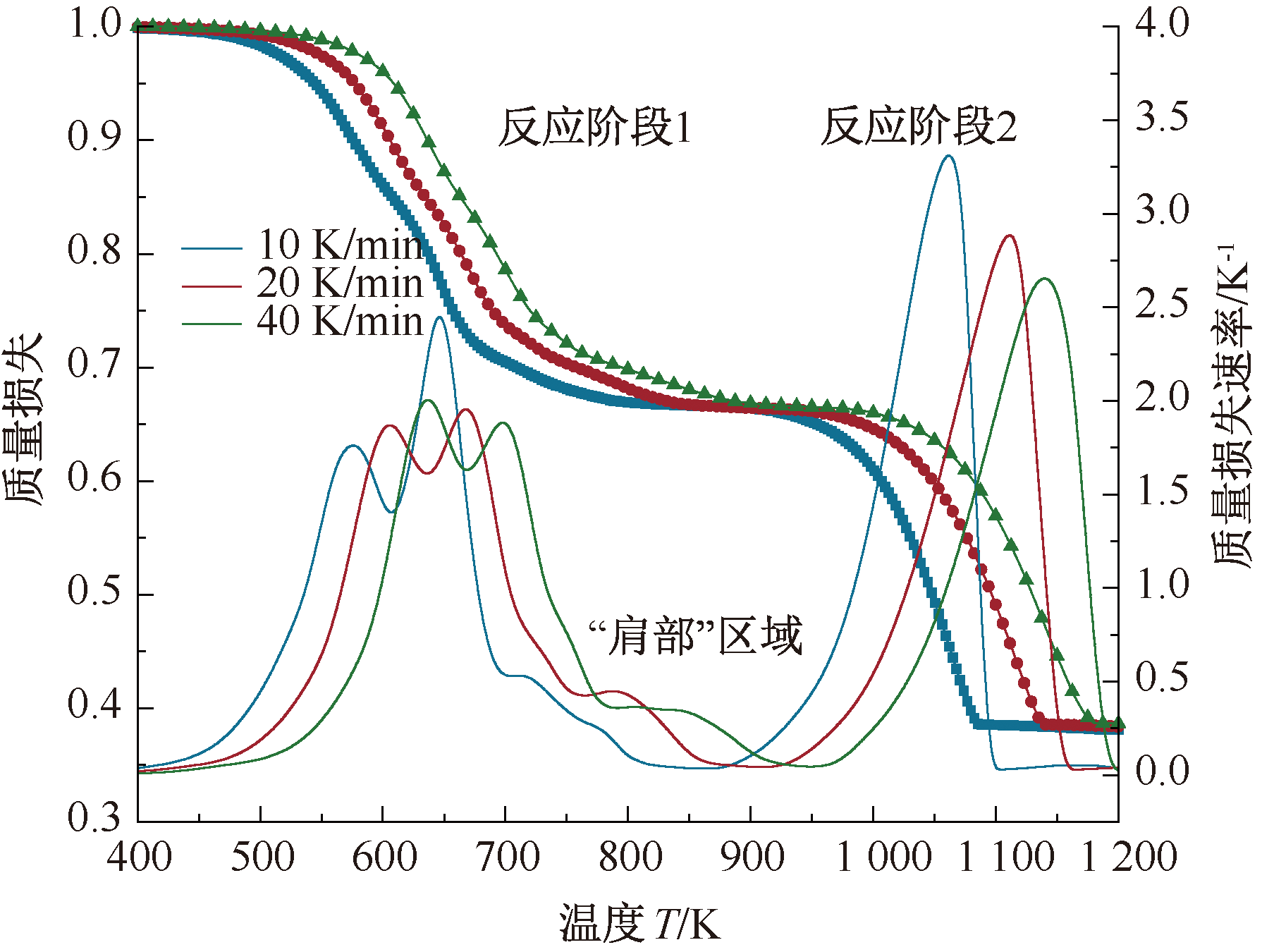

为提高防火封堵材料的防火特性,以防火密封胶为研究对象,进行常规理化性能测试,并通过热重-红外光谱联用试验以及锥形量热仪试验揭示其微尺度-实验室尺度的热解和燃烧特性,探究防火密封胶在氮气和空气2种气氛中的热解行为和不同热辐射通量下的燃烧特性。结果表明:微尺度氮气氛围热解过程可较为明显地针对聚磷酸铵、三聚氰胺、丙烯酸3种物质划分为3个阶段,而空气氛围燃烧过程中氧气的存在促进聚磷酸铵和三聚氰胺反应阶段的融合;温度在850 K之前,氮气氛围下反应生成气体产物以氨气为主,而空气氛围下生成的气体产物同时伴随较多的氨气、二氧化碳和水;温度在850 K之后,2种氛围下生成的气体产物均为二氧化碳和水;实验室尺度的锥形量热仪试验中辐射热通量越大,点燃时间越短,有害气体生成速率和峰值越高,计算得到的火灾危险性评价指数也进一步表征更高的火灾危险性。

关键词: 防火密封胶, 理化性能, 热解, 燃烧特性, 防火封堵

Abstract:

To enhance the fire resistance performance of fire stopping materials, this study selected fire-resistant sealant as the research object. Conventional physical and chemical property tests were conducted, and thermogravimetry-Fourier transform infrared (TG-FTIR) coupled experiments as well as cone calorimeter tests were performed to reveal its pyrolysis and combustion characteristics from the microscale to the laboratory scale. This paper aimed to investigate the pyrolysis behaviors of fireproof sealant in nitrogen and air atmospheres and its combustion characteristics under different radiation heat fluxes. The results show that the micro-scale pyrolysis process in nitrogen could be divided into three stages corresponding to ammonium polyphosphate, melamine and acrylic acid, while the presence of oxygen promotes the merging of the reaction stages of ammonium polyphosphate and melamine during the micro-scale combustion process in air. Before 850 K, ammonia is the main gaseous product in nitrogen, while substantial amounts of ammonia, CO₂ and H₂O are released in air. After 850 K, CO₂ and H₂O are produced in both nitrogen and air atmosphere. With the increase of external heat radiation flux in bench-scale cone experiment, the ignition time is shortened, and the generation rate and peak value of harmful gas emissions increase. The calculated fire evaluation indexes indicate the increased fire risk of the material. The current study can be helpful for deeply revealing the fire prevention mechanism of fireproof sealant and providing a reference for engineering applications.

Key words: fireproof sealant, physical and chemical property, pyrolysis, combustion characteristics, substantial amounts of fireproof sealing

中图分类号:

X932爆炸安全与防火、防爆

张良, 欧伟镭, 张金成, 周熹, 刘薇, 丁彦铭. 防火密封胶理化性能、热解和燃烧特性研究[J]. 中国安全科学学报, 2026, 36(9): 120-127.

Zhang Liang, Ou Weilei, Zhang Jincheng, Zhou Xi, Liu Wei, Ding Yanming. Study on physical and chemical properties, pyrolysis behaviors and combustion characteristics of fireproof sealant[J]. China Safety Science Journal, 2026, 36(9): 120-127.

图/表 12

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

表1

参考文献 17

[1]	周祥. 常见防火封堵设计及工艺综述[J]. 设备管理与维修, 2018(7):65-66.
[2]	张佳庆, 柯艳国, 黄玉彪, 等. 升温模式对防火密封胶燃烧及理化性能的影响[J]. 消防科学与技术, 2023, 42(1):9-12.
	Zhang Jiaqing, Ke Yanguo, Huang Yubiao, et al. The influence of fire heating modes on the combustion and physicochemical properties of fireproof sealant[J]. Fire Science and Technology, 2023, 42(1): 9-12.
[3]	边福利, 陈栋梁, 裴全胜, 等. 无卤膨胀型防火密封胶的研究[J]. 消防科学与技术, 2004, 23(4):379-381.
	Bian Fuli, Chen Dongliang, Pei Quansheng, et al. Study on the halon-free intumescent fire stopping mastic[J]. Fire Science and Technology, 2004, 23(4): 379-381.
[4]	袁炜, 韩雨, 邰江, 等. 有机硅防火密封胶在核岛嵌缝的应用[J]. 有机硅材料, 2020, 34(5):57-59.
	Yuan Wei, Han Yu, Tai Jiang, et al. Application of silicone fireproof sealant for nuclear island caulking[J]. Silicone Material, 2020, 34(5): 57-59.
[5]	刘钢, 蔡海涛, 王翠花, 等. 红磷微胶囊单组分室温硫化有机硅防火型密封胶的研制[J]. 中国建筑防水, 2021(12):24-28.
	Liu Gang, Cai Haitao, Wang Cuihua, et al. Preparation of red phosphorus microcapsule one component RTV silicone fireproof sealant[J]. China Building Waterproofing, 2021(12):24-28.
[6]	王帅, 韩瑜, 刘丽. 阻燃密封胶在地铁人防工程中的应用研究[J]. 水利科学与寒区工程, 2020, 3(2):90-92.
[7]	张佳庆, 黄玉彪, 蒋恭华, 等. 多火灾升温条件下超薄型钢结构防火涂料隔热性能研究[J]. 中国安全科学学报, 2024, 34(9):114-120. doi: 10.16265/j.cnki.issn1003-3033.2024.09.0647
	Zhang Jiaqing, Huang Yubiao, Jiang Gonghua, et al. Insulating properties of ultra-thin fireproof coatings for steel structure under various heating conditions[J]. China Safety Science Journal, 2024, 34(9): 114-120. doi: 10.16265/j.cnki.issn1003-3033.2024.09.0647
[8]	丁彦铭, 张雪婷, 杜文州, 等. 基于多组分热解气体的炭化可燃物燃烧模拟[J]. 中国安全科学学报, 2020, 30(9):155-163.
	Ding Yanming, Zhang Xueting, Du Wenzhou, et al. Simulation of charring solid combustion based on multiple pyrolysis gases[J]. China Safety Science Journal, 2020, 30(9): 155-163.
[9]	郝权, 蒋曙光, 位爱竹, 等. 锥形量热仪在火灾科学研究中的应用[J]. 能源技术与管理, 2009(1):72-75.
	Hao Quan, Jiang Shuguang, Wei Aizhu, et al. Application of cone calorimeter in research of fire science[J]. Energy Technology and Management, 2009(1): 72-75.
[10]	陈程. 聚磷酸铵/多元醇改性三聚氰胺树脂对PP燃烧行为的影响及其机理研究[D]. 青岛: 青岛科技大学, 2023.
	Chen Cheng. Effect of ammonium polyphosphate/the melamine resins modified with polyols on the combustion behavior of pp and its mechanism[D]. Qingdao: Qingdao University of Science and Technology, 2023.
[11]	Wang JunLing, Ma Chao, Mu Xiaowei, et al. Construction of multifunctional MoSe₂ hybrid towards the simultaneous improvements in fire safety and mechanical property of polymer[J]. Journal of Hazardous Materials, 2018, 352: 36-46. doi: 10.1016/j.jhazmat.2018.03.003
[12]	李磊, 周俊. 高效膨胀型阻燃剂阻燃聚丙烯的阻燃机理[J]. 橡塑技术与装备, 2024, 50(1):25-30.
	Li Lei, Zhou Jun. The flame retardant mechanism of high-efficiency expandable flame retardant for flame retardant polypropylene[J]. Plastics Technology and Equipment, 2024, 50(1): 25-30.
[13]	杨晨曦, 谢明, 刘丝梦, 等. 阻燃丙烯酸树脂涂料的制备及其性能[J]. 东华大学学报(自然科学版), 2024, 50(3):45-52.
	Yang Chenxi, Xie Ming, Liu Simeng, et al. Preparation and properties of flame retardant acrylic resin coatings[J]. Journal of Donghua University (Natural Science), 2024, 50(3): 45-52.
[14]	Ding Yanming, Huang Biqing, Wu Chuanbao, et al. Kinetic model and parameters study of lignocellulosic biomass oxidative pyrolysis[J]. Energy, 2019, 181:11-17. doi: 10.1016/j.energy.2019.05.148
[15]	刘术敬, 朱鹏, 汪东东, 等. 基于锥形量热仪的锂离子电池电解液火灾危险性研究[J]. 消防科学与技术, 2020, 39(10):1459-1 461.
	Liu Shujing, Zhu Peng, Wang Dongdong, et al. Fire risk analysis of lithium ion battery based on cone calorimeter[J]. Fire Science and Technology, 2020, 39(10): 1 459-1 461.
[16]	刘勇, 姜一帆, 耿鑫玺, 等. DOPO-BPS/OSEP/EP-CE阻燃复合材料的制备及性能[J]. 中国安全科学学报, 2025, 35(2):111-117. doi: 10.16265/j.cnki.issn1003-3033.2025.02.0976
	Liu Yong, Jiang Yifan, Geng Xinxi, et al. Preparation and properties of DOPO-BPS/OSEP/EP-CE flame retardant composite materials[J]. China Safety Science Journal, 2025, 35(2): 111-117. doi: 10.16265/j.cnki.issn1003-3033.2025.02.0976
[17]	金石来. 聚合物材料发烟点与燃烧特性指数相关性[J]. 消防科学与技术, 2019, 38(1):23-25.
	Jin Shilai. The relationship between the smoke point and the combustion characteristic index of polymer materials[J]. Fire Science and Technology, 2019, 38(1): 23-25.

外加辐射热通量/ (kW/m²)	FPI	FGI	THRI	TSPI	T_oxPI
20	1.39	0.56	1.91	1.51	1.90
35	0.49	1.17	1.99	1.54	2.03
50	0.16	1.42	2.10	1.61	2.20
