中国安全科学学报 ›› 2025, Vol. 35 ›› Issue (2): 57-65.doi: 10.16265/j.cnki.issn1003-3033.2025.02.0698

• 安全工程技术 • 上一篇    下一篇

煤变质程度对微观结构与热解参数的影响及关联性分析

叶正亮(), 郭曦蔓**(), 尚博, 胡冕

  1. 中煤能源研究院有限责任公司,陕西 西安 710054
  • 收稿日期:2024-09-13 修回日期:2024-11-22 出版日期:2025-02-28
  • 通信作者:
    **郭曦蔓(1998—),女,甘肃兰州人,硕士,助理工程师,主要从事煤矿火灾防控与治理方面的研究。E-mail:
  • 作者简介:

    叶正亮 (1981—),男,江苏盐城人,硕士,正高级工程师,主要从事煤矿自燃火灾防治相关的基础理论、工艺技术和装备材料的研究。E-mail:

  • 基金资助:
    国家重点研发计划(2023YFF0615404); 国家自然科学基金联合重点项目资助(U23B2093)

Influence of coal metamorphism on microstructure and pyrolysis parameters: a correlation analysis

YE Zhengliang(), GUO Ximan**(), SHANG Bo, HU Mian

  1. China Coal Energy Research Institute Co., Ltd., Xi'an Shaanxi 710054, China
  • Received:2024-09-13 Revised:2024-11-22 Published:2025-02-28

摘要:

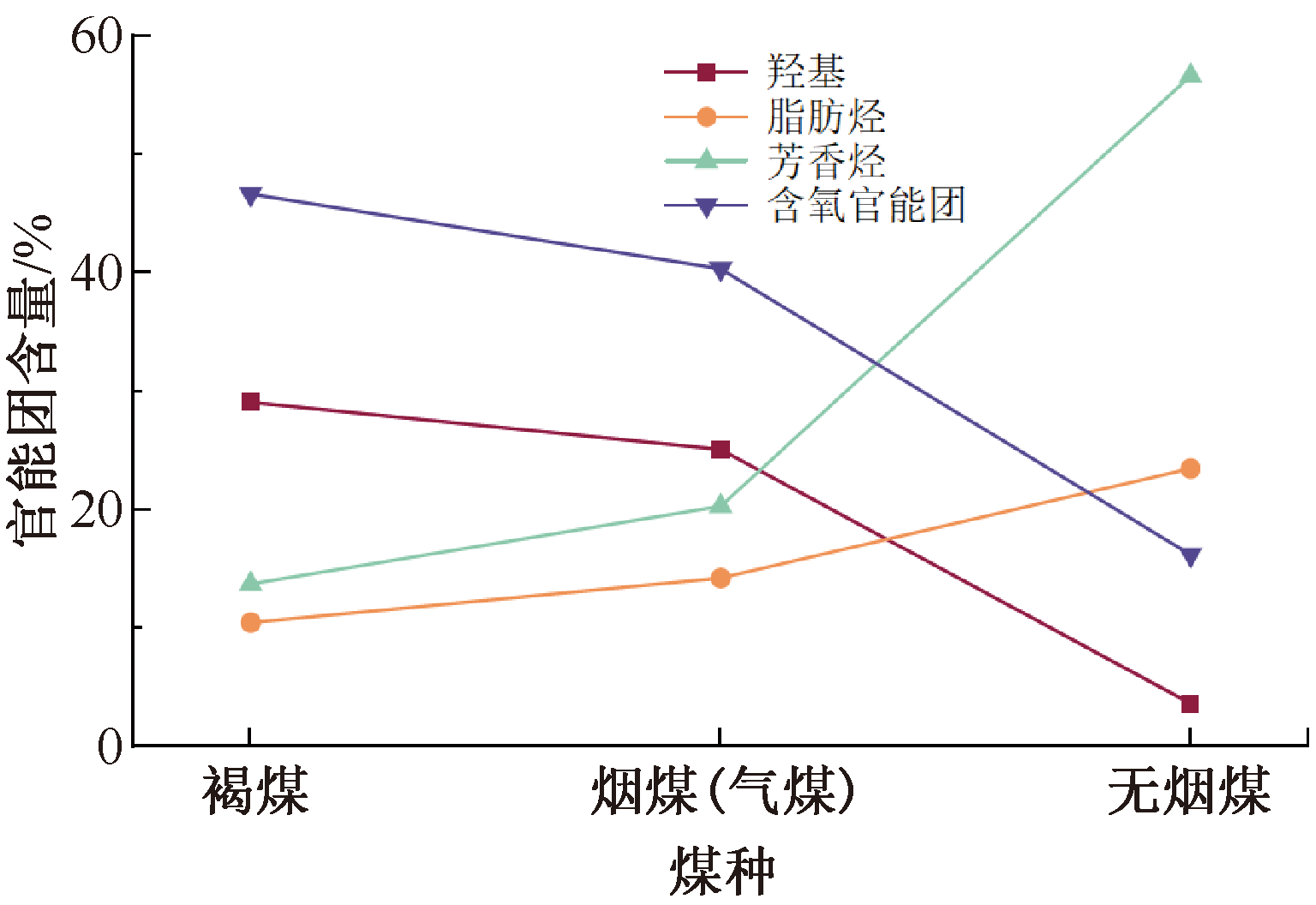

为揭示煤变质程度对煤自燃过程的影响,结合试验与定量分析方法分析煤自燃过程中热解参数、微观结构的变化特征及二者之间关联性特征。首先,利用傅立叶变换红外光谱(FTIR)试验分析煤样中主要活性官能团的含量变化;然后,通过热重分析(TGA)试验获取不同变质程度煤样的热解特征参数;最后,基于Pearson相关系数法量化煤自燃过程中微观结构与特征温度之间的关联性。结果表明:随着煤样变质程度的提高,芳香烃(Ar-CH)和脂肪烃含量增加,含氧官能团(如C-O-C)显著减少;低阶煤样中含氧官能团占比最高,高阶煤样中芳香烃含量超过50%;变质程度提高使失重曲线滞后并向高温区移动,特征温度随之升高;芳香烃与特征温度呈显著正相关关系,而含氧官能团与特征温度呈负相关关系。煤样中芳香烃含量的增加和含氧官能团的减少,是特征温度升高及自燃倾向性降低的主要微观结构因素。

关键词: 变质程度, 微观结构, 热解参数, 关联性, 煤自燃, 官能团

Abstract:

To reveal the impact of coal metamorphism on the self-ignition process,experimental and quantitative analysis methods was combined to analyze the pyrolysis characteristics, microstructural changes, and their correlations during coal self-ignition. First, Fourier-transform infrared spectroscopy (FTIR) was employed to determine changes in the content of active functional groups in coal samples. Then, thermogravimetric analysis (TGA) was conducted to obtain pyrolysis characteristic parameters for coal samples with varying degrees of metamorphism. Finally, Pearson correlation coefficient method was applied to quantify the relationship between microstructure and characteristic temperatures during coal self-ignition. The results indicate that as the degree of coal metamorphism increases, the content of aromatic and aliphatic hydrocarbons(Ar-CH) rises, while oxygen-containing functional groups(C-O-C) significantly decrease. Low-rank coal samples exhibit the highest proportion of oxygen-containing functional groups, whereas high-rank coal samples contain more than 50% aromatic hydrocarbons. Increased metamorphism delays weight loss curves and shifts them to higher temperature regions, leading to an increase in characteristic temperatures. Ar-CH show a significant positive correlation with characteristic temperatures, while C-O-C exhibit a negative correlation. Overall, the increase in Ar-CH and the decrease in C-O-C in coal samples are identified as the primary microstructural factors responsible for the rise in characteristic temperatures and the reduction in self-ignition propensity.

Key words: metamorphic degree, microstructur, pyrolysis parameters, correlation, spontaneous combustion of coal, functional groups

中图分类号:
