基于热爆炸理论的煤燃点确定及动力学分析

doi:10.16265/j.cnki.issn1003-3033.2022.02.009

摘要/Abstract

摘要：

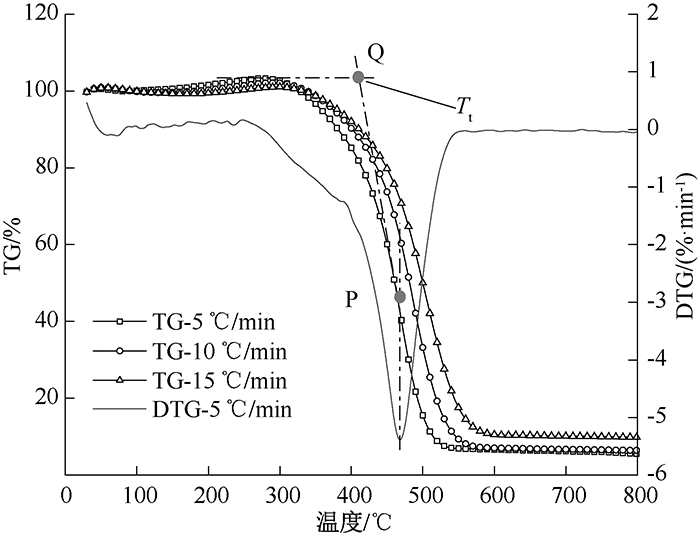

为准确判断煤燃点,提高煤自燃灾害防治能力,依据热爆炸理论,结合煤自燃过程放热曲线,将煤自燃升温过程中微分热流曲线上第1处极小值点作为煤的燃点,计算煤着火前后放热过程动力学参数变化。结果表明:随升温速率增加,煤自燃反应放热过程逐渐向高温区域移动,煤燃点逐渐增大,反应的活化能逐渐减小;同一升温速率下燃点之后煤的活化能增大;燃点之前的煤氧反应级数为1.5,燃点后降低为1;燃点后的煤氧燃烧更加充分,煤自燃更加难以控制。

关键词: 热爆炸理论(TET), 煤燃点, 动力学, 煤自燃, 差示扫描量热(DSC)

Abstract:

In order to accurately decide ignition point of coal and improve prevention and control ability of spontaneous combustion disasters, according to TET and with consideration to heat release curve of spontaneous combustion process, the first minimum point on differential heat flow curve in the process was taken as ignition point, and dynamic parameters during heat release before and after ignition were calculated. The results show that along with increase in heating rate, exothermic process of coal spontaneous combustion gradually moves to high temperature regions, and ignition point also increases gradually, while activation energy of reaction decreases in the same manner. At the same heating rate, activation energy of coal increases after ignition, with the level of coal oxygen reaction being decreased to 1 after ignition point from 1.5 before it. It is also found that oxygen combustion of coal after ignition is more sufficient, and spontaneous combustion is more difficult to control.

Key words: thermal explosion theory(TET), ignition point, dynamics, coal spontaneous combustion, differential scanning calorimetry(DSC)

陈晓坤, 王晨熹, 翟小伟. 基于热爆炸理论的煤燃点确定及动力学分析[J]. 中国安全科学学报, 2022, 32(2): 59-65.

CHEN Xiaokun, WANG Chenxi, ZHAI Xiaowei. Determination and kinetics analysis of coal ignition point based on thermal explosion method[J]. China Safety Science Journal, 2022, 32(2): 59-65.

图/表 9

表1

图1

图2

图3

图4

图5

图6

表2

图7

参考文献 22

[1]	XU Jiuping, GAO Wen, XIE Heping, et al. Integrated tech-paradigm based innovative approach towards ecological coal mining[J]. Energy, 2018, 151:297-308. doi: 10.1016/j.energy.2018.02.090
[2]	周福宝, 夏同强, 史波波. 瓦斯与煤自燃共存研究(Ⅱ):防治新技术[J]. 煤炭学报, 2013, 38(3):353-360.
	ZHOU Fubao, XIA Tongqiang, SHI Bobo. Coexistence of gas and coal spontaneous combustion (II): new prevention and control technologies[J]. Journal of China Coal Society, 2013, 38(3):353-360.
[3]	SPEARS D A, TEWALT S J. The geochemistry of environmentally important trace elements in UK coals, with special reference to the Parkgate coal in the Yorkshire-Nottinghamshire Coalfield, UK[J]. International Journal of Coal Geology, 2009, 80(3):157-166. doi: 10.1016/j.coal.2009.08.010
[4]	WANG Haiyan, CHENG Chaofeng, CHEN Cheng. Characteristics of polycyclic aromatic hydrocarbon release during spontaneous combustion of coal and gangue in the same coal seam[J]. Journal of Loss Prevention in the Process Industries, 2018, 55:392-399. doi: 10.1016/j.jlp.2018.07.004
[5]	董凯丽, 王俊峰, 梁择文, 等. 矿用CMC/ZrCit/GDL防灭火凝胶特性研究[J]. 中国安全科学学报, 2020, 30(1): 114-120. doi: 10.16265/j.cnki.issn1003-3033.2020.01.018
	DONG Kaili, WANG Junfeng, LIANG Zewen, et al. Characteristics of CMC/ZrCit/GDL fire extinguishing gel used for mines[J]. China Safety Science Journal, 2020, 30(1): 114-120. doi: 10.16265/j.cnki.issn1003-3033.2020.01.018
[6]	梁运涛, 侯贤军, 罗海珠. 我国煤矿火灾防治现状及发展对策[J]. 煤炭科学技术, 2016, 44(6): 1-6,13.
	LIANG Yuntao, HOU Xianjun, LUO Haizhu. Development countermeasures and current situation of coal mine fire prevention & extinguishing in China[J]. Coal Science and Technology, 2016, 44(6): 1-6,13.
[7]	GB/T 1851-2017, 煤的着火温度测定方法[S].
	GB/T 1851-2017, Determination of ignition temperature of coal[S].
[8]	胡文斌, 杨海瑞, 吕俊复, 等. 煤着火特性的热重分析研究[J]. 电站系统工程, 2005, 21(2):8-9,12.
	HU Wenbin, YANG Hairui, LYU Junfu, et al. Study on ignition properties of coals by using thermogravimetry[J]. Power System Engineering, 2005, 21(2):8-9,12.
[9]	朱川, 罗陨飞, 张宇宏, 等. 煤燃烧特征温度与变质程度的关系[J]. 动力工程学报, 2015, 35(6):445-450.
	ZHU Chuan, LUO Yunfei, ZHANG Yuhong,etal. relationship between combustion characteristic temperature and metamorphic grade of coal[J]. Journal of Chinese Society of Power Engineering, 2015, 35(6):445-450.
[10]	吕帅, 吕国钧, 蒋旭光, 等. 印尼褐煤湿煤末(煤泥)热解和燃烧特性及动力学分析[J]. 煤炭学报, 2014, 39(3):554-561.
	LYU Shuai, LYU Guojun, JIANG Xuguang, et al. Pyrolysis/combustion characteristics and kinetic analysis of Indonesia lignite sludge[J]. Journal of China Coal Society, 2014, 39(3):554-561.
[11]	王文达, 尤飞, 邵玥, 等. 粒度对煤自燃过程中特征温度的影响[J]. 消防科学与技术, 2016, 35(1):1511-1514.
	WANG Wenda, YOU Fei, SHAO Yue, et al. Effect of particle size on characteristic temperatures of coal spontaneous combustion[J]. Fire Science and Technology, 2016, 35(1):1151-1514.
[12]	ZHANG Yutao, LIU Yurui, SHI Xueqiang, et al. Risk evaluation of coal spontaneous combustion on the basis of auto-ignition temperature[J]. Fuel, 2018, 233:68-76. doi: 10.1016/j.fuel.2018.06.052
[13]	喻秋梅, 庞亚军, 陈宏国. 煤燃烧实验中着火点确定方法的探讨[J]. 华北电力技术, 2001(7):9-10,50.
	YU Qiumei, PANG Yajun, CHEN Hongguo. Discussion ondetermination of ignition point in coal combustion test[J]. North China Electric Power Technology, 2001(7):9-10, 50.
[14]	肖旸, 马砺, 王振平, 等. 采用热重分析法研究煤自燃过程的特征温度[J]. 煤炭科学技术, 2007, 35(5):73-76.
	XIAO Yang, MA Li, WANG Zhenping, et al. Research on characteristic temperature in coal spontaneous combustion with thermal gravity analysis method[J]. Coal Science and Technology, 2007, 35(5):73-76.
[15]	赵江平, 王振成. 热爆炸理论在粉尘爆炸机理研究中的应用[J]. 中国安全科学学报, 2004, 14(5):84-87.
	ZHAO Jiangping, WANG Zhencheng. Application of heat explosion theory to dust explosion mechanism research[J]. China Safety science Journal, 2004, 14(5):84-87.
[16]	梅辉辉, 曹雄. 热爆炸理论在硝酸铵水溶液热安全性研究中的应用[J]. 安全与环境工程, 2012, 19(2):128-131.
	MEI Huihui, CAO Xiong. Application of thermal explosion theory to the study on the thermal safety of ammonium nitrate solution[J]. Safety and Environmental Engineering, 2012, 19(2): 128-131.
[17]	丁立, 张礼敬, 生迎夏, 等. 基于非均相反应小尺度实验的固态有机过氧化物自加速分解温度推算[J]. 化工学报, 2009, 60(4):1062-1067.
	DING Li, ZHANG Lijing, SHENG Yingxia, et al. SADT calculation of solid organic peroxides based on small sample mass of heterogeneous reaction[J]. CIESC Journal, 2009, 60(4):1062-1067.
[18]	EL-SAYED S A. Ignition of a pyrolysis wooden particle based on the thermal explosion theory[J]. Iranian Journal of Science & Technology Transactions of Mechanical Engineering, 2018, 42(4):317-327.
[19]	朱红青, 罗明罡, 向明汭, 等. 煤燃烧特性热重实验研究及动力学分析[J]. 中国安全科学学报, 2016, 26(4):40-45.
	ZHU Hongqing, LUO Minggang, XIANG Mingrui, et al. Coal combustion characteristics research and dynamic analysis based on thermogravimetric experiments[J]. China Safety Science Journal, 2016, 26(4):40-45.
[20]	郭鹏伟, 唐一博, 王化恶, 等. 聚氨酯影响煤自燃的动力学特性研究[J]. 中国安全科学学报, 2020, 30(4): 68-73. doi: 10.16265/j.cnki.issn1003-3033.2020.04.011
	GUO Pengwei, TANG Yibo, WANG Hua'e, et al. Study on kinetics features of coal spontaneous combustion influenced by polyurethane[J]. China Safety Science Journal, 2020, 30(4): 68-73. doi: 10.16265/j.cnki.issn1003-3033.2020.04.011
[21]	REN Jun, XIE Chuanjin, GUO Xuan, et al. Combustion characteristics of coal gangue under an atmosphere of coal mine methane[J]. Energy & Fuels, 2012, 28(6):3688-3695. doi: 10.1021/ef500446j
[22]	娄和壮, 贾廷贵. TG-DSC联用研究瓦斯气氛对煤自燃热特性的影响[J]. 中国安全科学学报, 2019, 29(11): 77-82. doi: 10.16265/j.cnki.issn1003-3033.2019.11.013
	LOU Hezhuang, JIA Tinggui. Study on thermal characteristics of coal spontaneous combustion in gas atmosphere by TG-DSC coupling techniques[J]. China Safety Science Journal, 2019, 29(11): 77-82. doi: 10.16265/j.cnki.issn1003-3033.2019.11.013

煤种	工业分析
煤种	水分	灰分	挥发分	固定碳
不粘煤	4.21	7.73	36.31	51.75

升温速率	反应级数	燃点前		燃点后
升温速率	反应级数	拟合函数表达式	R²	拟合函数表达式	R²
5	0.5	y=81 309.55x+4.22	0.911 1	y=77 233.00x-0.98	0.924 8
	1	y=87 216.39x+5.73	0.932 4	y=99 228.46x+3.06	0.968 2
	1.5	y=94 344.36x+7.54	0.943 5	y=132 350.23x+9.11	0.936 4
	2	y=102 558.67x+9.62	0.939 4	y=173 579.29x+16.62	0.865 9
	2.5	y=11 606.71x+11.91	0.922 0	y=219 166.47x+24.91	0.807 5
	3	y=121 276.47x+14.36	0.896 5	y=267 219.99x+33.66	0.766 7
10	0.5	y=79 483.84x+3.33	0.940 1	y=74 366.62x-1.91	0.945 9
	1	y=85 320.08x+4.76	0.957 1	y=96 022.88x+1.95	0.984 0
	1.5	y=92 249.34x+6.46	0.964 5	y=12 7830.21x+7.58	0.956 4
	2	y=100 176.96x+8.42	0.958 9	y=167 316.43x+14.55	0.893 9
	2.5	y=108 904.77x+10.57	0.941 8	y=21 148.69x+22.29	0.840 2
	3	y=118 245.52x+12.88	0.917 5	y=257 489.20x+30.46	0.801 9
15	0.5	y=67 400.88x+0.69	0.895 1	y=73 372.21x-2.41	0.940 3
	1	y=71 593.32x+1.79	0.913 3	y=92 349.00x+0.93	0.980 4
	1.5	y=76 545.00x+3.05	0.923 2	y=121 747.90x+6.01	0.979 9
	2	y=82 215.07x+4.51	0.920 7	y=156 691.15x+12.07	0.949 7
	2.5	y=88 444.86x+6.13	0.906 3	y=195 659.65x+18.81	0.913 5
	3	y=95 098.05x+7.85	0.883 8	y=237 041.23x+25.98	0.88 24
