低温阶段煤吸附C2H4的吸附特性研究

doi:10.16265/j.cnki.issn1003-3033.2024.01.0299

摘要/Abstract

摘要：

为研究煤矿采空区封闭区遗煤吸附C₂H₄的演化特征,以宁夏灵新煤矿不粘煤为研究对象,采用容量法进行煤吸附C₂H₄试验,分析温压与粒径对煤吸附C₂H₄过程中的吸附量、吸附速率和吸附热力学等特征变化的影响。研究表明:当温度为30~60 ℃、压力为0.15~0.45 MPa、粒径为 20~120 目时,无论是温度降低、压力升高还是粒径减小,C₂H₄的吸附量均增加;吸附过程随时间由快变慢,进而趋于平衡,吸附速率快速趋于0;温度与粒径不变,平衡压力越大吸附速率越大;温度与压力不变,粒径越小吸附速率越快。吸附量相同,粒径越小等量吸附热越低;各粒径煤样吸附C₂H₄的等量吸附热为0.69~40.23 kJ/mol,属于物理吸附。引入压力修正系数进行拟合,温度不变,压力和粒径与吸附自由能降低值呈正比关系;粒径不变,温度与吸附自由能降低值呈反比关系。各粒径煤样吸附C₂H₄的吸附熵均为负值,吸附量增大,温度降低,吸附熵值均增大;吸附量相同条件下,粒径越大,吸附熵值越大。

关键词: 低温阶段, C₂H₄, 吸附特性, 吸附速率, 煤自燃, 吸附热

Abstract:

In order to study the evolution characteristics of adsorption of C₂H₄by residual coal in closed area of coal mine goaf, taking non-cohesive coal in Lingxin Coal Mine of Ningxia as the research object, the adsorption of C₂H₄ by coal was tested by volumetric method. The effects of temperature, pressure and particle size on the adsorption capacity, adsorption rate and adsorption thermodynamics were analyzed. The results show that when the temperature is 30-60 ℃, the pressure is 0.15-0.45 MPa and the particle size is 20-120 mesh, the adsorption capacity of C₂H₄ increases with the decrease of temperature, the increase of pressure and the decrease of particle size. The adsorption process changes from fast to slow with time, then tends to equilibrium, and the adsorption rate rapidly tends to 0. When the temperature and particle size are constant, the adsorption rate increases with the increase of equilibrium pressure. When the temperature and pressure are constant, the adsorption rate increases with the decrease of particle size. At the same adsorption capacity, the smaller the particle size is, the lower the equilibrium adsorption heat is. The equivalent adsorption heat of C₂H₄ adsorbed by coal samples with different particle sizes is 0.69-40.23 kJ/mol, which belongs to physical adsorption. The pressure correction coefficient is introduced to fit, and the pressure and particle size are proportional to the reduction of adsorption free energy when the temperature is constant. Under the condition of constant particle size, the temperature is inversely proportional to the decrease of adsorption free energy. The adsorption entropy of C₂H₄ for coal samples with different particle sizes is negative, and the adsorption entropy increases with the increase of adsorption capacity and the decrease of temperature. Under the same adsorption capacity, the larger the particle size, the greater the adsorption entropy.

Key words: low temperature stage, C₂H₄, adsorption characteristics, adsorption rate, spontaneous combustion of coal, adsorption heat

中图分类号:

文虎, 李倬锋, 张铎, 唐瑞, 黎杰. 低温阶段煤吸附C₂H₄的吸附特性研究[J]. 中国安全科学学报, 2024, 34(1): 94-105.

WEN Hu, LI Zhuofeng, ZHANG Duo, TANG Rui, LI Jie. Investigation of adsorption characteristics of C₂H₄ from coal in low-temperature stage[J]. China Safety Science Journal, 2024, 34(1): 94-105.

图/表 15

图1

表1

表2

图2

图3

图4

图5

表3

图6

表4

图7

图8

表5

图9

图10

参考文献 35

[1]	LI Zongxiang, ZHANG Mingqian, YANG Zhibin, et al. Division of coal spontaneous combustion stages and selection of indicator gases[J]. PloS One, 2022, 17(4): 214-221.
[2]	谭波, 邵壮壮, 郭岩, 等. 基于指标气体关联分析的煤自燃分级预警研究[J]. 中国安全科学学报, 2021, 31(2):33-39. doi: 10.16265/j.cnki.issn 1003-3033.2021.02.005
	TAN Bo, SHAO Zhuangzhuang, GUO Yan, et al. Research on grading and early warning of coal spontaneous combustionbased on correlation analysis of index gas[J]. China Safety Science Journal, 2021, 31(2): 33-39. doi: 10.16265/j.cnki.issn 1003-3033.2021.02.005
[3]	NIU Huiyong, DENG Xiangling, LI Shilin, et al. Experiment study of optimization on prediction index gases of coal spontaneous combustion[J]. Journal of Central South University, 2016, 23(9): 2321-2328. doi: 10.1007/s11771-016-3290-y
[4]	ZHU Chuanjie, REN Jie, WAN Jiamin, et al. Methane adsorption on coals with different coal rank under elevated temperature and pressure[J]. Fuel, 2019, 254(10):1 115686-1 115 693.
[5]	马树俊, 王兆丰, 任浩洋, 等. 低温变温条件下煤吸附瓦斯过程研究[J]. 中国安全科学学报, 2019, 29(10):124-129. doi: 10.16265/j.cnki.issn1003-3033.2019.10.019
	MA Shujun, WANG Zhaofeng, REN Haoyang, et al. Study on gas adsorption process of coal under the condition of low temperature and temperature change[J]. China Safety Science Journal, 2019, 29(10): 124-129. doi: 10.16265/j.cnki.issn1003-3033.2019.10.019
[6]	OZDEMIR E. Dynamic nature of supercritical CO₂ adsorption on coals[J]. Adsorption, 2017, 23(1): 25-36. doi: 10.1007/s10450-016-9814-9
[7]	FENG Yanyan, YANG Wen, CHU Wei. Coalbed methane adsorption and desorption characteristics related to coal particle size[J]. Chinese Physics B, 2016, 25(6): 068 102-068 109.
[8]	QIU Feng, LIU Dameng, CAI Yidong, et al. Methane adsorption interpreting with adsorption potential and its controlling factors in various rank coals[J]. Processes, 2020, 8(4): 390-397. doi: 10.3390/pr8040390
[9]	YANG Hong, BI Wenyan, ZHANG Yugui, et al. Effect of tectonic coal structure on methane adsorption[J]. Journal of Environmental Chemical Engineering, 2021, 9(6): DOI:10.1016/j.jece.2021.106294.
[10]	WOJTACHA-RYCHTER K, SMOLINSKI A. A study of dynamic adsorption of propylene and ethylene emitted from the process of coal self-heating[J]. Scientific Reports, 2019, 9(1): 18 277-18 291. doi: 10.1038/s41598-018-36736-y
[11]	ZHANG Jing, WANG Jiren, ZHANG Chunhua, et al. Molecular simulation of C₂H₄/CO₂/N₂/O₂ adsorption characteristics in lignite and anthracite[J]. AIP Advances, 2021, 11(8): 085 205-085 214.
[12]	文虎, 刘名阳, 唐瑞, 等. C₂H₄在烟煤中吸附的分子模拟研究[J]. 煤矿安全, 2023, 54(4):77-82.
	WEN Hu, LIU Mingyang, TANG Rui, et al. Molecular simulation syudy on adsorption of C₂H₄ in bituminous coal[J]. Safety in Coal Mines, 2023, 54(4): 77-82.
[13]	DUDZINSKA A. Analysis of adsorption and desorption of ethylene on hard coals[J]. Energy & Fuels, 2018, 32(4): 4951-4958. doi: 10.1021/acs.energyfuels.8b00308
[14]	LI Xiangchun, LI Zhongbei, REN Ting, et al. Effects of particle size and adsorption pressure on methane gas desorption and diffusion in coal[J]. Arabian Journal of Geosciences, 2019, 12(24): 794-801. doi: 10.1007/s12517-019-4995-7
[15]	PAN Jienan, HOU Quanlin, JU Yiwen, et al. Coalbed methane sorption related to coal deformation structures at different temperatures and pressures[J]. Fuel, 2012, 102(12): 760-765. doi: 10.1016/j.fuel.2012.07.023
[16]	DUDZINSKA A. Analysis of sorption and desorption of unsaturated hydrocarbons: ethylene, propylene and acetylene on hard coals[J]. Fuel, 2019, 246(6): 232-243. doi: 10.1016/j.fuel.2019.02.130
[17]	江兆龙, 周禹军, 刘伟, 等. 煤对CO₂,N₂和CH₄的吸附速率经验公式与异同性研究[J]. 中国安全生产科学技术, 2020, 16(9):83-88.
	JIANG Zhaolong, ZHOU Yujun, LIU Wei, et al. Study on empirical formula and heterogeneity for adsorption rate of CO₂, N₂ and CH₄ by coal[J]. Journal of Safety Science and Technology, 2020, 16(9): 83-88.
[18]	王佑安, 杨思敬. 煤和瓦斯突出危险煤层的某些特征[J]. 煤炭学报, 1980, 5(1):47-53.
	WANG Youan, YANG Sijing. Some characteristics of coal seams with hazard of outburst[J]. Journal of China Coal Society, 1980, 5(1): 47-53.
[19]	秦跃平, 王健, 罗维, 等. 定压动态瓦斯解吸规律实验[J]. 辽宁工程技术大学学报:自然科学版, 2012, 31(5):581-585.
	QIN Yueping, WANG Jian, LUO Wei, et al. Experiment of dynamic gas desorption under constant pressure[J]. Journal of Liaoning Technical University: Natural Science, 2012, 31(5): 581-585.
[20]	YI Minghao, CHENG Yuanping, WANG Zhenyang, et al. Effect of particle size and adsorption equilibrium time on pore structure characterization in low pressure N₂ adsorption of coal: an experimental study[J]. Advanced Powder Technology, 2020, 31(10): 4275-4281. doi: 10.1016/j.apt.2020.09.004
[21]	刘彦伟, 刘明举. 粒度对软硬煤粒瓦斯解吸扩散差异性的影响[J]. 煤炭学报, 2015, 40(3):579-587.
	LIU Yanwei, LIU Mingju. Effect of particle size on difference of gas desorption and diffusion between soft coal and hard coal[J]. Journal of China Coal Society, 2015, 40(3): 579-587.
[22]	赵伟. 粉化煤体瓦斯快速扩散动力学机制及对突出煤岩的输运作用[D]. 北京.中国矿业大学(北京), 2018.
	ZHAO Wei. Diffusion dynamics of rapid desorption of gas from pulverized coal and its influence on transporting coal and rock in outbursts[D]. Beijing. China University of Mining and Technology (Beijing), 2018.
[23]	郑青榕, BIRKETT G, DO D D. 甲烷在活性炭上吸附的实验及理论分析[J]. 天然气化工, 2009, 34(1):41-45.
	ZHENG Qingrong, BIRKETT G, DO D D. Theoretical and experimental analysis of methane adsorption on activated carbon[J]. Natural Gas Chemical Industry, 2009, 34(1): 41-45.
[24]	LIU Dameng, ZOU Zhuo, CAI Yidong, et al. An updated study on CH₄ isothermal adsorption and isosteric adsorption heat behaviors of variable rank coals[J]. Journal of Natural Gas Science and Engineering, 2021, 89(4): 103 899-103 906.
[25]	刘盛东, 梁运培, 魏进涛, 等. 煤的等温吸附曲线对比研究[J]. 煤矿安全, 2016, 47(10):13-16.
	LIU Shengdong, LIANG Yunpei, WEI Jintao, et al. Comparative study on isothermal adsorption curve of coal[J]. Safety in Coal Mines, 2016, 47(10): 13-16.
[26]	吕兆兰, 宁正福, 王庆, 等. 甲烷在页岩黏土矿物中吸附行为的分子模拟[J]. 煤炭学报, 2019, 44(10):3117-3124.
	LYU Zhaolan, NING Zhengfu, WANG Qing, et al. Molecular simulation of methane adsorption behavior on clay minerals in shale[J]. Journal of China Coal Society, 2019, 44(10): 3117-3124.
[27]	LI Haijian, WANG Shengcheng, ZENG Qiang, et al. Effects of pore structure of different rank coals on methane adsorption heat[J]. Processes, 2021, 9(11): 1971-1978. doi: 10.3390/pr9111971
[28]	贾廷贵, 李璕, 曲国娜, 等. 不同变质程度煤样化学结构特征FTIR表征[J]. 光谱学与光谱分析, 2021, 41(11):3363-3369.
	JIA Tinggui, LI Xun, QU Guona, et al. FTIR characterization of chemical structures characteristics of coal samples with different metamorphic degrees[J]. Spectroscopy and Spectral Analysis, 2021, 41(11): 3363-3369.
[29]	YUAN Junhong, ZHANG Hong, GUO Yuliang, et al. Thermodynamic properties of high-rank tectonically deformed coals during isothermal adsorption[J]. Arabian Journal of Geosciences, 2017, 10(13): 278-285. doi: 10.1007/s12517-017-3066-1
[30]	简阔, 张玉贵, 赫少攀, 等. 构造煤甲烷吸附表面能研究[J]. 煤田地质与勘探, 2014, 42(1):31-34,39.
	JIAN Kuo, ZHANG Yugui, HE Shaopan, et al. The surface energy of methane adsorption of tectonic coal[J]. Coal Geology & Exploration, 2014, 42(1): 31-34,39.
[31]	唐明云, 张海路, 段三壮, 等. 基于Langmuir模型温度对煤吸附解吸甲烷影响研究[J]. 煤炭科学技术, 2021, 49(5):182-189.
	TANG Mingyun, ZHANG Hailu, DUAN Sanzhuang, et al. Study on effect of temperature on methane adsorption and desorption in coal based on Langmuir model[J]. Coal Science and Technology, 2021, 49(5): 182-189.
[32]	李晓疆, 蔚文斌, 贾永勇, 等. 不同粒径下煤样瓦斯吸附热力学特性影响实验研究[J]. 矿业安全与环保, 2017, 44(6):25-30.
	LI Xiaojiang, WEI Wenbin, JIA Yongyong, et al. Experimental study on effect of thermodynamic characteristics of gas adsorption of coal samples with different particle sizes[J]. Mining Safety & Environmental Protection, 2017, 44(6): 25-30.
[33]	李兵, 薛建明, 许月阳, 等. SO₂在活性炭上的吸附平衡、动力学及热力学研究[J]. 煤炭学报, 2014, 39(10):2100-2106.
	LI Bing, XUE Jianming, XU Yueyang, et al. Equilibrium, kinetics and thermodynamics of SO₂ adsorption on activated carbon[J]. Journal of China Coal Society, 2014, 39(10): 2100-2106.
[34]	DUAN Shuo, GU Min, DU Xidong, et al. Adsorption equilibrium of CO₂ and CH₄, and their mixture on Sichuan Basin shale[J]. Energy & Fuels, 2016, 30: 2248-2256. doi: 10.1021/acs.energyfuels.5b02088
[35]	DU Xidong, CHENG Yugang, LIU Zhenjian, et al. CO₂ and CH₄ adsorption on different rank coals: a thermodynamics study of surface potential, Gibbs free energy change and entropy loss[J]. Fuel, 2021, 283(1): 118 886-118 893.

粒径/目	孔容/(mL·g^-1)			总孔容/ (mL·g^-1)	孔容比/%
粒径/目	中孔	过渡孔	微孔	总孔容/ (mL·g^-1)	中孔	过渡孔	微孔
[20,40)	0.002 9	0.005 1	0.004 3	0.012 3	23.44	40.08	38.97
[40,60)	0.003 6	0.005 9	0.006 4	0.015 9	22.64	37.11	40.25
	中孔	过渡孔	微孔		中孔	过渡孔	微孔
[60,80)	0.003 9	0.006 04	0.011 3	0.021 24	18.36	28.44	53.20
[80,100)	0.005 4	0.007 4	0.015 2	0.028	19.29	26.43	54.28
[100,120)	0.006 6	0.008 91	0.020 4	0.035 91	20.05	24.89	55.88

粒径/目	孔比表面积/(m²·g^-1)			总比表面积/ (m²·g^-1)	比表面积比/%
粒径/目	中孔	过渡孔	微孔	总比表面积/ (m²·g^-1)	中孔	过渡孔	微孔
[20,40)	0.09	0.83	1.20	2.12	3.77	28.97	73.82
[40,60)	0.12	0.92	3.23	4.27	2.81	21.55	75.60
[60,80)	0.14	0.95	7.25	8.34	1.68	11.39	86.93
[80,100)	0.17	1.09	10.30	11.56	1.47	9.43	89.10
[100,120)	0.20	1.17	12.56	13.93	1.28	8.55	90.80

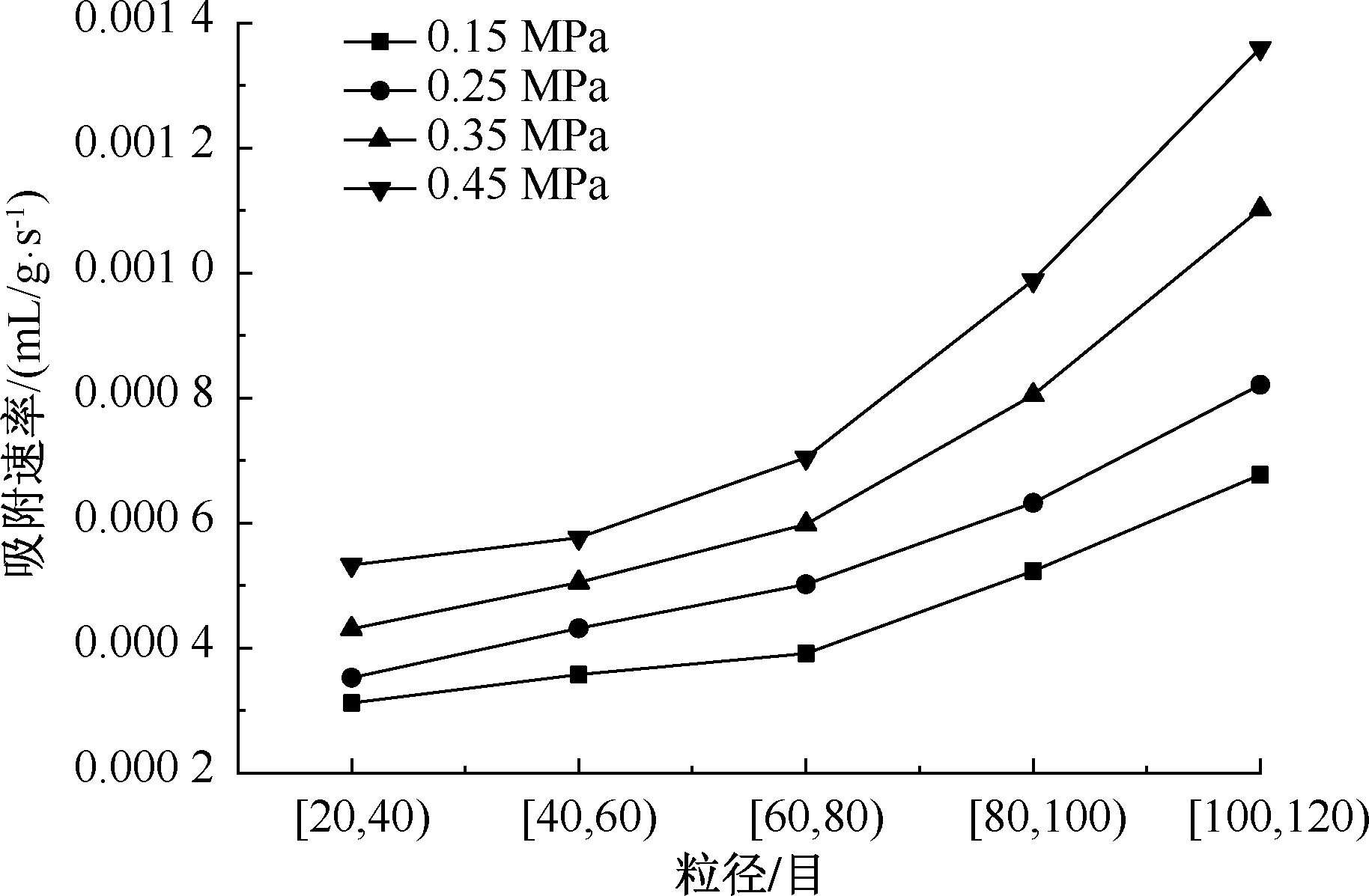

粒径/目	吸附平均速率/(mL·g^-1·s^-1)
[20,40)	3.12×10^-4~5.32×10^-4
[40,60)	3.57×10^-4~5.76×10^-4
[60,80)	3.91×10^-4~7.05×10^-4
[80,100)	5.231×10^-4~9.88×10^-4
[100,120)	6.77×10^-4~1.36×10^-3

粒径/目	温度/℃	A	B	拟合优度
[20,40)	30	6.97	5.04	0.96
	40	7.19	5.09	0.96
	50	7.42	5.10	0.96
	60	8.48	5.11	0.95
[40,60)	30	4.24	5.03	0.98
	40	4.50	5.06	0.98
	50	5.49	5.06	0.98
	60	6.13	5.06	0.99
[60,80)	30	2.82	5.04	0.98
	40	3.58	5.07	0.99
	50	3.93	5.06	0.96
	60	4.67	5.08	0.99
[80,100)	30	1.95	5.03	0.99
	40	2.30	5.04	0.99
	50	2.34	5.05	0.99
	60	2.65	5.06	0.99
[100,120)	30	1.39	5.07	0.98
	40	1.51	5.07	0.98
	50	1.58	5.07	0.98
	60	1.67	5.09	0.98

粒径/目	等量吸附热/(kJ·mol^-1)	平均值/(kJ·mol^-1)
[20,40)	4.02~40.23	20.91
[40,60)	3.62~37.92	19.19
[60,80)	3.31~31.83	16.59
[80,100)	1.77~14.25	7.74
[100,120)	0.69~6.20	3.21
