孟巴矿高地温环境煤孔隙及氧化动力学特征

doi:10.16265/j.cnki.issn1003-3033.2024.08.0061

摘要/Abstract

摘要：

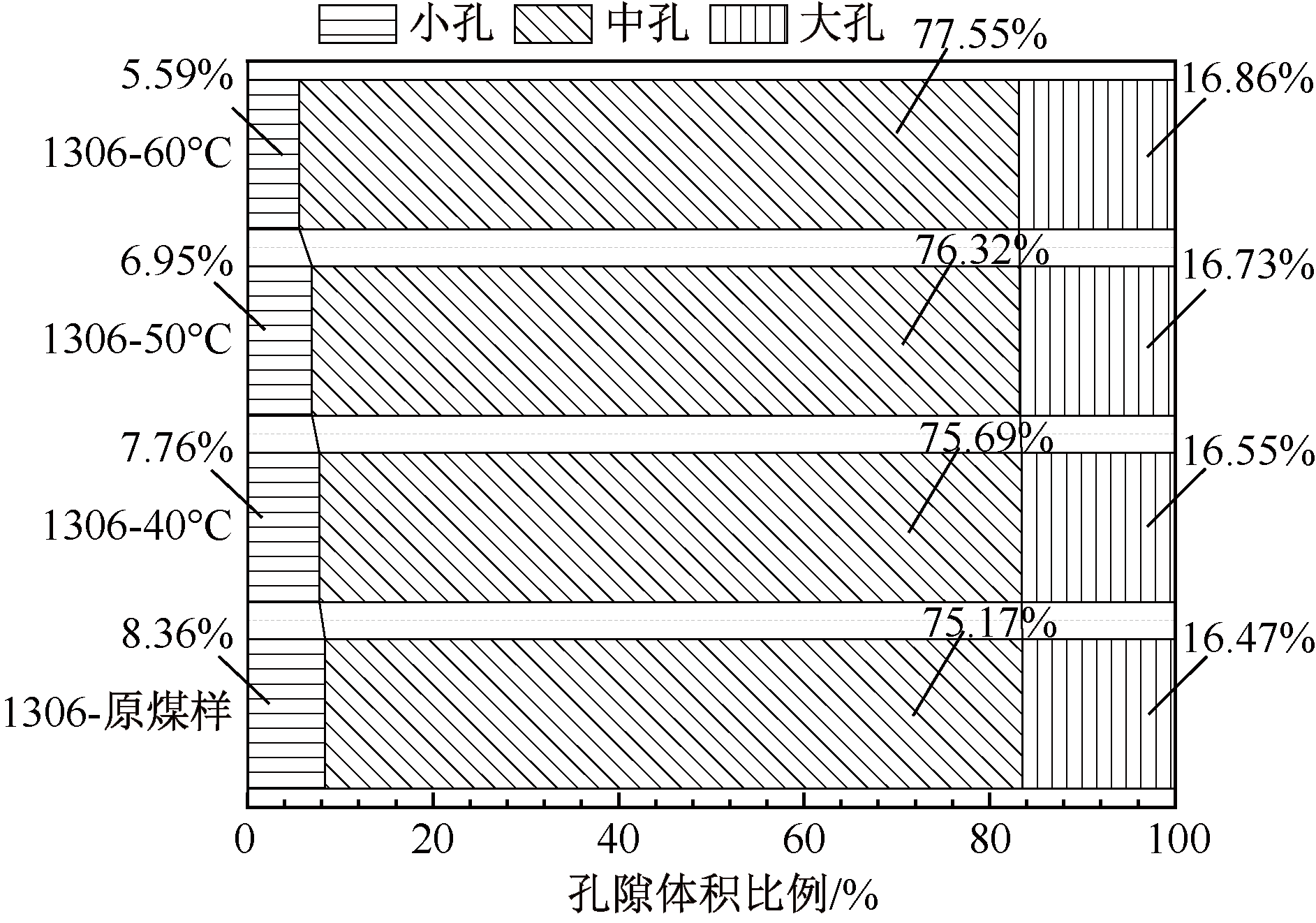

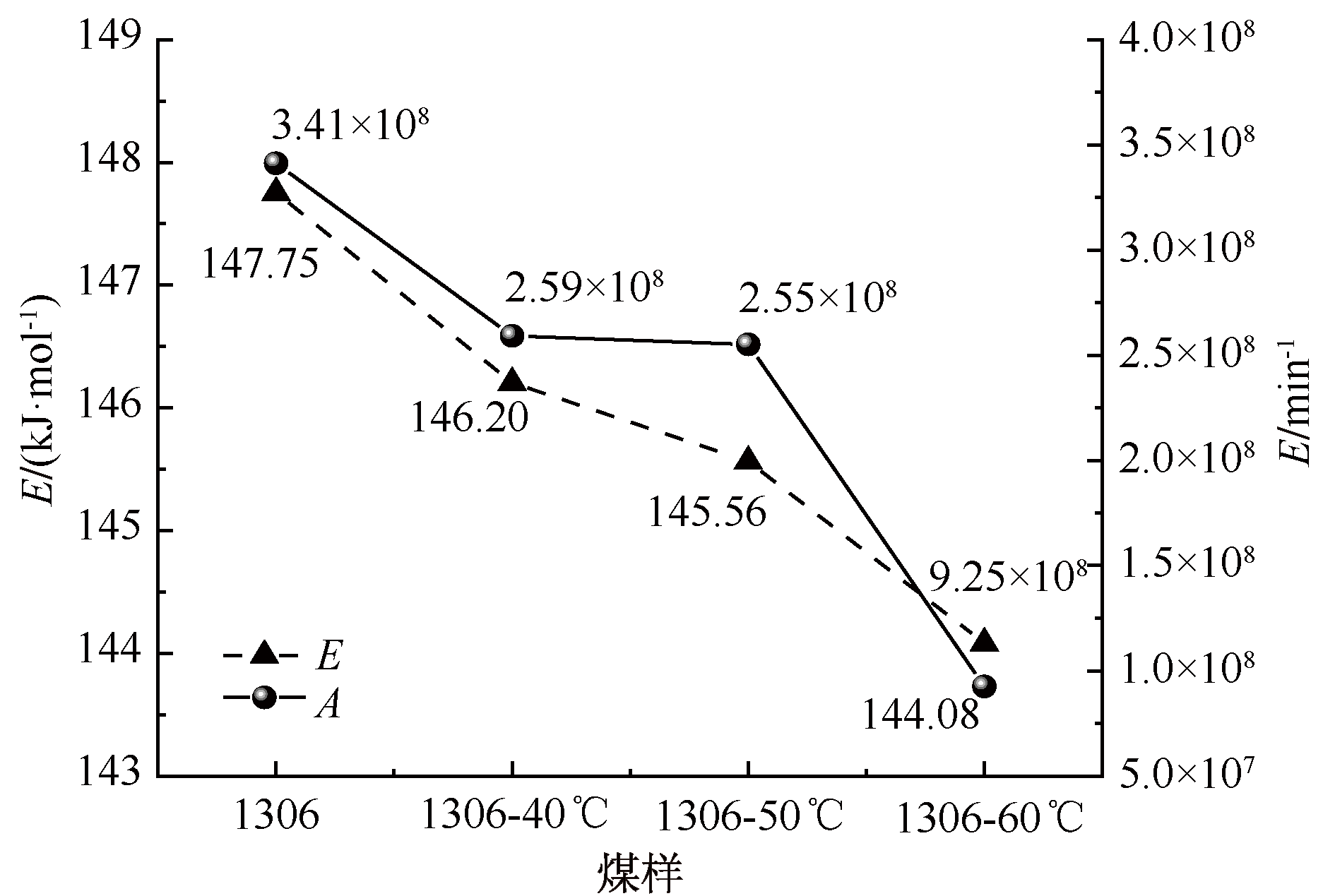

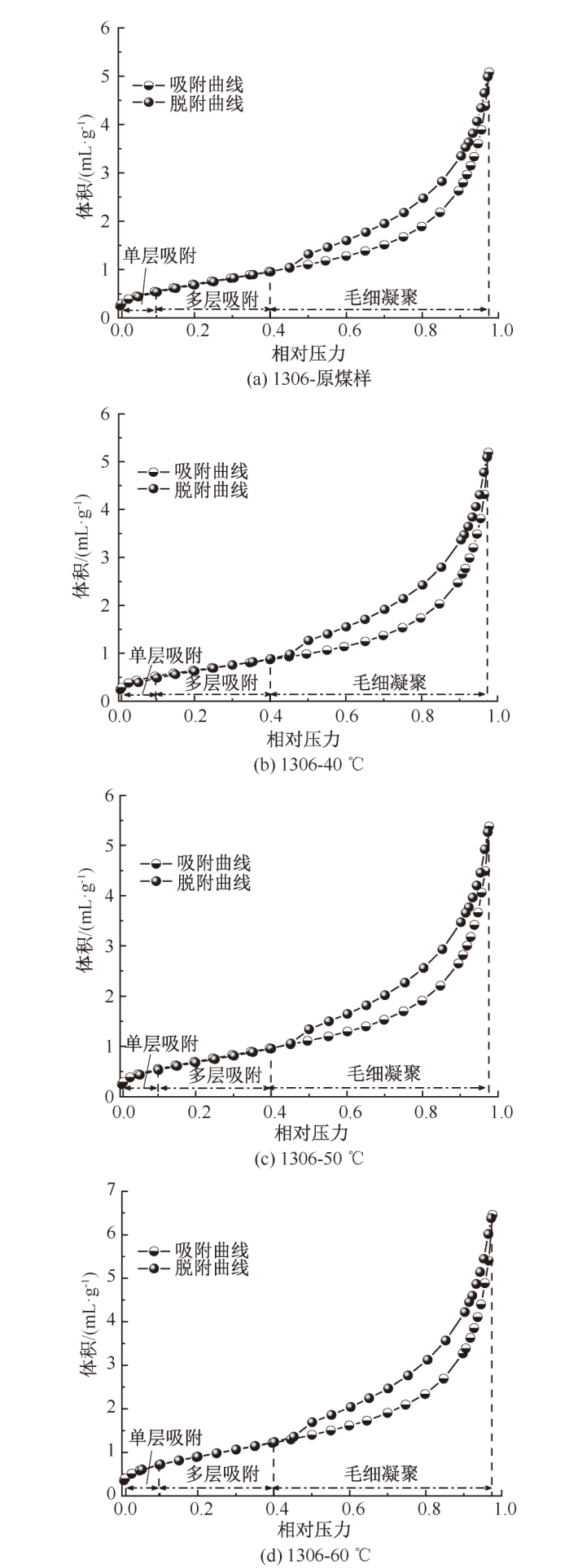

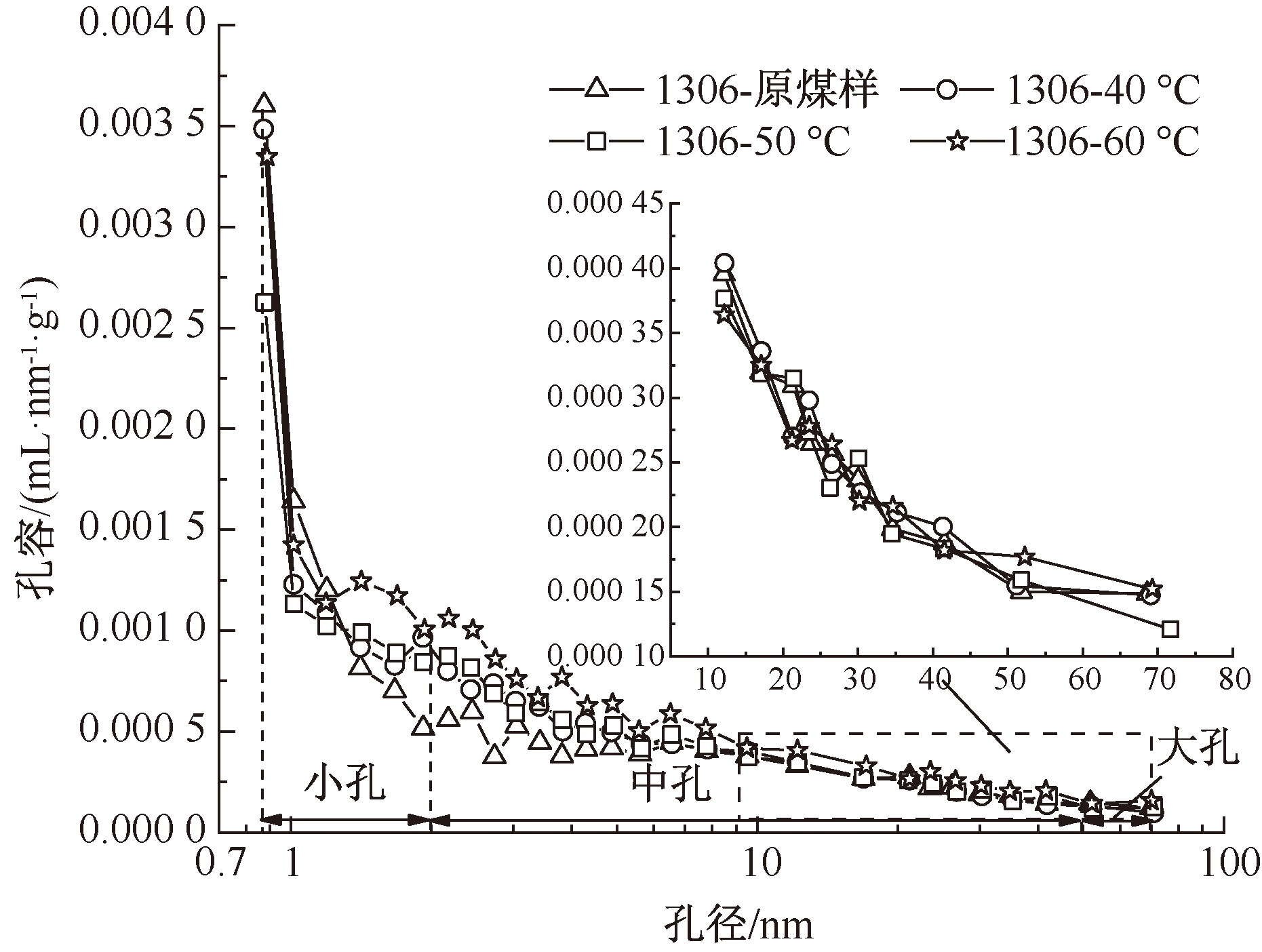

为预防高地温煤层开采条件下煤自燃灾害,明确煤的自燃特性,以孟巴矿Ⅵ煤层1306工作面煤样为例,将煤样分别置于40、50、60 ℃控温炉中恒温处理30 天,采用全自动比表面积和孔径分布分析仪测试煤的孔隙结构,利用同步热分析仪测试原煤样和高温预处理煤样的氧化动力学参数。结果表明:孟巴矿煤样经高地温作用后,煤的小孔比例减小,中孔和大孔比例增大,煤样经60 ℃处理后比表面积由原煤的2.351 m²/g增至3.285 m²/g,总孔容由原煤的0.007 88 mL/g增至0.010 01 mL/g;与原煤相比,高地温处理后煤样点火温度和燃尽温度显著降低,最大失重量、最大失重速率分别提高6.1%和23.3%;高温处理后煤样的活化能和指前因子均小于原煤,说明高地温环境显著提高孟巴矿煤样的氧化反应活性,增大煤自燃的危险性。

关键词: 高地温, 孔隙结构, 氧化动力学特征, 热重(TG ), 煤自燃

Abstract:

In order to prevent coal spontaneous combustion disasters under high-temperature environment and clarify the spontaneous combustion characteristics, coal samples from the 1306 working face of the VI coal seam in Barapukuria coal mine were selected. The coal samples were subjected to constant temperature treatment at 40, 50, and 60 ℃ for 30 days, and pore structure analysis and thermogravimetry(TG) were performed on the raw coal samples and high-temperature pretreated coal samples to test the oxidation kinetic parameters. The results show that after high-temperature treatment, the proportion of small pores decreases while the proportion of medium pores and large pores increases. After treatment at 60 ℃, the specific surface area of the coal sample increases from 2.351 m²/g of raw coal to 3.285 m²/g, and the total pore volume increases from 0.007 88 mL/g of raw coal to 0.010 01 mL/g. In addition, compared with raw coal, the ignition temperature and burnout temperature of the coal sample significantly decreased after high-temperature treatment, and the maximum weight loss and the maximum weight loss rate increased by 6.1% and 23.3%, respectively. The calculation results of oxidation kinetics show that the activation energy and pre-exponential factor of the coal sample after high-temperature treatment are lower than those of the raw coal, indicating that the high-temperature environment significantly improves the oxidation reaction activity and increases the risk of spontaneous combustion of coal.

Key words: high ground temperature, pore structure, oxidation dynamic characteristics, thermogravimetric (TG), coal spontaneous combustion

中图分类号:

X936

马东, 解庆典, 赵志强, 刘方, 周齐庚. 孟巴矿高地温环境煤孔隙及氧化动力学特征[J]. 中国安全科学学报, 2024, 34(8): 162-169.

MA Dong, XIE Qingdian, ZHAO Zhiqiang, LIU Fang, ZHOU Qigeng. Characteristics of high temperature environment on coal pore structure and oxidation dynamics of Barapukuria coal mine in Bangladesh[J]. China Safety Science Journal, 2024, 34(8): 162-169.

图/表 10

表1

图1

图2

图3

图4

图5

表2

图6

图7

图8

参考文献 21

[1]	余学义, 穆驰, 王皓, 等. 孟加拉国Barapukuria 矿厚煤层分层协调减灾开采模式[J]. 煤炭学报, 2022, 47 (6): 2 352-2 359.
	YU Xueyi, MU Chi, WANG Hao, et al. Mining mode of layered and coordinated disaster reduction in thick coal seam of Barapukuria coal mine in Bangladeshi[J]. Journal of China Coal Society, 2022, 47 (6): 2 352-2 359.
[2]	邓军, 王凯, 翟小伟, 等. 复杂条件下孤岛综放面自燃防治技术研究[J]. 煤炭工程, 2015, 47 (9): 62-67.
	DENG Jun, WANG Kai, ZHAI Xiaowei, et al. Spontaneous combustion control technology of fully mechanized island caving face under complex conditions[J]. Coal Engineering, 2015, 47(9): 62-67.
[3]	秦荣宏, 翟小伟. 孟巴矿高地温高湿环境采空区特厚遗煤自燃规律研究[J]. 煤矿开采, 2014, 19 (5): 100-102.
	QIN Ronghong, ZHAI Xiaowei. Spontaneous combustion rule of extremely-thick residual coal in gob of Mengba Colliery under high temperature and high humidity environment[J]. Coal Ming Technology, 2014, 19 (5): 100-102.
[4]	庞卫东, 于保华, 马芝贺, 等. 特厚煤层复杂条件下火区启封方案优化及控制技术[J]. 煤炭工程, 2011, 43(2): 4-6.
	PANG Weidong, YU Baohua, MA Zhihe, et al. Optimization and control technology of fire zone opening plan under complex conditions of extra thick coal seams[J]. Coal Engineering, 2011, 43(2): 4-6.
[5]	CHAO Jiangkun, GU Qiuyue, PAN Rongkun, et al. Influence of a high-temperature environment in deep mining on the characteristics of coal spontaneous combustion[J]. Combustion Science and Technology, 2022: DOI: 10.1080/00102202.2022.2093110.
[6]	JIA Huilin, YANG Yang, REN Wanxing, et al. Experimental study on the characteristics of the spontaneous combustion of coal at high ground temperatures[J]. Combustion Science and Technology, 2022, 194(14): 2 880-2 893.
[7]	邓军, 王凯, 翟小伟, 等. 高地温环境对煤自燃特性影响的试验研究[J]. 煤矿安全, 2014, 45 (3): 13-15.
	DENG Jun, WANG Kai, ZHAI Xiaowei, et al. Experimental study on the effect of high ground temperature environment on coal spontaneous combustion characteristics[J]. Safety in Coal Mines, 2014, 45 (3): 13-15.
[8]	马砺, 雷昌奎, 王凯, 等. 高地温环境对煤自燃危险性影响试验研究[J]. 煤炭科学技术, 2016, 44 (1): 144-156.
	MA Li, LEI Changkui, WANG Kai, et al. Experiment study on high geo-temperature environment affected to danger of coal spontaneous combustion[J]. Coal Science and Technology, 2016, 44 (1): 144-156.
[9]	马砺, 雷昌奎, 王凯, 等. 高地温环境对煤自燃极限参数的影响研究[J]. 煤炭工程, 2015, 47 (12): 89-92.
	MA Li, LEI Changkui, WANG Kai, et al. Impact of high ground temperature environment on limit parameters of coal spontaneous combustion[J]. Coal Engineering, 2015, 47 (12): 89-92.
[10]	NIU Huiyong, SUN Qingqing, BU Yunchuan, et al. Study of the microstructure and oxidation characteristics of residual coal in deep mines[J]. Journal of Cleaner Production, 2022, 373: DOI:10.1016/j.jclepro.2022.133923.
[11]	NIU Huiyong, YU Xiaodong, SUN Qingqing, et al. Analysis of the thermal behavior characteristics and dynamics of coal under high primary temperature conditions in deep mines[J]. Combustion Science and Technology, 2023: DOI: 10.1080/00102202.2023.2225210.
[12]	马冬娟, 唐一博. 高地温对不同变质程度煤自燃微观结构影响试验研究[J]. 煤炭科学技术, 2019, 47(12): 109-115.
	MA Dongjuan, TANG Yibo. Experimental investigation on microstructure influence of high temperature on spontaneous combustion of coal with different ranks[J]. Coal Science and Technology, 2019, 47(12):109-115.
[13]	SARGEANT J, BEAMISH B, CHALMERS D. Times to ignition analysis of new south wales[C]. 9^th Underground Coal Operators Conference, 2009:254-358.
[14]	张修峰, 杨胜强. 高地温环境对煤的自热危险性影响分析[J]. 中国矿业, 2016, 25 (9): 159-165.
	ZHANG Xiufeng, YANG Shengqiang. The effect of high ground temperature environment on risk of coal self-heating[J]. China Mining Magazine, 2016, 25 (9): 159-165.
[15]	GB/T 21650.2—2008,压汞法和气体吸附法测定固体材料孔径分布和孔隙度.第2部分:气体吸附法分析介孔和大孔[S].
[16]	ZHANG Kaizhong, CHENG Yuanping, LI Wei, et al. Microcrystalline characterization and morphological structure of tectonic anthracite using XRD, liquid nitrogen adsorption, mercury porosimetry, and micro-CT[J]. Energy & Fuels, 2019, 33: 10 844-10 851.
[17]	THOMMES M, KANEKO K, NEIMARK A V, et al. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report)[J]. Pure and Applied Chemistry, 2015, 87(9/10): 1 051-1 069.
[18]	XIN Haihui, TIAN Wenjiang, ZHOU Banghao, et al. Pore structure evolution and oxidation characteristic change of coal treated with liquid carbon dioxide and liquid nitrogen[J]. Energy, 2023, 268: DOI: 10.1016/j.energy.2023.126674.
[19]	唐一博, 李云飞, 薛生, 等. 长期水浸对不同烟煤自燃参数与微观特性影响的实验研究[J]. 煤炭学报, 2017, 42(10): 2 642-2 648.
	TANG Yibo, LI Yunfei, XUE Sheng, et al. Experimental investigation of long-term water immersion effect on spontaneous com-bustion parameters and microscopic characteristics of bituminous[J]. Journal of China Coal Society, 2017, 42(10): 2 642-2 648.
[20]	贾廷贵, 强倩, 娄和壮, 等. 不同变质程度煤样氧化自燃热特性试验研究[J]. 中国安全科学学报, 2021, 31(10): 62-67. doi: 10.16265/j.cnki.issn1003-3033.2021.10.009
	JIA Tinggui, QIANG Qian, LOU Hezhuang, et al. Experimental study on thermal characteristics of coal samples with different metamorphism degree during spontaneous combustion[J]. China Safety Science Journal, 2021, 31(10): 62-67. doi: 10.16265/j.cnki.issn1003-3033.2021.10.009
[21]	WANG Chenguang, WANG Deming, XIN Haihui, et al. Study on secondary oxidation characteristics of coal gangue at different pyrolysis rank[J]. Fuel, 2023,345:DOI:10.1016/j.fuel.2023.12823.

煤样	t₁	t₂	t₃	t₄	t₅	t₆	t₇
1306-原煤样	52.29	265.55	280.86	320.78	450.1	561.38	612.78
1306-40 ℃	52.29	259.54	275.67	316.68	436.71	529.67	581.07
1306-50 ℃	51.47	259.54	273.75	312.85	435.61	526.93	577.24
1306-60 ℃	51.46	250.24	267.46	311.21	429.87	463.23	573.41
