基于动态贝叶斯网络的民航空中停车事件安全风险评估

doi:10.16265/j.cnki.issn1003-3033.2023.07.1884

摘要/Abstract

摘要：

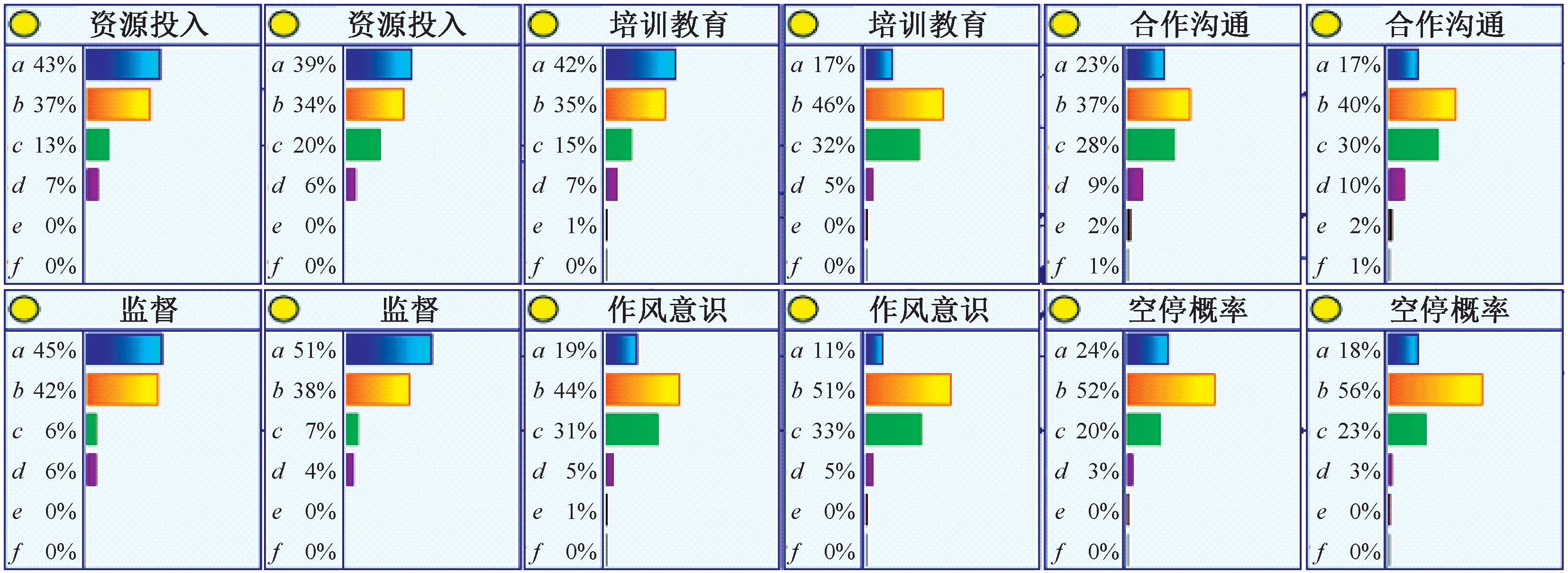

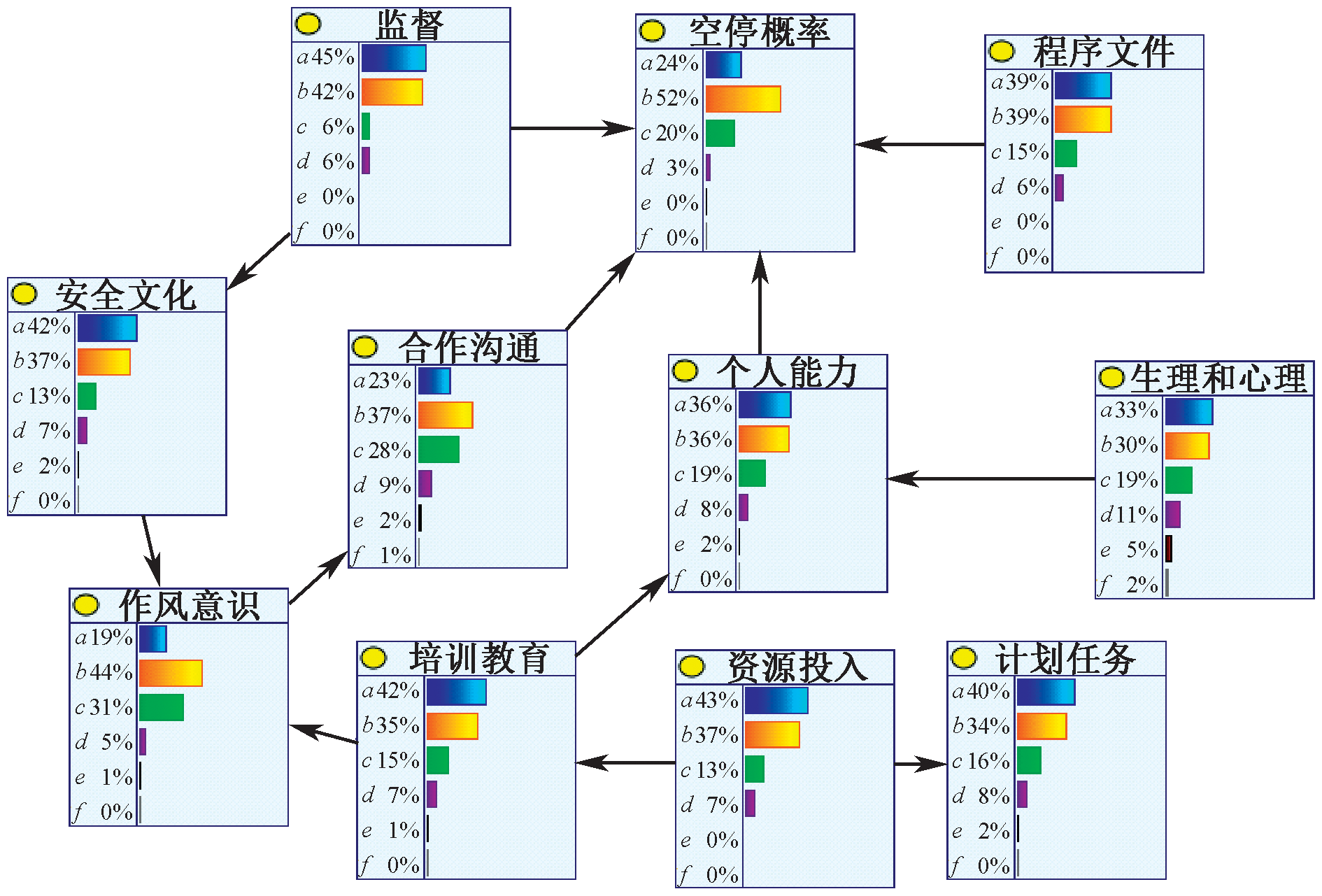

为探究组织和人的因素对发动机空中停车事件的影响及其演化情况,评估航空公司空停事件的风险水平,基于动态贝叶斯网络(DBN),构建一种适用于民航空停的风险评估模型。首先,运用主动与被动相结合的方式,识别影响发动机发生空停事件的组织和人的因素;其次,利用毕达哥拉斯模糊和决策试验与评估实验室(DEMATEL)方法,探究各个风险因素之间的因果关系;然后,基于得到的风险因素因果关系构建民航空停DBN,依据统计分析和专家经验确定民航空停的DBN参数,通过GeNle概率推理,进一步得出空停事件发生的概率;最后,以S航空公司的CFM56-5B发动机为例,评估民航空停事件安全风险。结果表明:2020—2021年,S航空公司的CFM56-5B发动机发生空停事件的概率分别为1.260×10^-6、1.352×10^-6;导致民航空停事件安全风险变化的主要原因是资源投入减少导致教育培训效果降低进而影响作风意识和合作沟通。

关键词: 动态贝叶斯网络(DBN), 空中停车 (IFSD), 安全风险评估, 毕达哥拉斯模糊, 决策试验与评估实验室(DEMATEL)

Abstract:

In order to explore the impact and evolution of organizational and human factors on IFSD events of engine and to evaluate the risk level of airline IFSD events, a risk assessment model was built for civil aviation IFSD based on DBN. Firstly, the active and passive methods were used to identify the organizational and human factors that affected the occurrence of IFSD. Secondly, Pythagorean fuzzy DEMATEL was used to explore the causal relationship between risk factors. Then, the DBN of civil aviation IFSD was constructed based on the obtained causal relationship, and the parameters were obtained based on statistical analysis and expert experience. The occurrence probability of IFSD events was obtained through GeNle probability reasoning. Finally, the CFM56-5B engine of S Airlines was taken as an example to conduct the safety risk assessment of IFSD events. The results indicate that the probability of air stop of CFM56-5B engine of S Airlines from 2020 to 2021 is 1.260×10^-6 and 1.352×10^-6, respectively. The main reason for the change in safety risks of civil aviation IFSD events is that the decrease in "resource investment" leads to the decrease in the effectiveness of "education and training", which in turn affects "work style awareness" and "cooperation and communication".

Key words: dynamic Bayesian networks (DBN), in flight shut-down (IFSD), risk assessment, Pythagoras fuzzy, decision making trial and evaluation laboratory (DEMATEL)

陈芳, 崔庆敏, 向千秋. 基于动态贝叶斯网络的民航空中停车事件安全风险评估[J]. 中国安全科学学报, 2023, 33(7): 16-23.

CHEN Fang, CUI Qingmin, XIANG Qianqiu. Safety risk assessment of civil aviation air parking events based on DBN[J]. China Safety Science Journal, 2023, 33(7): 16-23.

图/表 11

表1

表2

表3

表4

表5

表6

图1

表7

图2

表8

图3

参考文献 21

[1]	曹蓓, 于航, 孙佳, 等. 基于事故树分析法的发动机空中停车人为差错研究[J]. 安全与环境学报, 2014, 14(6):15-18.
	CAO Bei, YU Hang, SUN Jia, et al. Research of human errors in in-flight shutdown based on the fault tree analysis[J]. Journal of Safety and Environment, 2014, 14(6):15-18.
[2]	孙绍辉. 面向预知维修的航空发动机可靠性评估与预测研究[D]. 南京: 南京航空航天大学, 2013.
	SUN Shaohui. Research on assessment and prediction about the reliability of aircraft engine oriented predictive maintenance[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2013.
[3]	孙超, 王瑛, 崔利杰, 等. 基于Bow-tie模型的发动机空中停车事故分析与预防[J]. 火力与指挥控制, 2017, 42(1):27-31.
	SUN Chao, WANG Ying, CUI Lijie, et al. Research on analysis and prevention of in-flight shutdown based on bow-tie[J]. Fire Control & Command Control, 2017, 42(1):27-31.
[4]	唐海军, 马克文, 史春, 等. 一起CFM56-7 B发动机空停原因调查与分析[J]. 航空维修与工程, 2011(6):71-72.
	TANG Haijun, MA Kewen, SHI Chun, et al. Investigation and analysis on an in-flight shutdown of a CFM56-7B engine[J]. Aviation Maintenance & Engineering, 2011(6):71-72.
[5]	易玮. PW1100发动机防止空中停车的研究[J]. 航空维修与工程, 2020(5):50-51.
	YI Wei. Study on the prevention from inflight shutdown for PW1100 engine[J]. Aviation Maintenance & Engineering, 2020(5):50-51.
[6]	钟诗胜, 李旭, 张永健. 基于DBN的不均衡样本驱动民航发动机故障诊断[J]. 航空动力学报, 2019, 34(3):708-716.
	ZHONG Shisheng, LI Xu, ZHANG Yongjian. Fault diagnosis of civil aero-engine driven by unbalanced samples based on DBN[J]. Journal of Aerospace Power, 2019, 34(3):708-716.
[7]	刘君强, 谢吉伟, 左洪福, 等. 基于随机Wiener过程的航空发动机剩余寿命预测[J]. 航空学报, 2015, 36(2):564-574. doi: 10.7527/S1000-6893.2014.0312
	LIU Junqiang, XIE Jiwei, ZUO Hongfu, et al. Residual lifetime prediction for aeroengines based on Wiener process with random effects[J]. Acta Aeronautica et Astronautica Sinica, 2015, 36(2):564-574. doi: 10.7527/S1000-6893.2014.0312
[8]	孙见忠, 左洪福, 梁坤. 基于民航发动机状态数据的涡轮叶片剩余寿命评估[J]. 机械工程学报, 2015, 51(23):53-59.
	SUN Jianzhong, ZUO Hongfu, LIANG Kun. Remaining useful life estimation method for the turbine blade of a civil aircraft engine based on the QAR and field failure data[J]. Journal of Mechanical Engineering, 2015, 51(23):53-59.
[9]	丁松滨, 石荣, 施和平. 基于证据理论的航空公司安全系统风险评价[J]. 交通运输系统工程与信息, 2007(2):77-82.
	DING Songbin, SHI Rong, SHI Heping. Airline safety system risk assessment based on evidence theory[J]. Journal of Transportation Systems Engineering and Information Technology, 2007(2):77-82.
[10]	赵嶷飞, 万俊强. 基于集对分析的航空公司安全风险评估研究[J]. 安全与环境学报, 2018, 18(5):1711-1715.
	ZHAO Yifei, WAN Junqiang. Safety risk assessment of the airlines based on the set pair analysis[J]. Journal of Safety and Environment, 2018, 18(5):1711-1715.
[11]	安景文, 吴竹南, 殷睿超. 基于FUZZY-DEMATEL的探索性企业质量文化建设测评体系构建[J]. 数学的实践与认识, 2018, 48(7):63-73.
	AN Jingwen, WU Zhu'nan, YIN Ruichao. Enterprise quality culture construction evaluation system by FUZZY-DEMATEL[J]. Mathematics in Practice and Theory, 2018, 48(7):63-73.
[12]	岳文静, 杜丽敬, 陈先锋, 等. 基于DBN的气体泄漏事故情景推演与节点分析[J]. 中国安全科学学报, 2022, 32(增1):165-170.
	YUE Wenjing, DU Lijing, CHEN Xianfeng, et al. Scenario deduction and node analysis of gas leakage accidents based on DBN[J]. China Safety Science Journal, 2022, 32(S1):165-170. doi: 10.16265/j.cnki.issn1003-3033.2022.S1.0893
[13]	ICAO. Doc 9859 Safety management manual(SMM)[EB/OL].[2022-12-20]. https://elibrary.icao.int/explore;searchText=9859;mainSearch=1;themeName=Blue-Theme.
[14]	ZHANG Xiaolu. A novel approach based on similarity measure for Pythagorean fuzzy multiple criteria group decision making[J]. International Journal of Intelligent Systems, 2016, 31:593-611. doi: 10.1002/int.2016.31.issue-6
[15]	SONER O. Application of fuzzy DEMATEL method for analysing of accidents in enclosed spaces onboard ships[J]. Ocean Engineering, 2020, 220:DOI:10.1016/j.oceaneng.2020.108507. doi: 10.1016/j.oceaneng.2020.108507
[16]	ALE B J M, BELLAMY L J, COOK R M, et al. Towards a causal model for air transport safety: an ongoing research project[J]. Safety Science, 2006, 44(8):657-673. doi: 10.1016/j.ssci.2006.02.002
[17]	李金蓉, 杨玉中. DS理论-贝叶斯网络下的煤矿通风系统风险评估[J]. 中国安全科学学报, 2022, 32(8):146-153. doi: 10.16265/j.cnki.issn1003-3033.2022.08.1633
	LI Jinrong, YANG Yuzhong. Risk assessment of ventilation system in coal mines based on DS theory and Bayesian network[J]. China Safety Science Journal, 2022, 32(8):146-153. doi: 10.16265/j.cnki.issn1003-3033.2022.08.1633
[18]	王海燕, 万忠菊, 赵宗可, 等. 基于粗糙三角模糊数的邮轮建造舾装物流集配流程风险评估[J]. 安全与环境工程, 2019, 26(2):117-123.
	WANG Haiyan, WAN Zhongju, ZHAO Zongke, et al. Risk assessment of concentralized distribution logistics process of the cruise construction outfitting material based on rough triangle fuzzy number[J]. Safety and Environmental Engineering, 2019, 26(2):117-123.
[19]	曾明华, 王旭, 王转敏, 等. 基于模糊多态贝叶斯网络的地铁运营风险评估方法[J]. 城市轨道交通研究, 2019, 22(5):28-33.
	ZENG Minghua, WANG Xu, WANG Zhuanmin, et al. Risk assessment of subway operation safety based on fuzzy polymorphic Bayesian network[J]. Urban Mass Transit, 2019, 22(5):28-33.
[20]	OMRAN A, SEYED B M, HASAN A M, et al. Development of a dynamic quantitative risk assessment methodology using fuzzy DEMATEL-BN and leading indicators[J]. Process Safety and Environmental Protection, 2020, 142:15-44. doi: 10.1016/j.psep.2020.04.038
[21]	WILLY R, ALI M, JAN E V, et al. On the use of the hybrid causal logic method in offshore risk analysis[J]. Reliability Engineering and System Safety, 2008, 94(2):445-455. doi: 10.1016/j.ress.2008.04.003

语言术语	PFN
很低	(0.15,0.85)
低	(0.25,0.75)
中低	(0.35,0.65)
中	(0.50,0.45)
中高	(0.65,0.35)
高	(0.75,0.25)
很高	(0.85,0.15)

语言变量	概率范围	三角模糊数
极低	0.1	(0.1,0.1,0.2)
低	0.3	(0.2,0.3,0.4)
一般	0.5	(0.4,0.5,0.6)
高	0.7	(0.6,0.7,0.8)
极高	0.9	(0.8,0.9,0.9)

状态	解释	影响因子Q
a	行业最佳水平	0.1
b	优于行业平均水平	0.55
c	行业平均水平	1
d	略低于行业平均水平	4
e	远低于行业平均水平	7
f	行业最糟糕水平	10

类别	风险因素
组织风险因素 A	程序文件A₁ 培训教育A₂ 计划任务A₃ 监督A₄ 资源投入A₅ 安全文化A₆
人的风险因素 B	个人能力B₁ 生理和心理状态B₂ 作风意识B₃ 合作沟通B₄

专家	职务	工作经验/a	教育程度	权重
1	质量部副部长	12	本科	0.45
2	质量部经理	10	本科	0.28
3	大修部经理	7	硕士	0.27
