高流态注浆材料膨胀及蠕变特性试验研究

doi:10.16265/j.cnki.issn1003-3033.2024.10.0636

摘要/Abstract

摘要：

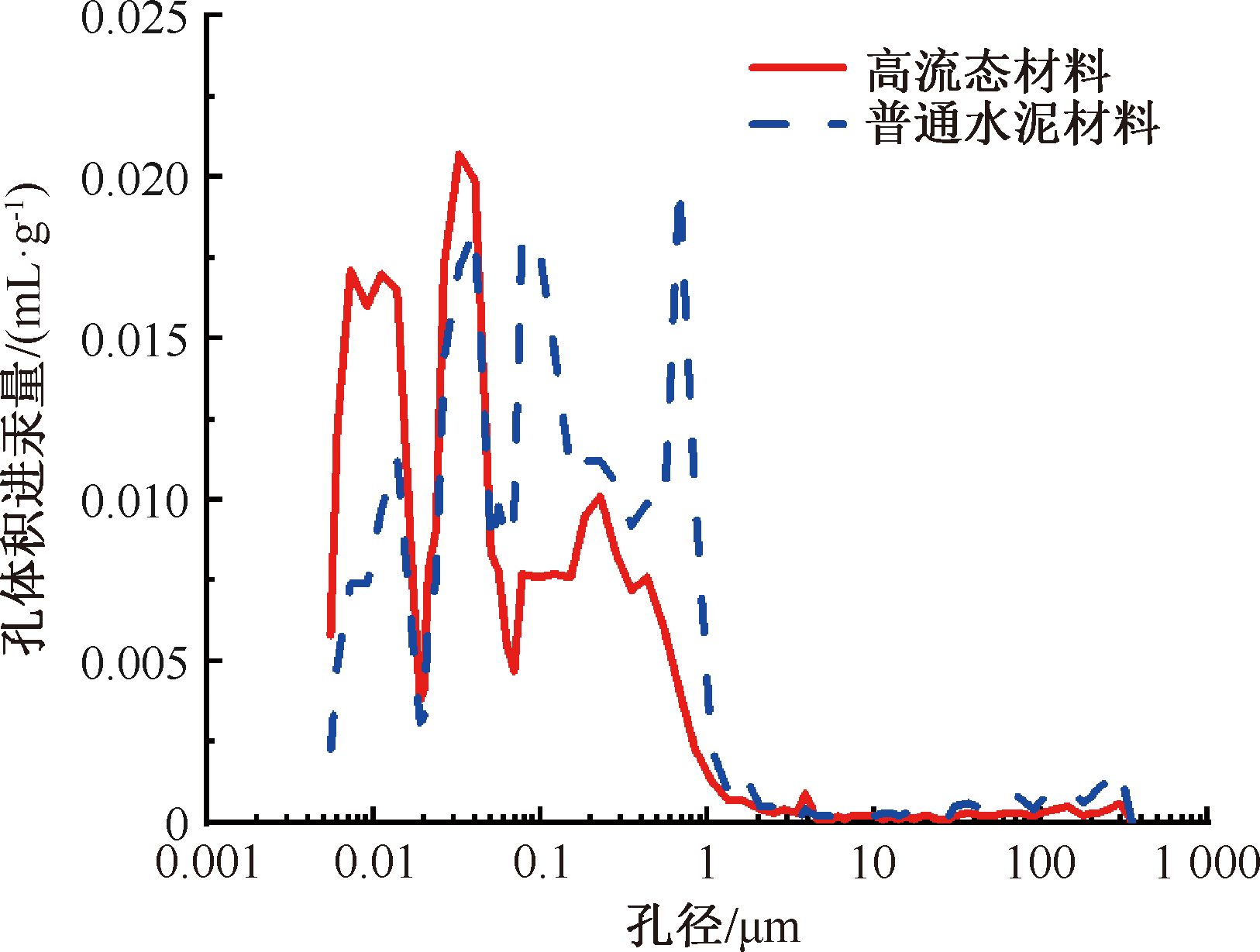

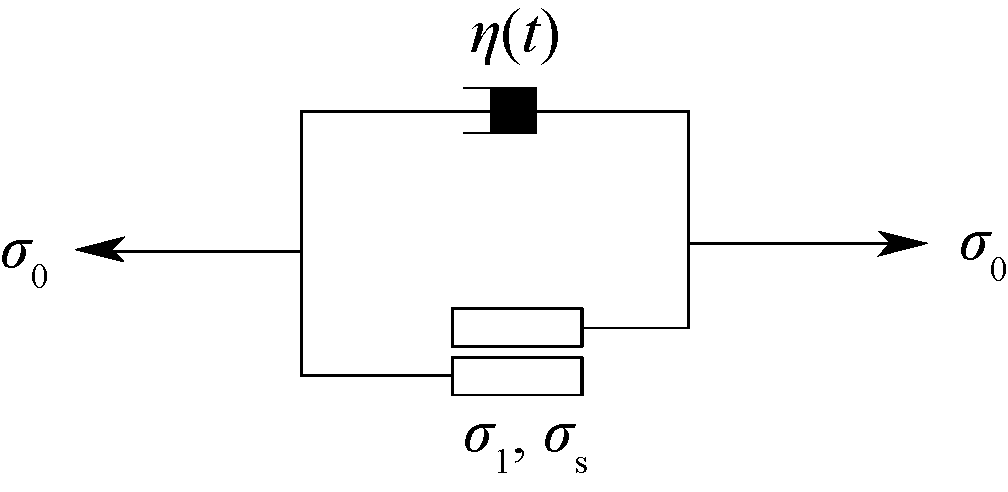

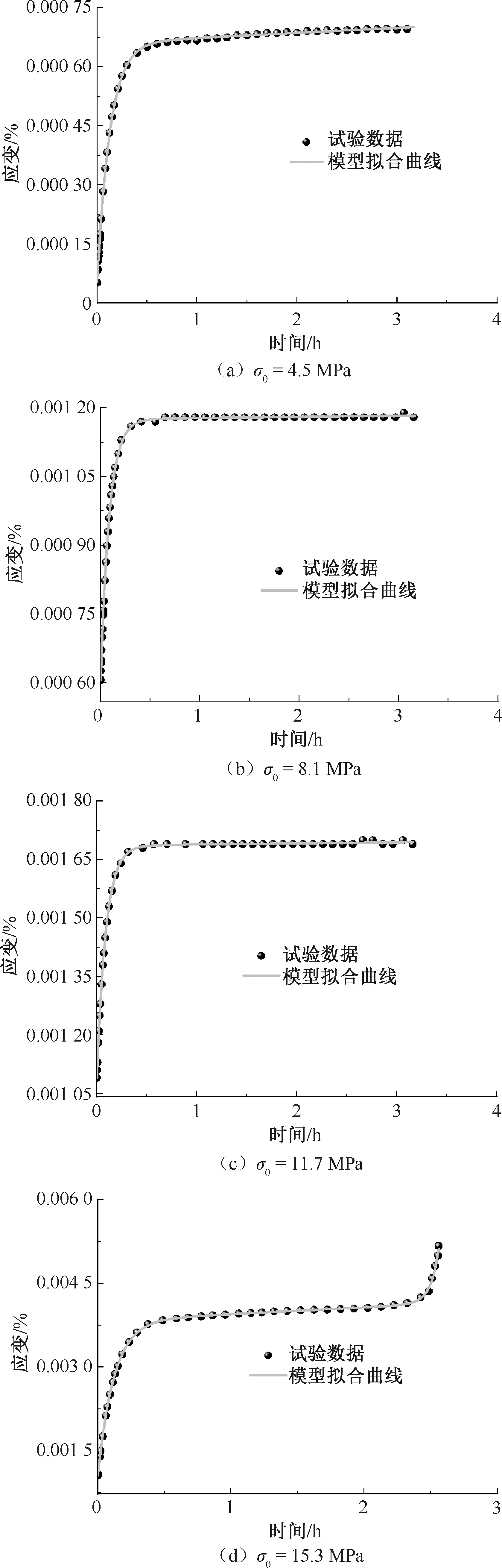

为探究高流态注浆材料膨胀规律以及注浆后煤体蠕变力学特性和孔隙结构,设计新非线性黏塑性元件结构,并据此构建蠕变力学模型。首先,制备高流态注浆材料并将其注入至煤体中,以模拟钻孔周围煤体注浆情况;然后,采用压汞试验和单轴分级加载蠕变试验方法,测试注浆后煤体孔隙结构以及不同应力水平下注浆煤体蠕变性能,进而获取注浆煤体在不同蠕变阶段的应变变化规律。最后基于蠕变试验结果,设计新非线性黏塑性元件,并将其引入到鲍埃丁-汤姆逊模型,反演获得蠕变模型相关参数,揭示注浆后煤体的蠕变失稳破坏规律。研究结果表明:高流态注浆材料膨胀率相比普通水泥材料提高92%,能够有效解决水泥基注浆材料固化后收缩的问题;当高流态注浆材料注入煤体后,煤体失稳破坏临界荷载为15.3 MPa,在一定程度上提高了煤体稳定性。

关键词: 高流态, 注浆材料, 材料膨胀, 蠕变特性, 分级加载, 孔隙结构

Abstract:

In order to investigate the expansion law of high flow grouting material and the creep mechanical properties and pore structure of coal after grouting, a new nonlinear viscoplastic element was created and a creep mechanical model was constructed. Firstly, the high flow grouting material was prepared and injected into the coal body to simulate the coal body grouting around the borehole. Secondly, mercury injection experiment and uniaxial fractional loading creep test were used to test the pore structure of the coal after grouting and the creep performance of the coal under different stress levels, and the strain variation law of the coal at different creep stages was obtained. Finally, based on the creep test results, a new nonlinear viscoplastic element was constructed and introduced into the Boedin-Thomson model. Finally, the relevant parameters of the creep model were obtained by inversion, the reliability of the model was verified, and the creep instability failure law of the coal after grouting was obtained. The results show that the expansion rate of high flow grouting material is 92% higher than that of ordinary cement material, which effectively improves the shrinkage problem of cement-based grouting material after curing. After the high flow grouting material is injected into the coal body, the critical load of instability failure of the coal body is 15.3 MPa, which improves the stability of the coal body to some extent.

Key words: high flow state, grouting material, material expansion, creep characteristics, graded loading, pore structure

中图分类号:

X936

郭鑫, 鲁义, 施式亮, 李贺, 李大芳. 高流态注浆材料膨胀及蠕变特性试验研究[J]. 中国安全科学学报, 2024, 34(10): 143-151.

GUO Xin, LU Yi, SHI Shiliang, LI He, LI Dafang. Experimental study on expansion and creep characteristics of high flow sealed grouting material[J]. China Safety Science Journal, 2024, 34(10): 143-151.

图/表 13

表1

图1

图2

图3

图4

表2

图5

图6

图7

图8

图9

表3

表4

参考文献 27

[1]	谢和平. 深部岩体力学与开采理论研究进展[J]. 煤炭学报, 2019, 44(5):1283-1305.
	XIE Heping. Research review of the state key research development program of China: deep rock mechanics and mining theory[J]. Journal of China Coal Society, 2019, 44(5):1283-1305.
[2]	李文洲, 康红普, 姜志云, 等. 深部裂隙煤岩体变形破坏机理及高压注浆改性强化试验研究[J]. 煤炭学报, 2021, 46(3): 912-923.
	LI Wenzhou, KANG Hongpu, JIANG Zhiyun, et al. Deformation failure mechanism of fractured deep coal-rock mass and high-pressure grouting modification strengthening testing[J]. Journal of China Coal Society, 2021, 46(3):912-923.
[3]	鲁义, 谷旺鑫, 丁仰卫, 等. 固结软煤层瓦斯抽采钻孔周围裂隙的弹性胶结材料研制[J]. 煤炭科学技术, 2022, 50(2):129-136.
	LU Yi, GU Wangxin, DING Yangwei, et al. Development of elastic cemented material for consolidating cracks around drilling holes in gas drainage in soft coal seams[J]. Coal Science and Technology, 2022, 50(2):129-136.
[4]	王旭锋, 陈旭阳, 王纪尧, 等. 平顶山矿区深部软岩巷道围岩蠕变破坏机制及控制[J]. 采矿与安全工程学报, 2023, 40(6): 1139-1150.
	WANG Xufeng, CHEN Xuyang, WANG Jiyao, et al. Study on creep failure mechanism and control of the deep soft rock road way in Pingdingshan mining area[J]. Journal of Mining & Safety Engineering, 2023, 40(6):1139-1150.
[5]	张钧祥, 刘彦伟, 任培良, 等. 基于蠕变效应的穿层钻孔封孔参数优化与试验研究[J]. 中国安全科学学报, 2021, 31(7):97-104. doi: 10.16265/j.cnki.issn 1003-3033.2021.07.014
	ZHANG Junxiang, LIU Yanwei, REN Peiliang, et al. Optimization and experimental study of sealing parameters of crossing boreholes based on creep effect[J]. China Safety Science Journal, 2021, 31(7):97-104. doi: 10.16265/j.cnki.issn 1003-3033.2021.07.014
[6]	张天军, 包若羽, 李树刚, 等. 新型CF封孔材料膨胀及蠕变特性试验研究[J]. 采矿与安全工程学报, 2019, 36(1):175-183.
	ZHANG Tianjun, BAO Ruoyu, LI Shugang, et al. Experimental study on expansion and creep characteristics of new CF sealing material[J]. Journal of Mining and Safety Engineering, 2019, 36(1):175-183.
[7]	张起, 魏国营, 秦宾宾, 等. 基于蠕变变形的顺煤层钻孔筛管封孔技术研究[J]. 中国安全科学学报, 2019, 29(3):133-138. doi: 10.16265/j.cnki.issn1003-3033.2019.03.022
	ZHANG Qi, WEI Guoying, QIN Binbin, et al. Research on sealing technology of screen pipe based on creep deformation[J]. China Safety Science Journal, 2019, 29(3):133-138. doi: 10.16265/j.cnki.issn1003-3033.2019.03.022
[8]	郝富昌, 刘彦伟, 龙威成, 等. 蠕变-渗流耦合作用下不同埋深有效抽采半径研究[J]. 煤炭学报, 2017, 42(10):2616-2622.
	HAO Fuchang, LIU Yanwei, LONG Weicheng, et al. Effective gas extraction radius of different burial depths under creep-seepage coupling[J]. Journal of China Coal Society, 2017, 42(10):2616-2622.
[9]	王猛, 郑冬杰, 王襄禹, 等. 深部巷道钻孔卸压围岩弱化变形特征与蠕变控制[J]. 采矿与安全工程学报, 2019, 36(3): 437-445.
	WANG Meng, ZHENG Dongjie, WANG Xiangyu, et al. Deformation characteristics and creeping control of deep roadway with pressure-relief borehole[J]. Journal of Mining & Safety Engineering, 2019, 36(3):437-445.
[10]	陈昌富, 朱世民, 高傑, 等. 考虑注浆压力影响锚-土界面剪切蠕变Kriging模型[J]. 岩土工程学报, 2019, 41(增1):125-128.
	CHEN Changfu, ZHU Shimin, GAO Jie, et al. Kriging method-based creep model for anchor-soil interface considering grouting pressure[J]. Chinese Journal of Geotechnical Engineering, 2019, 41(S1):125-128.
[11]	丁铸, 张德成, 邵洪江, 等. 含超细矿渣水泥的水化研究[J]. 建筑材料学报, 1998, 1(3):201-205.
	DING Zhu, ZHANG Decheng, SHAO Hongjiang, et al. Study on the hydration of cement containing ultra-fine slag[J]. Journal of Building Materials, 1998, 1(3):201-205.
[12]	季韬, 林挺伟, 郑忠双, 等. 水泥胶砂流动度预测方法的研究[J]. 建筑材料学报, 2005, 8(1):17-22.
	JI Tao, LIN Tingwei, ZHENG Zhongshuang, et al. Study for the fluidity prediction method of mortar[J]. Journal of Building Materials, 2005, 8(1):17-22.
[13]	白静静, 王敏, 史才军, 等. 降粘性聚羧酸减水剂的设计合成及在低水胶比水泥-硅灰体系中的作用[J]. 材料导报, 2020, 34(6):6172-6179.
	BAI Jingjing, WANG Min, SHI Caijun, et al. Design, synthesis of viscosity-reducing polycarboxylate superplasticizer and its influence on cement-silica fume paste with low water-binder ratio[J]. Materials Reports, 2020, 34(6):6172-6179.
[14]	吴鑫. 不同煤粉粒径条件下煤与瓦斯突出模拟实验研究[D]. 重庆: 重庆大学, 2010.
	WU Xin. Research on simulation experiments on coal and gas outburst in various particle size[D]. Chongqing: Chong Qing University, 2010.
[15]	李犇. 水化硅酸钙(C-S-H)凝胶的细观力学机理研究[D]. 哈尔滨: 哈尔滨工程大学, 2018.
	LI Ben. Investigation of the Mesco-Mechanical Properties of Calcium-Silicate-Hydrate[D]. Harbin: Harbin Engineering University, 2018.
[16]	ZHANG Xiaoyang, WU Caifang, LIU Shuixi. Characteristic analysis and fractal model of the gas-water relative permeability of coal under different confining pressures[J]. Journal of Petroleum Science and Engineering, 2017, 159:488-496.
[17]	GUO Haijun, YUAN Liang, CHENG Yuanping, et al. Effect of moisture on the desorption and unsteady-state diffusion properties of gas in low-rank coal[J]. Journal of Natural Gas Science and Engineering, 2018, 57: 45-51.
[18]	HOU Jifeng, GUO Zhongping, LI Jinbo, et al. Study on triaxial creep test and theoretical model of cemented gangue-fly ash backfill under seepage-stress coupling[J]. Construction and Building Materials, 2021, 273: DOI: 10.1016/j.conbuildmat.2020.121722.
[19]	ZHANG Longyun, YANG Shangyang. Unloading rheological test and model research of hard rock under complex conditions[J]. Advances in Materials Science and Engineering, 2020: DOI: 10.1155/j.advmaterscieng.2020.3576181.
[20]	周茜, 刘娟红. 矿用富水充填材料的蠕变特性及损伤演化[J]. 煤炭学报, 2018, 43(7):1878-1883.
	ZHOU Qian, LIU Juanhong. Study on creep property and damage evolution of rich-water packing material for mining[J]. Journal of China Coal Society, 2018, 43(7):1878-1883.
[21]	刘鼎, 许军策, 浦海. 不同含水率下矸石胶结充填体蠕变特性试验研究[J]. 采矿与安全工程学报, 2021, 38(5):1055-1062.
	LIU Ding, XU Junce, PU Hai. Experimental study on creep characteristics of gangue cemented fillers with different water content[J]. Journal of Mining and Safety Engineering, 2021, 38(5):1055-1062.
[22]	蔡美峰, 何满朝, 刘东燕. 岩石力学与工程[M]. 北京: 科学出版社, 2012.
[23]	XU Zehua, ZHAO Qingxin, GUO Weichao, et al. Mesomechanical creep model of fly ash-contained cement mortar considering the interfacial transition zone and its influential factors[J]. Construction and Building Materials, 2021, 308: DOI: 10.1016/j.conbuildmat.2021.124985.
[24]	SERRA A A, PUIGORIOL J M, REYES G, et al. Viscoelastic models revisited: characteristics and interconversion formulas for generalized Kelvin-Voigt and Maxwell models[J]. Acta Mechanica Sinica, 2019, 35(6): 1191-1209.
[25]	张亮亮, 王晓健. 岩石黏弹塑性损伤蠕变模型研究[J]. 岩土工程学报, 2020, 42(6):1085-1092.
	ZHANG Liangliang, WANG Xiaojian. Viscoelastic-plastic damage creep model for rock[J]. Chinese Journal of Geotechnical Engineering, 2020, 42(6): 1085-1092.
[26]	尹占超. 干湿循环作用下注浆加固体蠕变特性及隧道运营稳定性研究[D]. 济南: 山东大学, 2020.
	YIN Zhanchao. Study on creep characteristics of grouting reinforcement under dry-wet cycle and tunnel operation stability[D]. Jinan: Shandong University, 2020.
[27]	王兴开, 夏才初, 朱哲明, 等. 单级荷载下极软煤岩长期蠕变规律及本构模型研究[J]. 岩土力学, 2021, 42(8):2078-2088, 2 098.
	WANG Xingkai, XIA Caichu, ZHU Zheming, et al. Long-term creep law and constitutive model of extremely soft coal rock subjected to single-stage load[J]. Rock and Soil Mechanics, 2021, 42(8):2078-2088, 2 098.

类别	SiO₂	Al₂O₃	Fe₂O₃	CaO	MgO	SO₃	损失量
超细硅酸盐水泥	20.57	9.89	3.08	57.65	2	2.7	2.6
氧化钙-硫酸钙复合膨胀剂	4.96	8.52	0.99	64.18	2.67	16.97	1.19

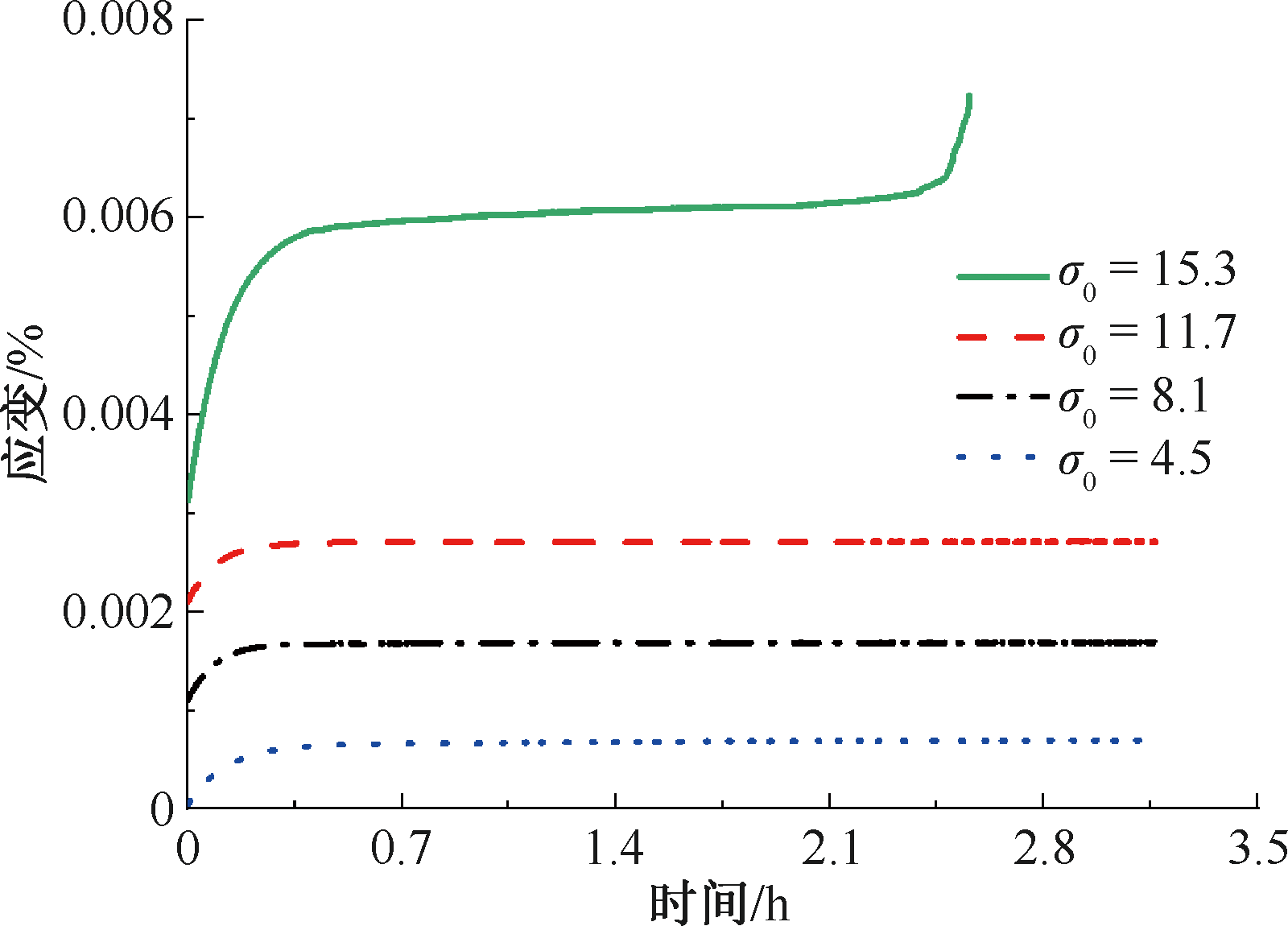

级别	σ₀/MPa	恒载时间/min	加载时间/min
1	4.5	180	10
2	8.1	180	10
3	11.7	180	10
4	15.3	180	10

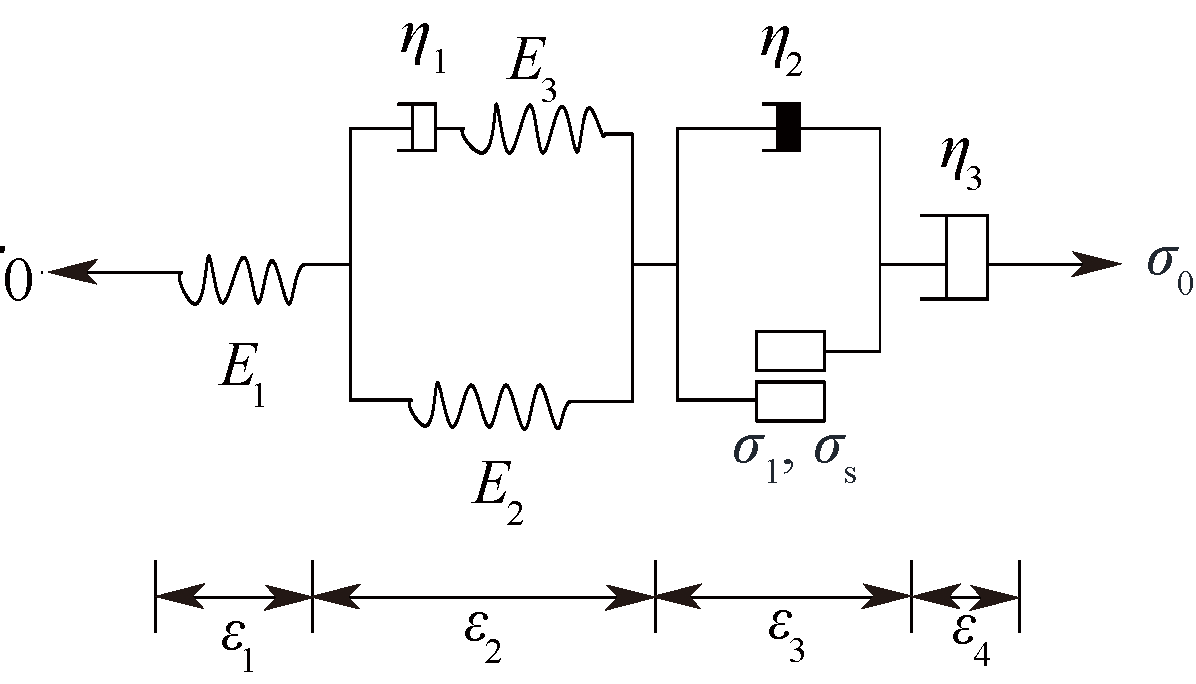

σ₀/MPa	E₁/GPa	E₂/GPa	η₁/(GPa·h)	η₃/(GPa·h)
4.5	206.04	7.048	0.87	347.65
8.1	22.83	9.87	0.61	3.07×10³
11.7	17.15	11.66	0.63	4.16×10³
