摇摆、时间压力对DCS操作员监视绩效和工作负荷的影响

doi:10.16265/j.cnki.issn1003-3033.2024.11.0362

中国安全科学学报 ›› 2024, Vol. 34 ›› Issue (11): 9-16.doi: 10.16265/j.cnki.issn1003-3033.2024.11.0362

• 安全社会科学与安全管理 • 上一篇下一篇

摇摆、时间压力对DCS操作员监视绩效和工作负荷的影响

胡鸿¹(), 武江², 张勉³, 沈超², 易灿南¹^,^**(), 赵彩俊¹

¹ 湖南工学院安全与管理工程学院,湖南衡阳 421002
² 中广核研究院有限公司,深圳广东 518000
³ 南华大学资源环境与安全工程学院,湖南衡阳 421001

收稿日期:2024-07-10 修回日期:2024-09-15 出版日期:2024-11-28
通信作者:
** 易灿南(1981—),女,湖南宁乡人,博士,教授,主要从事职业安全与健康以及人因工程方面的研究。E-mail:yicannan310@126.com。
作者简介:
胡鸿 (1979—),男,湖南邵阳人,博士,教授,主要从事人因可靠性方面的研究。E-mail:fengzhisu16@163.com。
武江, 工程师
沈超, 高级工程师
易灿南, 教授
赵彩俊, 讲师
基金资助:
湖南省自然科学基金(2024JJ5122); 湖南省自然科学基金(2020JJ4263); 大学生创新创业训练计划项目(S202411528046); 大学生创新创业训练计划项目(S202411528064)

Effects of vibration and time pressure on monitoring performance and workload of operators in DCS

HU Hong¹(), WU Jiang², ZHANG Mian³, SHEN Chao², YI Cannan¹^,^**(), ZHAO Caijun¹

¹ School of Safety and Management Engineering, Hunan Institute of Engineering, Hengyang Hunan 421002, China
² China Nuclear Power Technology Research Institute Co., Ltd., Shenzhen Guangdong 518000, China
³ School of Resources Environment and Safety Engineering, University of South China, Hengyang Hunan 421001, China

Received:2024-07-10 Revised:2024-09-15 Published:2024-11-28

摘要/Abstract

摘要：

为了解摇摆、时间压力对数字化控制系统(DCS)操作员监视作业的影响,降低人因失误,设计监视试验获得摇摆(静止、低和高)和时间压力(无时间压力和有时间压力)条件下操作员监视绩效和工作负荷;运用统计学方法分析摇摆和时间压力对监视绩效和工作负荷的影响。结果表明:摇摆对监视绩效(监视时间和正确率)和工作负荷影响均不显著,但随着摇摆级别的增加,监视时间和工作负荷呈现上升趋势;时间压力显著影响监视时间和工作负荷,但对正确率影响不显著;监视任务中,状态确认任务用时显著多于数据比较任务,但正确率差异不显著。摇摆条件下DCS操作员监视绩效和工作负荷与静止条件基本一致;有时间压力条件下,DCS操作员监视工作负荷较大,但监视时间较短。

关键词: 摇摆, 时间压力, 数字化控制系统(DCS), 操作员, 监视绩效, 工作负荷

Abstract:

To explore the effects of vibration and time pressure on monitoring tasks in DCS and reduce human error, a monitoring experiment was designed to measure the monitoring performance and workload under vibration conditions (static, low and high) and time pressure conditions (no time pressure and time pressure). Statistical methods were used to explore the influence of vibration and time pressure on the monitoring performance and workload. The results show that the vibration (monitoring time and accuracy) has no significant effect on monitoring performance. Both the monitoring time and the workload show rising trends with the increase of the vibrating level. The time pressure has a significant impact on monitoring time and workload, but has no significant impact on accuracy. The monitoring time in the state confirmation task is significantly longer than that of data comparison, but the accuracy difference is not significant. The monitoring performance and workload of DCS operators in the vibrating condition are basically the same as that in the static condition. In the time-pressure condition, the DCS operators' workload is heavy, but the monitoring time is short.

Key words: vibration, time pressure, digital control system (DCS), operator, monitoring performance, workload

中图分类号:

X912.9安全人机学

胡鸿, 武江, 张勉, 沈超, 易灿南, 赵彩俊. 摇摆、时间压力对DCS操作员监视绩效和工作负荷的影响[J]. 中国安全科学学报, 2024, 34(11): 9-16.

HU Hong, WU Jiang, ZHANG Mian, SHEN Chao, YI Cannan, ZHAO Caijun. Effects of vibration and time pressure on monitoring performance and workload of operators in DCS[J]. China Safety Science Journal, 2024, 34(11): 9-16.

图/表 10

图1

表1

图2

表2

图3

图4

表3

表4

表5

表6

参考文献 26

[1]	张力. 数字化核电厂人因可靠性[M]. 北京: 国防工业出版社, 2019:12-14.
[2]	秦庭荣, 周歆捷, 何荥杰, 等. 基于STPA-FCM模型的自主航行船舶功能系统分析[J]. 中国安全科学学报, 2023, 33(8):8-14. doi: 10.16265/j.cnki.issn1003-3033.2023.08.1571
	QIN Tingrong, ZHOU Xinjie, HE Xingjie, et al. Analysis of functional systems of MASS based on STPA-FCM model[J]. China Safety Science Journal, 2023, 33(8): 8-14. doi: 10.16265/j.cnki.issn1003-3033.2023.08.1571
[3]	牛莉霞, 李肖萌. 5G时代智慧矿山安全管理新模式[J]. 中国安全科学学报, 2021, 31(6):29-36. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.004
	NIU Lixia, LI Xiaomeng. A new safety management model of intelligent mines in 5G ear[J]. China Safety Science Journal, 2023, 2021, 31(6): 29-36.
[4]	龙时丹. 面向高速铁路的全自动运行系统应用[J]. 中国安全科学学报, 2020, 30(增1):92-97.
	LONG Shidan. Application of automatic operation system for high-speed railway[J]. China Safety Science Journal, 2020, 30(S1): 92-97. doi: 10.16265/j.cnki.issn1003-3033.2020.S1.017
[5]	张力, 韦海峰. 数字化人机界面操纵员监视过程中信息搜集失误试验研究[J]. 安全与环境学报, 2016, 16(5):191-195.
	ZHANG Li, WEI Haifeng. Experimental study on the data collecting errors with the operator's monitoring of the digitalized human-machine interface[J]. Journal of Safety and Environment, 2016, 16(5): 191-195.
[6]	TAO Da, ZENG Jihong, LIU Kaifeng, et al. Effects of control-to-display gain and operation precision requirement on touchscreen operations in vibration environments[J]. Applied Ergonomics, 2021, 91(2): DOI:10.1016/j.apergo.2020.103293.
[7]	LIN Joechiuhsiangjoe, LIU Chino, CHAO Chinjung, et al. The performance of computer input devices in a vibration environment[J]. Ergonomics, 2010, 53(4): 478-490. doi: 10.1080/00140130903528186 pmid: 20309744
[8]	XUE Hongjun, TAO Da, WANG Tieyan, et al. Visual search in vibration environments: effects of spatial ability, stimulus size and stimulus density[J]. International Journal of Industrial Ergonomics, 2020, 79(5): DOI:10.1016/j.ergon.2020.102988.
[9]	TAO Da, REN Xinyuan, LIU Kaifeng, et al. Effects of color scheme and visual fatigue on visual search performance and perceptions under vibration conditions[J]. Displays, 2024, 82(2): DOI:10.1016/j.displa.2024.102667.
[10]	董晓璐. 数字化界面设计方法与时间压力对失误的影响[D]. 北京: 清华大学, 2010.
	DONG Xiaolu. Influence of human-system interface design method and time pressure on human error[D]. Beijing: Tsinghua University, 2010.
[11]	CHANG Y H J, MOSLEH A. Cognitive modeling and dynamic probabilistic simulation of operating crew response to complex system accidents: part 1: overview of the IDAC model[J]. Reliability Engineering & System Safety, 2007, 92(8): 997-1 013.
[12]	ANDREWS J, SMITH D C. In search of the marketing imagination: factors affecting the creativity of marketing programs for mature products[J]. Journal of Marketing Research, 1996, 33(2): 174-187.
[13]	袁悦, 吴志明, 谢秋实. 时间压力对个体工作结果的作用效果:基于元分析的证据[J]. 心理科学进展, 2024, 32(3): 465-485. doi: 10.3724/SP.J.1042.2024.00465
	YUAN Yue, WU Zhiming, XIE Qiushi. The effect of time pressure on individual work outcomes: a meta-analytic review[J]. Advances in Psychological Science, 2024, 32(3): 465-485. doi: 10.3724/SP.J.1042.2024.00465
[14]	BAER M, OLDHAM G R. The curvilinear relation between experienced creative time pressure and creativity: moderating effects of openness to experience and support for creativity[J]. Journal of Applied Psychology, 2006, 91(4): 963-970. pmid: 16834519
[15]	PENG Shuo, WU Changxu, YU Jiahao. The effect of font boldness, noise disturbance and time pressure on human error in the context of cloud change operation[J]. Ergonomics, 2024, 67(10): 1 301-1 316.
[16]	王庄. 任务复杂度和时间压力对计算机化规程操作绩效的影响[D]. 北京: 清华大学, 2012.
	WANG Zhuang. Effects of task complexity and time pressure on operation performance of computerized procedures[D]. Beijing: Tsinghua University, 2012.
[17]	于航. 数字化界面下心理特征与时间压力对人的绩效的影响[D]. 北京: 清华大学, 2011.
	YU Hang. Influence of psychological characteristics and time pressure on human performance on digital interfaces[D]. Beijing: Tsinghua University, 2011.
[18]	孙璐, 张力, 青涛, 等. 时间压力对数字化核电厂主控室操纵员心理负荷和作业绩效的影响[J]. 应用能源技术, 2016, 30(2): 42-47.
	SUN Lu, ZHANG Li, QING Tao, et al. The study on the impact of time pressure on mental workload and operation performance in a digital control room of nuclear power plant[J]. Applied Energy Technology, 2016, 30(2): 42-47.
[19]	甘文娟. 界面管理任务复杂度与时间压力对数字化核电厂操纵员作业绩效的影响研究[D]. 衡阳: 南华大学, 2017.
	GAN Wenjuan. The impact of complexity of interface management tasks and time pressure on the operators' performance in digital nuclear power plant[D]. Hengyang: University of South China, 2017.
[20]	FAUL F, ERDFELDER E, LANG A G, et al. G*Power 3: a flexible statistical power analysis program for the social, behavioral, and biomedical sciences[J]. Behavior Research Methods, 2007, 39(2): 175-191. doi: 10.3758/bf03193146 pmid: 17695343
[21]	张力, 胡鸿, 李鹏程, 等. 数字化核电厂操纵员监视行为可靠性分析及其应用[J]. 原子能科学技术, 2015, 49(5): 921-929. doi: 10.7538/yzk.2015.49.05.0921
	ZHANG Li, HU Hong, LI Pengcheng, et al. Reliability analysis of operator's monitoring behavior in digital main control room of nuclear power plants and its application[J]. Atomic Energy Science and Technology, 2015, 49(5): 921-929. doi: 10.7538/yzk.2015.49.05.0921
[22]	张力, 鄢跃勇, 戴立操, 等. 基于SOP的核电厂数字化主控室操纵员监视行为可靠性研究[J]. 核动力工程, 2015, 36(6): 109-114.
	ZHANG Li, YAN Yueyong, DAI Licao, et al. Study on reliability of monitoring behavior of operator in digitized main control room of Nuclear Power Plants based on SOP[J]. Nuclear Power Engineering, 2015, 36(6): 109-114.
[23]	HART S G, STAVELAND L E. Development of NASA-TLX (task load index): results of empirical and theoretical research[J]. Advances in Psychology, 1988, 52(5): 139-183.
[24]	陶达, 蔡剑, 张旭, 等. 晃动环境下触摸屏手势操作的可用性研究[J]. 工业工程与管理, 2019, 24(5):177-181.
	TAO Da, CAI Jian, ZHANG Xu, et al. Assessing the usability of touchscreen gestures in shaking conditions[J]. Industrial Engineering and Management, 2019, 24(5): 177-181.
[25]	张力, 韦海峰, 胡鸿, 等. 数字化主控室操纵员监视过程中目标识别失误实验研究[J]. 工业工程与管理, 2013, 18(6): 134-138,146.
	ZHANG Li, WEI Haifeng, HU Hong, et al. Experimental research on monitoring target identification errors of operator in digitalized main control room[J]. Industrial Engineering and Management, 2013, 18(6): 134-138, 146.
[26]	蔡剑. 晃动状态、视觉疲劳和界面配色方案对视觉搜索绩效的影响机制研究[D]. 深圳: 深圳大学, 2020.
	CAI Jian. Research on the influence mechanism of vibration, visual fatigue and color scheme on visual search performance[D]. Shenzhen: Shenzhen University, 2020.

自由度	静止		低摇摆		高摇摆
自由度	幅度/ mm	周期/ s	幅度/ mm	周期/ s	幅度/ mm	周期/ s
横向	±0	0	±50	8	±90	8
纵向	±0	0	±50	4	±90	4
垂直	±0	0	±50	4	±90	4

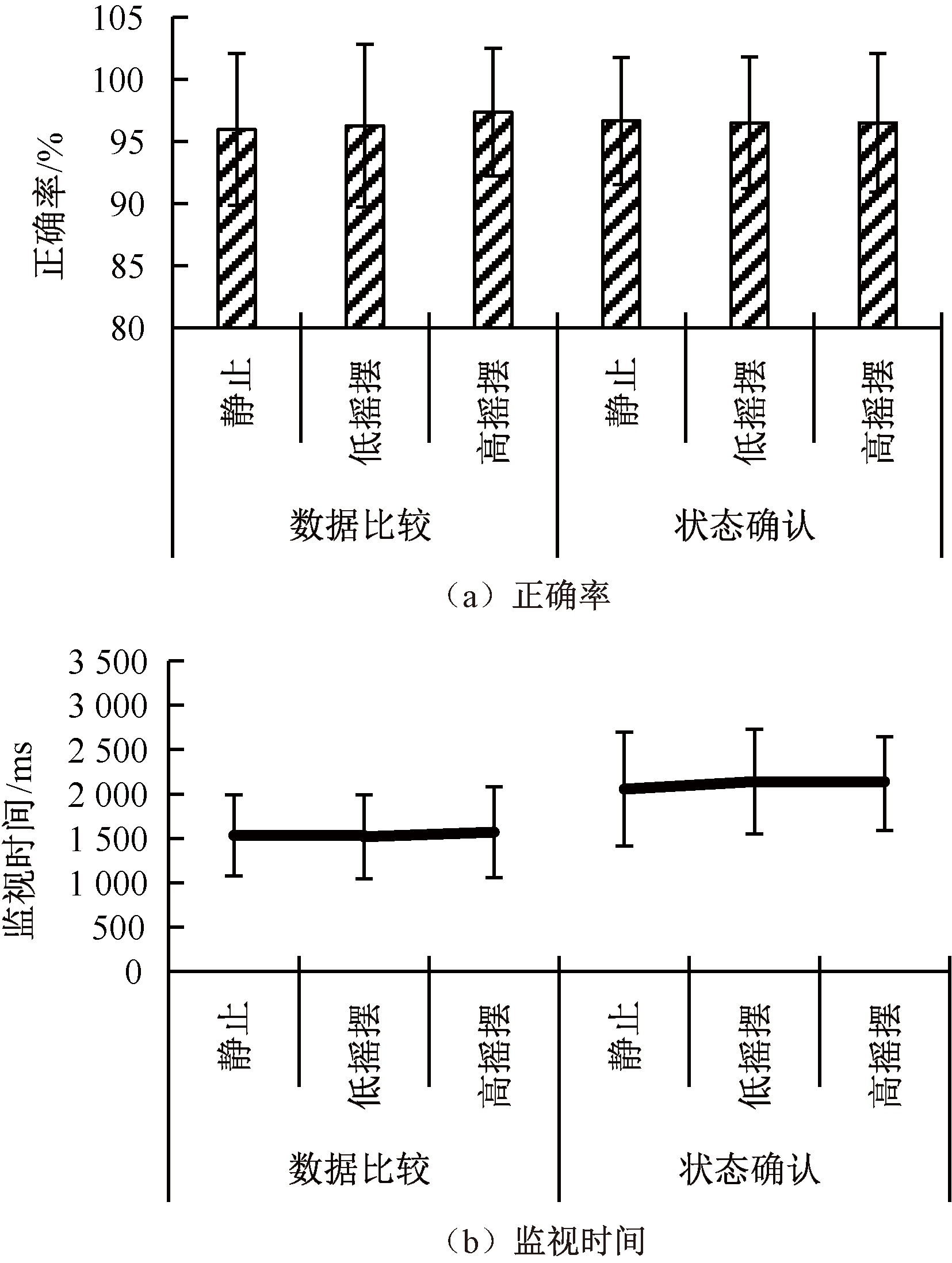

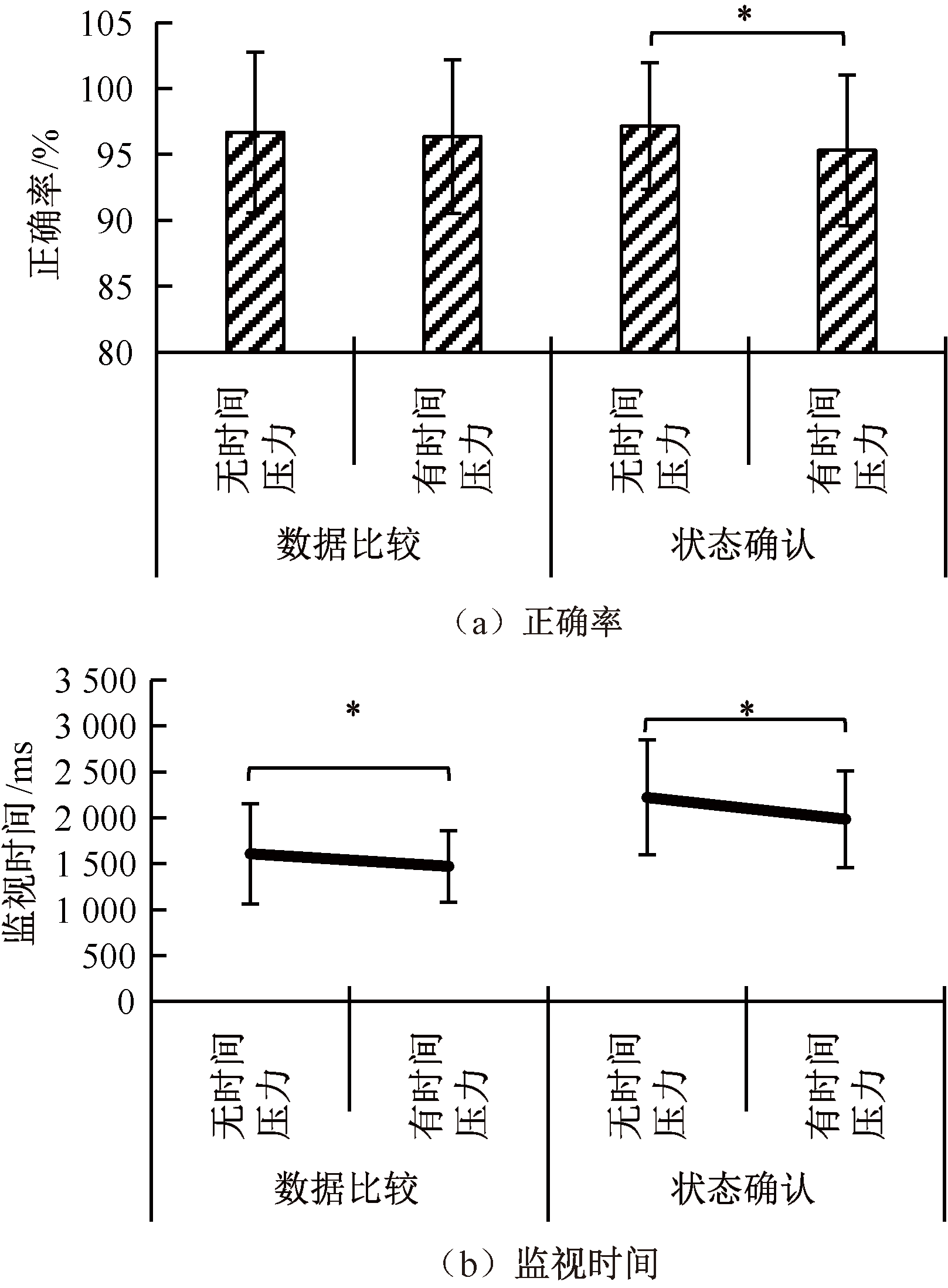

因素	级别	正确率/%	监视时间/ms
摇摆	静止	96.29±5.62	1 794.55±613.19
	低摇摆	96.37±5.94	1 828.80±618.08
	高摇摆	96.45±5.40	1 843.62±587.87
时间压力	无	96.90±5.48	1 915.40±661.86
时间压力	有	95.83±5.77	1 729.25±528.39
任务类型	数据比较	96.51±5.95	1 540.80±479.10
任务类型	状态确认	96.22±5.34	2 103.85±588.04

因素	级别	心智需求	体力需求	时间需求	挫折程度	自我绩效	努力程度	NASA总分
摇摆条件	静止	5.78±3.39	4.16±2.60	5.47±4.11	4.72±3.16	6.66±4.74	4.05±2.98	30.83±16.24
	低摇摆	6.06±3.27	5.64±3.84	5.97±3.49	4.75±3.07	7.23±4.81	4.30±3.06	33.95±16.34
	高摇摆	6.75±3.63	5.92±4.07	6.44±3.94	4.45±2.85	7.25±3.89	4.70±3.44	35.52±16.45
时间压力	无	5.70±3.08	4.94±3.38	5.21±3.67	4.31±3.05	6.78±4.38	4.16±3.24	31.09±15.36
时间压力	有	6.70±3.71	5.54±3.85	6.71±3.92	4.97±2.95	7.31±4.59	4.54±3.09	35.77±17.09

文献	任务	级别	时间/s	正确率/%	备注
XUE Hongjun 等^[8]	单目标	静止	2.30	99.2	影响不显著
		轻微	2.21	98.9
		中等	2.29	98.8
	双目标	静止	3.80	97.5
		轻微	3.84	97.8
		中等	3.82	97.1
TAO Da 等^[9]	无目标	静止	4.40	85.0
		纵摇	4.60	92.9
		艏摇	4.50	96.4
	单目标	静止	2.40	26.5
		纵摇	2.40	28.3
		艏摇	2.40	29.5
	双目标	静止	4.00	17.4
		纵摇	3.90	18.8
		艏摇	4.00	20.4
	三目标	静止	5.50	11.92
		纵摇	5.30	13.1
		艏摇	5.40	14.1
蔡剑^[26]	单目标	静止	2.44	98.7
		轻微	2.38	98.6
		中等	2.45	98.8
	双目标	静止	4.30	97.3
		轻微	4.20	97.7
		中等	4.24	97.6

文献	时间压力条件		时间/s	失误率/%	备注
董晓璐^[10]	传统界面	高(25 s)	10.02	8.50	影响显著
	传统界面	低(40 s)	12.36	1.00
	生态界面	高(25 s)	10.46	4.40
	生态界面	低(40 s)	11.43	1.20
于航^[17]	高(25 s)		6.26	5.60
于航^[17]	低(40 s)		7.46	3.60
孙璐等^[18]	有(12 min)		5.22	1.06	仅显著影响任务时间
孙璐等^[18]	无		9.03	0.96
甘文娟^[19]	有(613 s)		7.61	0.16
甘文娟^[19]	无		9.71	0.14
