关键词: 数字孪生, 立井井筒测, 结构性能监测, 网格降维, 代理模型, 径向基函数(RBF)

Abstract:

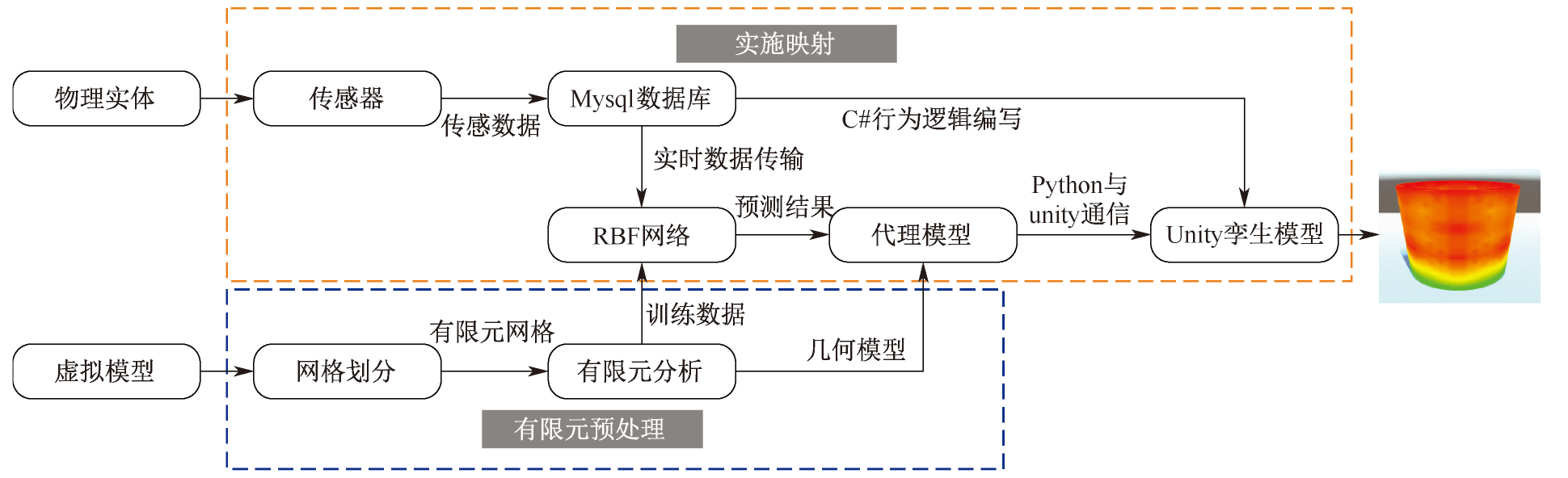

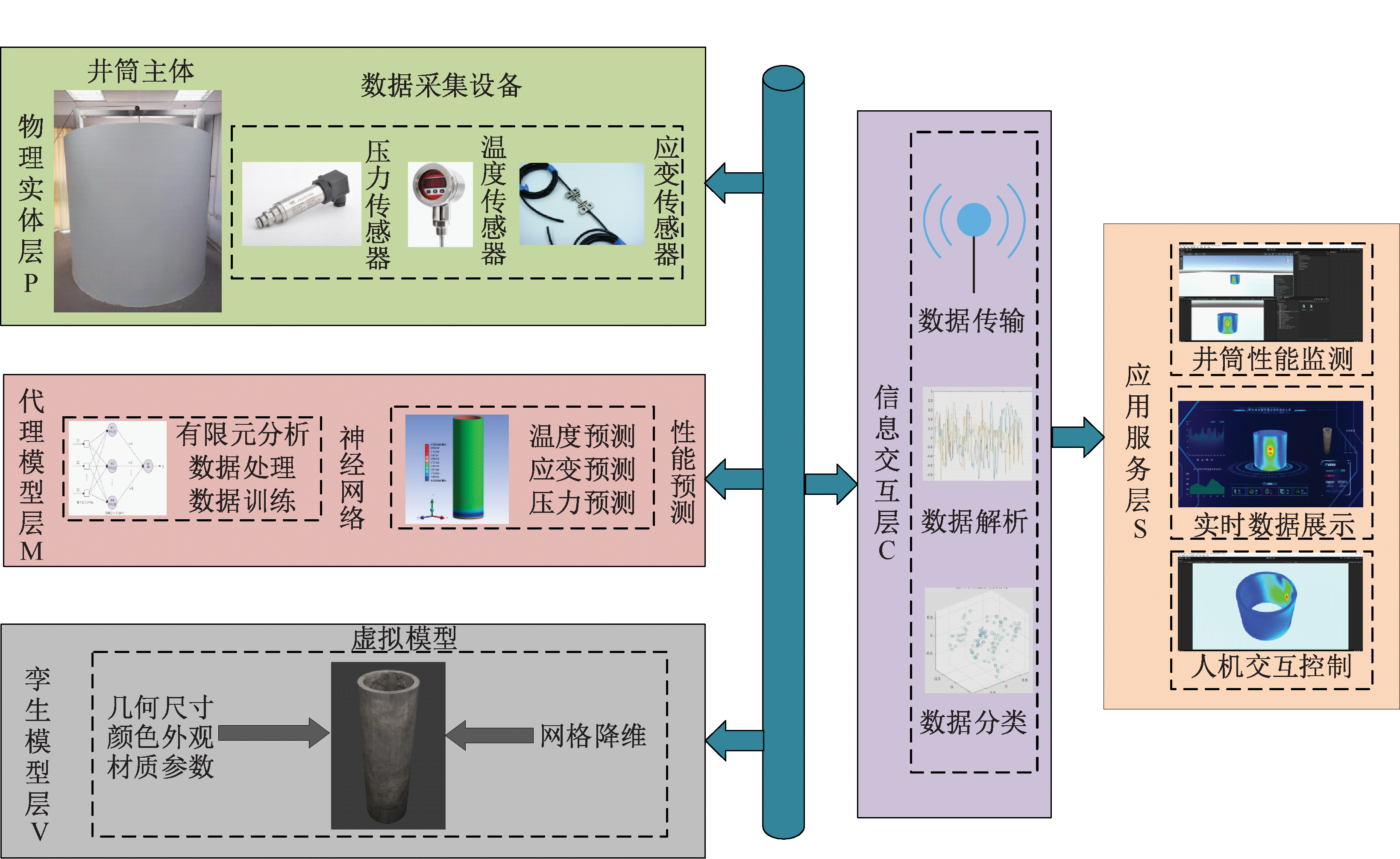

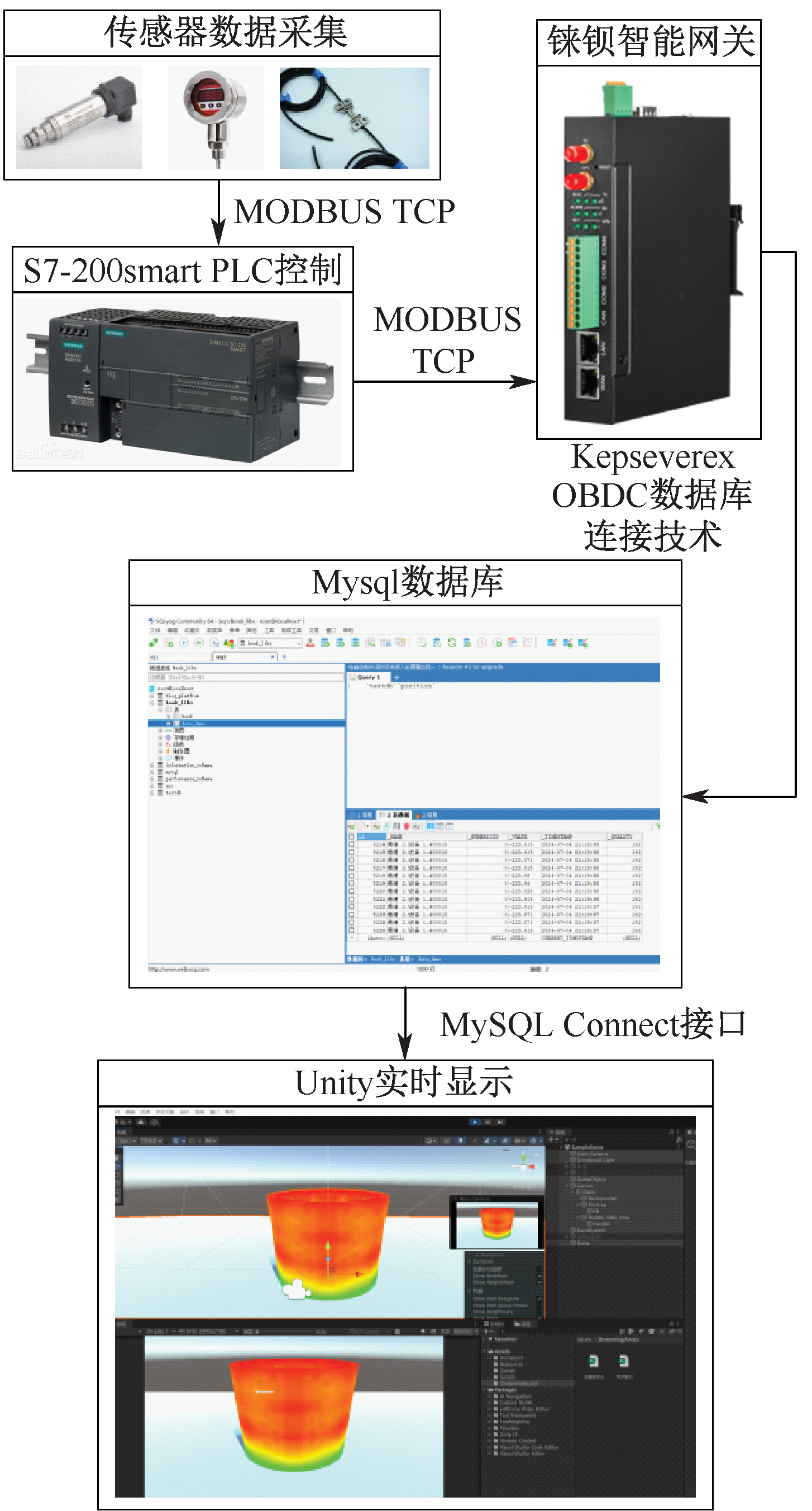

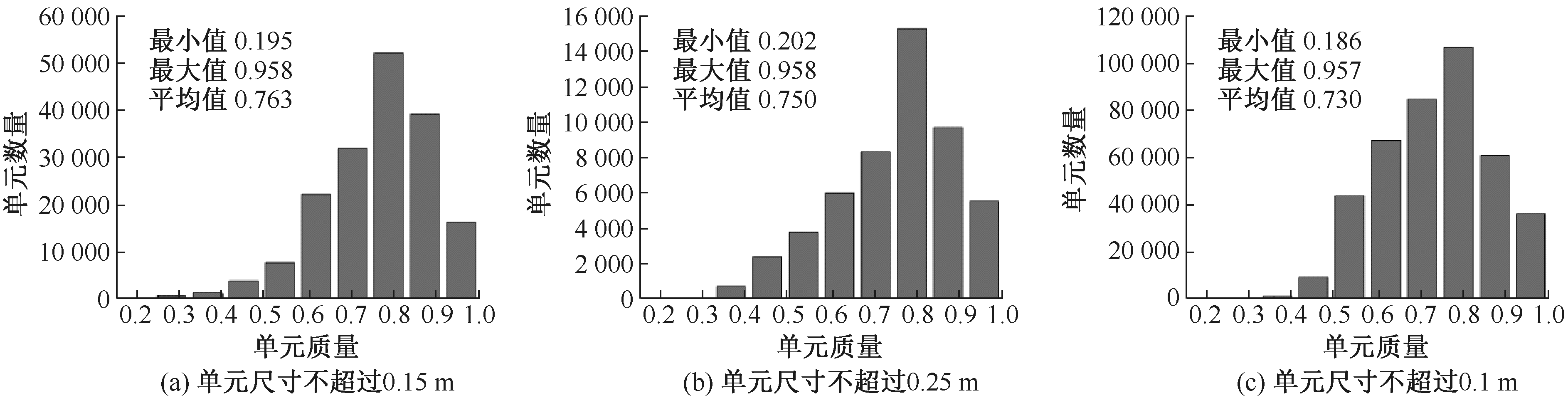

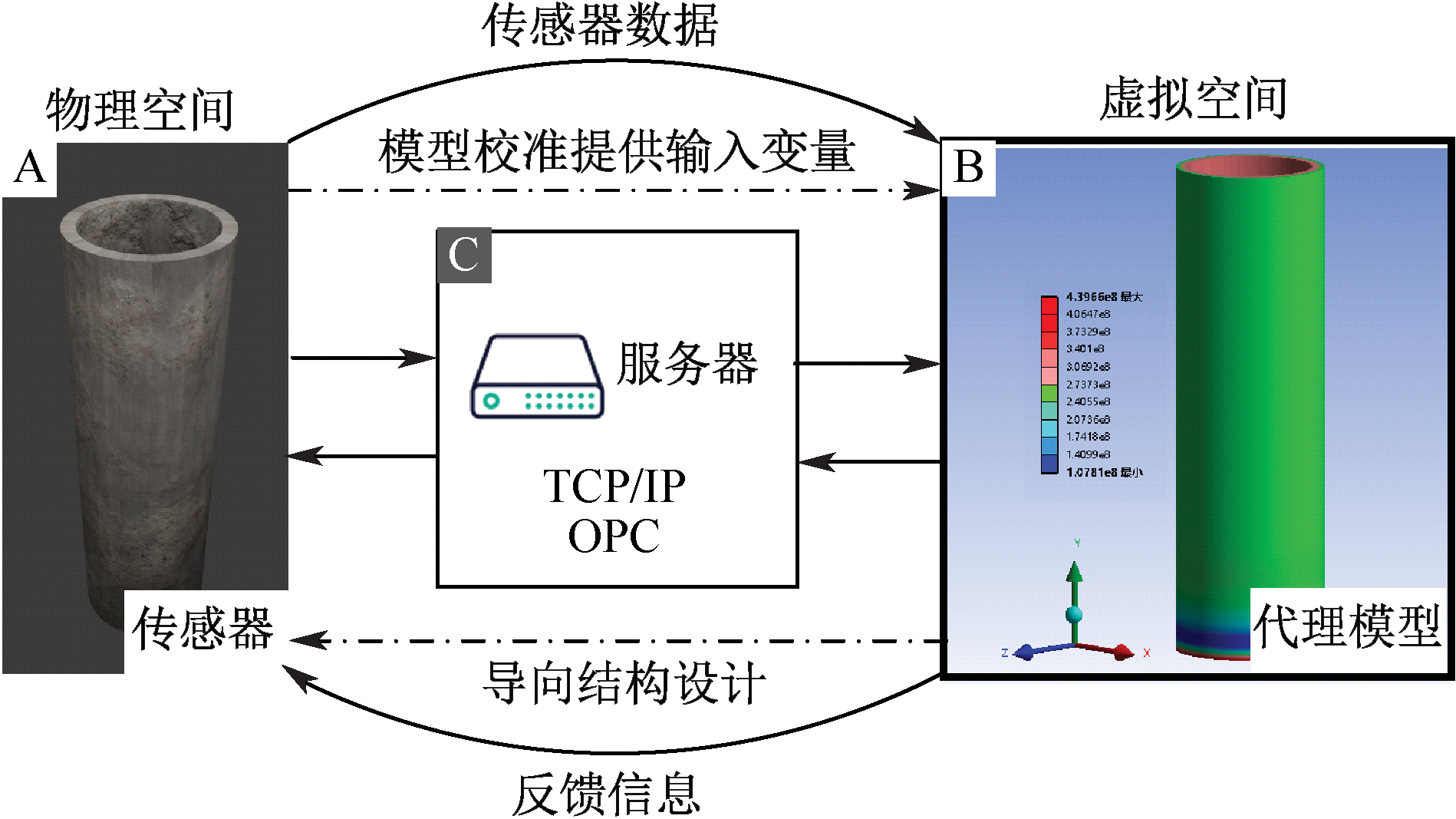

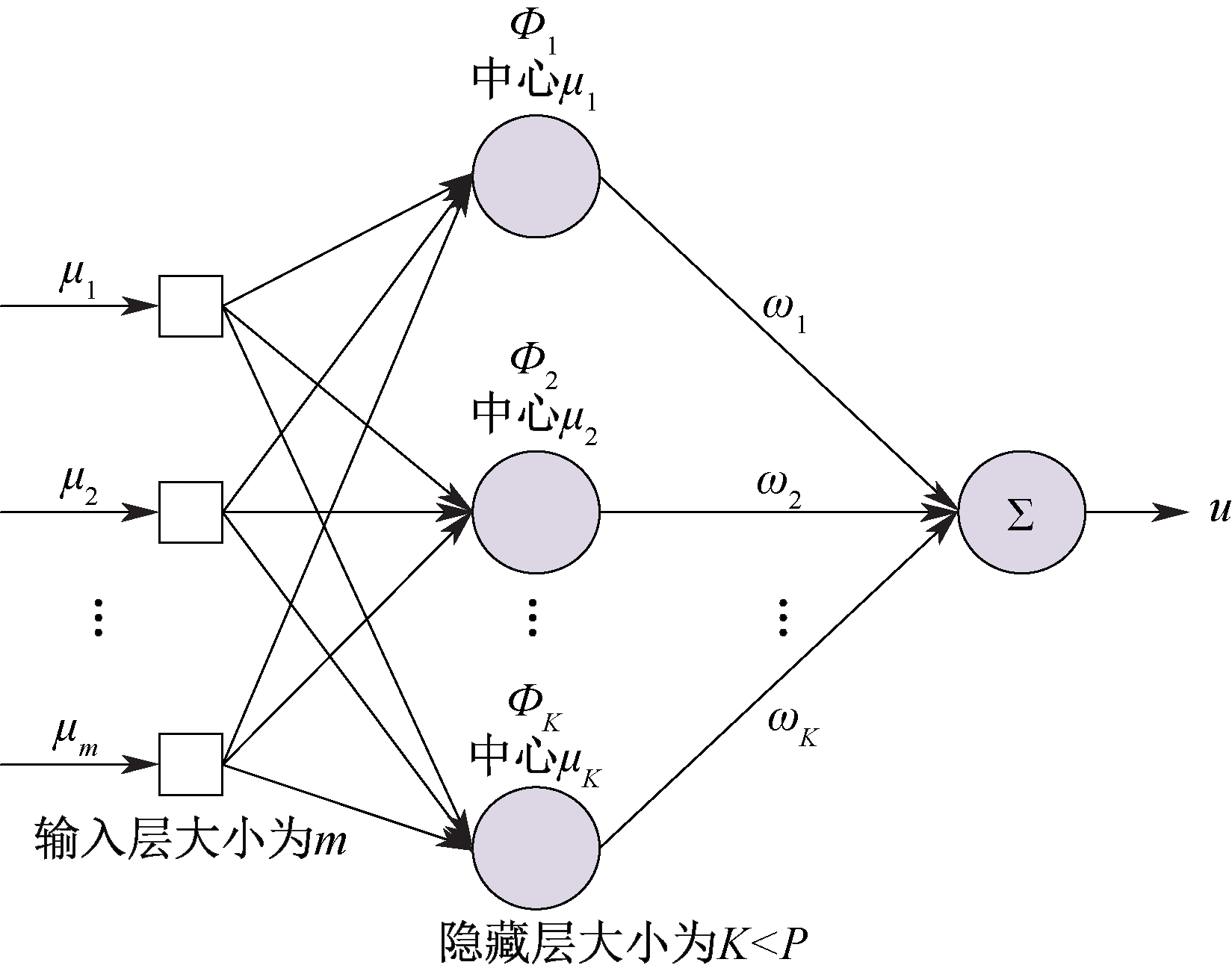

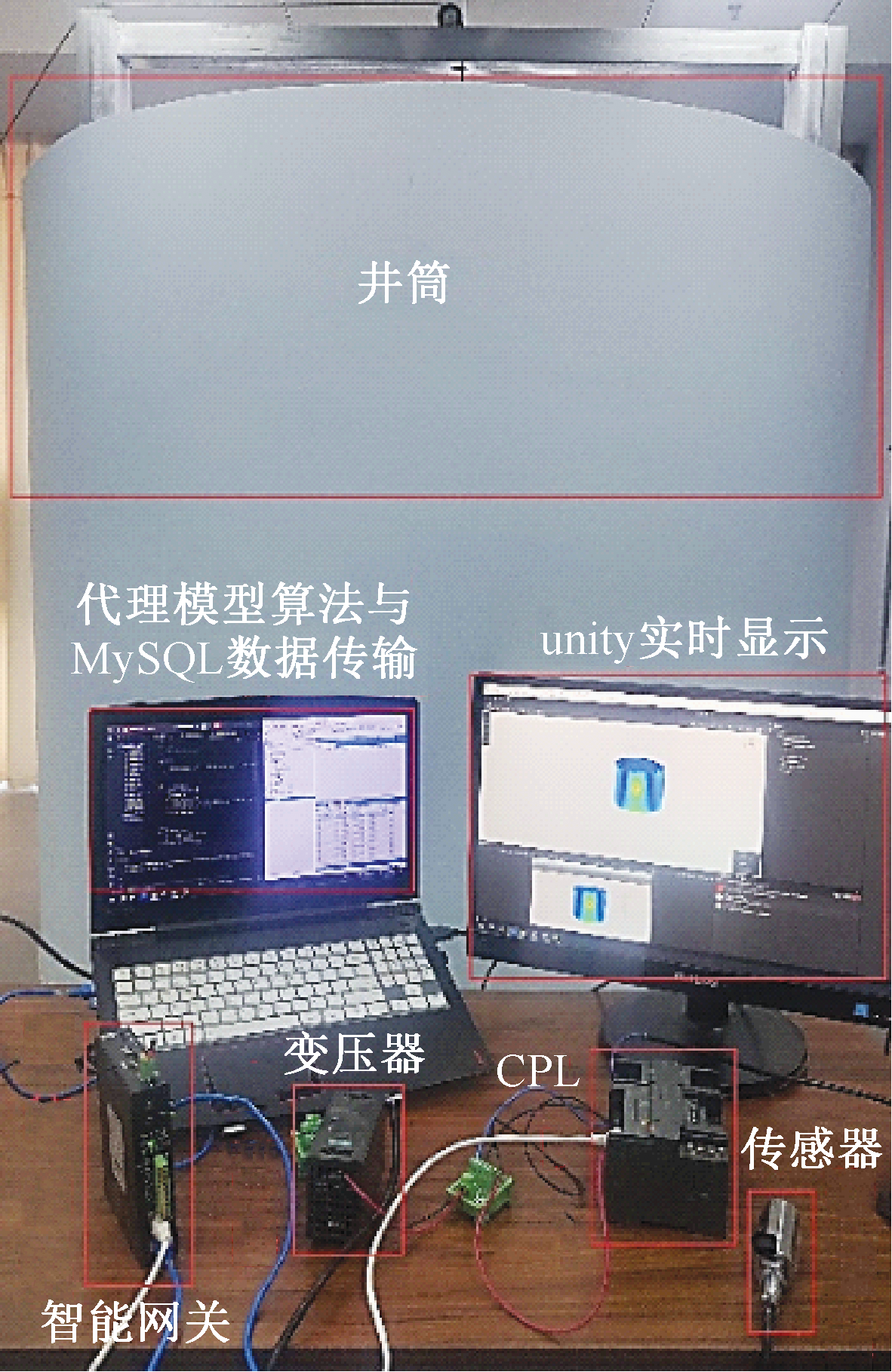

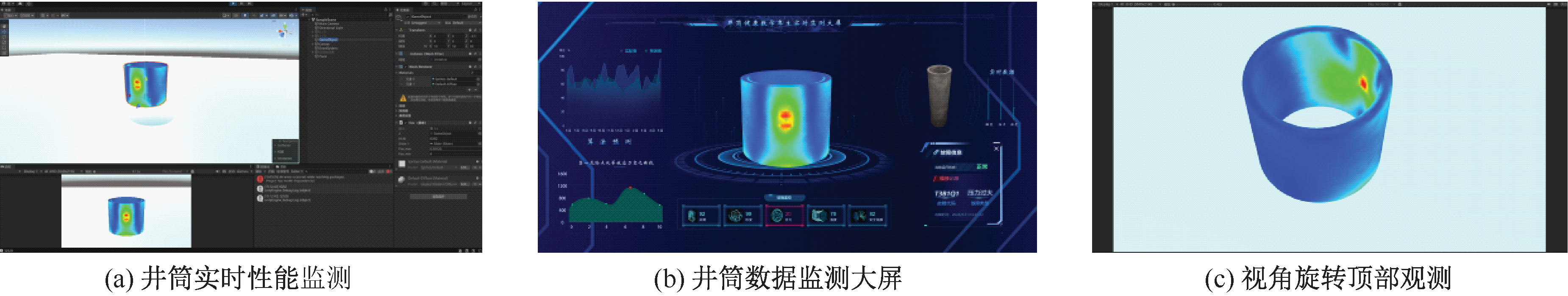

To address the current issues of low intelligence level in coal mine working faces and insufficient research on the performance monitoring of shaft structures, a digital twin-based performance monitoring method for vertical shafts is proposed. Firstly, a five-dimensional framework for the digital twin of vertical shafts is proposed based on the operational mechanism and performance monitoring requirements of the shafts. Secondly, a digital twin of the shaft is established by combining virtual-real mapping technology with a finite element surrogate model for grid dimensionality reduction. The structural performance of the vertical shaft is predicted online through artificial neural network technology, where the predicted data is the real-time prediction of shaft structure performance data obtained during the shaft operation process using a shaft structure performance prediction model. The prediction model for the structural performance of the vertical shaft adopts the RBF surrogate model, and the Unity3D virtual engine platform is built to integrate the above functions and achieve online prediction of the structure performance of the vertical shaft. The results indicate that during the operation, by simulating 120 sets of stress and strain data under different working conditions, the average coefficient of determination between predicted and simulated values is 0.995 5, indicating a high correlation between the predicted strain and simulated strain, thus verifying the feasibility of the digital twin framework for vertical shafts. This provides an effective reference for the digital improvement of vertical shafts.

Key words: digital twin, shaft, structure performance monitoring, grid dimensionality reduction, surrogate model, radial basis function(RBF)
