A methodology for non-motorized lane design considering heterogeneous traffic conflicts

doi:10.16265/j.cnki.issn1003-3033.2024.10.1652

Abstract

Abstract:

In order to reduce conflicts between heterogeneous traffic flows during overtaking, a non-motorized lane width design method that considers avoidance maneuver in heterogeneous traffic was proposed. This method represents an improvement over the traditional design approach. Firstly, the conflict levels of non-motorized vehicles were analyzed through the deceleration group proportions and pedaling cadence. Secondly, a vehicle-to-vehicle force model was established to calculate the forces between different types of vehicles. The additional safety gap was determined based on the relationship between these forces and lateral width. The recommended non-motorized lane width was the sum of the traditional lane width and the additional safety gap. Then, the rationality of the proposed design method was evaluated based on the safety levels of non-motorized lanes with different widths, which was obtained from the safety evaluation model developed in this research. Finally, data from four non-motorized lanes in Xi'an city were analyzed as case studies. The research results show that the deceleration group proportion is 0.93 times, pedaling cadence increases by 0.07 revolutions per second, and the road safety value is 1.07 times compared to traditional non-motorized lanes in non-motorized lanes accommodating heterogeneous traffic. These findings demonstrate that lanes meeting the design width have lower conflicts and greater safety.

Key words: heterogeneous traffic-flow, non-motorized lane, width design, vehicle-vehicle force, pedaling cadence, additional safety gap

CLC Number:

X951交通运输安全

LI Yan, SHAO Jin, LIU Linjian, LIANG Shujuan, WANG Fan. A methodology for non-motorized lane design considering heterogeneous traffic conflicts[J]. China Safety Science Journal, 2024, 34(10): 80-87.

Figures/Tables 12

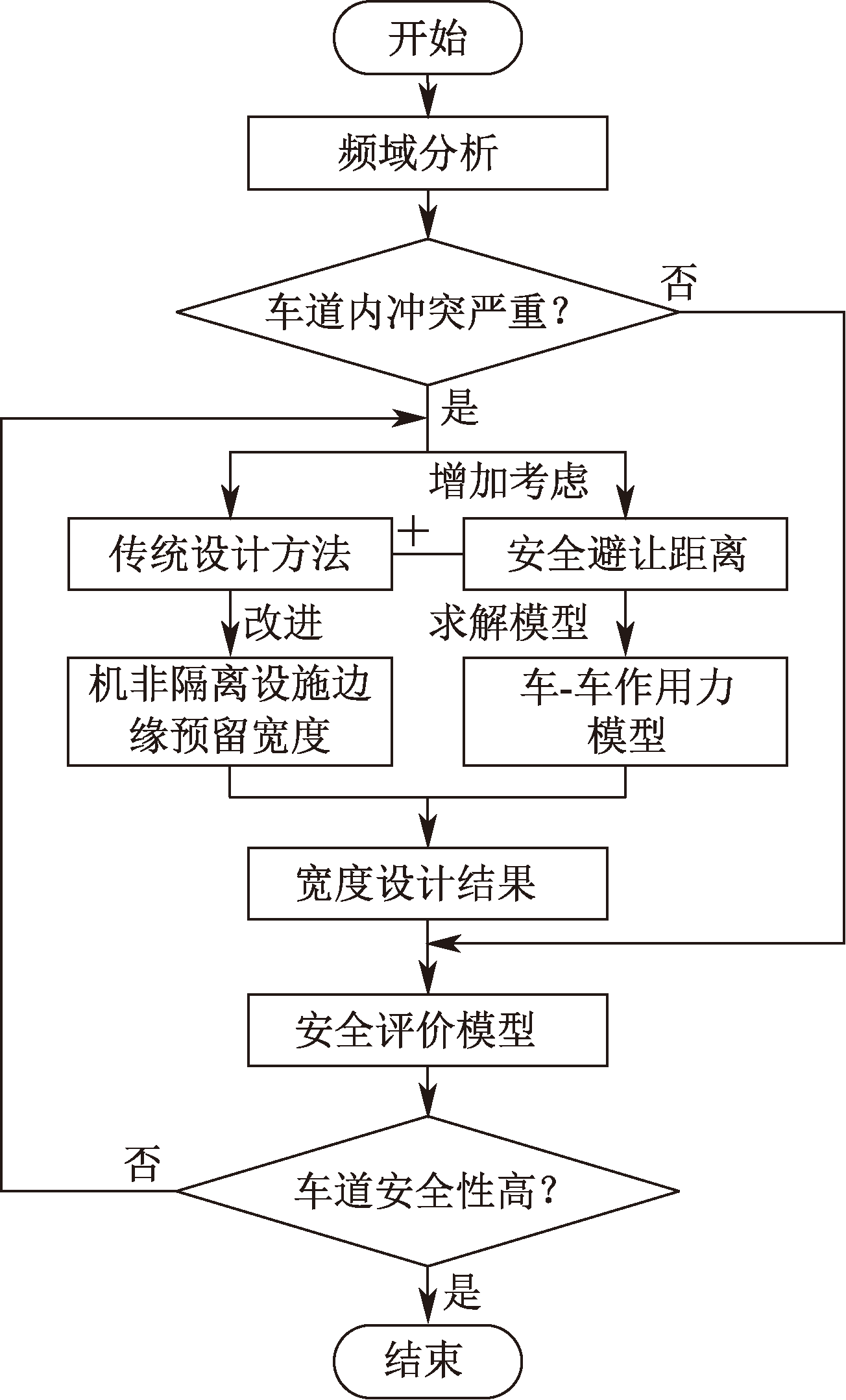

Fig.1

Fig.2

Fig.3

Fig.4

Table 1

Fig.5

Table 2

Parameters and calibration results of the vehicle-vehicle force model

名称	值	描述
$m α$	75	常规自行车人车质量/kg
$m β$	115	电动自行车人车质量/kg
k_αα	0.019 8	常规-常规自行车作用力参数
k_αβ	0.021 2	常规-电动自行车作用力参数
k_ββ	0.023 6	电动-电动自行车作用力参数

Table 2

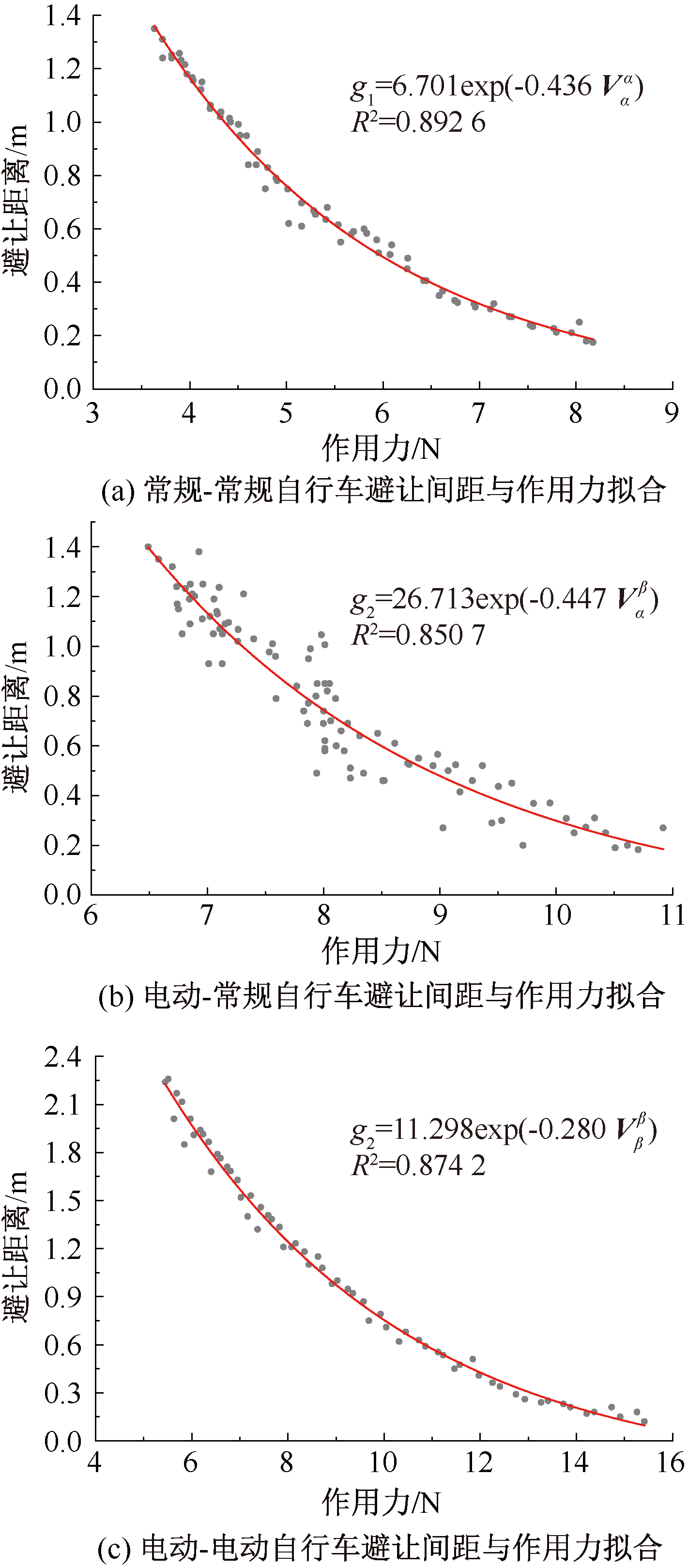

Fig.6

Table 3

Table 4

Fig.7

Table 5

Safety evaluation indicators of non-motorized lanes

路段名	路段宽度/m	$λ 1, λ 2, λ 3$	$P 1, P 2, P 3$	道路安全值M
长安路	3.2	0.429/0.452/0.119	0.108/0.178/0.012	7.80
二环南路	2.8	0.410/0.479/0.111	0.112/0.185/0.015	7.34
文艺南路	2.5	0.374/0.516/0.110	0.119/0.192/0.021	6.85
小寨路	2.0	0.290/0.601/0.109	0.125/0.218/0.037	5.84

Table 5

References 19

[1]	QIAN Zhen, LI Jia, LI Xiaopeng, et al. Modeling heterogeneous traffic flow: a pragmatic approach[J]. Transportation Research Part B: Methodological, 2017,99:183-204.
[2]	陈小鸿, 岳李圣飒. 混行自行车道超车干扰与车道设计[J]. 同济大学学报:自然科学版, 2017, 45(12):1810-1817.
	CHEN Xiaohong, YUE-LI Shengsa. Overtaking interference on shared bicycle path and its influence on lane design[J]. Journal of Tongji University:Natural Science, 2017, 45(12):1810-1817.
[3]	李岩, 南斯睿, 胡文斌, 等. 机非标线分隔道路电动自行车越线风险模型[J]. 重庆交通大学学报:自然科学版, 2021, 40(2):13-20.
	LI Yan, NAN Sirui, HU Wenbin, et al. Lane transgressing risk model of electric bicycle on marking separation road section[J]. Journal of Chongqing Jiaotong University:Natural Science, 2021, 40(2):13-20.
[4]	YAN Xingchen, WANG Tao, YE Xiaofei, et al. Recommended widths for separated bicycle lanes considering abreast riding and overtaking[J]. Sustainability, 2018, 10(9):1-16.
[5]	LI Yan, ZHOU Wenhui, NAN Sirui, et al. Redesign of the cross-section of bicycle lanes considering electric bicycles[J]. Proceedings of the Institution of Civil Engineers: Transport, 2017, 170(5):255-266.
[6]	JIN Sheng, QU Xiaobo, ZHOU Dan, et al. Estimating cycleway capacity and bicycle equivalent unit for electric bicycles[J]. Transportation Research Part A: Policy and Practice, 2015,77:225-248.
[7]	叶晓飞, 陈峻, 顾姗姗. 城市道路路段电动自行车相对于自行车的换算系数[J]. 公路交通科技, 2012, 29(10):109-116. doi: 10.3969/j.issn.1002-0268.2012.10.019
	YE Xiaofei, CHEN Jun, GU Shanshan. Conversion coefficient of electric-bike into bicycle on urban road section[J]. Journal of Highway and Transportation Research and Development, 2012, 29(10):109-116.
[8]	MALJKOVIC B, CVITANIC D. Improved horizontal curve design consistency approach using steady-state bicycle model combined with realistic speeds and path radii[J]. Journal of Transportation Engineering Part A-Systems, 2022, 148(9):1-12.
[9]	霍非舟, 李盈, 马亚萍, 等. 考虑环境熟悉度与疏散策略的元胞自动机模型[J]. 中国安全科学学报, 2022, 32(9):94-99. doi: 10.16265/j.cnki.issn1003-3033.2022.09.1735
	HUO Feizhou, LI Ying, MA Yaping, et al. CA model considering environmental familiarity and evacuation strategy[J]. China Safety Science Journal, 2022, 32(9):94-99. doi: 10.16265/j.cnki.issn1003-3033.2022.09.1735
[10]	QIN Jiaying, MA Sasa, ZHANG Lei, et al. Modeling and simulation for non-motorized vehicle flow on road based on modified social force model[J]. Mathematics, 2023, 11(1):1-18.
[11]	LIU Yan, ALSALEH R, SAYED T. Modelling motorized and non-motorized vehicle conflicts using multiagent inverse reinforcement learning approach[J]. Transportmetrica B: Transport Dynamics, 2024, 12(1):1-23.
[12]	杨永刚, 王璟璟, 宋炜. 飞机客舱应急疏散的修正社会力模型[J]. 中国安全科学学报, 2022, 32(10):201-206. doi: 10.16265/j.cnki.issn1003-3033.2022.10.0818
	YANG Yonggang, WANG Jingjing, SONG Wei. Modified social force model for aircraft cabin emergency evacuation[J]. China Safety Science Journal, 2022, 32(10):201-206. doi: 10.16265/j.cnki.issn1003-3033.2022.10.0818
[13]	杨明辉, 张蕊, 严巧兵, 等. 基于非机动车主动超越行为的社会力模型改进研究[J]. 系统仿真学报, 2023, 35(4):871-877. doi: 10.16182/j.issn1004731x.joss.21-1279
	YANG Minghui, ZHANG Rui, YAN Qiaobing, et al. Research on improvement of social force model based on non-motor vehicle active overtaking behavior[J]. Journal of System Simulation, 2023, 35(4):871-877.
[14]	JIANG Hang, MA Yongjian, JIANG Lin, et al. Evaluation of the dispersion effect in through movement bicycles at signalized intersection via cellular automata simulation[J]. Physica A: Statistical Mechanics and its Applications, 2018,498:138-147.
[15]	LI Yixin, NI Ying, SUN Jian, et al. A modified social force model for high-density through bicycle flow at mixed-traffic intersections[J]. Simulation Modelling Practice and Theory, 2021,108:1-17.
[16]	崔洪军, 周启航, 朱敏清. 信号交叉口直行非机动车膨胀特性分析与风险评估[J]. 交通运输系统工程与信息, 2024, 24(1):138-148.
	CUI Hongjun, ZHOU Qihang, ZHU Minqing. Risk assessment and expansion characteristics of straight non-motorized vehicles at signalized intersections[J]. Journal of Transportation Systems Engineering and Information Technology, 2024, 24(1):138-148.
[17]	RASCH A, BODA C N, THALYA P, et al. How do oncoming traffic and cyclist lane position influence cyclist overtaking by drivers?[J]. Accident Analysis & Prevention, 2020,142:1-10.
[18]	GB/T 51439—2021, 城市步行和自行车交通系统规划标准[S].
	GB/T 51439-2021, Standard for urban pedestrian and bicycle transport system planning[S].
[19]	仵若玙, 杨德真, 任羿, 等. 人-车-智共享道路空间行人安全行为建模方法[J/OL]. 北京航空航天大学学报: 1-10[2024-05-31]. https://doi.org/10.13700/j.bh.1001-5965.2023.0370.
	WU Ruoyu, YANG Dezhen, REN Yi, et al. A modeling method for pedestrian safety behavior in shared spaces of pedestrian-traditional vehicle-autonomous vehicle[J/OL]. Journal of Beijing University of Aeronautics and Astronautics: 1-10[2024-05-31]. https://doi.org/10.13700/j.bh.1001-5965.2023.0370.

路段名	宽度/m	机非隔离形式	流率/ (辆·h^-1)	类型	采集样本数/个	速度平均值/ (m·s^-1)	加速度绝对平均值/(m·s^-2)
长安路	3.2	绿化带隔离	982	自由骑行	120	3.26	0.375
长安路	3.2	绿化带隔离	982	超车干扰	582	2.42	0.329
二环南路	2.8	划线隔离	942	自由骑行	120	3.23	0.371
二环南路	2.8	划线隔离	942	超车干扰	512	2.35	0.325
文艺南路	2.5	绿化带隔离	771	自由骑行	120	3.22	0.368
文艺南路	2.5	绿化带隔离	771	超车干扰	455	2.31	0.322
小寨路	2.0	绿化带隔离与护栏隔离	725	自由骑行	120	3.16	0.360
小寨路	2.0	绿化带隔离与护栏隔离	725	超车干扰	386	2.26	0.318

机非隔离类型	均值	最小值	15%位分位数	85%位分位数
划线隔离	0.13	0.05	0.11	0.15
护栏隔离	0.28	0.12	0.21	0.30
绿化隔离	0.32	0.14	0.23	0.38

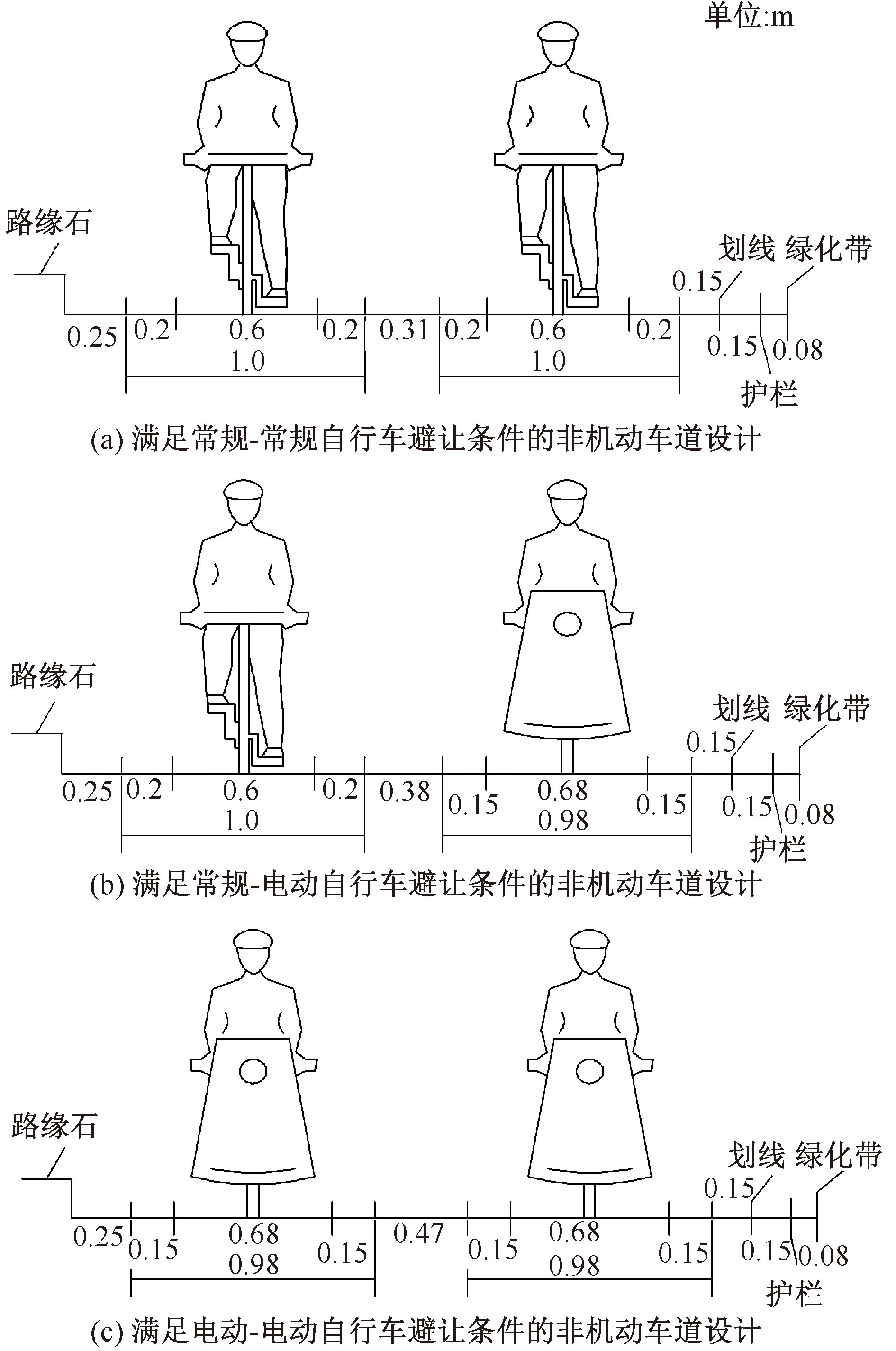

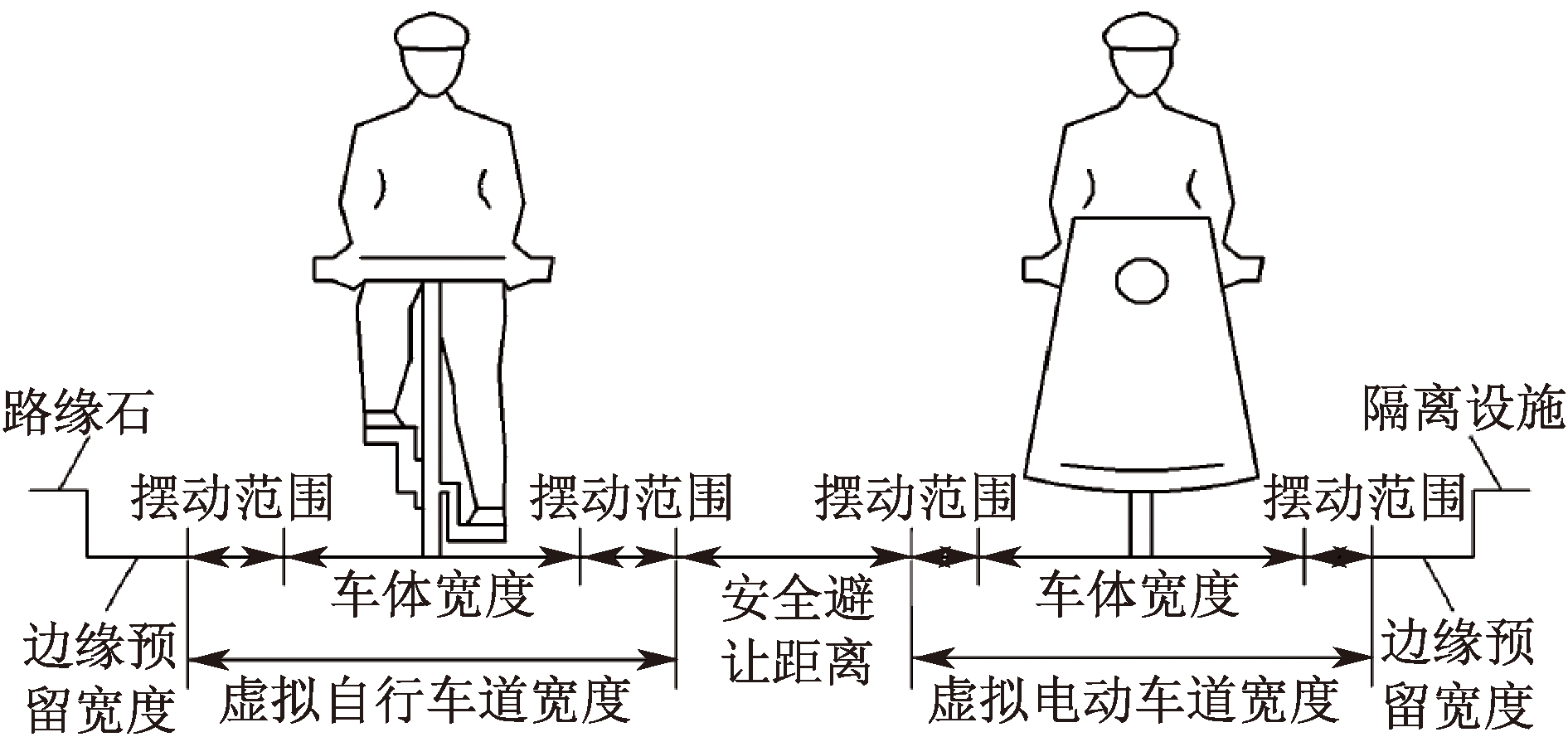

满足条件	常规自行车虚拟车道宽度	电动自行车虚拟车道宽度	划线/护栏/绿化带隔离边缘宽度值	路缘石边缘宽度值	安全避让距离	总宽度
常规-常规自行车避让	1.0×2	—	0.15	0.25	0.31	2.71
			0.30			2.86
			0.38			2.94
常规-电动自行车避让	1.0	0.98	0.15	0.25	0.38	2.76
			0.30			2.91
			0.38			3.00
电动-电动自行车避让	—	0.98×2	0.15	0.25	0.47	2.83
			0.30			2.98
			0.38			3.06
