Study on medium conversion characteristics of tank boiling overflow process based on Fluent

doi:10.16265/j.cnki.issn1003-3033.2025.04.0945

Abstract

Abstract:

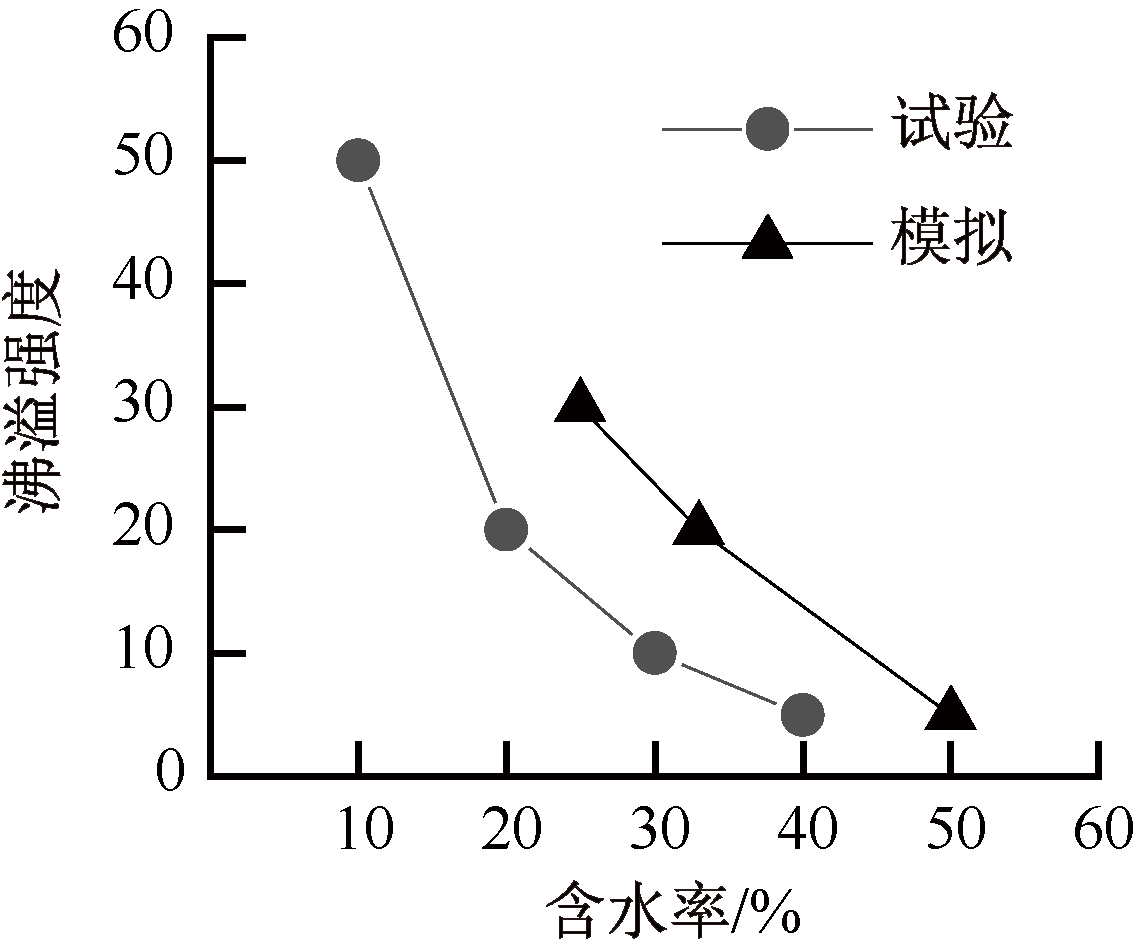

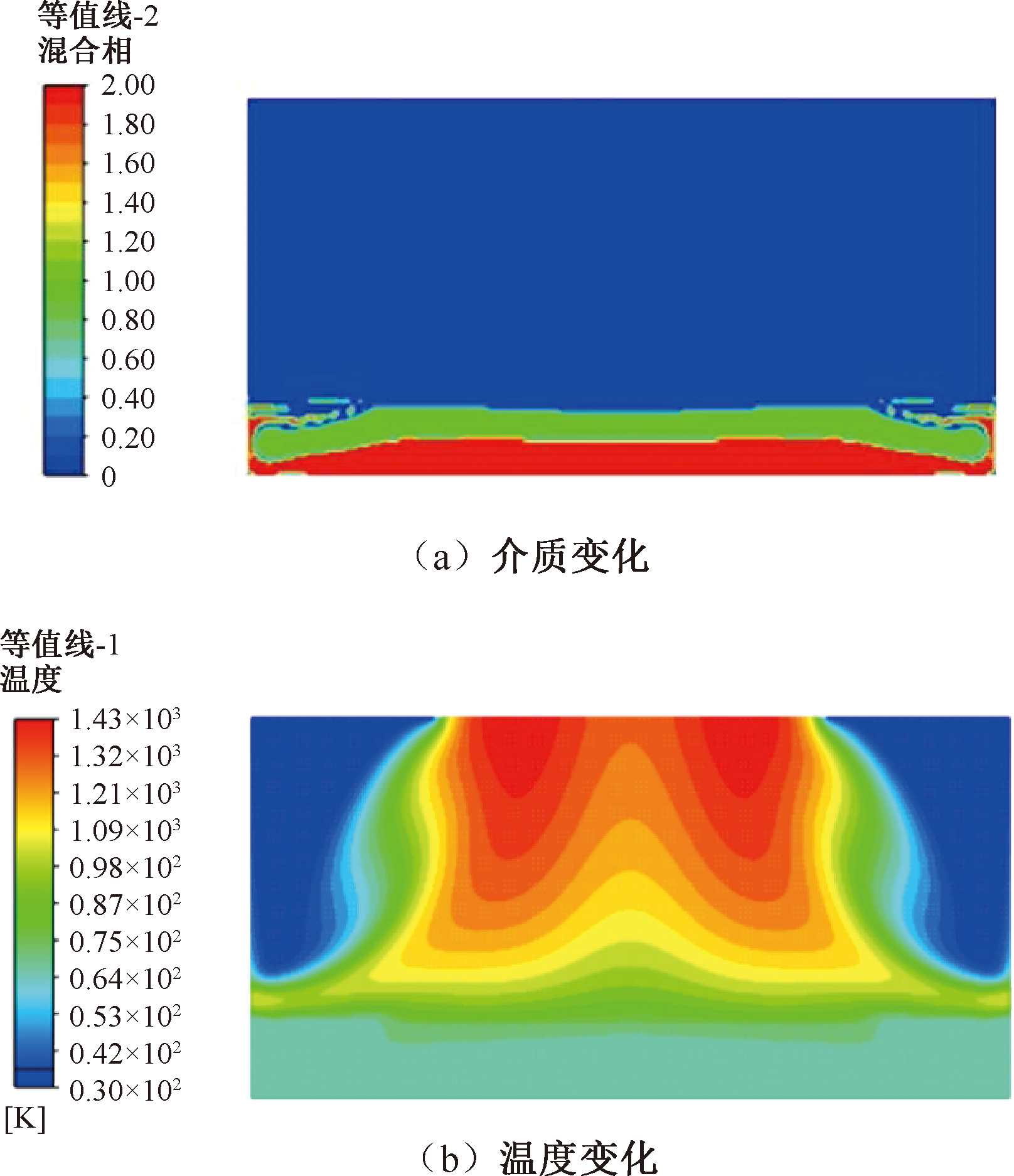

In order to reduce the risk of boil-over accidents in storage tanks and develop efficient prevention and control strategies, two-dimensional transient numerical simulations of the boiling process of oil-water two-phase system in closed containers were carried out using Fluent software. The effects of different tank types, initial water layer thickness, oil-water ratio and other factors on the boiling process were analyzed through numerical simulation. The phase distribution, temperature field and hydrodynamic behavior were studied during the whole process of the combustion triggering to the end of the boil-over. The results show that for the same tank type, the higher the water content of the oil, the smaller the intensity of boiling overflow. When the tank boils over, the oil-water interface undergoes violent instability, and the two phases of the medium in the container are interspersed with each other, presenting a chaotic state. The liquid near the tank wall of boils upward first, with the peak temperature of the liquid phase up to 400 K. When the horizontal storage tank boils over, the overall temperature of the liquid phase is lower than that in the vertical storage tank. The onset of boiling overflow in the horizontal tank occurs earlier than in the vertical tank. Therefore, the boiling overflow in the vertical tank is more dangerous.

Key words: Fluent, storage tanks, boiling overflow process, medium conversion characteristics, numerical simulation

CLC Number:

X937

WU Feiyang, CHEN Dongliang, YIN Caihong, LYU Tingwei, SHA Yanshan, CHEN Shibo. Study on medium conversion characteristics of tank boiling overflow process based on Fluent[J]. China Safety Science Journal, 2025, 35(4): 158-164.

Figures/Tables 8

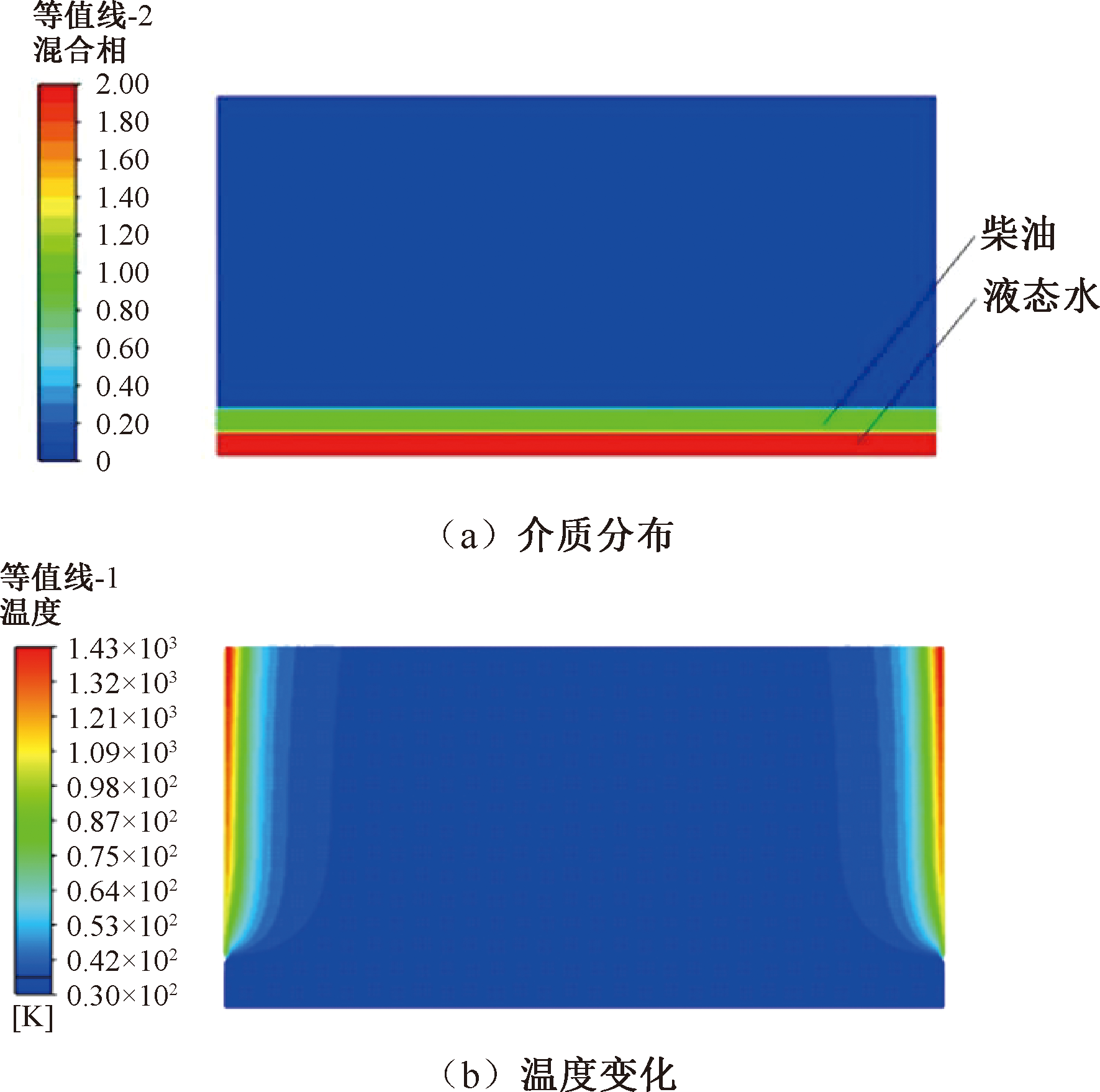

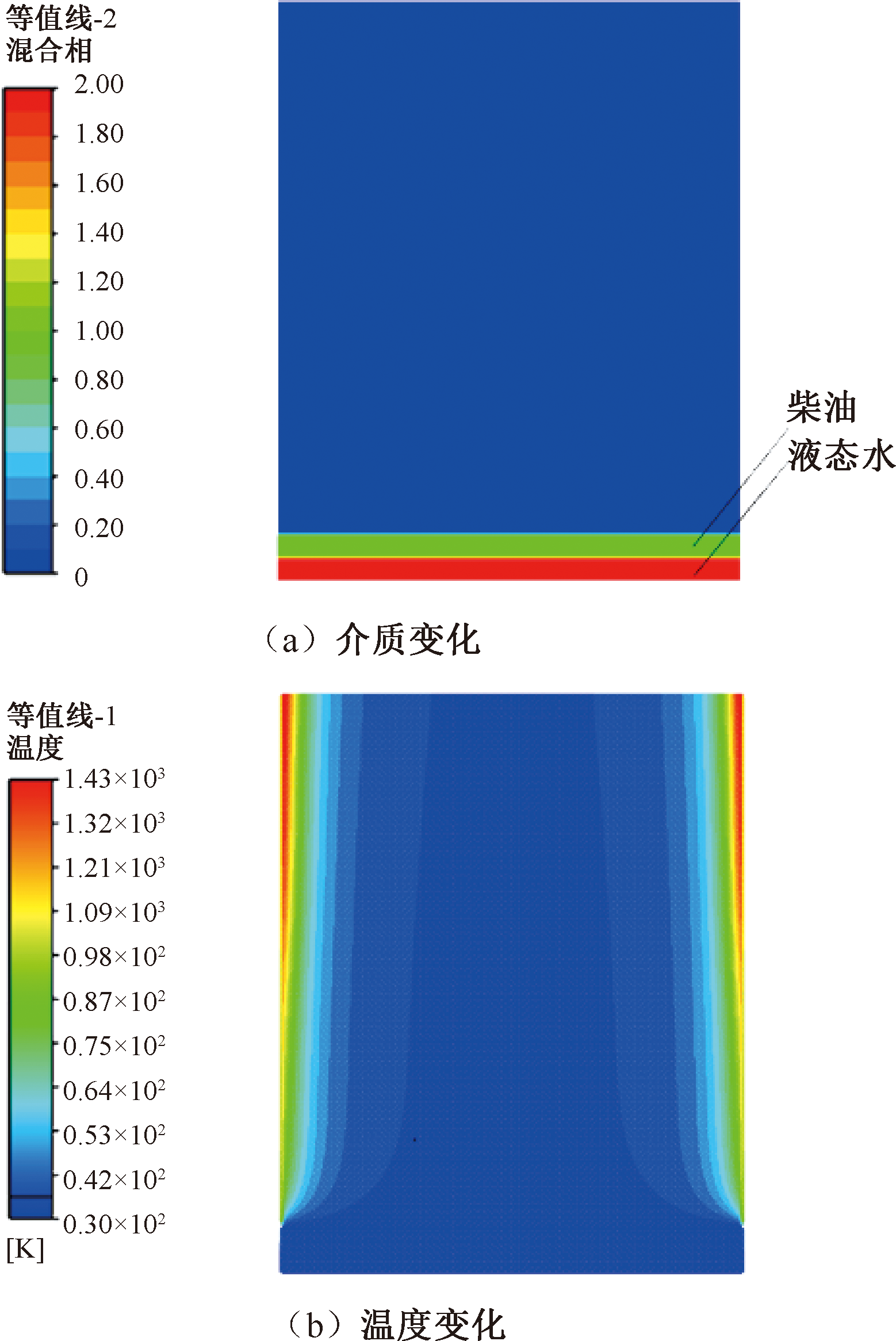

Fig.1

Table 1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

References 21

[1]	张术琳, 张亚楠, 田超, 等. 基于CNN的化工园区火灾火焰图像识别研究[J]. 中国安全科学学报, 2024, 34(1): 179-186. doi: 10.16265/j.cnki.issn1003-3033.2024.01.2333
	ZHANG Shulin, ZHANG Ya'nan, TIAN Chao, et al. Study on flame image recognition of chemical industrial park fires based on convolutional neural network[J]. China Safety Science Journal, 2024, 34(1): 179-186. doi: 10.16265/j.cnki.issn1003-3033.2024.01.2333
[2]	VALI A, NOBES D S, KOSTIUK L W. Transport phenomena within the liquid phase of a laboratory-scale circular methanol pool fire[J]. Combustion and Flame, 2014, 161(4): 1076-1084.
[3]	HALL H. Oil tank fire boilover[J]. Mechanical Engineering, 1925, 47: 540-544.
[4]	BURGOYNE J H. Fires in open tanks of petroleum products:some fundermental aspects[J]. Journal of the Institute of Petroleum, 1947, 33(1): 158-191.
[5]	HASEGAWA K. Experimental study on the mechanism of hot zone formation in open-tank fires[J]. Fire Safety Science, 1989, 2: 221-230.
[6]	KOSEKI H, NATSUME Y, IWATA Y, et al. A study on large-scale boilover using crude oil containing emulsified water[J]. Fire Safety Journal, 2004, 39(2): 143-155.
[7]	KOSEKI H, NATSUME Y, IWATA Y, et al. Large-scale boilover experiments using crude oil[J]. Fire Safety Journal, 2006, 41(7): 529-535.
[8]	GARO J P, VANTELON J P, SOUIL J M, et al. Burning of weathering and emulsified oil spills[J]. Experimental Thermal and Fluid Science, 2004, 28(7): 753-761.
[9]	PING Ping, ZHANG Jiaqing, KONG Depeng, et al. Experimental study of the flame geometrical characteristics of the crude oil boilover fire under cross air flow[J]. Journal of Loss Prevention in the Process Industries, 2018, 55: 500-511.
[10]	LABOUREUR D, APRIN L, OSMONT A, et al. Small scale thin-layer boilover experiments: physical understanding and modeling of the water sub-layer boiling and the flame enlargement[J]. Journal of Loss Prevention in the Process Industries, 2013, 26(6): 1380-1389.
[11]	FAN W C, HUA J S, LIAO G X. Experimental study on the premonitory phenomena of boilover in liquid pool fires supported on water[J]. Journal of Loss Prevention in the Process Industries, 1995, 8(4): 221-227.
[12]	CHATRIS J M, QUINTELA J, FOLCH J, et al. Experimental study of burning rate in hydrocarbon pool fires[J]. Combustion and Flame, 2001, 126(1/2): 1373-1383.
[13]	FERRERO F, MUÑOZ M, KOZANOGLU B, et al. Experimental study of thin-layer boilover in large-scale pool fires[J]. Journal of Hazardous Materials, 2006, 137(3): 1293-1302. pmid: 16784807
[14]	FERRERO F, MUÑOZ M, ARNALDOS J. Thin-layer boilover in diesel-oil fires: determining the increase of thermal hazards and safety distances[J]. Journal of Hazardous Materials, 2007, 140(1): 361-368.
[15]	KOZANOGLU B, FERRERO F, MUÑOZ M, et al. Velocity of convective currents in boilover[J]. Chemical Engineering Science, 2006, 61(8): 2550-2556.
[16]	KONG Depeng, LIU Pengxiang, ZHANG Jiaqing, et al. Small scale experiment study on the characteristics of boilover[J]. Journal of Loss Prevention in the Process Industries, 2017, 48: 101-110.
[17]	KONG Depeng, ZHAO Xiaotong, CHEN Jian, et al. Study on hazard characteristics and safety distance of small-scale boilover fire[J]. International Journal of Thermal Sciences, 2021, 164: DOI: 10.1016/j.ijthermalsci.2021.106888.
[18]	ZHAO Jinlong, ZHANG Qingyuan, WANG Zhenhua, et al. Continuous boilover behaviors of large-scale kerosene pool fires under sub-atmospheric pressure[J]. Process Safety and Environmental Protection, 2023, 177: 1431-1439.
[19]	蔡丽辉, 蒋军成. 油罐火灾沸溢发生时间预测模型[J]. 中国安全科学学报, 2006, 16(2): 131-135.
	CAI Lihui, JIANG Juncheng. Time predicting model for the onset of boil over in tank fire[J]. China Safety Science Journal, 2006, 16(2): 134-135.
[20]	张志伟, 张国维, 朱国庆, 等. 基于Fluent的地下管廊液氮灭火数值模拟方法[J]. 中国安全科学学报, 2022, 32(8): 133-139. doi: 10.16265/j.cnki.issn1003-3033.2022.08.1891
	ZHANG Zhiwei, ZHANG Guowei, ZHU Guoqing, et al. Numerical simulation method of liquid nitrogen fire extinguishing in underground pipe gallery based on Fluent[J]. China Safety Science Journal, 2022, 32(8): 133-139. doi: 10.16265/j.cnki.issn1003-3033.2022.08.1891
[21]	尚拓强. 沸腾液体扩展蒸汽爆炸(BLEVE)微观演化机理的模拟研究[D]. 北京: 北京化工大学, 2012.
	SHANG Tuoqiang. Early evolution and physic characteristics of bleve (boiling liquid expand vapor explosion) by numerical simulation[D]. Beijing: Beijing University of Chemical Technology, 2012.

试验工况	储罐高度	储罐直径	油层厚度	水层厚度
1	1 250	1 000	50	50
2	1 250	1 000	100	100
3	1 250	1 000	100	50
4	1 250	1 000	200	100
5	1 250	1 000	150	50
6	1 250	1 000	300	100
7	750	1 500	50	50
8	750	1 500	100	100
9	750	1 500	100	50
10	750	1 500	200	100
11	750	1 500	150	50
12	750	1 500	200	100
