Assessment of operator task-handling complexity in nuclear power plant accident scenarios

doi:10.16265/j.cnki.issn1003-3033.2025.06.1386

Abstract

Abstract:

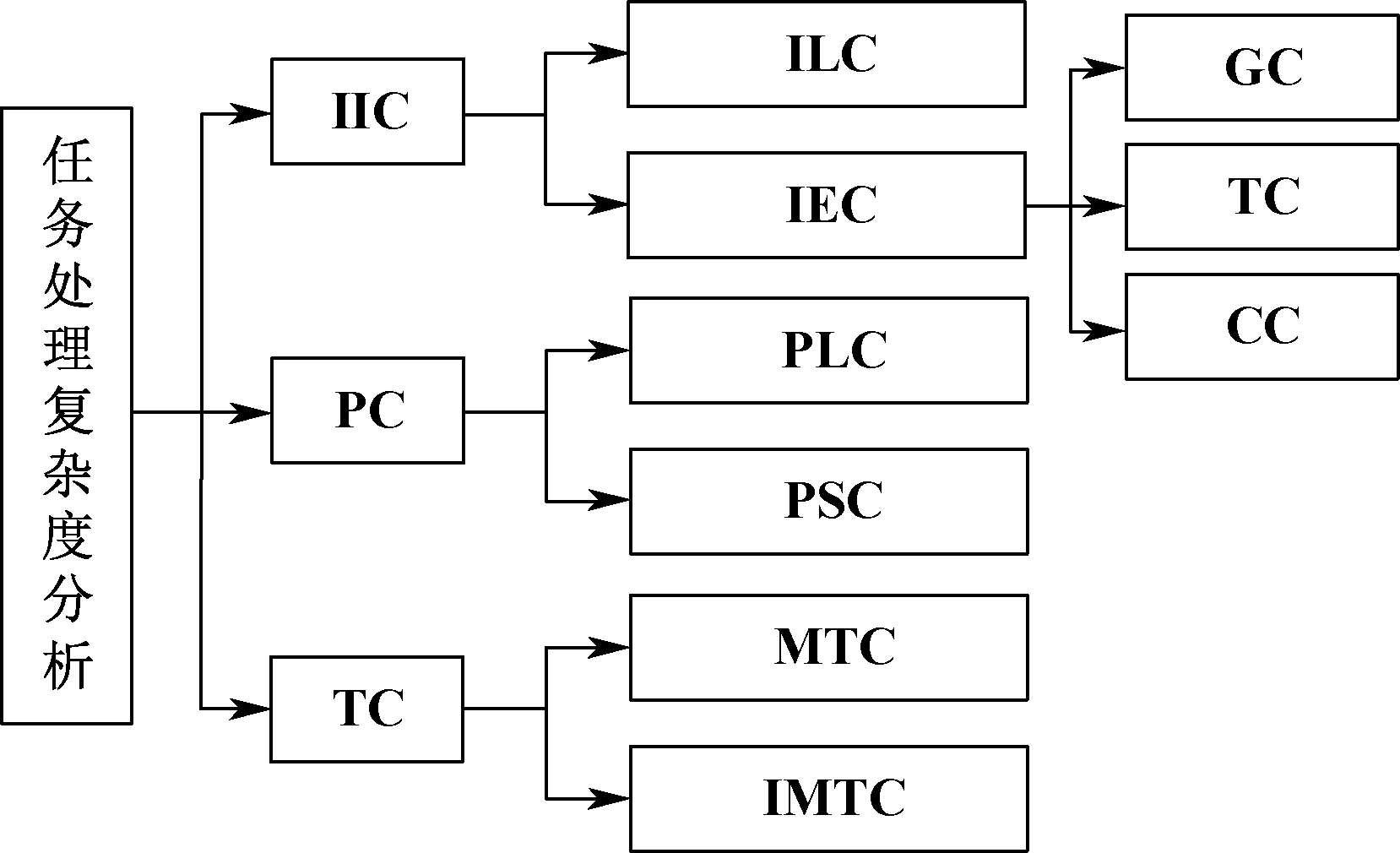

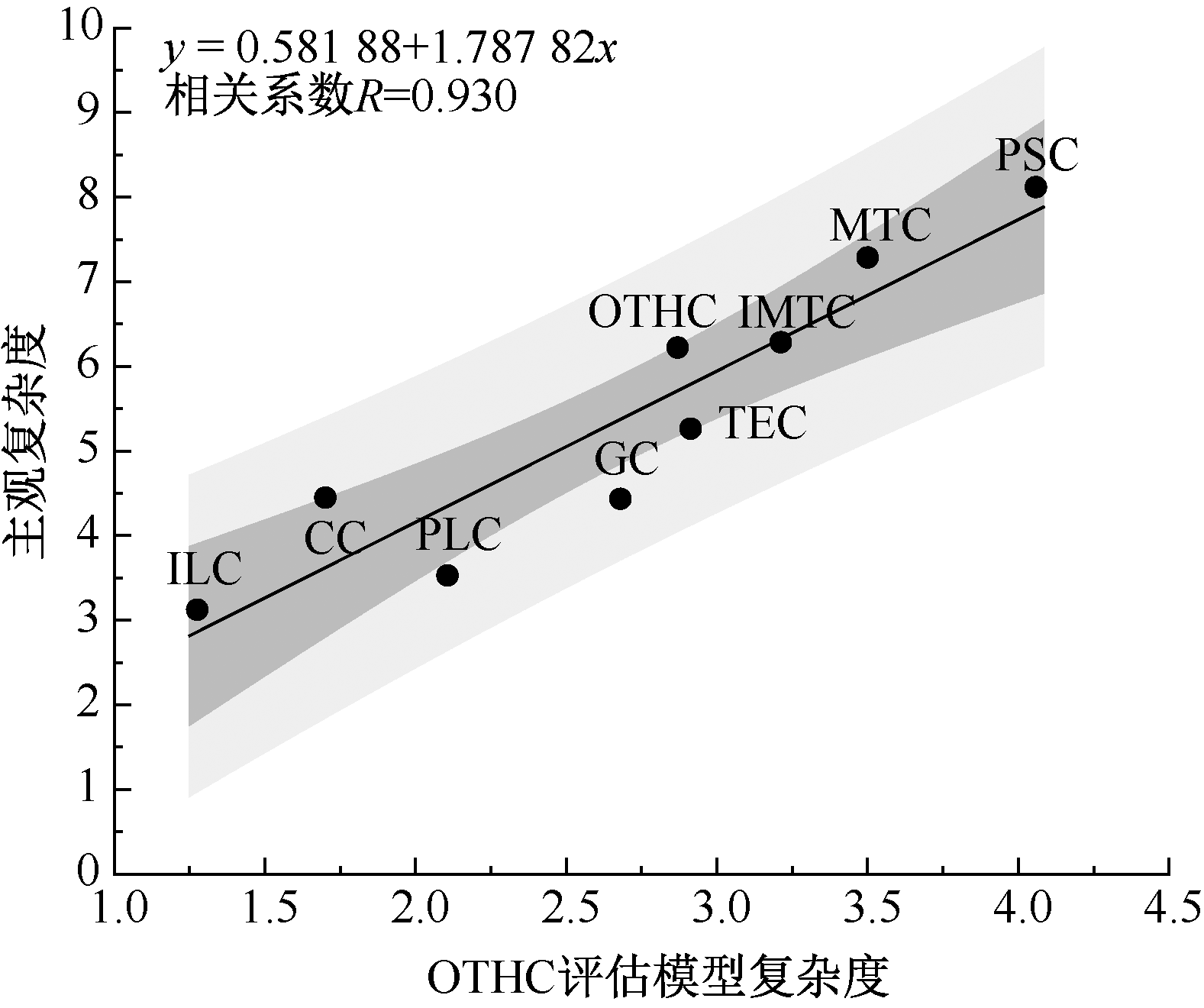

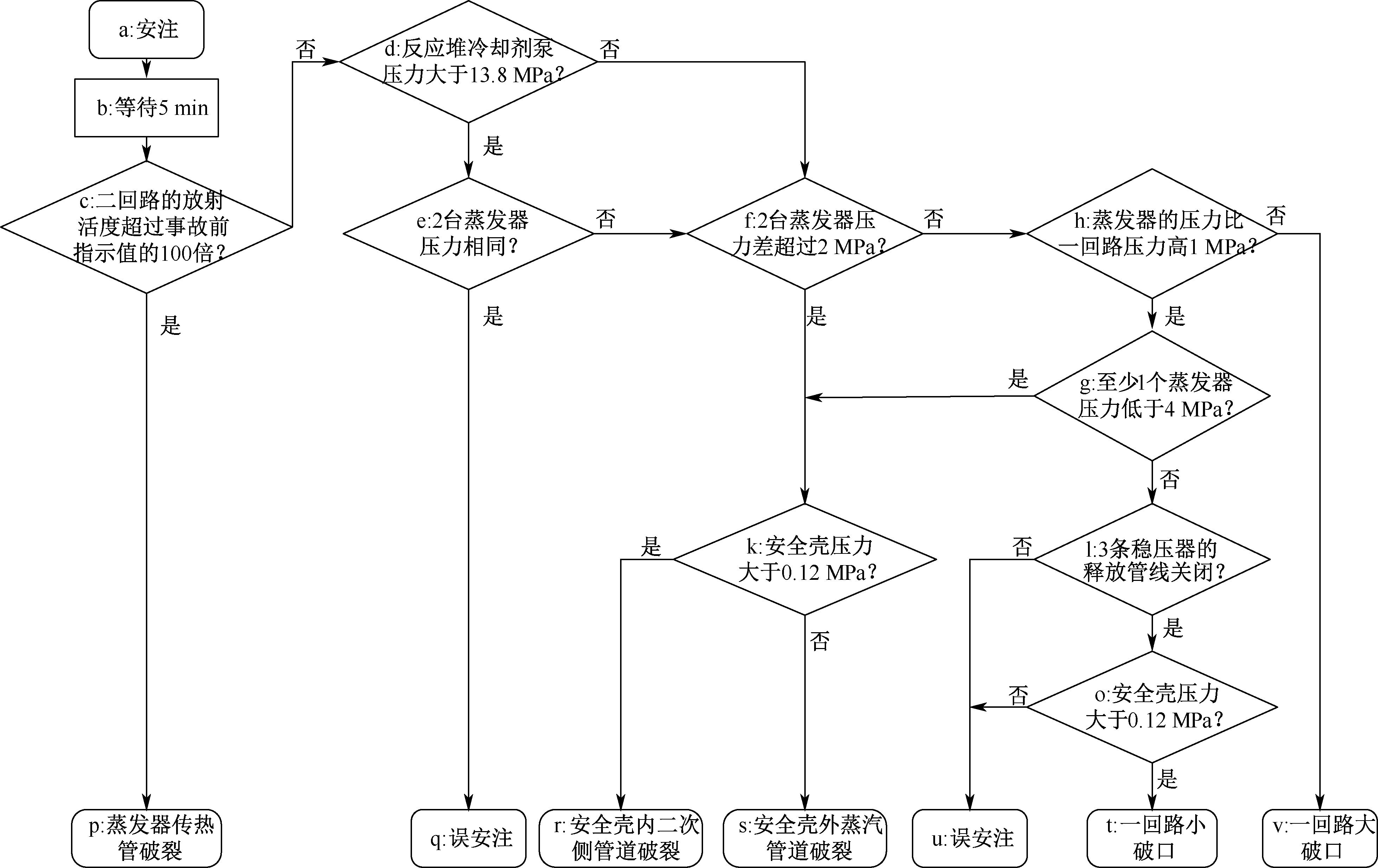

To rigorously assess the complexity of operator task execution under nuclear power plant accident scenarios, this study proposes an operator task-handling complexity (OTHC) evaluation model based on information entropy and image entropy. The model evaluates complexity from three dimensions: interface information complexity (IIC), task complexity (TC), and protocol complexity (PC). It establishes an evaluation system comprising eight complexity indicators, including interface layout, icons, text, and color. The entropy weighting method was employed to objectively assign weights, enabling quantitative evaluation of complexity using the model. To validate the model's effectiveness, a primary circuit small-break loss-of-coolant accident diagnosis task was used as a case study, for which a complexity network diagram is constructed, and the proposed model is applied to assess complexity. Subjective workload data are collected using the national aeronautics and space administration task load index (NASA-TLX) scale. The results show that the OTHC of the primary circuit is higher than that of the secondary circuit. The complexity assessed by the constructed model is highly positively correlated with subjective complexity, effectively reflecting the actual level of task processing complexity.

Key words: nuclear power plants, accident scenarios, operators, task complexity(TC), assessment model, image entropy

CLC Number:

X945

JIANG Qike, WANG Yanxin, LI Pengcheng. Assessment of operator task-handling complexity in nuclear power plant accident scenarios[J]. China Safety Science Journal, 2025, 35(6): 128-133.

Figures/Tables 10

Fig.1

Table 1

Fig.2

Fig.3

Fig.4

Table 2

Table 3

Table 4

Table 5

Fig.5

References 18

[1]	LIU Peng, LI Zhizhong. Comparison between conventional and digital nuclear power plant main control rooms: a task complexity perspective, part I: overall results and analysis[J]. International Journal of Industrial Ergonomics, 2016, 51:2-9.
[2]	ZHANG Jingling, SU Daizhong, ZHUANG Yan, et al. Study on cognitive load of OM interface and eye movement experiment for nuclear power system[J]. Nuclear Engineering and Technology, 2020, 52(1):78-86.
[3]	李鹏程, 许倩, 王烨. 核电厂运行阶段安全文化评价指标体系研究[J]. 中国安全科学学报, 2024, 34(2):60-66. doi: 10.16265/j.cnki.issn1003-3033.2024.02.2301
	LI Pengcheng, XU Qian, WANG Ye. Study on evaluation index system of safety culture in operation phase of nuclear power plant[J]. China Safety Science Journal, 2024, 34(2):60-66. doi: 10.16265/j.cnki.issn1003-3033.2024.02.2301
[4]	HART S G, STAVELAND L E. Development of NASA-TLX (Task Load Index): results of empirical and theoretical research[J]. Advances in Psychology, 1988, 52(6):139-183.
[5]	CORCHS S E, CIOCCA G, BRICOLO E, et al. Predicting complexity perception of real world images[J]. PLoS One, 2016, 11(6): DOI:10.1371/journal.pone.0157986.
[6]	COMBER T, MALTBY J R. Screen complexity and user design preferences in windows applications[J]. Harmony Through Working Together: Proceedings of OZCHI, 1994, 94:133-137.
[7]	PARK J, JUNG W. A study on the development of a task complexity measure for emergency operating procedures of nuclear power plants[J]. Reliability Engineering & System Safety, 2007, 92(8):1102-1116.
[8]	TANG Wenzhe, CHEN Shanguang, LIN Yun, et al. Image entropy-based interface evaluation method for nuclear power plants[J]. Entropy, 2023, 25(12): DOI:10.3390/e25121636.
[9]	YAN Shengyuan, TRAN C, CHEN Yun, et al. Effect of user interface layout on the operators' mental workload in emergency operating procedures in nuclear power plants[J]. Nuclear Engineering and Design, 2017, 322:266-276.
[10]	ALBAGHLI R, JANDALI Y, ALMAHMID S, et al. Leveraging initial cognitive load to predict user response to complex visual tasks[C]. Electrical Engineering and Computer Systems and Science (EECSS). Avestia. 2022: DOI:10.11159/mhci22.103.
[11]	WARE C. Information visualization: perception for design[M]. Massachusetts: Morgan Kaufmann, 2019:20-23.
[12]	吴晓莉, 于士康, 刘志垚, 等. 核电厂监控显示界面数据图符信息突显研究[J]. 中国安全科学学报, 2022, 32(9):29-36. doi: 10.16265/j.cnki.issn1003-3033.2022.09.1251
	WU Xiaoli, YU Shikang, LIU Zhiyao, et al. Study on information highlighting of data graph in nuclear power plant monitoring display interface[J]. China Safety Science Journal, 2022, 32(9):29-36. doi: 10.16265/j.cnki.issn1003-3033.2022.09.1251
[13]	YANG Ying, XU Zili. Analysis and application research of interface design elements for mobile platforms: modeling from the perspective of complexity[C]. 2022 International Conference on Sustainable Computing and Data Communication Systems (ICSCDS). IEEE, 2022: 1439-1442.
[14]	HEALEY C G. Choosing effective colours for data visualization[C]. Proceedings of Seventh Annual IEEE Visualization'96. IEEE, 1996: 263-270.
[15]	蒋建军, 张力, 王以群, 等. 核电厂数字化人-机界面二类任务信息导航调度算法研究[J]. 核动力工程, 2018, 39(1):140-145.
	JIANG Jianjun, ZHANG Li, WANG Yiqun, et al. A scheduling algorithm for information navigation of secondary task of digital human-computer interface in a nuclear power plant[J]. Nuclear Power Engineering, 2018, 39(1):140-145.
[16]	AHN J, LEE S J. Deep learning-based procedure compliance check system for nuclear power plant emergency operation[J]. Nuclear Engineering and Design, 2020,370: DOI:10.1016/j.nucengdes.2020.110868.
[17]	SHANNON C E. A mathematical theory of communication[J]. ACM SIGMOBILE Mobile Computing and Communications Review, 2001, 5(1):3-55.
[18]	PARK J, JUNG W. A study on the validity of a task complexity measure for emergency operating procedures of nuclear power plants:comparing with a subjective workload[J]. IEEE Transactions on Nuclear Science, 2006, 53(5): 2962-2970.

复杂度指标	权重w_j
ILC	0.103 0
GC	0.133 3
TEC	0.128 7
CC	0.124 0
PLC	0.108 7
PSC	0.123 0
MTC	0.137 7
IMTC	0.141 9

节点	相邻节点	类别	节点	相邻节点	类别
S	A、B、C、D、E	1	F、G	A	7
A	F、G	2	I、J	B	8
B	I、J	3	K	C、L、M	9
C	K	4	L、M	K	10
D	N	5	N	D	11
E	O、P	6	O、P	E	12

输入	输出	节点	类别
0	1	a	1
1	0	p、q、r、s、t、v	2
1	1	b	3
2	0	u	4
1	2	c、d、e、g、h、l、o	5
2	2	f,k	6

节点	相邻节点	类别	节点	相邻节点	类别
a	b	1	l	g、o、u	10
b	a、c	2	o	j、t、u	11
c	b、d、p	3	p	c	12
d	c、e、f	4	q	e	13
e	d、f、q	5	r、s	k	14
f	d、e、h、k	6	t	o	15
g	h、k、l	7	u	l、o	16
h	f、g、v	8	v	h	17
k	f、g、r、s	9	—	—	—

复杂度指标	一回路	二回路
ILC	1.275	1.451
GC	2.680	2.922
TEC	2.913	2.913
CC	1.701	1.559
PLC	2.106	1.182
PSC	4.059	3.322
MTC	3.500	2.922
IMTC	3.212	3.212
OTHC	2.870	2.626
