Investigation of corrosivity of HCFO-1233zd(E) with typical metals in storage conditions

doi:10.16265/j.cnki.issn1003-3033.2026.06.1183

Abstract

Abstract:

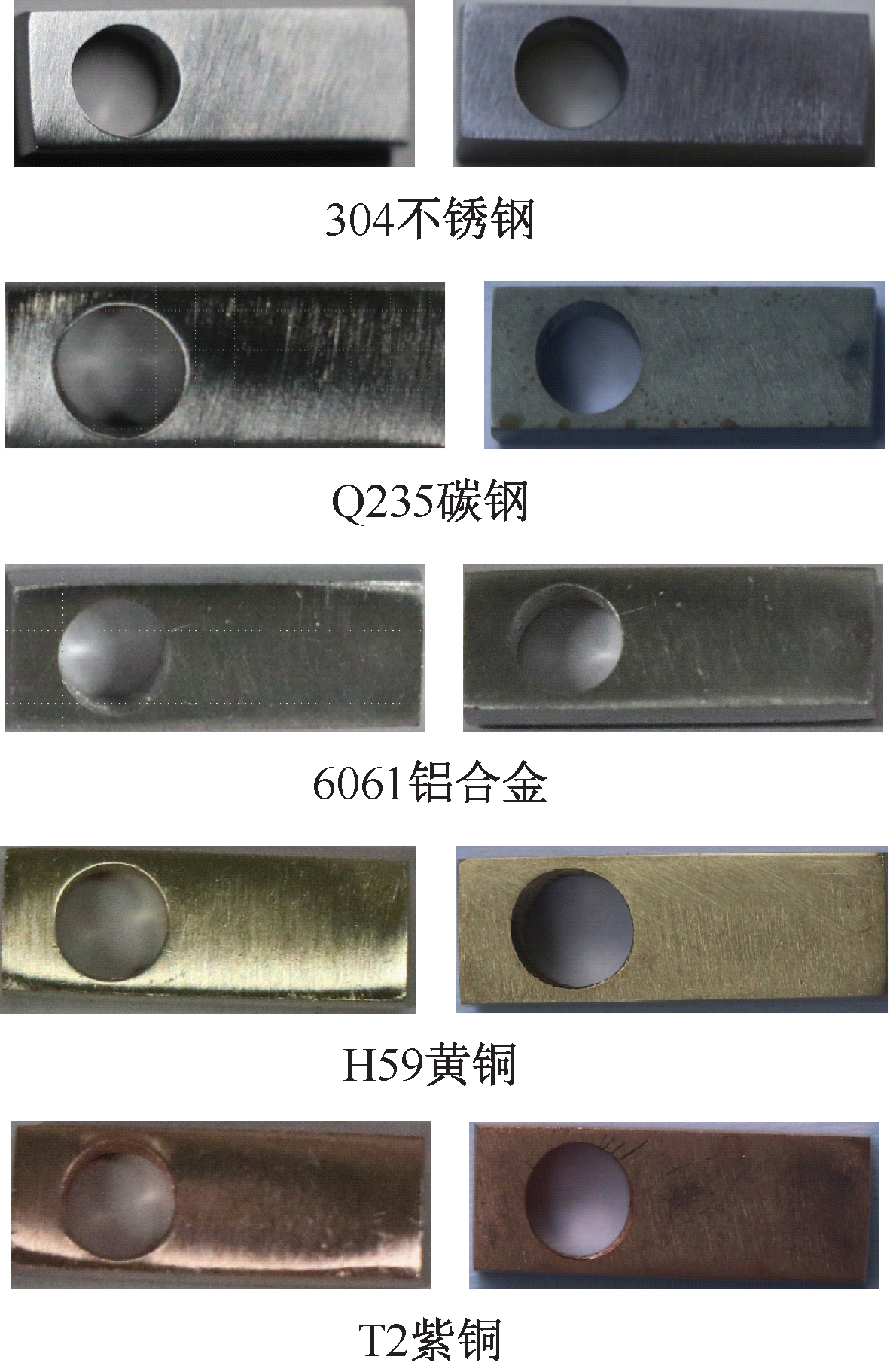

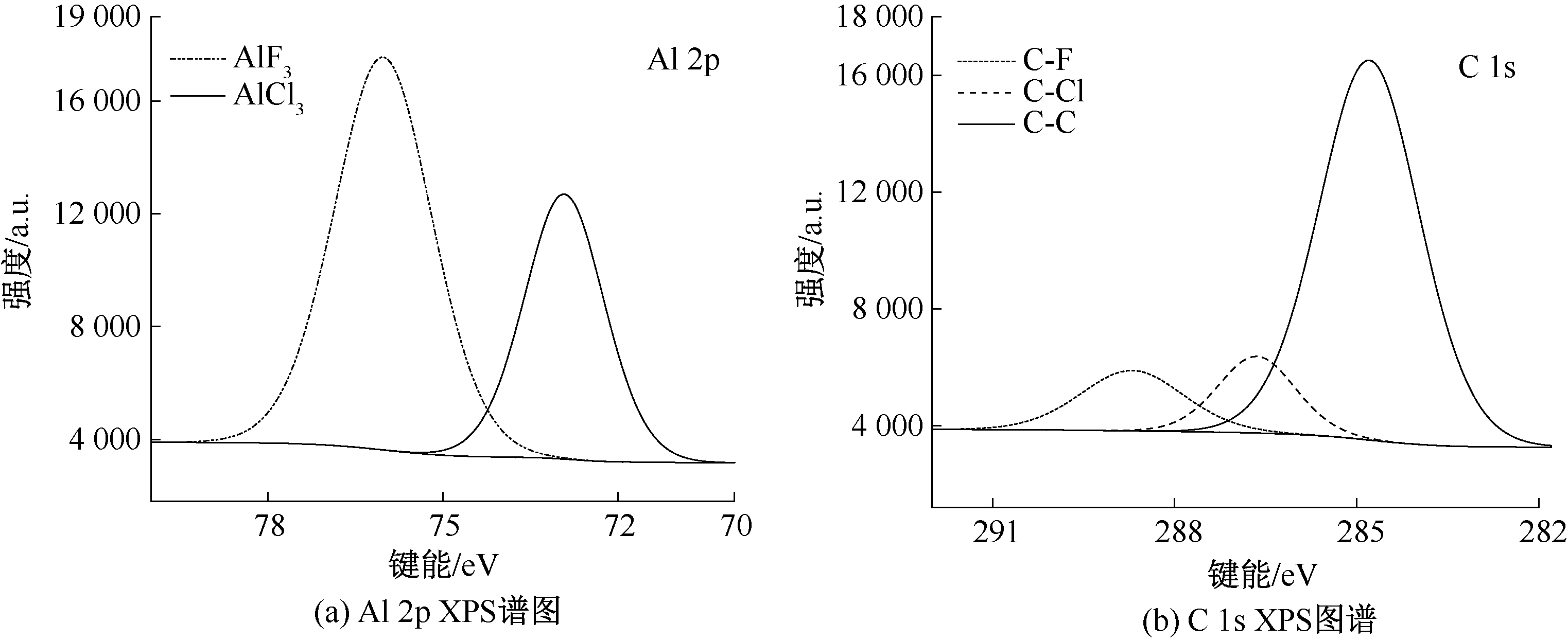

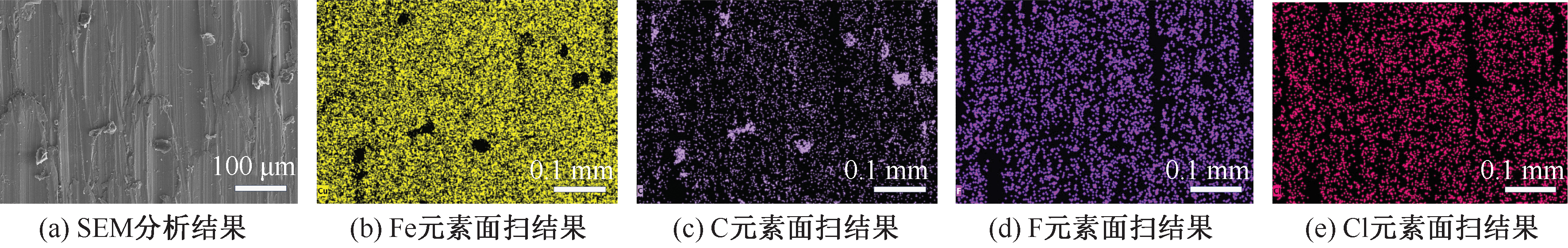

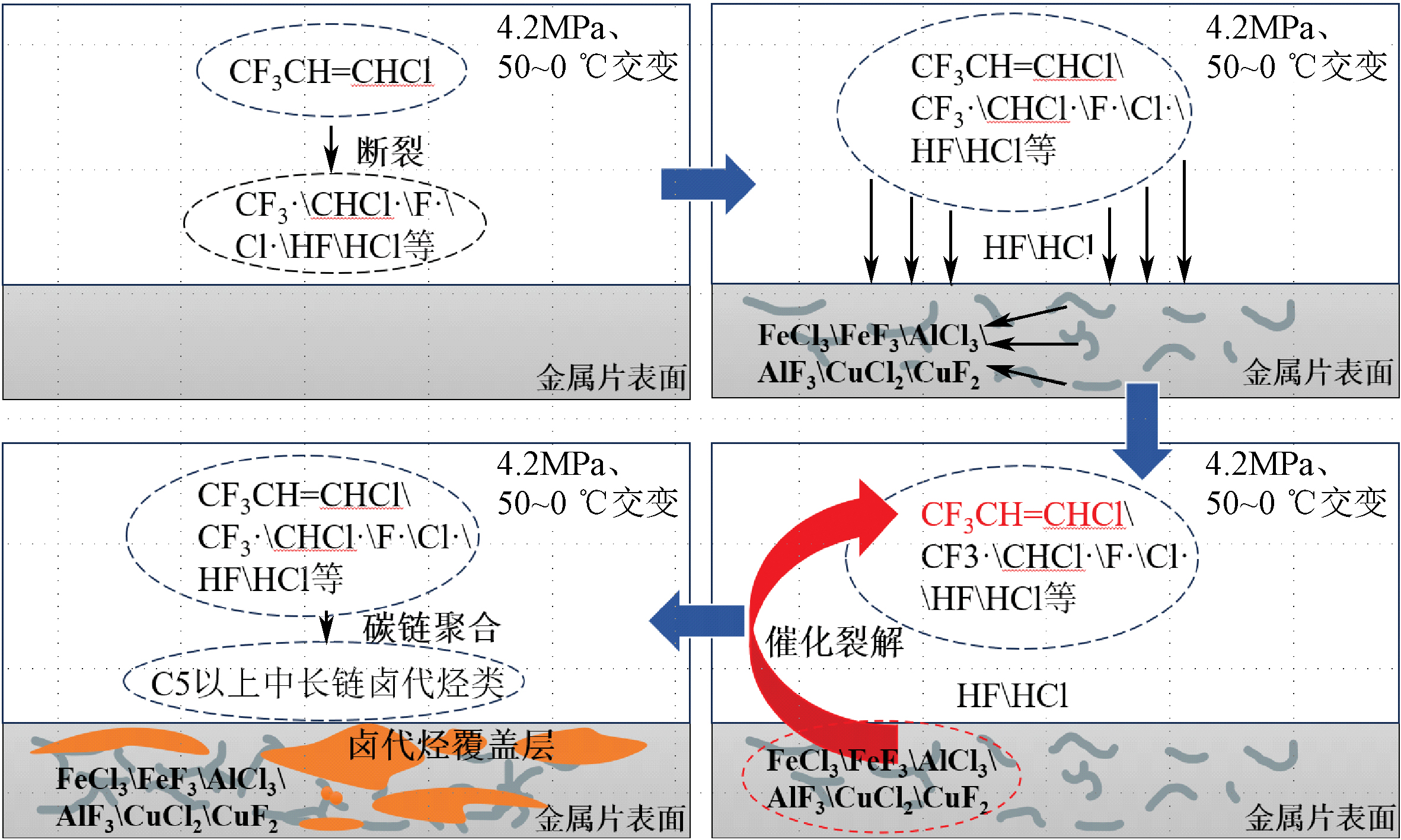

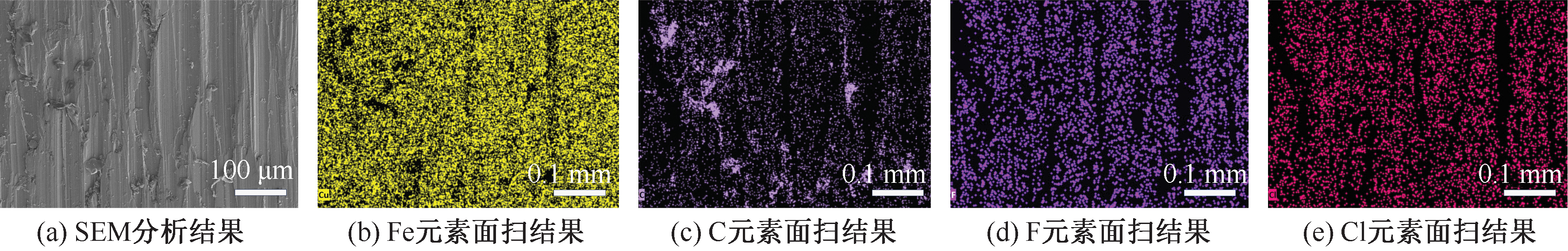

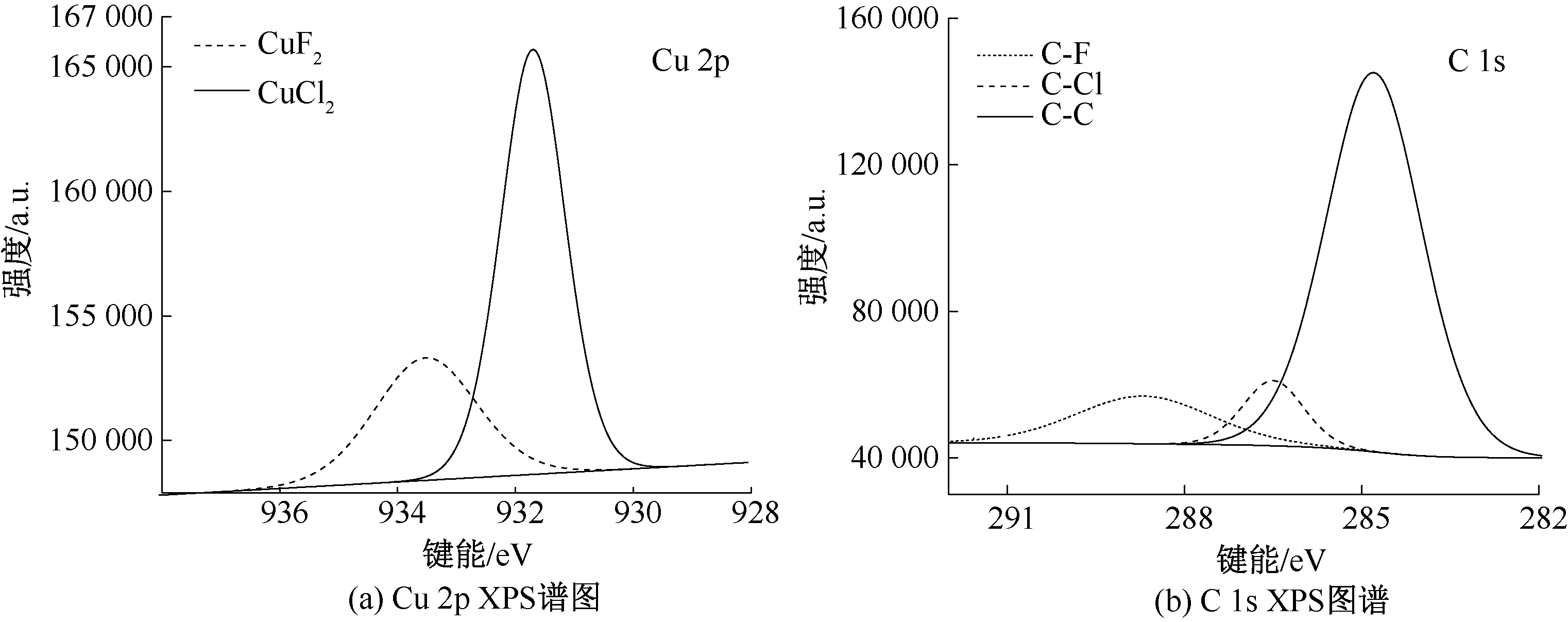

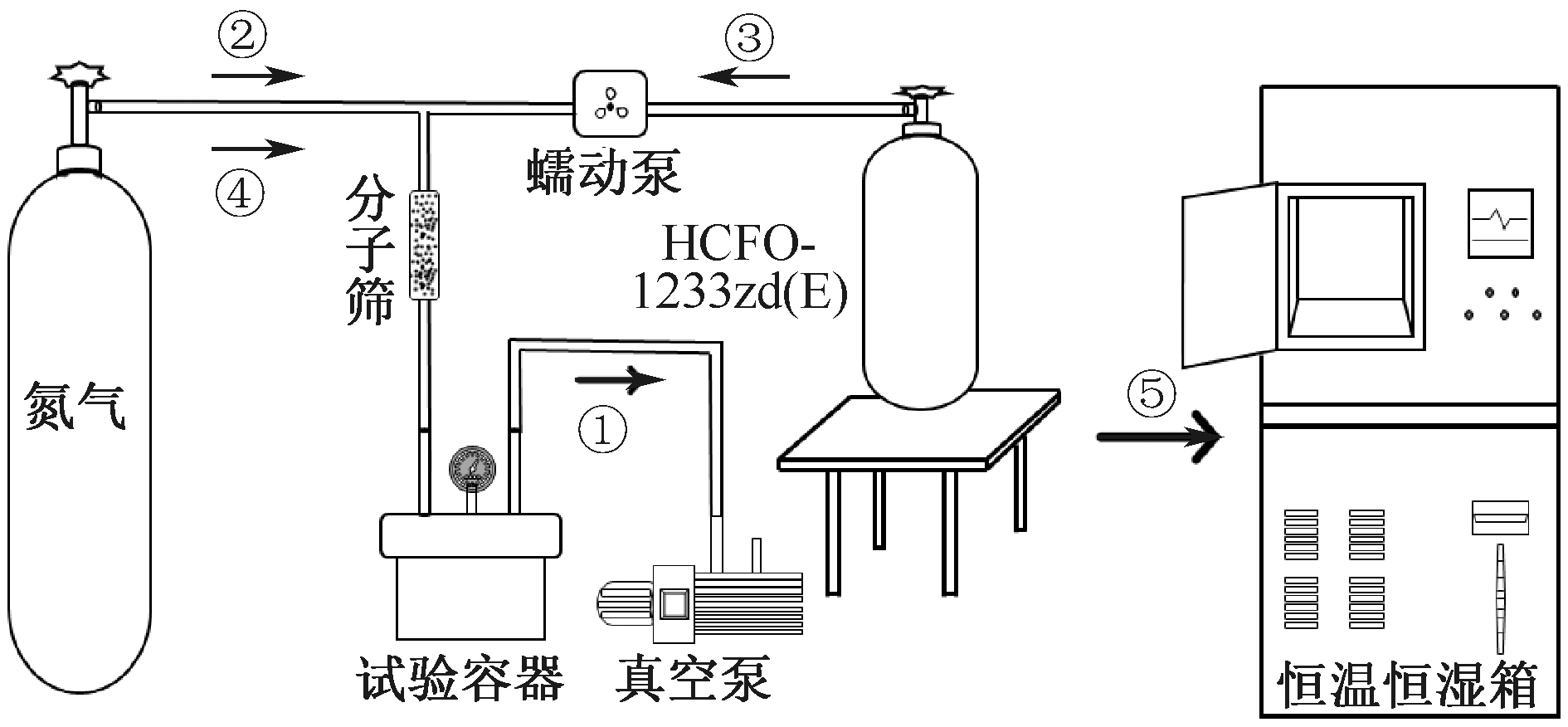

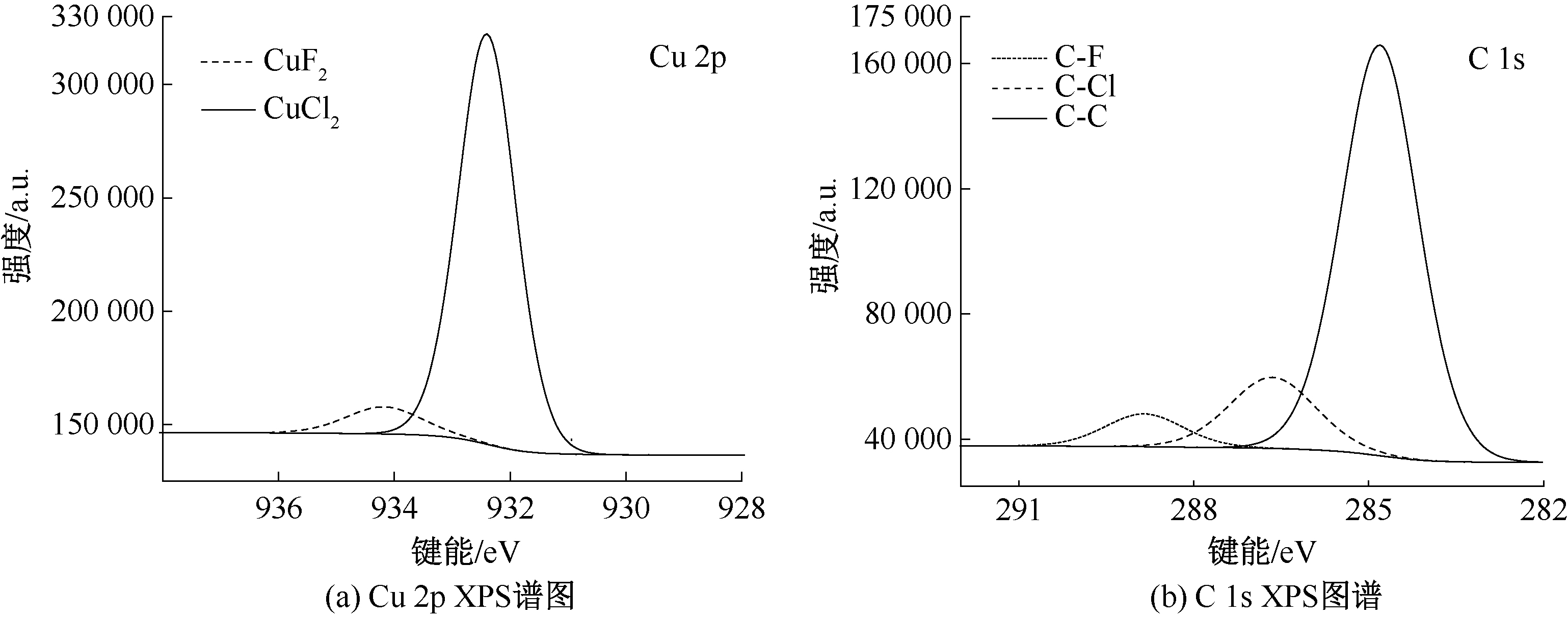

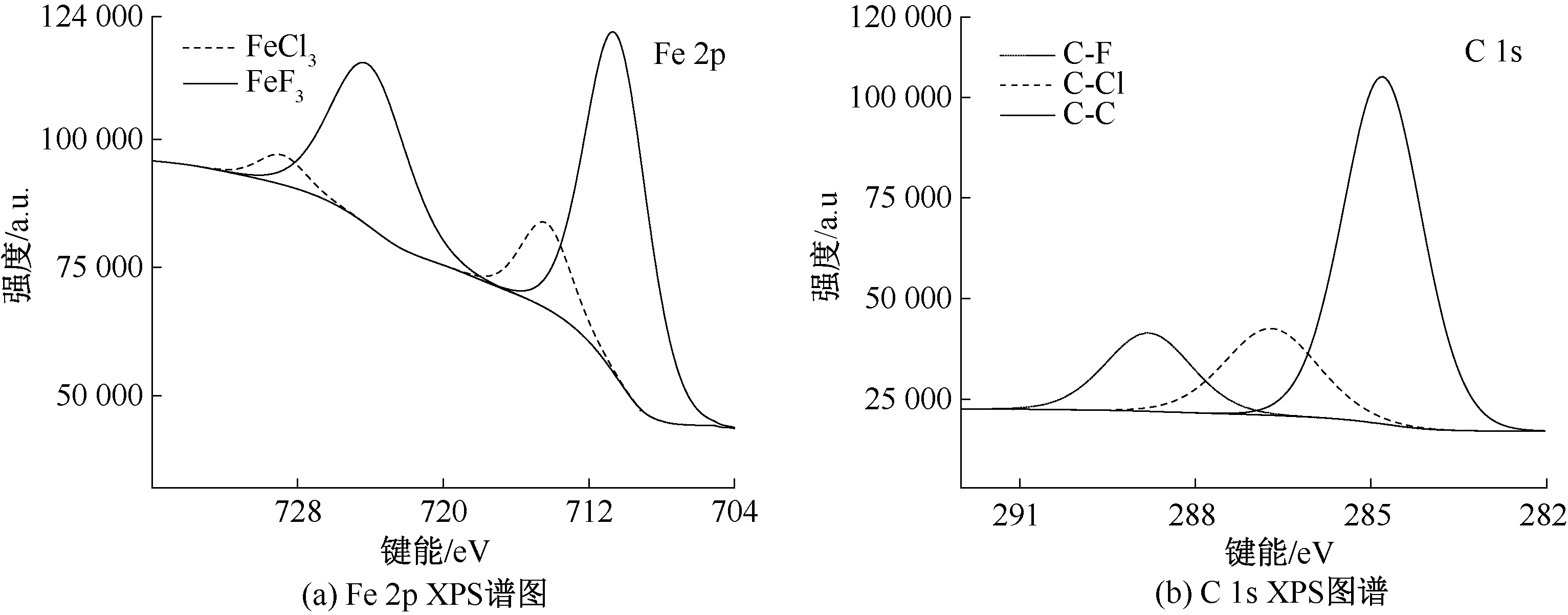

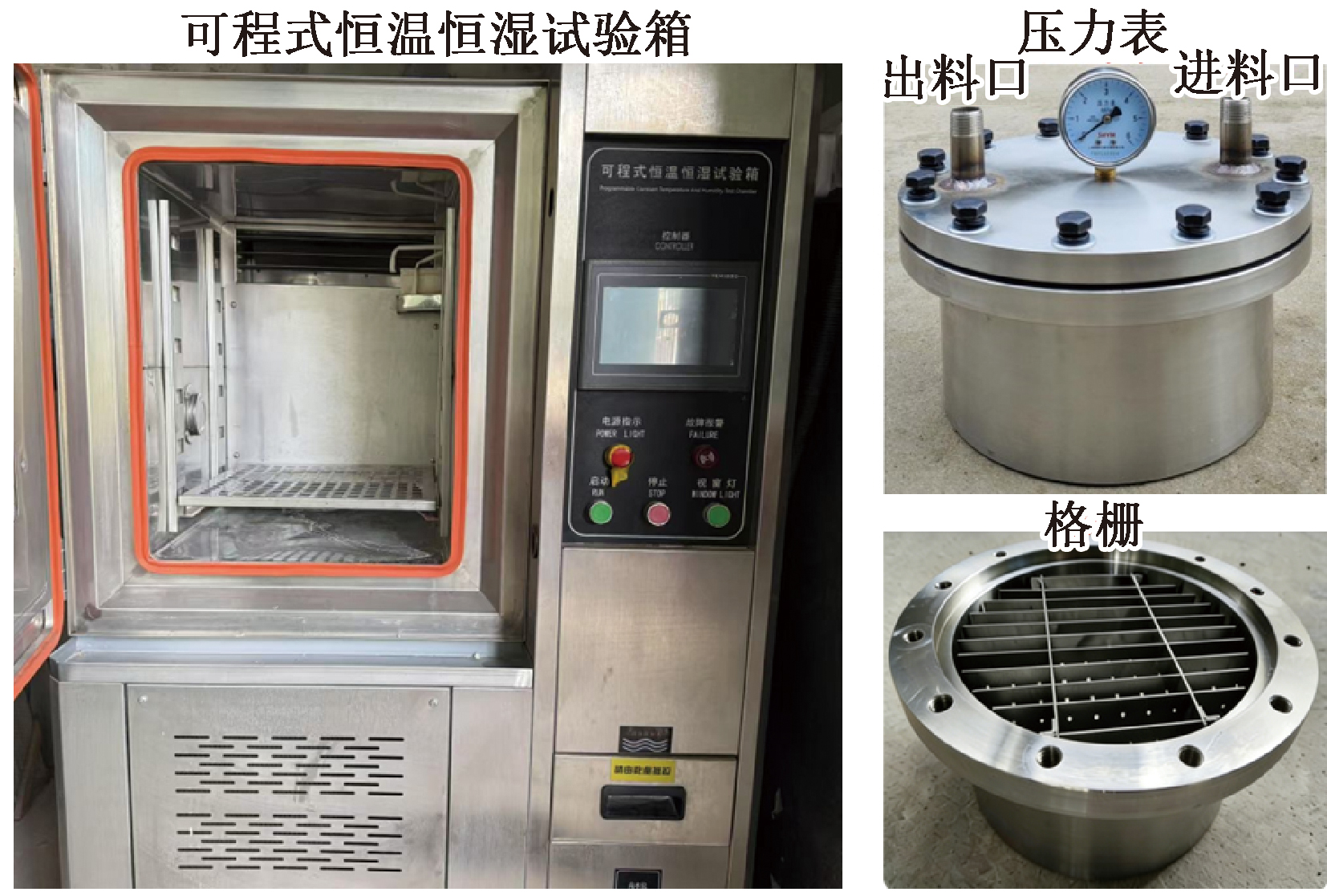

In order to investigate the storage compatibility of the novel environmentally friendly fire extinguishing agent HCFO-1233zd(E), a self-designed corrosion test platform for gas extinguishing agent was utilized. Five representative metal materials commonly used in storage containers (304 stainless steel, Q235 carbon steel, 6061 aluminum alloy, H59 brass, and T2 copper) were selected to simulate the corrosion effects of HCFO-1233zd(E) under high pressure and alternating high-low temperature storage conditions. Corrosion rate, surface morphology, and corrosion products were characterized using an electronic balance, scanning electron microscopy (SEM), energy-dispersive spectroscopy (EDS), and X-ray photoelectron spectroscopy (XPS). The results indicated that the corrosion rates of the five metals follow the order: Q235 carbon steel > 6061 aluminum alloy > 304 stainless steel > H59 brass > T2 copper. Under simulated storage conditions, HCFO-1233zd(E) induced a combined corrosion morphology dominated by uniform corrosion accompanied by localized pitting, with aggregation of blocky and flaky corrosion products observed on the metal surfaces. HCFO-1233zd(E) underwent decomposition under test conditions, generating highly corrosive HF and HCl, which reacted with the metal substrates to form halides. The generated metal halides, in turn, catalyze the decomposition of HCFO-1233zd(E). Meanwhile, short-chain organic compounds produced from the decomposition underwent chain polymerization, forming medium- to long-chain halogenated hydrocarbons that deposited on the metal surfaces. These organic deposits provided a certain physical barrier, which helped to retard further progression of the corrosion process.

Key words: storage condition, trans-1-Chloro-3,3,3-trifluoropropene(HCFO-1233zd(E)), typical metal, corrosion behaviors, corrosion rate, corrosion products

CLC Number:

X941

Liu Hao, Lyu Xizhen, Chen Ruiyu. Investigation of corrosivity of HCFO-1233zd(E) with typical metals in storage conditions[J]. China Safety Science Journal, 2026, 36(6): 161-169.

Figures/Tables 16

Fig.1

Fig.2

Table 1

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

Fig.15

References 17

[1]	王凯, 王德政, 周彪, 等. 全氟丁基甲醚灭火性能及机制[J]. 中国安全科学学报, 2023, 33(12):47-52.
	Wang Kai, Wang Dezheng, Zhou Biao, et al. Fire extinguishing performance and fire extinguishing mechanism of perfluorobutyl methyl ether[J]. China Safety Science Journal, 2023, 33(12):47-52. doi: 10.16265/j.cnki.issn1003-3033.2023.12.0775
[2]	Araya S, Wemhoff A P, Jones G F, et al. An experimental study of an Organic Rankine Cycle utilizing HCFO-1233zd(E) as a drop-in replacement for HFC-245fa for ultra-low-grade waste heat recovery[J]. Applied Thermal Engineering, 2020,18: DOI:10.1016/j.applthermaleng.2020.115757.
[3]	张春义, 朱戈, 田志勇, 等. 加氢反应器接管法兰密封槽失效原因分析及改进措施[J]. 中国安全科学学报, 2024, 34(12):100-107. doi: 10.16265/j.cnki.issn1003-3033.2024.12.0102
	Zhang Chunyi, Zhu Ge, Tian Zhiyong, et al. Failure analysis and improvement measures of hydrogenation reactor flange sealing groove[J]. China Safety Science Journal, 2024, 34(12).100-107. doi: 10.16265/j.cnki.issn1003-3033.2024.12.0102
[4]	齐仲龙, 杨会娥, 杨刚, 等. HCFO-1233zd(E)的合成与应用[J]. 有机氟工业, 2015(2):29-31.
	Qi Zhonglong, Yang Huie, Yang Gang, et al. Synthesis and application of trans-1-chloro-3,3,3-trifluoropropene[J]. Organo-Fluorine Industry, 2015(2):29-31.
[5]	Bellabarba R M. Catalysts for modern fluorinated refrigerants[J]. Journal of Fluorine Chemistry, 2021,244: DOI:10.1016/j.jfluchem.2021.109741.
[6]	Zhang Xinxin, Li Yingzhen. A review of recent research on hydrofluoroolefin (HFO) and hydrochlorofluoroolefin (HCFO) refrigerants[J]. Energy, 2024,311:DOI:10.1016/j.energy.2024.133423.
[7]	Qu Haozheng, Tatman J, Wharry J P. Chloride-induced stress corrosion cracking in Austenitic steels for SNF storage canisters-recent understanding and advances in mitigation and repair[J]. Journal of Nuclear Materials, 2024,596: DOI:10.1016/j.jnucmat.2024.155080.
[8]	Bai Huilin, Huang Xin, Zhou Xiaomeng. Corrosion study of the clean fire extinguishing gas 2-BTP on typical magnesium alloy AZ80A in different temperature environments[J]. Vacuum, 2023,217:DOI:10.1016/j.vacuum.2023.112520.
[9]	Huang Xin, Bai Huilin, Zhou Xiaomeng. Study on corrosion mechanism of the low-GWP fluorinated gas HFO-1234yf with magnesium alloy AZ80A[J]. Engineering Failure Analysis, 2023,150:DOI:10.1016/j.engfailanal.2023.107202.
[10]	Fang Xiuxiu, Liao Wenmin, Song Jiandong, et al. Effect of Fe promotion on the performance of V2O5/MgF2 catalysts for gas-phase dehydrofluorination of 1,1,1,3,3-pentafluoropropane[J]. Applied Surface Science, 2019, 490:365-371. doi: 10.1016/j.apsusc.2019.06.103
[11]	Jasien P G. The role of AlCl3 and Al2Cl6 in the catalyzed decomposition of organic halides[J]. The Journal of Physical Chemistry, 1995, 99(17):6502-6508. doi: 10.1021/j100017a034
[12]	Lago R, Green M, Tsang S, et al. Catalytic decomposition of chlorinated organics in air by copper chloride based catalysts[J]. Applied Catalysis B: Environmental, 1996, 8(1):107-121. doi: 10.1016/0926-3373(95)00055-0
[13]	Xin Liyong, Liu Chao, Tan Luxi, et al. Thermal stability and pyrolysis products of HFO-1234yf as an environment-friendly working fluid for Organic Rankine Cycle[J]. Energy, 2021,228:DOI:10.1016/j.energy.2021.120564.
[14]	Chen Yangui, He Hongzhou, Liu Zhongqing. Application of the global search algorithm to analyze the kinetic mechanism of the thermal decomposition of flexible polyurethane foam[J]. Progress in Reaction Kinetics and Mechanism, 2021,46:DOI:10.1177/1468678320982185.
[15]	Azim A A, Sanad S. Effects of acid concentration, C-content and temperature on the corrosion rate of steel in HCl[J]. Corrosion Science, 1972, 12(4):313-324. doi: 10.1016/S0010-938X(72)90949-3
[16]	Ross J, Roberts M, Kemball C. Adsorption of neopentane on tungsten and palladium films[J]. Journal of the Chemical Society, Faraday Transactions 1: Physical Chemistry in Condensed Phases, 1972, 68:914-924. doi: 10.1039/f19726800914
[17]	Chen Long, Smith R S, Kay B D, et al. Adsorption of small hydrocarbons on rutile TiO₂ (110)[J]. Surface Science, 2016, 650:83-92. doi: 10.1016/j.susc.2015.11.002

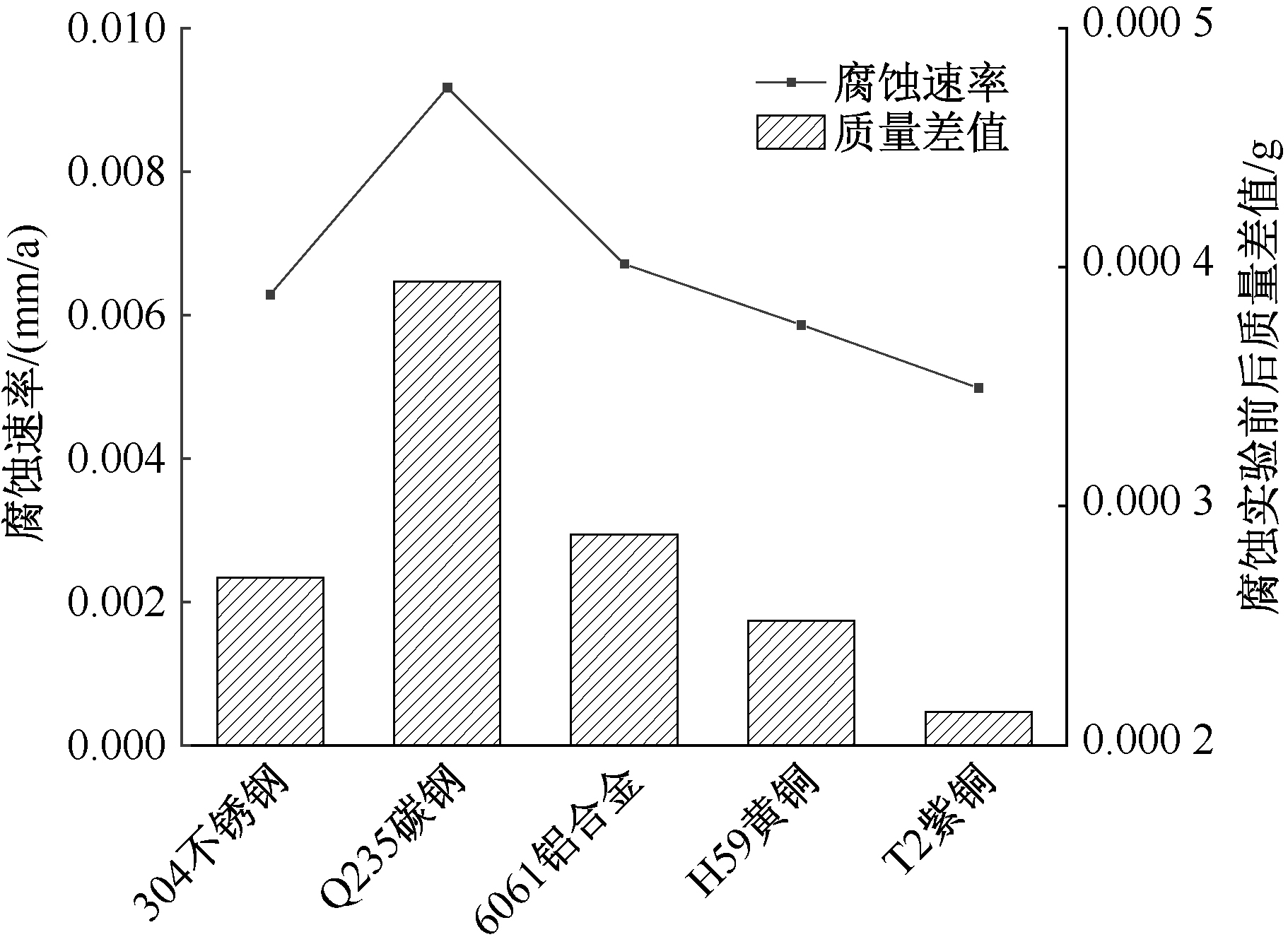

金属种类	M/g	M₁/g	差值/g	腐蚀速率/ (mm/a)
304不锈钢	1. 839 52	1. 839 25	0. 000 27	0. 006 283
Q235碳钢	1. 903 52	1. 903 12	0. 000 394	0. 009 168
6061铝合金	0. 654 50	0. 654 21	0. 000 288	0. 006 71
H59黄铜	1. 712 09	1. 711 84	0. 000 252	0. 005 862
T2紫铜	1. 862 80	1. 862 58	0. 000 214	0. 004 982
